TimeCutter Z5060 Riding Mower

TimeCutter Z5060 Riding Mower

TimeCutter Z5060 Riding Mower

Product Information

  • Model #: 74375
  • Serial #: 290000001 - 290000199
  • Product Type: Riding Products

Search for a part within assembly drawings:

Showing Results

Drawing Title Part Number Description
Title

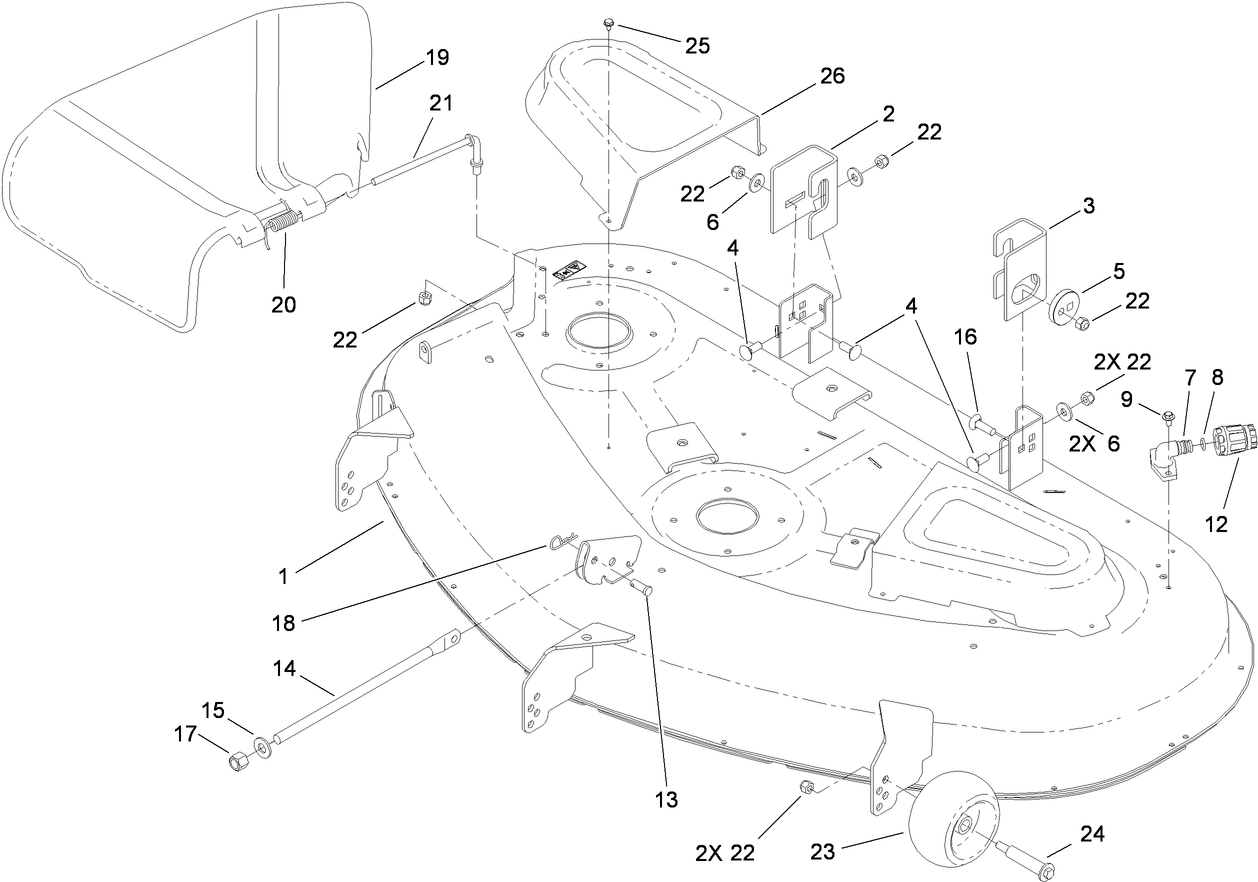

50 Inch Deck and Side Dicharge Assembly
50 Inch Deck and Side Dicharge Assembly
50 Inch Deck Decal Assembly No. 117-1291
50 Inch Deck Decal Assembly No. 117-1291

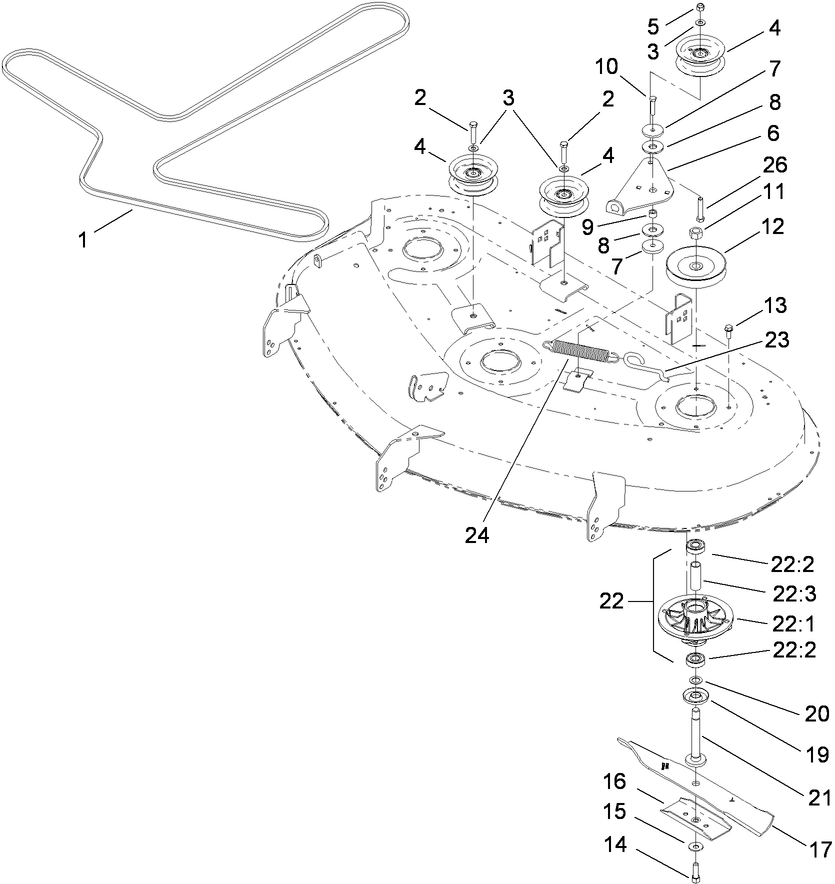

50 Inch Deck Spindle and Drive Belt Assembly
50 Inch Deck Spindle and Drive Belt Assembly

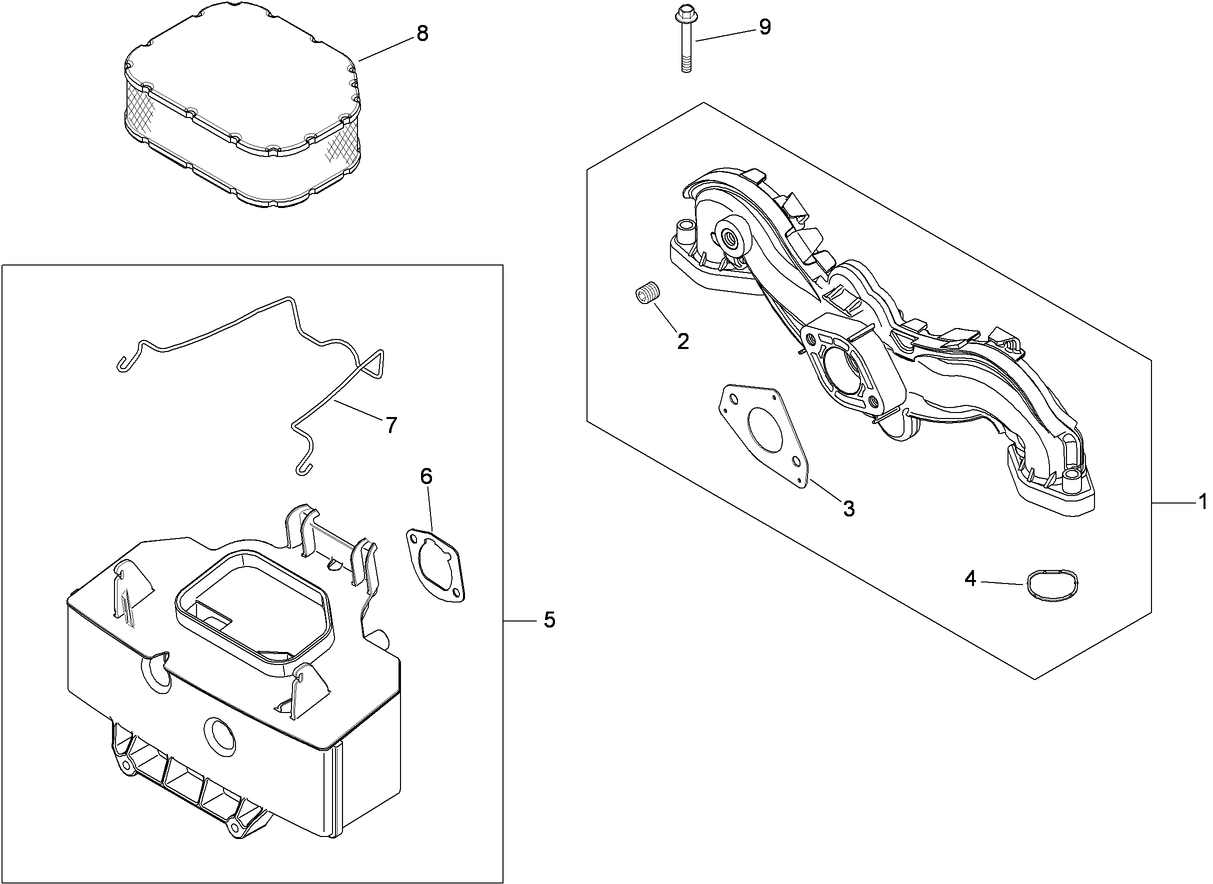

Air Intake and Filtration Assembly Kohler SV730-0029
Air Intake and Filtration Assembly Kohler SV730-0029

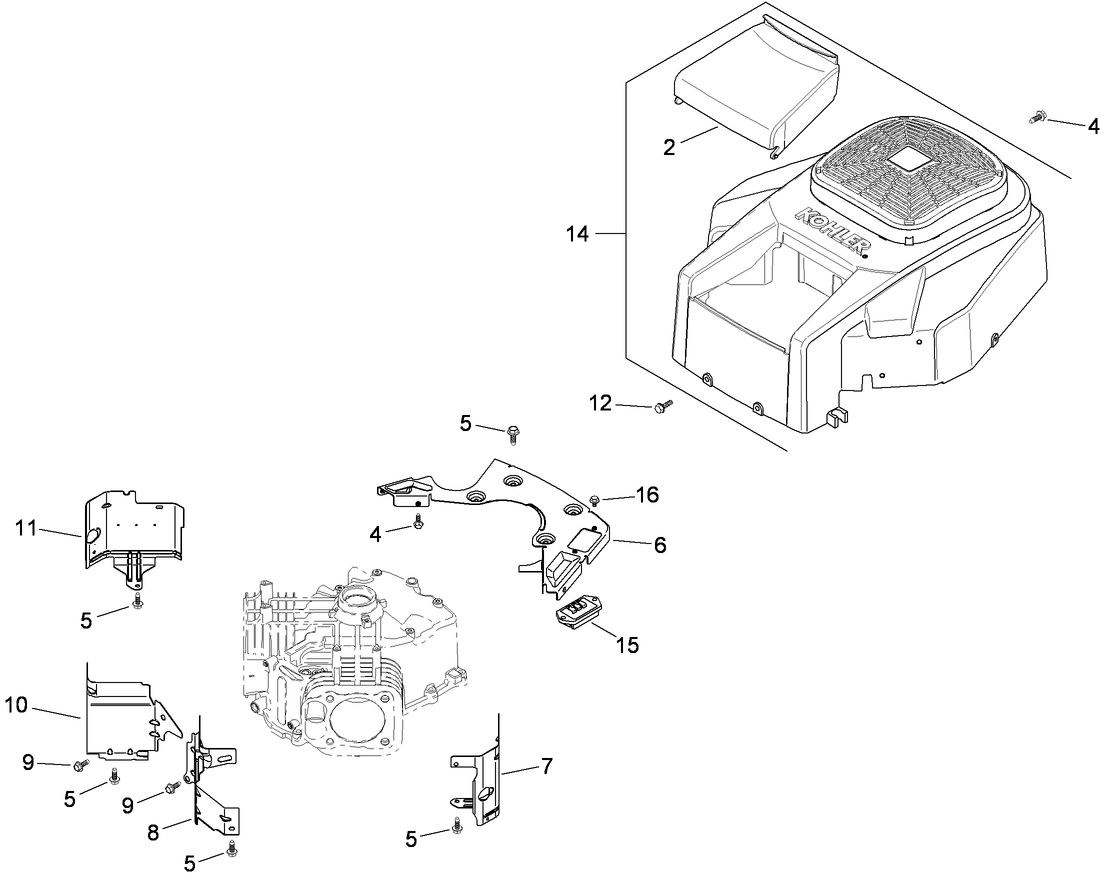

Blower Housing Assembly Kohler SV730-0029
Blower Housing Assembly Kohler SV730-0029
Control Assembly
Control Assembly

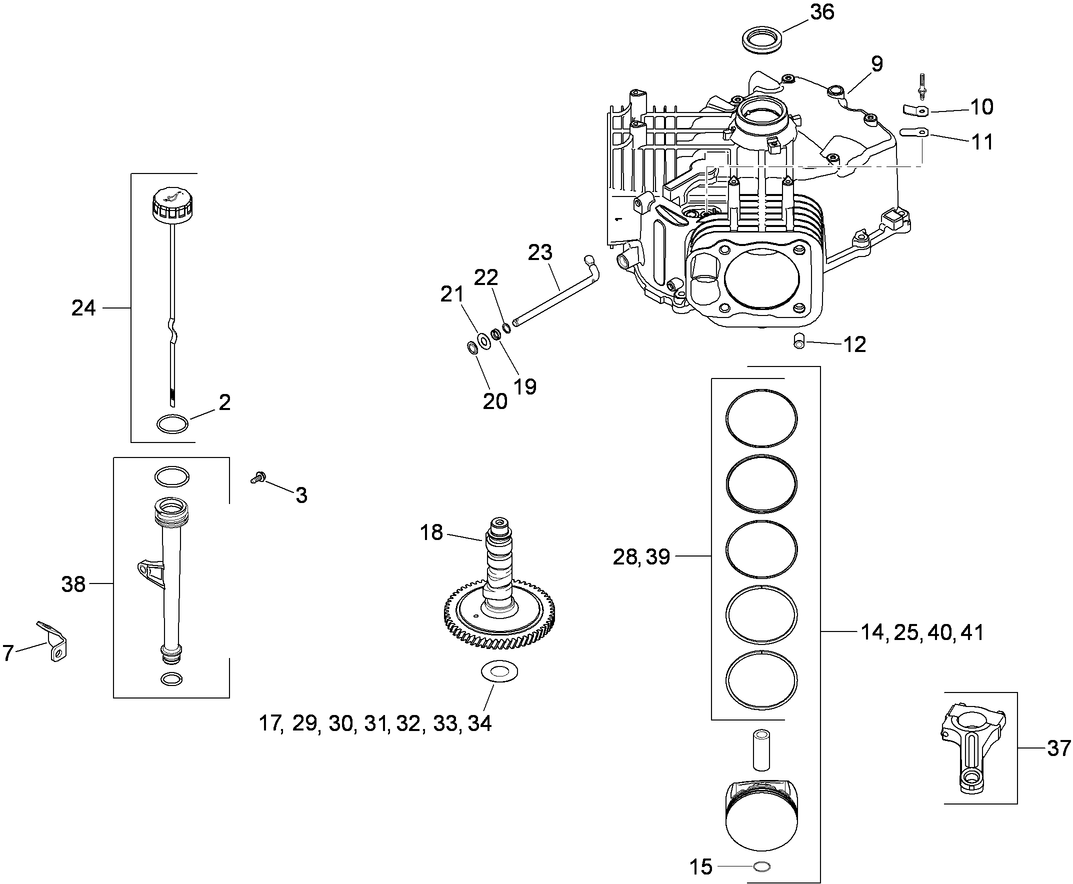

Crankcase Assembly Kohler SV730-0029
Crankcase Assembly Kohler SV730-0029

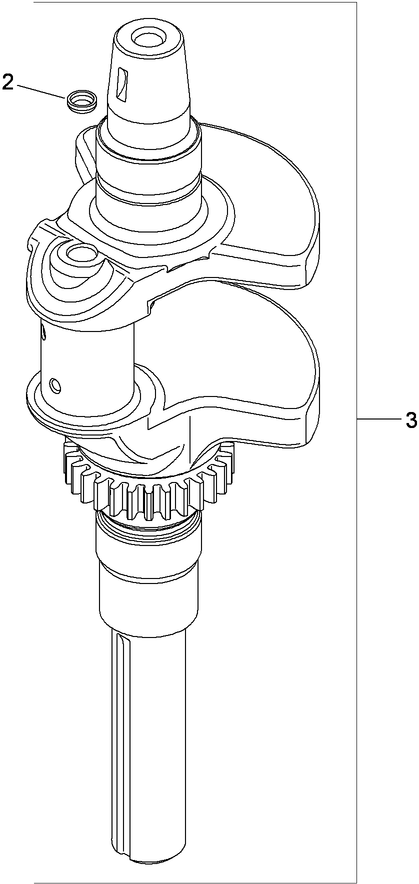

Crankshaft Assembly Kohler SV730-0029
Crankshaft Assembly Kohler SV730-0029

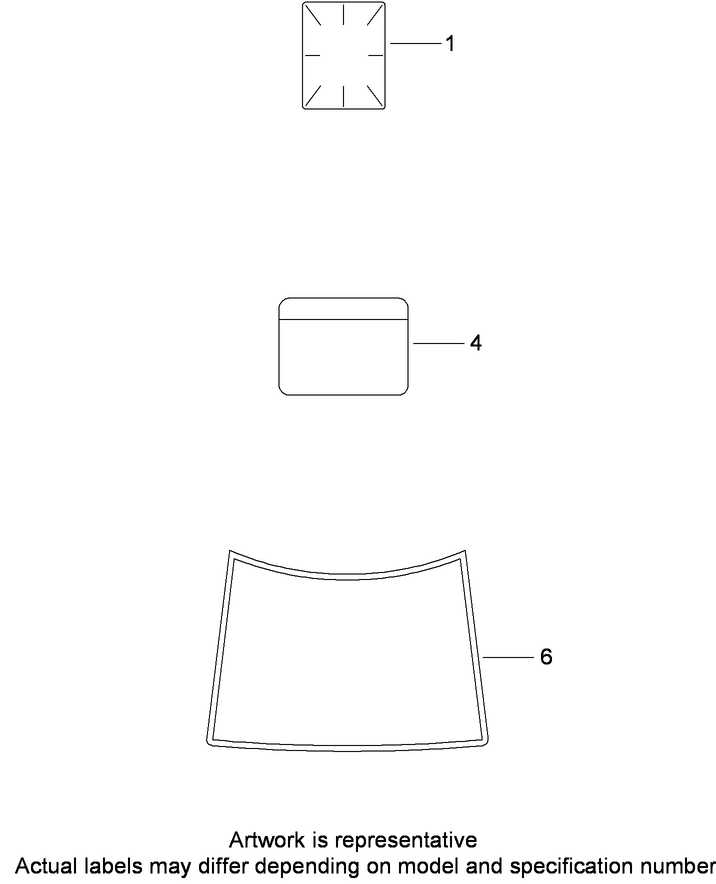

Decals Kohler SV730-0029
Decals Kohler SV730-0029

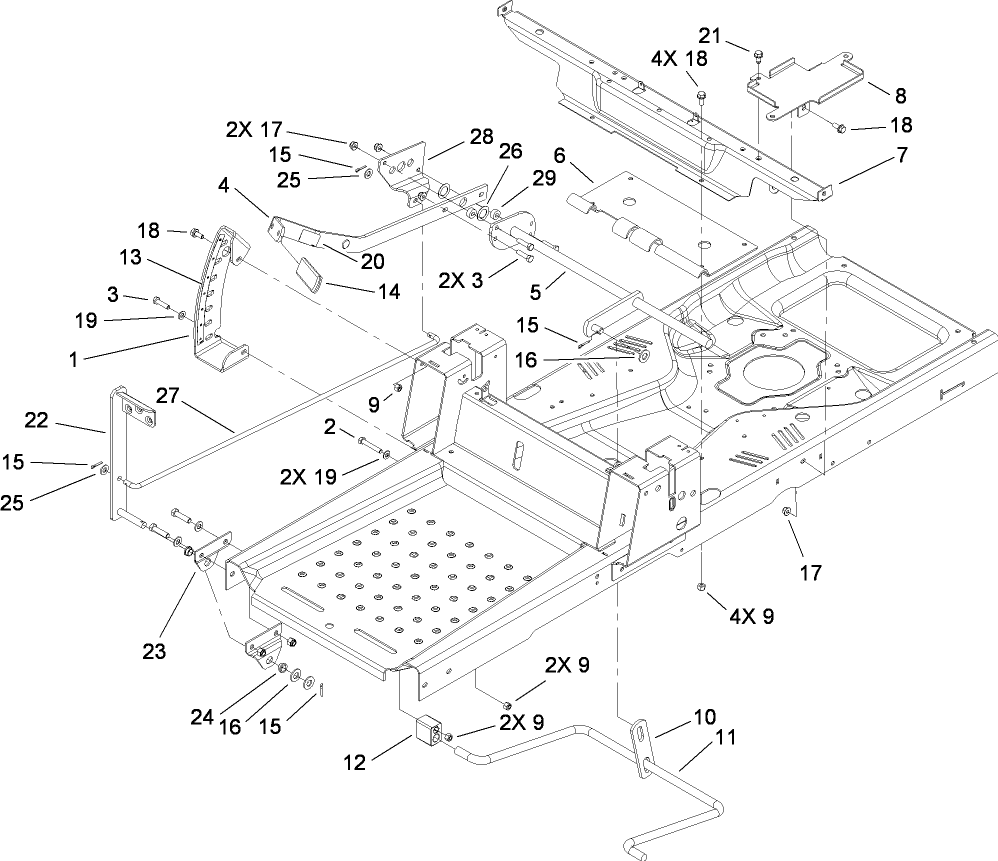

Deck Lift and Seat Support Assembly
Deck Lift and Seat Support Assembly
Electrical Assembly
Electrical Assembly

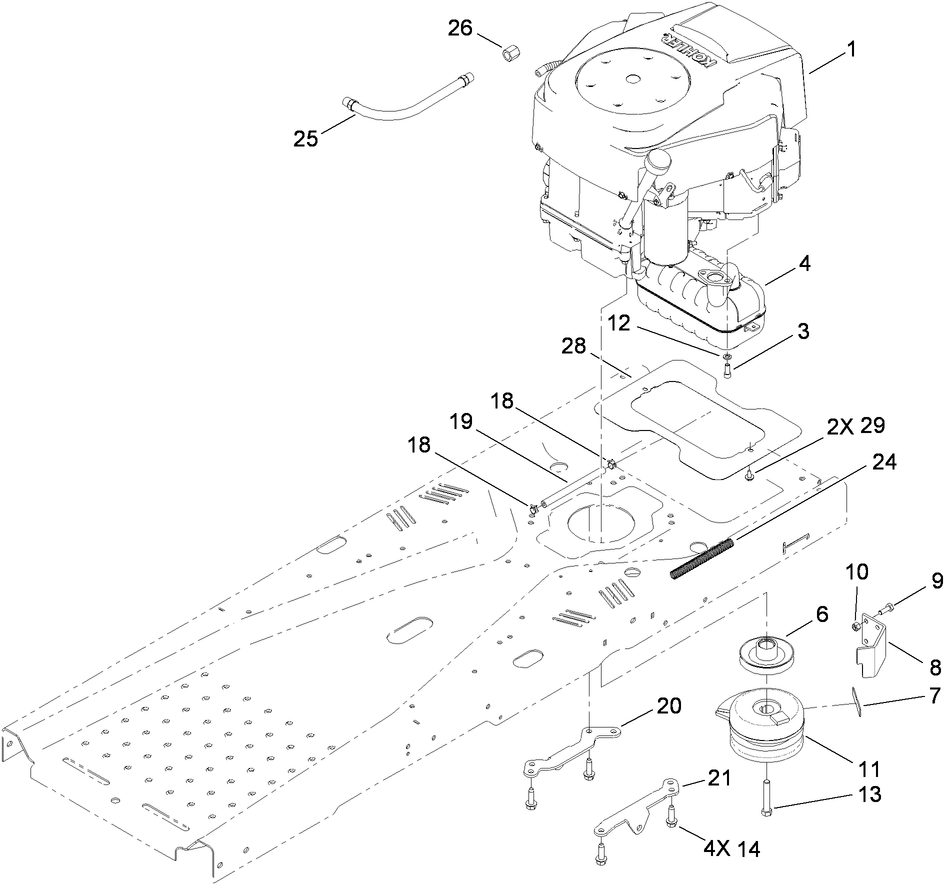

Engine and Clutch Assembly
Engine and Clutch Assembly

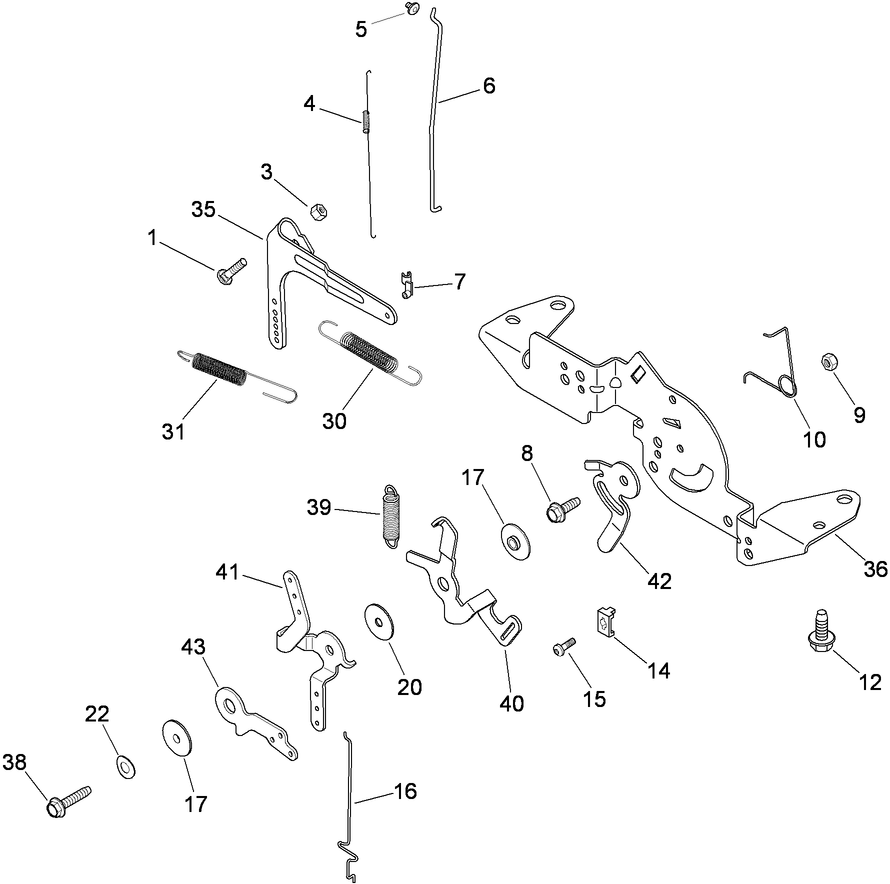

Engine Control Assembly Kohler SV730-0029
Engine Control Assembly Kohler SV730-0029

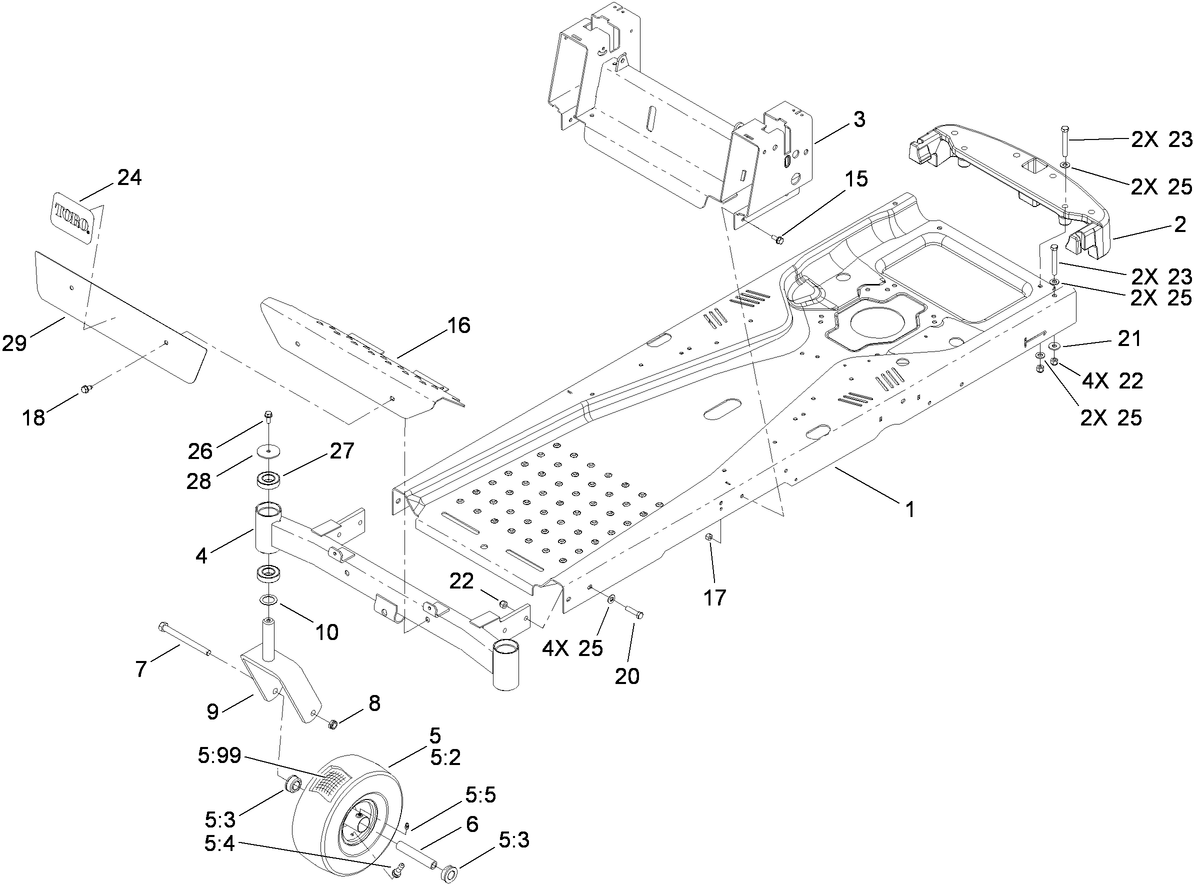

Frame and Castor Wheel Assembly
Frame and Castor Wheel Assembly

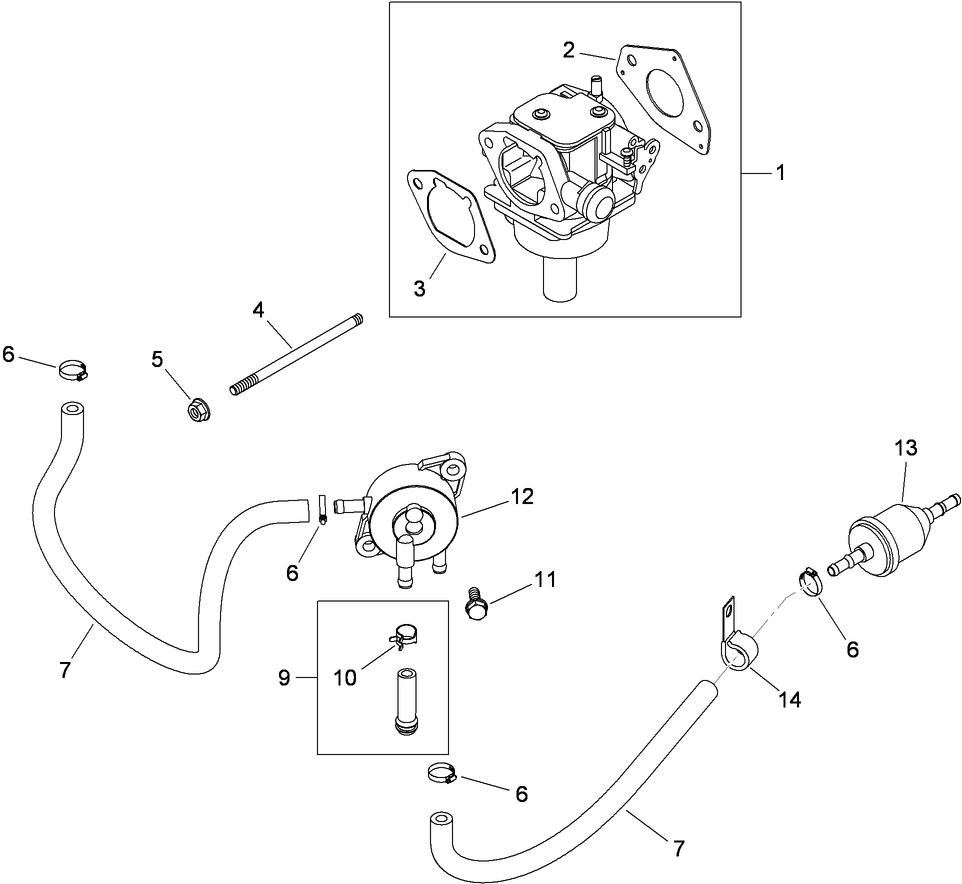

Fuel System Assembly Kohler SV730-0029
Fuel System Assembly Kohler SV730-0029

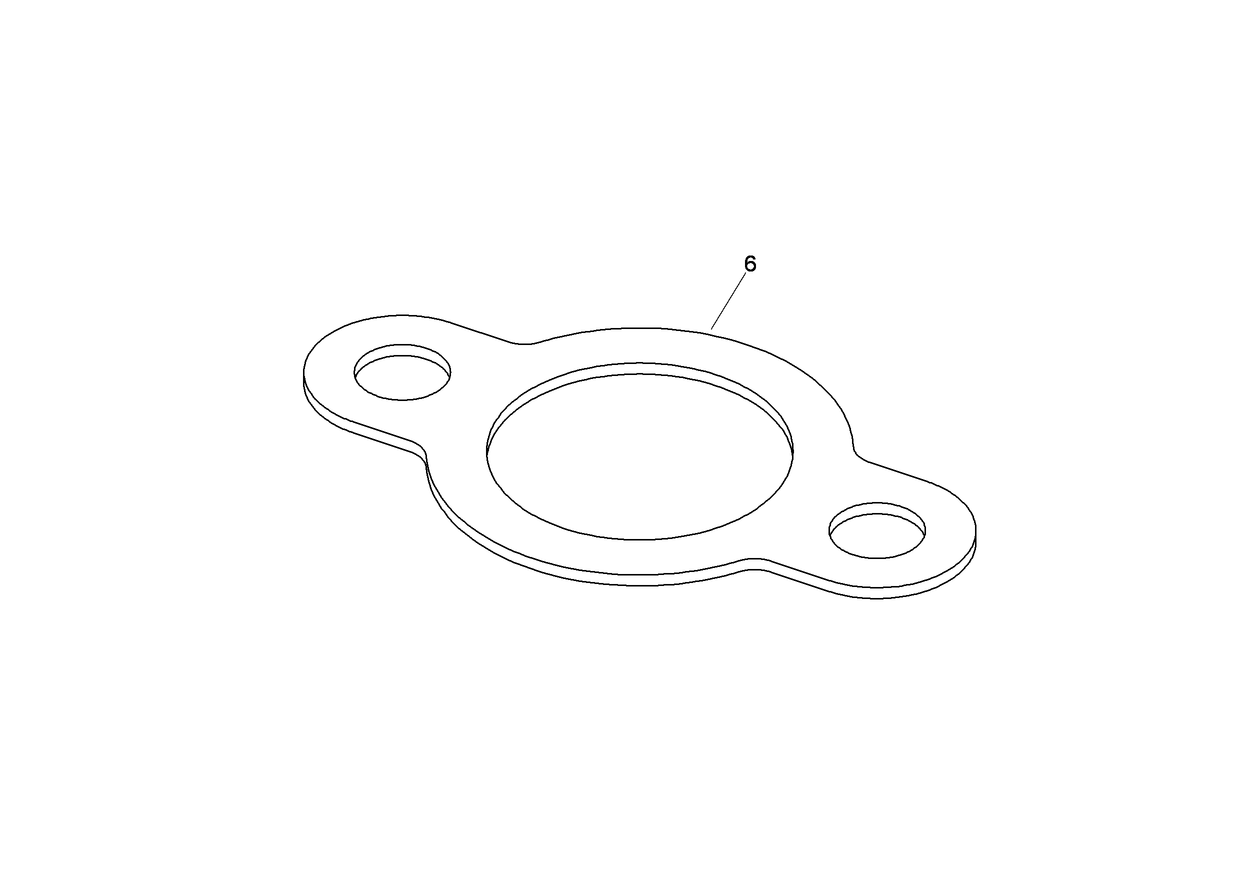

Gaskets Kohler SV730-0029
Gaskets Kohler SV730-0029

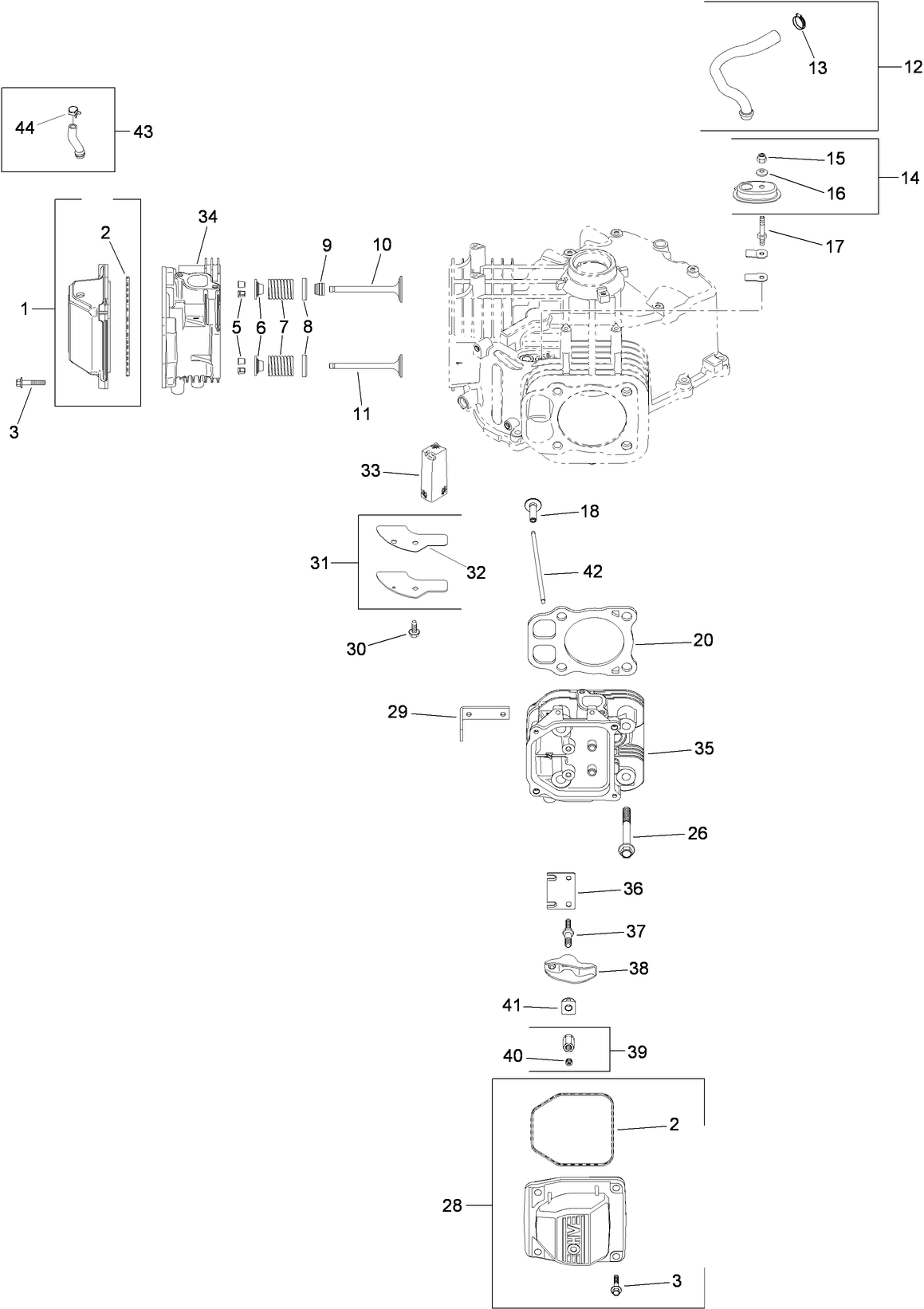

Head, Valve and Breather Assembly Kohler SV730-0029
Head, Valve and Breather Assembly Kohler SV730-0029

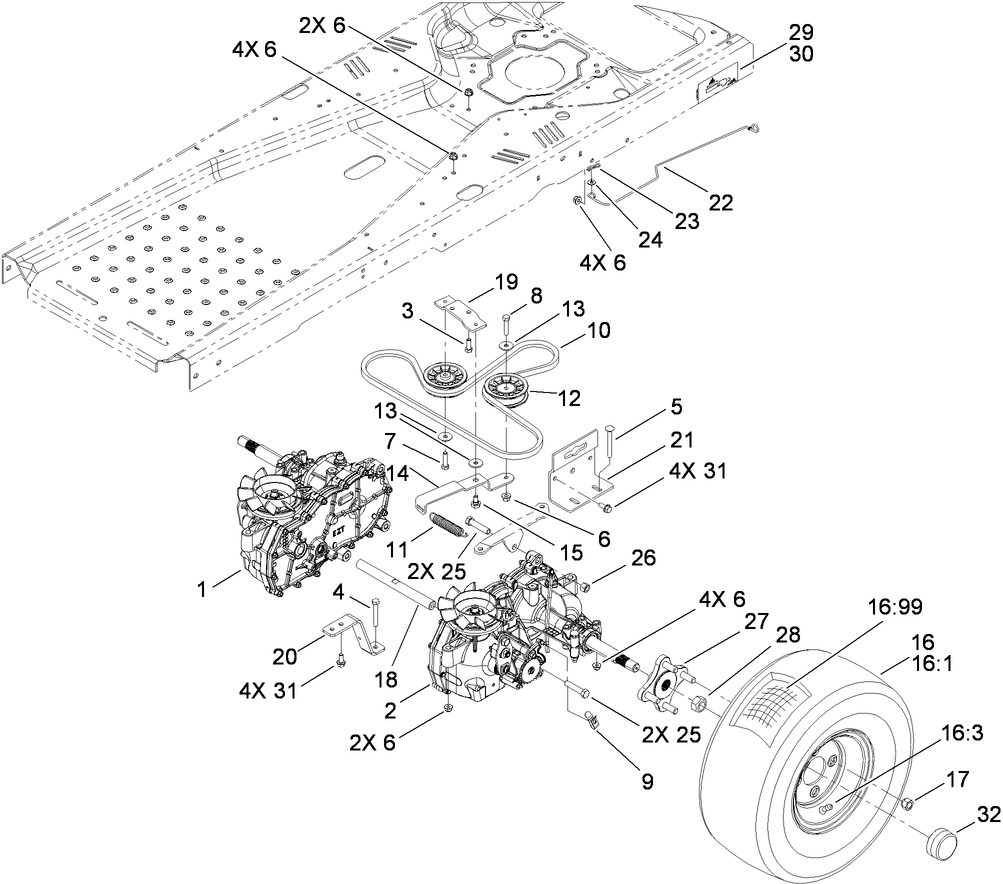

Hydro Drive Assembly
Hydro Drive Assembly
Ignition and Electrical Assembly Kohler SV730-0029
Ignition and Electrical Assembly Kohler SV730-0029
LH Hydro Assembly No. 110-6770
LH Hydro Assembly No. 110-6770

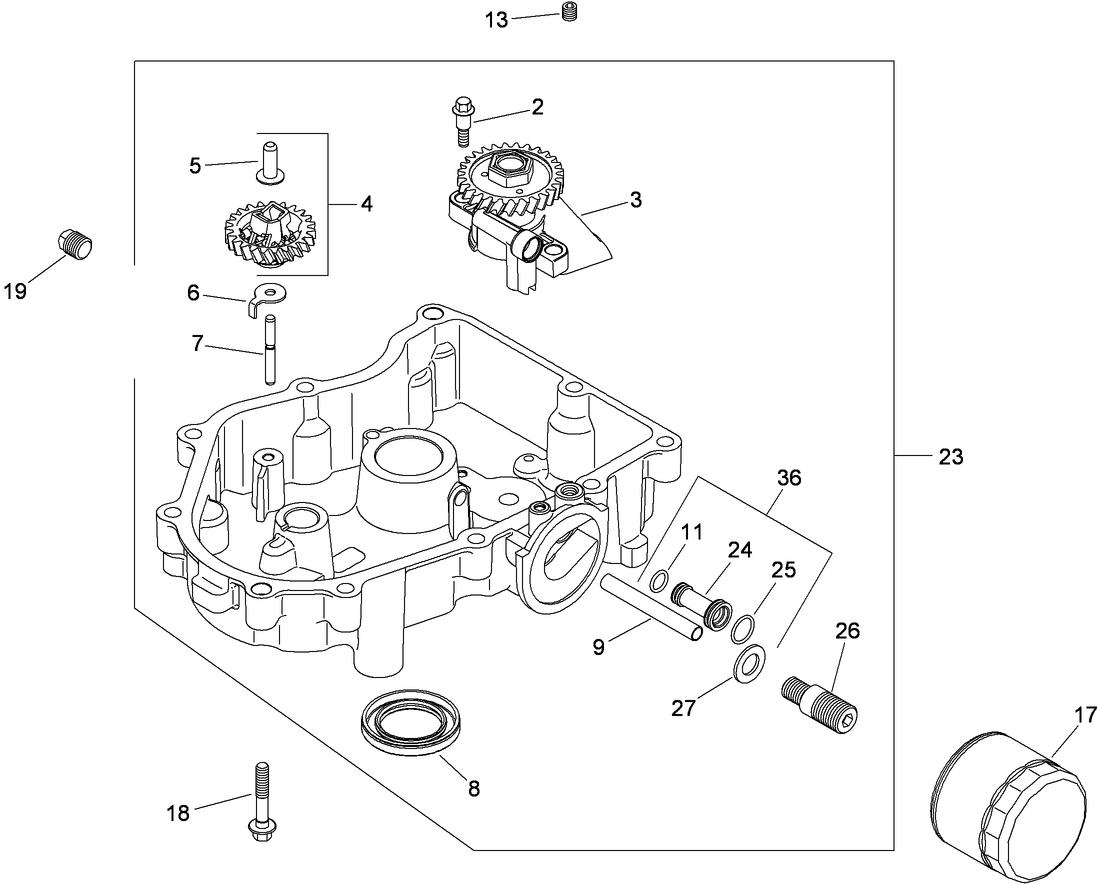

Oil Pan and Lubrication Assembly Kohler SV730-0029
Oil Pan and Lubrication Assembly Kohler SV730-0029
RH Hydro Assembly No. 110-6771
RH Hydro Assembly No. 110-6771
Seat and Armrest Kit Assembly No. 117-1227
Seat and Armrest Kit Assembly No. 117-1227

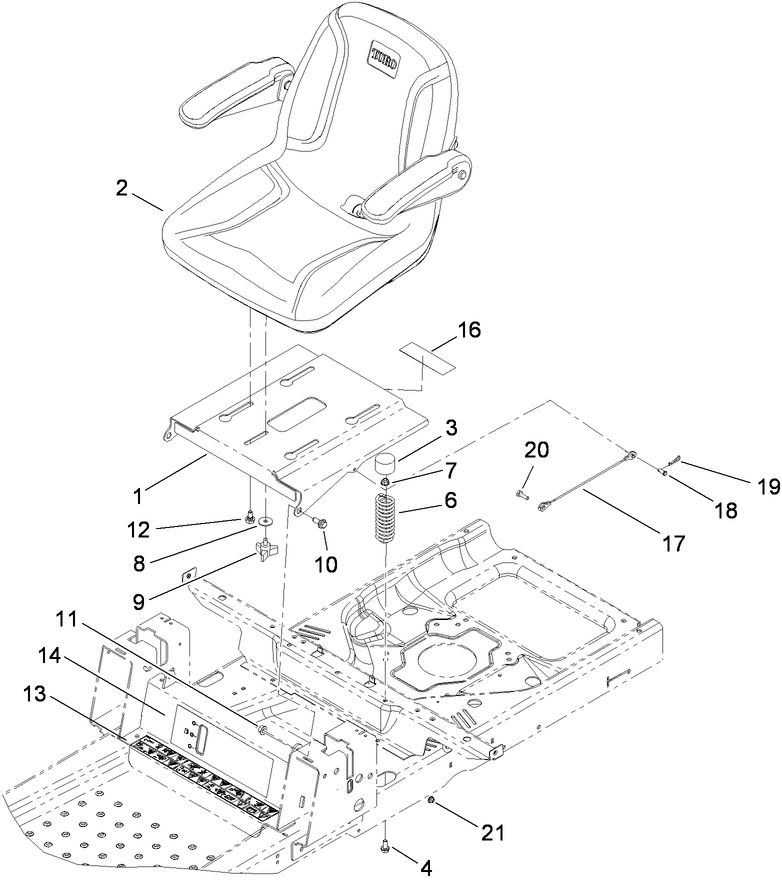

Seat Assembly
Seat Assembly

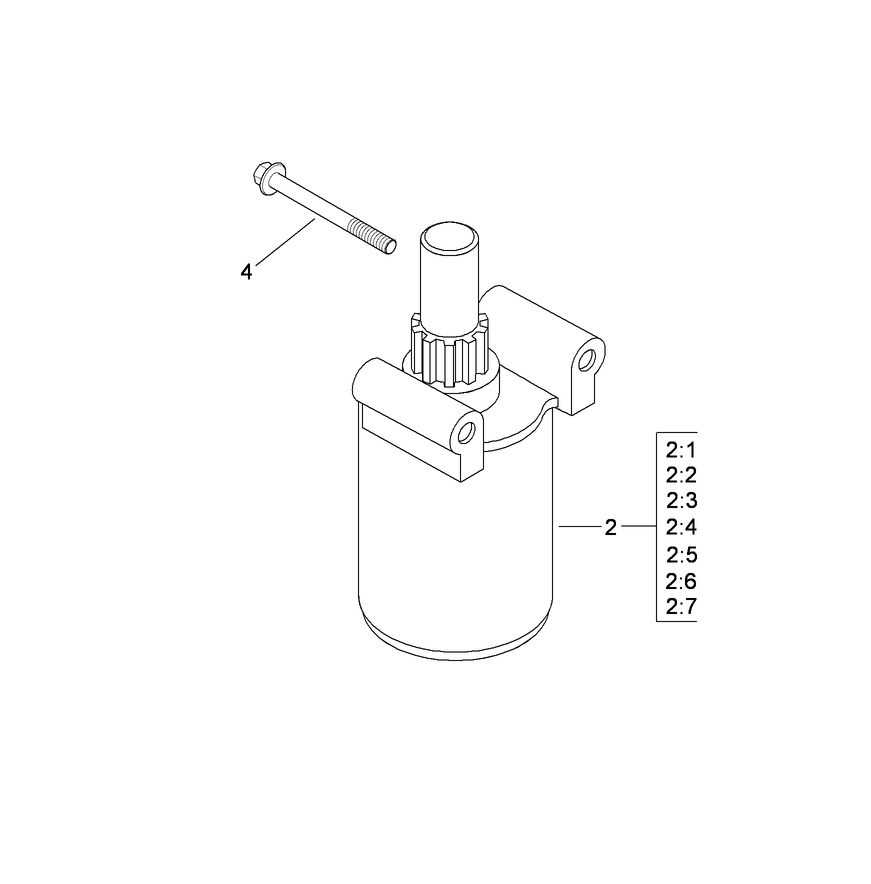

Starter Assembly Kohler SV730-0029
Starter Assembly Kohler SV730-0029
Styling and Fuel System Assembly
Styling and Fuel System Assembly
Download Parts Catalog
Operator's Manual
Service Manual
Parts Catalog
Setup Instructions
Genuine OEM Part 112-9763
Hour Meter Kit (Part # 112-9763)
Keep track of mowing hours and planned maintenance with the Toro Hour Meter Kit. Ffits on select models of TimeCutter SS and SW zero turn mowers.
$67.09 USD
TimeCutter 50
TimeCutter 50" Bagging Enhancement Kit (Part # 114-1608)
Get that pristine lawn you’ve been dreaming of with the help of the Toro’s Leaf Bagging Enhancement and make short work of it. Decreases leaf blowout on the deck when bagging leaves and increases bagging performance. Fits select models of TimeCutter SS and SW zero turn mowers.
$80.99 USD
Genuine OEM Part 114-8545
Striping Kit (Part # 114-8545)
Genuine OEM Part
Genuine OEM Part 79016P
17.5 Inch High Lift TimeCutter Replacement Blades (3-Pack) (Part # 79016P)
Use this 3-Pack Replacement Blade Kit to maintain your 34 or 50 inch TimeCutter's High quality cutting performance. The sharp 17.5 in. Hi-Flow blades provide a crisp cut and are compatible with select TimeCutters manufactured in and after 2011.
$53.99 USD
50
50" TimeCutter SS and SW Recycler Kit (Part # 79019)
By adding on the Toro Recycler system you create your own natural fertilizer. This patented system cuts grass clippings 6-8 times, turning them into a fine nutrient-rich mulch to feed your lawn all season. The secret lies in the unique 'kickers' that direct clippings back into the blades to be re-cut before being released into your lawn. Kit allows you to recycle with your Toro 50" TimeCutter SS and TimeCutter SW zero turn mower. Fits on select models of TimeCutter SS and SW zero turn mowers.
$269.99 USD
Engine Cover Kit
Engine Cover Kit (Part # 79314)
Genuine OEM Part
Empty Image Container
FLOOR MAT [TIMECUTTER Z F'07 UP] (Part # 79315)
Deluxe Small Zero-Turn-Radius Riding Mower Storage Cover (Part # 79317)
Empty Image Container
HITCH KIT [TCZ F'07 AND UP] (Part # 79318)
$57.99 USD
Empty Image Container
SUNSHADE-CONSUMER Z (GENERIC)[F'07 & UP] (Part # 79319)
$256.99 USD
42in and 50in Twin Bagger, TimeCutter MZ Series Riding Mower (Part # 79324)
10 cu. ft. Poly Dump Cart (Part # 79991)

Model #

74375

Serial #

290000001 - 290000199

Product Name

TimeCutter Z5060 Riding Mower

Product Brand

Toro

Product Type

Riding Products

Product Series

Zero Radius Turn, Consumer

Chassis Type

ZRT - Consumer

Swath

50 inch

Discharge

Side

Engine/Motor Manufacturer

Kohler

Engine/Motor Size

25 hp

Engine/Motor Type

4 Cycle EPA2

Engine Starter

Electric

Transmission Type

Hydrostatic

Chassis: Tire Pressure

Front 35 PSI / 2.5kg sq. cm, Rear 13 PSI / .9kg sq. cm

Engine: Battery

12V 195CCA

Engine: Spark Plug Gap

.030"/ .76mm

Engine: Engine Oil Type

2.0 qts. 10w-30

Chassis: Height of Cut Range

1.5-4.5"; 1/2" increments

Engine: Spark Plug

Champion XC12YC

Engine: Engine Speed

3300±100 RPM

Drive System: Ground Speed

Fwd. 0 - 7.0 Rev. 0 - 3.5 mph
