22-inch 8-Blade DPA Cutting Unit, Reelmaster 3550 Series Traction Unit
Product Information
- Model #: 03913
- Serial #: 314000001 - 314999999
- Product Type: Attachments
Loading...

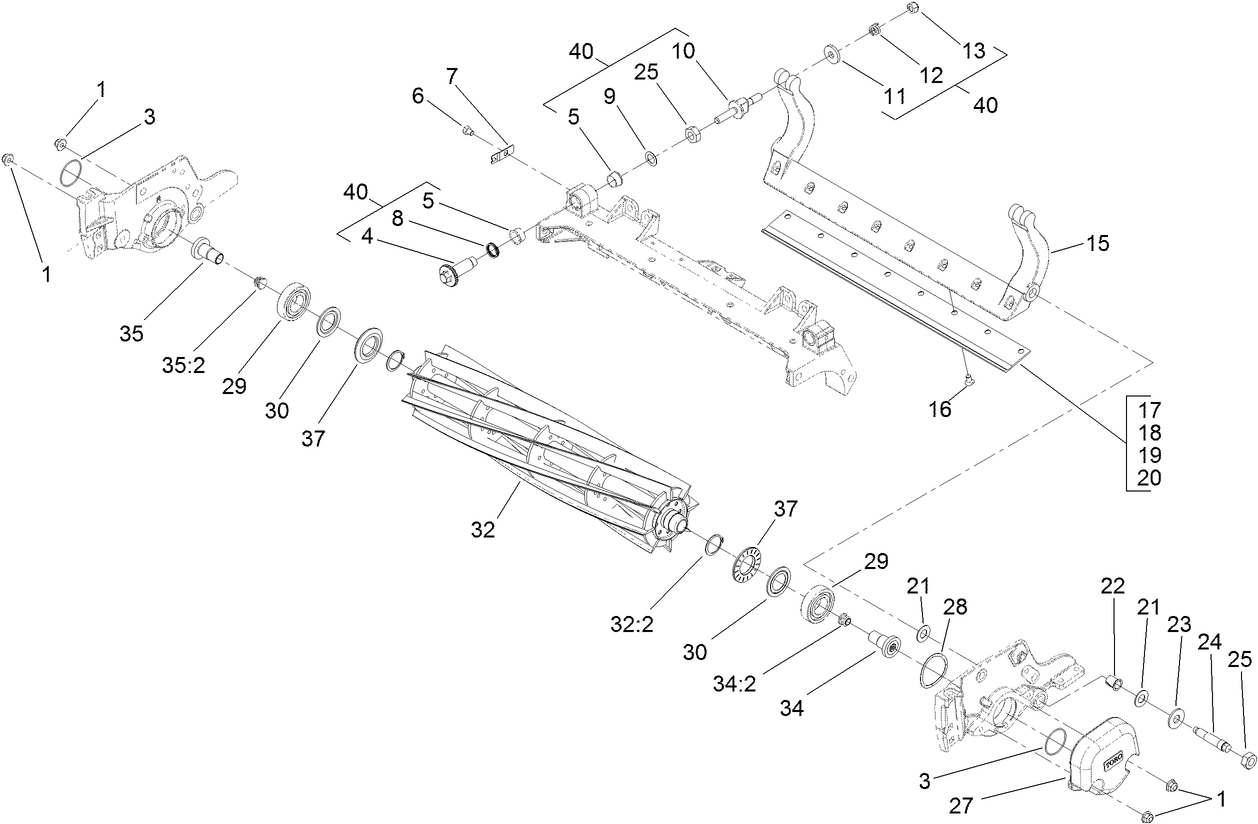

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Parts Catalog
Rear Roller Brush Kit, Reelmaster 3550 Series 18-inch and 22-inch Cutt (Part # 03918)
Grass Basket Kit, Reelmaster 3550 Series 22-inch Cutting Unit (Part # 03920)
Collar Kit (Part # 104-8215)
Contains 100-4959 @ 2, 104-1835 @ 2
22 Inch Wiehle Scraper Assembly (Part # 107-2993-03)
Toro OEM 22 Inch Wiehle Scraper Assembly.
Rear Roller Scraper Kit (22.00 Inch) (Part # 107-3280)
Contains 107-2999 @ 1, 107-3279 @ 1, 107-3281 @ 1, 3290-357 @ 2, 104-8300 @ 4, 104-8301 @ 2
Gauge Bar Assembly (Part # 108-6715)
Toro OEM Gauge Bar Assembly.
22.19 Inch Fairway Cut Standard Bedknife (Part # 108-9096)
Toro 22.19 Inch OEM Fairawy Cut Standard Bedknife. You can count on the quality and reliability of this replacement Fairway Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
Comb/Scraper Kit (Part # 110-1735)
Contains 115-8298-03 @ 1, 104-1844 @ 1, 115-8299 @ 1, 110-1731-03 @ 1, 3296-16 @ 4, 3229-2 @ 4, 3256-67 @ 8
22.19 Inch Low Cut Standard Bedknife (Part # 110-4084)
Toro 22.19 Inch OEM Low Cut Standard Bedknife. You can count on the quality and reliability of this replacement Low Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
Fairway Broomer Kit (Part # 110-4085)

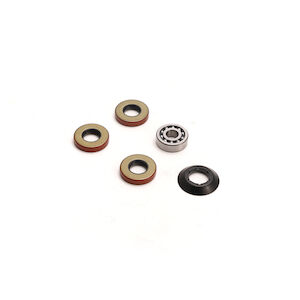

Groomer/RRB Seal Kit (Part # 110-4086)
Contains 95-0707 @ 1, 106-8530 @ 3, 108-4172 @ 1
RM Dpa High Hoc Kit (Part # 110-9600)
Contains 120-0404 @ 1, 120-0405 @ 1, 119-0626 @ 8, 106-9758 @ 4, 3230-30 @ 4, 104-8300 @ 4, 112-7451 @ 2, 48-9220 @ 4, 104-8301 @ 4, 322-16 @ 2, 32128-20 @ 2, 32128-20 @ 2
3X22 Inch Full Front Roller Scraper (Part # 110-9602-03)
Toro OEM 3X22 Inch Full Front Roller Scraper.
Shoulder Roller Scraper (22.00 Inch) (Part # 110-9609-03)
Toro OEM Shoulder Roller Scraper (22.00 Inch).
Long Rear Roller Assembly (Part # 114-5404)
Toro OEM Long Rear Roller Assembly. This roller has a 2.50 inch diameter. This Assembly comes with the roller tube, long roller shaft, oil seals, stainless steel bearings, seals, lock nuts, grease fittings, grease & the roller rebuild kit. This roller is smooth, unlike the Wiehle roller that has groves built in. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
22.00 Inch Full Front Roller Assembly (Part # 114-5412)
Toro 22.00 Inch OEM Full Front Roller Assembly. This roller has a 3.00 inch diameter. This Assembly comes with the roller tube, roller shaft, oil seals, stainless steal bearings, seals, lock nuts, grease fittings, grease & the roller rebuild kit. This roller is smooth, unlike the Wiehle roller that has groves built in. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
22.00 Inch Plastic Shoulder Roller Assembly (Part # 114-5421)
Toro 22.00 Inch OEM Plastic Shoulder Roller Assembly. This roller has a 3.00 inch diameter. This Assembly comes with a plastic roller, roller shaft, oil seals, stainless steal bearings, seals, lock nuts, grease fittings, roller rebuild kit & grease. A Wiehle roller has groves built into the roller. This roller is molded out of an aluminum core, with a plastic molding on the outside. A shoulder roller groves get smaller closer to the edges, where as a standard Wiehle has evenly spaced from one end to the other. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
Roller Rebuild Kit (Part # 114-5430)
Contains 114-3717 @ 2, 112-5290 @ 2, 112-7494 @ 4, 114-5411 @ 2
Roller Seal Tool Kit (Part # 115-0803)
Kickstand (Part # 119-8010-03)
RM Hd Dpa MVP Kit (Part # 120-7230)
Contains 120-5118 @ 2, 120-5116 @ 2, 106-5344 @ 4, 108-0015 @ 2, 3296-33 @ 2, 137-6130 @ 2, 119-4155 @ 2, 120-5120 @ 2, 119-4039 @ 2
Rear Roller Adjustment Kit, Reelmaster DPA Reel Mowers (Part # 125-0570)
Paper Reel (Part # 125-5610)
Toro OEM Paper-Reel, Toro (10 Pack).
Reel Shim (Part # 125-5611)
22.19 Inch Low Cut EdgeMax™ Bedknife (Part # 137-0832)
Toro 22.19 Inch OEM Low Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Low Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
22.19 Inch Fairway Cut EdgeMax™ Bedknife (Part # 137-0833)
Toro 22.19 Inch OEM Fairway Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Fairway Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
8 Blade EdgeSeries (ES) Reels+™ 18 Inch (Part # 137-8406)
Toro 8 Blade 18 Inch OEM EdgeSeries (ES) Reels+™. The EdgeSeries (ES) Reels+™ is an upgraded version of the Standard Reels+™ with stronger steel, longer lasting & more durable. You can count on the quality and reliability of this replacement EdgeSeries (ES) Reels+™. Be sure to verify the make and serial number to ensure correct part.
ADAPTER-DRIVE, REEL (Part # TOR4112)
-
Model #
03913 -
Serial #
314000001 - 314999999 -
Product Name
22-inch 8-Blade DPA Cutting Unit, Reelmaster 3550 Series Traction Unit -
Product Brand
Toro -
Product Type
Attachments -
Product Series
RM 5000 Series Accessories -
Swath
18 inch
