24 in (61 cm) SnowMaster® 824 QXE Snow Blower
Product Information
- Model #: 36003
- Serial #: 406500000 - 408999999
- Product Type: Snowthrowers
Loading...

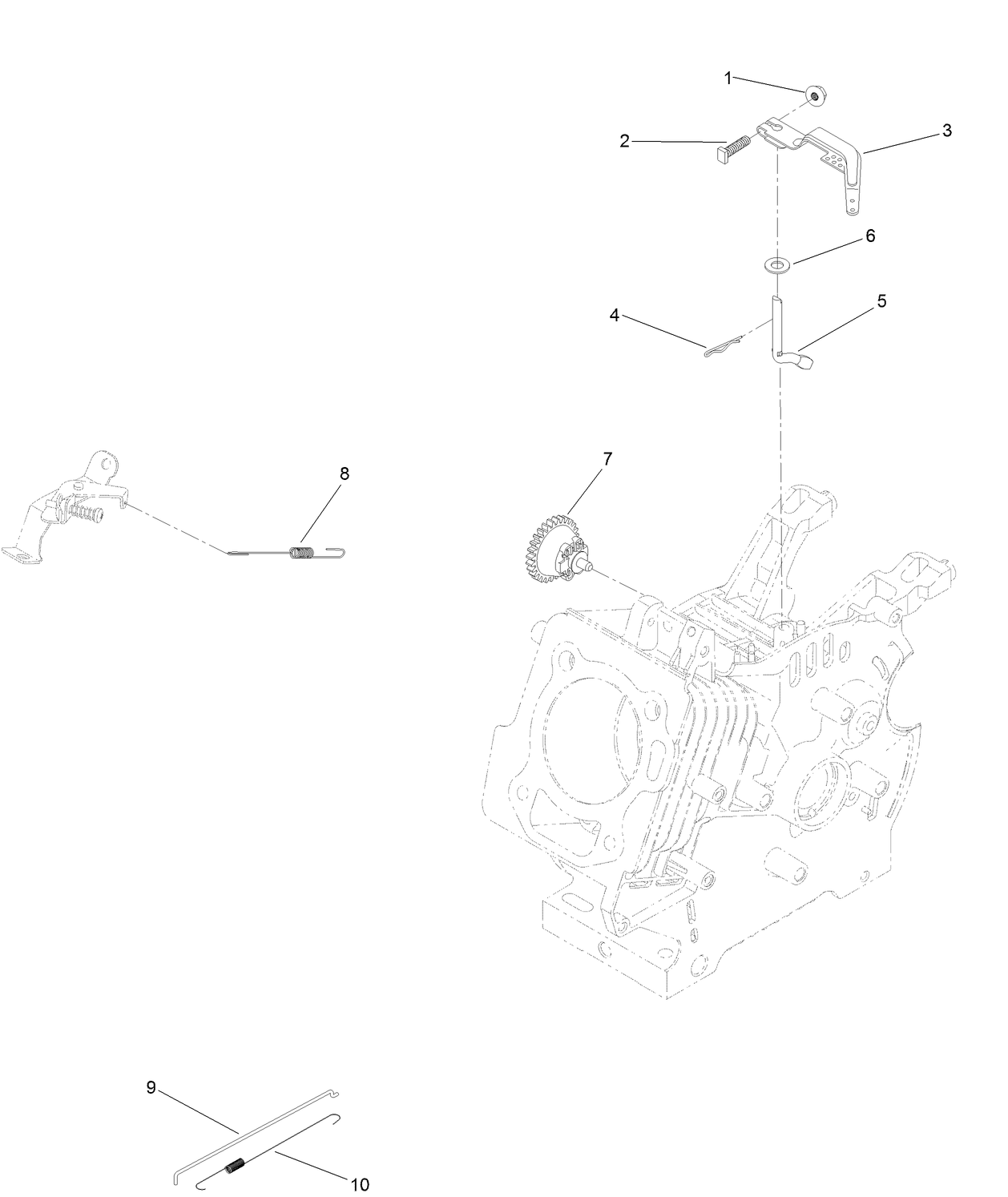

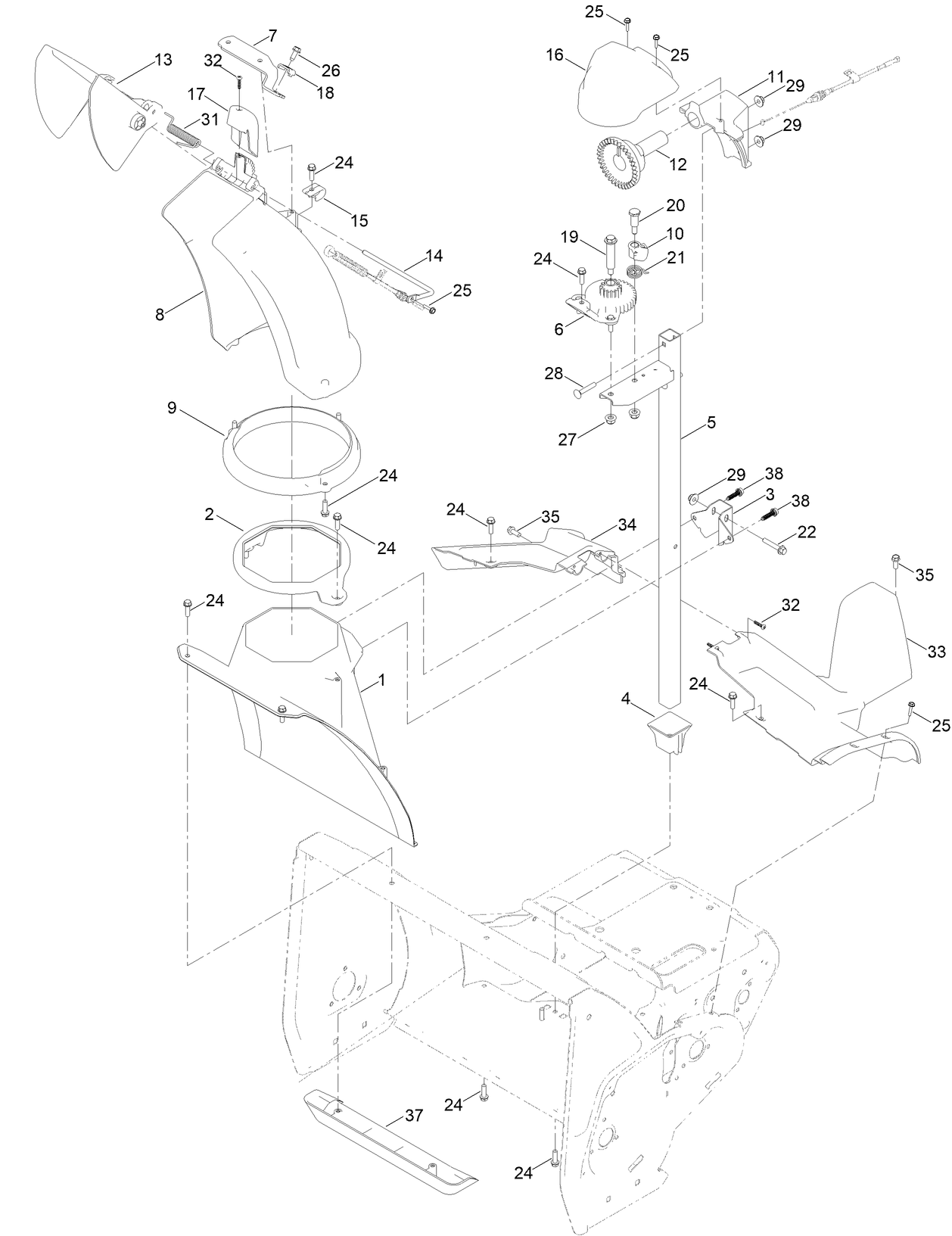

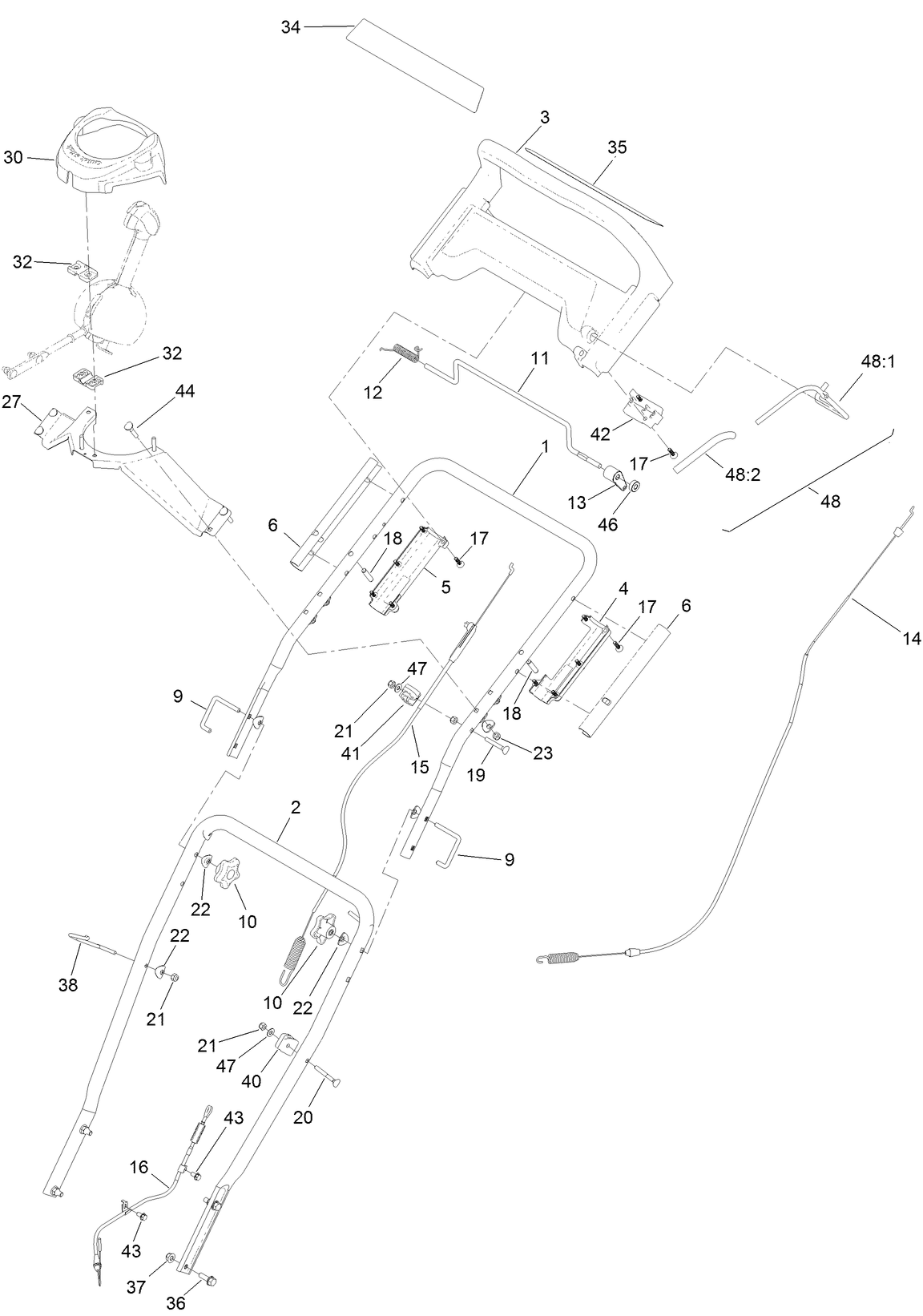

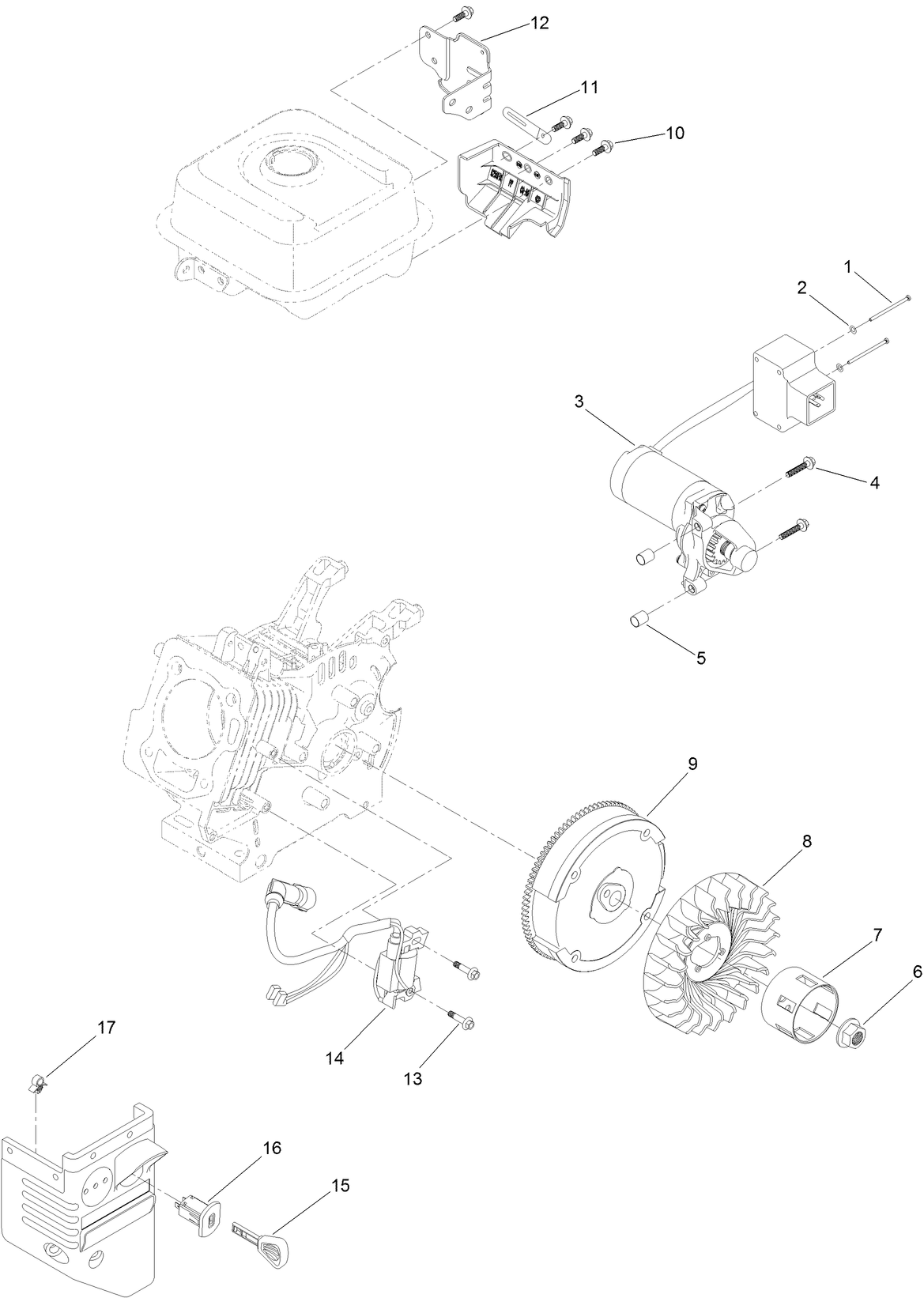

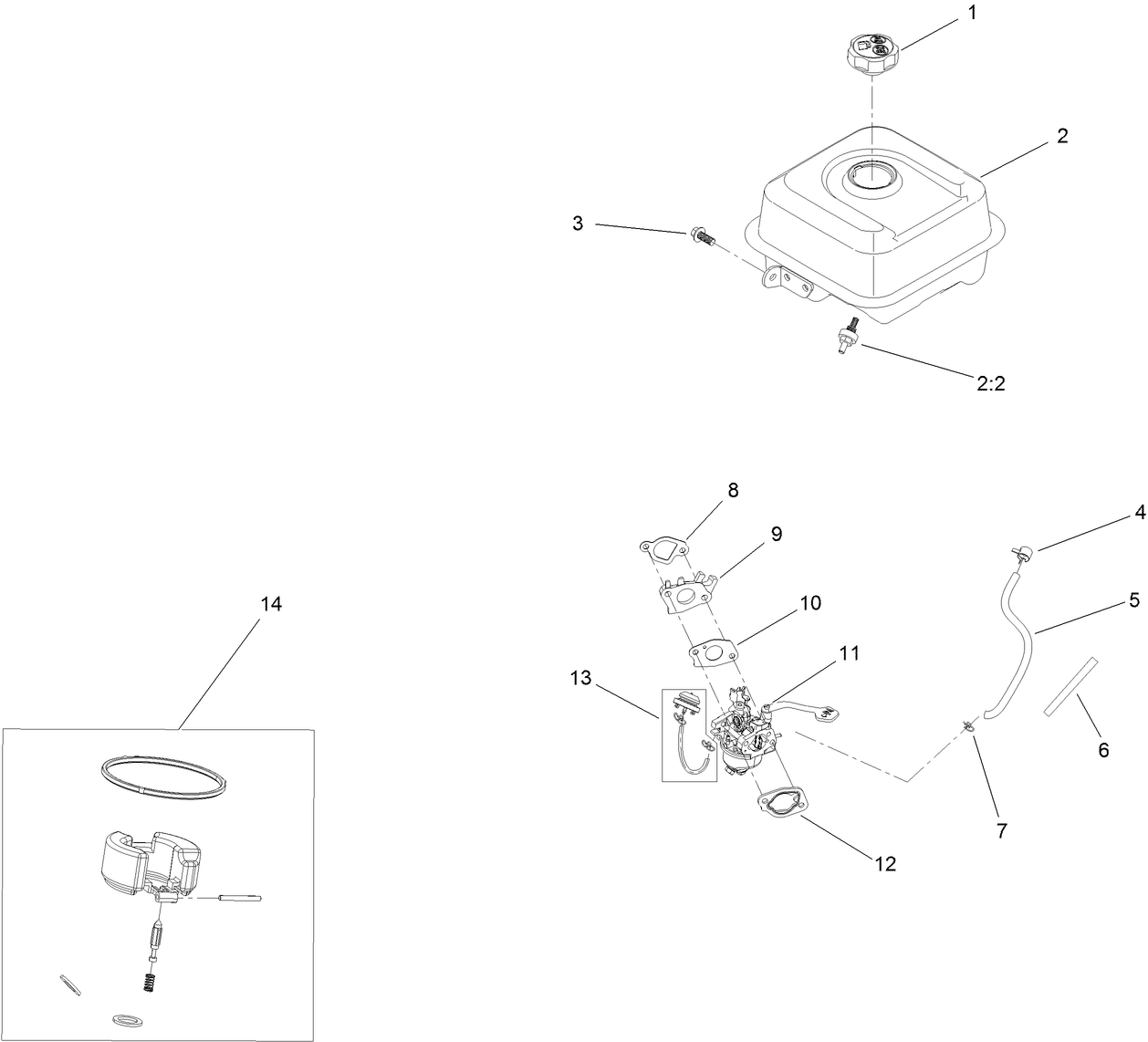

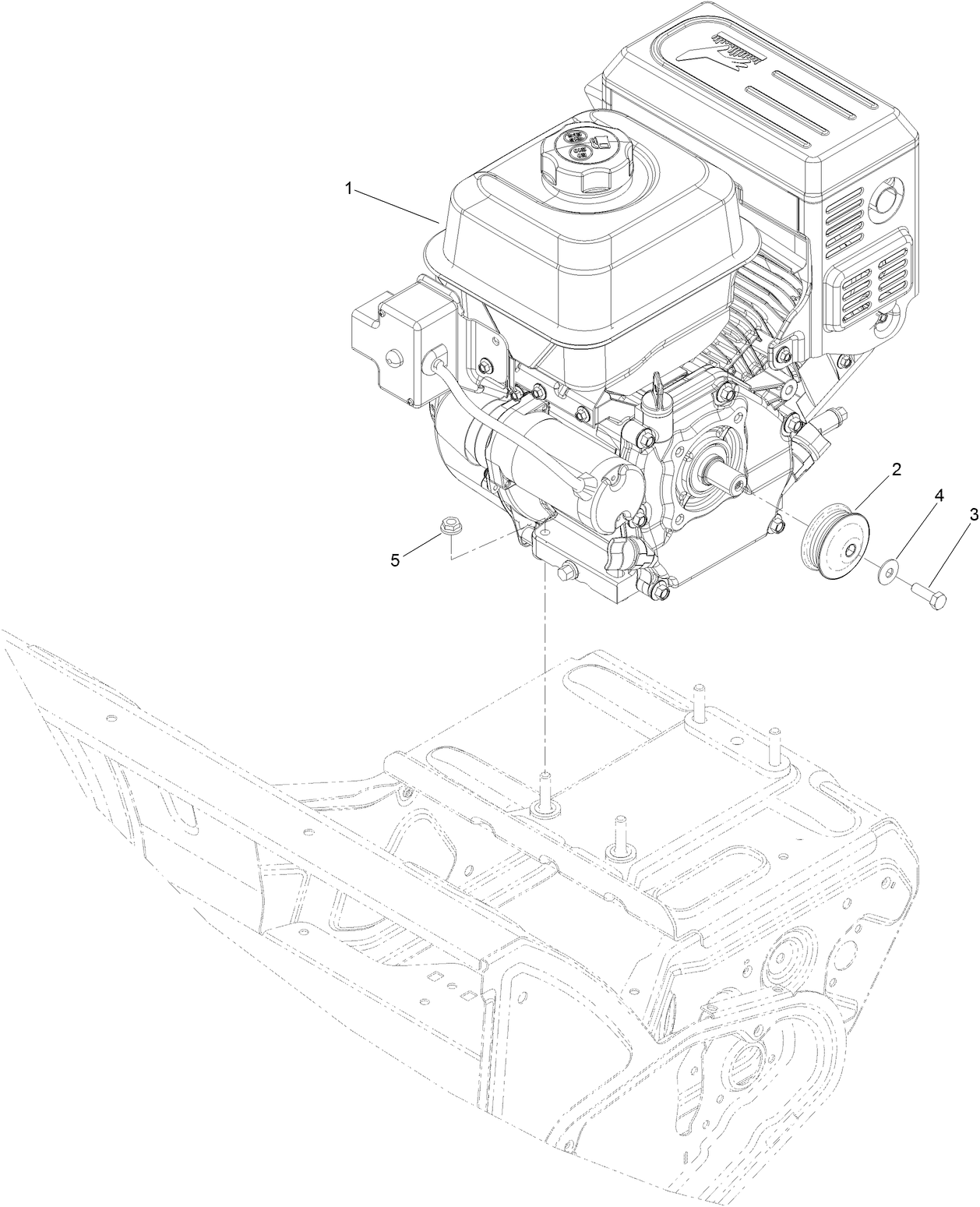

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Product Warranty
-
Quick Start Guide
Snow Blower Center Paddle Kit for SnowMaster Models (Part # 130-9569P)
This Paddle and Hardware kit helps ensure optimum performance on your Toro SnowMaster. Over time, if skid shoes or scrapers are not replaced as needed on your SnowMaster your snowblower paddles could contact asphalt or concrete and will wear down and need replacing. This Replacement Paddle Kit supplies exactly what you need to keep your snowblower operating efficiently season after season.
Snow Blower Skid Replacement Kit for SnowMaster Models (Part # 130-9619P)
Replace your worn SnowMaster Skid Shoes with this replacement skid kit. The kit contains 2 skid and the needed hardware. Worn skid shoes can cause damage to your pavement so check them annually for needed replacement. The Toro skid shoe for the SnowMaster is a 2 piece design with a metal bracket that attaches to the unit and a polyethylene shoe that protects the pavement.
Snow Blower Scraper Kit for SnowMaster Models (Part # 130-9628P)
This Scraper and Hardware kit helps ensure optimum performance on your Toro SnowMaster Snow blower. Over time, as your snow blower scraper contacts asphalt or concrete it will wear down and require replacing in order to continue to clear snow effectively. Genuine Toro parts are designed specifically for your machine to offer quality, performance and value.
Snowblower Rotor Drive Poly v-belt (Part # 131-5967P)
Toro snow blower rotor drive poly v-belts are manufactured using the highest quality materials and are rigorously tested to assure they perform under the toughest operating conditions. Will-fit belts might look similar or claim similar functionality, but only genuine Toro parts ensure your mower performs as it's intended by providing the perfect fit and maximum performance.
Engine Maintenance Kit for Snow Blower (Part # 138-0699)
Keep your snow blower running smoothly season after season with the Toro 138-0699 Snow Blower Engine Maintenance Kit for Power Clear. The snow blower engine maintenance kit is for Toro 21 in. Power Clear, Power Max and SnowMaster snow blowers with Toro 212cc and 252cc engines. The easy-to-use engine maintenance kit includes a Toro replacement spark plug, a 12 oz. bottle of Toro premium engine oil and a 12 oz. bottle of premium fuel treatment.
Winter 5W-30 Synthetic Winter Engine Oil (Part # 38908)
Toro 5W-30 Synthetic Winter Engine Oil is engineered to provide superior performance and easy
starting in extreme cold temperatures. The easiest starting winter oil in extreme cold.
Winter 0W-30 Synthetic Winter Engine Oil (Part # 38913)
Toro 0W-30 Synthetic Winter Engine Oil is engineered to provide superior performance and easy
starting in extreme cold temperatures. The easiest starting winter oil in extreme cold.
Two Stage Snow Blower Cover (Part # 490-7466)
Toro genuine snow blower cover. Specifically designed for Toro 2-Stage Power Max and Power Max HD models
Water resistant backing for extra weather protection
Heavy-duty abrasion resistant 600 Denier polyester fabric
Maintains flexibility, even on the coldest days
-
Model #
36003 -
Serial #
406500000 - 408999999 -
Product Name
24 in (61 cm) SnowMaster® 824 QXE Snow Blower -
Product Brand
Toro -
Product Type
Snowthrowers -
Product Series
Snowthrower, SnowMaster -
Chassis Type
Single Stage -
Swath
24 inch -
Engine/Motor Manufacturer
Toro -
Engine/Motor Size
252cc -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric/Recoil -
Traction Type
2wd
-
Engine: Spark Plug Gap
.030"/ .76mm -
Engine: Engine Speed
3300±100 RPM -
Engine: Spark Plug
Champion RN9YC / NGK BPR6ES / NHPS F7RTC (OEM China) -
Drive System: Ground Speed
0-3.5 mph / 0-5.6 km/h -
Engine: Engine Oil Type
23.7 oz. (0.7 L) 10w 30 / 5w 30 Synthetic -
Chassis: Tire Pressure
15-20 PSI (103-137 kPa)
