11-Blade Cutting Unit
Product Information
- Model #: 04653
- Serial #: 420239844 - 999999999
- Product Type: Walk Behind Mowers
Loading...

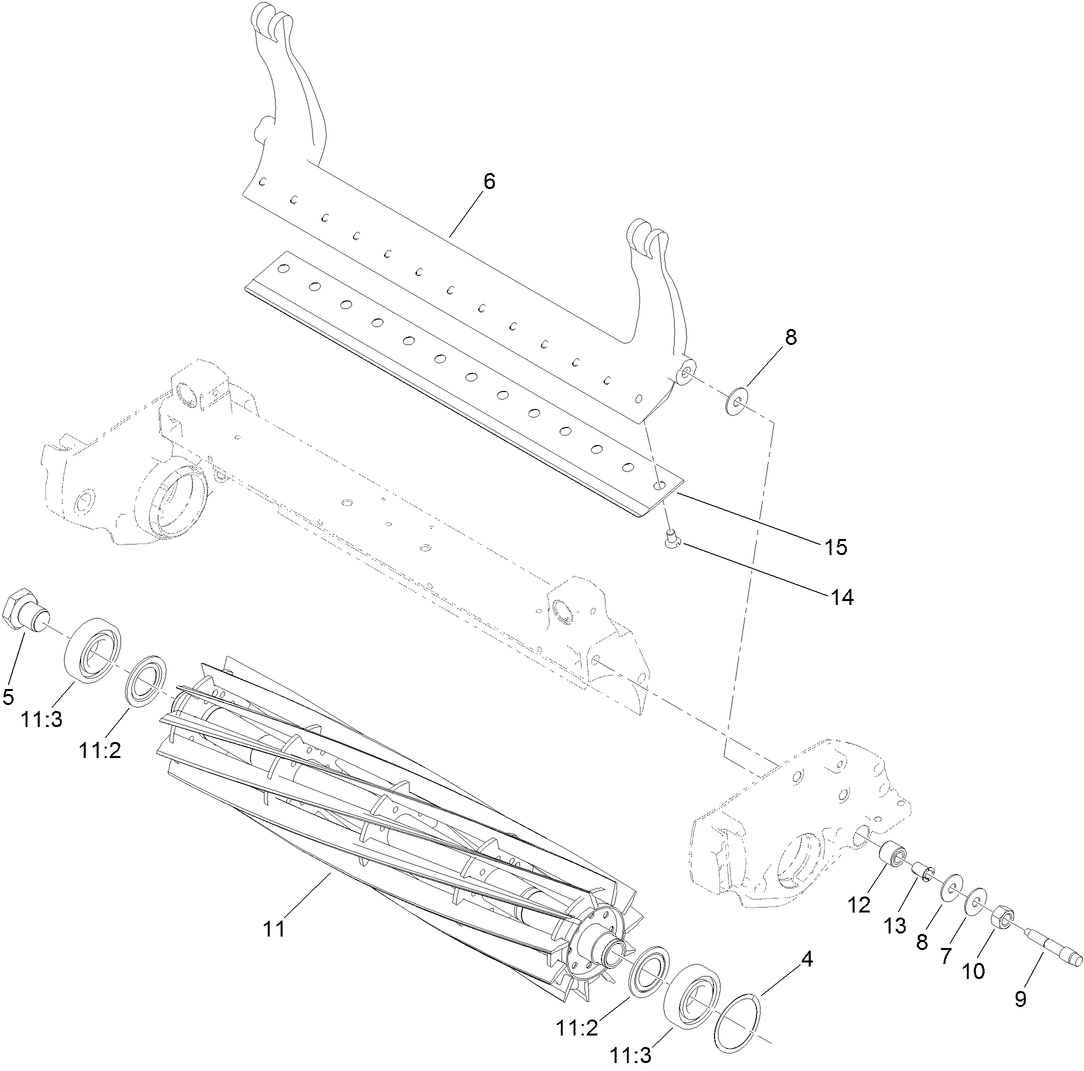

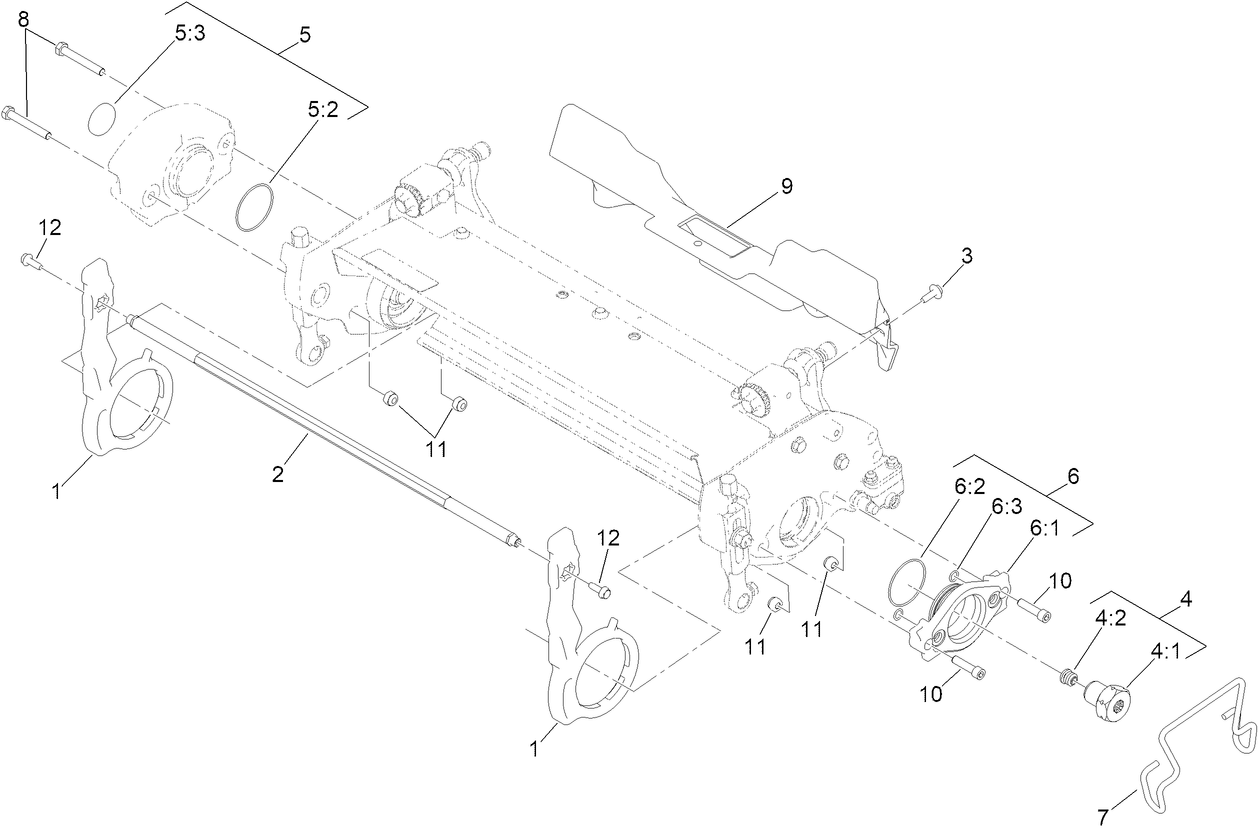

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Parts Catalog
GR21 SPLIT NARROW WIEHLE ROLLER ASM (Part # 04081)
GR21 SPLIT FULL FRONT ROLLER ASM (Part # 04088)
Narrow Wiehle Roller (Part # 04255)
Wide Wiehle Roller Kit, Greensmaster DPA Cutting Units (Part # 04256)
Front Full Smooth Roller Kit, Greensmaster DPA Cutting Units (Part # 04257)
Extended Narrow Wiehle Roller Kit, Greensmaster DPA Cutting Units (Part # 04258)
Paspalum Wiehle Roller, DPA Cutting Reel for Greensmaster Mower (Part # 04267)
Soft Q Grooming Brush (Part # 04270)
Spiral rotating brush used to condition grass before cutting
Stiff QC Grooming Brush (Part # 04271)
Spiral rotating brush used to condition grass before cutting
Turf Evaluator (Part # 04399)
Mirror device used to assess turf conditions
Steel Roller Kit (Part # 04628)
Dampening Roller Kit, DPA Cutting Units for Riding Greensmaster Tracto (Part # 04629)
DPA Reel Mower Rear Roller Scraper Kit, Greensmaster 3000 Series (Part # 04646)
Universal Groomer Drive (Part # 04648)
Groomer drive with forward, neutral and counter-rotating dial
Rear Roller Brush, Greensmaster 3250-D, TriFlex 3300, and 3400 Series (Part # 04650)
Twin Tip Groomer Blade (Part # 04802)
Bedbar (Part # 106-2648-01)
STEEL ROLLER ASM (Part # 107-3509)
STEEL ROLLER ASM, WIEHLE DPA (Part # 107-3510)
Wide Wiehle Steel Roller (Part # 107-3514)
Use on puffy turf to control bobbing marks. Adds weight to stabilize cutting unit over rough surfaces.
Roller Scraper Kit, Dampening Roller Kit for Riding Greensmaster Cutti (Part # 107-9561)
21.25 Inch Tournament Cut Standard Bedknife (Part # 108-4302)
Toro 21.25 Inch OEM Tournament Cut Standard Bedknife. You can count on the quality and reliability of this replacement Tournament Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
21.25 Inch Micro Cut Standard Bedknife (Part # 108-4303)
Toro 21.25 Inch OEM Micro Cut Standard Bedknife. You can count on the quality and reliability of this replacement Micro Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
21.25 Inch Micro Cut EdgeMax™ Bedknife (Part # 115-1880)
Toro 21.25 Inch OEM Micro Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Micro Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
21.25 Inch Tournament Cut EdgeMax™ Bedknife (Part # 115-1881)
Toro 21.25 Inch OEM Tournament Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Tournament Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
Narrow Wiehle Roller Scraper/Brush Kit (Part # 115-7377)
Scraper brushes condition the surface of turf before cutting, while clearing rollers of dirt, grass and debris buildup
Wide Wiehle Roller Scraper Brush (Part # 115-7378)
Scraper brushes condition the surface of turf before cutting, while clearing rollers of dirt, grass and debris buildup
Full Roller Scraper Brush (Part # 115-7379)
Scraper brushes condition the surface of turf before cutting, while clearing rollers of dirt, grass and debris buildup
Narrow Wiehle Roller Scraper Comb Assembly (Part # 115-7380)
Toro OEM Narrow Wiehle Roller Scraper Comb Assembly.
Wide Wiehle Roller Scraper Comb (Part # 115-7381)
Scraper combs condition the surface of turf before cutting, while clearing rollers of dirt, grass and debris buildup
Full Roller Scraper Comb (Part # 115-7382)
Scraper combs condition the surface of turf before cutting, while clearing rollers of dirt, grass and debris buildup
High HOC Kit (Part # 120-9600)
Contains 120-9601 @ 2, 119-4067 @ 2, 3274-54 @ 4, 119-4165 @ 6, 119-4040 @ 4
Rear Roller Adjustment Kit (Part # 120-9602)
Eccentric bolt used to precisely level rear roller
Rear Roller Scraper Kit, Riding Greensmaster Mower with DP (Part # 121-2260)
Dpa Rebuild Kit (Part # 121-2637)
Contains 106-5363 @ 2, 106-5344 @ 4, 119-4164 @ 2, 32120-93 @ 2, 137-6130 @ 2, 119-4155 @ 2, 119-4156 @ 2, 119-4039 @ 2, 99-2097 @ 2, 119-4067 @ 2
Narrow Wiehle Roller Scraper Kit (Part # 125-3503)
Clears the rollers of dirt, grass and debris buildup that may impact height of cut
Wide Wiehle Roller Scraper (Part # 125-3504)
Wide Wiehle scrapers clear rollers of dirt, grass and debris buildup that may impact height of cut
Full Roller Scraper (Part # 125-3505)
Full roller scrapers clear rollers of dirt, grass and debris buildup that may impact height of cut
Rear Roller Extension Kit, Greensmaster DPA Reel Mowers (Part # 125-5180)
Paper Reel (Part # 125-5610)
Toro OEM Paper-Reel, Toro (10 Pack).
Soft Grooming Brush (Part # 127-1547)
Spiral rotating brush used to condition grass before cutting
Stiff Grooming Brush (Part # 127-1548)
Spiral rotating brush used to condition grass before cutting
Angle Indicator (Part # 131-6828)
Toro OEM Angle Indicator
Angle Indicator Mount (Part # 131-6829)
Toro OEM Angle Indicator Mount
KIT-ADAPTER, RRB (Part # 132-0723)
TOOL-HAND TAP 15/16-16 (GR DPA REEL) (Part # 137-0926)
TOOL-HAND TAP 15/16-16, LH (GR DPA RE (Part # 137-0927)
EdgeMax™ Fairway Bedknife (Part # 137-6092)
Fairway EdgeMax bedknives are made with a hardened tool steel insert that stays sharper longer for a crisper cut and less wear on your equipment.
Fairway Bedknife (Part # 137-6097)
Tool steel bedknife for extended wear.
8 Blade EdgeSeries (ES) Reels+™ 21 Inch (Part # 137-8511)
Toro 8 Blade 21 Inch OEM EdgeSeries (ES) Reels+™. The EdgeSeries (ES) Reels+™ is an upgraded version of the Standard Reels+™ with stronger steel, longer lasting & more durable. You can count on the quality and reliability of this replacement EdgeSeries (ES) Reels+™. Be sure to verify the make and serial number to ensure correct part.
11 Blade EdgeSeries (ES) Reels+™ 21 Inch (Part # 137-8512)
Toro 11 Blade 21 Inch OEM EdgeSeries (ES) Reels+™. The EdgeSeries (ES) Reels+™ is an upgraded version of the Standard Reels+™ with stronger steel, longer lasting & more durable. You can count on the quality and reliability of this replacement EdgeSeries (ES) Reels+™. Be sure to verify the make and serial number to ensure correct part.
14 Blade EdgeSeries (ES) Reels+™ 21 Inch (Part # 137-8513)
Toro 14 Blade 21 Inch OEM EdgeSeries (ES) Reels+™. The EdgeSeries (ES) Reels+™ is an upgraded version of the Standard Reels+™ with stronger steel, longer lasting & more durable. You can count on the quality and reliability of this replacement EdgeSeries (ES) Reels+™. Be sure to verify the make and serial number to ensure correct part.
8 Blade Reels+™ 21 Inch (Part # 137-8517)
Toro 8 Blade 21 Inch OEM Reels+™. Crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Reels+™. Be sure to verify the make and serial number to ensure correct part.
21.25 Inch Micro Short Cut EdgeMax™ Bedknife (Part # 139-4320)
Toro 21.25 Inch OEM Micro Short Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement micro short cut bedknife. Be sure to verify the make and serial number to ensure correct part.
21.25 Inch Short Tournament Cut EdgeMax™ Bedknife (Part # 139-4321)
Toro 21.25 Inch OEM Short Tournament Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Short Tournament Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
Toro Reel Shim (Part # 140-5531)
Check reel to bedknife contact
Rear Roller Brush Adapter Kit, Greensmaster 3000 Series DPA Cutting Un (Part # 140-5534)
GR ROLLER REBUILD KIT (Part # 140-5552)
Roller Rebuild Tool Kit, Greensmaster Cutting Units (Part # 140-5553)
Rear Full Roller (Part # 140-5560)
Standard rear roller.
Twin Tip Groomer Blade (Part # 140-5580)
Helix Groomer Blade (Part # 140-5581)
High-strength, twin-tipped groomer blade.
Helix Groomer Blade (Part # 140-5582)
High-strength, twin-tipped groomer blade.
TOOL-DRIVE, ROLLER NUT (Part # 147-1132)
GR21 HHOC WIDE WIEHLE ROLLER ASM (STEEL) (Part # 147-1215)
HD FULL FRONT ROLLER KIT (GR21) (Part # 147-1382)
21.00 Inch Wiehle Roller Assembly (Part # 71-1550)
Toro 21.00 Inch OEM Wiehle Roller Assembly. This roller has a 2.00 inch diameter. This Assembly comes with a Wiehle roller, roller bearings, grease fittings & grease. A Wiehle roller has groves built into the roller as a standard Wiehle roller is smooth. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
21.25 Inch Micro Cut Standard Bedknife (Part # 93-4262)
Toro 21.25 Inch OEM Micro Cut Standard Bedknife. You can count on the quality and reliability of this replacement Micro Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
21.25 Inch Tournament Cut Standard Bedknife (Part # 93-4263)
Toro 21.25 Inch OEM Tournament Cut Standard Bedknife. You can count on the quality and reliability of this replacement Tournament Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
21.25 Inch Low Cut Standard Bedknife (Part # 93-4264)
Toro 21.25 Inch OEM Low Cut Standard Bedknife. You can count on the quality and reliability of this replacement Low Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
21.25 Inch High Cut Standard Bedknife (Part # 94-6392)
Toro 21.25 Inch OEM High Cut Standard Bedknife. You can count on the quality and reliability of this replacement High Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
Height of Cut Kit (Part # 94-9010)
Height of cut range 0.285”– 1.00” (7.2 – 25.4 mm), set of one
Aggressive Bedbar (Part # 99-3794-0P)
Designed for firm greens where a more efficient, aggressive cut is needed for more aggressive cultivars
-
