4000 Series MyRIDE® HDX Pro XL 60 in. 35 hp 999cc

Model: 74058

Z Master 4000
On Sale

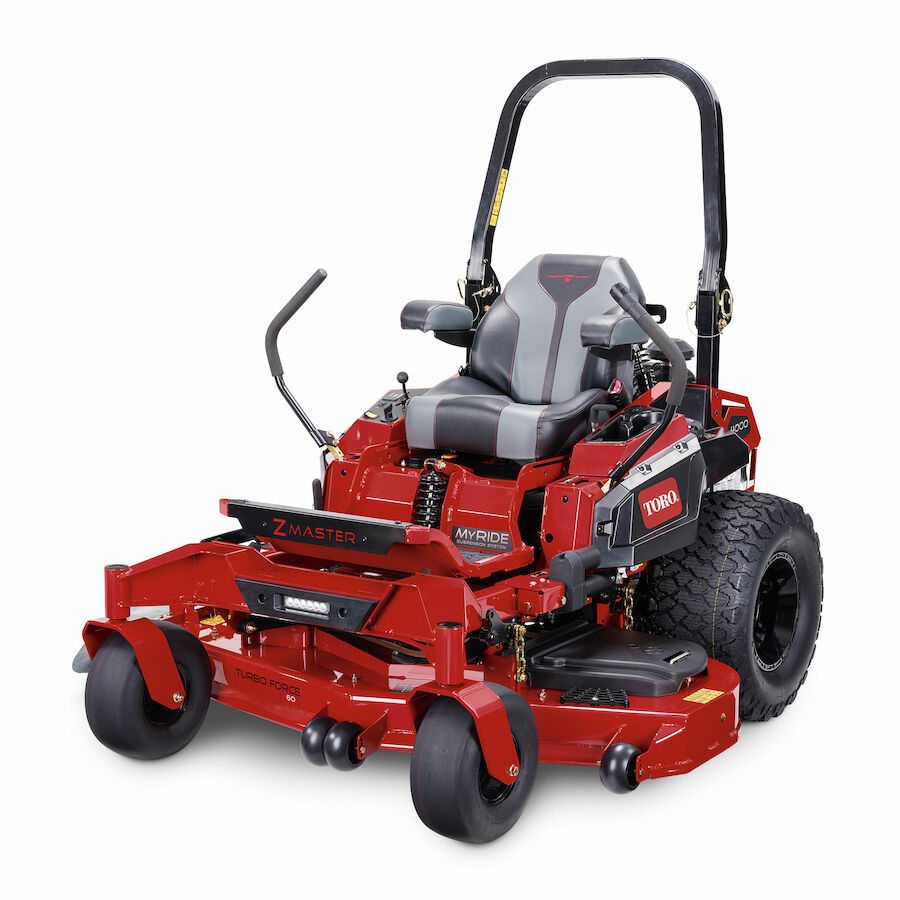

4000 Series MyRIDE® HDX Pro XL 60 in. 35 hp 999cc

Model: 74058

Model: 74058 UPC/EAN: 21038740584

See All Items in Z Master® 4000 HDX MyRIDE® Series

Key Features

  • Survey the task from a higher-vantage-point with the 26" Voodoo Trac™ drive tires.
  • Powerful illumination for after-hours work with LED headlights.
  • Keep your phone and drink at arm's reach.
  • Keep tabs on time and keep devices powered up with the hour meter and USB ports.
Find a Dealer

Financing Available

Free Shipping

  • This item does not meet CARB requirements and cannot be shipped to California. The CARB-Compliant model is located here

  • Ground Shipping Only

  • Cannot ship to the following states: AK, HI

Resources

Sell Sheet Accessory Guide All Promotions Horizon360 Software

Product Details

Unleash power, comfort, and confidence like never before with the 60-inch Z-Master 4000 HDX with MyRIDE® Suspension System. Dominate any job with the relentless 35 HP* Kawasaki FX1000 engine and legendary TURBO FORCE® cutting deck, reinforced with heavy-duty commercial-grade hydros, and supported by the 26-inch Voodoo Trac™ tires. Plus, with the hour meter, USB ports, phone holder, and cup holder, you’ll have everything you need to conquer the day in comfort.
26
26" Voodoo Trac™ Drive Tires
Get the ultimate in agressive tread and styling and survey the task from a higher-vantage-point with 26" Voodoo Trac™ Drive Tires.
LED Headlights
LED Headlights
Powerful illumination for after-hours work.
Phone and Cup Holder
Phone and Cup Holder
Keep your phone and drink at arm's reach with built-in phone and cup holders.
USB Ports
USB Ports
USB ports to help you stay charged on the job.
Horizon360 system used by contractor
Horizon360® Business Management Software.
Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

For more information click here.
Close up image of MyRIDE feature
MyRIDE® Suspension System
Save your body from the toughest terrain with the MyRIDE Suspension System featuring up to 3 inches of travel.

Blade Design

0.25 in. / 0.635 cm thick heat-treated steel

Blade Tip Speed

18,500 ft/min / 5,638 m/min

Box Dimensions

91 in. x 70 in. x 52 in. / 231.1 cm x 177.8 cm x 131.1 cm

CARB Compliant

Not CARB Compliant

Caster Tires

15 in. x 6.5 in. - 6 in. (38.1 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic

Clutch

Electromagnetic

Comfort Platform

MyRIDE® Suspension System

Deck Design

60" (152 cm) 7-Gauge High-Strength Steel TURBO FORCE®

Deck Size

60 in / 152 cm

Discharge Chute

Rubber

Drive Tires

Voodoo Trac 26 in. x 12 in. - 12 in. (66 cm x 30.5 cm - 30.5 cm)

Engine

35 hp* Kawasaki FX1000V (999 cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner

Engine Brand

Kawasaki

Engine Displacement (cc)

999 cc

Engine Horsepower

35 hp

Foot Operated Height of Cut

Standard

Forward Ground/Transport Speed

Up to 12.0 mph / 19.3 kph

Fuel Capacity

10 gal. / 37.8 L / 40 Qt.

Fuel Type

Gasoline

Height of Cut

1.5 - 5.5 in. / 3.8 - 14.0 cm in 0.25 in (0.6 cm) increments

Hour Meter

Standard

Product Features

XL Frame

Product Type

Zero Turn Mowers

Roll-Over Protection System (ROPS)

Folding; Standard

Seat

Deluxe Seat with Armrests

Spindle Bearings

Maintenance-free

Spindle Housing

9 in / 22.9 cm Diameter Cast Aluminum

Start Type

Electric

Steering Controls

1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened

Transmission

ZT-5400 Integrated Pumps and Wheel Motors

Weight

1,317 lbs / 597.4 kg

Disclaimer

*The gross horsepower of these engines was laboratory rated at 3,600 RPM by the engine manufacturer in accordance with SAE J1940 and SAE J1995. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly different.
**See your retailer for warranty details.
422000000-999999999 420600000-421999999 400000000-420599999

5-Year / 1550 Hours

74058 Product Warranty

**See dealer for Warranty details.
