TITAN Z4800 Zero-Turn-Radius Riding Mower
Product Information
- Model #: 74812
- Serial #: 280000001 - 280999999
- Product Type: Riding Products
Loading...

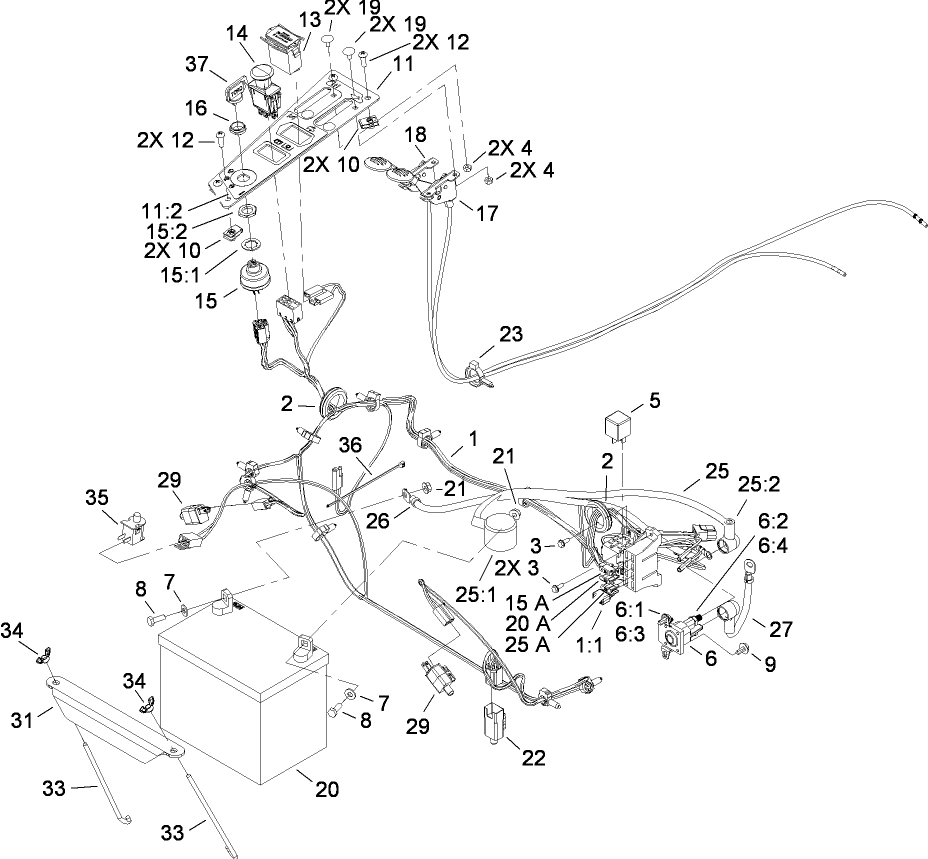

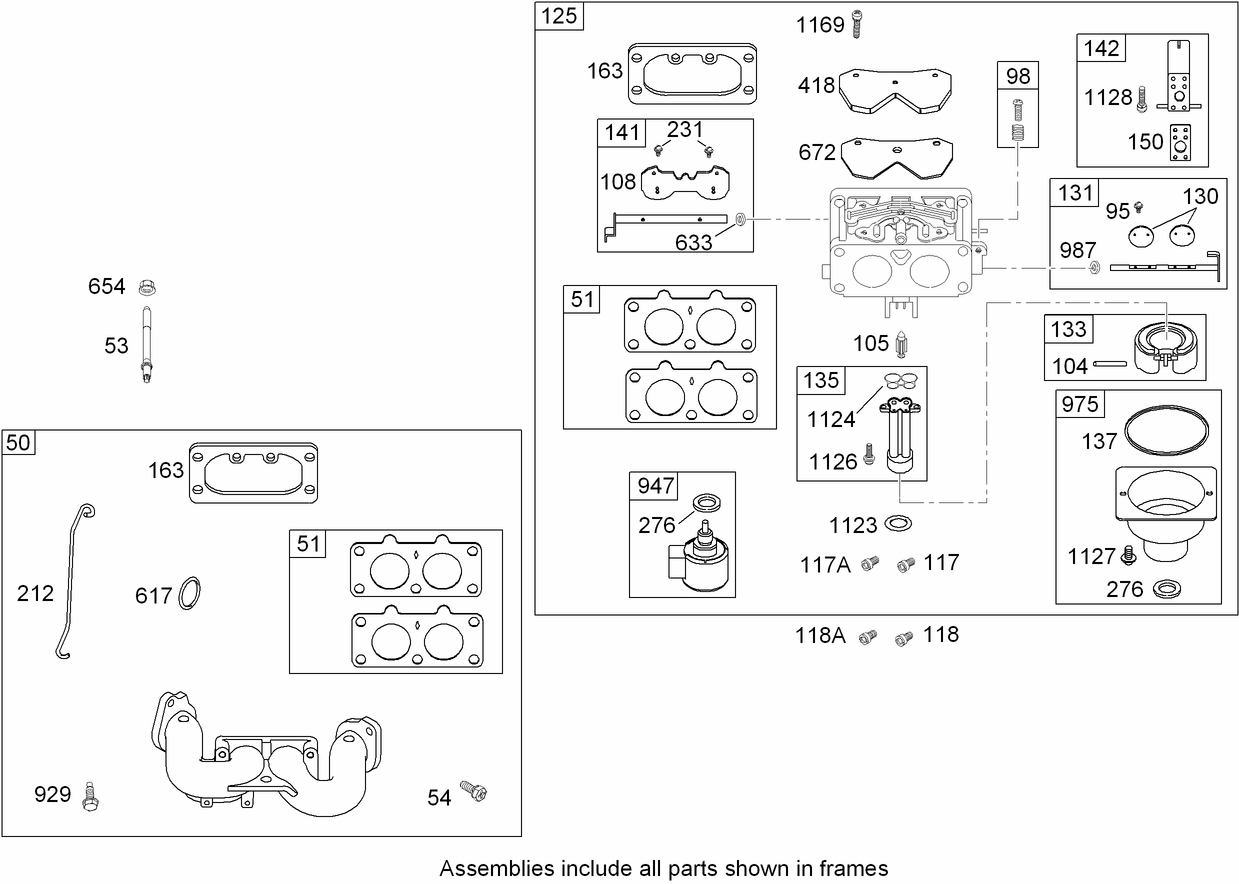

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Parts Catalog
-
Setup Instructions
Titan Hydraulic Filter and Service Kit (Part # 121-3783)
Hydraulic filters protect your Toro hydraulic system components from damage due to contamination, leakages, rust and damaged seals. Replacing these filters with a genuine Toro hydraulic filter prevents problems, protects the hydraulic system and keeps your Toro equipment at peak performance. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
Please contact your local dealer
BAGGER-48/52" Z (Part # 79171)
-
Model #
74812 -
Serial #
280000001 - 280999999 -
Product Name
TITAN Z4800 Zero-Turn-Radius Riding Mower -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Zero Radius Turn, Consumer -
Chassis Type
ZRT - Consumer -
Swath
48 inch -
Discharge
Side -
Engine/Motor Manufacturer
Briggs & Stratton -
Engine/Motor Size
725cc -
Engine/Motor Type
4 Cycle CARB2, EPA2 -
Engine Starter
Electric -
Transmission Type
Hydrostatic
-
Drive System: Ground Speed
Fwd. 0 - 7.5 Rev. 0 - 4.8 mph -
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Tire Pressure
13 psi / 90 kPa -
Engine: Engine Oil Type
2.0 qts. 10w-30 -
Engine: Battery
12V -
Chassis: Height of Cut Range
1.5-4.5"; 1/2" increments -
Engine: Spark Plug
Champion XC12YC -
Engine: Engine Speed
3700+50/-100 RPM
