TimeCutter MX 5050 Riding Mower

TimeCutter MX 5050 Riding Mower

TimeCutter MX 5050 Riding Mower

Product Information

  • Model #: 74770
  • Serial #: 316000001 - 316999999
  • Product Type: Riding Products

Search for a part within assembly drawings:

Showing Results

Drawing Title Part Number Description
Title



13 Inch Wheel and Tire Assembly No. 119-3473
13 Inch Wheel and Tire Assembly No. 119-3473
2 Ply Wheel and Tire Assembly No. 131-3673
2 Ply Wheel and Tire Assembly No. 131-3673
50 Inch Deck and Decal Assembly No. 131-3614
50 Inch Deck and Decal Assembly No. 131-3614
50 Inch Deck Assembly
50 Inch Deck Assembly
50 Inch Deck Belt, Spindle and Blade Assembly
50 Inch Deck Belt, Spindle and Blade Assembly
Battery and Electrical Assembly
Battery and Electrical Assembly
Belt and Idler Assembly
Belt and Idler Assembly
Body Styling and Fuel Pod Assembly
Body Styling and Fuel Pod Assembly

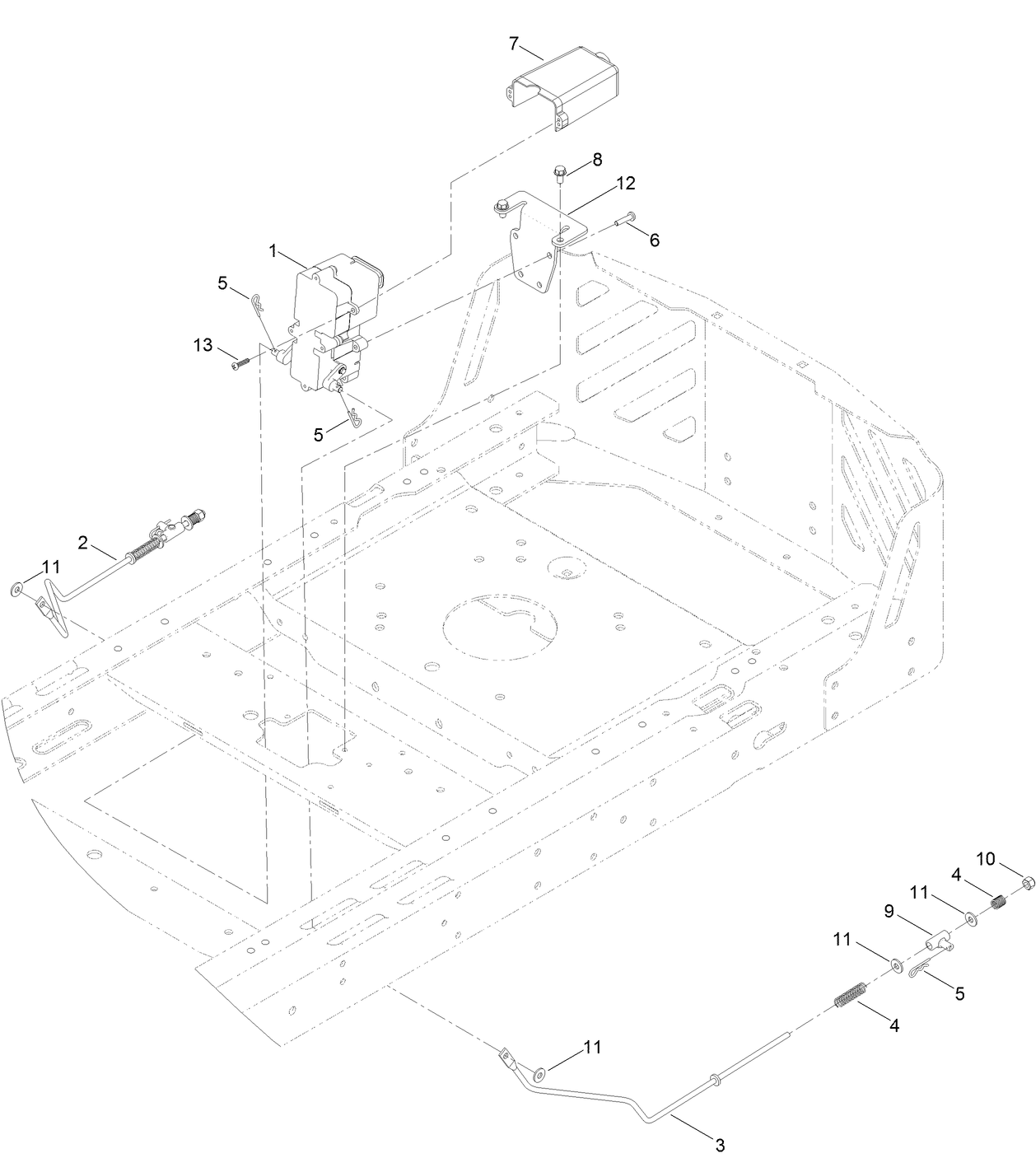

Brake Box Assembly
Brake Box Assembly
Clutch Assembly
Clutch Assembly

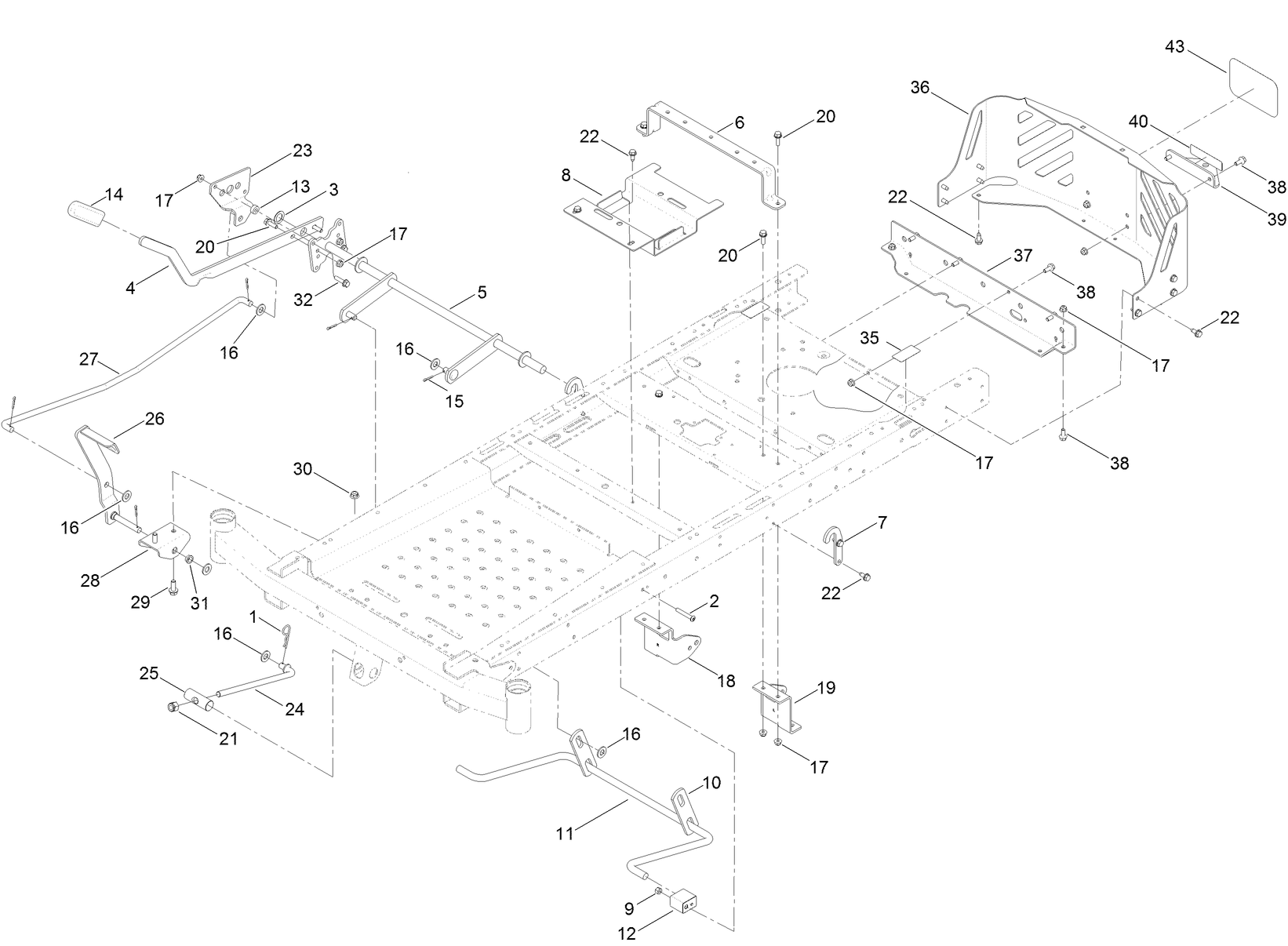

Deck Lift Assembly
Deck Lift Assembly
Engine and Muffler Assembly
Engine and Muffler Assembly

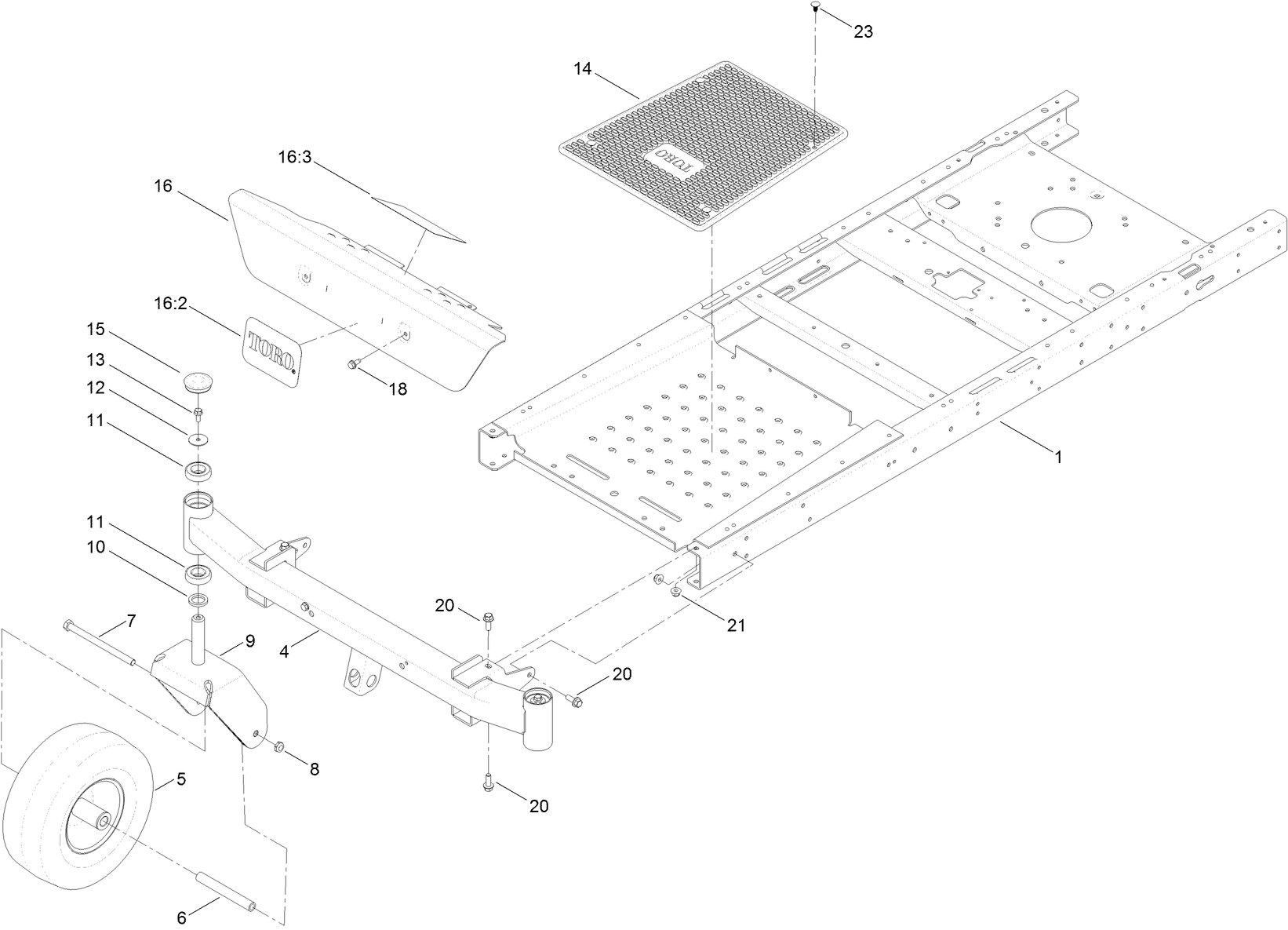

Frame, Front Axle and Caster Wheel Assembly
Frame, Front Axle and Caster Wheel Assembly
Fuel Delivery Assembly
Fuel Delivery Assembly
Fuse and Wire Harness Assembly
Fuse and Wire Harness Assembly

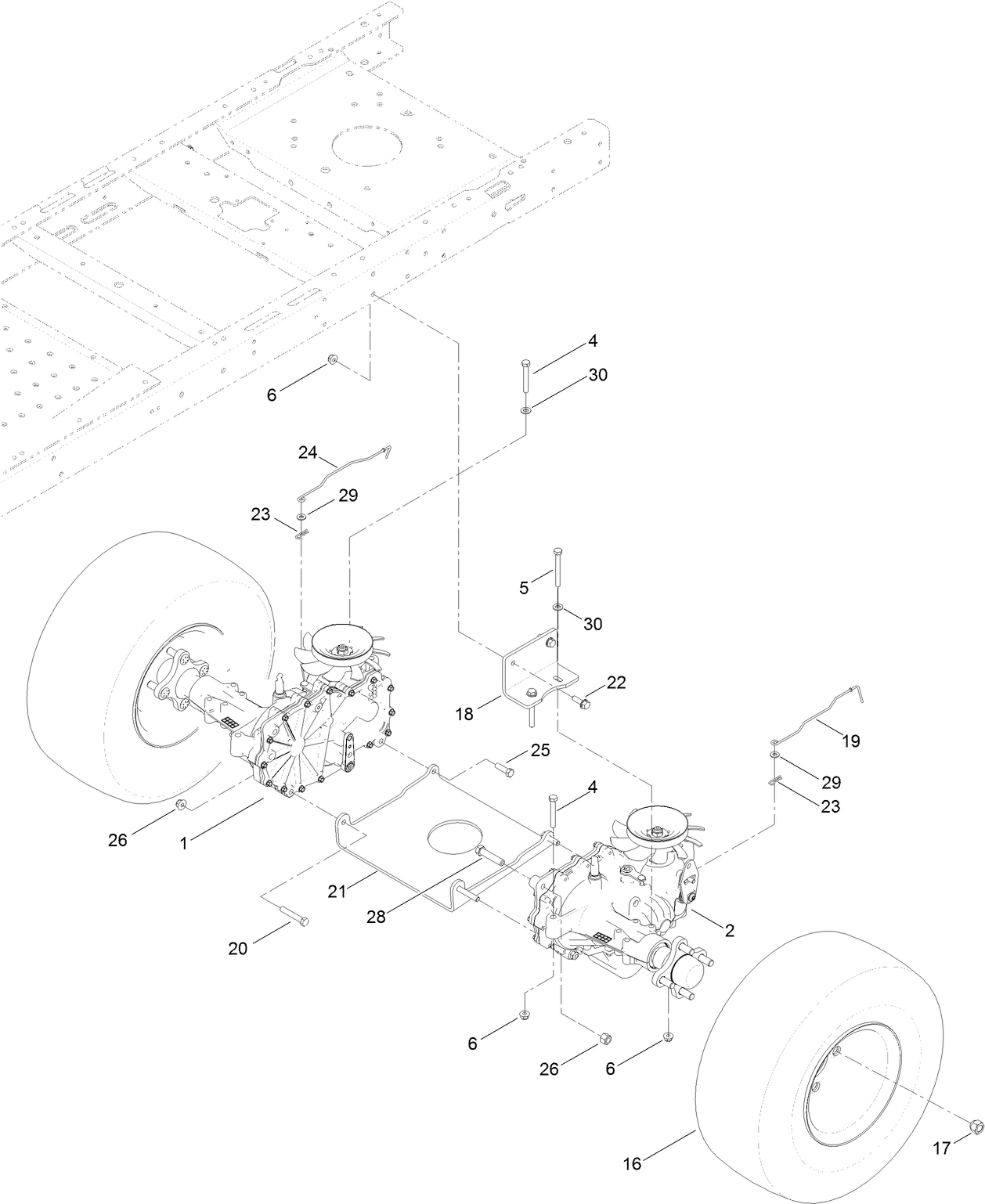

Hydro Transaxle Drive and Rear Wheel Assembly
Hydro Transaxle Drive and Rear Wheel Assembly
LH Transaxle Assembly No. 130-6960
LH Transaxle Assembly No. 130-6960
Motion Control Assembly
Motion Control Assembly
RH Transaxle Assembly No. 130-6961
RH Transaxle Assembly No. 130-6961

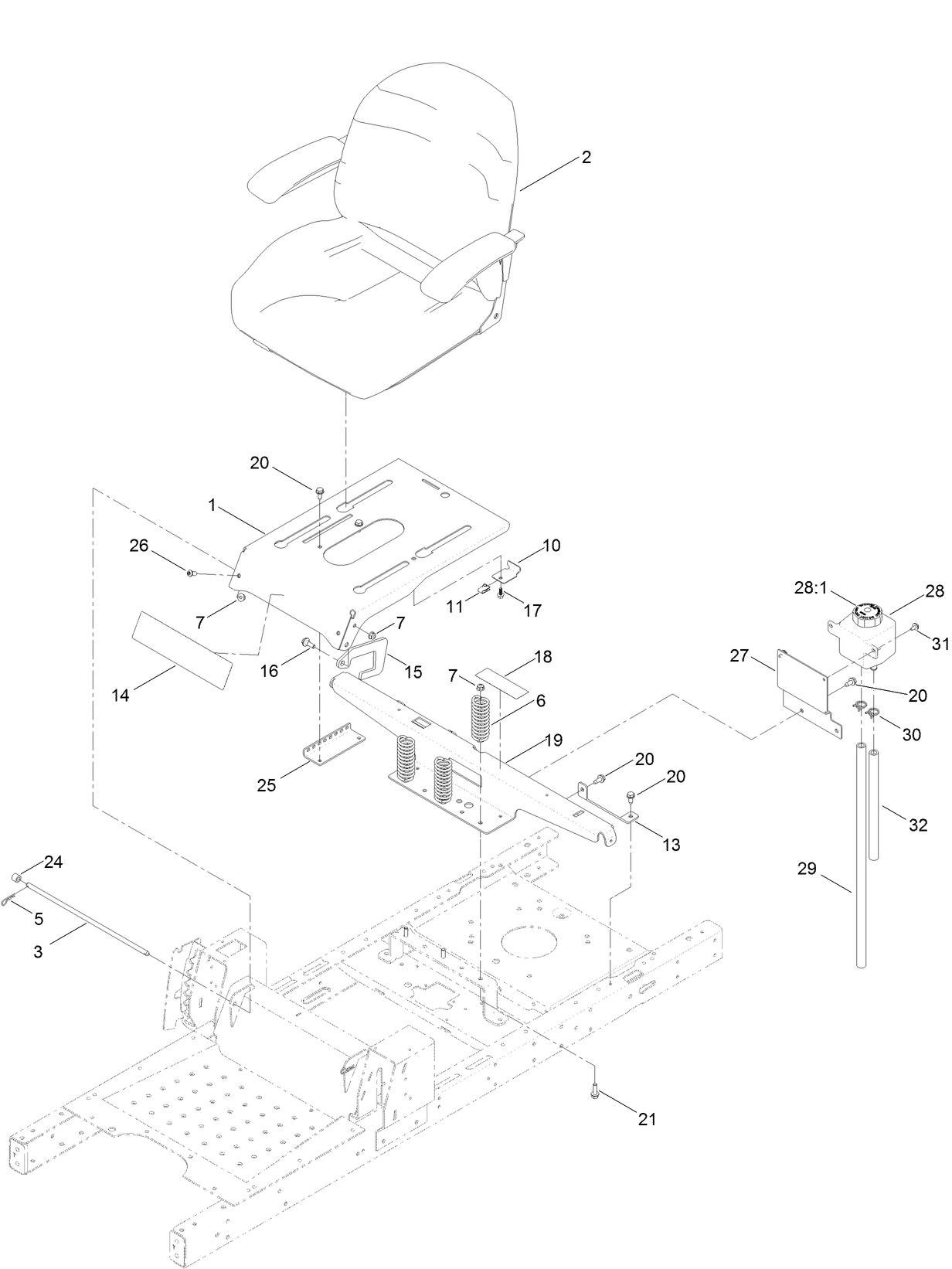

Seat Assembly
Seat Assembly
Seat Assembly No. 131-4147
Seat Assembly No. 131-4147
Download Parts Catalog
Operator's Manual
Parts Catalog
Setup Instructions
Empty Image Container
*OBS* Toro full synthetic 10W-30 engine oil (Part # 117-0066)
Toro full synthetic 10W-30 engine oil. The easy engine oil choice for any outdoor power equipmentto increase performance and reliability.
50 Inch Bagging Enhancement Kit
50 Inch Bagging Enhancement Kit (Part # 121-5692)
Genuine OEM Part
$125.99 USD
50 inch TimeCutter Stripping Kit
50 inch TimeCutter Stripping Kit (Part # 121-5706)
The Toro Striping Kit allows you to create "ballpark" stripes and patterns in your lawn while you mow. Striping kits lay the grass down in the direction of travel. The differences in direction reflect light to provide vivid light and dark stripes in your lawn. Adjustable to increase or decrease downward pressure.
$143.99 USD
Empty Image Container
KIT-JACK MOUNT (Part # 126-5251)
$125.39 USD
Riding Mower Jack Kit
Riding Mower Jack Kit (Part # 127-6666)
This genuine Toro OEM riding mower jack kit is designed to safely lift and support your Toro riding mower or zero turn, giving you safe, stable under-deck access for blade changes, belt replacements, and routine maintenance. It is one of the most practical purchase-stage accessories for any new mower owner — investing in a proper jack from day one avoids improvised lifting methods that risk injury and equipment damage. Verify your model and serial number before ordering.
$153.99 USD
Please contact your local dealer
Premium Fuel Treatment (0.5 oz.)
Premium Fuel Treatment (0.5 oz.) (Part # 130-2393)
This genuine Toro OEM Premium Fuel Treatment is formulated to protect 2-cycle and 4-cycle small engines from the harmful effects of ethanol-blended fuels, which can absorb moisture and degrade over time — leaving gum, varnish, and corrosive deposits in carburetors, fuel lines, and fuel system components. Adding fuel treatment with every fill-up from the first use is one of the simplest preventative maintenance steps available, and is especially important for equipment that will sit unused for extended periods such as seasonal storage. Refer to the product label for the correct dosage.
$1.64 USD
Genuine OEM Part 131-3823
All Season 4-Cycle Fuel for Lawn Mowers and Snow Blowers 32 oz (Part # 131-3823)
This genuine Toro OEM all-season 4-cycle fuel is a premium ethanol-free fuel formulated specifically for outdoor power equipment engines including lawn mowers and snow blowers. Unlike pump gasoline, ethanol-free fuel does not absorb moisture or degrade over time, making it particularly well-suited for seasonal equipment or machines that may sit unused for extended periods. No mixing is required — it pours straight in for clean, reliable starting and operation. Refer to your operator manual to confirm 4-cycle fuel compatibility with your equipment.
$8.79 USD
Attachment Mount Kit for Residential Z-Mowers
Attachment Mount Kit for Residential Z-Mowers (Part # 131-3966)
Genuine OEM Part
$267.29 USD
Genuine OEM Part 131-6572
Premium Fuel Treatment (12 oz.) (Part # 131-6572)
Toro Premium Fuel Treatment helps ensure clean, reliable engine performance and protection. Toro Premium Fuel Treatment is designed to protect small 2-cycle and 4-cycle engines from the effects of ethanol-blended fuels, which can degrade over time and leave harmful deposits in carburetors and fuel systems. Using a fuel stabilizer with every fill-up is particularly important for equipment that sits unused for extended periods, such as mowers stored over winter.
$10.99 USD
Front Weight Kit for TimeCutter Mowers
Front Weight Kit for TimeCutter Mowers (Part # 131-7658)
This weight kit is required to get the best performance of Toro attachments such as the Cargo Carrier (79030) or the Brinly-Hardy rear mounted spreader or sprayer. The weight balances the machine installed with an attachment. The kit contains one 35 lb. weight and the hardware needed to install it. Can be easily removed when the attachment is not in use. The weight kit is included with the TimeCutter baggers (see baggers for details)
$309.99 USD
Please contact your local dealer
Genuine OEM Part 132-0913
Deck Retention Kit (Part # 132-0913)
Genuine OEM Part
$16.49 USD
Genuine OEM Part 136-5598
Seat Assembly (Part # 136-5598)
Genuine OEM Part
Empty Image Container
KIT-BAGGING MUFFLER SHIELD (Part # 137-7065)
$76.99 USD
10W30 4-Cycle Engine Oil - 32 oz. Bottle
10W30 4-Cycle Engine Oil - 32 oz. Bottle (Part # 38280)
The Toro 38280 Premium 4-Cycle Lawn Mower Engine Oil 10W-30 is specially formulated to meet specific 4-cycle engine manufacturer requirements calling for 10W-30. This lawn mower engine oil provides the ultimate protection for all 4-cycle OPE engines. The lawn mower engine oil is developed with Toro engineering to meet the standards for all air-cooled, liquid-cooled and diesel engines. To maximize the performance of your Toro lawn mower, we highly recommend using this Toro lawn mower engine oil, which has been specifically formulated for best results. The lawn mower engine oil provides extreme performance in all temperatures, enhancing the life of your lawn mower's engine.
$11.28 USD
SAE 30 4-Cycle Lawn Mower Engine Oil 32 oz
SAE 30 4-Cycle Lawn Mower Engine Oil 32 oz (Part # 38903)
Toro SAE 30 4-cycle engine oil passed the strictest requirements in thousands of hours of testing in hundreds of engines before you filled your lawn mower. This oil meets or exceeds performance requirements of all OEM engines (Toro, Briggs & Stratton, KOLHER, Honda, and Tecumseh). The use of Toro SAE 30 4-cycle lawn mower oil minimizes molecular shearing for extended life in hot-air-cooled applications vs multi-grades (i.e., 10W-30).
$9.99 USD
Empty Image Container
Cover for TimeCutter Models (Part # 490-7516)
The Toro Z mower cover protects your investment by offering all-season protection. Toro covers are constructed of tough, waterproof, tear and abrasion-resistant 600-Denier polyester and will provide years of carefree protection for your mower. Toro covers protect against snow, sun damage, rain, dust, birds, tree sap and more. Toro covers also feature vents to minimize condensation and heat build-up and an elastic opening to ensure a snug, secure fit.
$99.99 USD
Genuine OEM Part 79016P
17.5 Inch High Lift TimeCutter Replacement Blades (3-Pack) (Part # 79016P)
Use this 3-Pack Replacement Blade Kit to maintain your 34 or 50 inch TimeCutter's High quality cutting performance. The sharp 17.5 in. Hi-Flow blades provide a crisp cut and are compatible with select TimeCutters manufactured in and after 2011.
$53.99 USD
50 in. TimeCutter MX and SWX Recycler Kit
50 in. TimeCutter MX and SWX Recycler Kit (Part # 79024)
By adding on the Toro Recycler system you create your own natural fertilizer. This patented system cuts grass clippings 6-8 times, turning them into a fine nutrient-rich mulch to feed your lawn all season. The secret lies in the unique 'kickers' that direct clippings back into the blades to be re-cut before being released into your lawn. Kit allows you to recycle with your Toro 50" TimeCutter MX ans SWX zero turn mower.
$256.99 USD
Genuine OEM Part 79339
Assist Bar and Step Kit for TimeCutter SS and MX (Part # 79339)
Toro's Step and Assist Bar Kit will help you to step in and out of your TimeCutter with ease. The telescoping bar adjusts to your height and will assist you when entering and exiting the machine. The non-slip step gives offers additional support.
$184.99 USD
TimeCutterTwin Bagger
TimeCutter MX & SWX 50 in. Twin Bagger (Part # 79395)
The Toro TimeCutter Twin Bagger with its 6.43 bushel (8 cu. ft.) capacity makes quick work of taking care of grass clippings or fallen leaves. When paired with one of Toro's top discharge decks, its performance can't be beat. It assembles easily and once initially installed, can be removed and put back on without tools. Includes bagger, mount kit and front weights.
$999.00 USD

Model #

74770

Serial #

316000001 - 316999999

Product Name

TimeCutter MX 5050 Riding Mower

Product Brand

Toro

Product Type

Riding Products

Product Series

Zero Radius Turn, Consumer

Chassis Type

Rear Engine Rider

Swath

50 inch

Discharge

Side Discharge

Engine/Motor Manufacturer

Kohler

Engine/Motor Size

24 hp

Engine/Motor Type

4 Cycle

Engine Starter

Electric

Transmission Type

Hydrostatic

Traction Type

Rear WD

Engine: Battery

12V 195CCA

Engine: Ignition Coil Air Gap

.008-.012" / .2-.3mm

Engine: Spark Plug Gap

.030"/ .76mm

Engine: Engine Oil Type

64 oz. (1.9 Liter) SAE 10W-30

Chassis: Height of Cut Range

1.5-4.5"; 1/2" increments

Engine: Spark Plug

Champion XC12YC

Engine: Engine Speed

3300±100 RPM

Drive System: Ground Speed

Fwd. 0 - 7.0 Rev. 0 - 3.5 mph

Chassis: Tire Pressure

Rear 13 psi; Front See Sidewall of Tire
