Greensmaster® TriFlex™ 3420

Greensmaster® TriFlex™ 3420

Greensmaster® TriFlex™ 3420

Product Information

Model #: 04540
Serial #: 400000000 - 401247553
Product Type: Riding Products

Parts

Search for a part within assembly drawings:

Showing Results

Drawing Title	Part Number	Description
Title

Air Cleaner Assembly No. 95-5805

Air Cleaner Assembly No. 95-5805

Alternator and Pulley Assembly

Alternator and Pulley Assembly

Alternator Components Assembly

Alternator Components Assembly

Back Wheel Assembly

Back Wheel Assembly

Battery Assembly

Battery Assembly

Brake Cable and Lever Assembly

Brake Cable and Lever Assembly

Brake Cable Grommet Assembly

Brake Cable Grommet Assembly

Camshaft and Idle Gear Shaft Assembly

Camshaft and Idle Gear Shaft Assembly

Console and Reel Control Assembly

Console and Reel Control Assembly

Console Cable Routing Assembly

Console Cable Routing Assembly

Controller Assembly

Controller Assembly

Crankcase Assembly

Crankcase Assembly

Cylinder Head Assembly

Cylinder Head Assembly

Cylinder Head Cover Assembly

Cylinder Head Cover Assembly

Electric Motor and Bracket Assembly

Electric Motor and Bracket Assembly

Electric Motor Assembly

Electric Motor Assembly

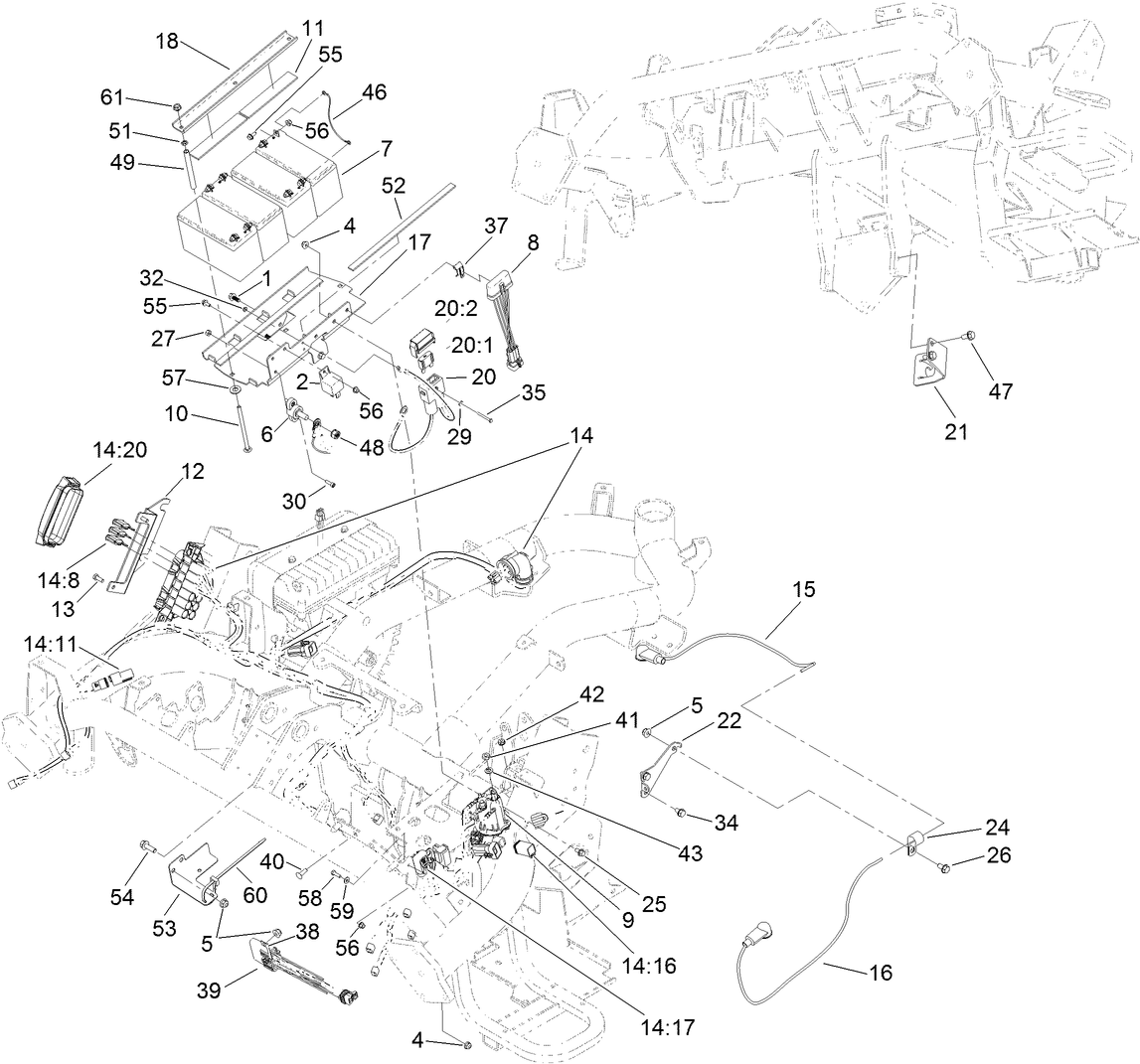

Electric Mow Battery Assembly

Electric Mow Battery Assembly

Electric Reel Motor Assembly No. 127-2450

Electric Reel Motor Assembly No. 127-2450

Engine and Exhaust Assembly

Engine and Exhaust Assembly

Frame Assembly

Front Wheel Assembly

Front Wheel Assembly

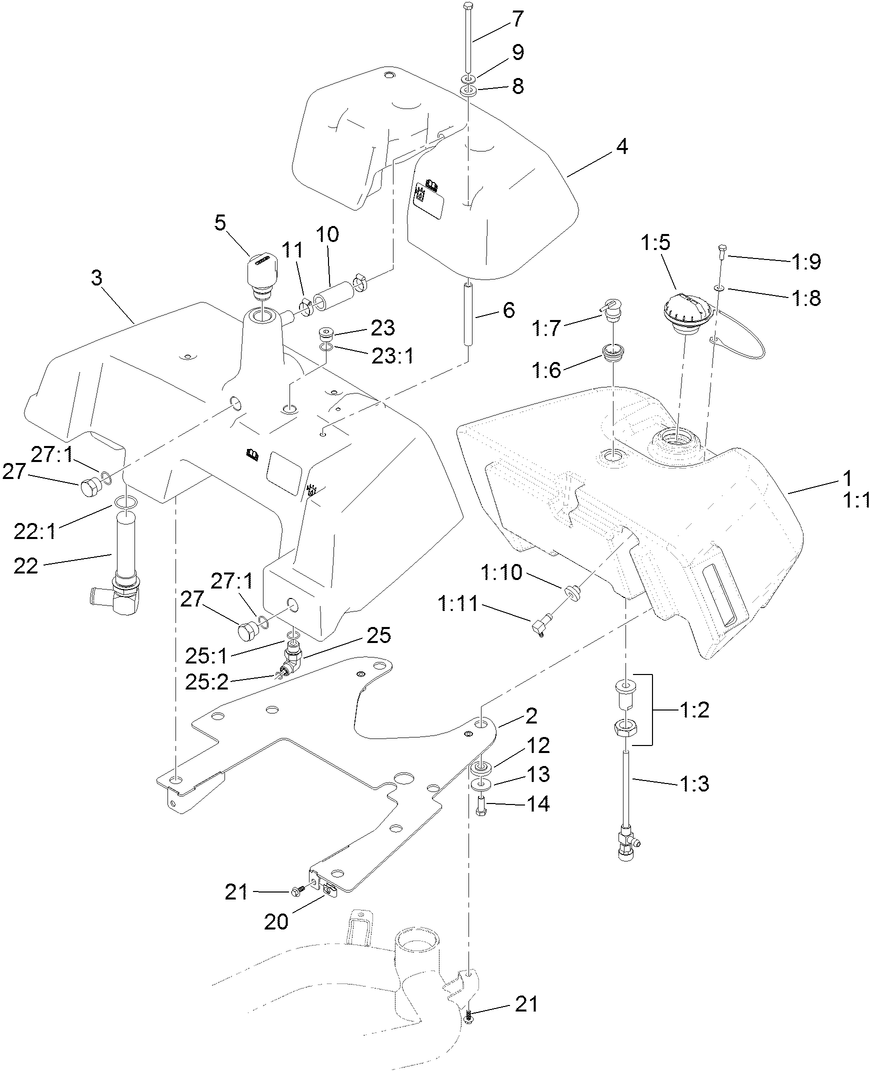

Fuel and Hydraulic Tank Assembly

Fuel and Hydraulic Tank Assembly

Fuel Camshaft Assembly

Fuel Camshaft Assembly

Gear Case and Oil Filter Cartridge Assembly

Gear Case and Oil Filter Cartridge Assembly

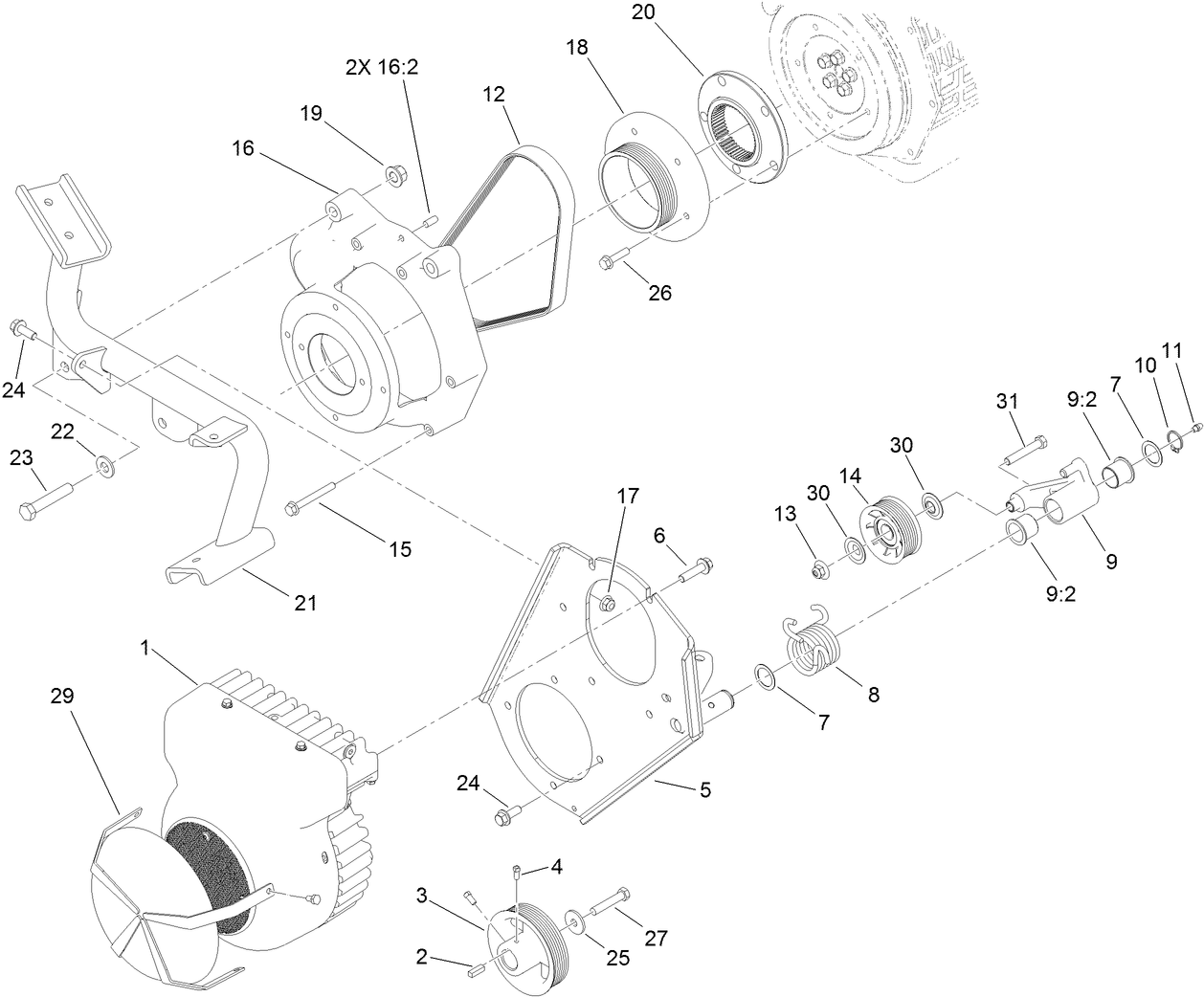

Generator and Engine Frame Assembly

Generator and Engine Frame Assembly

Generator Assembly No. 117-8182

Generator Assembly No. 117-8182

Generator Service Assembly No. 119-1069

Generator Service Assembly No. 119-1069

Generator/Controller Assembly No. 117-8185

Generator/Controller Assembly No. 117-8185

Governor Assembly

Governor Assembly

Hydraulic Cylinder Assembly No. 117-4480

Hydraulic Cylinder Assembly No. 117-4480

Hydraulic Cylinder Assembly No. 119-8128

Hydraulic Cylinder Assembly No. 119-8128

Hydraulic Cylinder Assembly No. 119-8129

Hydraulic Cylinder Assembly No. 119-8129

Hydraulic Gear Pump Assembly No. 114-9958

Hydraulic Gear Pump Assembly No. 114-9958

Hydraulic Lift Manifold Assembly

Hydraulic Lift Manifold Assembly

Hydraulic Lift Manifold Assembly No. 125-5187

Hydraulic Lift Manifold Assembly No. 125-5187

Hydraulic Pump Assembly No. 121-9558

Hydraulic Pump Assembly No. 121-9558

Idle Apparatus and Fuel Pump Cover Assembly

Idle Apparatus and Fuel Pump Cover Assembly

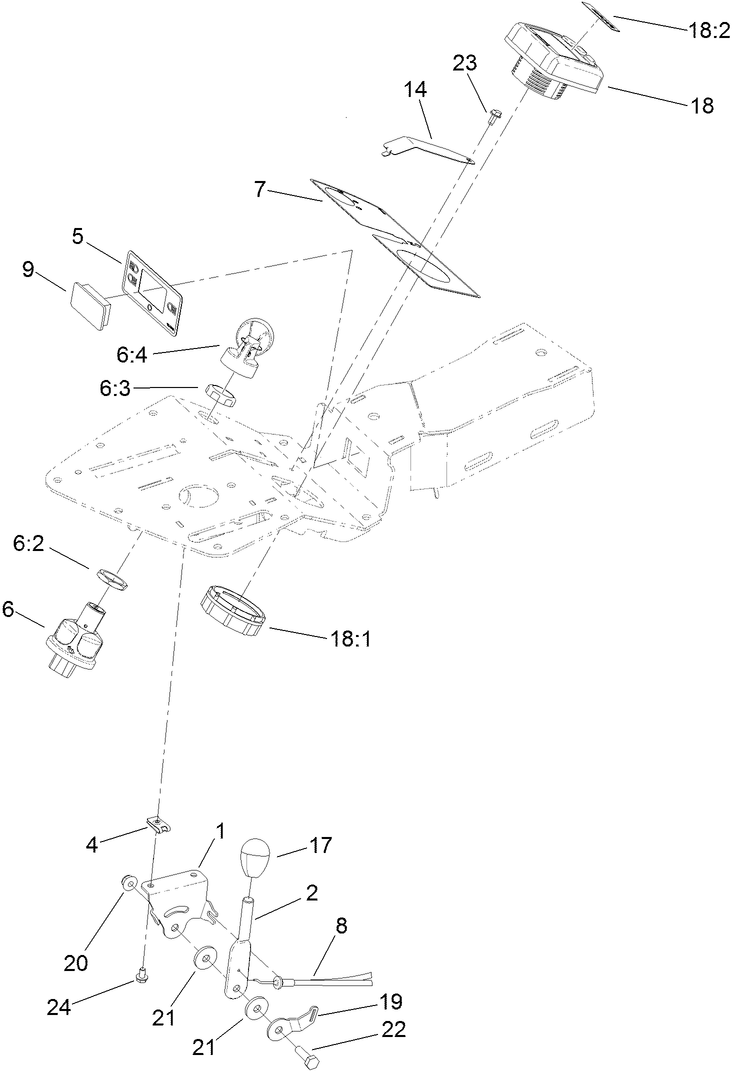

Ignition, Throttle and Choke Control Assembly

Ignition, Throttle and Choke Control Assembly

Injection Pump Assembly

Injection Pump Assembly

Inlet and Exhaust Manifold Assembly

Inlet and Exhaust Manifold Assembly

Left Hand Brake Assembly No. 115-9440

Left Hand Brake Assembly No. 115-9440

Left Hand Wheel Motor Assembly No. 117-4303

Left Hand Wheel Motor Assembly No. 117-4303

Lift Circuit Assembly

Lift Circuit Assembly

Main Bearing Case Assembly

Main Bearing Case Assembly

Neutral Centering Assembly

Neutral Centering Assembly

Nozzle Holder and Glow Plug Assembly

Nozzle Holder and Glow Plug Assembly

Nozzle Holder Assembly

Nozzle Holder Assembly

Oil Pan, Oil Pump and Dipstick Assembly

Oil Pan, Oil Pump and Dipstick Assembly

Piston and Crankshaft Assembly

Piston and Crankshaft Assembly

Platform Assembly

Platform Assembly

Pump Coupling Assembly

Pump Coupling Assembly

Radiator, Air Hose and Fuel Line Assembly

Radiator, Air Hose and Fuel Line Assembly

Radiator, Fuel Pump and Air Cleaner Assembly

Radiator, Fuel Pump and Air Cleaner Assembly

Right Hand Brake Assembly No. 115-9441

Right Hand Brake Assembly No. 115-9441

Right Hand Support Platfrom Assembly

Right Hand Support Platfrom Assembly

Right Hand Wheel Motor Assembly No. 117-4302

Right Hand Wheel Motor Assembly No. 117-4302

Roll-Over Protection System Assembly

Roll-Over Protection System Assembly

Seatbase Assembly

Seatbase Assembly

Starter and Flywheel Assembly

Starter and Flywheel Assembly

Starter Component Assembly

Starter Component Assembly

Steering Arm and Adjuster Assembly

Steering Arm and Adjuster Assembly

Steering Circuit Assembly (1)

Steering Circuit Assembly (1)

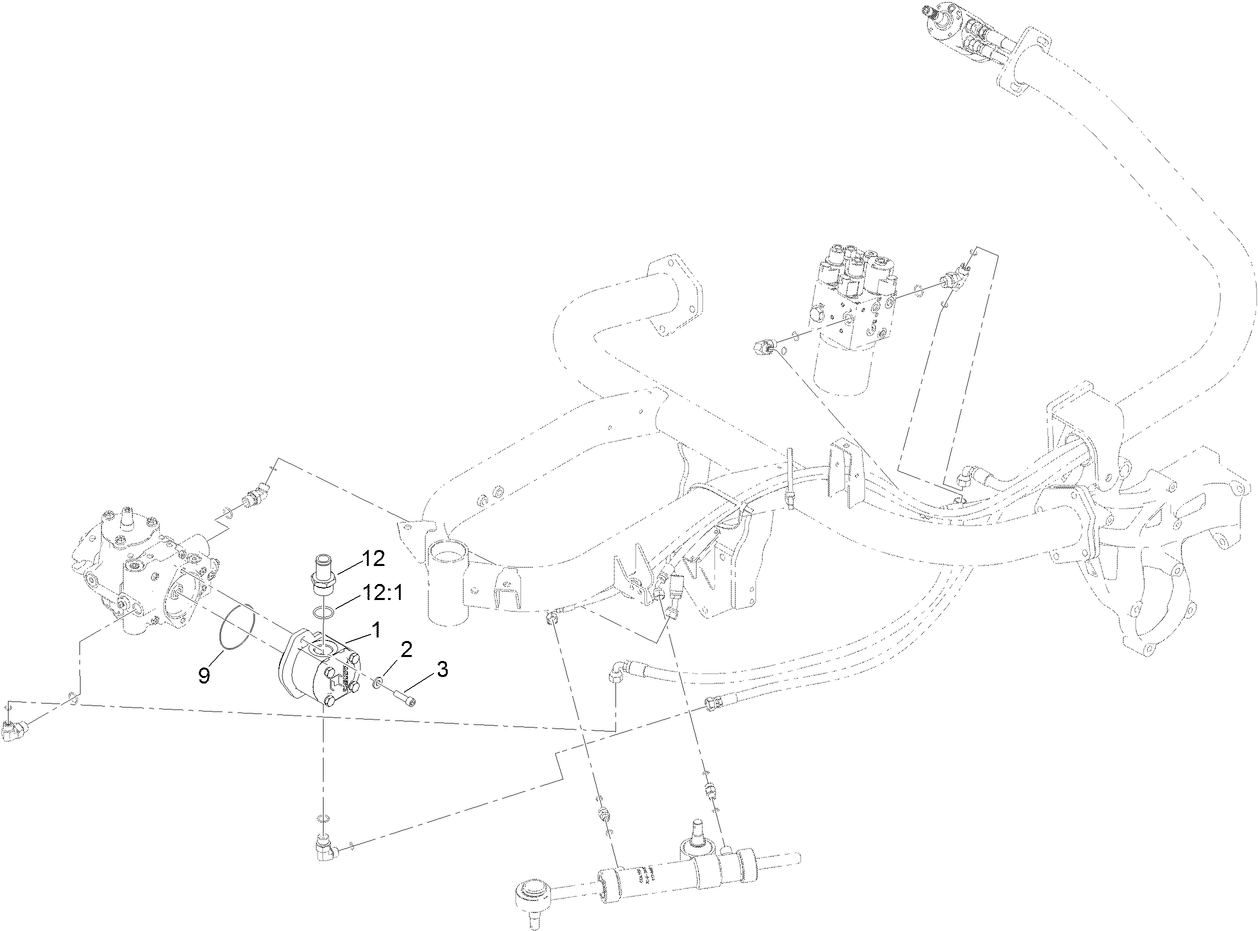

Steering Circuit Assembly (2)

Steering Circuit Assembly (2)

Steering Circuit Assembly (3)

Steering Circuit Assembly (3)

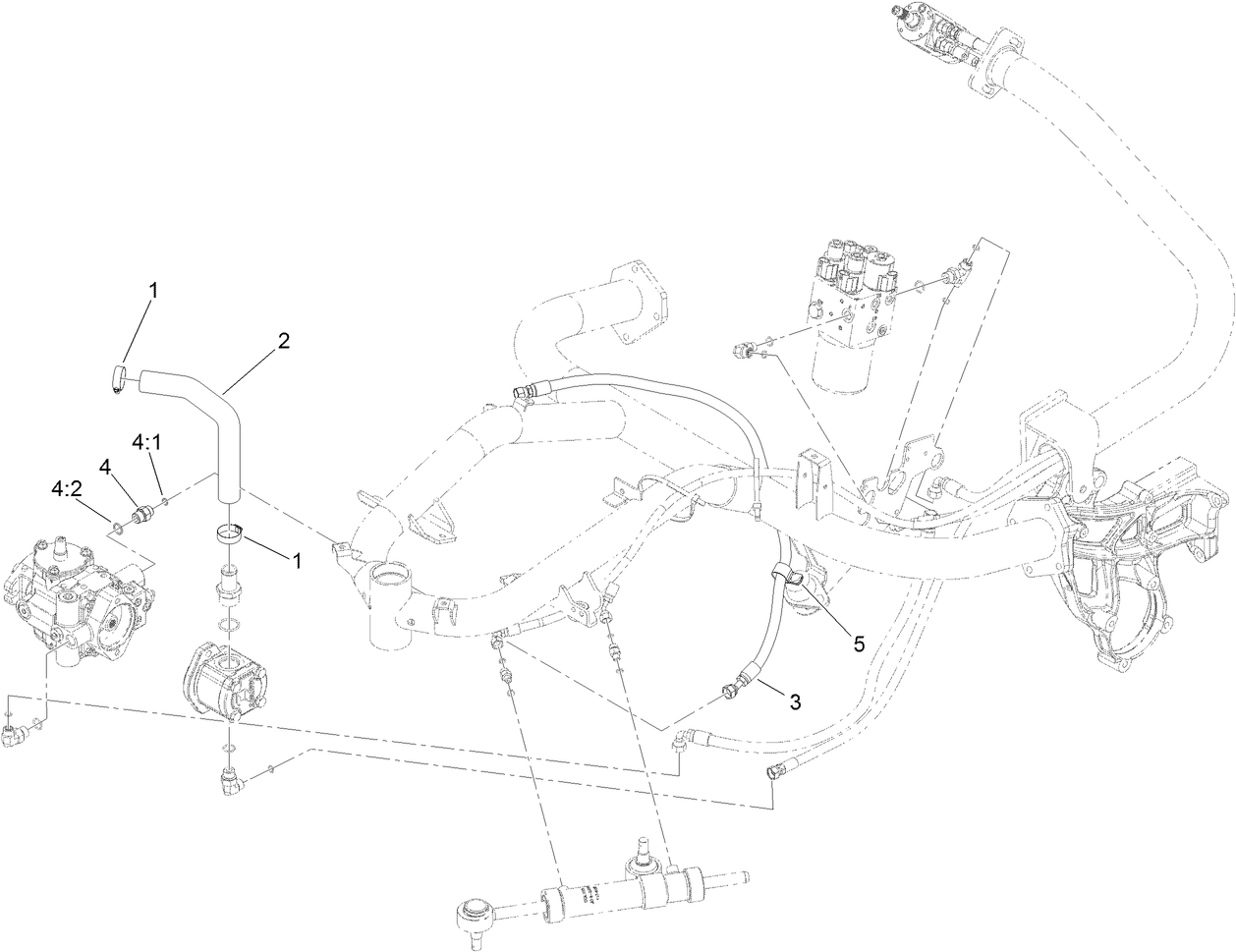

Steering Circuit Assembly (4)

Steering Circuit Assembly (4)

Steering Valve Assembly No. 114-4672

Steering Valve Assembly No. 114-4672

Stop Solenoid and Speed Control Plate Assembly

Stop Solenoid and Speed Control Plate Assembly

Suspension A-Arm Assembly

Suspension A-Arm Assembly

Suspension and Basket Assembly

Suspension and Basket Assembly

Suspension Crossarm Assembly

Suspension Crossarm Assembly

Suspension Pin Position Assembly

Suspension Pin Position Assembly

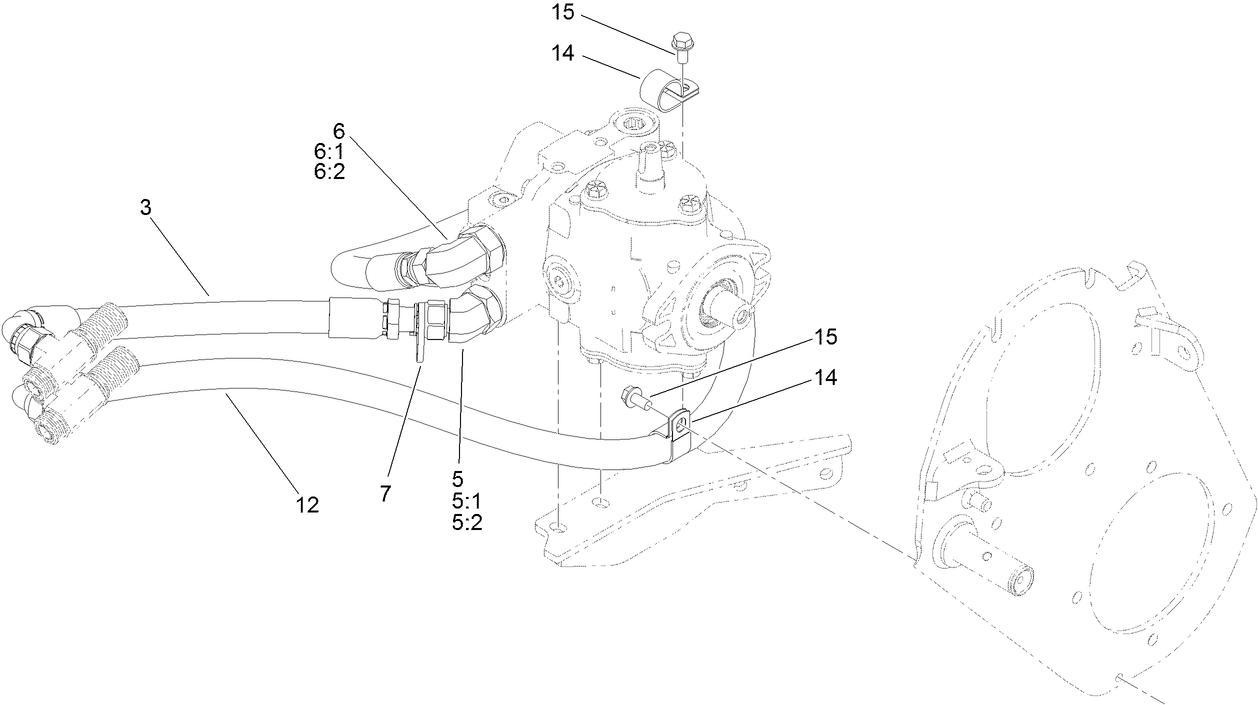

Traction Drive Hose Routing Assembly

Traction Drive Hose Routing Assembly

Traction Drive Hydraulic Line Assembly

Traction Drive Hydraulic Line Assembly

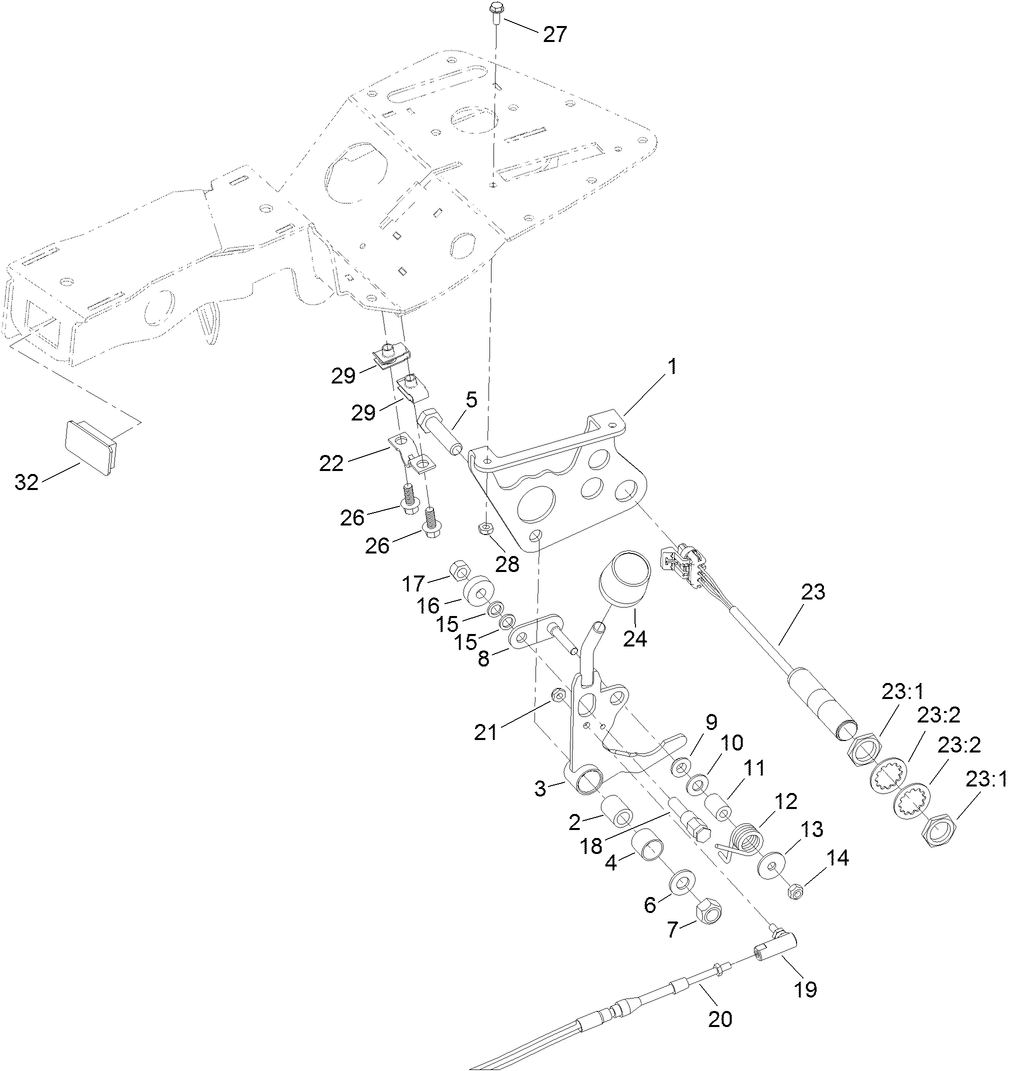

Traction Interface Control Assembly

Traction Interface Control Assembly

Valve and Rocker Arm Assembly

Valve and Rocker Arm Assembly

Water Flange and Thermostat Assembly

Water Flange and Thermostat Assembly

Water Pump and Water Pipe Assembly

Water Pump and Water Pipe Assembly

Wire Harness Assembly

Wire Harness Assembly

Download Parts Catalog

Manuals

Operator's Manual

Service Bulletin

Service Manual

Parts Catalog

Schematic Drawing - Electrical

EU Declaration of Conformity

Engine Evaporative Emission Warranty

Schematic Drawing - Hydraulic
