7500-D Series 72" (183 cm) 37 HP 1642cc Diesel

7500-D Series 72" (183 cm) 37 HP 1642cc Diesel

7500-D Series 72" (183 cm) 37 HP 1642cc Diesel

Product Information

Model #: 74072
Serial #: 403226744 - 404399999
Product Type: Riding Products

Parts

Search for a part within assembly drawings:

Showing Results

Drawing Title	Part Number	Description
Title

Air Cleaner Assembly No. 126-7646

Air Cleaner Assembly No. 126-7646

Camshaft and Driving Gear Assembly

Camshaft and Driving Gear Assembly

Caster Wheel Assembly

Caster Wheel Assembly

Center Section Assembly Transmission Assembly No. 131-5510

Center Section Assembly Transmission Assembly No. 131-5510

Charge Pump Housing Assembly Transmission Assembly No. 131-5510

Charge Pump Housing Assembly Transmission Assembly No. 131-5510

Cooling Assembly

Cooling Assembly

Cooling Assembly No. 121-3330

Cooling Assembly No. 121-3330

Cooling Water System Assembly

Cooling Water System Assembly

Crankshaft and Piston Assembly

Crankshaft and Piston Assembly

Cylinder Block Assembly

Cylinder Block Assembly

Cylinder Head and Cover Assembly

Cylinder Head and Cover Assembly

Deck and Driveshaft Assembly

Deck and Driveshaft Assembly

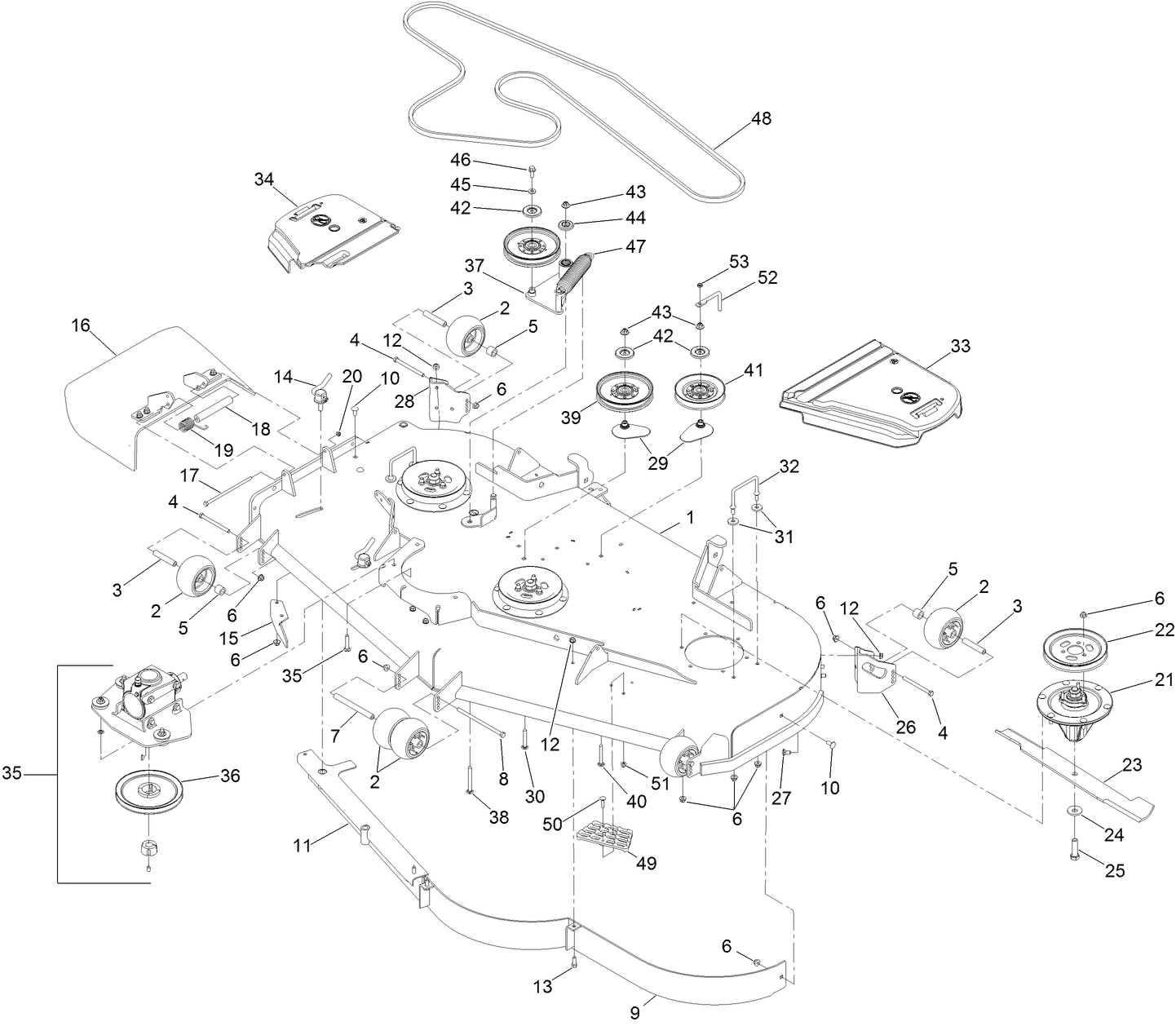

Deck Assembly

Deck Decal Assembly No. 126-7723

Deck Decal Assembly No. 126-7723

Deck Lift Assembly

Deck Lift Assembly

Diesel Particulate Filter Assembly

Diesel Particulate Filter Assembly

Driveshaft Assembly No. 110-3575

Driveshaft Assembly No. 110-3575

Electric Parts Assembly

Electric Parts Assembly

Electrical Assembly

Electrical Assembly

Electronic Control Unit Assembly

Electronic Control Unit Assembly

Engine and Air Cleaner Assembly

Engine and Air Cleaner Assembly

Exhaust Manifold Assembly

Exhaust Manifold Assembly

Flywheel Housing and Oil Sump Assembly

Flywheel Housing and Oil Sump Assembly

Frame Assembly

Fuel Injection Valve Assembly

Fuel Injection Valve Assembly

Fuel Line Assembly

Fuel Line Assembly

Fuel Pump Assembly

Fuel Pump Assembly

Fuel Supply Pump Assembly

Fuel Supply Pump Assembly

Fuel System Assembly

Fuel System Assembly

Gasket Set

Gear Box and Mount Assembly No. 126-2951

Gear Box and Mount Assembly No. 126-2951

Gear Case and Clutch Assembly Transmission Assembly No. 131-5510

Gear Case and Clutch Assembly Transmission Assembly No. 131-5510

Gear Housing Assembly

Gear Housing Assembly

Gearbox Assembly No. 130-8659

Gearbox Assembly No. 130-8659

Generator Assembly

Generator Assembly

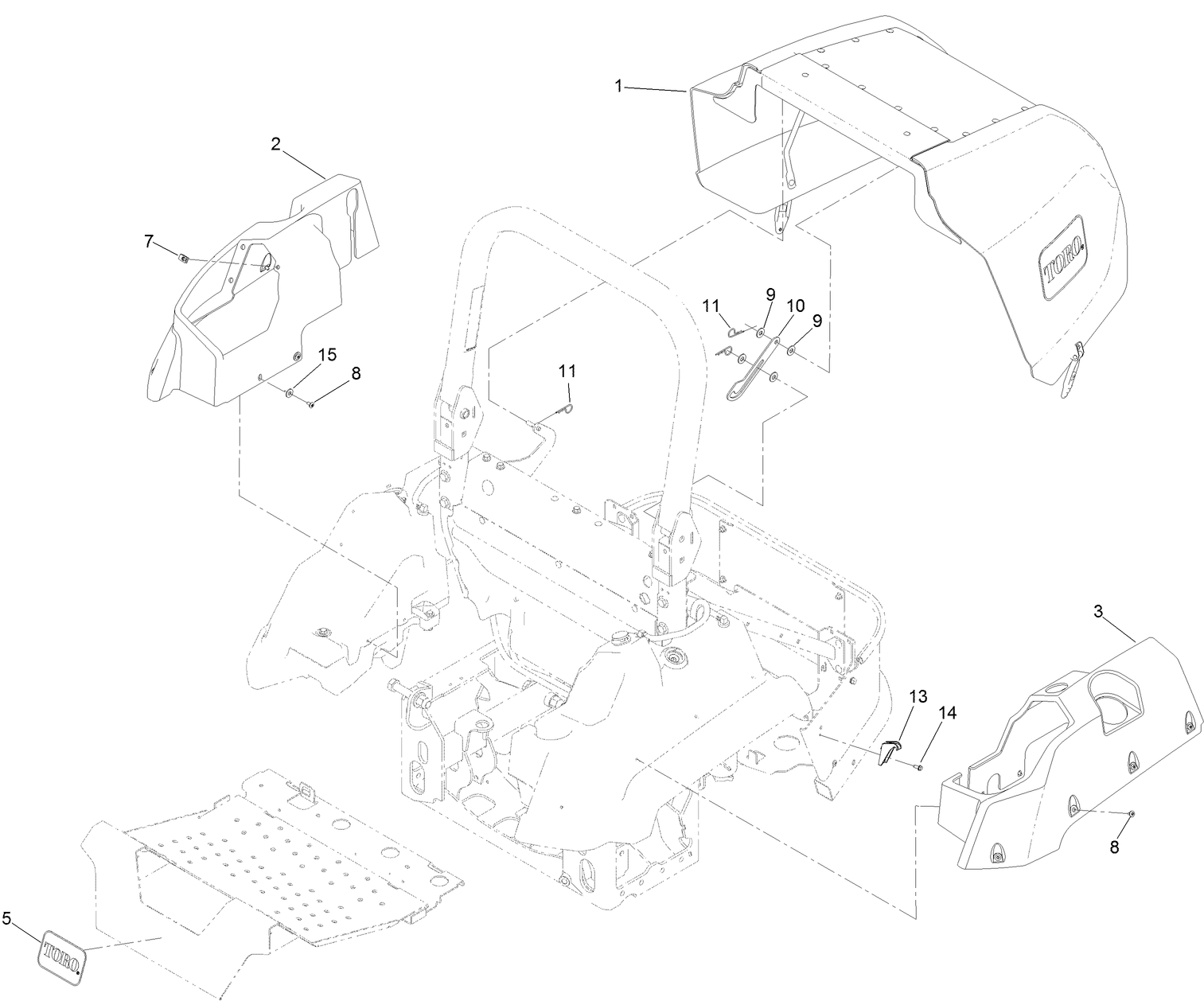

Hood and Tank Cover Assembly

Hood and Tank Cover Assembly

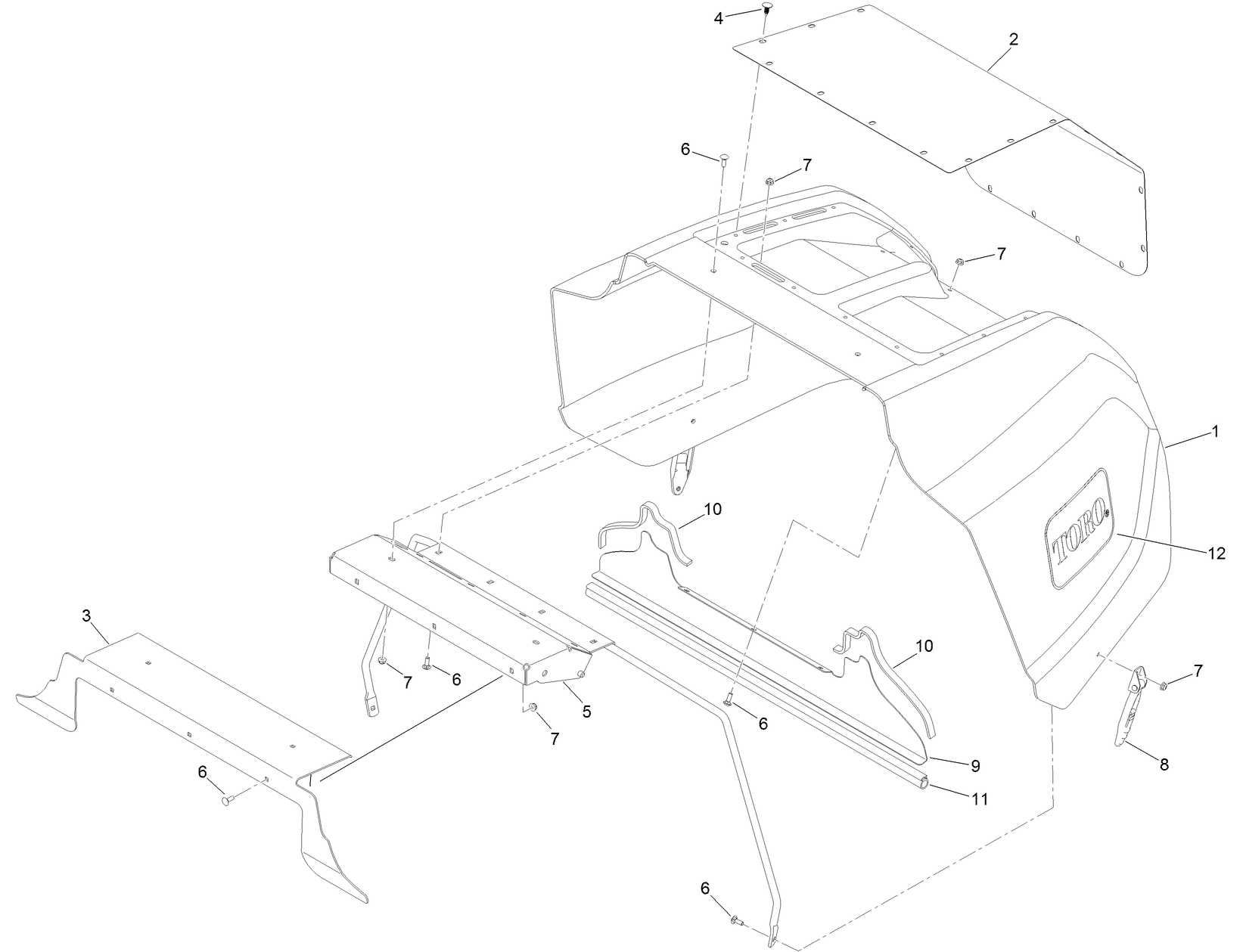

Hood Assembly

Hydraulic Assembly

Hydraulic Assembly

Hydraulic Drive Assembly

Hydraulic Drive Assembly

Hydraulic Gear Pump Assembly No. 112-9542

Hydraulic Gear Pump Assembly No. 112-9542

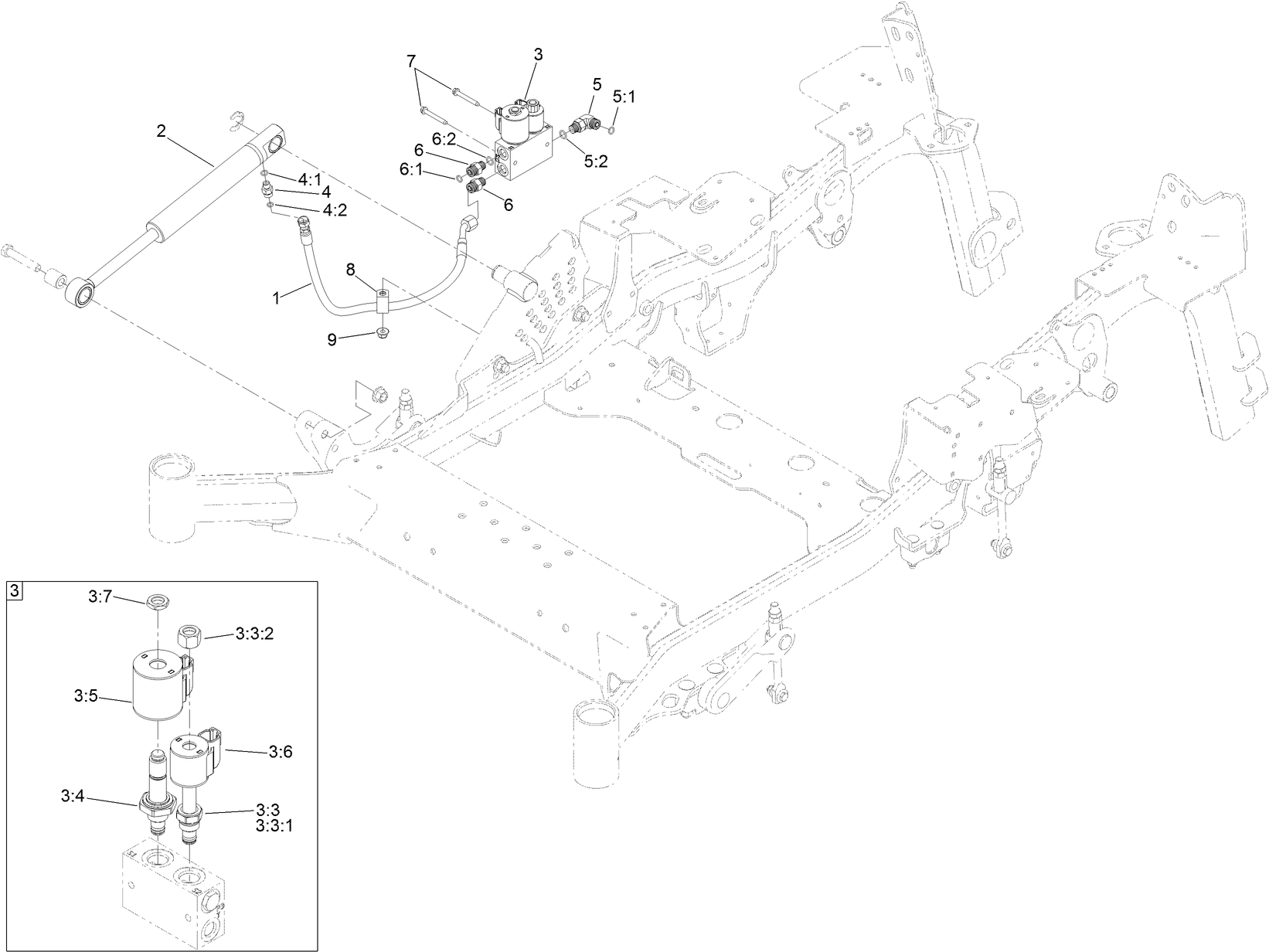

Hydraulic Lift and Fold Assembly

Hydraulic Lift and Fold Assembly

Hydraulic Reservoir Assembly No. 126-6764

Hydraulic Reservoir Assembly No. 126-6764

Idler Arm Assembly No. 126-2585

Idler Arm Assembly No. 126-2585

Lever Assembly No. 107-1664

Lever Assembly No. 107-1664

LH Fuel Tank Assembly 126-8652

LH Fuel Tank Assembly 126-8652

Motion Control Assembly

Motion Control Assembly

Oil Pump Assembly

Oil Pump Assembly

Parking Brake Assembly

Parking Brake Assembly

Power Frame Assembly

Power Frame Assembly

Rear Wheel and Caster Assembly

Rear Wheel and Caster Assembly

RH Fuel Tank Assembly No. 126-8651

RH Fuel Tank Assembly No. 126-8651

Rod Linkage Assembly No. 126-6131

Rod Linkage Assembly No. 126-6131

Roll-Over Protection System Assembly No. 135-5786

Roll-Over Protection System Assembly No. 135-5786

Rubber Deflector Assembly No. 108-2792

Rubber Deflector Assembly No. 108-2792

Seat Assembly No. 125-3107

Seat Assembly No. 125-3107

Seat Mount Assembly

Seat Mount Assembly

Spindle Assembly No. 127-0560

Spindle Assembly No. 127-0560

Starting Motor Assembly

Starting Motor Assembly

Suction Manifold Assembly

Suction Manifold Assembly

Transmission Assembly

Transmission Assembly

Wire Harness Assembly No. 126-7352

Wire Harness Assembly No. 126-7352

Download Parts Catalog

Manuals

Operator's Manual

Service Manual

Parts Catalog

Setup Instructions

Product Warranty

Software Guide

Accessories (26)

Genuine OEM Part 105-7711-03

24.5 Inch Medium Flow Blade (Part # 105-7711-03)

Toro 24.5 Inch OEM Medium Flow blade. Medium Flow mower straight edge, standard discharge blade. These blades have slight upward angle on the edges. Great blades for use when horsepower is a concern. Produce medium Flow but requires less horsepower than Hi-Flow blades. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

Genuine OEM Part 105-7712-03

24.5 Low Flow Blade (Part # 105-7712-03)

Toro 24.5 Inch OEM Low Flow blade. Low Flow mower blades have slightly curved ends that keep air Flow to a minimum. The lack of suction allows cut grass to exit the mower while keeping dust and debris levels down. Toro Low Flow mower blades cause less engine strain than Hi-Flow blades. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

Genuine OEM Part 105-7719-03

24.5 Inch Atomic Blade (Part # 105-7719-03)

Toro 24.5 Inch OEM Atomic blade. The Toro Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

Genuine OEM Part 105-7778-03

24.5 Inch Recycler Blade (Part # 105-7778-03)

Toro 24.5 Inch OEM Recycler blade. Recycler straight edge, standard discharge blade. The blade is designed for a High quality cut and long-lasting durability. These blades are designed with “wings,” called “accelerators” that kind of act like a fan — forcing the tiny bits of grass back into the earth. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

Genuine OEM Part 105-7784-03

24.5 Inch Hi-Flow Blade (Part # 105-7784-03)

Toro 24.5 Inch OEM Hi-Flow blade. This sharp replacement Hi-Flow lawn mower blade provides a crisp, clean cut time after time. You can count on the quality and reliability of this Toro replacement Hi-Flow lawn mower blade. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

GrandStand Turbo Baffle Kit

GrandStand Turbo Baffle Kit (Part # 107-1634)

This genuine Toro OEM turbo baffle kit is designed for Toro GrandStand stand-on mowers and modifies the airflow under the cutting deck to improve clipping discharge performance in heavy, dense, or wet grass conditions. The turbo baffle redirects air movement beneath the deck to increase the velocity at which clippings are expelled through the discharge chute, reducing the tendency for clippings to clump or block in challenging mowing conditions. Verify your model and serial number before ordering.

Genuine OEM Part 108-1120

Hi-Flow 24.5 Inch Blade Pack (6) (Part # 108-1120)

Toro 24.5 Inch OEM Hi-Flow blade pack. (6) Hi-Flow blades. This sharp replacement Hi-Flow lawn mower blade provides a crisp, clean cut time after time. You can count on the quality and reliability of this Toro replacement Hi-Flow lawn mower blade. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part

Genuine OEM Part 105-7719-03

Atomic in. 24.5 Blade Pack (6) (Part # 108-1126)

Toro OEM Atomic blade pack. (6) 24.5 Inch Atomic blades. Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

Toro 55 Gallon Premium Transmission/Hydraulic Fluid (Part # 108-1183)

Toro 55 Gallon Premium Transmission/Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

In Stock

Toro 5 Gallon Premium Transmission/Hydraulic Fluid (Part # 108-1184)

Toro 5 Gallon Premium Transmission/Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Empty Image Container

Mid Flow 24.5 Inch Blade Pack (6) (Part # 110-0404)

Toro 24.5 Inch OEM Medium Flow blade pack. (6) Medium Flow blades. Medium Flow mower straight edge, standard discharge blade. These blades have slight upward angle on the edges. Great blades for use when horsepower is a concern. Produce medium Flow but requires less horsepower than Hi-Flow blades. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

Empty Image Container

Low Flow 24.5 Inch Blade Pack (6) (Part # 110-0410)

Toro 24.5 Inch OEM Low Flow blade pack. (6) Low Flow blades. Low Flow mower blades have slightly curved ends that keep air Flow to a minimum. The lack of suction allows cut grass to exit the mower while keeping dust and debris levels down. Toro Low Flow mower blades cause less engine strain than Hi-Flow blades. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

Empty Image Container

Recycler 24.5 Inch Blade Pack (6) (Part # 110-0411)

Toro 24.5 Inch OEM Recycler blade pack. (6) Recycler blades. Recycler straight edge, standard discharge blade. The blade is designed for a High quality cut and long-lasting durability. These blades are designed with “wings,” called “accelerators” that kind of act like a fan — forcing the tiny bits of grass back into the earth. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

Genuine OEM Part 115-7469

72 Inch Recycler Kit (Part # 115-7469)

Genuine OEM Part

Empty Image Container

KIT-SUNSHADE (Part # 126-8077)

Empty Image Container

KIT-STRIPER VERT ADJUST [DIESEL] (Part # 126-9965)

Riding Mower Jack Kit

Riding Mower Jack Kit (Part # 127-6666)

This genuine Toro OEM riding mower jack kit is designed to safely lift and support your Toro riding mower or zero turn, giving you safe, stable under-deck access for blade changes, belt replacements, and routine maintenance. It is one of the most practical purchase-stage accessories for any new mower owner — investing in a proper jack from day one avoids improvised lifting methods that risk injury and equipment damage. Verify your model and serial number before ordering.

Empty Image Container

KIT-JACK MOUNT [NLZD] (Part # 135-1768)

Empty Image Container

KIT-HOLDER, TRASH [NLZD] (Part # 135-2473)

Empty Image Container

KIT-SMV [NLZD] (Part # 135-2891)

Empty Image Container

KIT-GUARD, REAR (Part # 135-3445)

Empty Image Container

KIT-HITCH (Part # 135-3616)

Genuine OEM Part 138-6053

Toro Full Synthetic 10W-30 Engine Oil (32 oz.) (Part # 138-6053)

Toro full synthetic 10W-30 engine oil. The easy engine oil choice for any outdoor power equipmentto increase performance and reliability.

Toro Full Synthetic 10W-30 Engine Oil

Toro Full Synthetic 10W-30 Engine Oil (Part # 138-6054)

Toro full synthetic 10W-30 engine oil. The easy engine oil choice for any outdoor power equipmentto increase performance and reliability.

Empty Image Container

Z Master 7500D Triple Soft Bagger (Part # 78560)

Empty Image Container

Z Master 7500D E-Z Vac Blower & Drive Kit for 72" Deck (Part # 78583)

Product Details

Model #

74072

Serial #

403226744 - 404399999

Product Name

7500-D Series 72" (183 cm) 37 HP 1642cc Diesel

Product Brand

Toro

Product Type

Riding Products

Product Series

Zero Radius Turn, Professional 7500-D Series

Chassis Type

ZRT - LCE

Swath

72 inch / 183 cm

Discharge

Side Discharge

Engine/Motor Manufacturer

YANMAR

Engine/Motor Size

37 hp

Engine/Motor Type

4 Cycle Diesel Tier 4

Engine Starter

Electric

Transmission Type

Hydrostatic

Traction Type

Rear WD

Specifications

Chassis: Height of Cut Range

1" - 5.5" (25-140mm)

Drive System: Gearbox Lubricant

Mobil 1 75w-90

Chassis: Tire Pressure

Rear 18 psi
