11-Blade Cutting Unit
Product Information
- Model #: 03489
- Serial #: 407200000 - 409999999
- Product Type: Attachments
Loading...

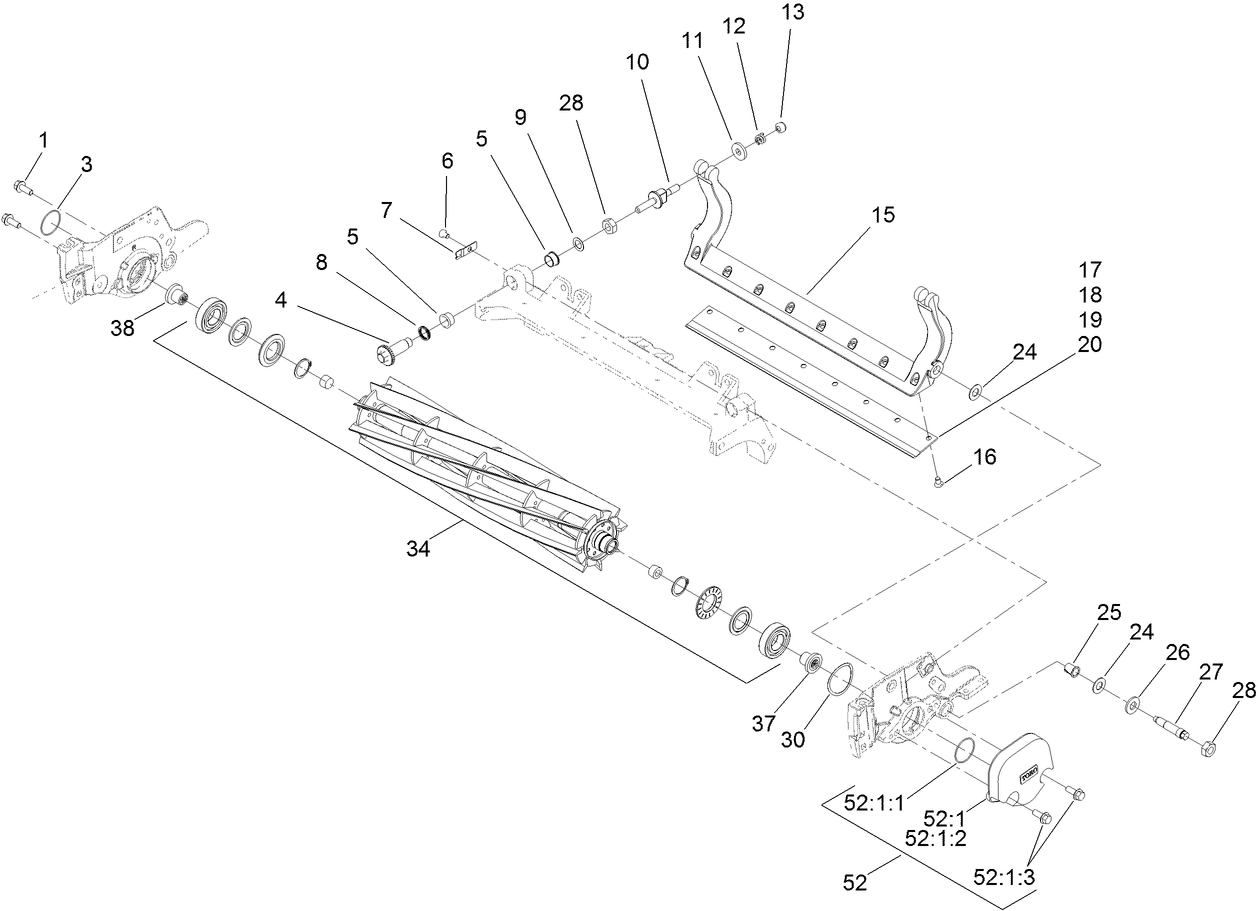

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Parts Catalog
Weight Kit, Reelmaster 3550, 3555, or 5010, Series Cutting Units with (Part # 03417)
Universal Groomer Drive Kit, Reelmaster 3550, 3555, 5010, and 5010-H S (Part # 03763)
Collar Kit (Part # 104-8215)
Contains 100-4959 @ 2, 104-1835 @ 2
Gauge Bar Assembly (Part # 108-6715)
Toro OEM Gauge Bar Assembly.
Roller Rebuild Kit (Part # 114-5430)
Contains 114-3717 @ 2, 112-5290 @ 2, 112-7494 @ 4, 114-5411 @ 2
Roller Seal Tool Kit (Part # 115-0803)
Kickstand (Part # 119-8010-03)
RM Hd Dpa MVP Kit (Part # 120-7230)
Contains 120-5118 @ 2, 120-5116 @ 2, 106-5344 @ 4, 108-0015 @ 2, 3296-33 @ 2, 137-6130 @ 2, 119-4155 @ 2, 120-5120 @ 2, 119-4039 @ 2
Rear Roller Adjustment Kit, Reelmaster DPA Reel Mowers (Part # 125-0570)
Paper Reel (Part # 125-5610)
Toro OEM Paper-Reel, Toro (10 Pack).
GROOMER/RRB SEAL KIT (Part # 131-3233)
Angle Indicator (Part # 131-6828)
Toro OEM Angle Indicator
Angle Indicator Mount (Part # 131-6829)
Toro OEM Angle Indicator Mount
High Height-of-Cut Kit, Reelmaster 3000 or 5000 Series DPA Cutting Uni (Part # 137-0890)
TOOL-HAND TAP 7/8-16 (RM DPA REEL) (Part # 137-0924)
TOOL-HAND TAP 7/8-16, LH (RM DPA REEL) (Part # 137-0925)
Toro Reel Shim (Part # 140-5531)
Check reel to bedknife contact
Universal Groomer Drive MVP Kit, Reelmaster 18-inch or 22-inch EdgeSer (Part # 140-5605)
ADAPTER-DRIVE, REEL (Part # TOR4112)
-
Model #
03489 -
Serial #
407200000 - 409999999 -
Product Name
11-Blade Cutting Unit -
Product Brand
Toro -
Product Type
Attachments
