Z Master Revolution 48 in. (122 cm)

Z Master Revolution 48 in. (122 cm)

Z Master Revolution 48 in. (122 cm)

Product Information

  • Model #: 18748
  • Serial #: 400000000 - 414889539
  • Product Type: Riding Products

Search for a part within assembly drawings:

Showing Results

Drawing Title Part Number Description
Title

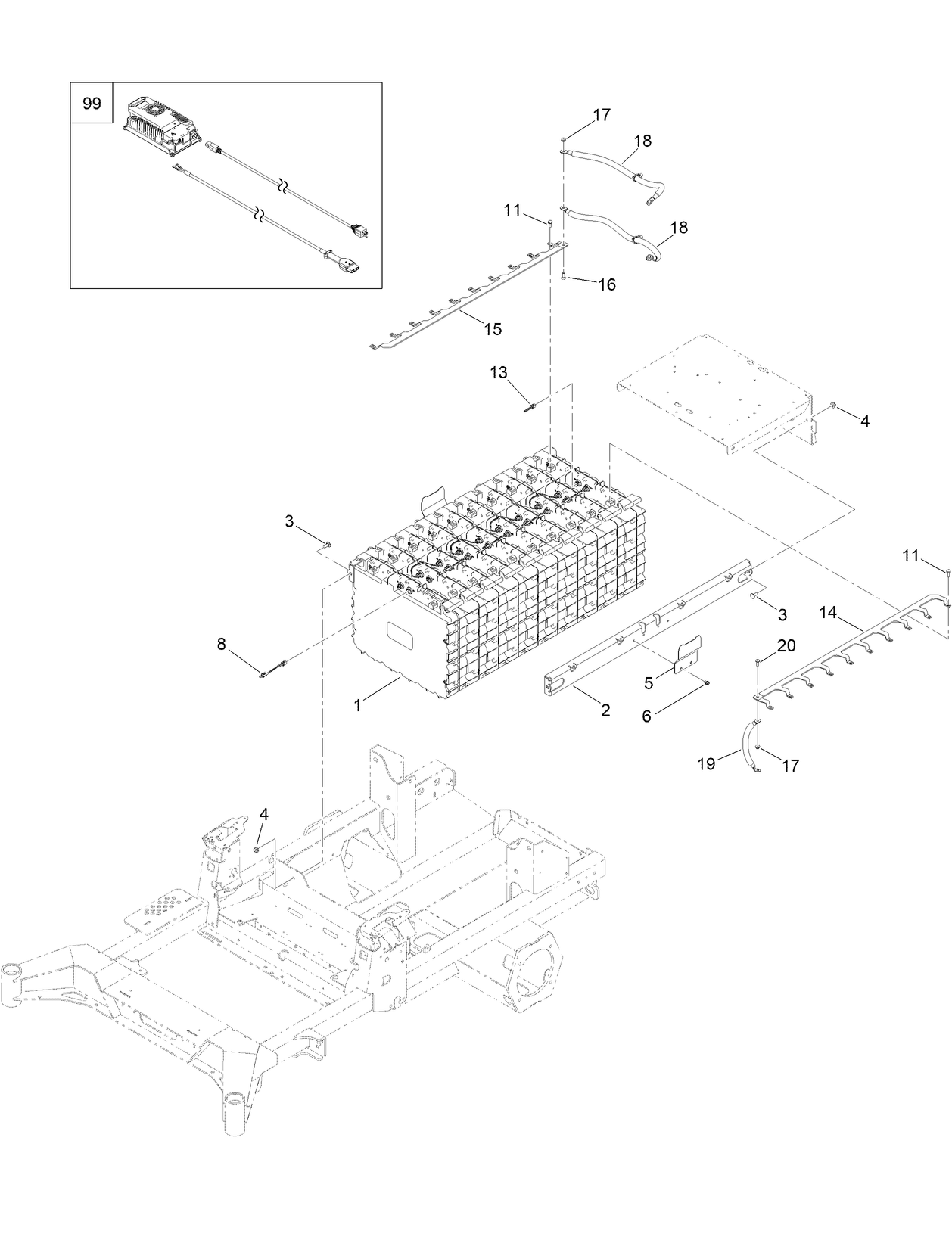

Battery Assembly
Battery Assembly
Battery Assembly No. 145-5385
Battery Assembly No. 145-5385

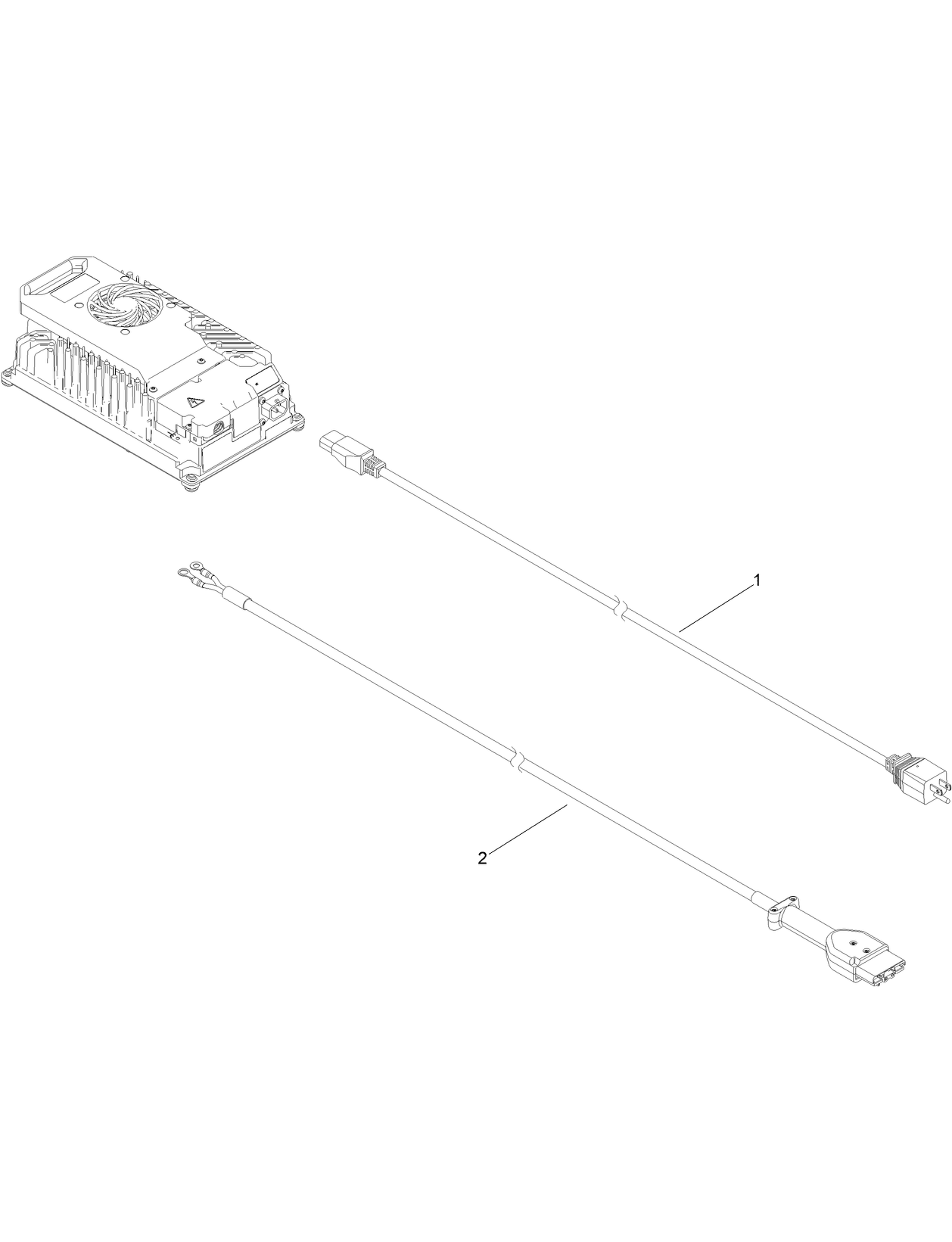

Battery Charger Assembly No. 147-1677
Battery Charger Assembly No. 147-1677
Caster and Wheel Assembly
Caster and Wheel Assembly
Decal Assembly
Decal Assembly
Deck Assembly
Deck Assembly
Deck Decal Assembly No. 147-7827
Deck Decal Assembly No. 147-7827
Deck Lift Assembly
Deck Lift Assembly
Deck Strut Assembly No. 140-1179
Deck Strut Assembly No. 140-1179
Deflector Assembly No. 147-1642
Deflector Assembly No. 147-1642
Drive Assembly
Drive Assembly

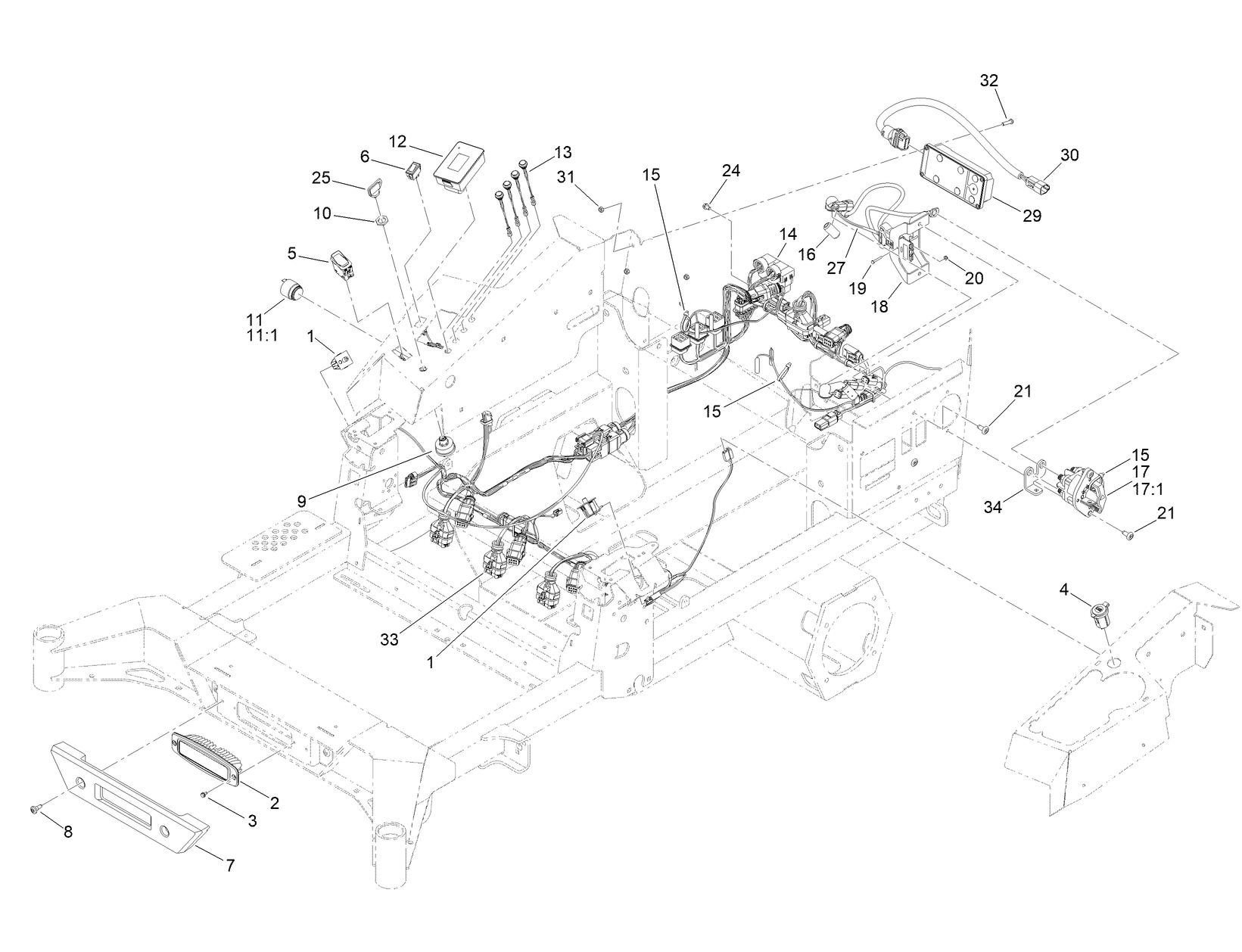

Electrical and Wire Harness Assembly
Electrical and Wire Harness Assembly
Electrical Components Assembly
Electrical Components Assembly
Front Caster Wheel Assembly
Front Caster Wheel Assembly

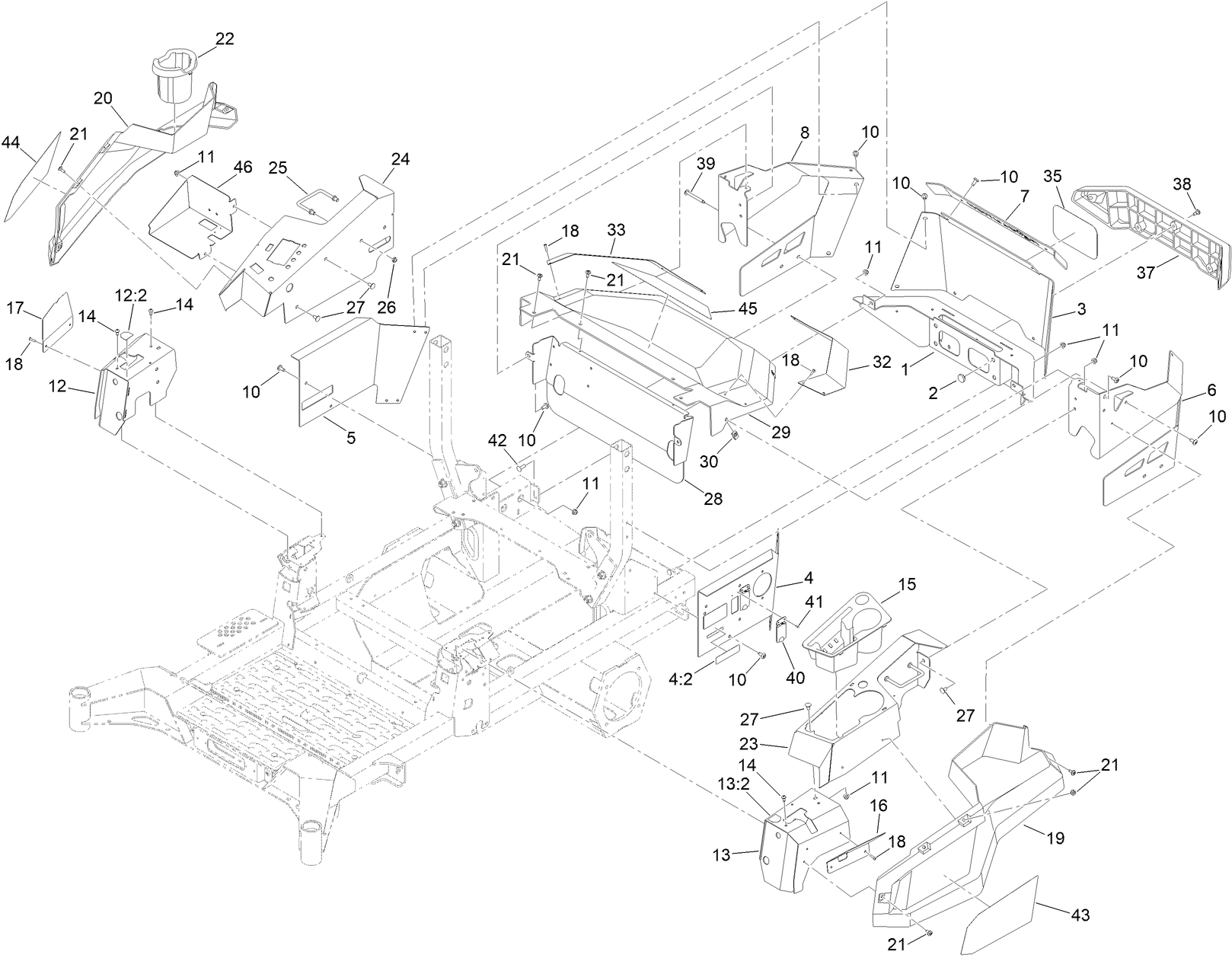

Guards Assembly
Guards Assembly
Left Motion Control Assembly No. 145-1326
Left Motion Control Assembly No. 145-1326
Main Frame Assembly
Main Frame Assembly
Motion Control and Parking Brake Assembly
Motion Control and Parking Brake Assembly
Rear Wheel Assembly
Rear Wheel Assembly
Right Motion Control Assembly No. 145-1325
Right Motion Control Assembly No. 145-1325
Roll-Over Protection System Assembly No. 161-3495
Roll-Over Protection System Assembly No. 161-3495
Seat Assembly No. 145-8422
Seat Assembly No. 145-8422
Seat Mount Assembly
Seat Mount Assembly
Wire Harness Assembly No. 144-2673
Wire Harness Assembly No. 144-2673
Download Parts Catalog
Operator's Manual
Parts Catalog
Setup Instructions
Product Warranty
UN38.3 Test Report Summary
Genuine OEM Part 108-4140
Z-Master Anti-Scalp Kit (Trim Side) (Part # 108-4140)
This genuine Toro OEM anti-scalp deck wheel kit covers the trim side of the Toro Z-Master mower deck — the side closest to obstacles and edges. Anti-scalp wheels on the trim side prevent the deck from digging into raised spots when mowing close to beds, driveways, and curbs where the deck is most likely to make ground contact. Inspect regularly and replace when wheels are cracked, broken, or no longer rotating freely. Verify your model and serial number before ordering.
$174.89 USD
Riding Mower Jack Kit
Riding Mower Jack Kit (Part # 127-6666)
This genuine Toro OEM riding mower jack kit is designed to safely lift and support your Toro riding mower or zero turn, giving you safe, stable under-deck access for blade changes, belt replacements, and routine maintenance. It is one of the most practical purchase-stage accessories for any new mower owner — investing in a proper jack from day one avoids improvised lifting methods that risk injury and equipment damage. Verify your model and serial number before ordering.
$153.99 USD
Please contact your local dealer
Genuine OEM Part 139-6650
48 inch Recycler Kit (GrandStand) (Part # 139-6650)
This genuine Toro OEM 48-inch Recycler kit is designed for Toro GrandStand stand-on mowers and converts the deck to full Recycler mulching operation. Once installed, the patented Recycler system cuts clippings 6 to 8 times and returns them to the lawn as fine, nutrient-rich natural fertilizer — eliminating the need to bag or rake in most conditions. One of the most popular purchase-stage upgrades for new GrandStand owners who want to maximize the value of their machine from day one. Verify your model and serial number before ordering.
$445.49 USD
Empty Image Container
TRIMMER MOUNT [4000] (Part # 144-2665)
$208.99 USD
Empty Image Container
JACK MOUNT KIT (Part # 144-2676)
$109.99 USD
Empty Image Container
HARDTOP SUN CANOPY (ARTICULATING) (Part # 144-3719)
$593.99 USD
Genuine OEM Part 145-3503-03
16.5 Inch Medium Sail Blade (Part # 145-3503-03)
Genuine OEM Part
$28.34 USD
Empty Image Container
BLADE-16.5IN, RECYCLER [BLACK] (Part # 145-3506-03)
$28.34 USD
Genuine OEM Part 145-3615
Handle Extension Kit (Part # 145-3615)
Genuine OEM Part
$95.69 USD
Please contact your local dealer
Genuine OEM Part 147-0251-03
BLADE-16.5IN, HIGH SAIL (Part # 147-0251-03)
$29.69 USD
Genuine OEM Part 147-0260-03
BLADE-16.5IN, ATOMIC SAIL (Part # 147-0260-03)
$31.89 USD
Empty Image Container
WIRING HARNESS ADAPTER KIT (Part # 147-1612)
$100.09 USD
HV SYNTHETIC ELECTRIC MOTOR DRIVE OIL (Part # 147-6275)

Model #

18748

Serial #

400000000 - 414889539

Product Name

Z Master Revolution 48 in. (122 cm)

Product Brand

Toro

Product Type

Riding Products

Product Series

LCE Revolution Ride-On

Chassis Type

ZRT - LCE

Swath

48 inch

Discharge

Side Discharge

Engine/Motor Type

60 VDC

Transmission Type

Electric/Gear

Traction Type

Rear WD

Chassis: Height of Cut Range

1.5" - 5.5" (38-140mm)

Chassis: Tire Pressure

12-14psi (83-97kPa)

Drive System: Ground Speed

0-11 mph / 0-17.5kph

Drive System: Gearbox Lubricant

5.0 Oz. TORO HV SYNTHETIC ELECTRIC MOTOR OIL
