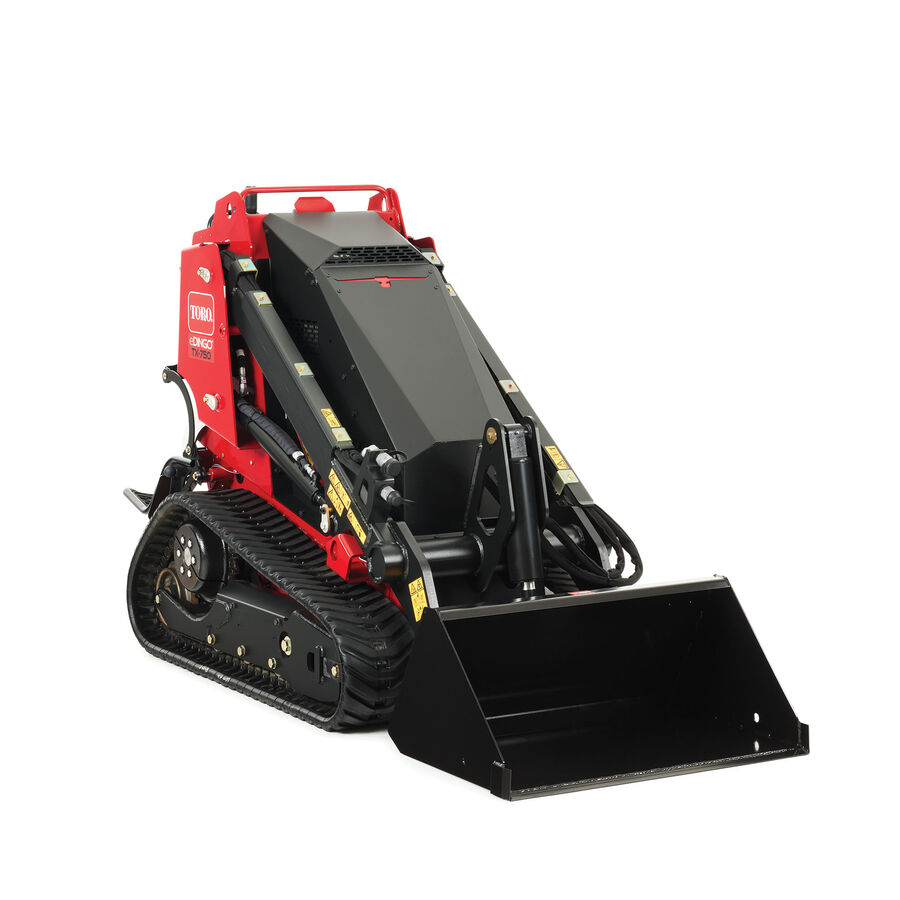

eDingo® TX 750 Electric Track Loader, Wide
Model: 22231
eDingo® TX 750 Electric Track Loader, Wide
Model: 22231
Model: 22231 UPC/EAN: 21038222318
See All Items in eDingo TX 750
Key Features
- Rated operating capacity of 750-lbs.
- Easily clear the side of 30-yard dumpsters or one-ton trucks
- Powered by HyperCell Power System® delivers up to 8 hours of continuous runtime.
Click logo below to find a dealer or shop retailer
Resources
Product Details

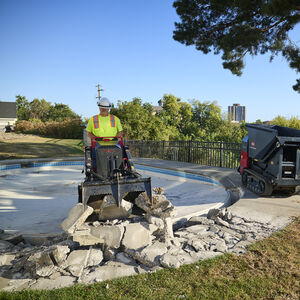

Rated Operating Capacity (ROC)

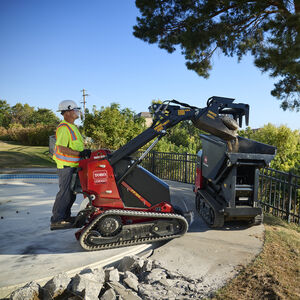

81-inch hinge pin height
Powered by HyperCell
Battery
Toro HyperCell Lithium Ion
Battery Capacity
22.3 kWh
Battery Charging Requirements
240V
Battery Chemistry
Toro HyperCell Lithium Ion
Dump Angle
40 deg
Fuel Type
Electric
Ground Clearance
5.8 in. / 14.7 cm
Ground Speed - Forward
Up to 4.0 mph / 6.4 kph
Ground Speed - Reverse
Up to 2.0 mph / 3.2 kph
Height
54.5 in. / 138.4 cm
Hinge Pin Height
81 in. / 205.7 cm
Length
66 in. / 167.6 cm
Loader Arms
Radial
Max Operating Height
106 in. / 269.2 cm
Rated Operating Capacity*
750 lbs / 340 kg
Reach - Fully Raised
21.2 in. / 53.6 cm
Tip Capacity
2,142 lbs / 971.5 kg
Track Length
126.6 in. / 321.5 cm
Track Width
9.1 in. / 23.1 cm
Tracks
MERT Track With Turf Friendly Style Tread
Traction
Electrically Driven
Weight
2,665 lbs / 1,208.8 kg
Width
37.2 in. / 94.4 cm
For complete product warranty information contact Toro Customer Service
**See dealer for Warranty details.
