Dingo® TX 427 - Wide Track

Model: 22322

Find a Dealer

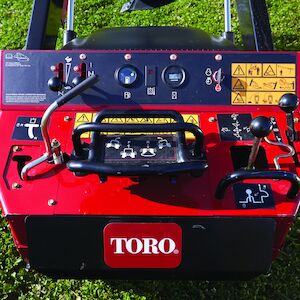

Patented TX control system
Reinforced tracks disperse weight evenly

Top

Find a Dealer

Overview

The Toro® Dingo® TX 427 Wide Track extends your versatility, while improving your productivity when faced with a variety of landscapes and ground conditions. The TX 427 Wide Track offers amazing hydraulic power and with only 3.6 psi ground pressure, the Dingo TX 427 is extremely gentle on delicate turf. All of this awesome power is harnessed with only 3 easy-to-use hand controls. These simple controls coupled with walk behind operator position translate into extremely short learning curves, 360° visibility and instant productivity.

Features

Simple Controls

You're up and running in a flash with three easy-to-use controls. 1) The joystick loader control lets you curl, dump or float the bucket while simultaneously raising or lowering the loader arms - all with one hand. 2) With your other hand, you can grab the one-hand traction drive from any angle, for effortless control. 3) The third control, the auxiliary circuit control lever, which can be activated while operating the traction drive, powers the attachments instantly.

Low Impact Footprint

Long-lasting, aramid reinforced tracks disperse weight evenly for a light footprint on tur, while delivering better traction in sandy or wet ground conditions.

4-Pump Hydraulic System

4-pump hydraulic system lets you simultaneously operate the loader, bucket, traction, and auxiliary drives for increased operator efficiency. This system directs hydraulic power precisely where you need it!

Air-Cooled Gasoline Engine

A 27 hp (20 kw) Kohler® engine provides the necessary power to drive any one of the multitude of Toro attachments available for the Dingo TX.

Exclusive TX Track Drive

Low center of gravity and large footprint increase stability on side hills and provide smooth operation over rugged terrain; eliminates tire ruts and flat tires.

Specifications

Air Filter	Two-stage, heavy-duty, remote
Cooling System	Air Cooled
Displacement (cc)	725
Displacement (cu. in.)	44
Dump Angle	38 degrees
Dump Height (cm)	117.1
Dump Height (inches)	46.1
Engine Make	Kohler
Engine Model	Command Pro Series CH740
Fuel Tank (gallons)	6
Fuel Tank (liters)	23
Fuel Type	Gasoline
Ground Clearance (cm)	11.7
Ground Clearance (inches)	4.6
Ground Pressure	3.5 psi
Ground Speed Forward (mph)	4.5
Ground Speed Foward (km/h)	7.2
Ground Speed Reverse (km/h)	3.2
Ground Speed Reverse (mph)	2
Hinge Pin Height (cm)	167.1
Hinge Pin Height (inches)	65.8
Hydraulic Flow Auxilary	11.4 gpm
Hydraulic Flow Traction	16.9 gpm (each pump)
Hydraulic Pressure	3,000 psi
Loader Arms	Radial
Manufacturer's Gross HP Rating (HP)	25
Manufacturer's Gross HP Rating (kW)	20.1
Max Operating Height (cm)	229
Max Operating Height (inches)	90.1
Oil Capacity (liters)	2.95
Oil Capacity (quarts)	2
Overall Height (cm)	117.1
Overall Height (inches)	46.1
Overall Length w/bucket (cm)	233.7
Overall Length w/bucket (inches)	92
Overall Length w/o bucket (cm)	180
Overall Length w/o bucket (inches)	70.7
Overall Width (cm)	104
Overall Width (inches)	41
Rated Operating Capacity - 35% of Tip Capacity (kg)	243
Rated Operating Capacity - 35% of Tip Capacity (lbs)	535
Reach – Fully Raised (cm)	55.4
Reach – Fully Raised (inches)	21.8
Reservoir Capacity (gallons)	10.5
Reservoir Capacity (liters)	40
RPM	3600
Tip Capacity (kg)	694
Tip Capacity (lbs)	1530
Track Length (inches)	96.6
Track Length(cm)	245
Track Width (cm)	24.1
Track Width (inches)	9.5
Tracks	Sprocket-drive, 10 road wheels per side
Traction	Dual Hydrostatic Pump
Weight (kg)	902
Weight (lbs)	1990
Wheelbase (inches)	31.2

Accessories

TX Road wheel kit (Part # 106-7620)

Road Wheel Kit for TX 427 and 525 models.

Reference Guide Kit, Dingo TX Compact Utility Loaders (Part # 107-9310)

TRACK-AGGRESSIVE TREAD, WIDE (Part # 108-9749)

Dingo TX 427 50-hour filter kit (Part # 136-4774)

Dingo TX 427 50-hour filter kit includes:• oil filter (hydraulic) 86-3010• air filter 108-3811• engine oil filter 108-3847

Dingo TX 427 200-hour filter kit (Part # 136-4775)

Dingo TX 427 50-hour filter kit includes:• oil filter (hydraulic) 86-3010• air filter 108-3811• engine oil filter 108-3847

SCREEN-SPARK ARRESTOR (Part # 142-7683)

KIT-TX427/525 SNOW THROWER POWER (Part # 144-2512)

Light Kit (Part # 144-7101)

Light kit fits: Dingo TX 427, TX 525 - LED (650 LM)

DECAL KIT - HERC (Part # 145-6941)

Adjustable Forks, TX 1000 Compact Utility Loaders (Part # 22341)

Standard Bucket (Part # 22409)

Use this standard bucket for moving rock, dirt, sand or other materials off and around the job site. The hardened steel cutting edge offers improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear. Capacity = 4 cubic feet (1 cu. m.).

Light Materials Bucket (Part # 22410)

Designed for moving light materials like chip-bark, mulch, snow and loam. The larger capacity bucket, 6.4 cubic feet (.2 cu. m.), is great for handling larger loads of lighter materials. The hardened steel cutting edge allows for improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear.

Utility Blade (Part # 22414)

The Toro Dingo hydraulic blade greatly increases the versatility of your Dingo system. This incredibly versatile attachment can be used for a variety of earth or snow moving jobs. Fill trenches where rows of trees have been planted or irrigation pipes have been installed. Keep your hydraulic blade working in the winter by pushing snow from sidewalks in one pass.

Bore Drive Head (Part # 22420)

The Toro® Dingo® boring unit allows you to dig under sidewalks and driveways to simplify irrigation and cable installations. Shorter rod lengths and the ability to lower the bore head below grade allow you to work in both confined and open areas, increasing your productivity.

Rod and Reamer Kit (Part # 22421)

Used with 22420 to tunnel under driveways, sidewalks, etc.

Multi-Purpose Tool (Part # 22423)

This versatile attachment is actually 3 tools in 1! Easily converts into a ripper, boom or tow-bar by simply changing a few pins. Use these tools to move, carry, lift, prep, rip, dig up, transport and haul.

Power Box Rake (Part # 22426)

The Toro Power Box Rake is the perfect tool for seed bed and sod bed preparation. The rotary drum on the power box rake pulverizes rough soil, cuts high spots and fills low spots in one pass; while removing rocks and debris. Pure carbide teeth design produces the best possible seeded sub-soil, which promote superior moisture retention and rapid seed growth.

Stump Grinder Attachment (Part # 22429)

The Toro® Dingo® Stump Grinder easily attaches to either Dingo or Dingo TX compact utility loaders. Make grinding stumps quicker and more productive with the stump grinder attachment for your Toro Dingo.

Hydraulic Tree Forks (Part # 22438)

The Toro Dingo hydraulic tree forks can help you plant trees and large shrubs quickly and effortlessly, plus move all sorts of materials around your garden center or nursery. The Dingo Compact Utility Loader is especially easy to maneuver, helping you transport and position trees or shrubs exactly where you want them.

Cement Bowl (Part # 22442)

This unique attachment will mix and pour up to 200 pounds (90.7 kg) of dry cement. The specially designed auger flighting inside the cement bowl keeps the cement in the bowl during mixing. This same auger design permits cement to be poured into fence post holes with the posts in place!

Tiller (Part # 22445)

The Toro Dingo tiller attachment greatly increases the productivity and performance of your Dingo system. Break through hard soil conditions up to 6" (15.2 cm) deep. Avoid clogging the tiller by using one easy hand control to reverse the direction of the tiller to clear jams from rocks and debris.

Trencher Crumber (Part # 22464)

Spring design, trencher accessory to help clean out trenches

Trench Filler (Part # 22472)

Designed for time and money-saving efficiency, this attachment lets operators fill trenches in a single pass. Two sets of opposing augers direct the spoils from the sides of the trench back into the hole, while the filler levels off the work area and fluffs the turf on each side of the trench minimizing its footprint

High Torque Trencher Head (Part # 22473)

High-torque trencher head with heavy-duty drive system guarantees performance in the toughest soil conditions from rock to caliche. Dig trenches up to 50" (127 cm) below grade. Heavy-duty nose roller bearing and reversible abrasion-resistant boom give you years of dependable use.

High Speed Trencher Head (Part # 22474)

Ideal for fast, efficient trenching in most soil conditions. Great for cable, pipe or irrigation installations.

TX Platform, Gasoline-Powered TX Compact Utility Loader (Part # 22475)

4-in-1 Bucket (Part # 22478)

Designed to be used on the Dingo 323, 320-D, e-Dingo, TX 427, TX 525 and TX 1000 models, this attachment offers the versatility of 4 attachments. Use as a standard bucket, a leveler, a grapple rake and a blade.

Narrow Bucket (Part # 22520)

Handle compact construction and remodeling sites by moving through 36" (91.4 cm) gates without a problem. This 35" (88 cm) wide bucket allows you to get through narrow spaces, including gates and doorways. Move rock, dirt, sand or other materials off and around the job site. Great for use on any Dingo® model equipped with narrow wheels and tires.

Grapple Rake (Part # 22577)

The Toro grapple rake attachment allows operators to grab, drag, lift, and place materials with ease. The grapple has two heavy-duty cylinders capable of producing 3000 pounds of clamping force at the tine tips, insuring you can "grab-ahold" and not let go.

Snow Thrower (Part # 22585)

The Toro snow thrower attachment has enough power for heavy-duty performance in wet snow condition, plus a gentle touch for lighter conditions. The maximum hydraulic flow is 15.5 gpm and the chute articulation is electrical, so the operator never needs to worry about hand cranking.

High Torque Auger Power Head (Part # 22805)

In any drive head, there is a tradeoff between torque (power) and speed (revolutions per minute). The high torque head provides a large amount of torque to the auger at a slower speed. The high torque translates into the Dingo's capability to dig 30" (76.2 cm) holes up to 6' (1.8 m) deep in clay, gravel, sandstone and many other conditions where lower torque heads get stuck.

Universal Swivel Auger (Part # 22806)

This attachment swivels in all directions to create plumb holes on uneven terrain. The higher speed of this auger power head is ideal for augers up to 24" (61cm) in diameter. Quickly change between auger bit sizes to dig holes for fence posts, footings, irrigation heads and more!

18" Auger Bit (Part # 22814)

18" auger bit requires auger power head attachment 22805 or 22806.

24" Auger Bit (Part # 22815)

24" auger bit requires auger power head attachment 22805 or 22806.

30" Auger Bit (Part # 22816)

30" auger bit requires auger power head attachment 22805.

12" Auger Extension (Part # 22818)

Add extension to any auger to increase depth.

24" Auger Extension (Part # 22819)

Add extension to any auger to increase depth.

6" Full Flight Auger Bit (Part # 22820)

6" full flight auger bit requires auger power head attachment 22805 or 22806.

9" Full Flight Auger Bit (Part # 22821)

9" full flight auger bit requires auger power head attachment 22805 or 22806.

12" Full Flight Auger Bit (Part # 22822)

12" full flight auger bit requires auger power head attachment 22805 or 22806.

15" Full Flight Auger Bit (Part # 22823)

15" full flight auger bit requires auger power head attachment 22805 or 22806.

Vibratory Plow (Part # 22911)

The Toro® Dingo® vibratory plow attachment greatly reduces a contractor's time spent on irrigation and cable installations. Exclusively designed and built by Toro specifically for use on the Dingo, the vibratory plow optimizes pipe-pulling performance while minimizing turf damage during an installation. Also, use the chuted blade and spool carrier to install wire or cable.

Soil Cultivator (Part # 23102)

The soil cultivator is the ultimate attachment for soil preparation! This incredibly versatile attachment can be used to cultivate and level soil as well as blend landscape materials, compost and fertilizer. This attachment will also bury debris such as stones, soil clods and grass. It transforms rough terrain into a perfect planting bed in one pass.

Concrete Breaker, Dingo Compact Utility Loaders (Part # 23135)

Dingo TX Unit Fit-up Kit (Part # 23162)

Allows 23126 to fit to Dingo TX units 22321, 22322, 22323, 22324, 22327, and 22328.

Backhoe, Dingo Compact Utility Loader (Part # 23163)

Leveler (Part # 23165)

This versatile and highly productive tool is a must have attachment for all job sites. Use to grade, finish, and spread landscape materials, backfill trenches, and break up the turf. Also great for carrying and trasporting materials around the job site.

Documents

Title	Documents
DINGO® Compact Utility Loaders Brochure.pdf	PDF - Brochure-en-us

Parts & Manuals

Select your model year from the options below to view parts & manuals.

22322 Serial #
410000000-999999999
409445442-409999999
408000000-409445441
407400000-407999999
405700000-407399999
404720000-405699999
402000000-404719999
400000000-401999999
316000001-316999999
315000001-315999999
314000001-314999999
313000001-313999999
312000201-312999999
312000001-312000200
311000001-311999999
310000001-310999999
290000001-290999999
280000001-280999999

Warranty

For complete product warranty information contact Toro Customer Service

22322 Product Warranty

**See dealer for Warranty details.
