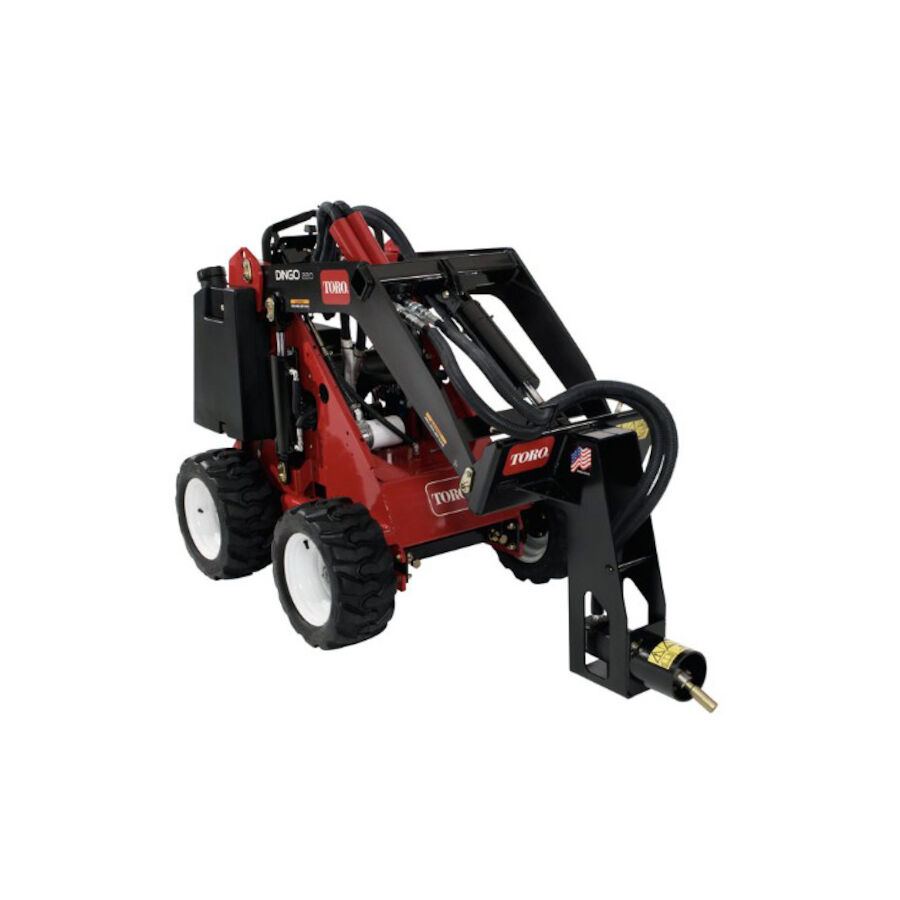

Bore Drive Head Attachment

Model: 22420

Bore drive head attachment

Bore Drive Head Attachment

Model: 22420

Model: 22420 UPC/EAN: 21038224206

$3,717.00 USD

Key Features

  • 19" working depth
  • Universal joint keeps rods horizontal
  • Accommodates pipe up to 3" diameter
  • Rod and reamer kit sold separately
Please contact your local dealer

Click logo below to find a dealer or shop retailer

Toro Authorized Sales & Service Dealer

Related Products

Rod and Reamer Kit

Rod and Reamer Kit

Model: 22421

$1,836.00 USD
Please contact your local dealer
TX 700 narrow track loader left side with a grapple rake attachment

Dingo® TX 700 Track Loader, Narrow

Model: 22351
Find a Dealer
TX 700 wide track loader right side with a grapple rake attachment

Dingo® TX 700 Track Loader, Wide

Model: 22352

$35,148.00 USD
Please contact your local dealer
TX 700 narrow track loader left side with a grapple rake attachment

Dingo® TX 700 Track Loader, Narrow

Model: 22750

$35,148.00 USD
Please contact your local dealer
TX 700 wide track loader left side with a grapple rake attachment

Dingo® TX 700 Track Loader, Wide

Model: 22751

$35,148.00 USD
Please contact your local dealer

Product Details

The Toro® Dingo® boring unit allows you to dig under sidewalks and driveways to simplify irrigation and cable installations. Shorter rod lengths and the ability to lower the bore head below grade allow you to work in both confined and open areas, increasing your productivity.
Bore Depth
Bore Depth
Bore up to 19" below ground surface.
Universal Joint
Universal Joint
Increases productivity by allowing you to keep rods in a horizontal digging position in the toughest soil conditions.

Construction

Fabricated, welded steel frame

Height

25 in. / 63.5 cm

Length

22 in. / 55.8 cm

Models

Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700

Mounting Frame

Dingo® quick-attach mount plate, fabricated, welded base

Quick Couplers

Dripless, flush face quick couplers

Rated Pressure

3,000 PSI (207 BAR)

Rod Connection

Hex coupler with snap button

Torque

430 ft/lbs at 2000 psi (59 KgVm at 138 bar)

Weight

120 lbs / 54.4 kg

Width

24 in. / 60.9 cm

Working Width

6 in. / 15.2 cm

990001-999999 890001-899999 404320000-999999999 402000000-404319999 400000000-401999999 316000001-316999999 315000001-315999999 314000001-314999999 313000001-313999999 312000001-312999999 311000001-311999999 290000001-290999999 280000001-280999999 270000001-270999999 260000001-260999999 250000001-250999999 240000001-240999999 220000001-220999999 210000001-210999999 200000001-200999999

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
