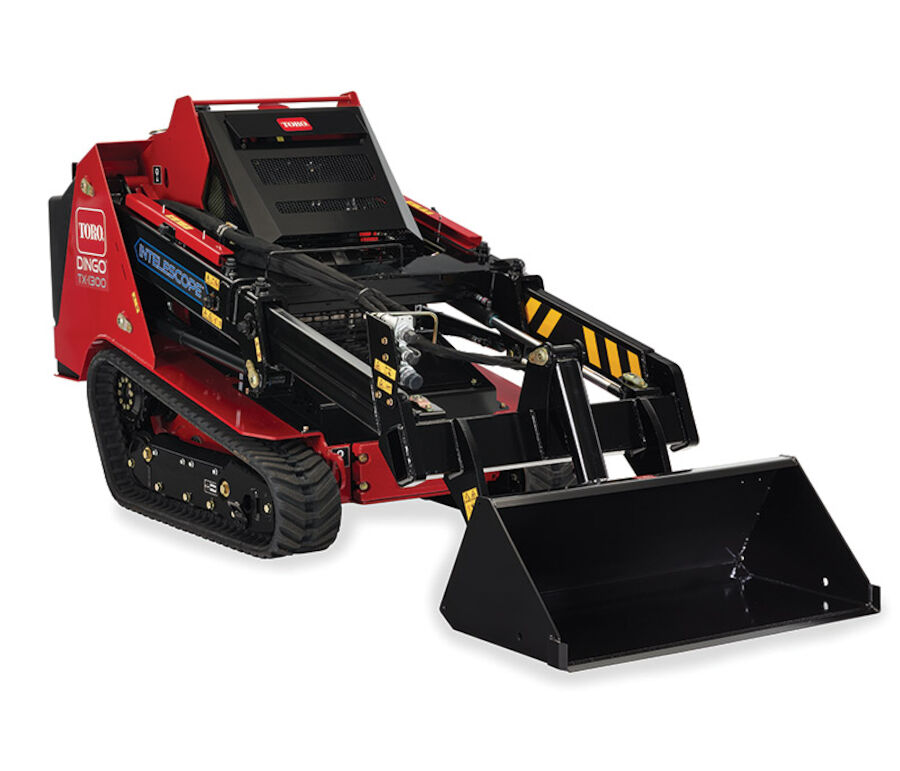

Dingo® TX 1300 Track Loader

Model: 22370
UPC/EAN: 21038223704

Find a Dealer

Intelescope Loader Arm
Quick Coupler System
Patented traction control

Top

Find a Dealer

Overview

Ideal for landscape, hardscape and tree care jobs, the TX 1300 brings a new combination of power, reach and convenient control to the Toro® Dingo® lineup. With a 37 hp Yanmar® Tier IV diesel engine and 1,300 lbs of rated operating capacity, it’s the user-friendly workhorse you need to save time. The exclusive INTELESCOPE® loader arm with SmartLoad adds 26" of reach, and the telescoped hinge-pin height of 109" means you can lift loads up and over the side of a dumpster or truck for maximum productivity. Plus, you can operate the Toro patented traction controls with one hand and thumb-controlled telescoping extension and auxiliary functions (in the loader arm control) with the other to pick, place and dump materials with ease all day long.

Features

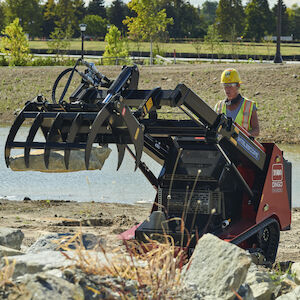

Dingo TX1300 dropping rock with a grapple rake.

Extra Reach

The Intelescope® loader arm with SmartLoad gives 26" of additional reach. The telescoped hinge-pin height of 109" allows loads to be lifted over the sides of dumpsters or trucks to maximize productivity.

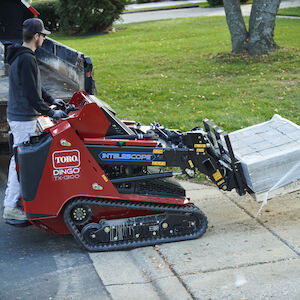

White male operating the Dingo TX 1000 hauling bricks with the forks attachment.

Outstanding ROC

The durable loader arm with improved q-tach casting, allows for a more durable loader arm design and up to 1,300 lbs of operating capacity.

Quick Coupler System

The pressure relieving quick coupler system makes connecting and disconnecting attachments easier.

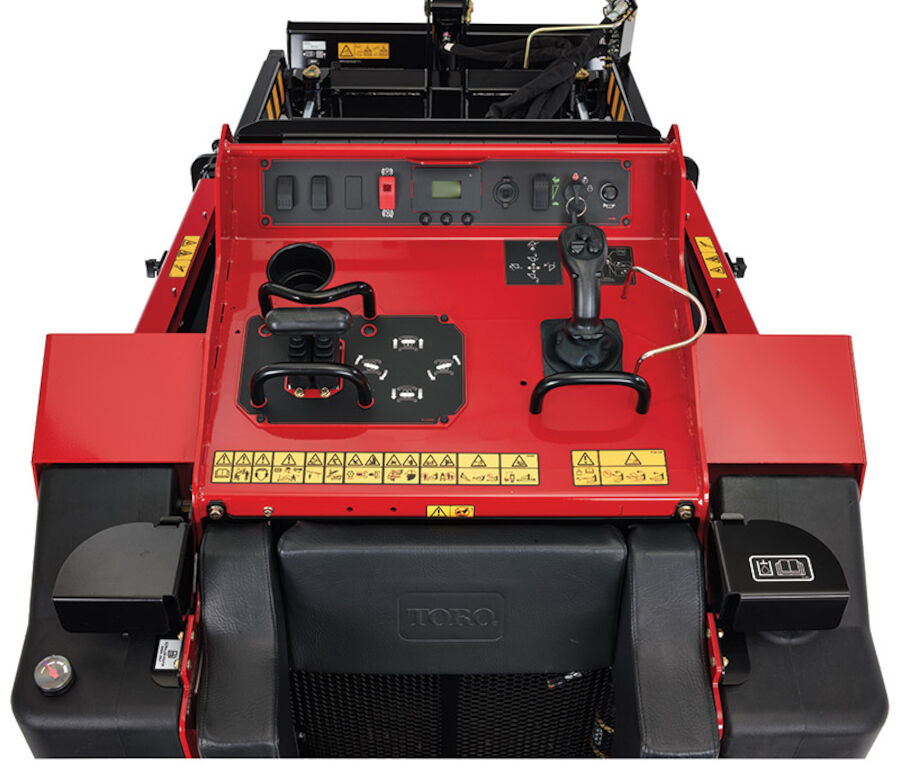

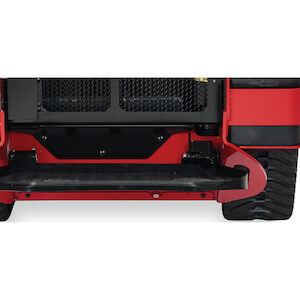

Auxiliary Pedal

User friendly auxiliary pedal on an enlarged operator platform improves ease of engagement.

Ease of Use

Toro patented traction control and integrated hydraulic operation in loader arm control.

Specifications

Air Filter	Remote dual element
Cooling System	Combo Downflow Radiator and Oil Cooler, Independent Fuel
Dump Angle	38 deg
Dump Height - Extended	90.7 in. / 230.3 cm
Dump Height - Retracted	70.9 in. / 180.0 cm
Engine Horsepower	37 hp (27 kW)
Engine Make	Yanmar
Engine Model	3TNV88C
Fuel Tank	11 gal. / 41.6 L
Fuel Type	Diesel
Ground Clearance	5.9 in. / 14.9 cm
Ground Pressure	5.5 psi
Ground Speed - Forward	Up to 4.7 mph / 7.6 km/h
Ground Speed - Reverse	Up to 4.7 mph / 7.6 km/h
Height	56.5 in. / 143.5 cm
Height - With Bucket	56.5 in. / 143.5 cm
Hinge Pin Height - Extended	109.2 in. / 277.3 cm
Hinge Pin Height - Retracted	89.4 in. / 227.0 cm
Hydraulic Flow - Auxiliary	14.3 GPM
Hydraulic Flow - Traction	13.4 GPM
Hydraulic Pressure	3,200 psi
Length	84.9 in. / 215.6 cm
Length - With Bucket	103.1 in. / 261.8 cm
Loader Arms	Radial
Max Operating Height	133 in. / 337.8 cm
Oil Capacity	5 qt / 4.7 L
Rated Operating Capacity - Extended*	618 lbs / 280.3 kg
Rated Operating Capacity - Retracted*	1,300 lbs / 589.6 kg
Reach - Fully Raised	26.7 in. / 67.8 cm
Reservoir Capacity	9.2 gal. / 34.8 L
Tip Capacity	3,714 lbs / 1,685 kg
Track Length	126.6 in. / 321.5 cm
Track Width	9.1 in. / 23.1 cm
Tracks	MERT track with "TF" style tread
Traction	Dual Hydrostatic Pump
Weight	3,858 lbs / 1,750 kg
Wheelbase	39 in. / 99.0 cm
Width	46 in. / 116.8 cm
Width - With Bucket	46 in. / 116.8 cm

Disclaimer

*Per ISO 14397-1

Accessories

Toro 55 Gallon Premium Engine Oil 10W-30 (Part # 121-6392)

Toro 55 Gallon Premium Engine Oil 10W-30. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro 5 Gallon Premium Engine Oil 10W-30 (Part # 121-6393)

Toro 5 Gallon Premium Engine Oil 10W-30. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro 55 Gallon Premium Engine Oil 15W-40 (Part # 121-6394)

Toro 55 Gallon Premium Engine Oil 15W-40. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro 5 Gallon Premium Engine Oil 15W-40 (Part # 121-6395)

Toro 5 Gallon Premium Engine Oil 15W-40. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro 5 Gallon PX Extended Life Hydraulic Fluid (Part # 133-8086)

Toro 5 Gallon PX Extended Life Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro 55 Gallon PX Extended Life Hydraulic Fluid (Part # 133-8087)

Toro 55 Gallon PX Extended Life Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro Premium All Season Hydraulic Fluid - 1 Gallon - 4 pack (Part # 138-9459)

Toro Premium All Season Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

DECAL KIT - HERC (Part # 145-6948)

Loader Bucket Attachment 9 Cubic Feet (Part # 22342)

Designed for Dingo® TX 1000, volume = 9.0 cubic feet. This high volume loader bucket attachment is great for moving rock, dirt, sand or other materials off and around the job site. Ideal for jobs with large amounts of material to move.

TX 1300 Loader Bucket Attachment 4.3 Cubic Feet (Part # 22345)

Move rock, dirt, sand or other materials off and around the job site with this heavy-duty general-purpose loader bucket designed for dense and bulk materials. Struck capacity: 4.3 cubic feet. For use on model 22370, Dingo TX 1300 only.

TX 1300 Low Profile Bucket Attachment (Part # 22346)

This low profile bucket attachment is great for moving rock, dirt, sand or other materials off and around the job site. Ideal for jobs with large amounts of material to move. Struck capacity: 3.9 cubic feet. For use on model 22370, Dingo TX 1300 only. Struck capacity: 3.9 cubic feet. For use on model 22370, Dingo TX 1300 only.

Utility Blade Attachment (Part # 22414)

The Toro Dingo hydraulic blade greatly increases the versatility of your Dingo system. This incredibly versatile attachment can be used for a variety of earth or snow moving jobs. Fill trenches where rows of trees have been planted or irrigation pipes have been installed. Keep your hydraulic blade working in the winter by pushing snow from sidewalks in one pass.

Bore Drive Head Attachment (Part # 22420)

The Toro® Dingo® boring unit allows you to dig under sidewalks and driveways to simplify irrigation and cable installations. Shorter rod lengths and the ability to lower the bore head below grade allow you to work in both confined and open areas, increasing your productivity.

Rod and Reamer Kit (Part # 22421)

Easily bore under driveways and sidewalks to simplify irrigation and cable installations. Use with Bore Drive Head attachment model 22420. Working depth: 19". Bits and reamers up to 3.5" in diameter.

Multi-Purpose Tool, Dingo (Part # 22423)

Power Box Rake Attachment (Part # 22426)

The Toro Power Box Rake is the perfect tool for seed bed and sod bed preparation. The rotary drum on the power box rake pulverizes rough soil, cuts high spots and fills low spots in one pass; while removing rocks and debris. Pure carbide teeth design produces the best possible seeded sub-soil, which promote superior moisture retention and rapid seed growth.

Stump Grinder Attachment (Part # 22429)

The Toro® Dingo® Stump Grinder easily attaches to either Dingo or Dingo TX compact utility loaders. Make grinding stumps quicker and more productive with the stump grinder attachment for your Toro Dingo.

Tree Fork Attachment (Part # 22438)

The Toro Dingo hydraulic tree forks can help you plant trees and large shrubs quickly and effortlessly, plus move all sorts of materials around your garden center or nursery. The Dingo Compact Utility Loader is especially easy to maneuver, helping you transport and position trees or shrubs exactly where you want them.

Cement Mixer Attachment (Part # 22442)

This unique attachment will mix and pour up to 200 pounds (90.7 kg) of dry cement. The specially designed auger flighting inside the cement bowl keeps the cement in the bowl during mixing. This same auger design permits cement to be poured into fence post holes with the posts in place!

Tiller Attachment (Part # 22445)

The Toro Dingo tiller attachment greatly increases the productivity and performance of your Dingo system. Break through hard soil conditions up to 6" (15.2 cm) deep. Avoid clogging the tiller by using one easy hand control to reverse the direction of the tiller to clear jams from rocks and debris.

Trencher Crumber (Part # 22464)

Spring design, trencher accessory to help clean out trenches

Trench Backfiller Attachment (Part # 22472)

Designed for time and money-saving efficiency, this attachment lets operators fill trenches in a single pass. Two sets of opposing augers direct the spoils from the sides of the trench back into the hole, while the filler levels off the work area and fluffs the turf on each side of the trench minimizing its footprint

High Torque Trencher Attachment (Part # 22473)

High-torque trencher head with heavy-duty drive system guarantees performance in the toughest soil conditions from rock to caliche. Dig trenches up to 50" (127 cm) below grade. Heavy-duty nose roller bearing and reversible abrasion-resistant boom give you years of dependable use.

High Speed Trencher Attachment (Part # 22474)

Ideal for fast, efficient trenching in most soil conditions. Great for cable, pipe or irrigation installations.

4-in-1 Bucket Loader Bucket Attachment (Part # 22478)

Designed to be used on the Dingo 323, 320-D, e-Dingo, TX 427, TX 525 and TX 1000 models, this attachment offers the versatility of 4 attachments. Use as a standard bucket, a leveler, a grapple rake and a blade.

Grapple Rake Attachment (Part # 22577)

The Toro grapple rake attachment allows operators to grab, drag, lift, and place materials with ease. The grapple has two heavy-duty cylinders capable of producing 3000 pounds of clamping force at the tine tips, insuring you can "grab-ahold" and not let go.

Snow Thrower Attachment (Part # 22585)

The Toro snow thrower attachment has enough power for heavy-duty performance in wet snow condition, plus a gentle touch for lighter conditions. The maximum hydraulic flow is 15.5 gpm and the chute articulation is electrical, so the operator never needs to worry about hand cranking.

Adjustable Forks Attachment (Part # 22586)

The Toro Dingo adjustable forks greatly increase the productivity and performance of your Dingo system. This versatile attachment can be used for a variety of material handling jobs to move posts, rocks, trees, pallets, etc. around the job site. It's like having a roving workstation to transport heavy materials around the job site without fatigue. For use on all Dingo models, except Dingo TXL 2000.

Grapple Bucket Attachment (Part # 22590)

Designed for contractors looking for a bucket to grab, drag, lift and remove materials on residential, commercial and demolition sites. Designed to be used on the Dingo 323, 320-D, e-Dingo, TX 427, TX 525, TX 1000 and e-Dingo models.

High Torque Auger Attachment (Part # 22805)

In any drive head, there is a tradeoff between torque (power) and speed (revolutions per minute). The high torque head provides a large amount of torque to the auger at a slower speed. The high torque translates into the Dingo's capability to dig 30" (76.2 cm) holes up to 6' (1.8 m) deep in clay, gravel, sandstone and many other conditions where lower torque heads get stuck.

Mini Skid Steer Auger Attachment (Part # 22806)

This attachment swivels in all directions to create plumb holes on uneven terrain. The higher speed of this auger power head is ideal for augers up to 24" (61cm) in diameter. Quickly change between auger bit sizes to dig holes for fence posts, footings, irrigation heads and more!

18" Auger Bit (Part # 22814)

18" auger bit requires auger power head attachment 22805 or 22806.

24" Auger Bit (Part # 22815)

24" auger bit requires auger power head attachment 22805 or 22806.

30" Auger Bit (Part # 22816)

30" auger bit requires auger power head attachment 22805.

12" Auger Extension (Part # 22818)

Add extension to any auger to increase depth.

24" Auger Extension (Part # 22819)

Add extension to any auger to increase depth.

6" Full Flight Auger Bit (Part # 22820)

6" full flight auger bit requires auger power head attachment 22805 or 22806.

9" Full Flight Auger Bit (Part # 22821)

9" full flight auger bit requires auger power head attachment 22805 or 22806.

12" Full Flight Auger Bit (Part # 22822)

12" full flight auger bit requires auger power head attachment 22805 or 22806.

15" Full Flight Auger Bit (Part # 22823)

15" full flight auger bit requires auger power head attachment 22805 or 22806.

Vibratory Plow Attachment (Part # 22911)

The Toro® Dingo® vibratory plow attachment greatly reduces a contractor's time spent on irrigation and cable installations. Exclusively designed and built by Toro specifically for use on the Dingo, the vibratory plow optimizes pipe-pulling performance while minimizing turf damage during an installation. Also, use the chuted blade and spool carrier to install wire or cable.

Soil Cultivator Attachment (Part # 23102)

The soil cultivator is the ultimate attachment for soil preparation! This incredibly versatile attachment can be used to cultivate and level soil as well as blend landscape materials, compost and fertilizer. This attachment will also bury debris such as stones, soil clods and grass. It transforms rough terrain into a perfect planting bed in one pass.

Leveler Attachment (Part # 23165)

This versatile and highly productive tool is a must have attachment for all job sites. Use to grade, finish, and spread landscape materials, backfill trenches, and break up the turf. Also great for carrying and transporting materials around the job site.

Red Paint (Gallon) (Part # 361-11)

Genuine OEM Part

Dark Metallic Gray Paint (Part # 361-12)

Genuine OEM Part

Semi-Gloss Black Paint (Part # 361-9)

Genuine OEM Part

Red Paint (Part # 5340)

Genuine OEM Part

Documents

Title	Documents
Dingo® Full Line Brochure	PDF - Brochure-en-us
Dingo® TX 1300 Sell Sheet	PDF - Sellsheet-en-us

Parts & Manuals

Select your model year from the options below to view parts & manuals.

22370 Serial #
415400000-999999999
414864536-415399999
414487257-414864535
414487158-414487256
413000000-414487157
410500000-412999999
410400000-410499999
400000000-410399999

Warranty

For complete product warranty information contact Toro Customer Service

22370 Product Warranty

**See dealer for Warranty details.
