Tiller Attachment

  • Model: 22445
  • UPC/EAN: 21038224459

$6,062.00 USD

Please contact your local dealer

Available at select retailers:

  • Hydraulically variable ground speed
  • Hardened tines for maximum life
  • Reversible tiller direction

Overview

The Toro Dingo tiller attachment greatly increases the productivity and performance of your Dingo system. Break through hard soil conditions up to 6" (15.2 cm) deep. Avoid clogging the tiller by using one easy hand control to reverse the direction of the tiller to clear jams from rocks and debris.

Features

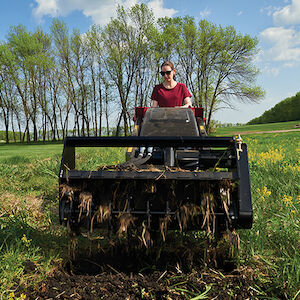

Dingo TX427 a women using the tiller attachment in a field
Hydraulic Drive
Maximizes performance by supplying optimal power to the Dingo Tiller at all times. It also allows you to reverse the tiller direction to keep working through the toughest conditions if clogging occurs.
Tiller attachment on the TX 427

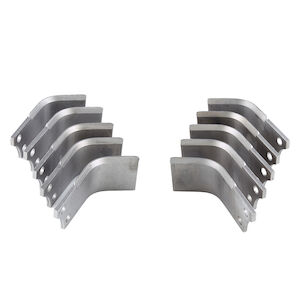

Hardened Tines
Maximize life and help dig in a variety of conditions. The tines are "bolt on" so they are easy to replace when worn.
Front of the tiller attachment
Reverse Tiller Direction
Easy hand control reverses the tiller direction if clogging occurs to continue working through the toughest conditions.

Specifications

Construction Fabricated, welded steel frame
Height 26 in. / 66.0 cm
Length 20 in. / 50.8 cm
Models Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700
Mounting Frame Dingo® quick-attach mount plate, fabricated, welded base
Number of Tine Heads 36
Quick Couplers Dripless, flush face quick couplers
Shaft 1.5 in. / 3.8 cm
Tine Speed Max: 245 rpm @ 3600 engine rpm (flow divider @ 9 o’clock position) Recommended:225 rpm @ 3600 engine rpm (flow divider @ 10 o’clock position)
Weight 363 lbs / 165 kg
Width 44 in. / 111.8 cm
Working Depth 6 in. / 15.2 cm
Working Width 40 in. / 101.6 cm

Documents

Title Documents



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
