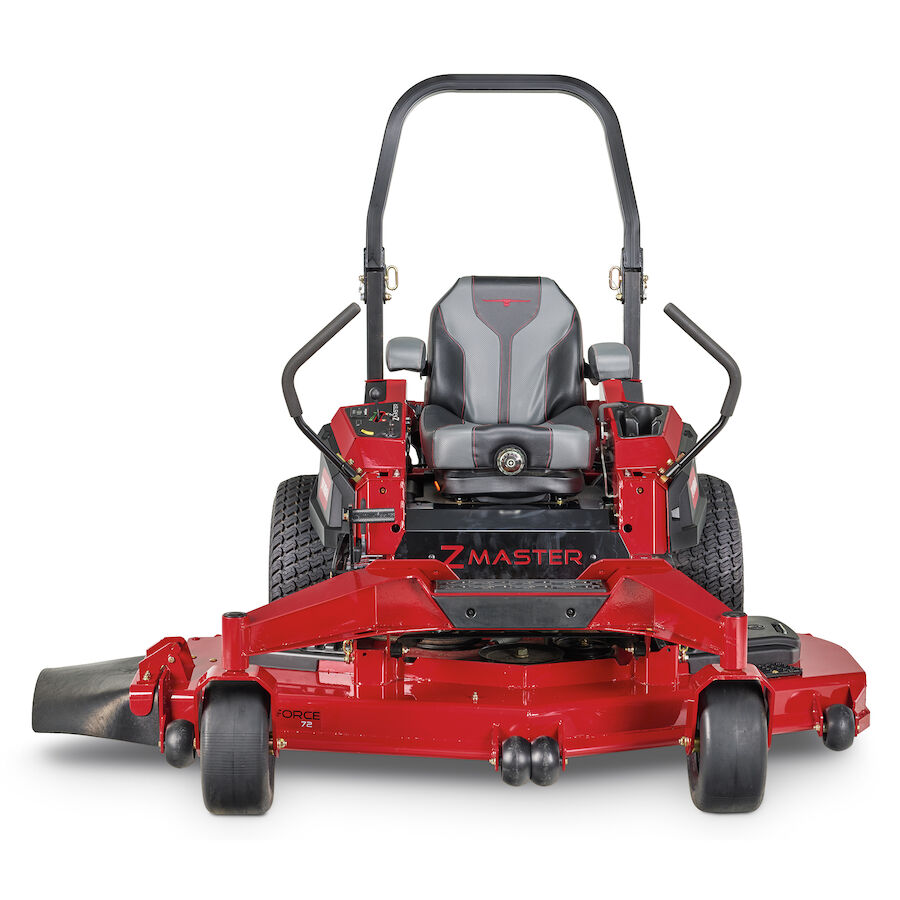

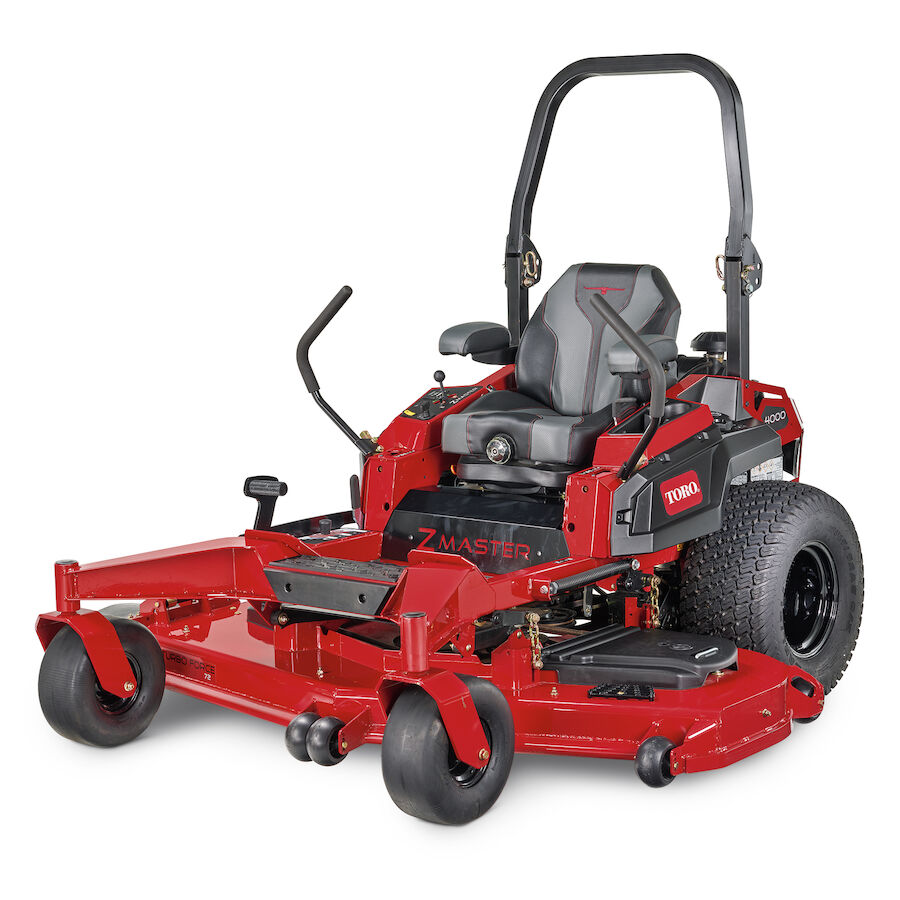

4000 Series HDX Pro XL 72" (183 cm) 35 HP 999cc

On Sale

4000 Series HDX Pro XL 72 in. (183 cm) 35 hp 999 cc

Model: 74022
UPC/EAN: 21038740225

See All Items in Z Master® 4000 HDX Pro Series

For a limited time only

$13,099.00 USD

$14,599.00 USD

Please contact your local dealer

Also available at select retailers:

Go full throttle and have confidence in the precise cut from our TURBO FORCE® deck with I-beam front end paired with tubular chassis and bumper.
Easy on and off with a step-through front end, deck step plate, and anti-slip floormat.
Keep your phone and drink at arm's reach.
Keep tabs on time and keep devices powered up with the hour meter and USB ports.
Horizon360^® Business Management Software. Work More Efficiently. Run More Profitably.

Free Shipping

Expert Setup & Delivery

Cannot ship to the following states: AK, HI

Ground Shipping Only

Top

Overview

The Z-Master 4000 HDX Pro XL has been engineered to last and built to reign. Redefine durability with a powerful 35 hp* Kawasaki FX1000V engine, heavy-duty commercial grade hydros, flat-free semi-pneumatic caster tires, 26 in. tires, and a 72 in. 7-Gauge High-Strength Steel TURBO FORCE® cutting deck. Add in the hour meter, USB ports, phone holder, and a cup holder, you’ll have everything you need from the comfort of the deluxe suspension seat to help you power through long days.

Features

Up to 12 MPH

Get more done with ground speeds up to 12 MPH without reducing cut quality.

TURBO FORCE® Cutting Deck

Enjoy years of reliable performance with a fully tubular frame and 7-gauge steel deck.

Rubber Discharge Chute

Trim close without damaging landscape structures or your chute.

Deck Step Plate

Keep your grip and remove excess mud from your shoes with a deck step plate.

Step-Through Front End

Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.

Clear Sightline to Rear Tires

Clear sightline to rear tires for enhanced control so you can clear a path without tire spin.

Dual Capture Anti-Scallop Rollers

Intelligently engineered dual capture anti-scalp rollers ensure the highest quality of cut in the harshest terrain you can throw at it.

Phone and Cup Holder

Keep your phone and drink at arm's reach with built-in phone and cup holders.

USB Ports

USB ports to help you stay charged on the job.

Horizon360^® Business Management Software.

Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

For more information click here.

Specifications

Blade Design	0.25 in. / 0.635 cm thick heat-treated steel
Blade Tip Speed	18,500 ft/min / 5,638 m/min
Box Dimensions	91.5 in. x 80 in. x 52.5 / 232.4 cm x 203.2 cm x 133.4 cm
Caster Tires	15 in. x 6.5 in. - 6 in. (38.1 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic
Clutch	Electromagnetic
Deck Design	72" (183 cm) 7-Gauge High-Strength Steel TURBO FORCE®
Deck Size	72 in / 183 cm
Discharge Chute	Rubber
Drive Tires	Carlisle Multi Trac 26 in. x 12 in. - 12 in. (66 cm x 30.5 cm - 30.5 cm)
Engine	35 hp* Kawasaki FX1000V (999 cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner
Engine Brand	Kawasaki
Engine Displacement (cc)	999 cc
Engine Horsepower	35 hp
Foot Operated Height of Cut	Standard
Forward Ground/Transport Speed	Up to 12.0 mph / 19.3 kph
Fuel Capacity	10 gal. / 37.8 L / 40 Qt.
Fuel Type	Gasoline
Height of Cut	1.5 - 5.5 in. / 3.8 - 14.0 cm in 0.25 in (0.6 cm) increments
Hour Meter	Standard
Product Type	Zero Turn Mowers
Roll-Over Protection (ROPS)	Folding; Standard
Seat	Handcrafted Deluxe Suspension Seat with Arm Rests
Spindle Bearings	Maintenance-free
Spindle Housing	9 in / 22.9 cm Diameter Cast Aluminum
Start Type	Electric
Steering Controls	1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened
Transmission	ZT-5400 Integrated Pumps and Wheel Motors
Weight	1,383 lbs / 627.3 kg

Disclaimer

*The gross horsepower of these engines was laboratory rated at 3,600 RPM by the engine manufacturer in accordance with SAE J1940 and SAE J1995. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly different.
**See your retailer for warranty details.

Accessories

Hypr-Oil™ 500 (quart) (Part # 114-4713)

$15.39 USD

High Performance Hydro Oil

$15.39 USD

Hypr-Oil™ 500 (gallon) (Part # 114-4714)

$54.99 USD

High Performance Hydro Oil

$54.99 USD

Please contact your local dealer

Hypr-Oil™ 500 Hydraulic Oil (5 gallon) (Part # 114-4715)

$274.99 USD

Maximize commercial mower performance with Hypr-Oil™ 500. Tested and approved by Toro Engineering.

$274.99 USD

SPARK ARRESTOR (Part # 117-3281)

KIT-STRIPER 48, 52, 60, 72 (Part # 126-7882)

$571.99 USD

Riding Mower Jack Kit (Part # 127-6666)

$126.49 USD

Genuine Toro jack mount kit. Mounts to the front of the mower and allows the owner to raise the mower to gain access to the underside of the deck to check blades or wash the deck. To best protect your investment and maintain optimal performance of your turf equipment, count on Toro genuine parts. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

$126.49 USD

Please contact your local dealer

72 Inch Recycler Kit (Part # 139-6659)

$439.99 USD

The 72 in. Recycler Kit, when installed on compatible 42 in. deck Toro zero turn riding mowers, gives it the capability to mulch grass by cutting it multiple times turning it into fine clipping pieces. These are returned under the mower back into the soil to serve as natural fertilizer. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

$439.99 USD

24.5 Inch Mulching Blade (Part # 140-1238)

$34.64 USD

Toro 24.5 Inch OEM mulching blade for Z Master Professional 7500-D Series Riding Mower, with 96in TURBO FORCE Rear Discharge Mower. Toro mulching blades feature more curves and an increased cutting edge. The curved surface and increased cutting edge allows the blade to cut the grass and bring it into the deck where it is cut several more times before falling back onto the lawn in much smaller pieces. . This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

$34.64 USD

24.50 Inch Atomic Blade (Part # 140-1239)

$37.79 USD

Toro OEM 24.5 Inch Atomic blade. The Toro Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

$37.79 USD

24.50 Inch Medium Flow Blade (Part # 140-4850)

$33.59 USD

Toro 24.5 Inch OEM Medium Flow blade. Medium Flow mower straight edge, standard discharge blade. These blades have slight upward angle on the edges. Great blades for use when horsepower is a concern. Produce medium Flow but requires less horsepower than Hi-Flow blades. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

$33.59 USD

24.50 Inch Low Flow Blade (Part # 140-4851)

$36.74 USD

Toro 24.5 Inch OEM Low Flow blade. Low Flow mower blades have slightly curved ends that keep air Flow to a minimum. The lack of suction allows cut grass to exit the mower while keeping dust and debris levels down. Toro Low Flow mower blades cause less engine strain than Hi-Flow blades. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

$36.74 USD

24.50 Inch Recycler Blade (Part # 140-4852)

$36.74 USD

Toro 24.5 Inch OEM Recycler blade. Recycler straight edge, standard discharge blade. The blade is designed for a High quality cut and long-lasting durability. These blades are designed with “wings,” called “accelerators” that kind of act like a fan — forcing the tiny bits of grass back into the earth. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

$36.74 USD

Hi-Flow Blade Pack (6) (Part # 140-4872)

$207.89 USD

Toro 24.5 Inch OEM Hi-Flow blade pack. (6) Hi-Flow blades. This sharp replacement Hi-Flow lawn mower blade provides a crisp, clean cut time after time. You can count on the quality and reliability of this Toro replacement Hi-Flow lawn mower blade. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

$207.89 USD

Mid Flow 24.5 Inch Blade Pack (6) (Part # 140-4873)

$201.59 USD

Toro 24.5 Inch OEM Medium Flow blade pack. (6) Medium Flow blades. Medium Flow mower straight edge, standard discharge blade. These blades have slight upward angle on the edges. Great blades for use when horsepower is a concern. Produce medium Flow but requires less horsepower than Hi-Flow blades. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

$201.59 USD

Low Flow 24.5 Inch Blade Pack (6) (Part # 140-4874)

$220.49 USD

Toro 24.5 Inch OEM Low Flow blade pack. (6) Low Flow blades. Low Flow mower blades have slightly curved ends that keep air Flow to a minimum. The lack of suction allows cut grass to exit the mower while keeping dust and debris levels down. Toro Low Flow mower blades cause less engine strain than Hi-Flow blades. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

$220.49 USD

Atomic 24.5 Inch Blade Pack (6) (Part # 140-4875)

$226.79 USD

Toro OEM Atomic blade pack. (6) 24.5 Inch Atomic blades. Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

$226.79 USD

Recycler 24.5 Inch Blade Pack (6) (Part # 140-4876)

$220.49 USD

Toro 24.5 Inch OEM Recycler blade pack. (6) Recycler blades. Recycler straight edge, standard discharge blade. The blade is designed for a High quality cut and long-lasting durability. These blades are designed with “wings,” called “accelerators” that kind of act like a fan — forcing the tiny bits of grass back into the earth. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

$220.49 USD

$82.49 USD

4000 HDX 72IN COMPLETION KIT (Part # 78467)

4000 HDX 72IN EZ VAC DFS BAGGER (Part # 78474)

4000 HDX 72IN EZ VAC TRIPLE SOFT BAGG (Part # 78489)

Documents

Title	Documents
Z Master 4000 Brochure	PDF - Sellsheet-en-us

Parts & Manuals

Select your model year from the options below to view parts & manuals.

74022 Serial #
416271011-999999999
416270999-416271010
415400000-416270998
414385899-415399999
414300000-414385898
414070032-414299999
412000000-414070031
400000000-411999999

4000 Series HDX Pro XL 72 in. (183 cm) 35 hp 999 cc

Overview

Features

Up to 12 MPH

TURBO FORCE® Cutting Deck

Rubber Discharge Chute

Deck Step Plate

Step-Through Front End

Clear Sightline to Rear Tires

Dual Capture Anti-Scallop Rollers

Phone and Cup Holder

USB Ports

Horizon360® Business Management Software.

Specifications

Accessories

SPARK ARRESTOR (Part # 117-3281)

4000 HDX 72IN COMPLETION KIT (Part # 78467)

4000 HDX 72IN EZ VAC DFS BAGGER (Part # 78474)

4000 HDX 72IN EZ VAC TRIPLE SOFT BAGG (Part # 78489)

Documents

Parts & Manuals

Warranty

5-Year / 1500 Hours; 2-Year No Hour Limit
