TimeCutter Z4200 Riding Mower

TimeCutter Z4200 Riding Mower

TimeCutter Z4200 Riding Mower

Product Information

  • Model #: 74380
  • Serial #: 310000001 - 310999999
  • Product Type: Riding Products

Search for a part within assembly drawings:

Showing Results

Drawing Title Part Number Description
Title

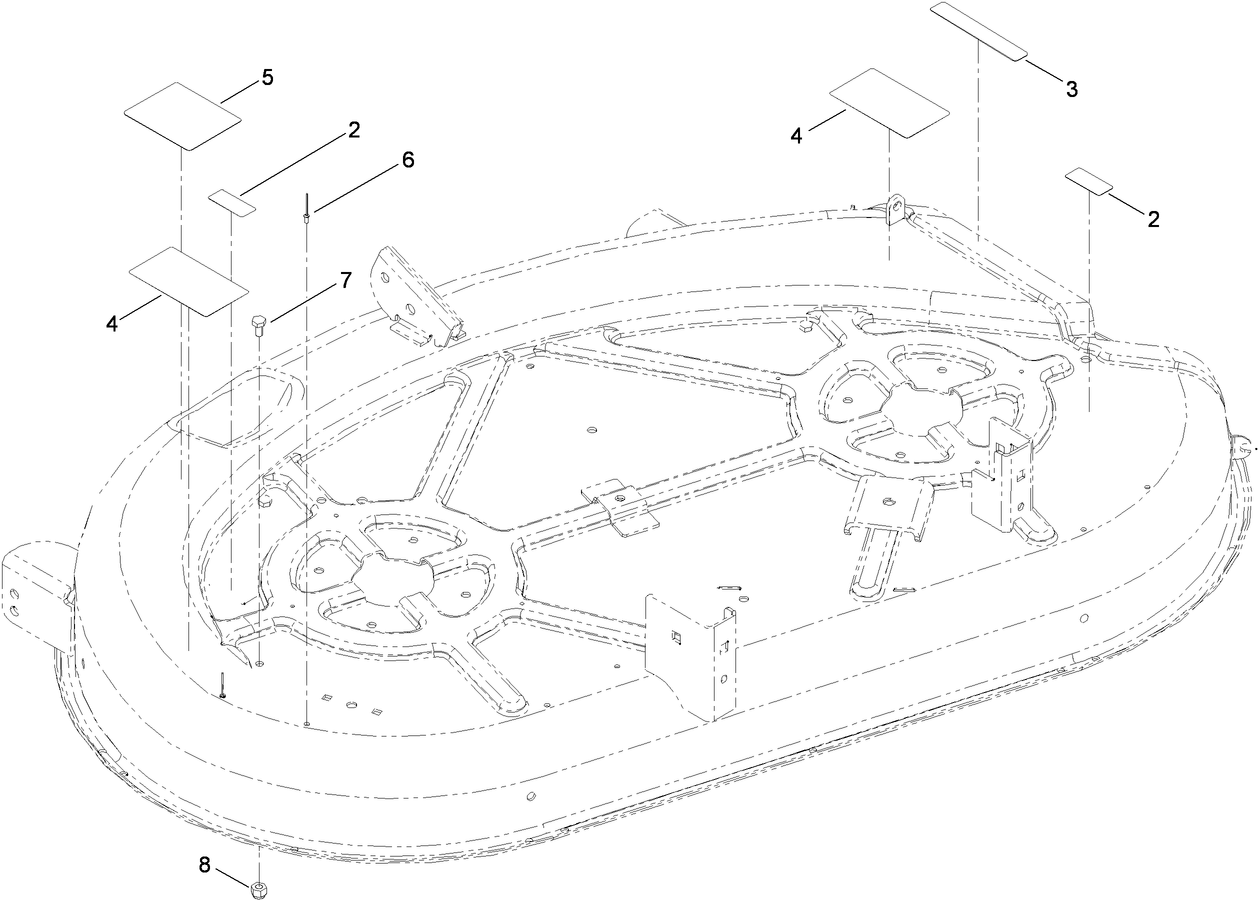

42 Inch Deck and Decal Assembly No. 117-1290
42 Inch Deck and Decal Assembly No. 117-1290

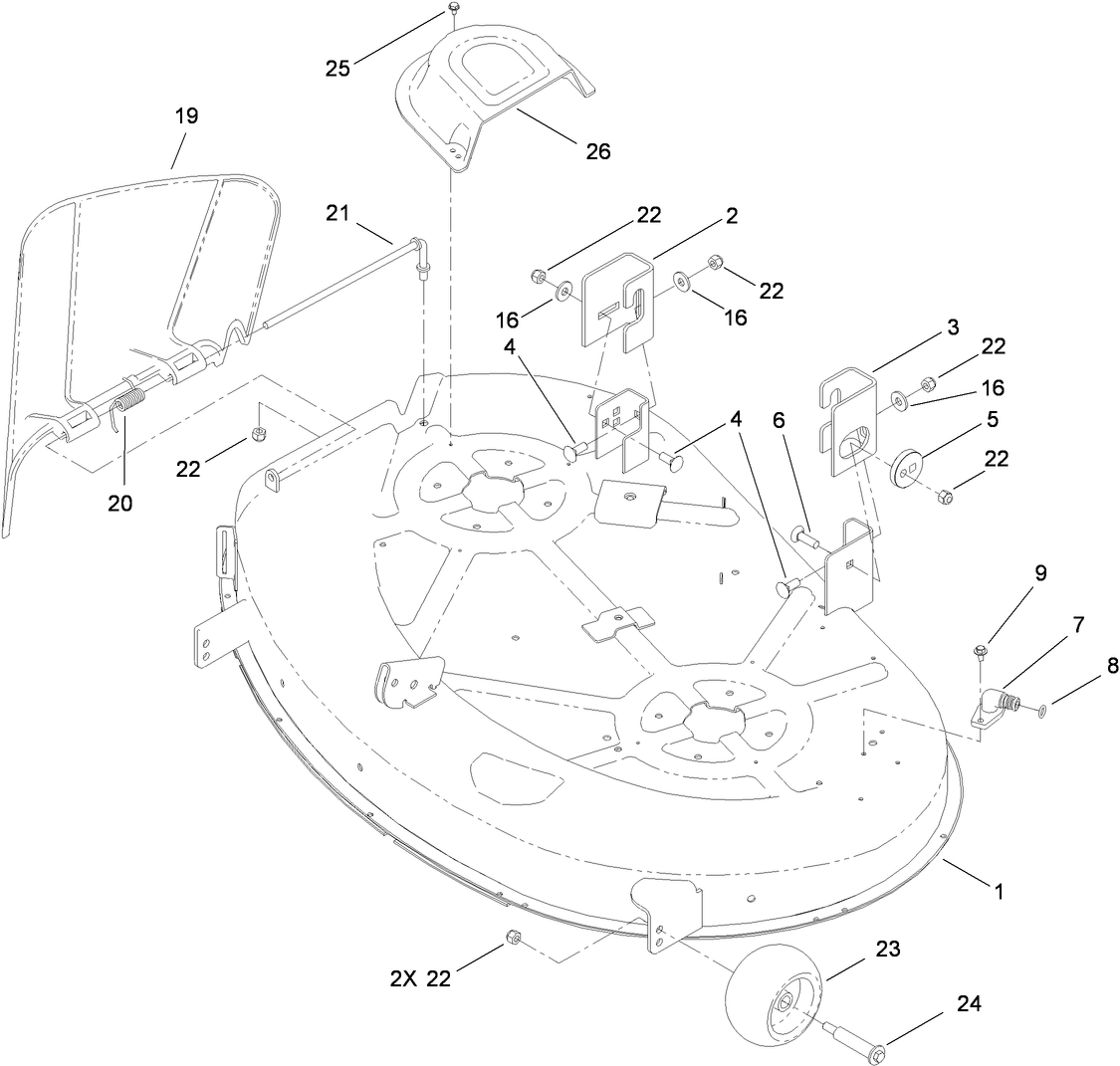

42 Inch Deck Assembly
42 Inch Deck Assembly

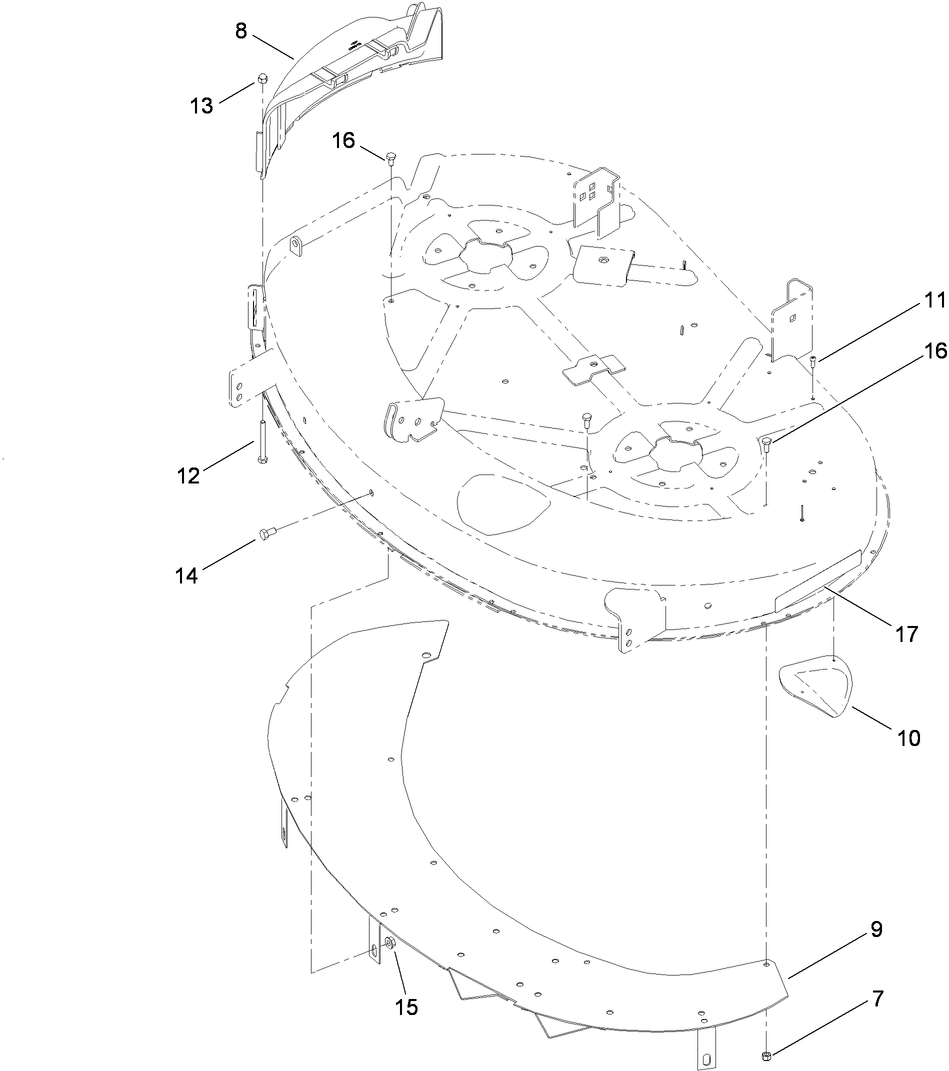

42 Inch Deck Baffle Assembly
42 Inch Deck Baffle Assembly

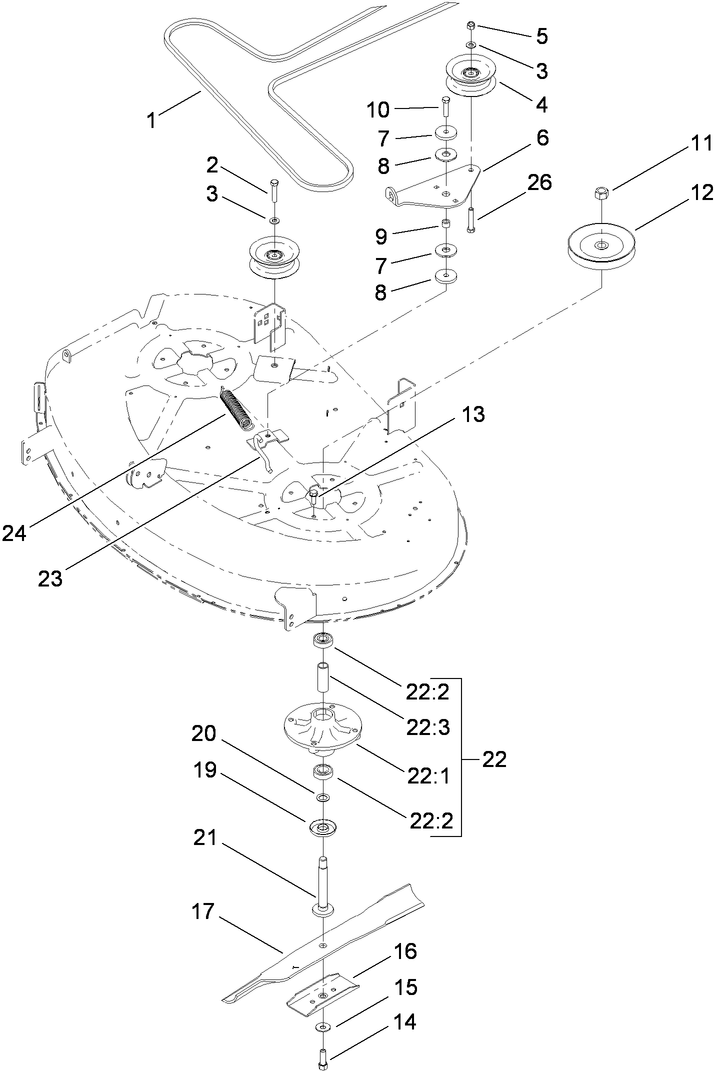

42 Inch Deck Spindle and Belt Drive Assembly
42 Inch Deck Spindle and Belt Drive Assembly

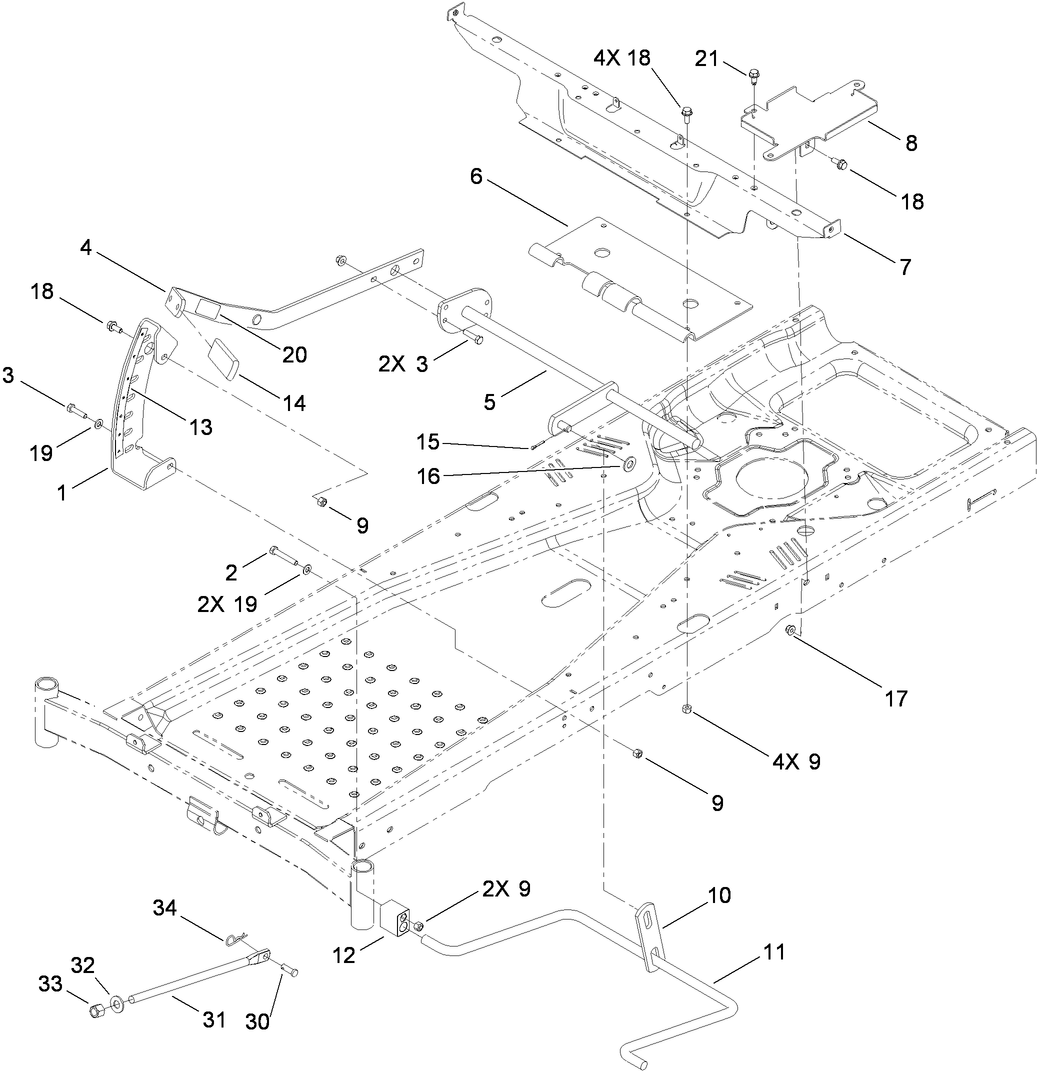

Deck Lift Assembly
Deck Lift Assembly

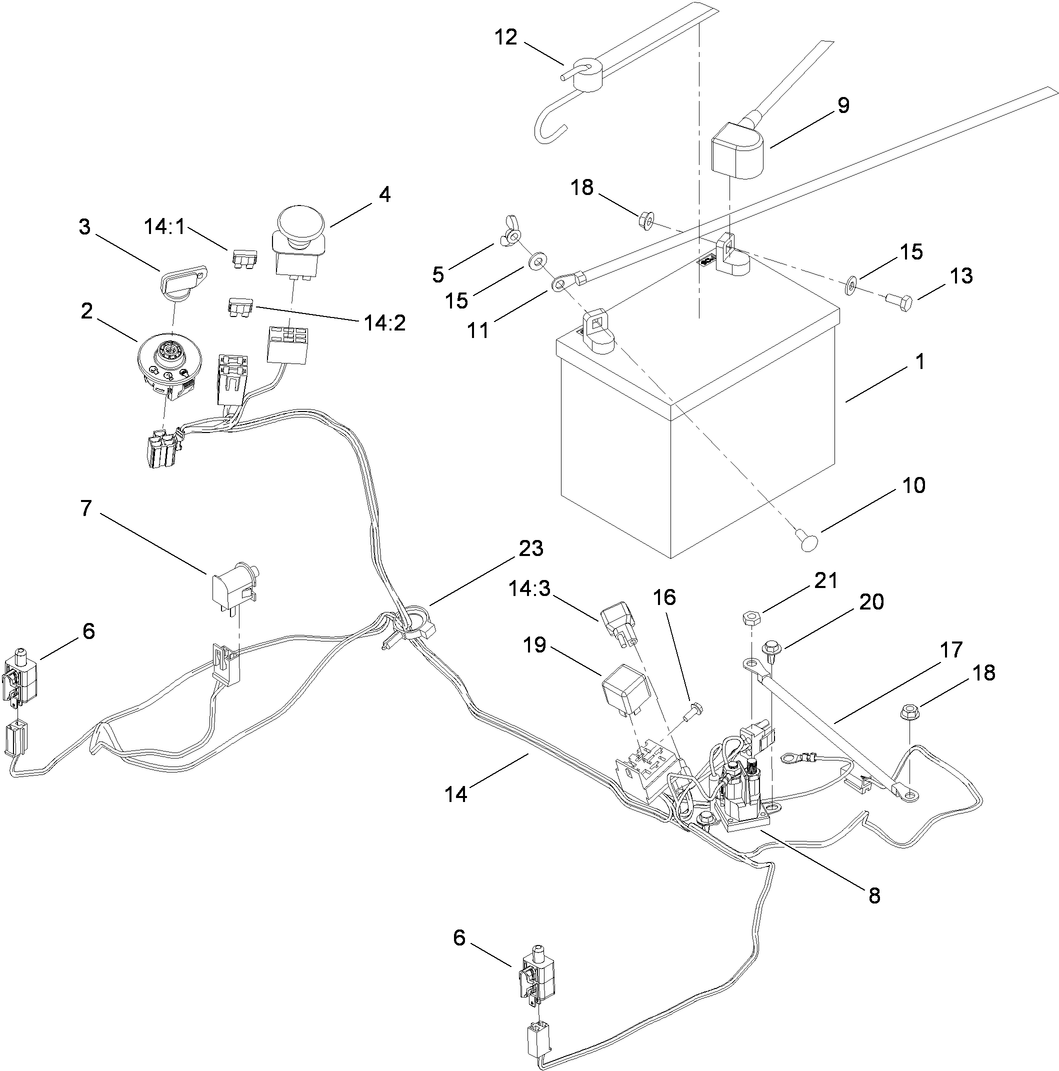

Electrical Assembly
Electrical Assembly
Engine and Clutch Assembly
Engine and Clutch Assembly

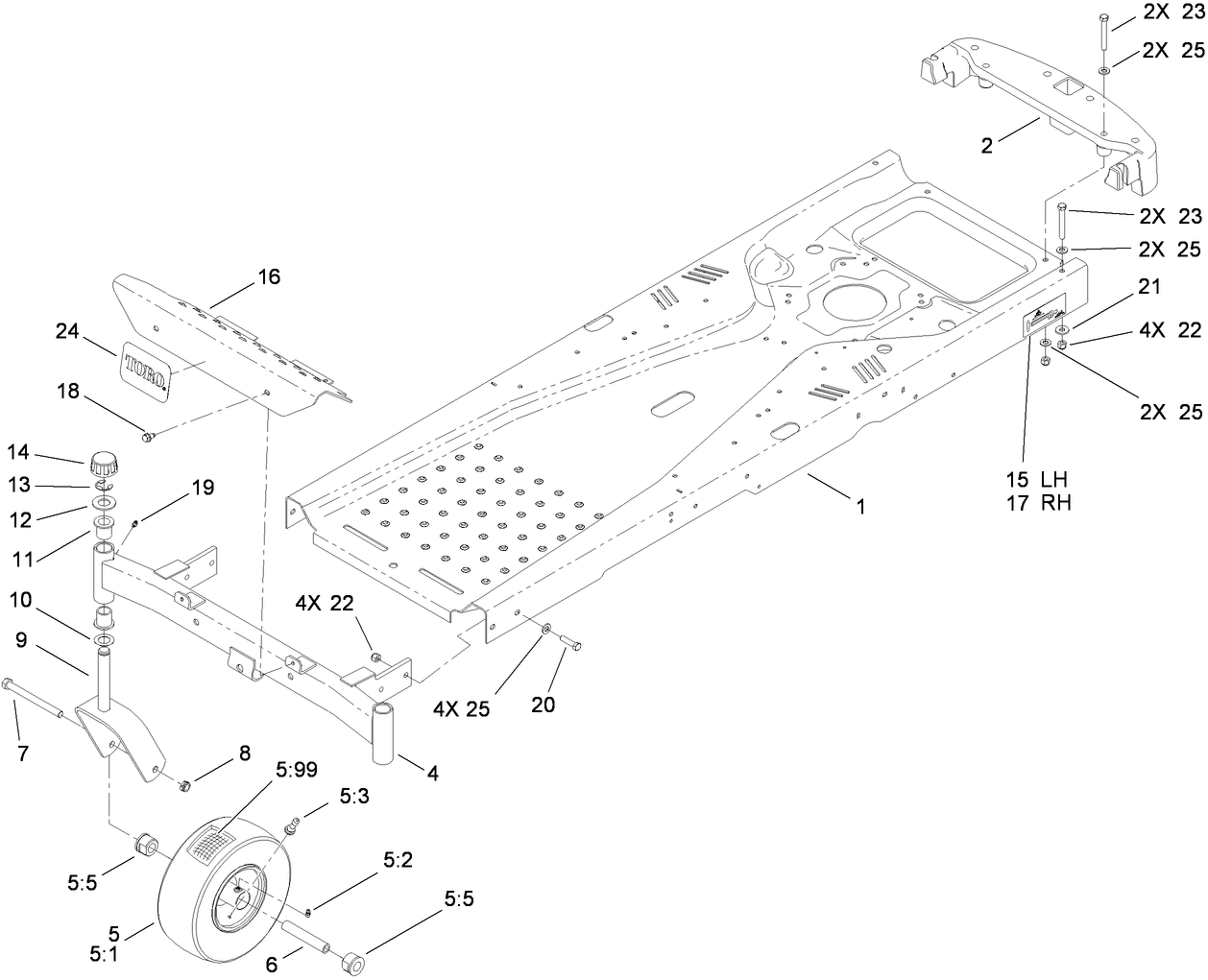

Frame and Caster Wheel Assembly
Frame and Caster Wheel Assembly

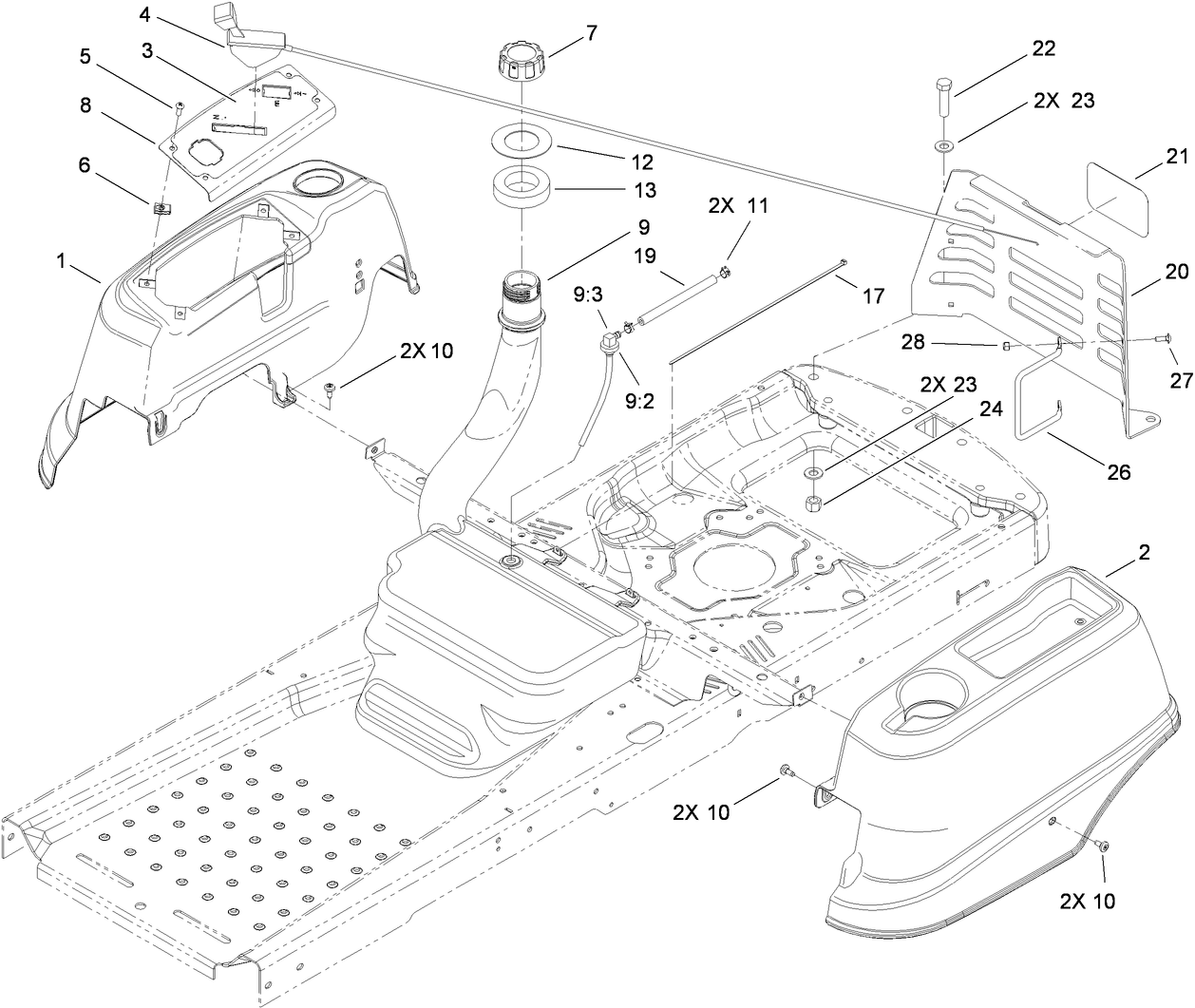

Fuel Delivery and Body Styling Assembly
Fuel Delivery and Body Styling Assembly

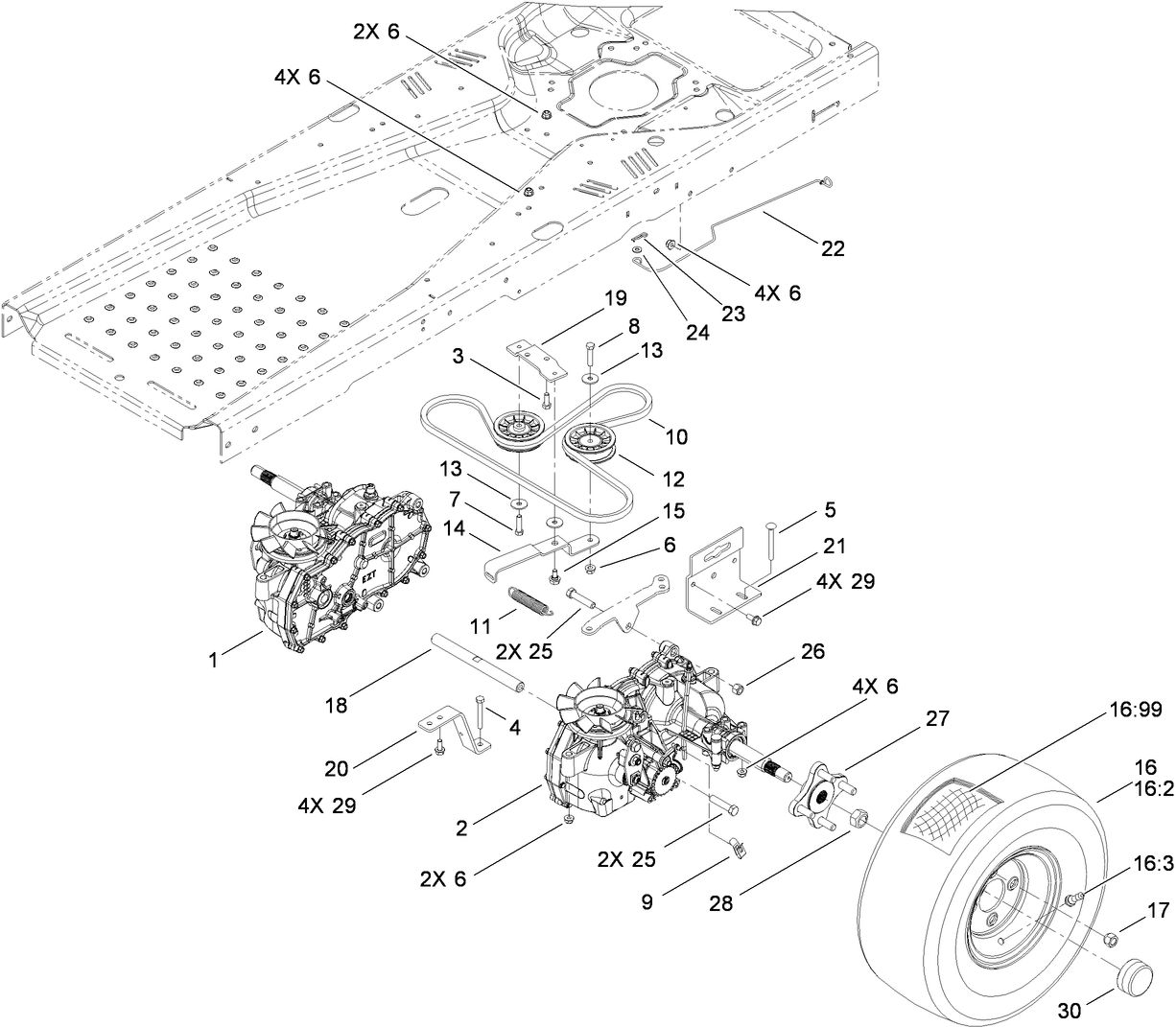

Hydro Traction Drive Assembly
Hydro Traction Drive Assembly
LH Hydro Assembly No. 110-6770
LH Hydro Assembly No. 110-6770

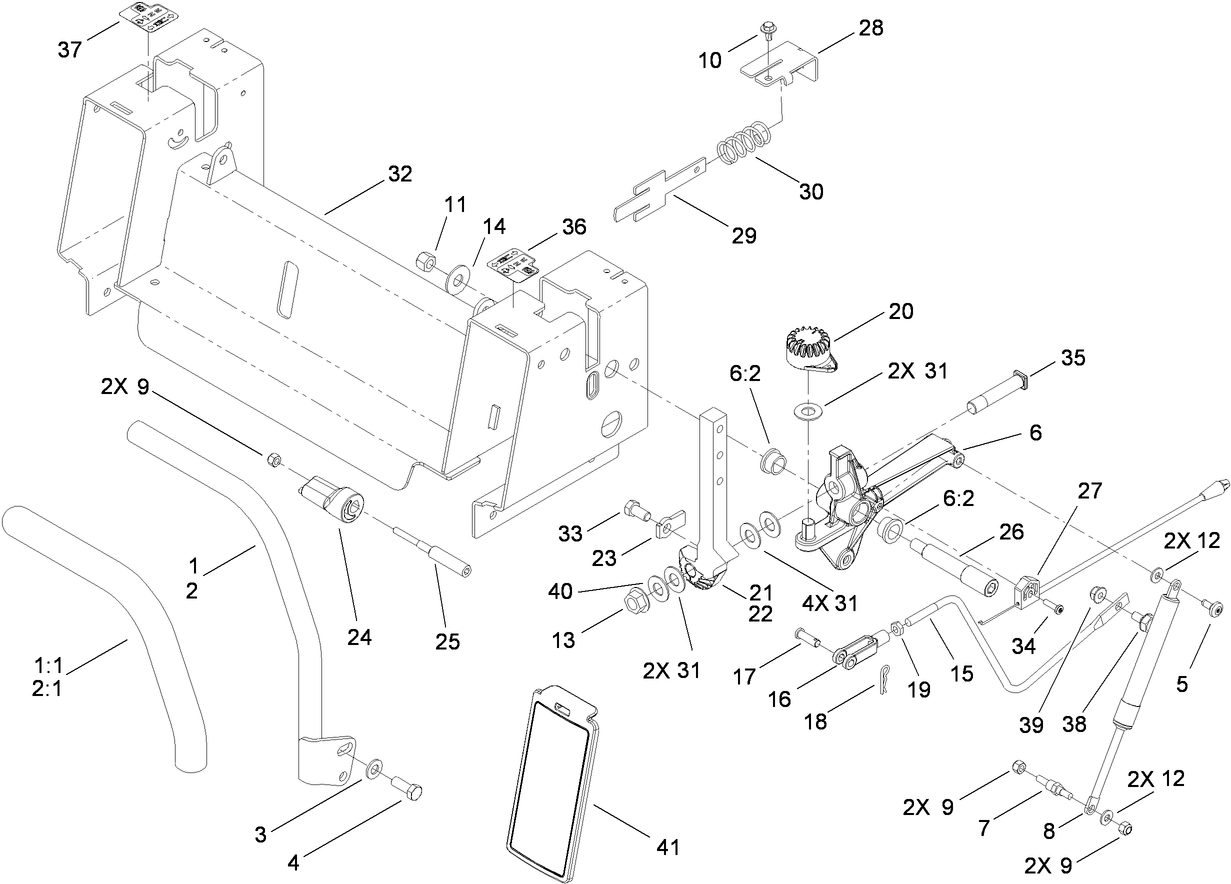

Motion Control Assembly
Motion Control Assembly

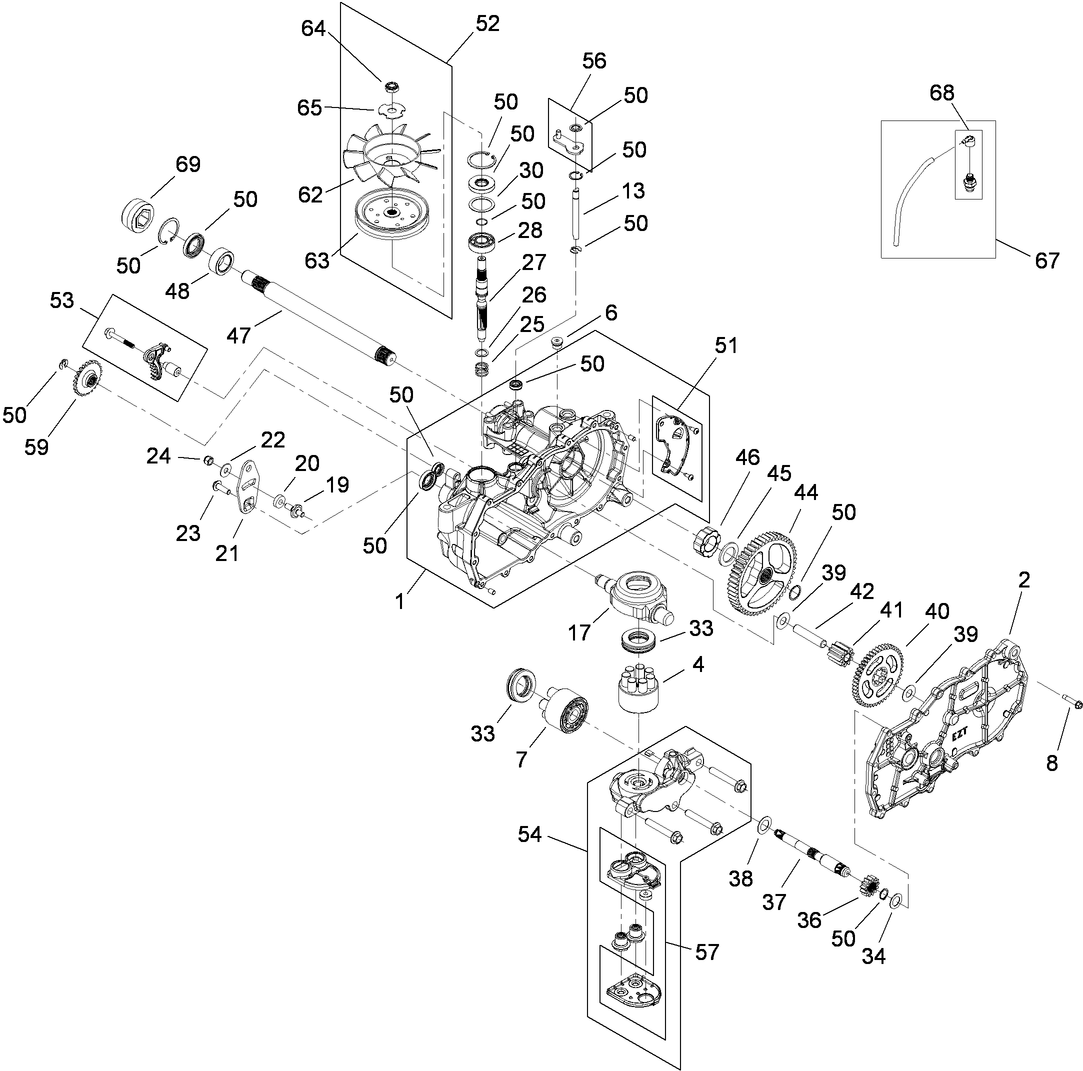

RH Hydro Assembly No. 110-6771
RH Hydro Assembly No. 110-6771

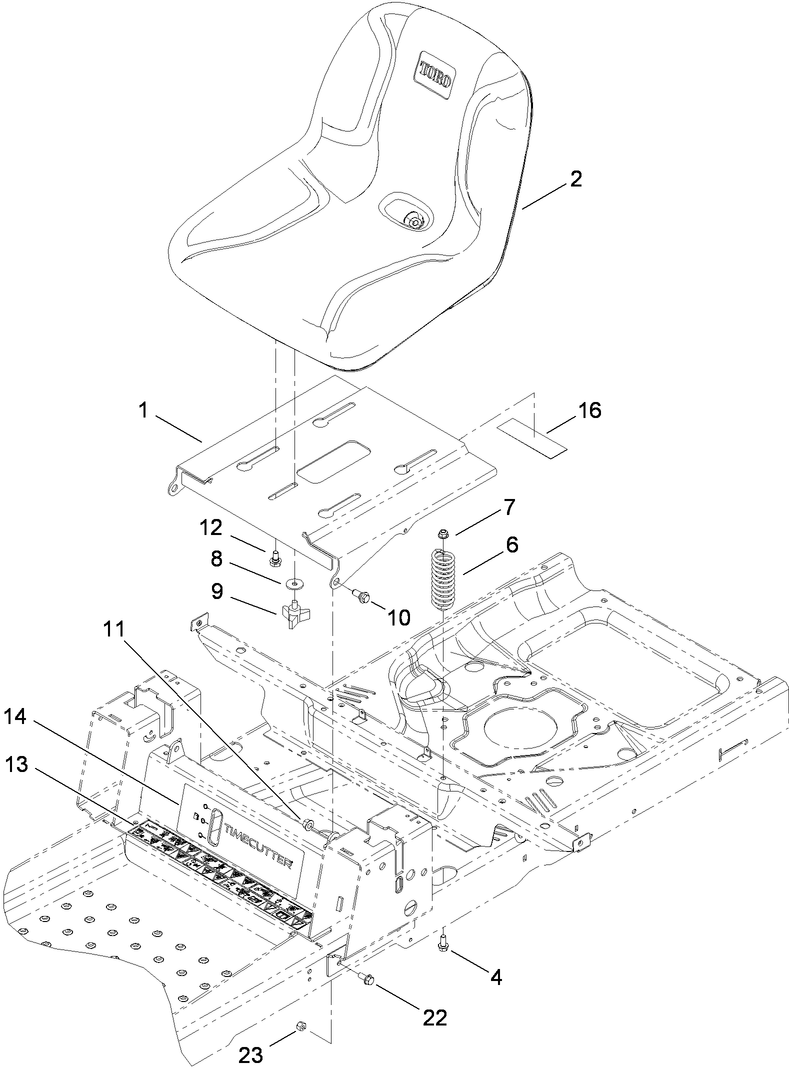

Seat Assembly
Seat Assembly
Download Parts Catalog
Operator's Manual
Service Manual
Parts Catalog
Setup Instructions
EU Declaration of Conformity
Genuine OEM Part 108-6163
Armrest Kit (Part # 108-6163)
Genuine OEM Part
Genuine OEM Part 110-6739
Smooth Front Tires Kit (Part # 110-6739)
Genuine OEM Part
Genuine OEM Part 112-9763
Hour Meter Kit (Part # 112-9763)
Keep track of mowing hours and planned maintenance with the Toro Hour Meter Kit. Ffits on select models of TimeCutter SS and SW zero turn mowers.
$67.09 USD
TimeCutter 42
TimeCutter 42" Bagging Enhancement Kit (Part # 114-1620)
Get that pristine lawn you’ve been dreaming of with the help of the Toro’s Leaf Bagging Enhancement and make short work of it. Decreases leaf blowout on the deck when bagging leaves and increases bagging performance. Fits select models of TimeCutter SS and SW zero turn mowers.
$98.99 USD
Genuine OEM Part 114-8545
Striping Kit (Part # 114-8545)
Genuine OEM Part
Genuine OEM Part 131-3939-03
21.6 Inch Replacement Blade Kit for 42 Inch TimeCutter (2007 - 2017) - 2 pack (Part # 131-3939-03P)
Replacement Blade Kit contains two 21.6 in. Hi-Flow blades for your Toro 42 in. TimeCutter. The blade stiffener that is included on 2007-2014 models must be removed prior to installing these blades. See instruction sheet for details. Using genuine Toro mower blades produces a crisp cut and promotes a healthy lawn.
$23.99 USD
Empty Image Container
ARM REST KIT - F05 AND NEWER (Part # 79212)
Empty Image Container
FOOT ASSIST-DECK LIFT [TCZ F'07 UP] (Part # 79313)
$115.99 USD
Please contact your local dealer
Engine Cover Kit
Engine Cover Kit (Part # 79314)
Genuine OEM Part
Empty Image Container
FLOOR MAT [TIMECUTTER Z F'07 UP] (Part # 79315)
Deluxe Small Zero-Turn-Radius Riding Mower Storage Cover (Part # 79317)
Empty Image Container
HITCH KIT [TCZ F'07 AND UP] (Part # 79318)
$57.99 USD
Empty Image Container
SUNSHADE-CONSUMER Z (GENERIC)[F'07 & UP] (Part # 79319)
$256.99 USD
42in and 50in Twin Bagger, TimeCutter MZ Series Riding Mower (Part # 79324)
10 cu. ft. Poly Dump Cart (Part # 79991)

Model #

74380

Serial #

310000001 - 310999999

Product Name

TimeCutter Z4200 Riding Mower

Product Brand

Toro

Product Type

Riding Products

Product Series

Zero Radius Turn, Consumer

Chassis Type

ZRT - Consumer

Swath

42 inch

Discharge

Side

Engine/Motor Manufacturer

Kohler

Engine/Motor Size

19 hp

Engine/Motor Type

4 Cycle EPA2

Engine Starter

Electric

Transmission Type

Hydrostatic
