TimeCutter SS 5425 Riding Mower

TimeCutter SS 5425 Riding Mower

TimeCutter SS 5425 Riding Mower

Product Information

  • Model #: 74741
  • Serial #: 400000000 - 999999999
  • Product Type: Riding Products

Search for a part within assembly drawings:

Showing Results

Drawing Title Part Number Description
Title

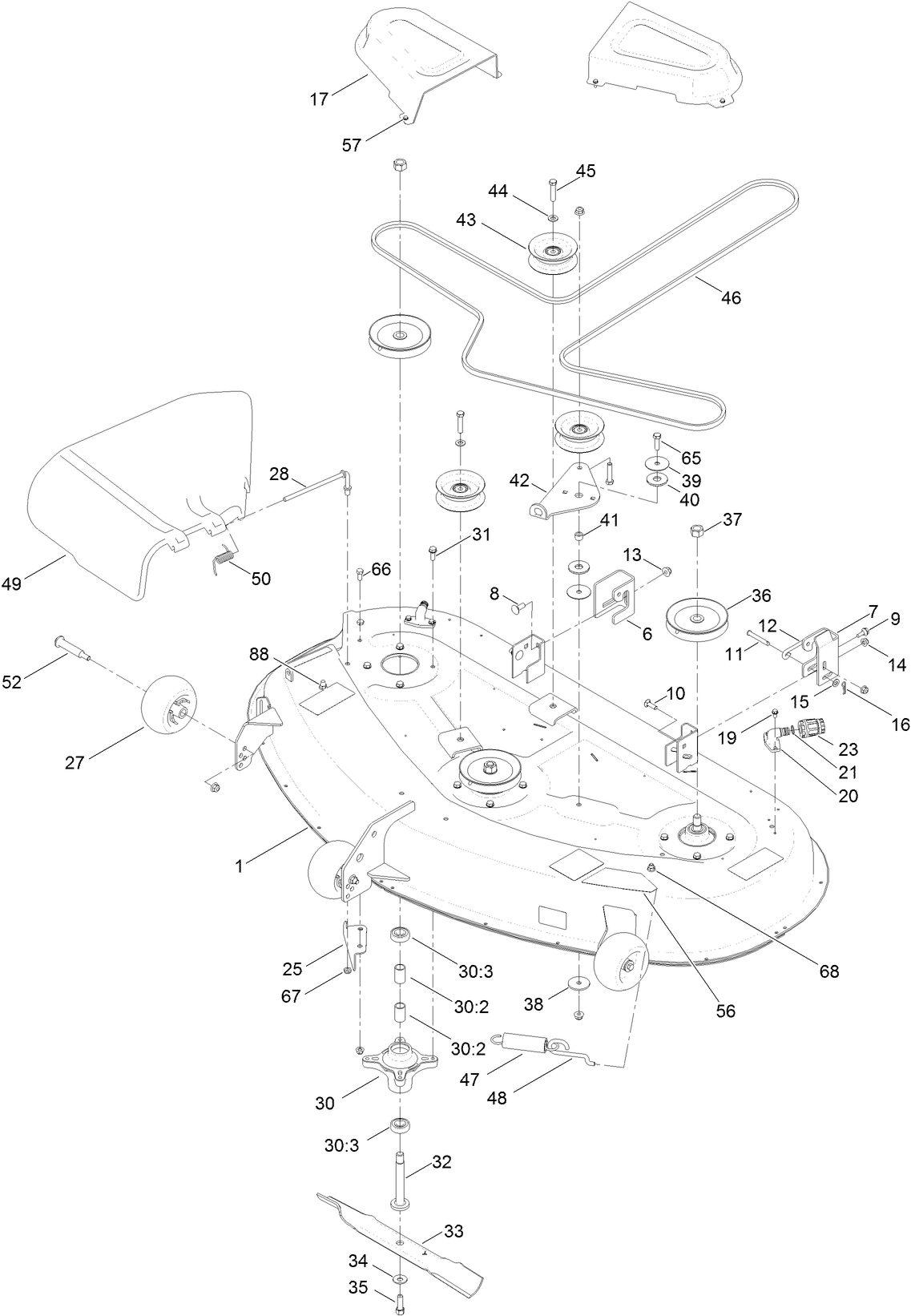

54 Inch Deck Belt, Spindle and Blade Assembly
54 Inch Deck Belt, Spindle and Blade Assembly

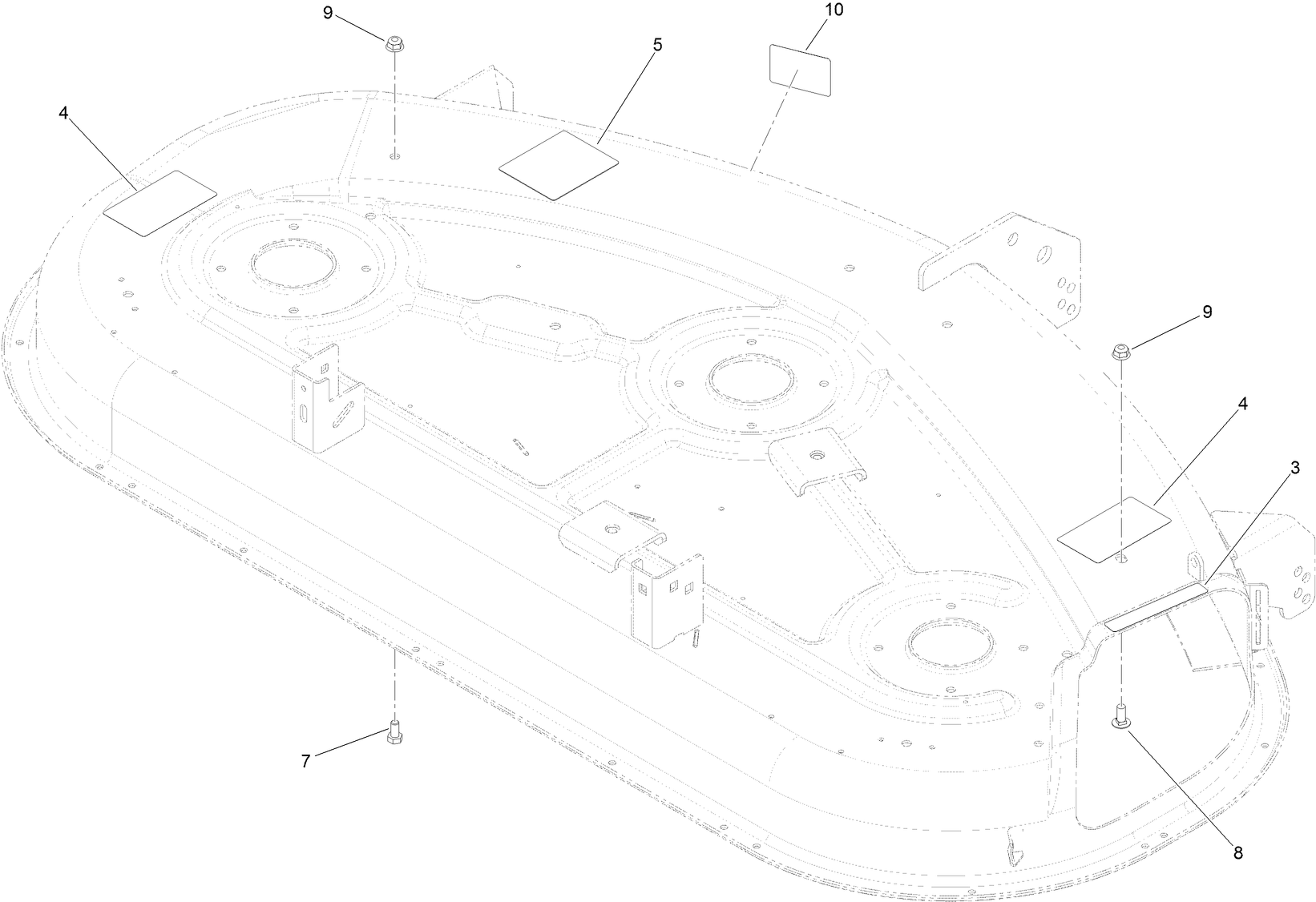

54 Inch Deck Decal Assembly No. 130-7004
54 Inch Deck Decal Assembly No. 130-7004
Air Intake and Filtration Assembly
Air Intake and Filtration Assembly
Battery and Electrical Assembly
Battery and Electrical Assembly
Blower Housing Assembly
Blower Housing Assembly
Body Styling and Fuel Tank Assembly
Body Styling and Fuel Tank Assembly
Brake Assembly
Brake Assembly
Carburetor Assembly
Carburetor Assembly
Caster, Wheel and Tire Assembly
Caster, Wheel and Tire Assembly
Clutch Assembly
Clutch Assembly
Crankcase and Crankshaft Assembly
Crankcase and Crankshaft Assembly
Deck Lift Assembly
Deck Lift Assembly
Engine and Muffler Assembly
Engine and Muffler Assembly
Frame Assembly
Frame Assembly
Frame Decal Assembly
Frame Decal Assembly
Fuel System Assembly
Fuel System Assembly
Gasket and Seal Kit Assembly
Gasket and Seal Kit Assembly
Governor Control Assembly
Governor Control Assembly
Ignition and Electrical Assembly
Ignition and Electrical Assembly
LH Transaxle Assembly No. 131-3640
LH Transaxle Assembly No. 131-3640

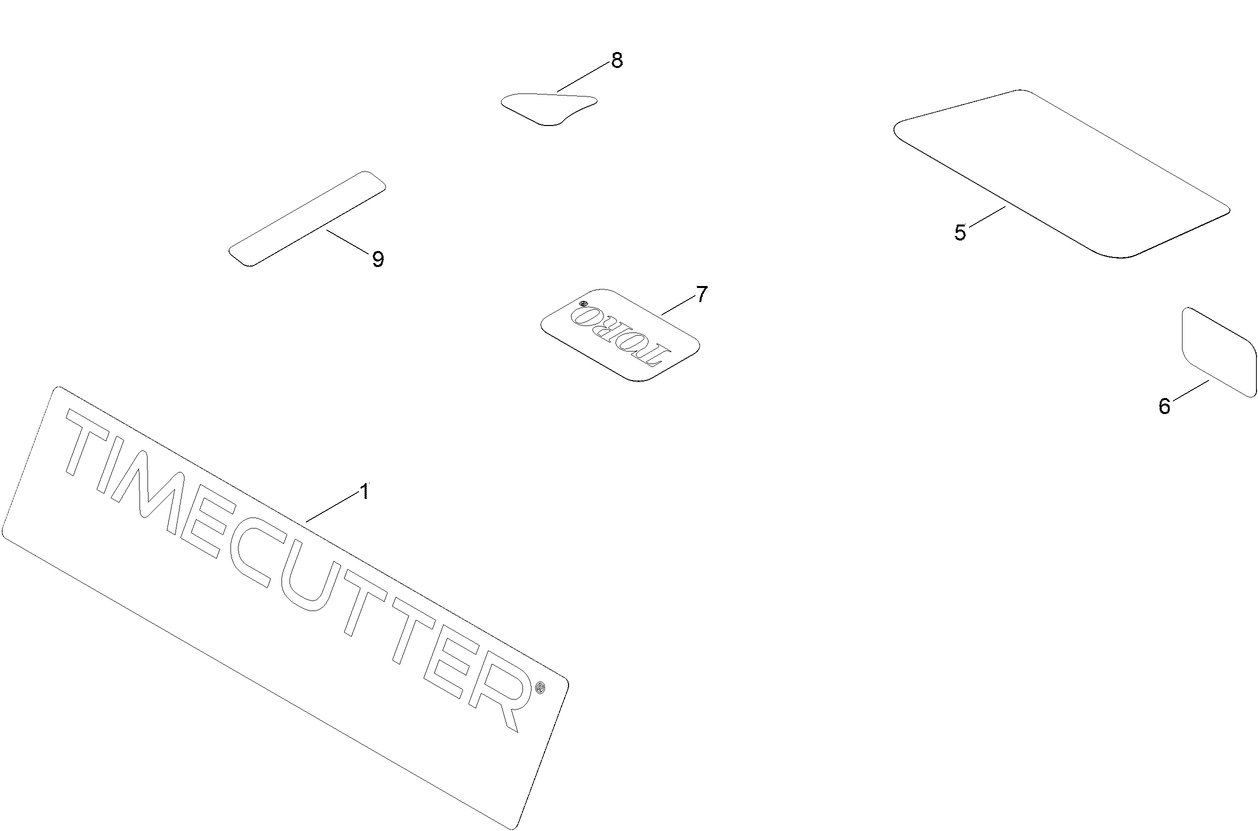

Model Specific Decal Assembly
Model Specific Decal Assembly

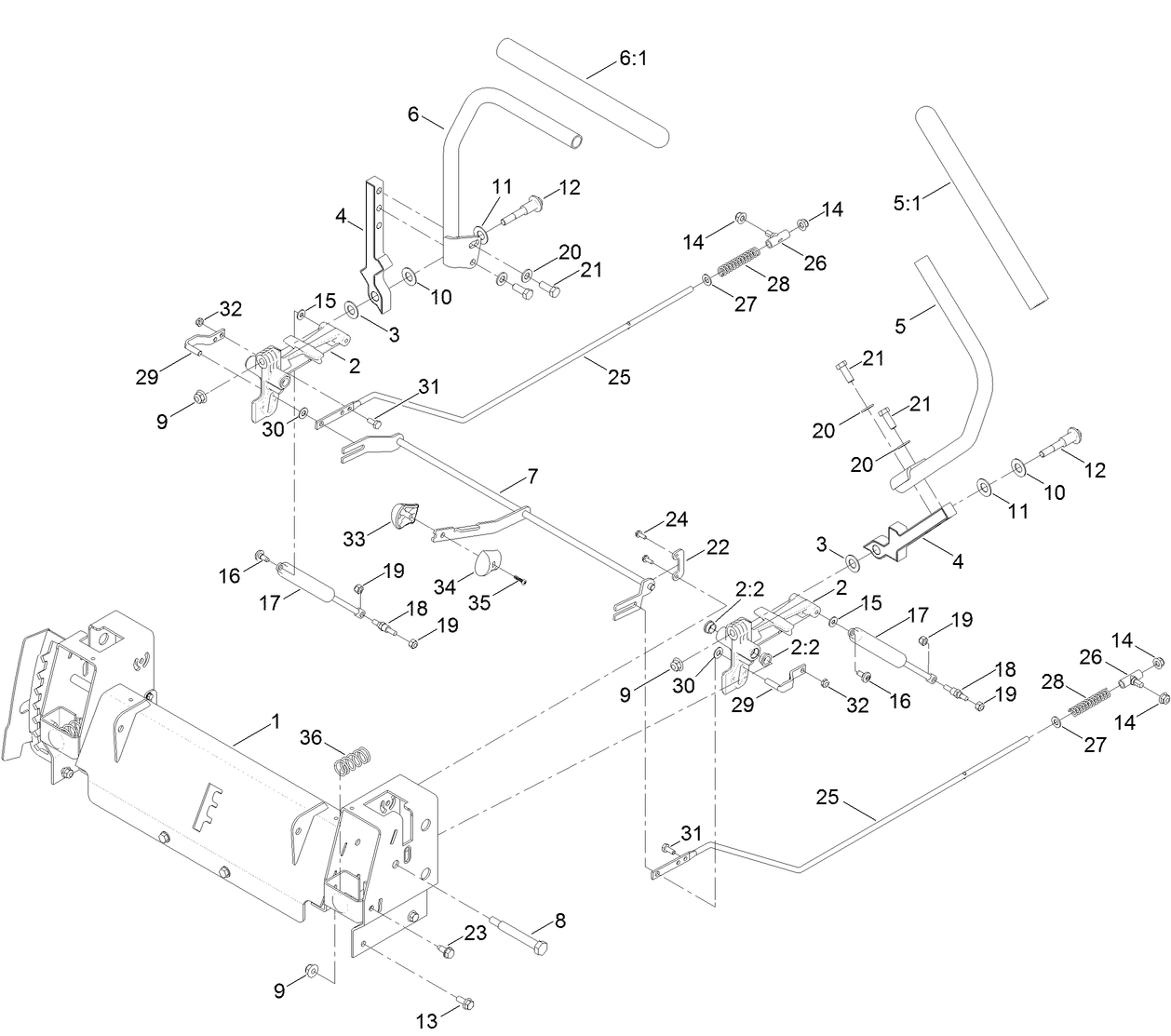

Motion Control Assembly
Motion Control Assembly
Piston and Cylinder Head Assembly
Piston and Cylinder Head Assembly
RH Transaxle Assembly No. 131-3641
RH Transaxle Assembly No. 131-3641

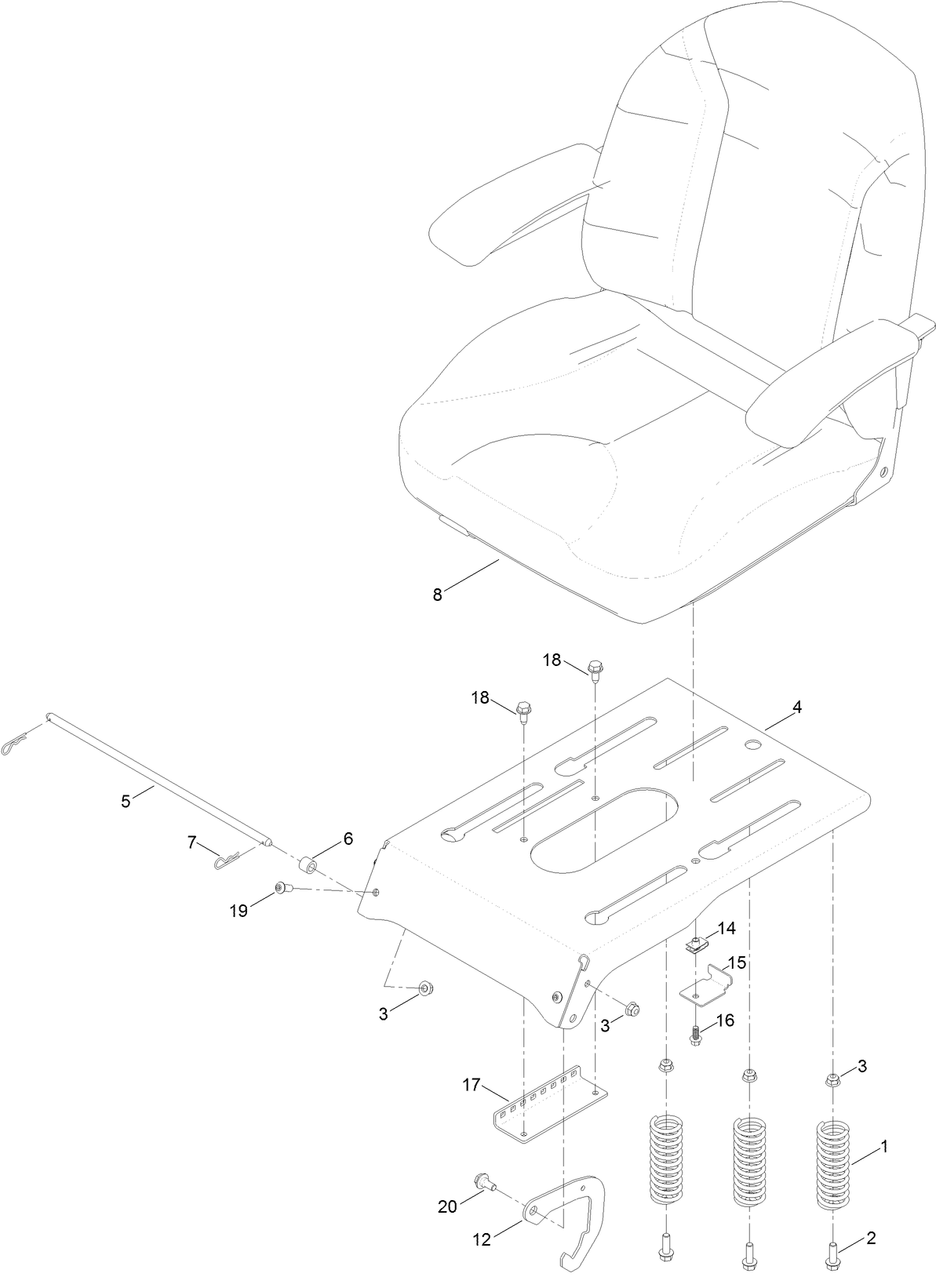

Seat Assembly
Seat Assembly
Seat Assembly No. 131-4147
Seat Assembly No. 131-4147
Tire Assembly
Tire Assembly

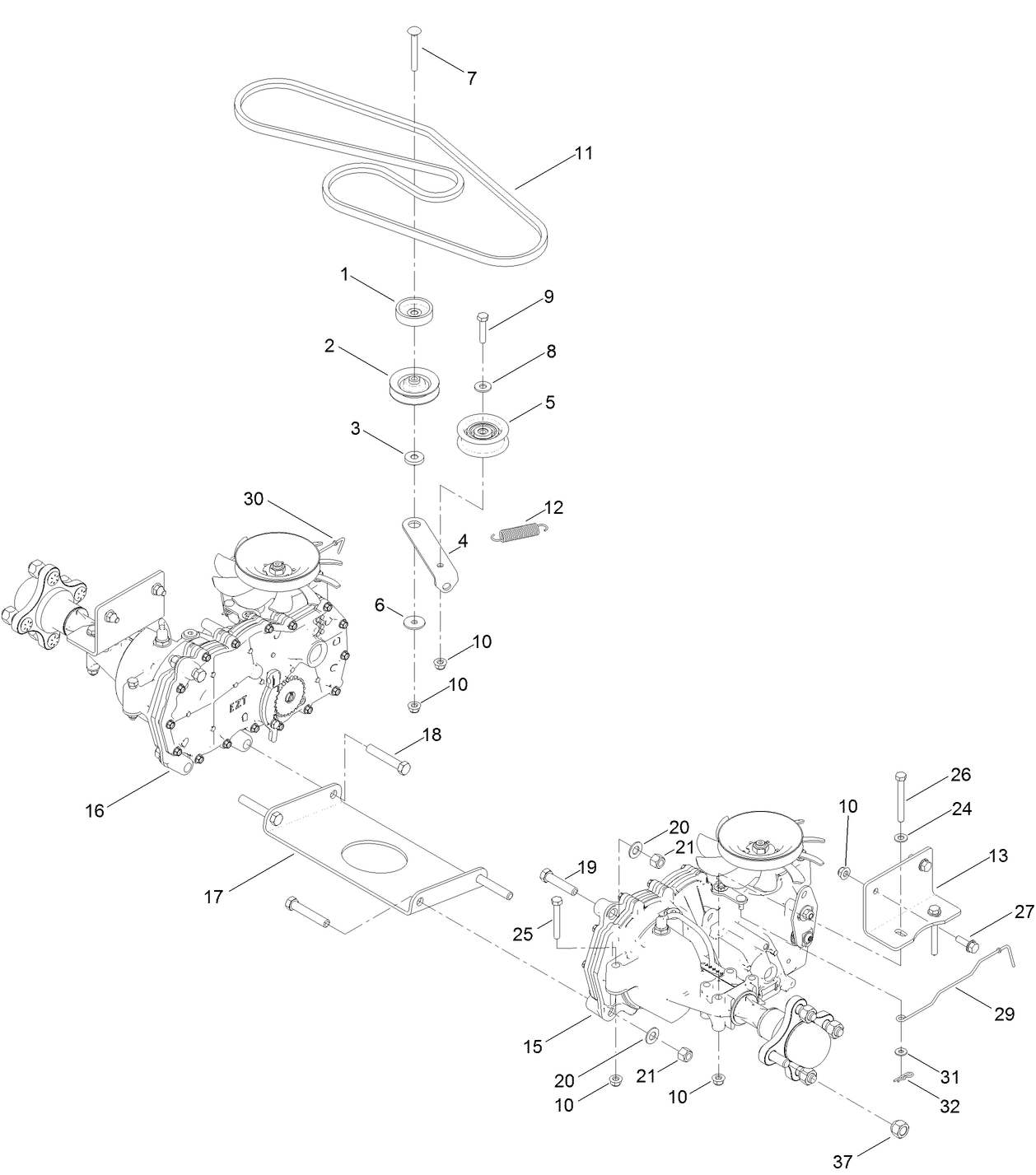

Traction Drive Assembly
Traction Drive Assembly
Download Parts Catalog
Operator's Manual
Service Manual
Parts Catalog
Setup Instructions
Genuine OEM Part 120-2244
Hourmeter Kit for Timecutter Mowers (Part # 116-5461)
The Toro Hour meter kit provides fractional engine hour tracking to easily track usage and service intervals. Easy to install into pre-existing slot and connects with the wiring harness leading to the seat switch.
$64.89 USD
Please contact your local dealer
Empty Image Container
*OBS* Toro full synthetic 10W-30 engine oil (Part # 117-0066)
Toro full synthetic 10W-30 engine oil. The easy engine oil choice for any outdoor power equipmentto increase performance and reliability.
Toro Premium Fuel Treatment - .4 oz.
Toro Premium Fuel Treatment - .4 oz. (Part # 117-0089)
Genuine OEM Part
Toro Premium Fuel Treatment - 16 oz.
Toro Premium Fuel Treatment - 16 oz. (Part # 117-0090)
Genuine OEM Part
Empty Image Container
KIT-JACK MOUNT (Part # 126-5251)
$125.39 USD
Riding Mower Jack Kit
Riding Mower Jack Kit (Part # 127-6666)
This genuine Toro OEM riding mower jack kit is designed to safely lift and support your Toro riding mower or zero turn, giving you safe, stable under-deck access for blade changes, belt replacements, and routine maintenance. It is one of the most practical purchase-stage accessories for any new mower owner — investing in a proper jack from day one avoids improvised lifting methods that risk injury and equipment damage. Verify your model and serial number before ordering.
$153.99 USD
Please contact your local dealer
Attachment Mount Kit for Residential Z-Mowers
Attachment Mount Kit for Residential Z-Mowers (Part # 131-3966)
Genuine OEM Part
$267.29 USD
54 inch Striping Kit
54 inch Striping Kit (Part # 131-4165)
Genuine OEM Part
$124.99 USD
54 Inch Bagging Enhancement Kit
54 Inch Bagging Enhancement Kit (Part # 131-4166)
Genuine OEM Part
$74.99 USD

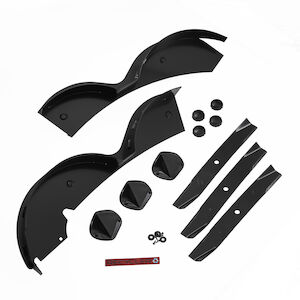

54 Inch Recycler Kit
54 Inch Recycler Kit (Part # 131-4185)
Genuine OEM Part
Front Weight Kit for TimeCutter Mowers
Front Weight Kit for TimeCutter Mowers (Part # 131-7658)
This weight kit is required to get the best performance of Toro attachments such as the Cargo Carrier (79030) or the Brinly-Hardy rear mounted spreader or sprayer. The weight balances the machine installed with an attachment. The kit contains one 35 lb. weight and the hardware needed to install it. Can be easily removed when the attachment is not in use. The weight kit is included with the TimeCutter baggers (see baggers for details)
$309.99 USD
Please contact your local dealer
Genuine OEM Part 132-0913
Deck Retention Kit (Part # 132-0913)
Genuine OEM Part
$16.49 USD
Empty Image Container
*OBS* MAINTENANCE KIT TORO V-TWIN ENGINE (Part # 132-4878)

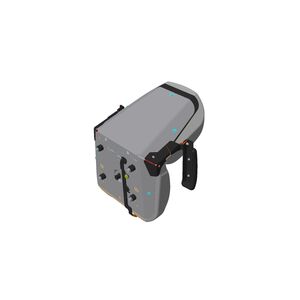

Genuine OEM Part 136-5598
Seat Assembly (Part # 136-5598)
Genuine OEM Part
Empty Image Container
KIT-BAGGING MUFFLER SHIELD (Part # 137-7065)
$76.99 USD
10W30 4-Cycle Engine Oil - 32 oz. Bottle
10W30 4-Cycle Engine Oil - 32 oz. Bottle (Part # 38280)
The Toro 38280 Premium 4-Cycle Lawn Mower Engine Oil 10W-30 is specially formulated to meet specific 4-cycle engine manufacturer requirements calling for 10W-30. This lawn mower engine oil provides the ultimate protection for all 4-cycle OPE engines. The lawn mower engine oil is developed with Toro engineering to meet the standards for all air-cooled, liquid-cooled and diesel engines. To maximize the performance of your Toro lawn mower, we highly recommend using this Toro lawn mower engine oil, which has been specifically formulated for best results. The lawn mower engine oil provides extreme performance in all temperatures, enhancing the life of your lawn mower's engine.
$11.28 USD
SAE 30 4-Cycle Lawn Mower Engine Oil 32 oz
SAE 30 4-Cycle Lawn Mower Engine Oil 32 oz (Part # 38903)
Toro SAE 30 4-cycle engine oil passed the strictest requirements in thousands of hours of testing in hundreds of engines before you filled your lawn mower. This oil meets or exceeds performance requirements of all OEM engines (Toro, Briggs & Stratton, KOLHER, Honda, and Tecumseh). The use of Toro SAE 30 4-cycle lawn mower oil minimizes molecular shearing for extended life in hot-air-cooled applications vs multi-grades (i.e., 10W-30).
$9.99 USD
Empty Image Container
Cover for TimeCutter Models (Part # 490-7516)
The Toro Z mower cover protects your investment by offering all-season protection. Toro covers are constructed of tough, waterproof, tear and abrasion-resistant 600-Denier polyester and will provide years of carefree protection for your mower. Toro covers protect against snow, sun damage, rain, dust, birds, tree sap and more. Toro covers also feature vents to minimize condensation and heat build-up and an elastic opening to ensure a snug, secure fit.
$99.99 USD
Genuine OEM Part 79010
TimeCutter SS Foot Assist HOC System (Part # 79010)
The Toro Foot-Assist Height-of-Cut System allows operators to easily raise and lower the mower deck using their foot. This option is ideal for situations where the deck height or height-of-cut needs to be adjusted frequently. Specifically designed for Toro TimeCutter SS mowers, this product provides mechanical leverage to add convenience to your mower.
$126.49 USD
Empty Image Container
TimeCutter SS Sunshade (Part # 79011)
Keep cool and dry while you mow. The Toro TimeCutter sunshade increases operator comfort by shielding you from the elements. Assembles easily and offers a clean line of sight across your entire mowing area. Genuine Toro Parts and accessories are designed specifically for your machine and built to exacting standards with tight tolerances. Other parts simply don't stack up to the quality, performance, and value of Genuine Toro Parts.
$321.99 USD
Cargo Carrier, Zero-Turn-Radius Riding Mower (Part # 79040)
Genuine OEM Part 79339
Assist Bar and Step Kit for TimeCutter SS and MX (Part # 79339)
Toro's Step and Assist Bar Kit will help you to step in and out of your TimeCutter with ease. The telescoping bar adjusts to your height and will assist you when entering and exiting the machine. The non-slip step gives offers additional support.
$184.99 USD
TimeCutterTwin Bagger
TimeCutter SS & SW 50 in. / 54 in. Twin Bagger (Part # 79392)
The Toro TimeCutter Twin Bagger with its 6.43 bushel (8 cu. ft.) capacity makes quick work of taking care of grass clippings or fallen leaves. When paired with one of Toro's top discharge decks, its performance can't be beat. It assembles easily and once initially installed, can be removed and put back on without tools. Includes bagger, mount kit and front weights.
$999.00 USD

Model #

74741

Serial #

400000000 - 999999999

Product Name

TimeCutter SS 5425 Riding Mower

Product Brand

Toro

Product Type

Riding Products

Product Series

Zero Radius Turn, Consumer

Chassis Type

Rear Engine Rider

Swath

54 inch

Discharge

Side

Engine/Motor Manufacturer

Toro

Engine/Motor Size

24.5 hp

Engine/Motor Type

4 Cycle

Engine Starter

Electric

Transmission Type

Hydrostatic

Traction Type

Rear WD

Engine: Battery

12V 195CCA

Engine: Spark Plug Gap

.030"/ .76mm

Chassis: Tire Pressure

13 psi / 90 kPa

Chassis: Height of Cut Range

1.5-4.5"; 1/2" increments

Engine: Engine Speed

3300±100 RPM

Drive System: Ground Speed

Fwd. 0 - 7.0 Rev. 0 - 3.5 mph

Engine: Ignition Coil Air Gap

0.011in (0.3mm)

Engine: Spark Plug

Champion RN9YC / NGK BPR6ES

Engine: Engine Oil Type

2.5 qts (80 oz. or 2.4L) 10W-30 with filter change

Drive System: Gearbox Lubricant

56 oz. 20W50 Engine Oil
