18in 11-Blade EdgeSeries Cutting Unit, Greensmaster Flex/eFlex 1820 Traction Unit
Product Information
- Model #: 04289
- Serial #: 400000000 - 403460000
- Product Type: Walk Behind Mowers
Loading...

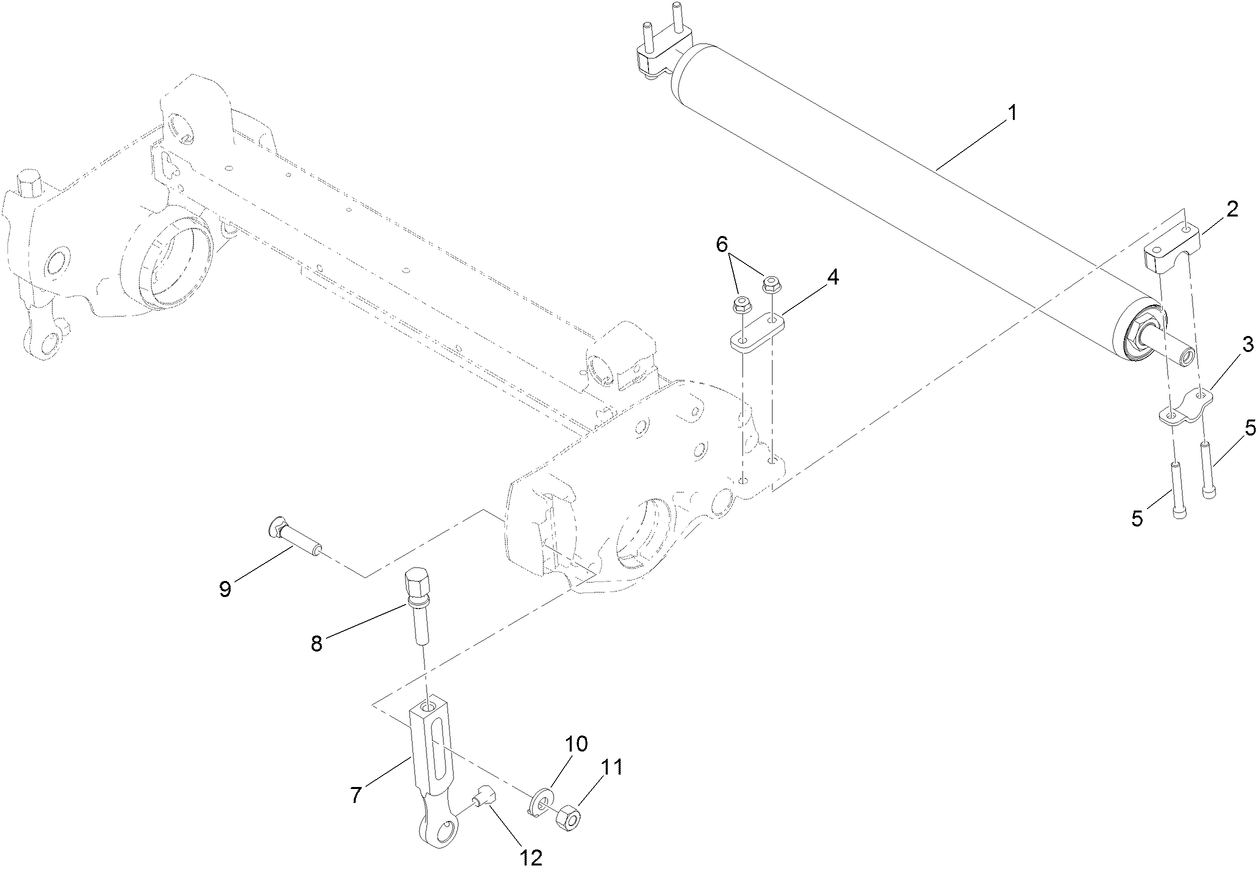

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Parts Catalog
FLEX GROOMER DRIVE, FORWARD ROTATING (Part # 04259)
FLEX GROOMER DRIVE, COUNTER ROTATING (Part # 04260)
18in Carbide Grooming Reel, Groomer for Greensmaster Flex 18/1800 Mowe (Part # 04263)
GROOMING BRUSH-18" (Part # 04264)
Out-Front Brush Kit, Greensmaster 800/1000/Flex 18/21/Flex 1800/2100/e (Part # 04266)
Turf Evaluator (Part # 04399)
Mirror device used to assess turf conditions
Roller Seal Rebuild Kit (Part # 107-1594)
Toro OEM Roller Seal Rebuild Kit.
BEDBAR-AGGRESSIVE 18" [BLACK] (Part # 110-2281-03)
BEDBAR (Part # 110-2282-01)
18.25 Inch Micro Cut Standard Bedknife (Part # 110-2300)
Toro 18.25 Inch OEM Micro Cut Standard Bedknife. You can count on the quality and reliability of this replacement Micro Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
18.25 Inch Low Cut Standard Bedknife (Part # 110-2301)
Toro 18.25 Inch OEM Low Cut Standard Bedknife. You can count on the quality and reliability of this replacement Low Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
2.375 Inch 5-Point Helix Groomer Blade (Part # 110-2333)
Toro 2.375 Inch OEM 5-Point Helix Groomer Blade. Genuine Toro blades are designed with quality materials. Outfit your machine with the proper Toro blade and get the beautifully clean, healthy cut your turf deserves. This Toro 2.375 Inch OEM 5-Point Helix Groomer Blade has multiple applications. Be sure to verify model and serial number to ensure the correct Blade.
1.00 Inch Auxiliary Roller Extension Kit (Part # 115-7361)
Contains 115-7362 @ 2, 108-4339 @ 2, 115-7369 @ 2, 115-7370 @ 2, 115-7371 @ 2
18.25 Inch Micro Cut EdgeMax™ Bedknife (Part # 117-1530)
Toro 18.25 Inch OEM Micro Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Micro Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
18.25 Inch Tournament Cut EdgeMax™ Bedknife (Part # 117-1532)
Toro 18.25 Inch OEM Tournament Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Tournament Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
High HOC Kit (Part # 120-9600)
Contains 120-9601 @ 2, 119-4067 @ 2, 3274-54 @ 4, 119-4165 @ 6, 119-4040 @ 4
Rear Roller Adjustment Kit (Part # 120-9602)
Eccentric bolt used to precisely level rear roller
18.00 Inch Rear Roller Assembly (Part # 120-9605)
Toro 18.00 Inch OEM Rear Roller Assembly. This roller has a 2.00 inch diameter. This Assembly comes with the full roller, bearings, lock nuts, roller shaft, seals & V-rings. This roller is smooth, unlike the Wiehle roller that has groves built in. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
18.00 Inch Narrow Wiehle Roller Assembly (Part # 120-9607)
Toro 18.00 Inch OEM Narrow Wiehle Roller Assembly. This roller has a 2.50 inch diameter. This assembly comes with a wiehle narrow roller, roller shaft, ball bearings, bearings lock nuts, seal, V-rings, roller rebuild kit & grease. A Wiehle roller has groves built into the roller as a standard Wiehle roller is smooth. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
18.00 Inch Wide Wiehle Roller Assembly (Part # 120-9609)
Toro 18.00 Inch OEM Wide Wiehle Roller Assembly. This roller has a 2.50 inch diameter. This Assembly comes with Wiehle rollers, roller shaft, ball bearings, seals, lock nuts & V-rings. A Wiehle roller has groves built into the roller. A wide Wiehle roller has a larger gap between each of the groves when a standard Wiehle roller, where a standard roller is smooth. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
18.00 Inch Full Roller Assembly (Part # 120-9611)
Toro 18.00 Inch OEM Full Roller Assembly. This roller has a 2.50 inch diameter. This assembly comes with ball bearings, roller tube, lock nuts, roller shaft, seals, V-rings, roller rebuild kit & grease. This roller is smooth, unlike the Wiehle roller that has groves built in. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
Narrow Wiehle Roller Scraper Kit (Part # 120-9615)
Wide Wiehle Roller Scraper Comb (Part # 120-9616)
Scraper combs condition the surface of turf before cutting, while clearing rollers of dirt, grass and debris buildup
Full Roller Scraper (Part # 120-9617)
Full roller scrapers clear rollers of dirt, grass and debris buildup that may impact height of cut
Narrow Wiehle Roller Brush Kit (Part # 120-9621)
18.00 Inch Wide Wiehle Roller Scraper Brush Kit (Part # 120-9622)
Contains 110-2368 @ 1, 115-7364 @ 2, 115-7372 @ 2, 115-7373 @ 2
Full Roller Scraper Brush Kit (Part # 120-9623)
Contains 110-2371 @ 1, 115-7364 @ 2, 115-7372 @ 2, 115-7373 @ 2
Front Comb Kit for Narrow Wiehle Roller, 18in DPA Greensmaster Cutting (Part # 120-9624)
Front Comb Kit for Wide Wiehle Roller, 18in DPA Greensmaster Cutting R (Part # 120-9625)
Front Comb Kit for Full Roller, 18in DPA Greensmaster Cutting Reel (Part # 120-9626)
Scraper Kit with Rear Roller (Part # 120-9627)
Dpa Rebuild Kit (Part # 121-2637)
Contains 106-5363 @ 2, 106-5344 @ 4, 119-4164 @ 2, 32120-93 @ 2, 137-6130 @ 2, 119-4155 @ 2, 119-4156 @ 2, 119-4039 @ 2, 99-2097 @ 2, 119-4067 @ 2
21.00 Inch Full Extended Roller Assembly (Part # 121-4680)
Toro 21.00 Inch OEM Full Extended Roller Assembly. This roller has a 2.00 inch diameter. This Assembly comes with a full extended rollers, ball bearings, lock nuts, extended roller shafts, seals & V-rings. This roller is smooth, unlike the Wiehle roller that has groves built in. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
21.00 Inch Extended Narrow Wiehle Roller Assembly (Part # 121-4681)
Toro 21.00 Inch OEM Extended Narrow Wiehle Roller Assembly. This roller has a 2.50 inch diameter. This Assembly comes with the roller, ball bearings, lock nuts, roller shaft, seals & V-rings. A Wiehle roller has groves built into the roller as a standard Wiehle roller is smooth. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
18.00 Inch Steel Rear Roller Assembly (Part # 121-4682)
Toro 18.00 Inch OEM Steel Rear Roller Assembly. This roller has a 2.00 inch diameter. This assembly comes with a full roller, ball bearings, roller tube, lock nuts, roller shaft, seals & V-rings. This roller is smooth, unlike the Wiehle roller that has groves built in. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
Kit-MVP, Groomer Re-Build (Part # 121-9517)
Contains 107-8105 @ 3, 106-8530 @ 3, 120-3237 @ 1, 360-0398 @ 1, 251-259 @ 2, 104-4727 @ 1, 120-2763 @ 1
2.375 Inch 5-Point Thin Carbide Groomer Blade (Part # 121-9531)
Toro 2.375 Inch OEM 5-Point Thin Carbide Groomer Blade. Genuine Toro blades are designed with quality materials. Outfit your machine with the proper Toro blade and get the beautifully clean, healthy cut your turf deserves. This Toro 2.375 Inch OEM 5-Point Thin Carbide Groomer Blade has multiple applications. Be sure to verify model and serial number to ensure the correct Blade.
Paper Reel (Part # 125-5610)
Toro OEM Paper-Reel, Toro (10 Pack).
Reel Shim (Part # 125-5611)
Soft Grooming Brush (Part # 127-1545)
Spiral rotating brush used to condition grass before cutting
Stiff Grooming Brush (Part # 127-1546)
Spiral rotating brush used to condition grass before cutting
Groomer Quick Up Kit, Greensmaster Flex 21, Flex 18, Flex 2100 and Fle (Part # 127-6119)

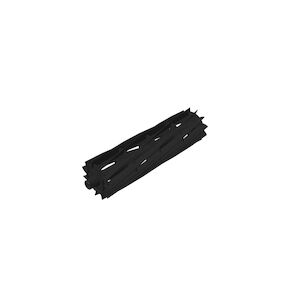

11 Blade EdgeSeries (ES) Reel 18 Inch (Part # 132-7357)
Toro 11 Blade 18 Inch OEM EdgeSeries (ES) Reel. The EdgeSeries (ES) Reel is an upgraded version of the Standard Reel with stronger steel, longer lasting & more durable. You can count on the quality and reliability of this replacement EdgeSeries (ES) Reel. Be sure to verify the make and serial number to ensure correct part.
REEL-LOW DRAG (18), 14 BLD (Part # 132-7358)
Height of Cut Kit (Part # 94-9010)
Height of cut range 0.285”– 1.00” (7.2 – 25.4 mm), set of one
18.25 Inch Tournament Cut Standard Bedknife (Part # 98-7260)
Toro 18.25 Inch OEM Tournament Cut Standard Bedknife. You can count on the quality and reliability of this replacement Tournament Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
18.25 Inch Micro Cut Standard Bedknife (Part # 98-7261)
Toro 18.25 Inch OEM Micro Cut Standard Bedknife. You can count on the quality and reliability of this replacement Micro Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
-
Model #
04289 -
Serial #
400000000 - 403460000 -
Product Name
18in 11-Blade EdgeSeries Cutting Unit, Greensmaster Flex/eFlex 1820 Traction Unit -
Product Brand
Toro -
Product Type
Walk Behind Mowers
