TimeMaster 30in Lawn Mower (Home Depot Rental)

TimeMaster 30in Lawn Mower (Home Depot Rental)

TimeMaster 30in Lawn Mower (Home Depot Rental)

Product Information

  • Model #: 21199HD
  • Serial #: 404314000 - 405999999
  • Product Type: Walk Behind Mowers

Search for a part within assembly drawings:

Showing Results

Drawing Title Part Number Description
Title



Bag Assembly
Bag Assembly

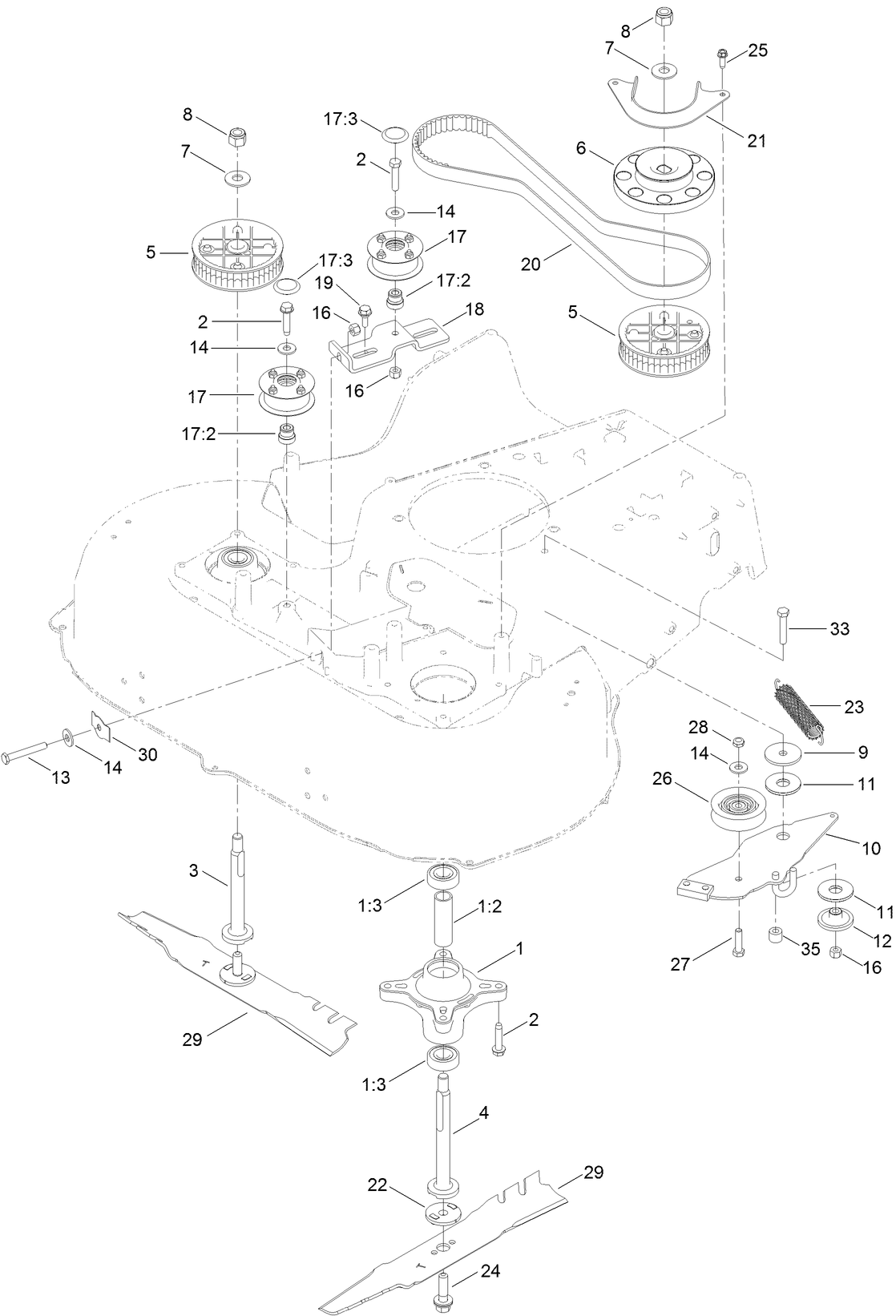

Belt, Spindle and Blade Assembly
Belt, Spindle and Blade Assembly

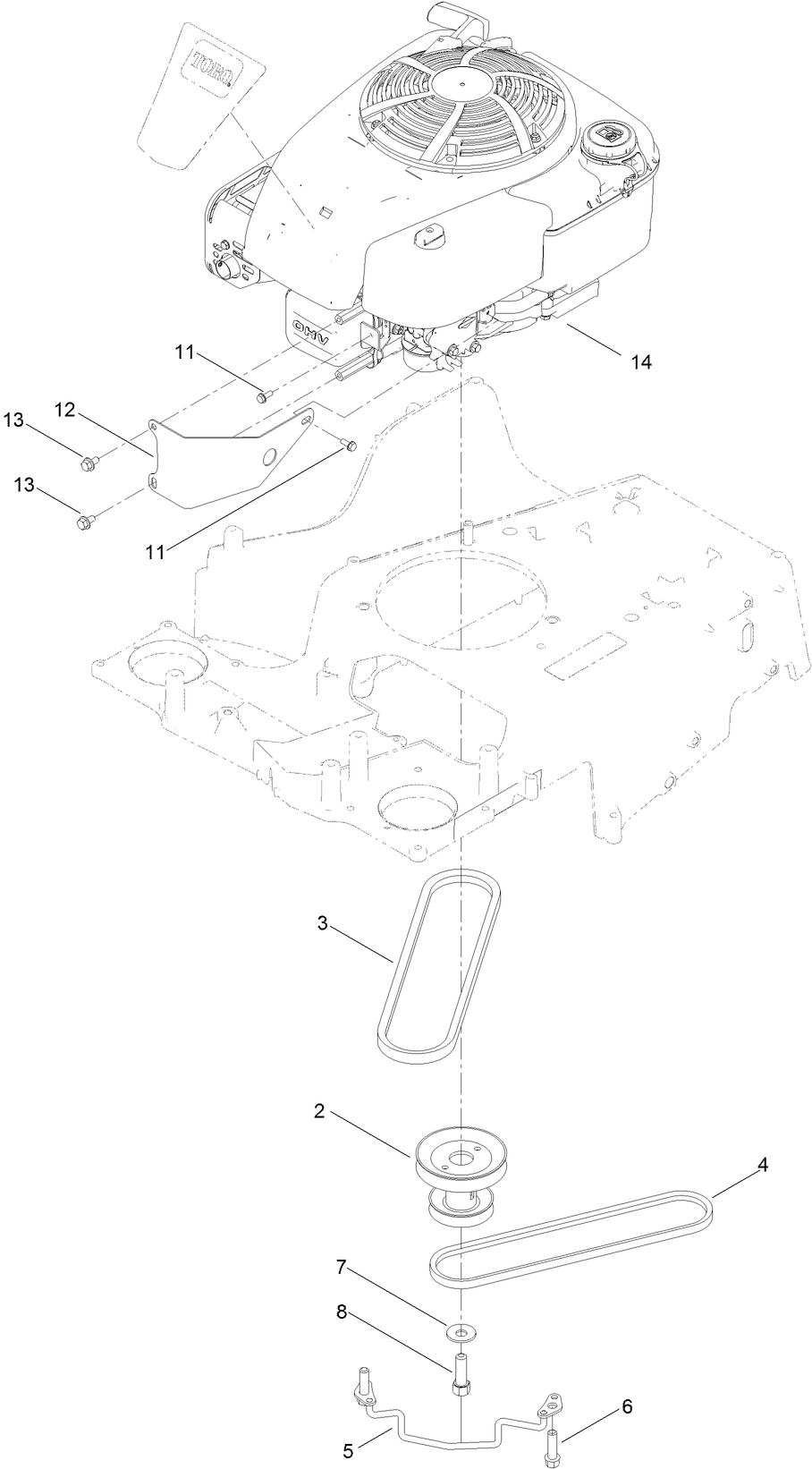

Engine and Belt Assembly
Engine and Belt Assembly

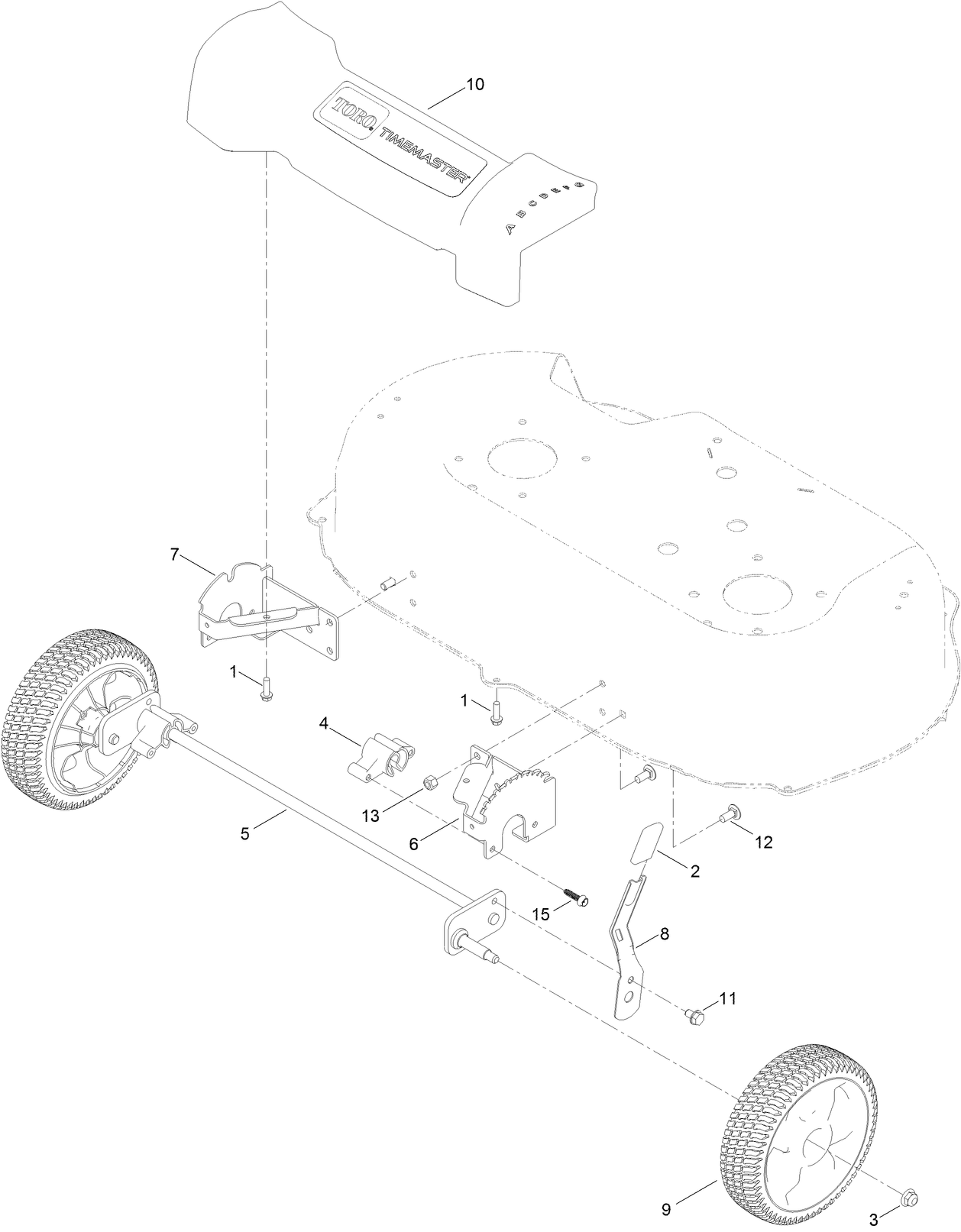

Front Wheel and Height-of-Cut Assembly
Front Wheel and Height-of-Cut Assembly

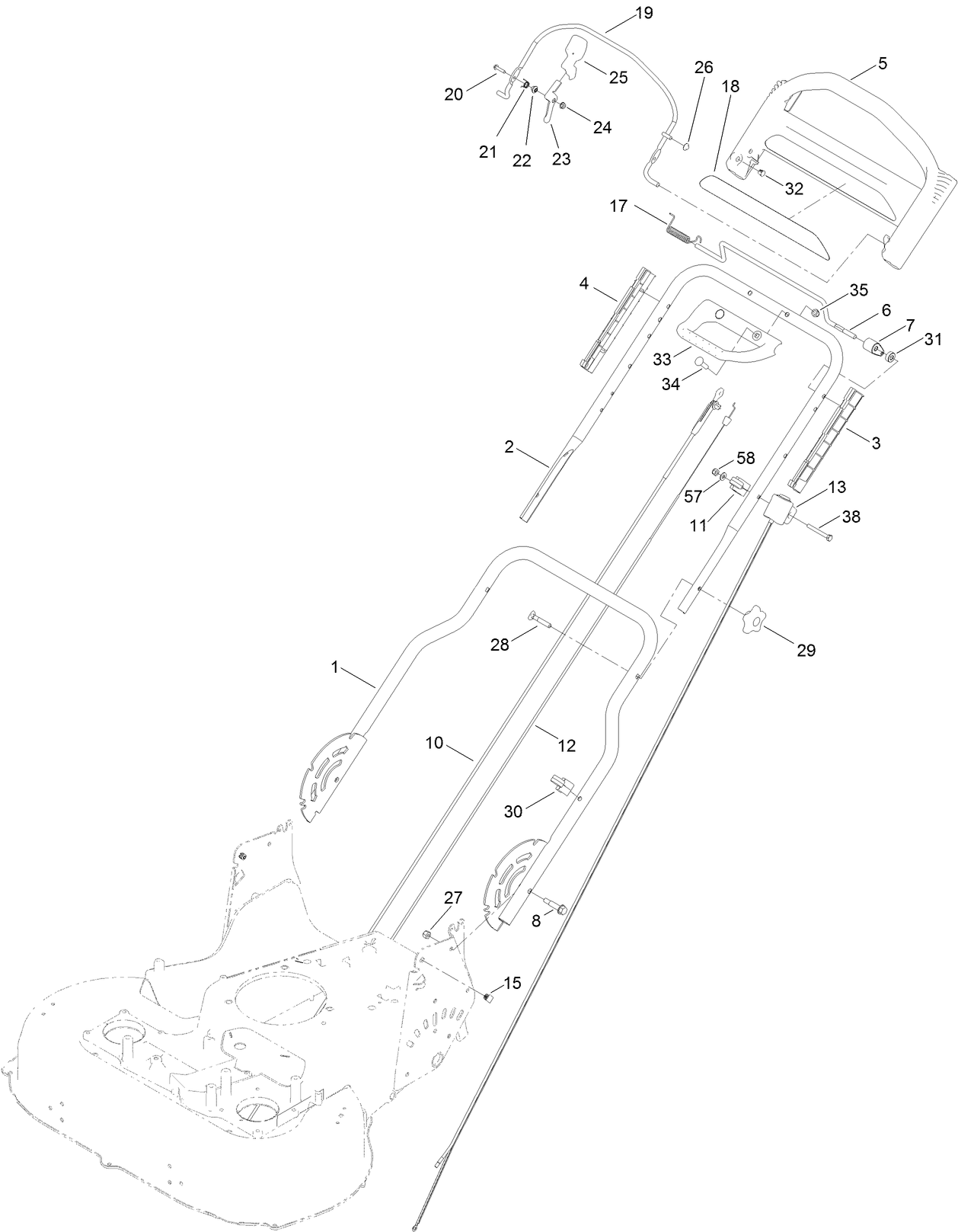

Handle Assembly
Handle Assembly

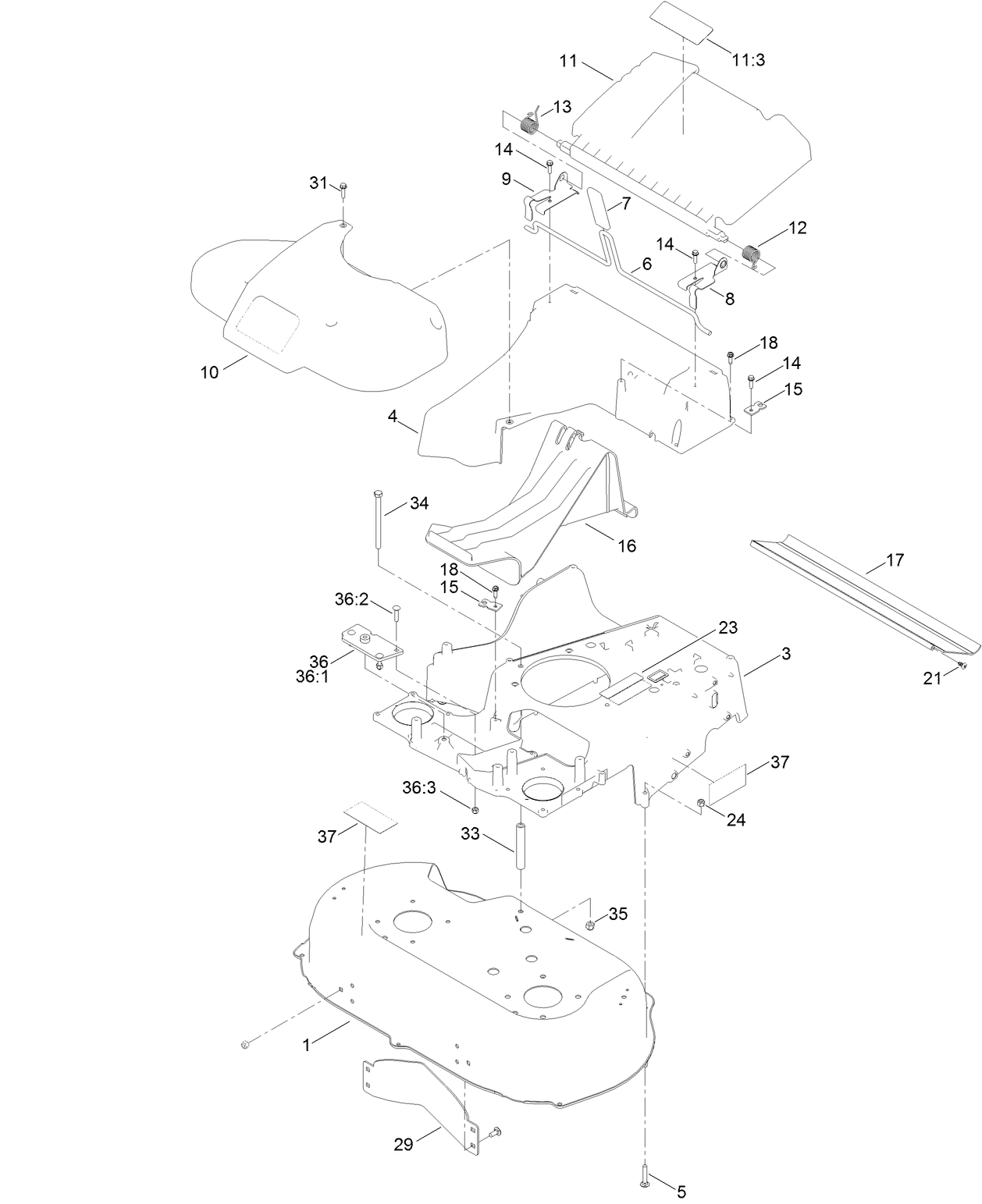

Housing Assembly
Housing Assembly
Side Discharge Chute Assembly
Side Discharge Chute Assembly

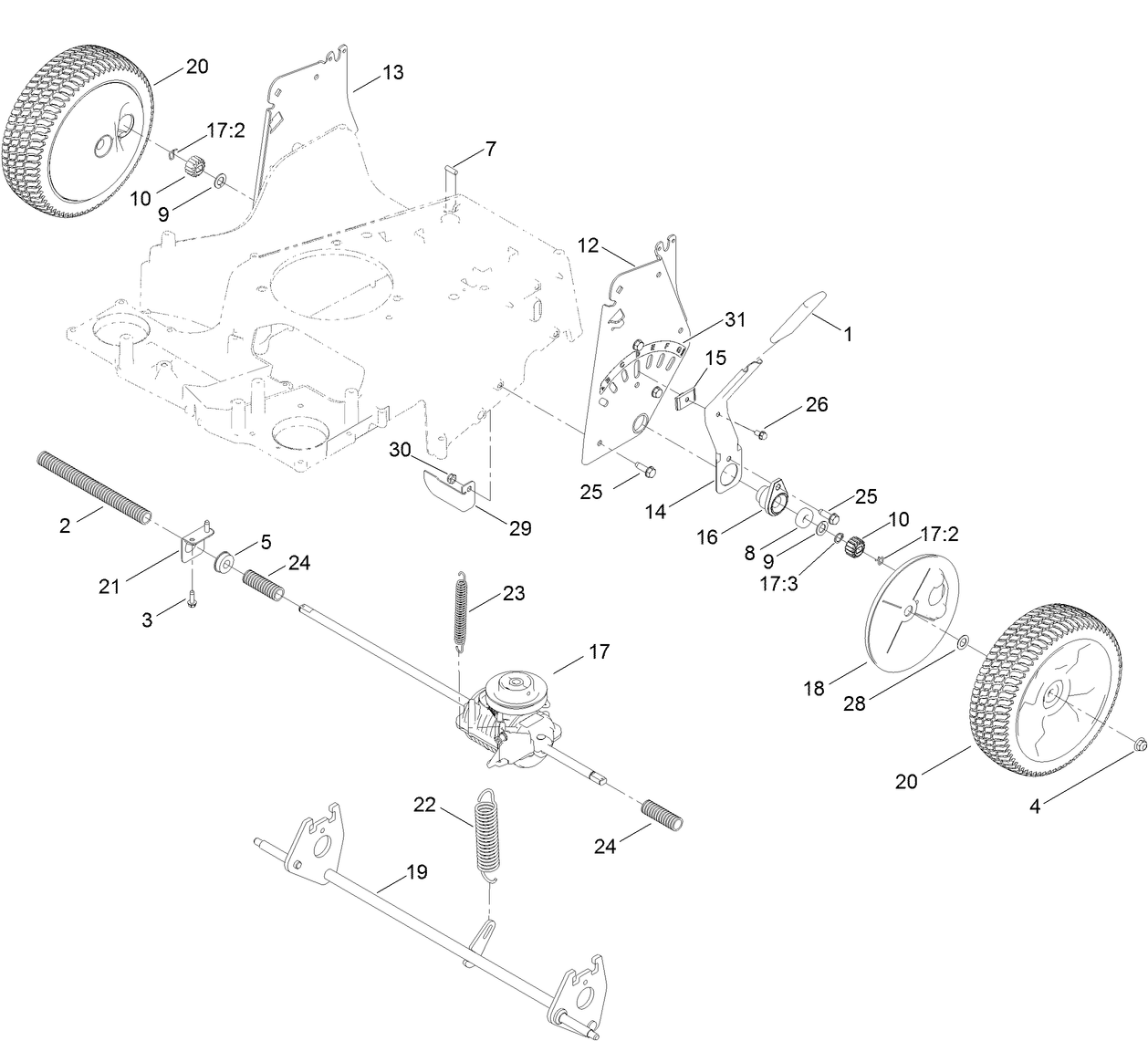

Transmission, Rear Wheel and Height-of-Cut Assembly
Transmission, Rear Wheel and Height-of-Cut Assembly
Download Parts Catalog
Operator's Manual
Parts Catalog
Product Warranty
Reference Guide
Quick Start Guide
Premium Fuel Treatment (0.5 oz.)
Premium Fuel Treatment (0.5 oz.) (Part # 130-2393)
This genuine Toro OEM Premium Fuel Treatment is formulated to protect 2-cycle and 4-cycle small engines from the harmful effects of ethanol-blended fuels, which can absorb moisture and degrade over time — leaving gum, varnish, and corrosive deposits in carburetors, fuel lines, and fuel system components. Adding fuel treatment with every fill-up from the first use is one of the simplest preventative maintenance steps available, and is especially important for equipment that will sit unused for extended periods such as seasonal storage. Refer to the product label for the correct dosage.
$1.64 USD
Genuine OEM Part 131-3823
All Season 4-Cycle Fuel for Lawn Mowers and Snow Blowers 32 oz (Part # 131-3823)
This genuine Toro OEM all-season 4-cycle fuel is a premium ethanol-free fuel formulated specifically for outdoor power equipment engines including lawn mowers and snow blowers. Unlike pump gasoline, ethanol-free fuel does not absorb moisture or degrade over time, making it particularly well-suited for seasonal equipment or machines that may sit unused for extended periods. No mixing is required — it pours straight in for clean, reliable starting and operation. Refer to your operator manual to confirm 4-cycle fuel compatibility with your equipment.
$8.79 USD
Genuine OEM Part 131-6572
Premium Fuel Treatment (12 oz.) (Part # 131-6572)
Toro Premium Fuel Treatment helps ensure clean, reliable engine performance and protection. Toro Premium Fuel Treatment is designed to protect small 2-cycle and 4-cycle engines from the effects of ethanol-blended fuels, which can degrade over time and leave harmful deposits in carburetors and fuel systems. Using a fuel stabilizer with every fill-up is particularly important for equipment that sits unused for extended periods, such as mowers stored over winter.
$10.99 USD
Genuine OEM Part 138-6053
Toro Full Synthetic 10W-30 Engine Oil (32 oz.) (Part # 138-6053)
Toro full synthetic 10W-30 engine oil. The easy engine oil choice for any outdoor power equipmentto increase performance and reliability.
$13.19 USD
Genuine OEM Part 20122p-Blade-Pack
15.4 Inch Hi-Lift Replacement Blade Kit (TimeMaster) (Part # 20122P)
This Replacement Blade keeps your lawn mower in peak performance. The blade is designed for a High quality cut and long-lasting durability. The steel blade cuts your lawn finer for easier mulching and bagging. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
$45.14 USD
30 Inch Lawn Striper for Walk Power Mower (WPM)
30 Inch Lawn Striper for Walk Power Mower (WPM) (Part # 20602)
Genuine OEM Part
$315.99 USD
Please contact your local dealer
SAE 30 4-Cycle Lawn Mower Engine Oil 32 oz
SAE 30 4-Cycle Lawn Mower Engine Oil 32 oz (Part # 38903)
Toro SAE 30 4-cycle engine oil passed the strictest requirements in thousands of hours of testing in hundreds of engines before you filled your lawn mower. This oil meets or exceeds performance requirements of all OEM engines (Toro, Briggs & Stratton, KOLHER, Honda, and Tecumseh). The use of Toro SAE 30 4-cycle lawn mower oil minimizes molecular shearing for extended life in hot-air-cooled applications vs multi-grades (i.e., 10W-30).
$9.99 USD
SAE 30 4-Cycle Summer Engine Oil 18 oz.
SAE 30 4-Cycle Summer Engine Oil 18 oz. (Part # 38916)
Toro SAE 30 4-Cycle engine oil isn't your average SAE 30 engine oil. This Genuine Toro Oil passed the strictest requirements in thousands of hours of testing in hundreds of engines. Toro's SAE 30 oil is the perfect choice for your mower's annual oil change.
$8.79 USD
Small Walk-Behind Mesh Bag
Small Walk-Behind Mesh Bag (Part # 490-7318)
Use Toro mesh utility bags for personal storage or picking up trash while you mow. Equipped with on/off straps, the bag hangs conveniently behind your lawn mower. Verify your model and serial number to confirm compatibility before ordering.
Genuine OEM Part 490-7461
Mower Cover for 30 Inch Walk Power Mower (TurfMaster) (Part # 490-7461)
This genuine Toro OEM storage cover is designed for the 30-inch TurfMaster walk-behind mower and is made from durable, weather-resistant polyester that protects against rain, UV exposure, dust, and debris during storage — whether stored outdoors seasonally or kept in a garage between uses. Protecting your mower from the elements from day one is one of the simplest ways to extend its service life and maintain its appearance. A popular at-purchase accessory for new TurfMaster owners. Verify your model and serial number before ordering.
$70.34 USD
Genuine OEM Part 59165
Walk Power Mower Replacement Frame and Bag Kit (Part # 59165)
Toro OEM grass bag provides a clean finished look to your lawn, you just can't beat a grass bag. Clippings are blown into the ventilated bag for easy handling and disposal. Manufactured for easy on and off of your mower's bag frame. This Toro genuine part includes the bad and frame. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
$104.99 USD

Model #

21199HD

Serial #

404314000 - 405999999

Product Name

TimeMaster 30in Lawn Mower (Home Depot Rental)

Product Brand

Toro

Product Type

Walk Behind Mowers

Product Series

30" (76 cm) Steel Deck

Chassis Type

Steel Deck WPM

Swath

30 inch

Discharge

Recycler & Side Discharge with Rear Bag

Engine/Motor Manufacturer

Briggs & Stratton

Engine/Motor Size

GrossTorque 10.0 flb

Engine/Motor Type

4 Cycle

Engine Starter

Recoil

Traction Type

Rear WD

Engine: Ignition Coil Air Gap

.010" / .25mm

Engine: Spark Plug Gap

.030"/ .76mm

Chassis: Height of Cut Range

1.25-4.25", 1/2" increments

Chassis: Tire Pressure

N/A

Engine: Engine Speed

3400±100 RPM

Engine: Engine Oil Type

18 oz. (.53l) 30w or 10w-30 / API SJ or higher

Engine: Spark Plug

Briggs & Stratton 692051/692720 or Champion RC12YC

Drive System: Ground Speed

Up to 4.5 mph / 8.0 km/h
