60" (152 cm) TITAN® MyRIDE® Zero Turn Mower

Product Information

Model #: 75313
Serial #: 412325117 - 999999999
Product Type: Riding Products

Parts

Search for a part within assembly drawings:

Showing Results

Drawing Title	Part Number	Description
Title

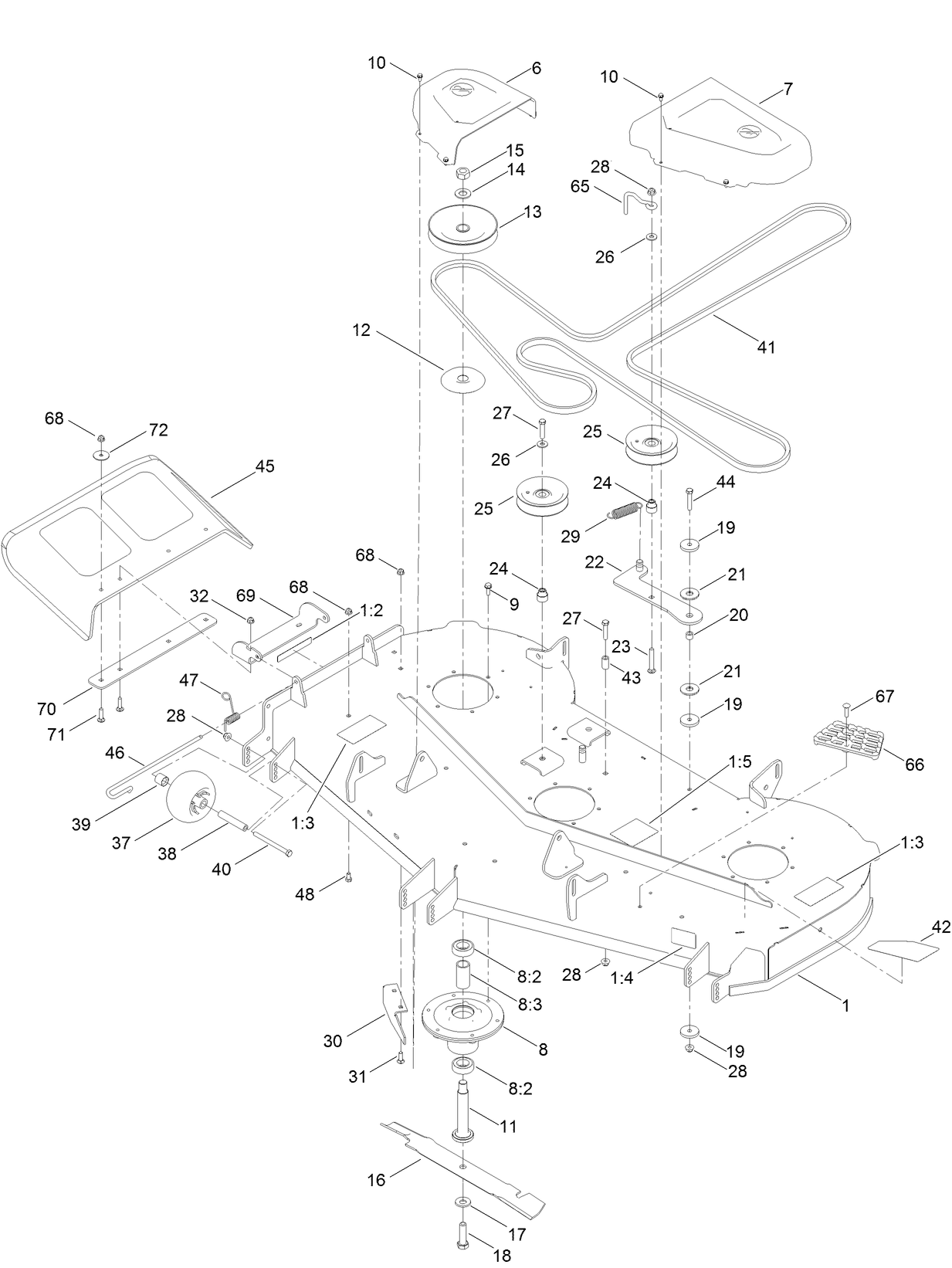

60 Inch Deck Assembly

Air Cleaner Assembly No. 93-2190

Air Intake and Filtration Assembly

Blower Housing Assembly

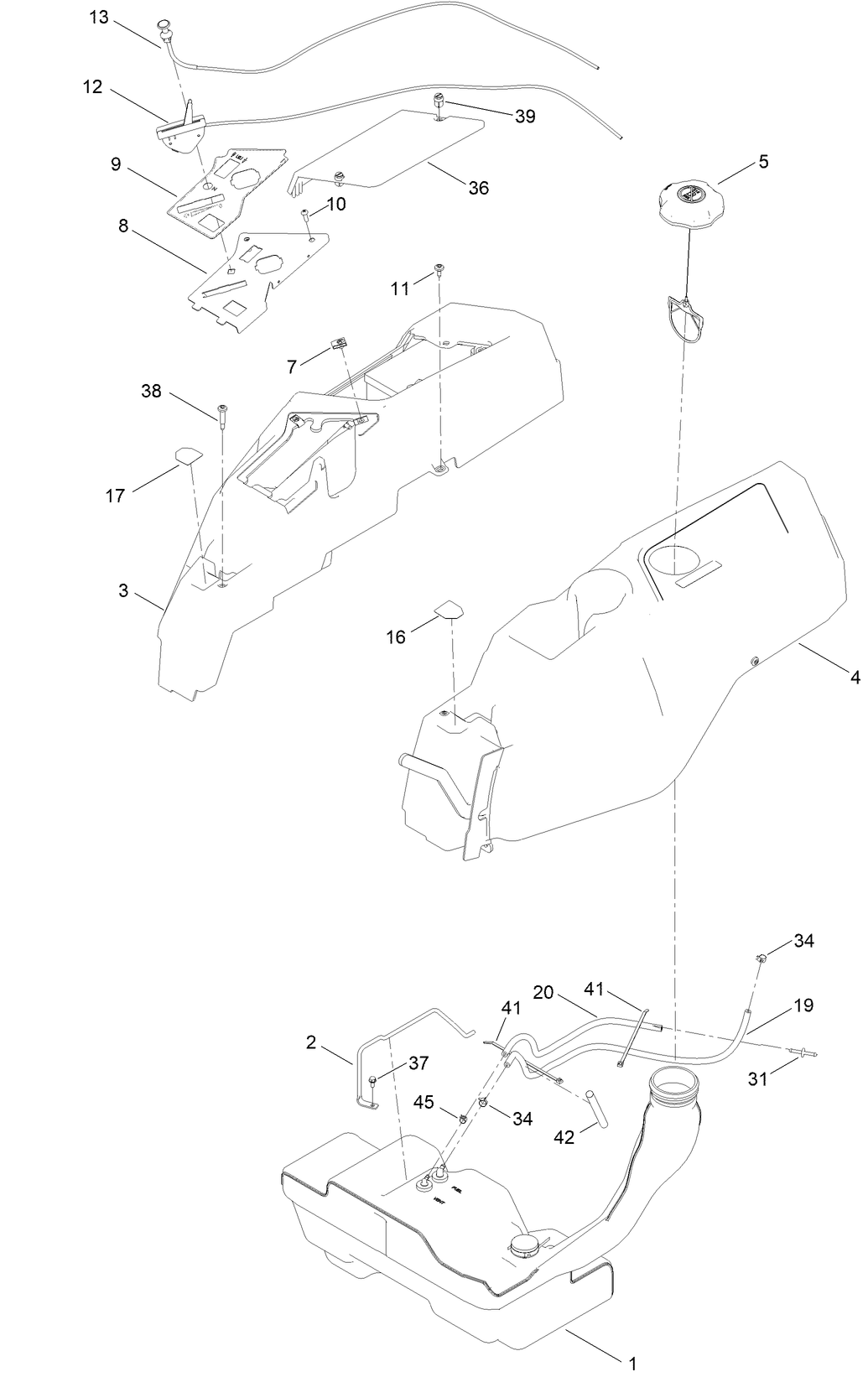

Body Styling and Fuel Pod Assembly

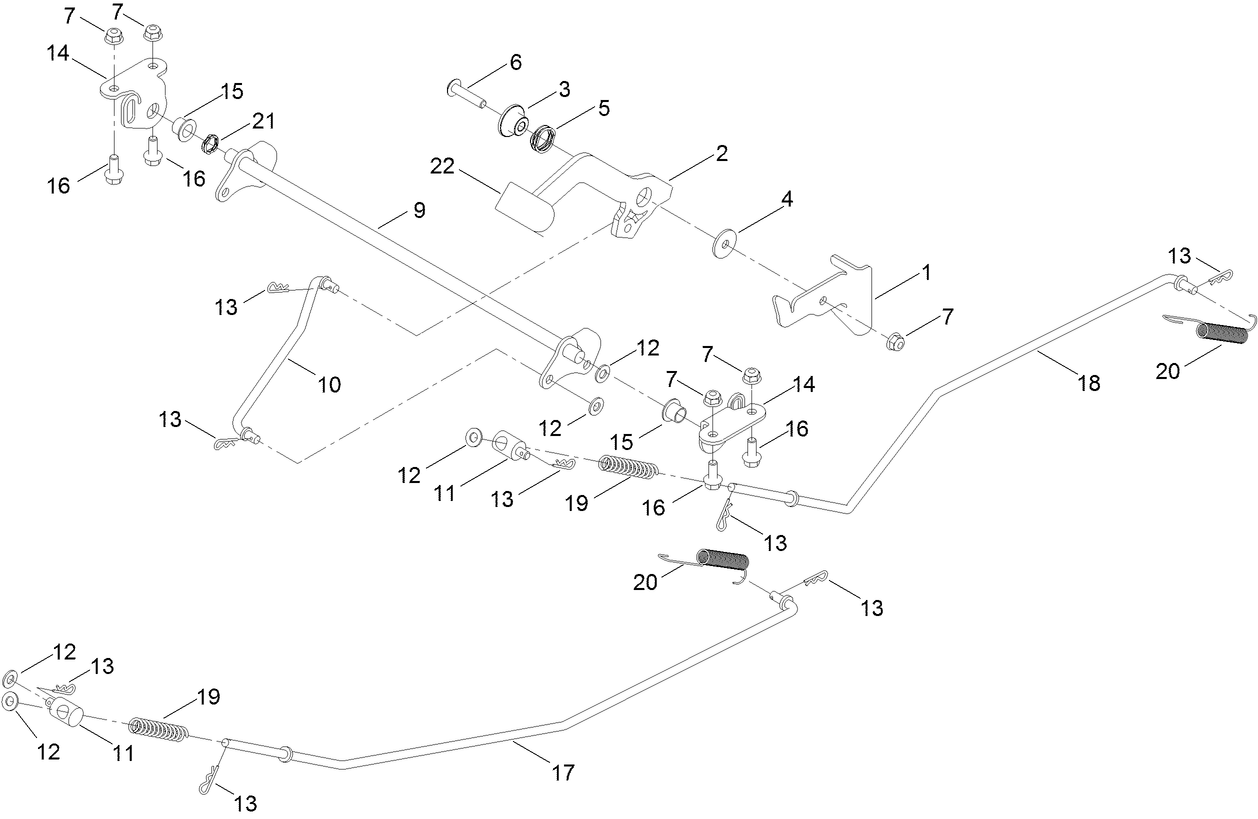

Brake Assembly

Carburetor Assembly

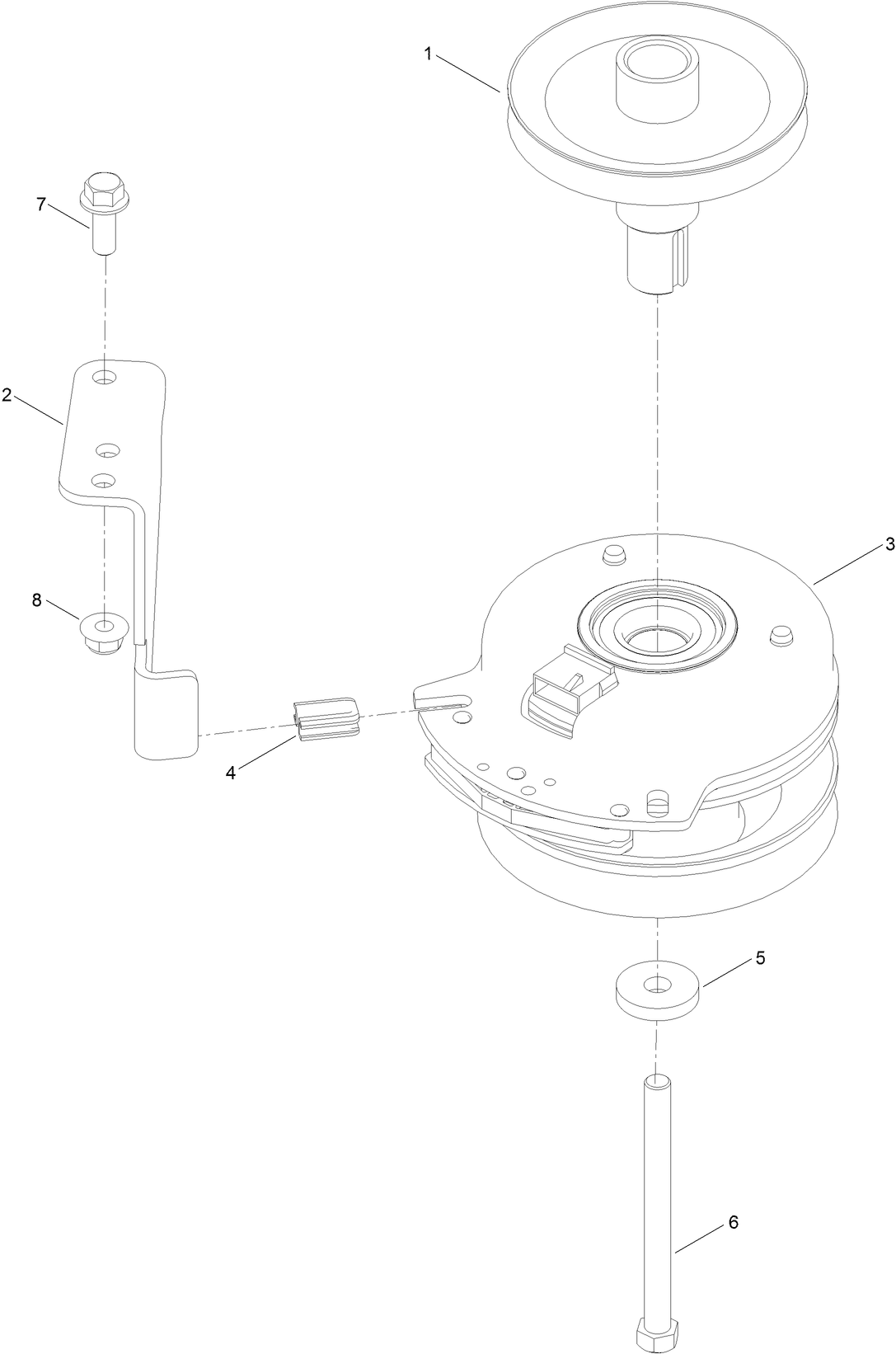

Clutch Assembly

Crankcase and Crankshaft Assembly

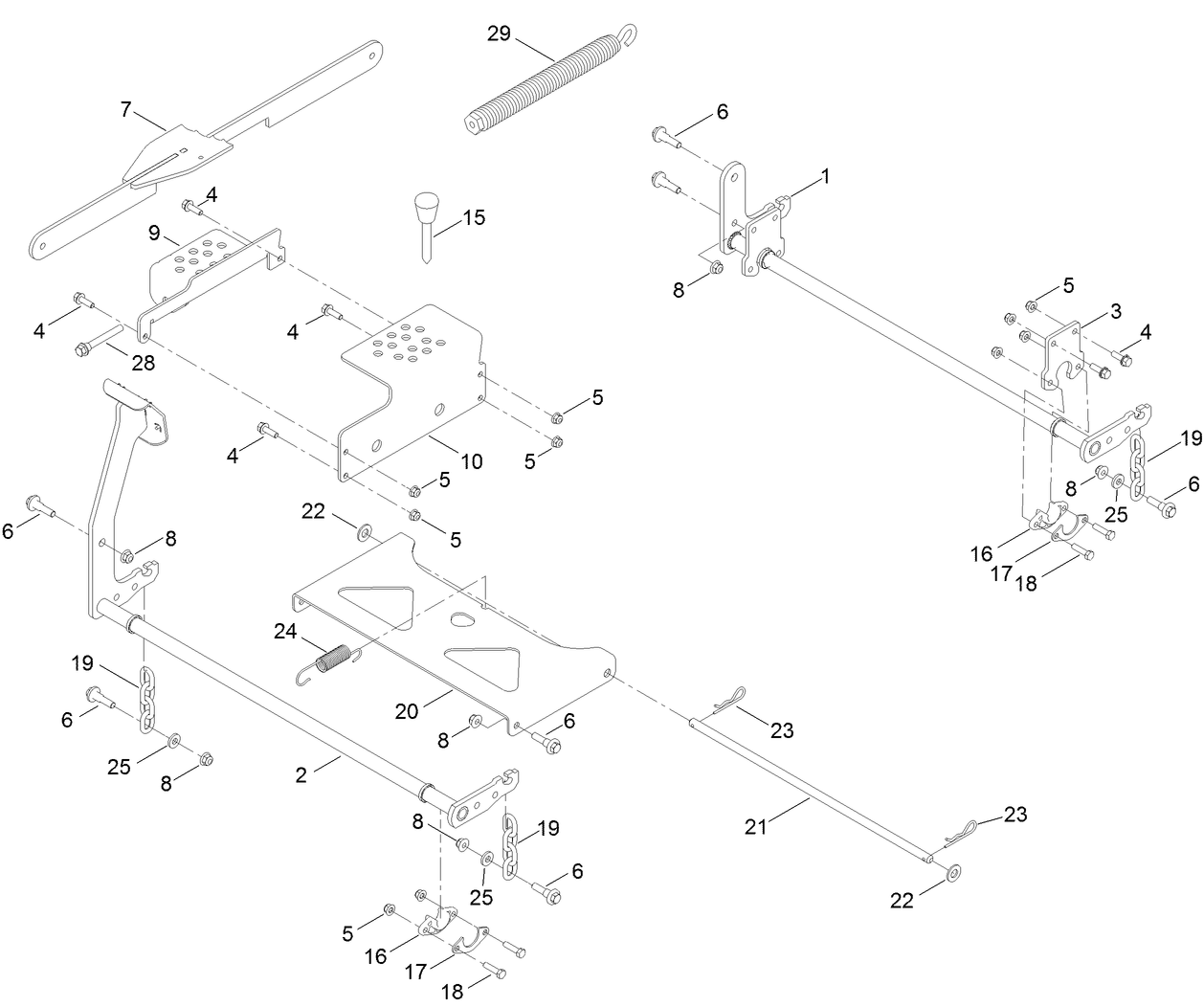

Deck Lift Assembly

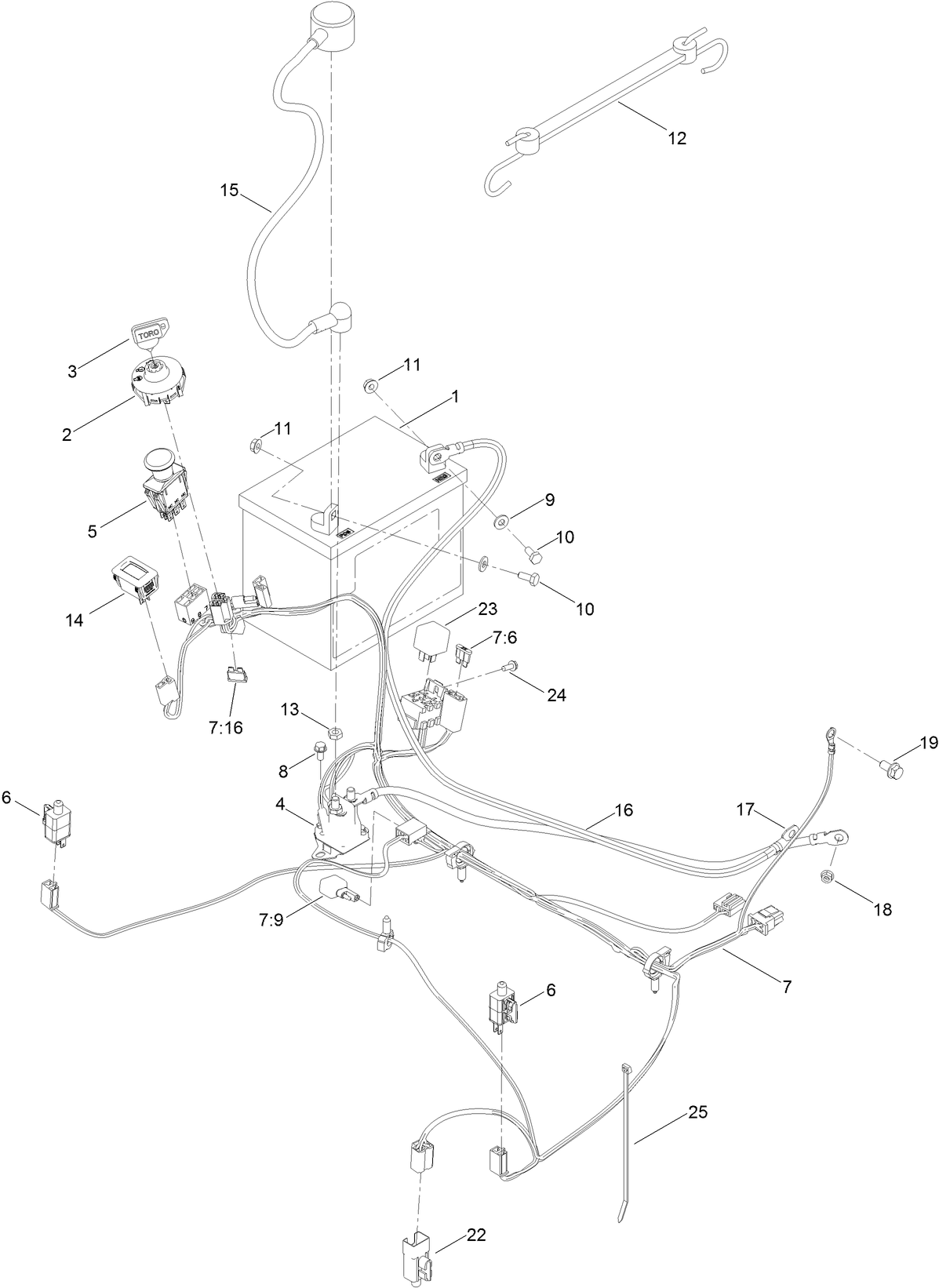

Electrical Assembly

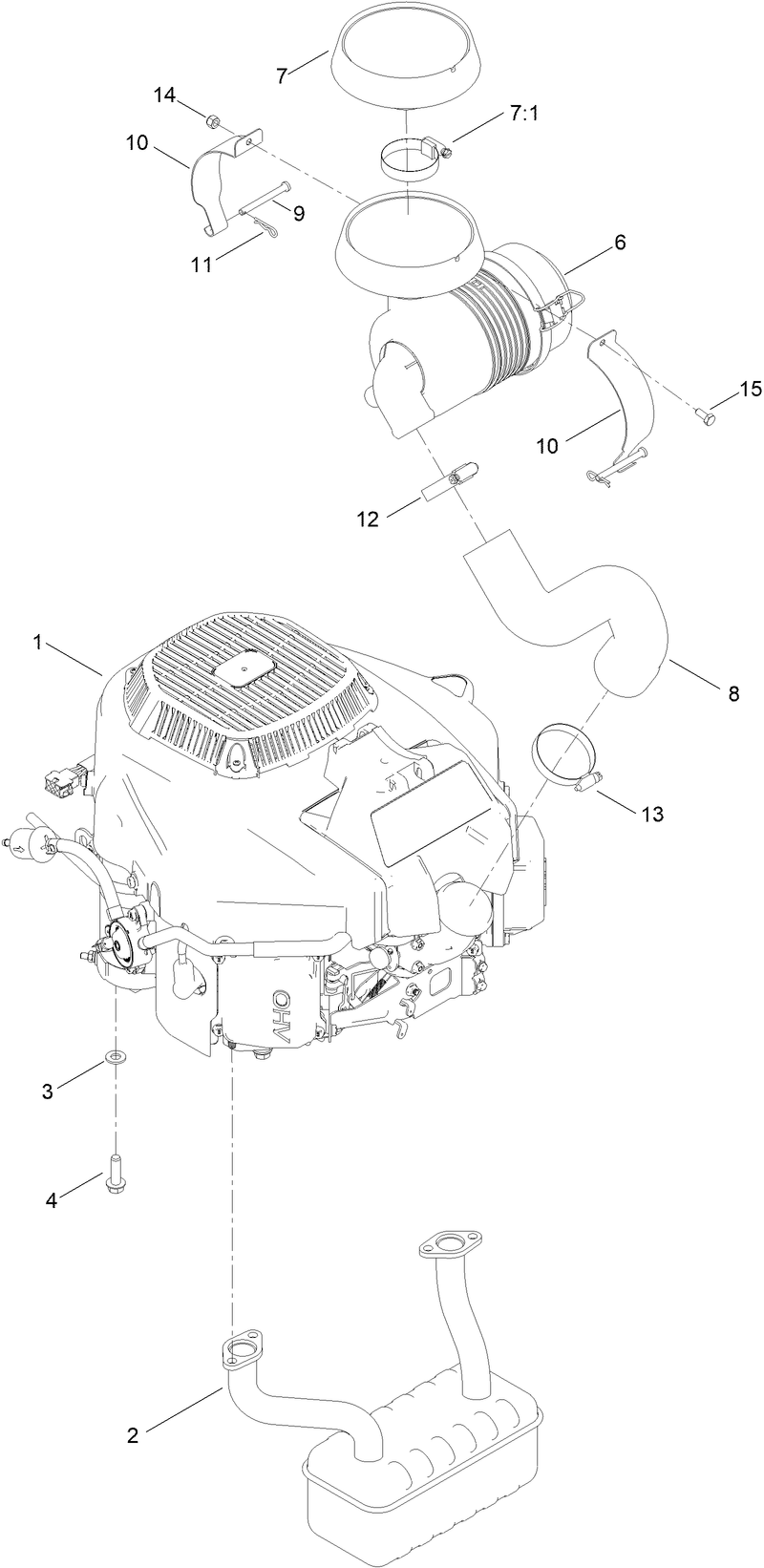

Engine and Muffler Assembly

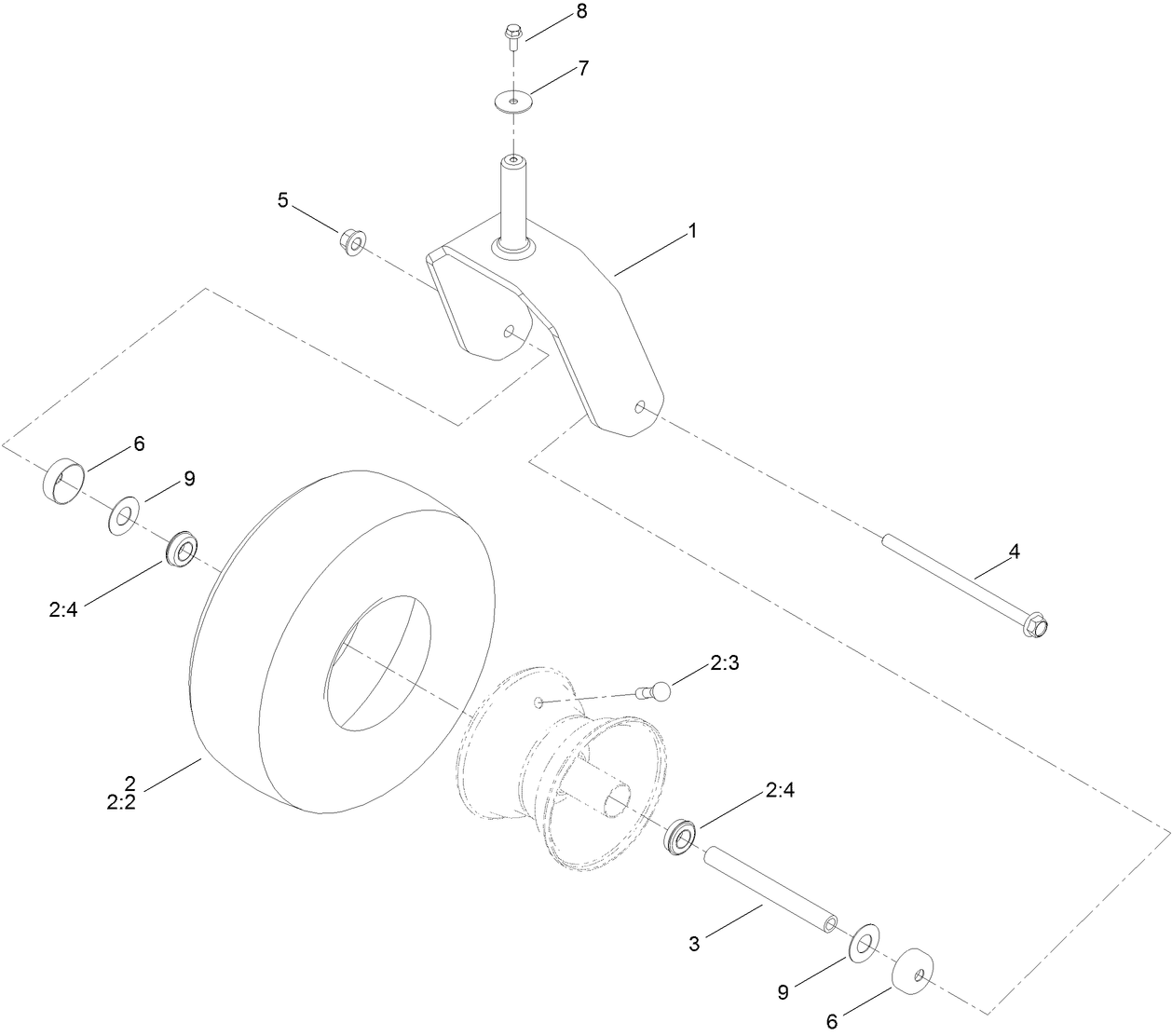

Fork and Caster Wheel Assembly

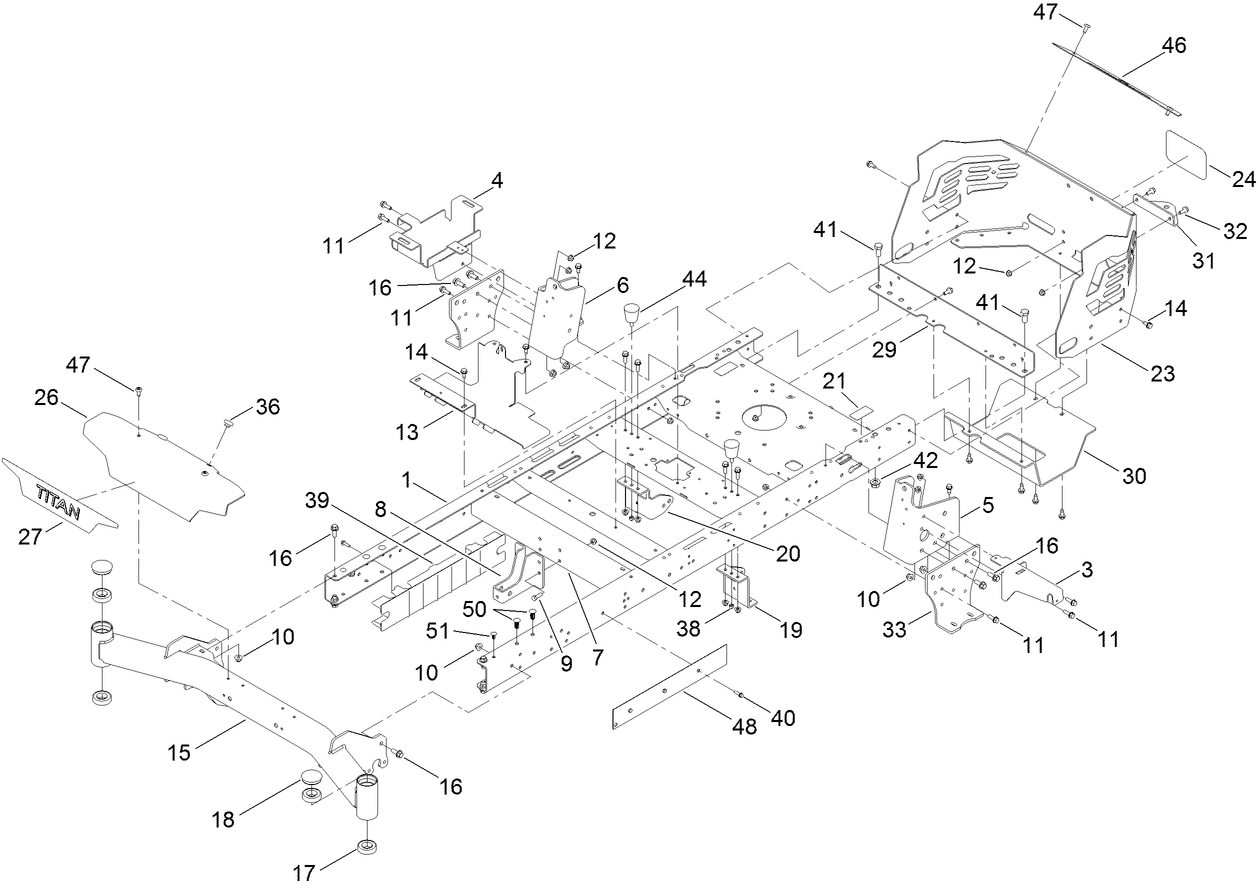

Frame Assembly

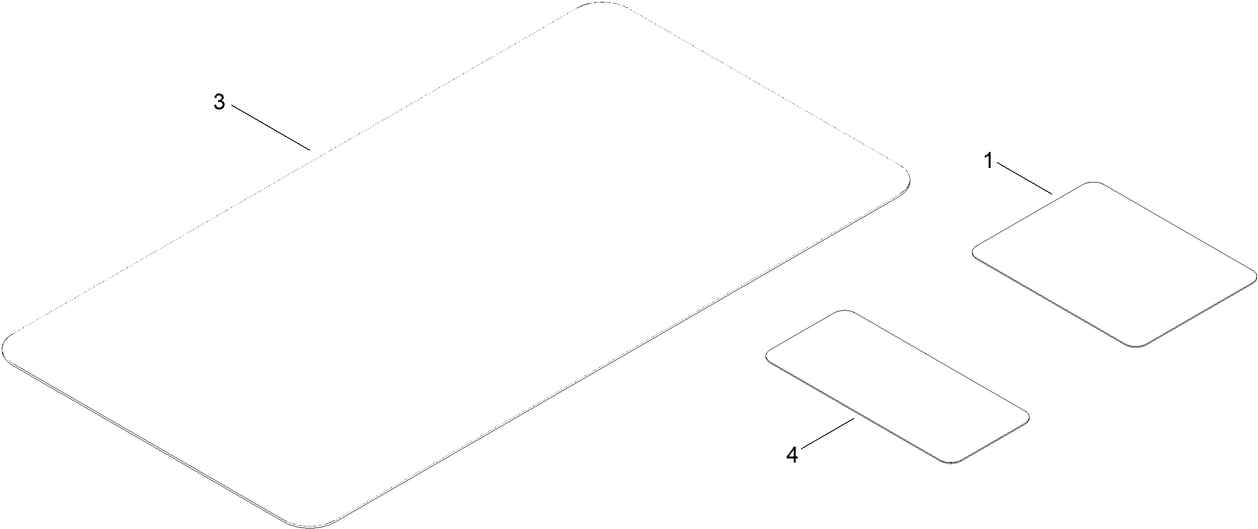

Frame Decal Assembly

Fuel System Assembly

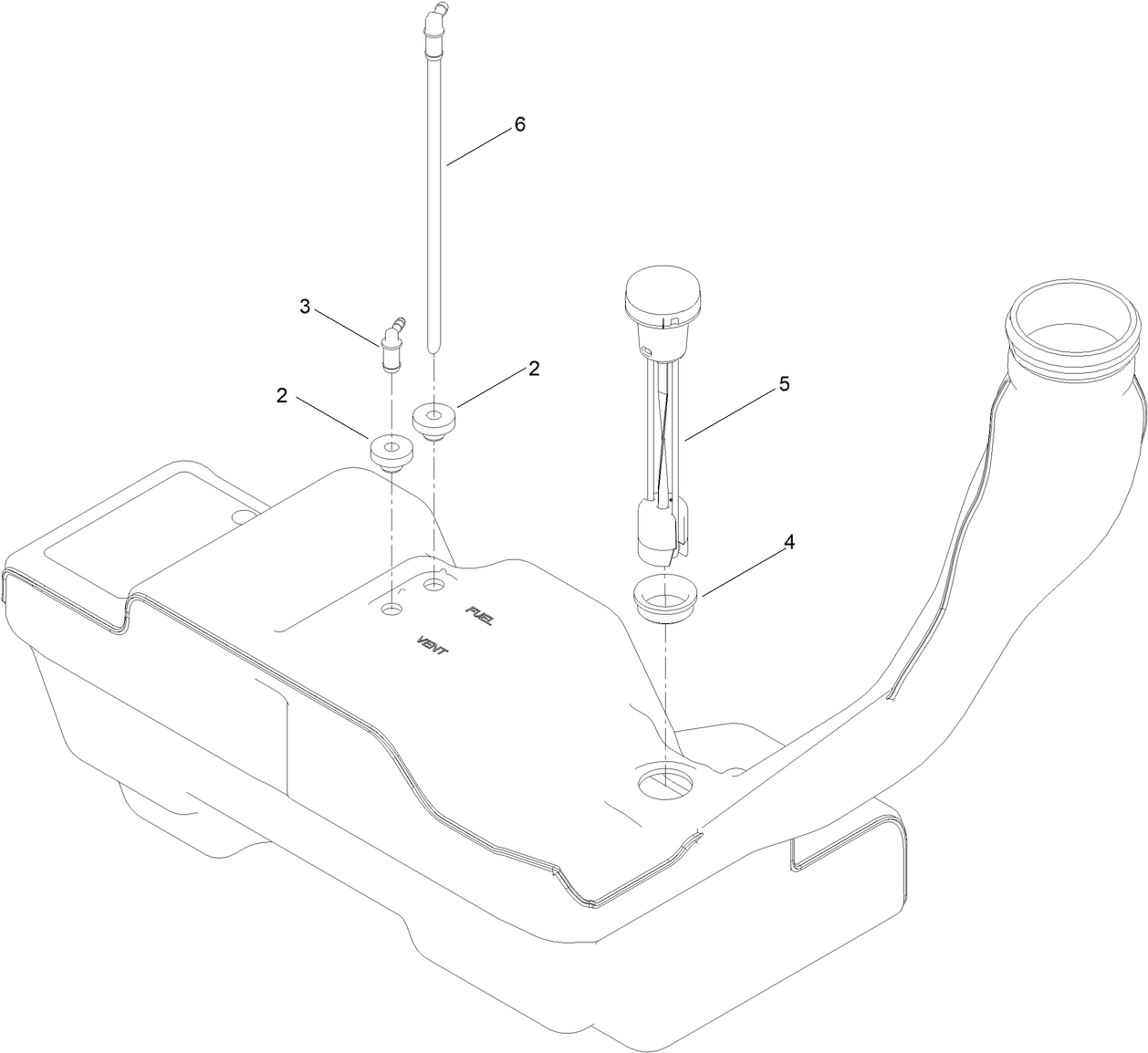

Fuel Tank Assembly No. 144-5303

Gasket and Seal Kit

Governor Control Assembly

Ignition and Cooling Fan Assembly

LH Hydro Transmission Assembly No. 147-2860

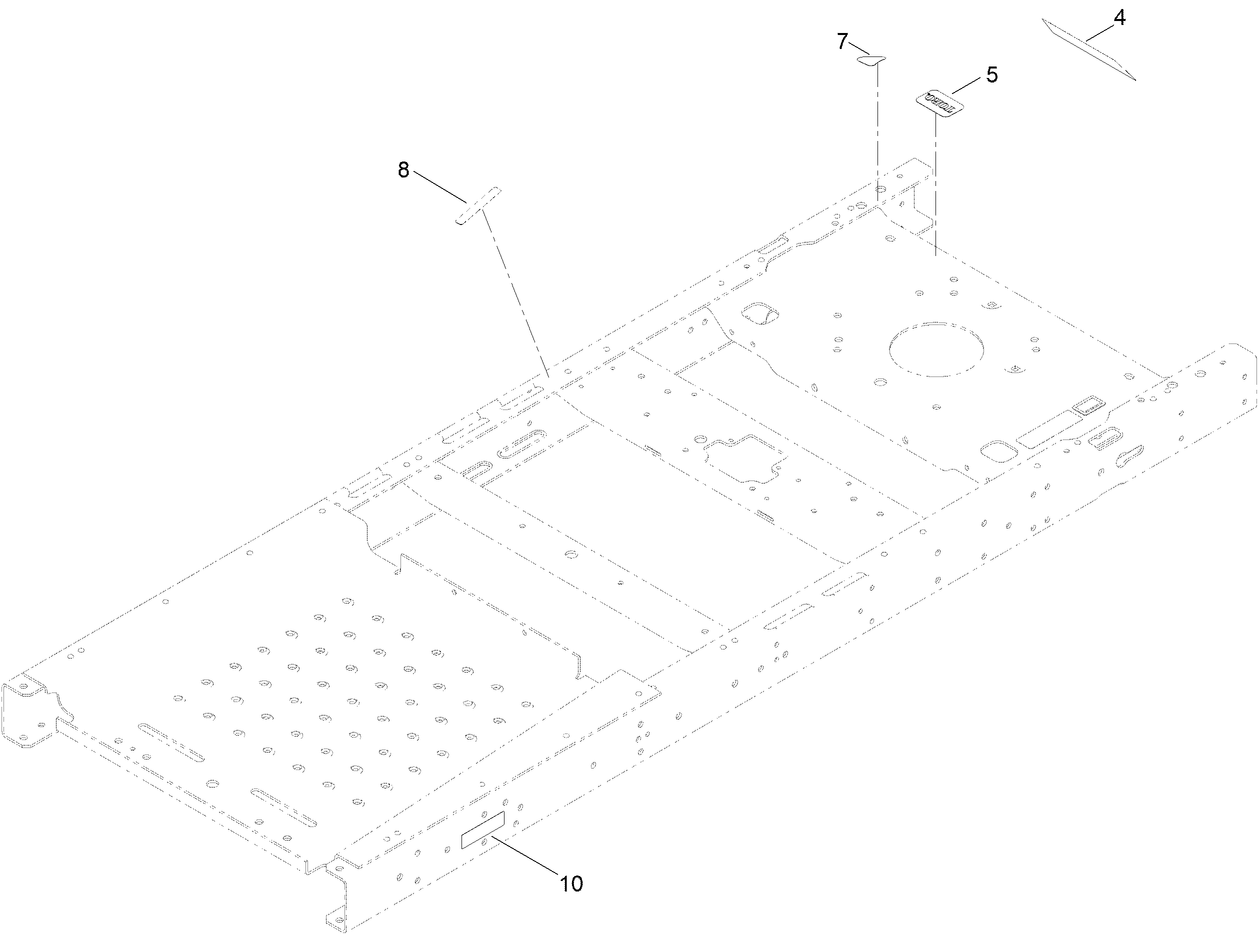

Model Specific Decal Assembly

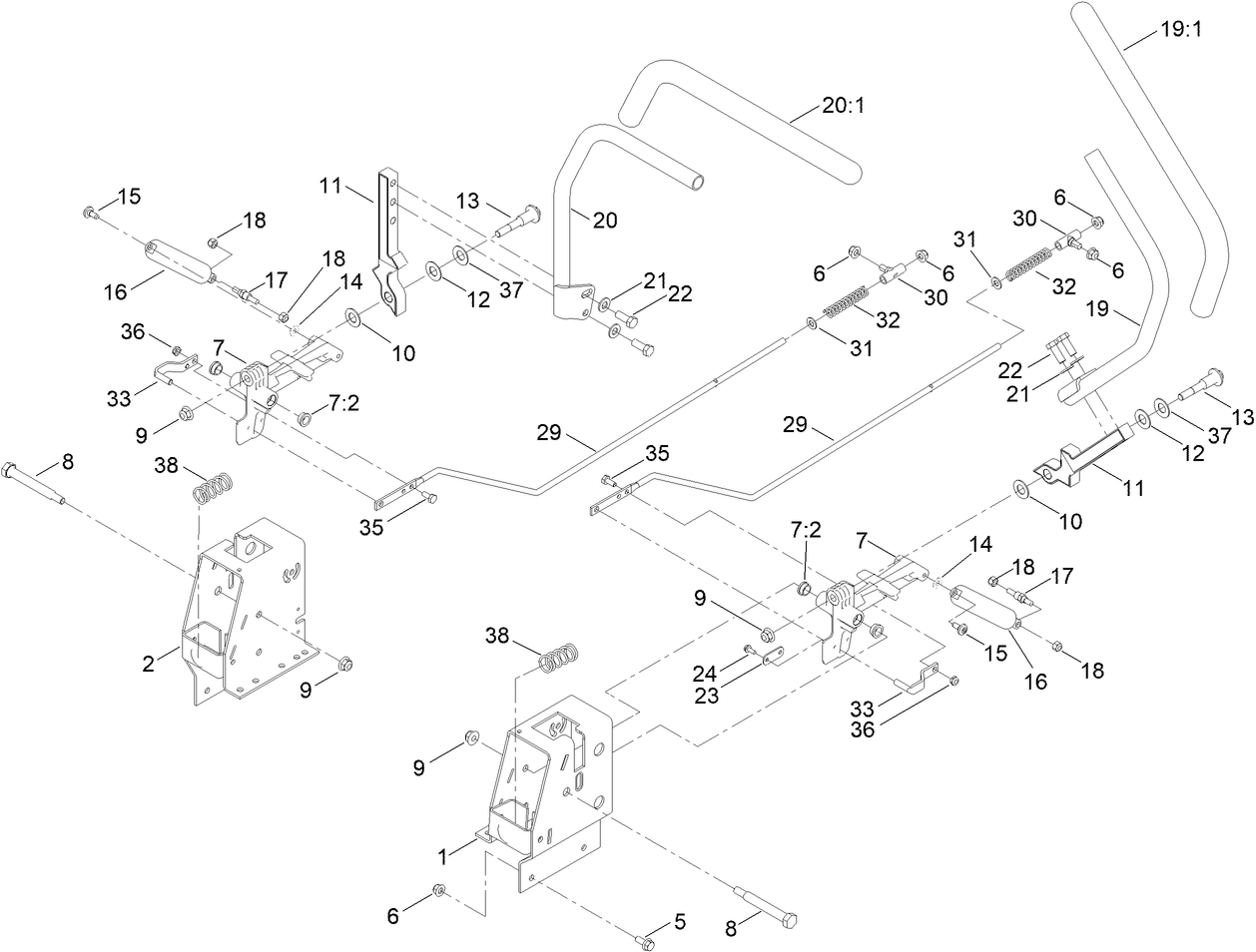

Motion Control Assembly

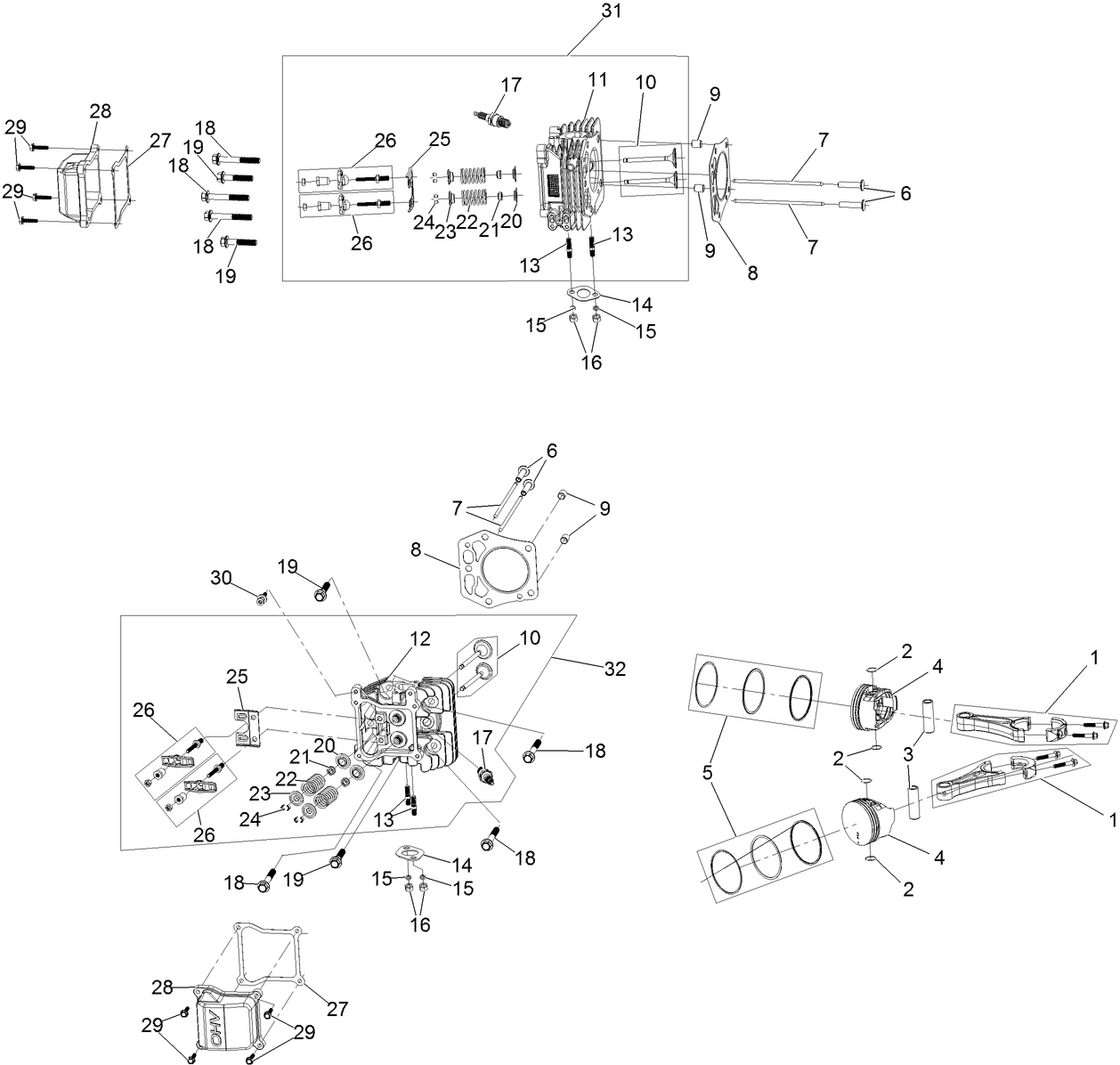

Piston and Cylinder Head Assembly

RH Hydro Transmission Assembly No. 147-2861

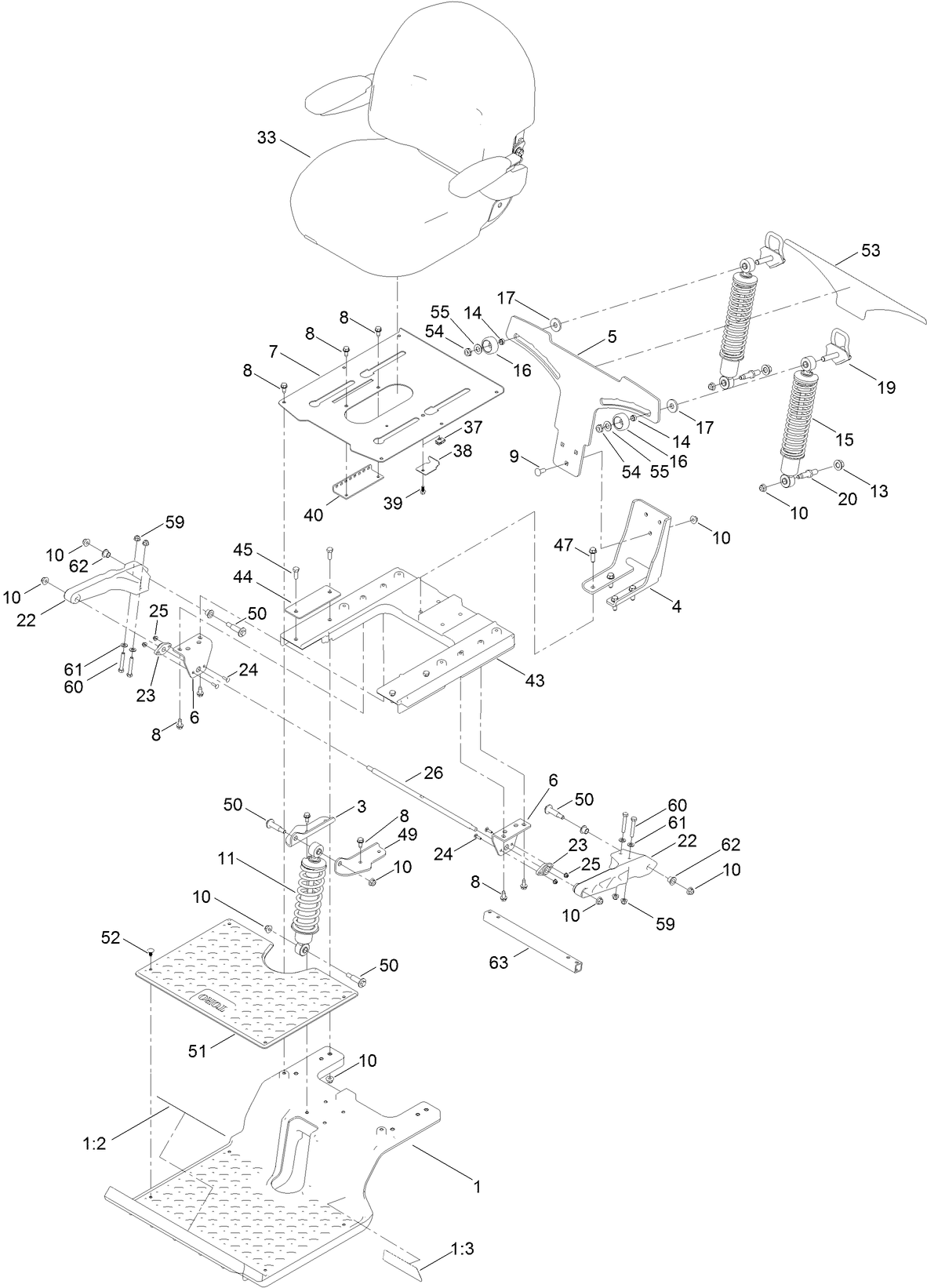

Seat Assembly

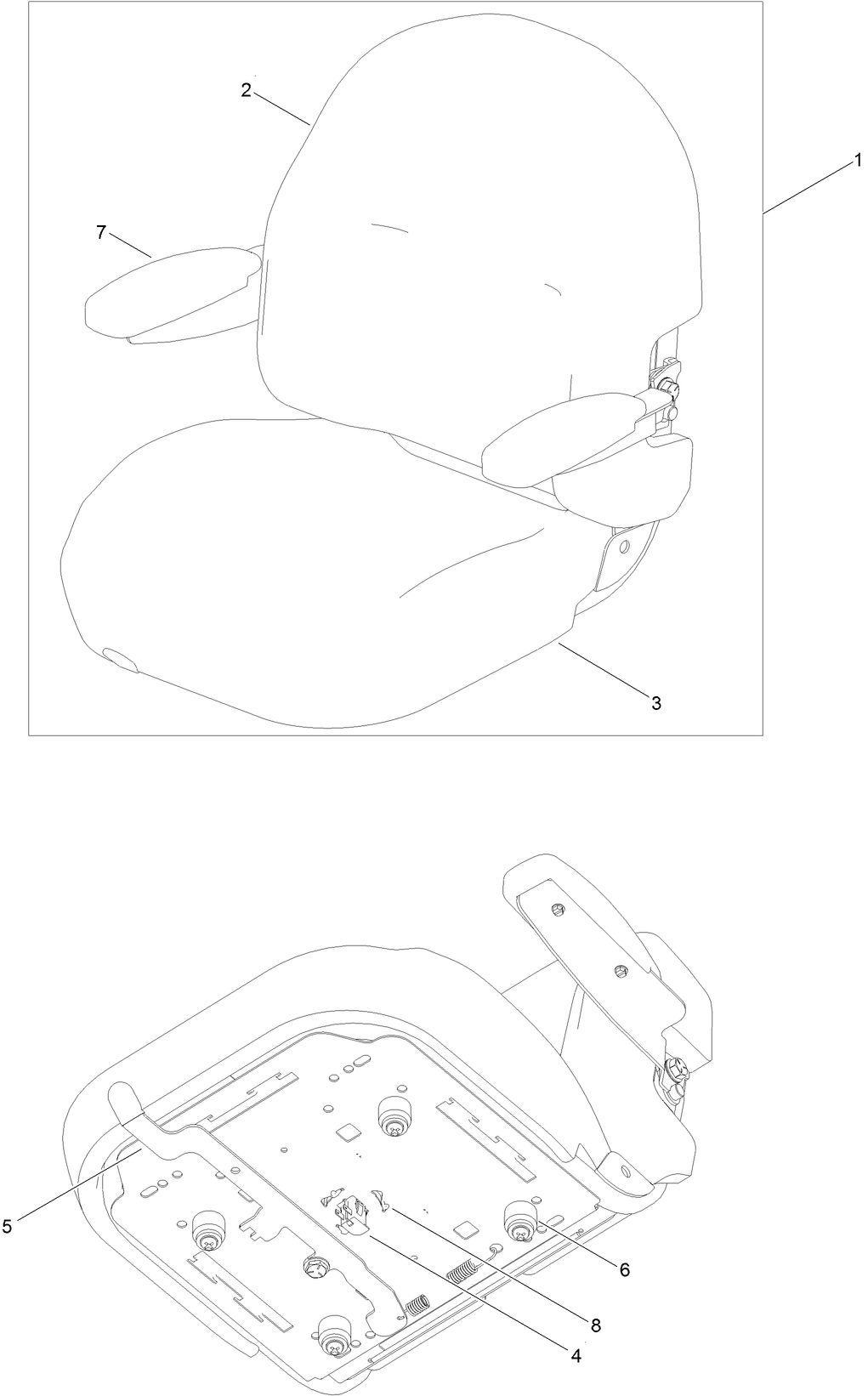

Seat Assembly No. 140-2714

Tire Assembly No. 145-0495

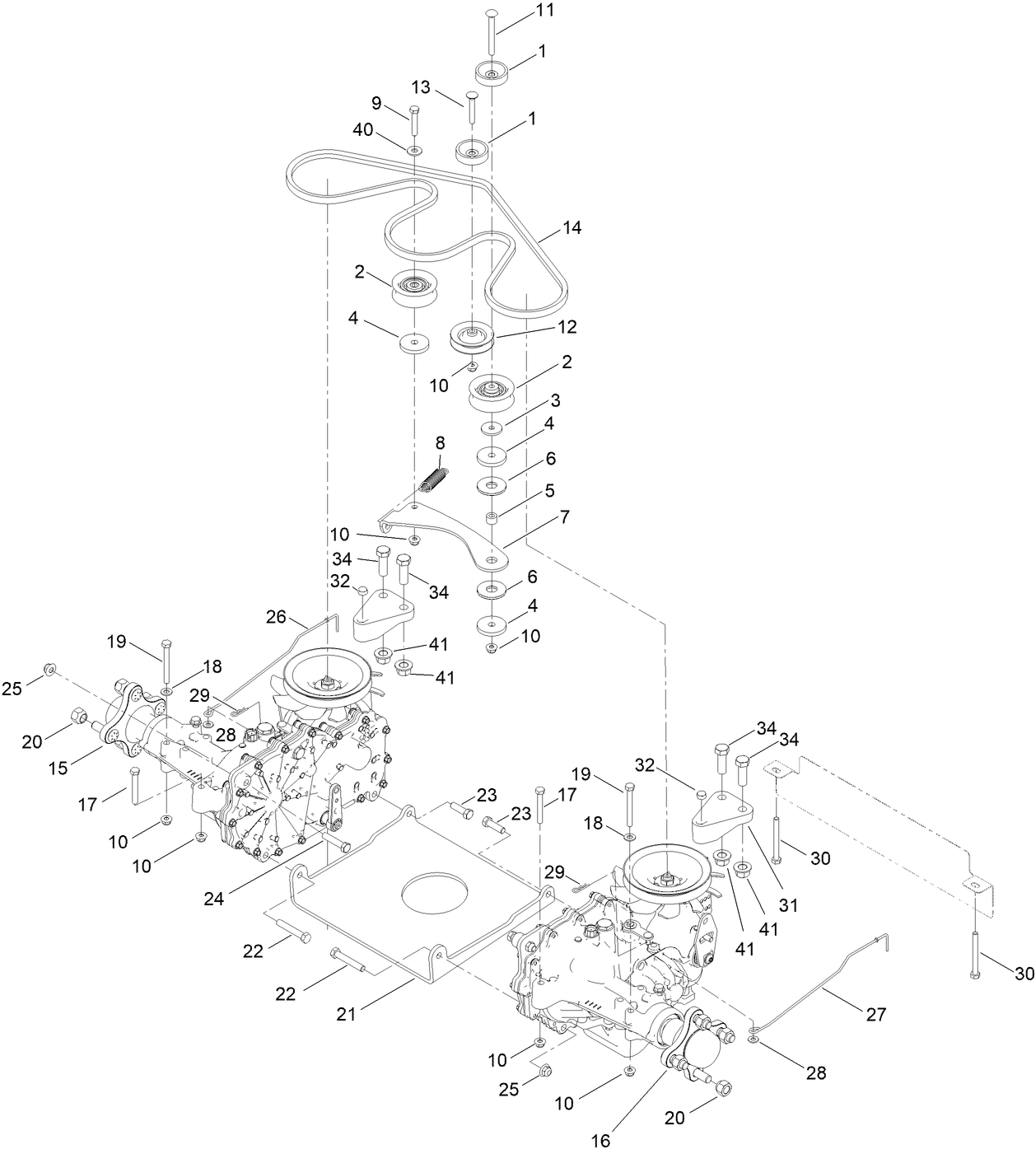

Traction Drive Assembly

Download Parts Catalog

Manuals

Operator's Manual

Service Manual

Parts Catalog

Setup Instructions

Product Warranty

ACMA Declaration of Conformity

Accessories (26)

Riding Mower Jack Kit (Part # 127-6666)

This genuine Toro OEM riding mower jack kit is designed to safely lift and support your Toro riding mower or zero turn, giving you safe, stable under-deck access for blade changes, belt replacements, and routine maintenance. It is one of the most practical purchase-stage accessories for any new mower owner — investing in a proper jack from day one avoids improvised lifting methods that risk injury and equipment damage. Verify your model and serial number before ordering.

$156.19 USD

Premium Fuel Treatment (0.5 oz.) (Part # 130-2393)

This genuine Toro OEM Premium Fuel Treatment is formulated to protect 2-cycle and 4-cycle small engines from the harmful effects of ethanol-blended fuels, which can absorb moisture and degrade over time — leaving gum, varnish, and corrosive deposits in carburetors, fuel lines, and fuel system components. Adding fuel treatment with every fill-up from the first use is one of the simplest preventative maintenance steps available, and is especially important for equipment that will sit unused for extended periods such as seasonal storage. Refer to the product label for the correct dosage.

$1.64 USD

All Season 4-Cycle Fuel for Lawn Mowers and Snow Blowers 32 oz (Part # 131-3823)

This genuine Toro OEM all-season 4-cycle fuel is a premium ethanol-free fuel formulated specifically for outdoor power equipment engines including lawn mowers and snow blowers. Unlike pump gasoline, ethanol-free fuel does not absorb moisture or degrade over time, making it particularly well-suited for seasonal equipment or machines that may sit unused for extended periods. No mixing is required — it pours straight in for clean, reliable starting and operation. Refer to your operator manual to confirm 4-cycle fuel compatibility with your equipment.

$8.79 USD

Toro V-Twin Engine Maintenance Kit (Titan HD/ Z Master 2000 Series) (Part # 139-0649)

Toro maintenance kits contain everything the do-it-yourselfer needs to keep a Toro machine running like new. It's an easy and convenient way to ensure your Toro equipment will run its best year after year. All components are approved by Toro engineers for use with the Toro engines on the Toro TimeCutter chassis.

Roll-Over Protection System Kit for Titan Zero Turn Riding Lawn Mowers (Part # 139-2638)

Toro ROPS rollover protection system kit 79485 and the use of an accompanying seatbelt can prevent an operator from being thrown from a machine or pinned under the mower should it overturn. There is no rollover protection when the roll bar is in the down position. Do not wear the seat belt when the roll bar is in the down position. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

$1,017.49 USD

Titan HD Series Bucket Mount Kit (Part # 140-2066)

Toro OEM bucket mount kit. Saves you time, money, and hassle when you’re in the seat trying to get the day's cutting done. Carry a five gallon bucket for trash collection right on the mower so you always have a place to put the trash that's found on the ground. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

$94.59 USD

Jack Mount Kit (Part # 140-2067)

This jack mount kit mounts to the front of select models of Toro Titan mowers and allows the owner to raise the mower to gain access to the underside of the deck to check blades or wash the deck. To best protect your investment and maintain optimal performance of your turf equipment, count on Toro genuine parts. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

$119.89 USD

Titan HD Spring Kit (Part # 140-2069)

Toro OEM heavy duty spring kit provided a balanced and stable ride over rough terrain or when using additional attachments. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

$194.69 USD

Titan HD Bagger Cover Kit. (Part # 140-5036)

Titan HD Bagger Cover Kit. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

$226.59 USD

Toro Titan Weight Kit (Part # 140-5084)

Toro genuine caster weight kit adds weight where its needed most, on the front caster wheel. Useful with using a bagger vac system or when you need added stability on uneven terrain. Easy to add or remove. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

$255.19 USD

54/60 inch Titan Striping Kit (Part # 140-5120)

The Toro Striping Kit allows you to create "ballpark" stripes and patterns in your lawn while you mow. Striping kits lay the grass down in the direction of travel. The differences in direction reflect light to provide vivid light and dark stripes in your lawn. Adjustable to increase or decrease downward pressure. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

$138.99 USD

Titan Leaf Bagging Enhancement Kit (Part # 140-5122)

This bagging enhancement kit can be used with 50 inch Toro Titan riding mowers. It will enhance bagging performance in extreme conditions such as heavy, wet grass or autumn leaf bagging. This genuine Toro OEM bagging enhancement kit is designed to improve clipping collection performance in demanding conditions such as heavy or wet grass and autumn leaf bagging. Refer to your operator manual for installation instructions and compatible models.

$164.99 USD

Bagger Mount Kit (Part # 140-5125)

Toro OEM bagger mount kit. Keep your bagger securely mounted on your riding mower. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

$326.69 USD

KIT-HYDRO SERVICE [INTEGRATED TANK] (Part # 144-5347)

$142.99 USD

KIT-CASTER WHEEL [13X6.50-6 HOLLOMATIC] (Part # 145-0489)

$509.24 USD

10W30 4-Cycle Engine Oil - 32 oz. Bottle (Part # 38280)

The Toro 38280 Premium 4-Cycle Lawn Mower Engine Oil 10W-30 is specially formulated to meet specific 4-cycle engine manufacturer requirements calling for 10W-30. This lawn mower engine oil provides the ultimate protection for all 4-cycle OPE engines. The lawn mower engine oil is developed with Toro engineering to meet the standards for all air-cooled, liquid-cooled and diesel engines. To maximize the performance of your Toro lawn mower, we highly recommend using this Toro lawn mower engine oil, which has been specifically formulated for best results. The lawn mower engine oil provides extreme performance in all temperatures, enhancing the life of your lawn mower's engine.

$10.99 USD

SAE 30 4-Cycle Lawn Mower Engine Oil 32 oz (Part # 38903)

Toro SAE 30 4-cycle engine oil passed the strictest requirements in thousands of hours of testing in hundreds of engines before you filled your lawn mower. This oil meets or exceeds performance requirements of all OEM engines (Toro, Briggs & Stratton, KOLHER, Honda, and Tecumseh). The use of Toro SAE 30 4-cycle lawn mower oil minimizes molecular shearing for extended life in hot-air-cooled applications vs multi-grades (i.e., 10W-30).

$9.99 USD

Powered Bagger for TITAN (Part # 79346)

Pick up lawn clippings, leaves, and debris quickly with our powered bagger. This bagger has a 6.42 bushel (8 cubic feet) capacity.

$1,399.00 USD

Titan Slope Sensor Kit (Part # 79400)

Genuine Toro slope sensor for sensing a tilt angle representing the orientation of the lawnmower with respect to a horizontal level plane. An signal indicator may provide a notice signal when the tilt angle exceeds a pre-determined check angle. To best protect your investment and maintain optimal performance of your turf equipment, count on Toro genuine parts. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.

$775.49 USD

Product Details

Model #

75313

Serial #

412325117 - 999999999

Product Name

60" (152 cm) TITAN® MyRIDE® Zero Turn Mower

Product Brand

Toro

Product Type

Riding Products

Product Series

Zero Radius Turn, Consumer

Chassis Type

ZRT - Consumer

Swath

60 inch

Discharge

Side Discharge

Engine/Motor Manufacturer

Toro

Engine/Motor Size

24.5 hp

Engine/Motor Type

4 Cycle

Engine Starter

Electric

Transmission Type

Hydrostatic

Traction Type

2wd

Specifications

Engine: Spark Plug

NGK BPR6ES

Engine: Battery

12V 300CCA

Engine: Engine Speed

3600±100 RPM

Engine: Spark Plug Gap

.030"/ .76mm

Chassis: Tire Pressure

13 psi / 90 kPa

Chassis: Height of Cut Range

1.5-4.5"; 1/2" increments

Drive System: Ground Speed

Fwd. 0 - 8 mph

Engine: Engine Oil Type

77 oz. (2.3L) with filter change SAE 10w30/10w40

Engine: Ignition Coil Air Gap

0.011in (0.3mm)

Drive System: Gearbox Lubricant

HYPR-OIL 500 / 20w-50 Synthetic Motor Oil
