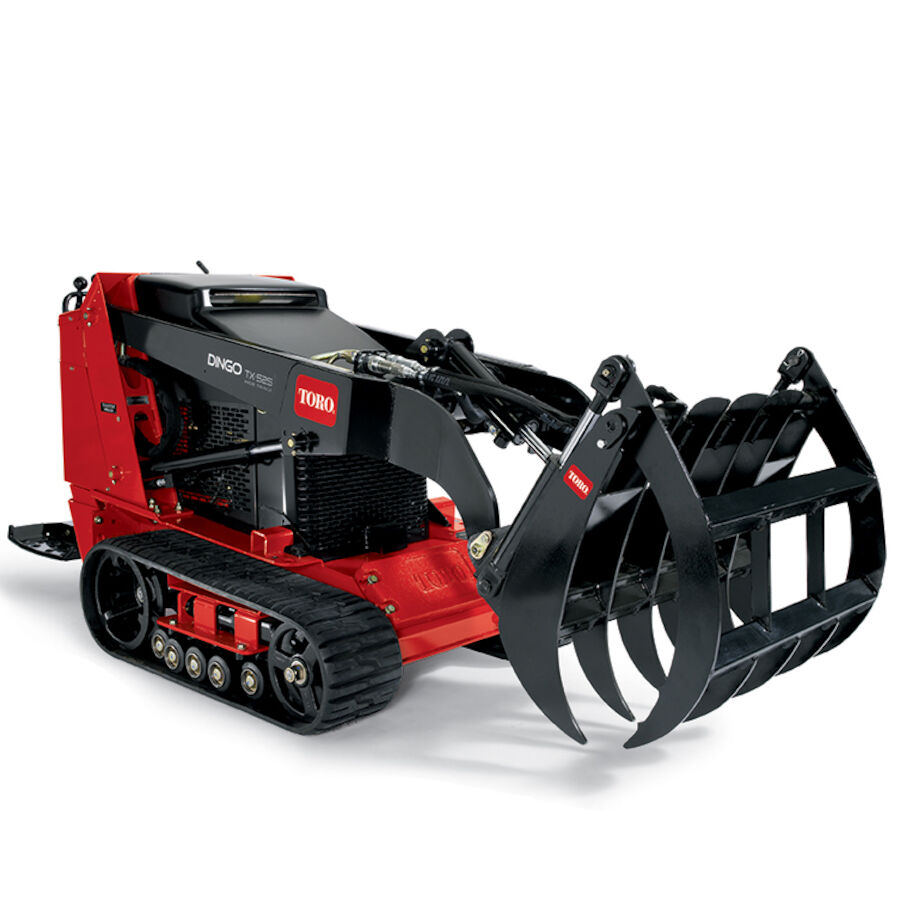

Grapple Rake Attachment
Model: 22577
Grapple Rake Attachment
Model: 22577
Model: 22577 UPC/EAN: 21038225777
$4,433.00 USD
Key Features
- Twin heavy-duty hydraulic cylinders
- 35.5" (87.6 cm) width guarantees access to tight areas
- Tines constructed of 3/8" (1 cm) AR400 steel*
- Four greaseable pivots reduce wear
Please contact your local dealer
Click logo below to find a dealer or shop retailer
Product Details

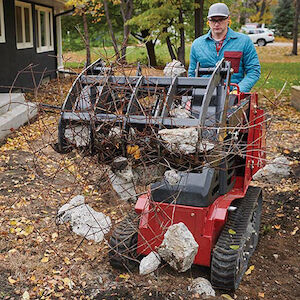

The Toro grapple rake attachment allows operators to grab, drag, lift, and place materials with ease. The grapple has two heavy-duty cylinders capable of producing 3000 pounds of clamping force at the tine tips, insuring you can "grab-ahold" and not let go.
Tines
Constructed of AR400* steel make the Toro grapple one of the strongest and most durable grapples on the market. Tines are spaced 7" (17.8 cm) apart while the bottom tine have 6 1/4" (15.9 cm) spacing, allowing the tines to intertwine to hold even the smallest loads tightly.
Construction
Fabricated, welded steel barrel
Height
30 in. / 76.2 cm
Length
18 in. / 45. 7 cm
Models
Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700, eDingo 500
Mounting Frame
Dingo® quick-attach mount plate, fabricated, welded base
Quick Couplers
Dripless, flush face quick couplers
Weight
265 lbs / 120.2 kg
Width
35.5 in. / 90.2 cm
For complete product warranty information contact Toro Customer Service
**See dealer for Warranty details.
