Dingo® TX 1000 TURBO Track Loader, Narrow

  • Model: 22587
  • UPC/EAN: 21038225876
Find a Dealer
  • Smart Power allows the machine to run more efficient by automatically adjusting traction speed to maximize engine, auxiliary, and traction torque.
  • Compact footprint fits through standard 36" gates
  • Maximum height and reach easily clears the side of a 30-yard dumpster
  • Patented traction control

Overview

The Dingo TX 1000 TURBO is a turbocharged marvel that not only enhances the unmatched success and superior performance of its predecessor but also incorporates the innovative Smart Power® feature. This feature optimizes engine, auxiliary, and traction torque, providing users with an unparalleled compact utility loader experience. With a width of under 35 inches, the Dingo TX 1000 TURBO narrow track effortlessly navigates through standard 36-inch gates, ensuring versatility and accessibility across a range of job sites.

Features

TX 1000 TURBO with auger.
Smart Power®
Smart Power allows the machine to run more efficient by automatically adjusting traction speed to maximize engine, auxiliary, and traction torque.

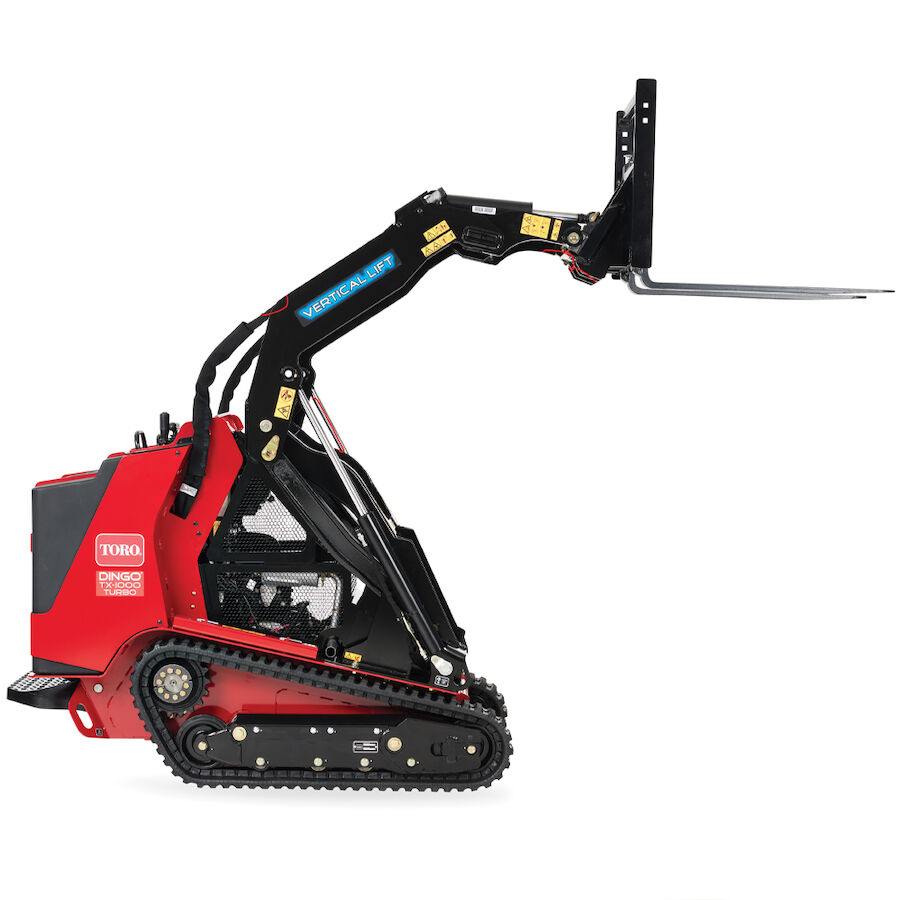

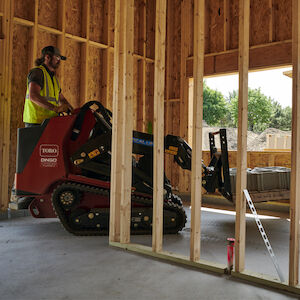

TX 1000 TURBO with forks attachment.
Compact Size
Narrow enough so you can bring hydraulic power to tight areas; through doorways and gates previously accessible only by manual labor. Plus it provides zero radius turn capability for unmatched maneuverability.
TX 1000 TURBO controls
Traction Control System
Toro's patented traction control system allows intuitive user operation for all skill levels now includes the integration of a digital display.

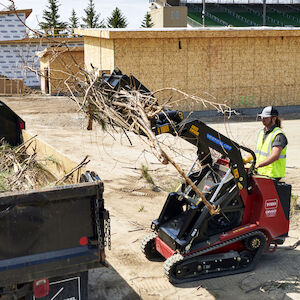

White male operating the Dingo TX 1000 with a bucket attach dumping sod.
Maximum Height & Reach
The 81” (206 cm) hinge pin height allows attachments to easily clear the side of 30-yard dumpsters or one-ton trucks.
TX 1000 TURBO wide with a bucket dumping rock.
Easy Operation
The auxiliary foot pedal maintains hydraulic flow to the attachment, freeing the operator's hands to focus on ground speed an attachment positioning.

Specifications

Air Filter Remote: Primary and Safety Elements
Cooling System Combo Crossflow Radiator and Oil Cooler
Dump Angle 40 degrees
Dump Height (cm) 153.2
Dump Height (inches) 60.3
Engine Make Yanmar
Engine Model 3TNV80FT Turbo Diesel Tier 4 & EU Stage 5 compliant
Fuel Tank (gallons) 10.25
Fuel Tank (liters) 38.8
Fuel Type Diesel
Ground Clearance (cm) 15
Ground Clearance (inches) 5.9
Ground Pressure 6.1 psi
Ground Speed Forward (mph) 4.1
Ground Speed Foward (km/h) 6.6
Ground Speed Reverse (km/h) 6.6
Ground Speed Reverse (mph) 4.1
Hinge Pin Height (cm) 205.7
Hinge Pin Height (inches) 81
Hydraulic Flow 12.3 gpm (each pump)
Hydraulic Flow Auxilary 13.2 gpm, Low Flow 4.9 gpm
Hydraulic Reservoir Capacity (gallons) 8.6
Hydraulic Reservoir Capacity (liters) 32.5
Loader Arms Vertical Lift
Manufacturer's Gross HP Rating (HP) 24.7
Manufacturer's Gross HP Rating (kW) 18.4
Max Operating Height (cm) 269.7
Max Operating Height (inches) 106.2
Oil Capacity (liters) 3.6
Oil Capacity (quarts) 3.8
Overall Height w/bucket (cm) 138.7
Overall Height w/bucket (inches) 54.6
Overall Height w/o bucket (cm) 138.7
Overall Height w/o bucket (inches) 54.6
Overall Length w/bucket (cm) 264.2
Overall Length w/bucket (inches) 104
Overall Length w/o bucket (cm) 210.8
Overall Length w/o bucket (inches) 83
Overall Width w/bucket (cm) 107.2
Overall Width w/bucket (inches) 42.2
Overall Width w/o bucket (cm) 87.9
Overall Width w/o bucket (inches) 34.6
Rated Operating Capacity* (kg) 453
Rated Operating Capacity* (lbs) 1000
Reach – Fully Raised (cm) 59.2
Reach – Fully Raised (inches) 23.3
Track Length (inches) 126.6
Track Length(cm) 321.6
Track Width (cm) 15
Track Width (inches) 5.9
Tracks MERT track with “B” style tread
Traction Dual Hydrostatic Pump
Weight (kg) 1282
Weight (lbs) 2826
Wheelbase (inches) 39

Disclaimer

*Per ISO 14397-1
