22in Recycler Lawn Mower

Product Information

  • Model #: 20332
  • Serial #: 400000000 - 402081999
  • Product Type: Walk Behind Mowers

Assembly Drawings

Search for a part within assembly drawings:

  • Operator Manual (EN)
    3406-308 Rev A
    24 pages

    Download

  • Operator Manual (ES)
    3406-309 Rev A
    24 pages

    Download

  • Operator Manual (FR)
    3406-310 Rev A
    24 pages

    Download

  • Operator Manual (RU)
    3406-311 Rev A
    24 pages

    Download

  • Operator Manual (EN,ES,FR)
    3406-312 Rev A
    68 pages

    Download

  • Parts Catalog (EN)
    3410-422 Rev B
    20 pages

    Download

  • Model #: 117-0066
    OIL - SYNTHETIC, ALL SEASON
  • Model #: 130-2393
    Fuel Stabilizer .05 oz
  • Model #: 130-8148
    BRIGGS MAINT KIT - 22IN RECYCLER
  • Model #: 131-3823
    4-CYCLE FUEL, SNOW AND LAWN, 32OZ CAN
  • Model #: 131-4590

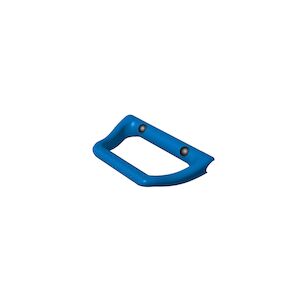

    TRACTION ASSIST HANDLE KIT
  • Model #: 131-6572
    Toro Premium Fuel Treatment
  • Model #: 137-4833P
    8IN WHEEL ASM WITH GEAR
  • Model #: 20601

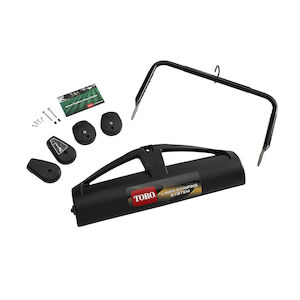

    Lawn Striping Kit with 22in Roller, Walk-Behind Lawn Mowers
  • Model #: 38903
    TORO 4-CYCLE SAE 30 OIL (32OZ BOTTLE)
  • Model #: 38916
    Summer Oil, Case of 24 20-Ounce Bottles
  • Model #: 38991
    Replacement Drive Belt Kit, 22-inch 2009 and After Rear-Wheel Drive La
  • Model #: 490-7318
    TORO SMALL WALK BEHIND BAG
  • Model #: 490-7462
    Toro Walk Mower Cover
  • Model #: 59310
    BAG - REPL 2009 RWD RC
  • Model #: 59503
    Replacement Wheel, 2002 to 2008 Rear-Wheel Drive 22-inch Recycler Lawn
  • Model #: 59534P
    TORO ATOMIC BLADE - 22IN, PACKAGED

  • Model #
    20332
  • Serial #
    400000000 - 402081999
  • Product Name
    22in Recycler Lawn Mower
  • Product Brand
    Toro
  • Product Type
    Walk Behind Mowers
  • Product Series
    22" Steel Deck
  • Chassis Type
    Steel Deck WPM
  • Swath
    22 inch
  • Discharge
    Recycler & Side Discharge with Rear Bag
  • Engine/Motor Manufacturer
    Briggs & Stratton
  • Engine/Motor Type
    4 Cycle
  • Engine Starter
    Recoil
  • Traction Type
    Rear WD
  • Transmission Manufacturer
    General Transmission
  • Transmission Model #
    NA
  • Transmission Speed
    Personal Pace
  • Transmission Type
    Rear WD
  • Residential Domestic Warranty
    UNIT COVERAGE: 2 yr (3 yr if purchased 5/5/16 thru 5/18/16), 3 yr Engine & GTS Promise; ENGINE & GTS COVERAGE thru Engine Mfg
  • Residential Canadian Warranty
    UNIT COVERAGE: 2 yr; 3 yr Engine & GTS Promise; ENGINE & GTS COVERAGE thru Engine Mfg
  • Residential International Warranty
    N/A
  • Commercial Domestic Warranty
    UNIT COVERAGE: 45 days; ENGINE COVERAGE: 90 days
  • Commercial Canadian Warranty
    UNIT COVERAGE: 45 days; ENGINE COVERAGE: 90 days
  • Commercial International Warranty
    N/A

  • Engine: Engine Speed
    2900±100 RPM
  • Engine: Ignition Coil Air Gap
    .010" / .25mm
  • Engine: Spark Plug Gap
    .030"/ .76mm
  • Drive System: Ground Speed
    0-4.8 mph
  • Chassis: Height of Cut Range
    1" - 4" (2.5-10 cm)
  • Engine: Engine Oil Type
    18 oz. (0.53) SAE 30 / API SF, SG, SH, SJ, SL, or higher
  • Engine: Spark Plug
    Briggs & Stratton 594056 or Torch GL4RCC or Autolite 5924
