Greensmaster 1000 Mower
Product Information
- Model #: 04052
- Serial #: 310000001 - 310002000
- Product Type: Walk Behind Mowers
Loading...

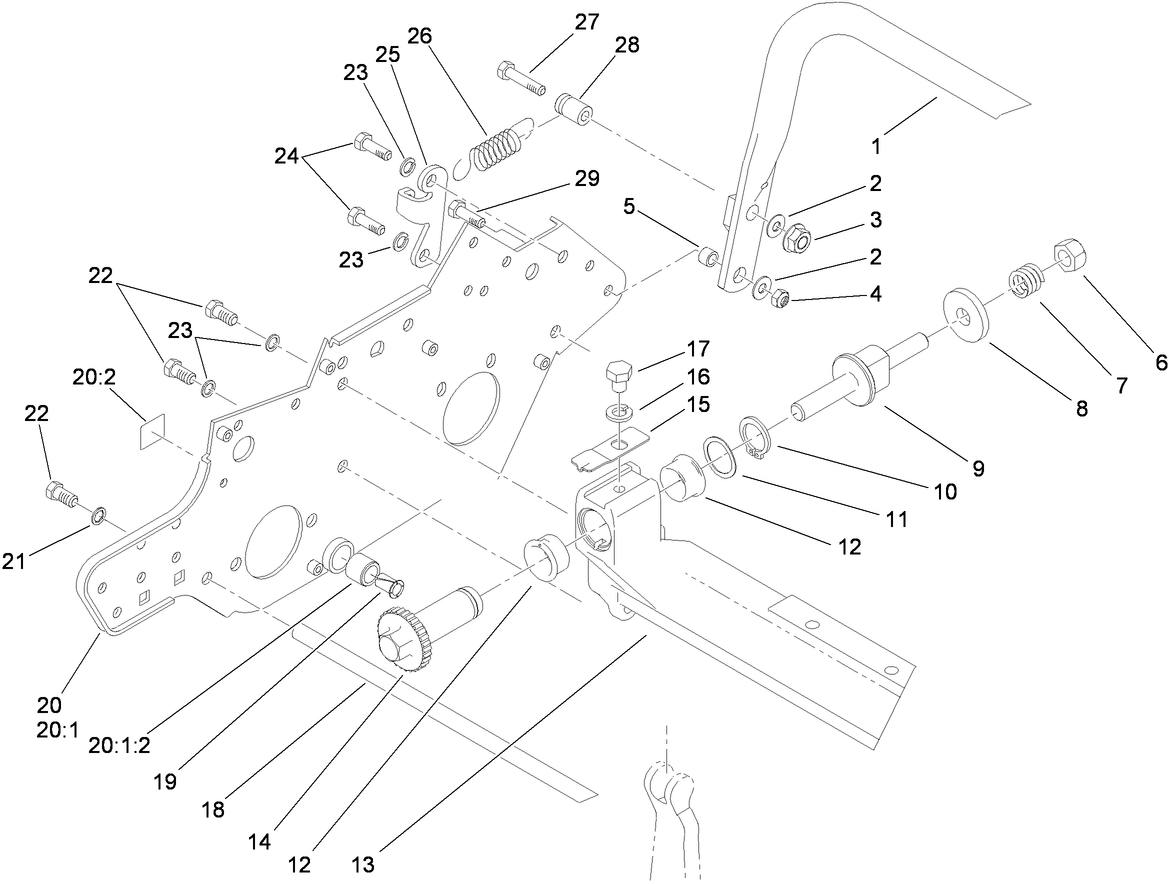

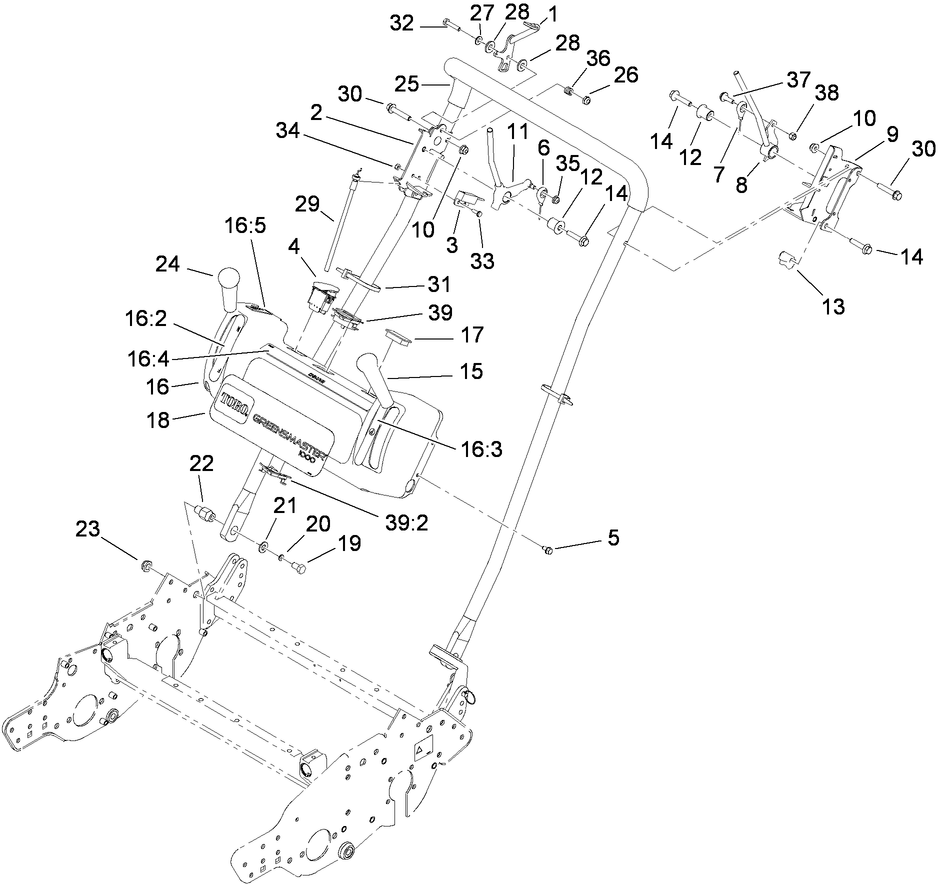

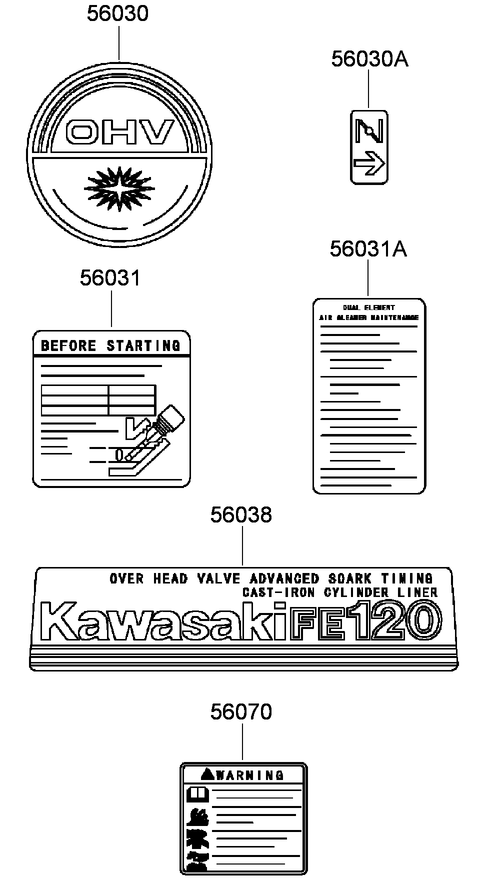

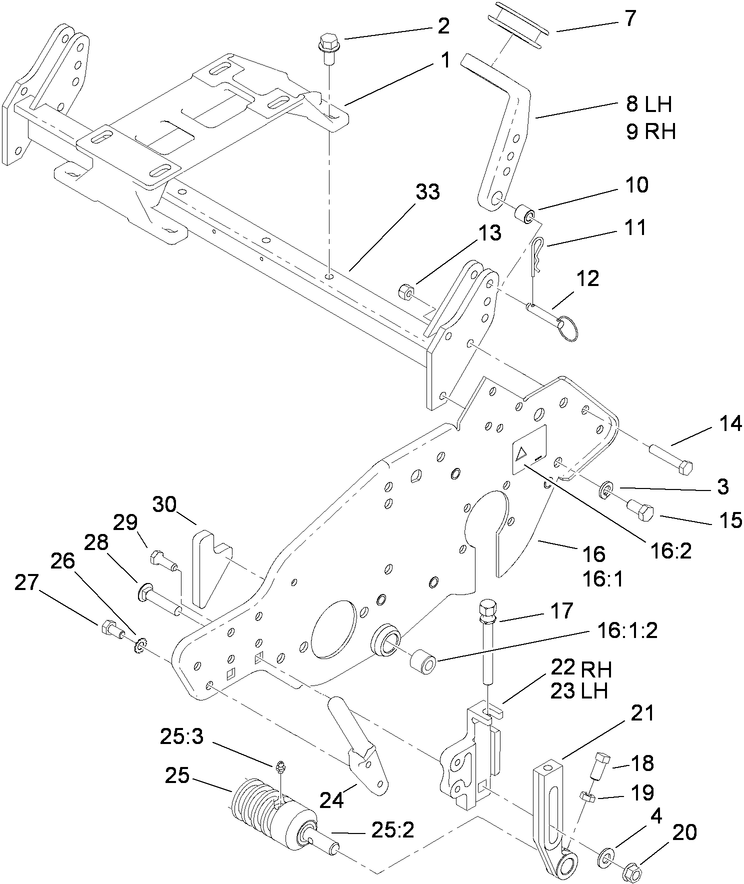

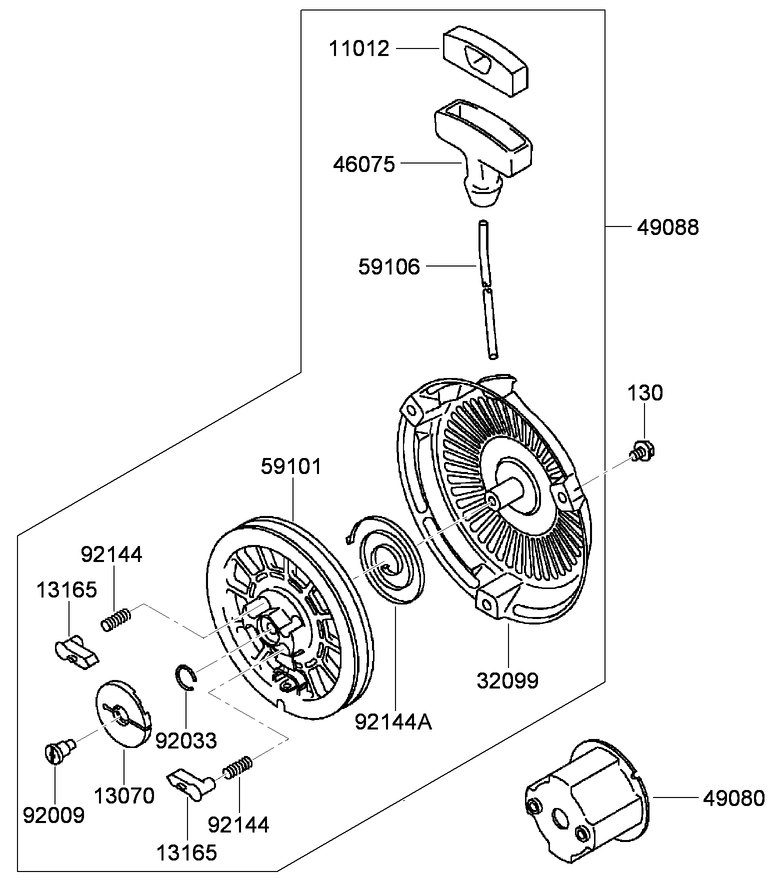

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
EU Declaration of Conformity
-
Addendum
-
Service Bulletin
Light Kit, 2008 and Later Walk-Behind Greensmaster Mowers (Part # 04061)
Dethatcher Kit, Greensmaster 1000 (Part # 04109)
Dethatcher Kit, Greensmaster 1000 (Part # 04111)
Out-Front Brush Kit, Greensmaster 800/1000/Flex 21 (Part # 04119)
Wheel Kit (Part # 04123)
To transport mower from green to green or in the shop.
Groomer Reel Kit, Greensmaster 1000 (Part # 04131)
21.00 Inch Full Front Roller Assembly (Part # 104-2642)
Toro 21.00 Inch OEM Full Front Roller Assembly. This roller has a 2.00 inch diameter. This Assembly comes with the roller, bearings, grease & fittings. This roller is smooth, unlike the Wiehle roller that has groves built in. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
Hour Meter Kit, 2001 and Later Walk-Behind Greensmaster Mowers (Part # 105-5350)
Roller Rebuild Kit (Part # 107-1588)
Contains 52-3180 @ 2, 302-5 @ 2
BEDBAR-AGGRESSIVE,GR1000 (Part # 112-9279-03)
Operator Presence Kit, Greensmaster Flex and Fixed-Head Mowers (Part # 112-9282)
Smooth Scraper Kit, Greensmaster 1000 Mowers (Part # 112-9285)
Scraper Brush Kit, Greensmaster 1000 Mowers (Part # 112-9286)
Comb Scraper Kit, Greensmaster 1000 Mowers (Part # 112-9287)
Wide Wiehle Scraper Kit, Greensmaster 1000 Mowers (Part # 112-9288)
Narrow Wiehle Scraper Kit, Greensmaster 1000 Mowers (Part # 112-9289)
WRENCH-SPANNER,16 TOOTH (Part # 115-1806)
WRENCH-SPANNER,18 TOOTH (Part # 115-1808)
21.25 Inch Micro Cut EdgeMax™ Bedknife (Part # 115-1880)
Toro 21.25 Inch OEM Micro Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Micro Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
21.25 Inch Tournament Cut EdgeMax™ Bedknife (Part # 115-1881)
Toro 21.25 Inch OEM Tournament Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Tournament Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
16-Tooth Traction Pulley Kit, Greensmaster 1000/1600/2000/2600 Mower (Part # 115-1886)
Spark Arrestor Kit, Kawasaki-Powered Walk-Behind Greensmaster Mowers (Part # 117-1441)
14 BLADE REEL ASM (Part # 117-1449)
MVP KIT-FILTER/SPARK PLUG (Part # 30065)
Contains 93-8636 @ 1, 93-8637 @ 1, 93-8584 @ 1
SWAGED ROLLER ASM (Part # 52-3590)
Auxiliary Roller Kit, Greensmaster 1000 (Part # 65-8560)
25" Clip Kit, Greensmaster 1000 (Part # 65-9000)
21.00 Inch Wiehle Roller Assembly (Part # 71-1550)
Toro 21.00 Inch OEM Wiehle Roller Assembly. This roller has a 2.00 inch diameter. This Assembly comes with a Wiehle roller, roller bearings, grease fittings & grease. A Wiehle roller has groves built into the roller as a standard Wiehle roller is smooth. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
22.00 Inch Wide Wiehle Roller Assembly (Part # 88-6790)
Toro 22.00 Inch OEM Wide Wiehle Roller Assembly. This roller has a 2.00 inch diameter. This Assembly comes with a Wiehle roller, roller bearings, lube fittings & grease. A Wiehle roller has groves built into the roller. A wide Wiehle roller has a larger gap between each of the groves when a standard Wiehle roller, where a standard roller is smooth. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
21.25 Inch Micro Cut Standard Bedknife (Part # 93-4262)
Toro 21.25 Inch OEM Micro Cut Standard Bedknife. You can count on the quality and reliability of this replacement Micro Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
21.25 Inch Low Cut Standard Bedknife (Part # 93-4264)
Toro 21.25 Inch OEM Low Cut Standard Bedknife. You can count on the quality and reliability of this replacement Low Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
8 BLADE REEL ASM (Part # 93-6087)
24.00 Inch Long Wiehle Roller Assembly (Part # 93-9045)
Toro 24.00 Inch OEM Long Wiehle Roller Assembly. This roller has a 2.50 inch diameter. This Assembly comes with a Wiehle roller, roller bearings, grease fittings & grease. A Wiehle roller has groves built into the roller as a standard Wiehle roller is smooth. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
Height of Cut Kit (Part # 94-9010)
Height of cut range 0.285”– 1.00” (7.2 – 25.4 mm), set of one
JET-MAIN, #62 HIGH ALT (Part # 98-8735)
JET-MAIN, #60 HIGH ALT (Part # 98-8736)
-
Model #
04052 -
Serial #
310000001 - 310002000 -
Product Name
Greensmaster 1000 Mower -
Product Brand
Toro -
Product Type
Walk Behind Mowers -
Product Series
GR 1000 Series
