Greensmaster 1000
Product Information
- Model #: 04052
- Serial #: 260001401 - 260999999
- Product Type: Walk Behind Mowers
Loading...

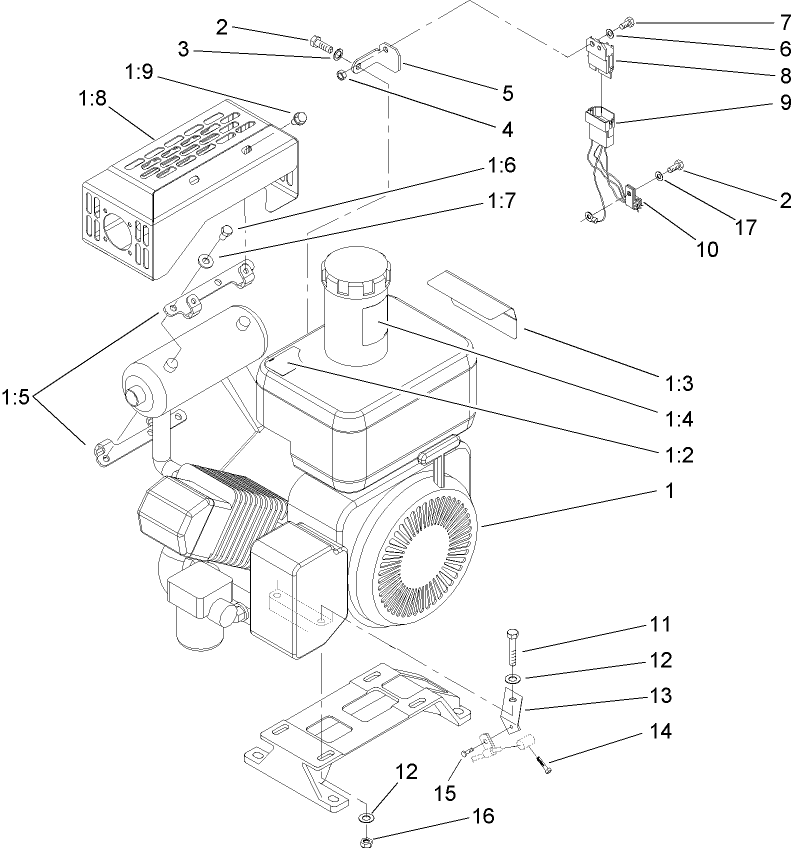

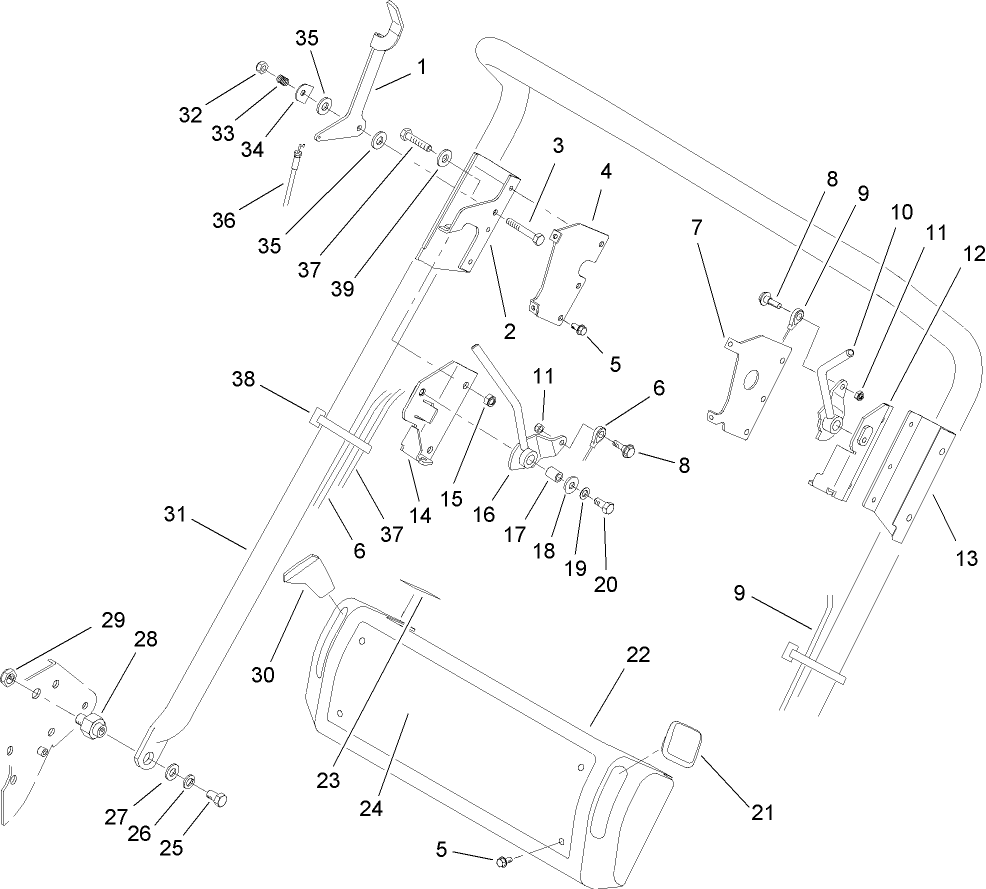

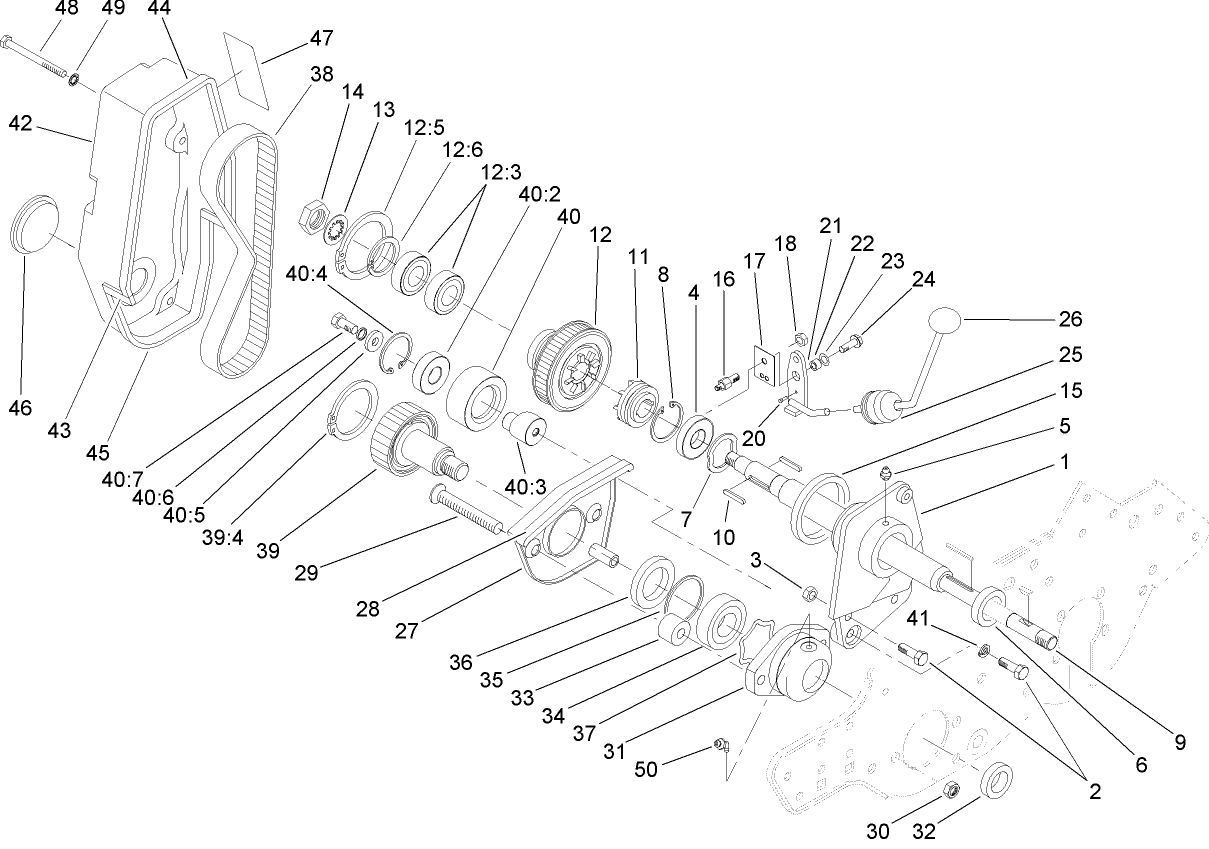

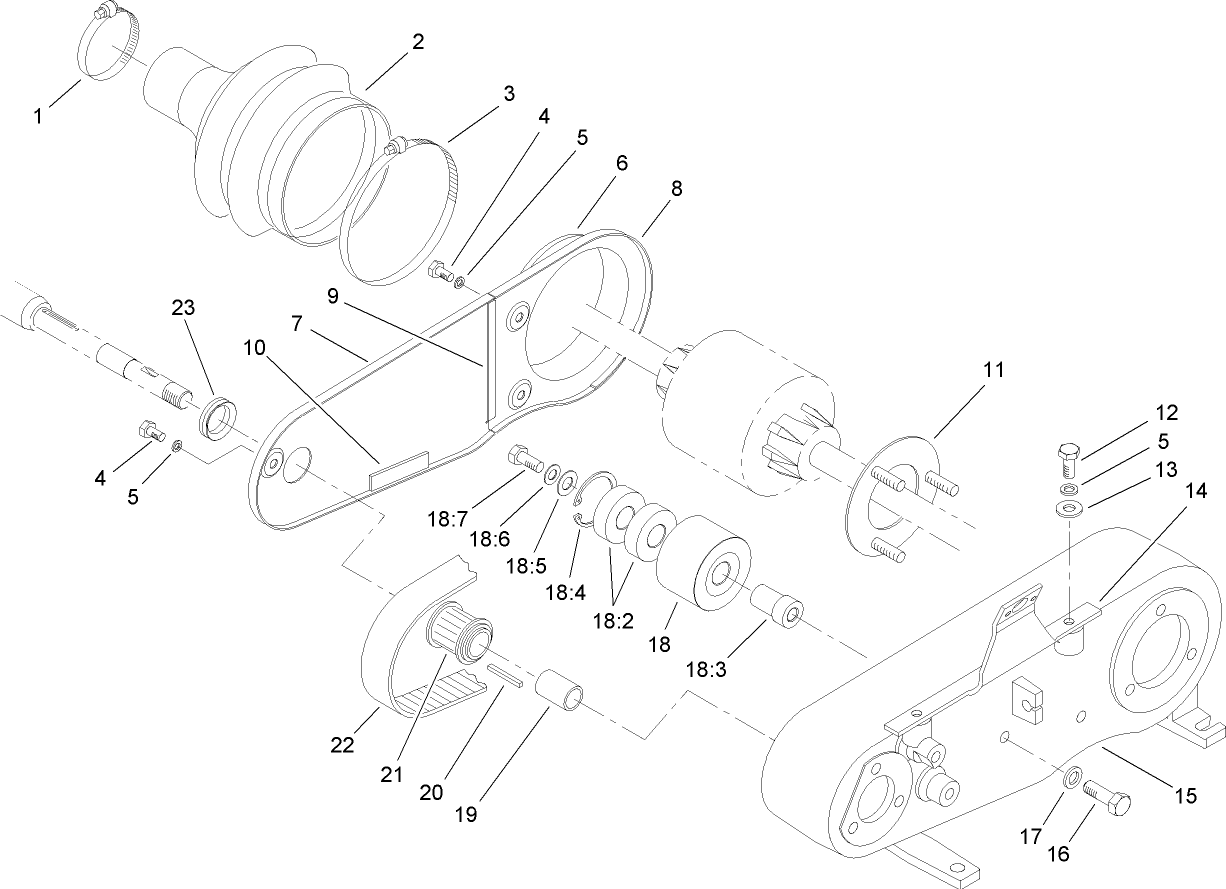

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
EU Declaration of Conformity
-
Service Bulletin
Light Kit, Greensmaster 1000, 1600 and Flex 21 (Part # 04057)
Light Kit, Greensmaster 500, 800, 1000 and 1600 (Part # 04058)
Light Kit, Greensmaster 1000 and 1600 (Part # 04059)
Dethatcher Kit, Greensmaster 1000 (Part # 04109)
Dethatcher Kit, Greensmaster 1000 (Part # 04111)
Out-Front Brush Kit, Greensmaster 800/1000/Flex 21 (Part # 04119)
Wheel Kit (Part # 04123)
To transport mower from green to green or in the shop.
Groomer Reel Kit, Greensmaster 1000 (Part # 04126)
SCRAPER-WIEHLE, .20 SPACING (Part # 104-0509-01)
21.00 Inch Full Front Roller Assembly (Part # 104-2642)
Toro 21.00 Inch OEM Full Front Roller Assembly. This roller has a 2.00 inch diameter. This Assembly comes with the roller, bearings, grease & fittings. This roller is smooth, unlike the Wiehle roller that has groves built in. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
Hour Meter Kit, 2001 and Later Walk-Behind Greensmaster Mowers (Part # 105-5350)
Operator Presence Kit, Greensmaster 800/1000/1600 Mowers (Part # 105-5363)
Groomer Brush, Greensmaster 1000 (Part # 105-9640)
Scraper Comb Assembly (Part # 11-0070)
Toro OEM Scraper Comb Assembly.
Left-Hand Differential Support Housing. Greensmaster 1000 and 1600 (Part # 110-3477)
Right-Hand Differential Support Housing. Greensmaster 1000 and 1600 (Part # 110-3478)
Scraper Brush Assembly (Part # 33-1000)
Toro OEM Scraper Brush Assembly.
SWAGED ROLLER ASM (Part # 52-3590)
SCRAPER-WIEHLE, .43 SPACING (Part # 65-8340-01)

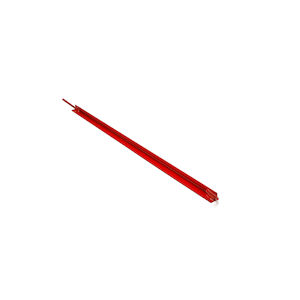

Scraper-Smooth (Part # 65-8360-01)
Toro OEM Scraper-Smooth.
Auxiliary Roller Kit, Greensmaster 1000 (Part # 65-8560)
25" Clip Kit, Greensmaster 1000 (Part # 65-9000)
21.00 Inch Wiehle Roller Assembly (Part # 71-1550)
Toro 21.00 Inch OEM Wiehle Roller Assembly. This roller has a 2.00 inch diameter. This Assembly comes with a Wiehle roller, roller bearings, grease fittings & grease. A Wiehle roller has groves built into the roller as a standard Wiehle roller is smooth. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
22.00 Inch Wide Wiehle Roller Assembly (Part # 88-6790)
Toro 22.00 Inch OEM Wide Wiehle Roller Assembly. This roller has a 2.00 inch diameter. This Assembly comes with a Wiehle roller, roller bearings, lube fittings & grease. A Wiehle roller has groves built into the roller. A wide Wiehle roller has a larger gap between each of the groves when a standard Wiehle roller, where a standard roller is smooth. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
BEDBAR-SPECIAL (Part # 92-9204-03)
21.25 Inch Micro Cut Standard Bedknife (Part # 93-4262)
Toro 21.25 Inch OEM Micro Cut Standard Bedknife. You can count on the quality and reliability of this replacement Micro Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
21.25 Inch Low Cut Standard Bedknife (Part # 93-4264)
Toro 21.25 Inch OEM Low Cut Standard Bedknife. You can count on the quality and reliability of this replacement Low Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
8 BLADE REEL ASM (Part # 93-6087)
24.00 Inch Long Wiehle Roller Assembly (Part # 93-9045)
Toro 24.00 Inch OEM Long Wiehle Roller Assembly. This roller has a 2.50 inch diameter. This Assembly comes with a Wiehle roller, roller bearings, grease fittings & grease. A Wiehle roller has groves built into the roller as a standard Wiehle roller is smooth. Toro OEMs are created to keep your equipment up and running with the highest quality parts. To verify that this fits your Toro equipment, please do a model & serial number search.
Decal Kit, Greensmaster 800, 1000 and 1600 (Part # 94-5895)
Height of Cut Kit (Part # 94-9010)
Height of cut range 0.285”– 1.00” (7.2 – 25.4 mm), set of one
Spark Arrester Kit, Walk-Behind Greensmasters (Part # 98-3426)
JET-MAIN, #62 HIGH ALT (Part # 98-8735)
JET-MAIN, #60 HIGH ALT (Part # 98-8736)
-
Model #
04052 -
Serial #
260001401 - 260999999 -
Product Name
Greensmaster 1000 -
Product Brand
Toro -
Product Type
Walk Behind Mowers -
Product Series
GR 1000 Series
