60 in. (152 cm) TimeCutter® MyRIDE Max Zero Turn Mower

60 in. (152 cm) TimeCutter® MyRIDE Max Zero Turn Mower

60 in. (152 cm) TimeCutter® MyRIDE Max Zero Turn Mower

Product Information

  • Model #: 77602
  • Serial #: 400000000 - 415399999
  • Product Type: Riding Products

Search for a part within assembly drawings:

Showing Results

Drawing Title Part Number Description
Title

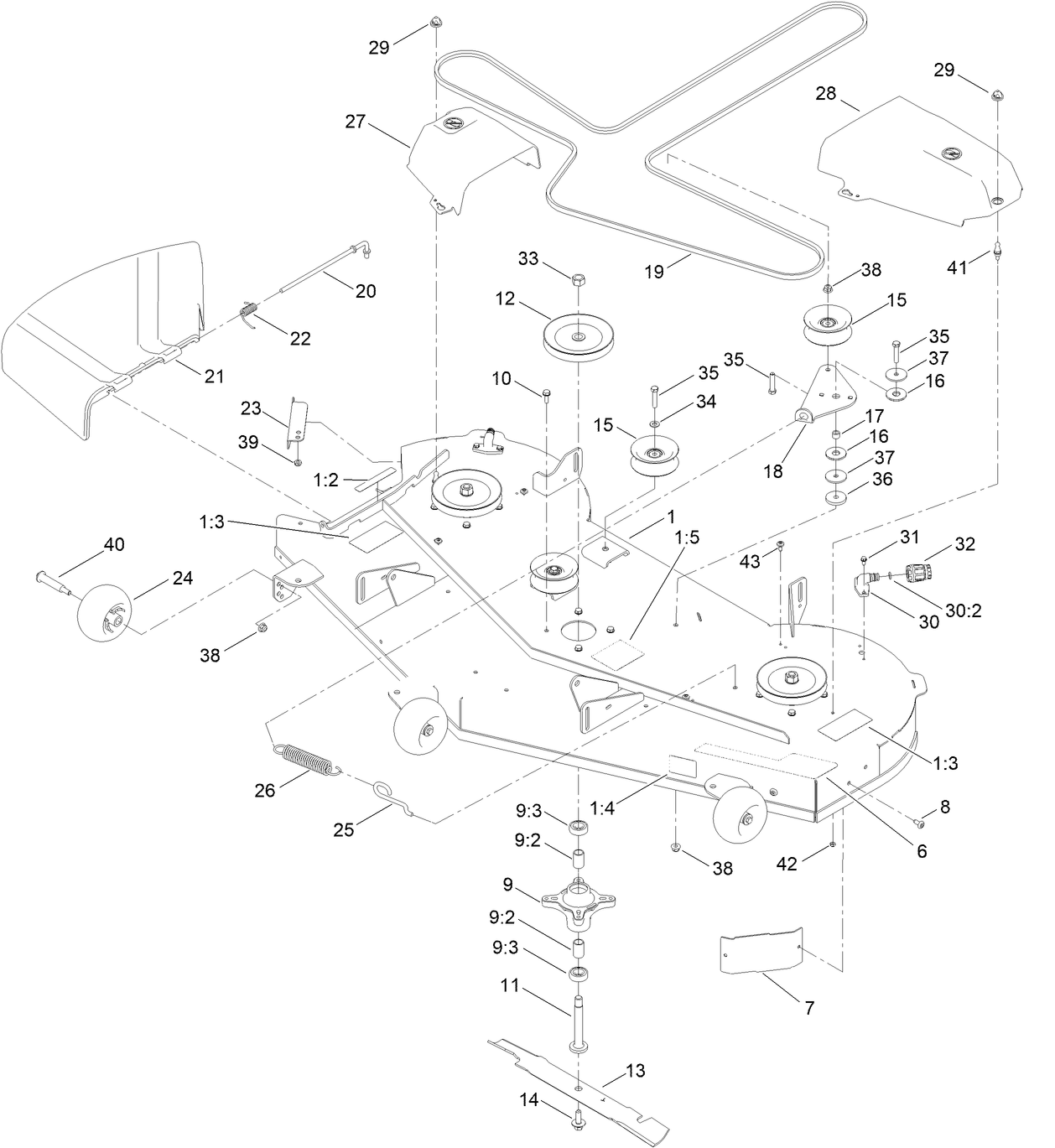

60in Deck and Decal Assembly
60in Deck and Decal Assembly
Brake Assembly
Brake Assembly
Caster Tire Assembly
Caster Tire Assembly
Clutch Assembly
Clutch Assembly
Deck Lift Assembly
Deck Lift Assembly
Electrical Assembly
Electrical Assembly

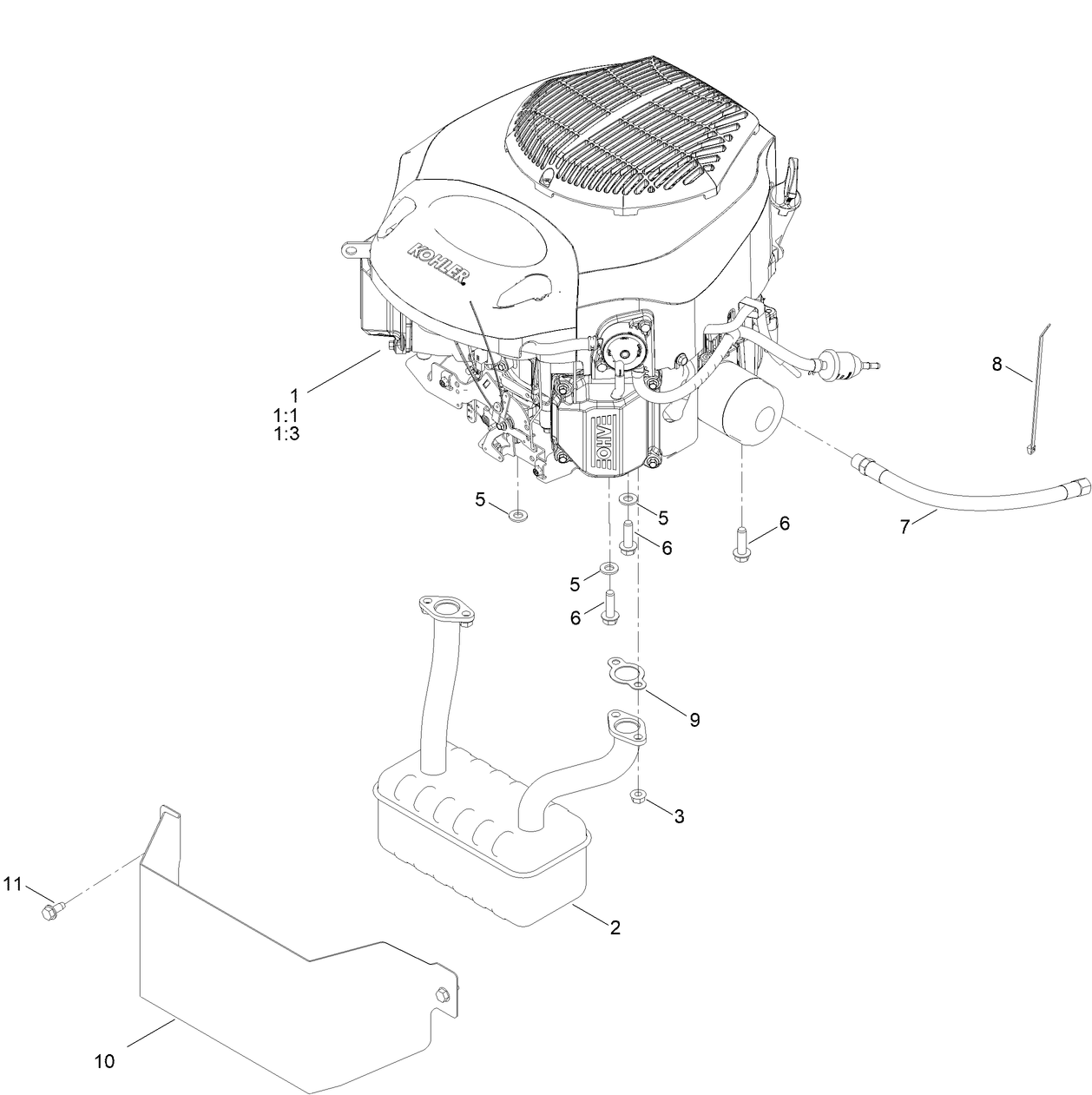

Engine and Muffler Assembly
Engine and Muffler Assembly
Frame Assembly
Frame Assembly
Frame Decal Assembly
Frame Decal Assembly

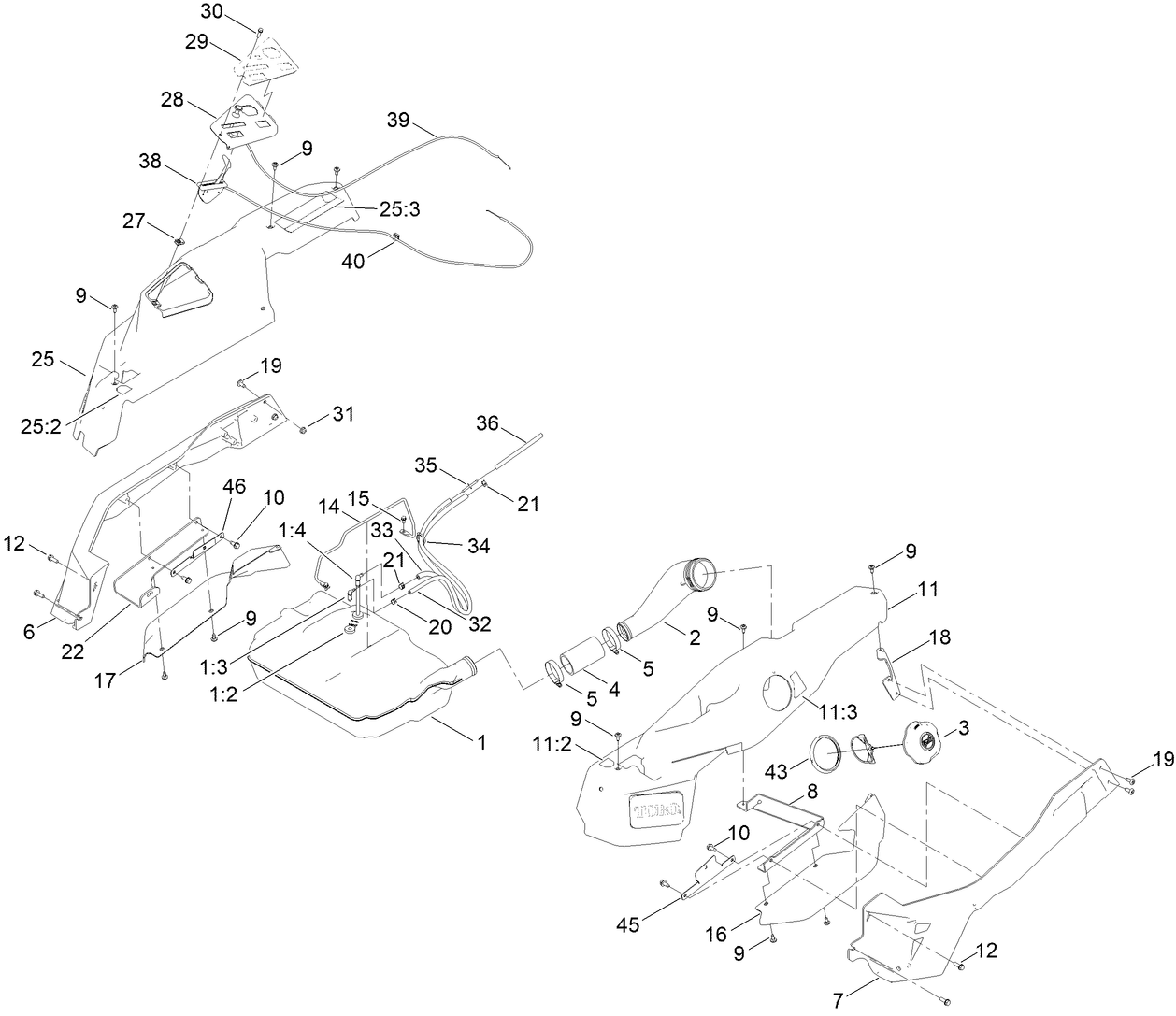

Fuel Pod Assembly
Fuel Pod Assembly
LH Hydro Transmission Assembly No. 140-8301
LH Hydro Transmission Assembly No. 140-8301
Motion Control Assembly
Motion Control Assembly
RH Hydro Transmission Assembly No. 140-8300
RH Hydro Transmission Assembly No. 140-8300
Seat Assembly No. 147-8731
Seat Assembly No. 147-8731
Seat Pan Assembly
Seat Pan Assembly
Tire Assembly
Tire Assembly
Tranction Control Assembly
Tranction Control Assembly
Download Parts Catalog
Operator's Manual
Service Manual
Parts Catalog
Setup Instructions
Product Warranty
Genuine OEM Part 131-3823
All Season 4-Cycle Fuel for Lawn Mowers and Snow Blowers 32 oz (Part # 131-3823)
This genuine Toro OEM all-season 4-cycle fuel is a premium ethanol-free fuel formulated specifically for outdoor power equipment engines including lawn mowers and snow blowers. Unlike pump gasoline, ethanol-free fuel does not absorb moisture or degrade over time, making it particularly well-suited for seasonal equipment or machines that may sit unused for extended periods. No mixing is required — it pours straight in for clean, reliable starting and operation. Refer to your operator manual to confirm 4-cycle fuel compatibility with your equipment.
$8.79 USD
Genuine OEM Part 131-6572
Premium Fuel Treatment (12 oz.) (Part # 131-6572)
Toro Premium Fuel Treatment helps ensure clean, reliable engine performance and protection. Toro Premium Fuel Treatment is designed to protect small 2-cycle and 4-cycle engines from the effects of ethanol-blended fuels, which can degrade over time and leave harmful deposits in carburetors and fuel systems. Using a fuel stabilizer with every fill-up is particularly important for equipment that sits unused for extended periods, such as mowers stored over winter.
$10.99 USD
Genuine OEM Part 138-6053
Toro Full Synthetic 10W-30 Engine Oil (32 oz.) (Part # 138-6053)
Toro full synthetic 10W-30 engine oil. The easy engine oil choice for any outdoor power equipmentto increase performance and reliability.
$14.29 USD
Genuine OEM Part 139-3290
60 inch TimeCutter Recycler Kit (Part # 139-3290)
By adding the Toro Recycler system to your Toro 60 in. TimeCutter SS or SW Zero-Turn Mower, you create your own natural fertilizer. This patented system cuts grass clippings 6-8 times, turning them into a fine, nutrient-rich mulch to feed your lawn all season. The secret lies in the unique 'kickers' that direct clippings back into the blades to be re-cut before being released into your lawn to promote its health and vitality.
$335.49 USD
Genuine OEM Part 140-2051
TimeCutter Heavy Duty Spring Kit (Part # 140-2051)
Toro heavy duty spring kit keeps your TimeCutter more stable over rough terrain. To best protect your investment and maintain optimal performance of your turf equipment, count on Toro genuine parts. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
TimeCutter 60 in. Bagging Enhancement Kit (Fits Model 75760)
TimeCutter 60 in. Bagging Enhancement Kit (Fits Model 75760) (Part # 140-3508)
This bagging enhancement kit can be used with 50 in. Toro TimeCutter MX and SWX fabricated deck model 2012 and newer. It will enhance bagging performance in extreme conditions such as heavy, wet grass or autumn leaf bagging. Refer to the operator manual for installation and use.
$159.49 USD
Empty Image Container
KIT-HYDRO SERVICE [INTEGRATED TANK] (Part # 144-5347)
$149.59 USD
Please contact your local dealer
Empty Image Container
KIT-CASTER WHEEL [13X6.50-6 HOLLOMATIC] (Part # 145-0489)
$532.34 USD
Genuine OEM Part 147-8757
LED Light Kit (Part # 147-8757)
Genuine OEM Part
$197.99 USD
Genuine OEM Part 147-8764
FLOORMAT KIT (Part # 147-8764)
Genuine OEM Part
$75.89 USD
Empty Image Container
ARM REST KIT [SK220] (Part # 147-8773)
$170.49 USD
Genuine OEM Part 147-8781
54 in. / 60 in. Striping Kit (Part # 147-8781)
Genuine OEM Part
KIT, JACK TC (Part # 147-8835)
Empty Image Container
ASSIST BAR KIT (Part # 161-4450)
$188.09 USD
Empty Image Container
TRANS LOCK KIT [TC] (Part # 161-4510)
$65.99 USD
WEIGHT-KIT (Part # 161-4516)
10W30 4-Cycle Engine Oil - 32 oz. Bottle
10W30 4-Cycle Engine Oil - 32 oz. Bottle (Part # 38280)
The Toro 38280 Premium 4-Cycle Lawn Mower Engine Oil 10W-30 is specially formulated to meet specific 4-cycle engine manufacturer requirements calling for 10W-30. This lawn mower engine oil provides the ultimate protection for all 4-cycle OPE engines. The lawn mower engine oil is developed with Toro engineering to meet the standards for all air-cooled, liquid-cooled and diesel engines. To maximize the performance of your Toro lawn mower, we highly recommend using this Toro lawn mower engine oil, which has been specifically formulated for best results. The lawn mower engine oil provides extreme performance in all temperatures, enhancing the life of your lawn mower's engine.
$11.28 USD
SAE 30 4-Cycle Lawn Mower Engine Oil 32 oz
SAE 30 4-Cycle Lawn Mower Engine Oil 32 oz (Part # 38903)
Toro SAE 30 4-cycle engine oil passed the strictest requirements in thousands of hours of testing in hundreds of engines before you filled your lawn mower. This oil meets or exceeds performance requirements of all OEM engines (Toro, Briggs & Stratton, KOLHER, Honda, and Tecumseh). The use of Toro SAE 30 4-cycle lawn mower oil minimizes molecular shearing for extended life in hot-air-cooled applications vs multi-grades (i.e., 10W-30).
$9.99 USD
Genuine OEM Part 490-7319
Titan Deluxe Cover (Part # 490-7319)
Toro OEM deluxe rider cover keeps your Titan riding lawn mower protected from the elements when not in use. Cover is made to withstand wear and tear and features elastic cord to keep cover in place. This Toro OEM mower cover is made from durable, weather-resistant material to protect your equipment from rain, sun, dust, and debris during storage. Verify your model and serial number to confirm the correct cover for your equipment.
$159.99 USD
Empty Image Container
ROPS KIT (Part # 79487)
$945.99 USD
KIT-SLOPE SENSOR (Part # 79489)
TimeCutterTwin Bagger
TimeCutter Max 60 in. Twin Bagger (Part # 79601)
The Toro TimeCutter Twin Bagger with its 6.43 bushel (8 cu. ft.) capacity makes quick work of taking care of grass clippings or fallen leaves. When paired with one of Toro's top discharge decks, its performance can't be beat. It assembles easily and once initially installed, can be removed and put back on without tools. Includes bagger, mount kit and front weights.
$999.00 USD
Please contact your local dealer

Model #

77602

Serial #

400000000 - 415399999

Product Name

60 in. (152 cm) TimeCutter® MyRIDE Max Zero Turn Mower

Product Brand

Toro

Product Type

Riding Products

Product Series

Zero Radius Turn, Consumer

Chassis Type

ZRT - Consumer

Swath

60 inch / 152 cm

Discharge

Side Discharge

Engine/Motor Manufacturer

Kohler

Engine/Motor Size

24 hp

Engine/Motor Type

4 Cycle

Engine Starter

Electric

Transmission Type

Hydrostatic

Traction Type

Rear WD

Engine: Engine Speed

3600±100 RPM

Engine: Spark Plug Gap

.030"/ .76mm

Chassis: Tire Pressure

13 psi / 90 kPa

Engine: Engine Oil Type

64 oz. (1.9 Liter) SAE 10W-30 or 10W-40

Engine: Spark Plug

Champion XC12YC

Engine: Battery

12V 230CCA

Chassis: Height of Cut Range

1.5"- 5", 1.2" increments

Engine: Ignition Coil Air Gap

0.011in (0.3mm)

Drive System: Ground Speed

Forward: 0-7 mph

Drive System: Gearbox Lubricant

HYPR-OIL 500 / 20w-50 Synthetic Motor Oil
