Discontinued

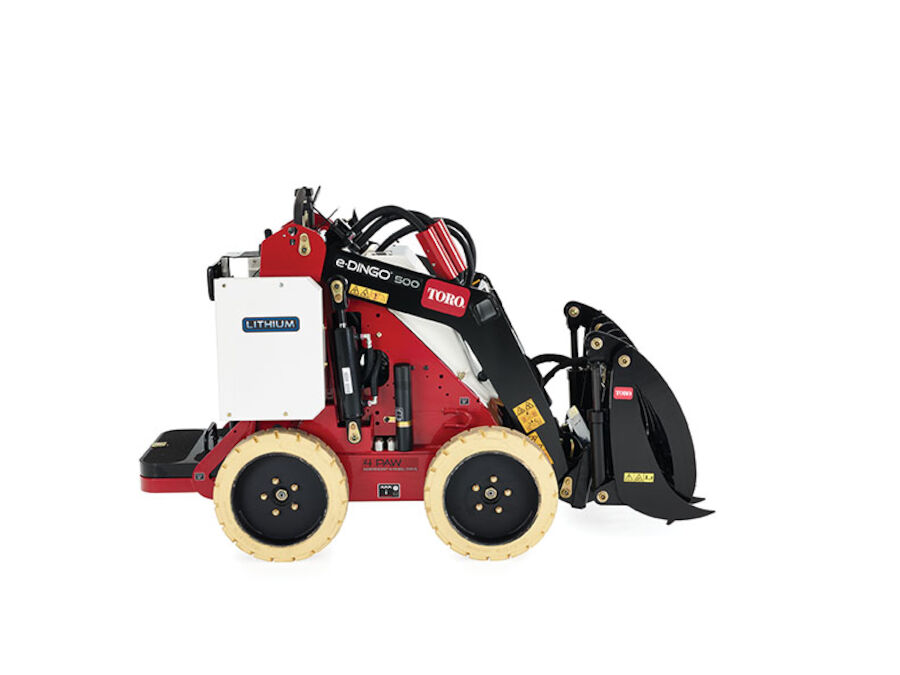

e-Dingo® 500 Wheeled

Model: 22218

Lithium-ion batteries are designed to last the life of the traction unit
Patented 4-Paw Independent Four-Wheel Drive
Compact footprint fits through standard 36" gates
Easy-to-reach 4-stick fingertip hand controls

Top

Overview

As a market leader in compact utility loaders, Toro has made a major step into the electric equipment marketplace with the introduction of the new Toro® e-Dingo® 500 compact utility loader. The e-Dingo allows contractors and construction professionals to realize all the benefits and power of a standard compact utility loader with no fuel costs and zero exhaust emissions. Greater efficiency, and reliable performance sets the e-Dingo apart for faster completion times and greater return on investment (ROI) for Rental partners. It’s powered by lithium-ion battery technology designed for tasks that require heavy or continuous operation for indoor applications. The maximum operating capacity of 515 pounds reduces labor and hauling time.

Features

e-Dingo Reliable Performance

Lithium-ion batteries are designed to last the life of the traction unit, and he 4-Paw independent 4-wheel drive system delivers maximum traction.

Dingo 320D wheeled digging holes using the auger attachment

4-Paw® Independent 4-Wheel Drive

Four independent wheel motors deliver hydraulic flow and pressure to all our wheels for improved traction and mobility. Fewer moving parts also mean less maintenance.

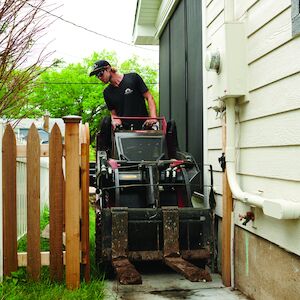

White male operating Dingo TX 1000 with forks attach going through a back yard gate.

Compact Size

Narrow enough so you can bring hydraulic power to tight areas; through doorways and gates previously accessible only by manual labor. Plus it provides zero radius turn capability for unmatched maneuverability.

Offboard Charger

Offboard charger (1200W) charges in less than 8 hours

Dingo 320-D with the soil cultivator attachment

Fingertip Controls

Easy-to-reach 4-stick fingertip hand controls enable all functions from the operator position. The operator controls all movements of the machine and attachments with his fingertips.

Specifications

Battery	Four Lithium-Ion Samsung® SDI batteries. 48V nominal.
Dump Angle	34-degree
Dump Height (cm)	119
Dump Height (inches)	47
Fuel Type	Electric
Ground Clearance (cm)	15
Ground Clearance (inches)	5.8
Ground Speed Forward (mph)	2.75
Hinge Pin Height (cm)	167.6
Hinge Pin Height (inches)	66
Loader Arms	Radial
Max Operating Height (cm)	231.6
Max Operating Height (inches)	91.2
Motor Capacity (kW)	9.12
Overall Height w/bucket (cm)	123.6
Overall Height w/bucket (inches)	48.7
Overall Height w/o bucket (cm)	123.6
Overall Height w/o bucket (inches)	48.7
Overall Length w/bucket (cm)	208.7
Overall Length w/bucket (inches)	82.2
Overall Length w/o bucket (cm)	157.48
Overall Length w/o bucket (inches)	62
Overall Width w/bucket (cm)	90.4
Overall Width w/bucket (inches)	35.6
Overall Width w/o bucket (cm)	90.6
Overall Width w/o bucket (inches)	35.7
Rated Operating Capacity (kg)	234
Rated Operating Capacity (lbs)	515
Reach – Fully Raised (cm)	71.1
Reach – Fully Raised (inches)	28
Reservoir Capacity (gallons)	14.8
Weight (kg)	2076
Weight (lbs)	942
Wheelbase (inches)	28

Accessories

Toro 5 Gallon PX Extended Life Hydraulic Fluid (Part # 133-8086)

Toro 5 Gallon PX Extended Life Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro 55 Gallon PX Extended Life Hydraulic Fluid (Part # 133-8087)

Toro 55 Gallon PX Extended Life Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro PX Extended Life Hydraulic Fluid - 1 Gallon/4pack (Part # 138-9460)

Toro PX Extended Life Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

KIT, LIGHT ASM (Part # 139-7677)

SPARE TIRE KIT ASM (Part # 144-0105)

Loader Bucket Attachment (Part # 22409)

Use this standard bucket for moving rock, dirt, sand or other materials off and around the job site. The hardened steel cutting edge offers improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear. Capacity = 4 cubic feet (1 cu. m.).

Light Materials Loader Bucket Attachment (Part # 22410)

Designed for moving light materials like chip-bark, mulch, snow and loam. The larger capacity bucket, 6.4 cubic feet (.2 cu. m.), is great for handling larger loads of lighter materials. The hardened steel cutting edge allows for improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear.

Utility Blade Attachment (Part # 22414)

The Toro Dingo hydraulic blade greatly increases the versatility of your Dingo system. This incredibly versatile attachment can be used for a variety of earth or snow moving jobs. Fill trenches where rows of trees have been planted or irrigation pipes have been installed. Keep your hydraulic blade working in the winter by pushing snow from sidewalks in one pass.

Tree Fork Attachment (Part # 22438)

The Toro Dingo hydraulic tree forks can help you plant trees and large shrubs quickly and effortlessly, plus move all sorts of materials around your garden center or nursery. The Dingo Compact Utility Loader is especially easy to maneuver, helping you transport and position trees or shrubs exactly where you want them.

4-in-1 Bucket Loader Bucket Attachment (Part # 22478)

Designed to be used on the Dingo 323, 320-D, e-Dingo, TX 427, TX 525 and TX 1000 models, this attachment offers the versatility of 4 attachments. Use as a standard bucket, a leveler, a grapple rake and a blade.

Narrow Loader Bucket Attachment (Part # 22520)

Handle compact construction and remodeling sites by moving through 36" (91.4 cm) gates without a problem. This 35" (88 cm) wide bucket allows you to get through narrow spaces, including gates and doorways. Move rock, dirt, sand or other materials off and around the job site. Great for use on any Dingo® model equipped with narrow wheels and tires.

Grapple Rake Attachment (Part # 22577)

The Toro grapple rake attachment allows operators to grab, drag, lift, and place materials with ease. The grapple has two heavy-duty cylinders capable of producing 3000 pounds of clamping force at the tine tips, insuring you can "grab-ahold" and not let go.

Adjustable Forks Attachment (Part # 22586)

The Toro Dingo adjustable forks greatly increase the productivity and performance of your Dingo system. This versatile attachment can be used for a variety of material handling jobs to move posts, rocks, trees, pallets, etc. around the job site. It's like having a roving workstation to transport heavy materials around the job site without fatigue. For use on all Dingo models, except Dingo TXL 2000.

Grapple Bucket Attachment (Part # 22590)

Designed for contractors looking for a bucket to grab, drag, lift and remove materials on residential, commercial and demolition sites. Designed to be used on the Dingo 323, 320-D, e-Dingo, TX 427, TX 525, TX 1000 and e-Dingo models.

Floor Scrapper Attachment on the eDingo 500

Floor Scraper Attachment (Part # 22670)

The Toro eDingo floor scraper has an all-steel construction that makes flooring removal simple. It displaces vinyl, quarry, and ceramic tile, as well as carpet squares, paint, glue, and more.

Mini Skid Steer Auger Attachment (Part # 22806)

This attachment swivels in all directions to create plumb holes on uneven terrain. The higher speed of this auger power head is ideal for augers up to 24" (61cm) in diameter. Quickly change between auger bit sizes to dig holes for fence posts, footings, irrigation heads and more!

6" Full Flight Auger Bit (Part # 22820)

6" full flight auger bit requires auger power head attachment 22805 or 22806.

9" Full Flight Auger Bit (Part # 22821)

9" full flight auger bit requires auger power head attachment 22805 or 22806.

12" Full Flight Auger Bit (Part # 22822)

12" full flight auger bit requires auger power head attachment 22805 or 22806.

Concrete Breaker, Dingo Compact Utility Loaders (Part # 23135)

Leveler Attachment (Part # 23165)

This versatile and highly productive tool is a must have attachment for all job sites. Use to grade, finish, and spread landscape materials, backfill trenches, and break up the turf. Also great for carrying and transporting materials around the job site.

Documents

Title	Documents
e-Dingo® 500 Wheeled Sell Sheet.pdf	PDF - Sellsheet-en-us

Parts & Manuals

Select your model year from the options below to view parts & manuals.

22218 Serial #
411800000-999999999
407600000-411799999
407100000-407599999
400000000-407099999

Warranty

For complete product warranty information contact Toro Customer Service

22218 Product Warranty

**See dealer for Warranty details.
