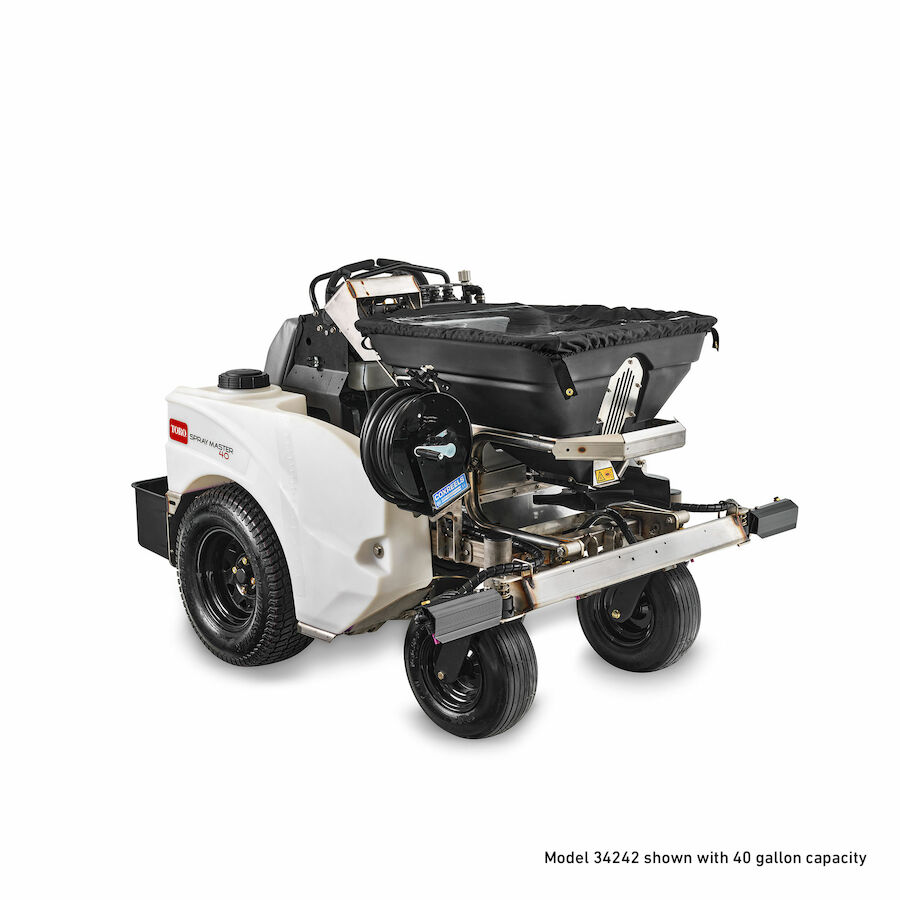

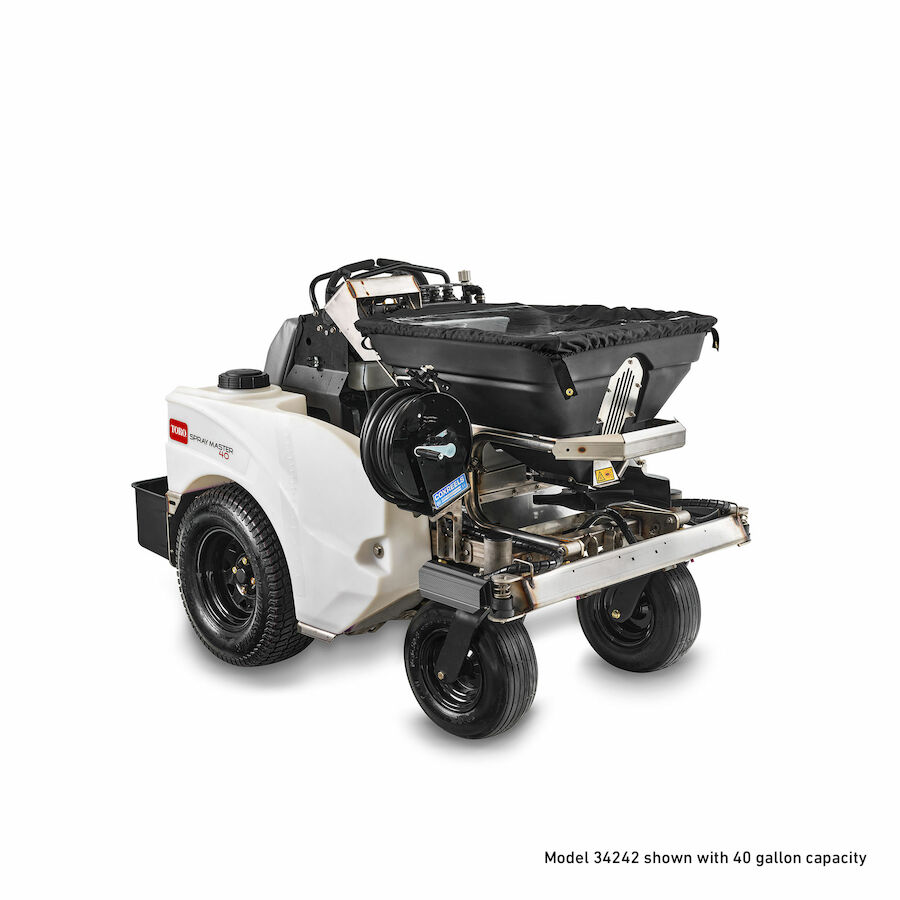

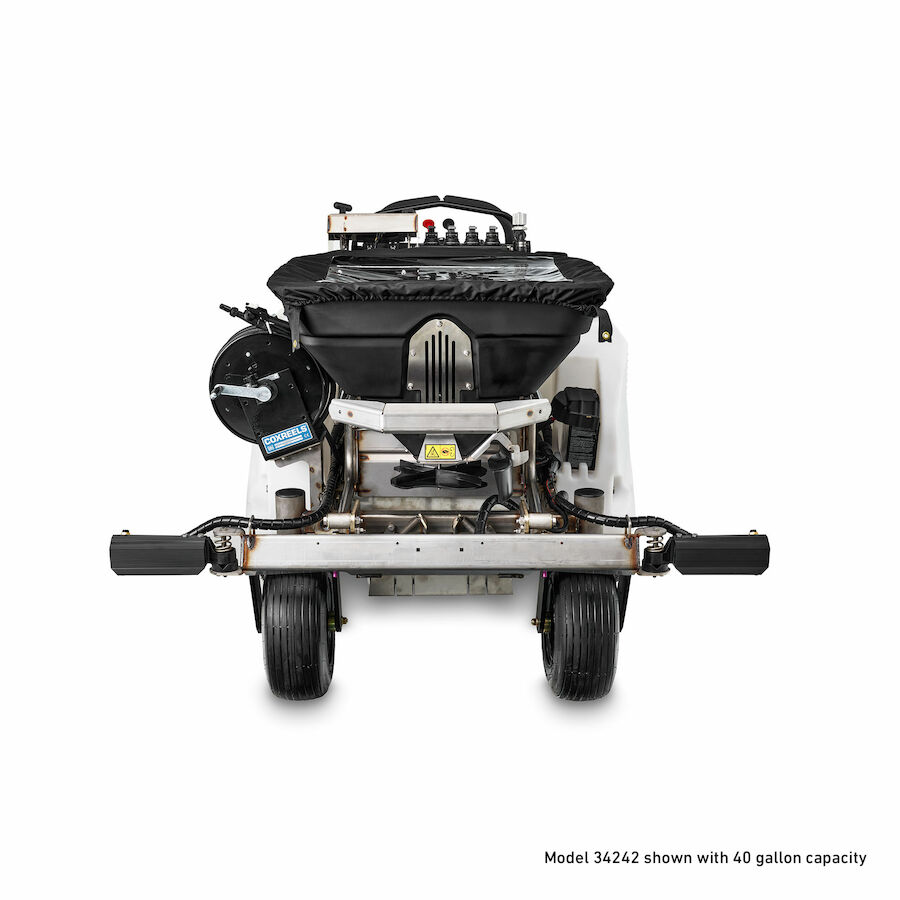

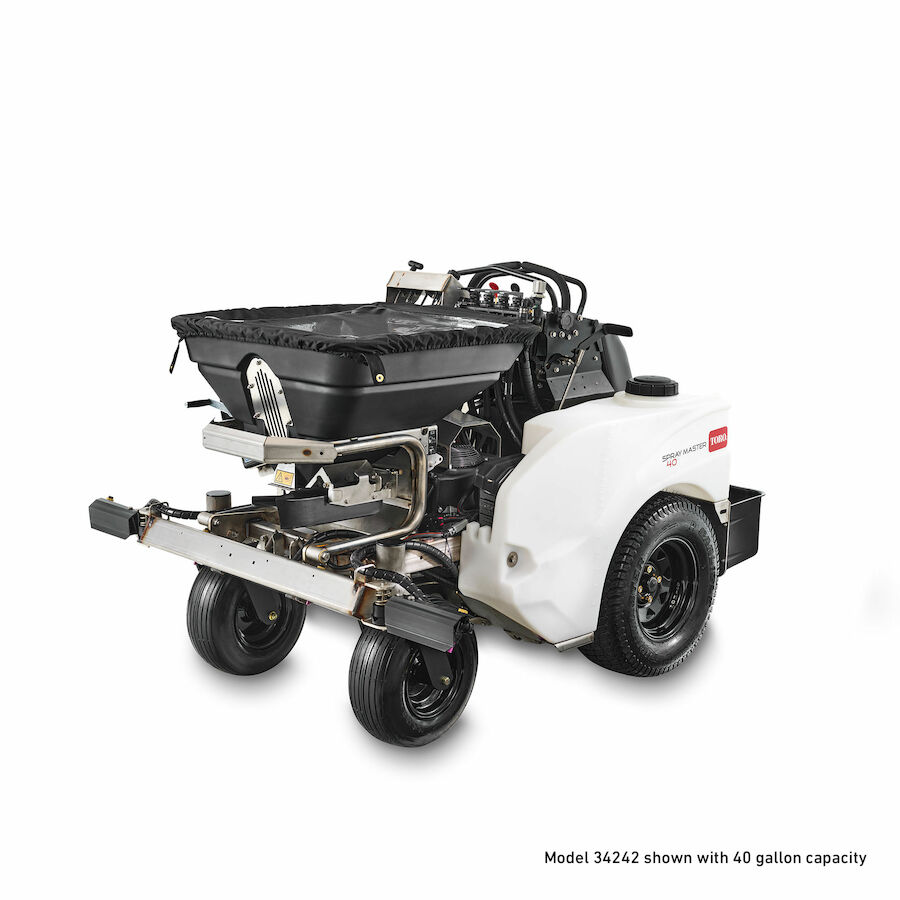

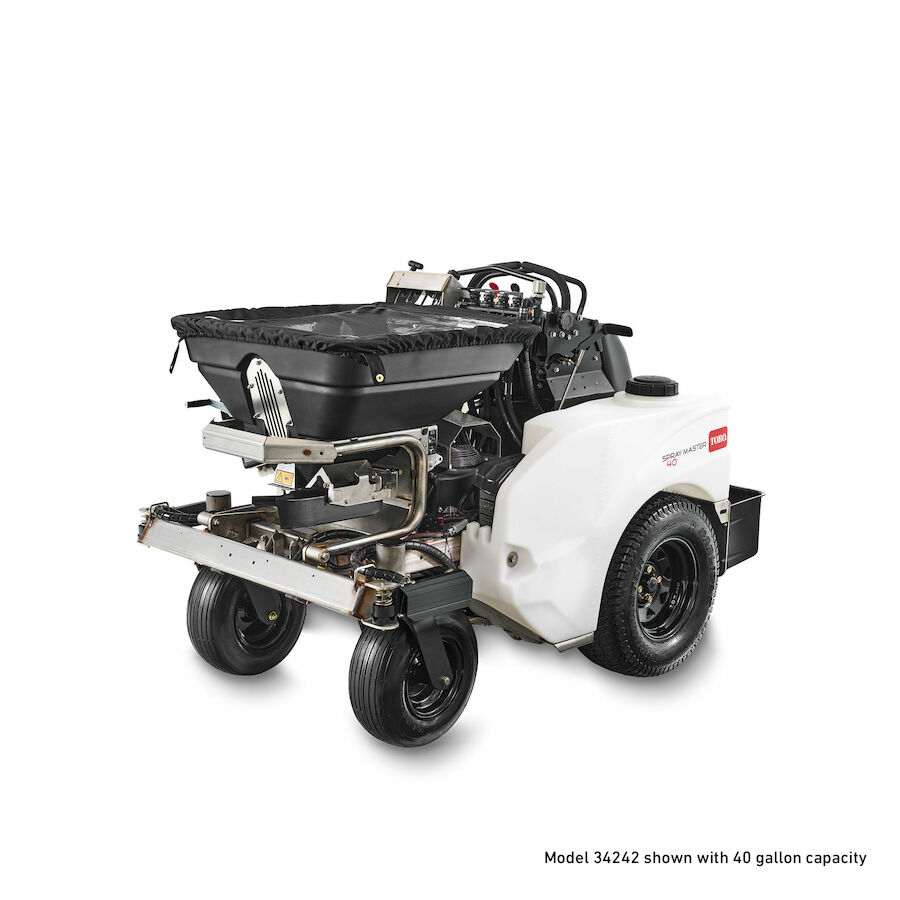

Stand-On 24 Gallon SprayMaster

Model: 34246
UPC/EAN: 21038342467

See All Items in Spreader / Sprayers

Find a Dealer

The control panel allows the operator to conveniently make adjustments for a precise application.
The 36" wide compact design allows for exceptional maneuverability.
Reduce operator fatigue with rubber compression in the foot plate and a larger padded knee bolster.
The flip up hopper provides easy access to the engine and battery for maintenance.
Ride in style with improved hopper cover and knee bolster featuring Toro's bullhorn logo.
The new design increases the balance and stability resulting in less turf tear up.
Easy spot spraying with larger foot switch so the operator doesn't accidentally hit it. Operator can move the location to three different spots for convenience.
Carry up to 100 lbs. of additional fertilizer with 2 fertilizer trays (50 lbs. per tray) to get the job done faster with less re-fill trips.
Horizon360^® Business Management Software. Work More Efficiently. Run More Profitably.

Top

Find a Dealer

Overview

Uneven applications cost you valuable time and money, not to mention unhappy clients. The Stand-On 60 Gallon SprayMaster And as a Toro owner, you'll have access to nearly 3,000 servicing dealers across the U.S. and Canada ready to assist you. Count on it.

Features

Easy-To-Use Controls

Designed with feedback from the pros, the easy-to-operate control panel allows the operator to conveniently make adjustments to spread and spray settings for a more precise application.

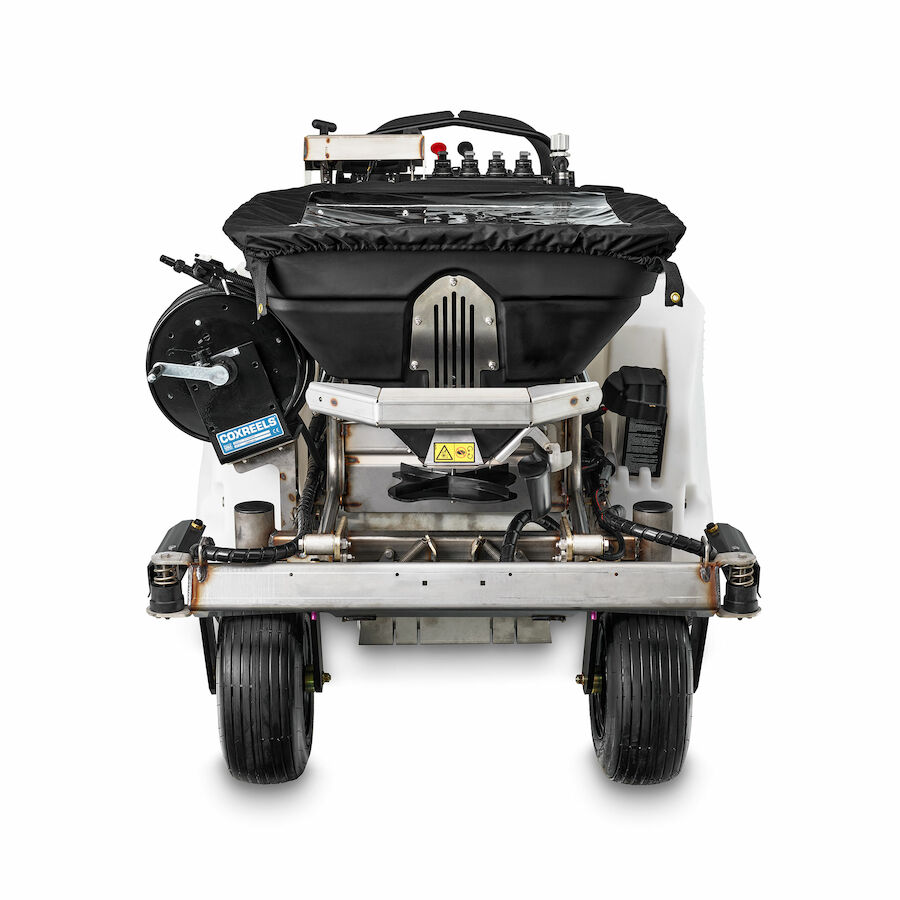

Compact Design

The compact design allows for exceptional maneuverability in tight spaces, including fitting through 36” gates, so spraying and spreading is possible in any area.

Ride In Comfort

Ride in comfort and reduce operator fatigue with the large stainless steel operator platform with rubber compression, isolation mounts and a larger padded knee bolster.

Easy Maintenance

Maintenance is a breeze with the flip up hopper that provides easy access to the engine and a more accessible location for the battery.

Ride In Style

The updated appearance featuring improved hopper cover and custom-stitched knee bolster featuring Toro's bullhorn logo allows you to ride in style.

Balance & Stability

The new design allows for spray tanks and engine to be lower resulting in increased balance and stability and less turf tear up.

Horizon360^® Business Management Software.

Managing and growing your business is hard work. Using a business management software system shouldn't make it harder. That is why we built Horizon360. If you can type and point/click a mouse, you have all the skills required.

For more information click here.

Specifications

Drive System	HYDRO
Engine	Vanguard 16 hp
Engine Brand	Briggs and Stratton
Engine Displacement (cc)	479 cc
Engine Horsepower	16.0 hp
Frame	Stainless Steel
Fuel Capacity	5 gal. / 18.9 L / 20 Qt.
Fuel Type	Gasoline
Ground Speed	Up to 7.0 mph / 11.2 kph
Hopper Capacity	150 lbs
Product Type	Spreader/Sprayer
Recommended Oil Type	10W50
Spray Capacity (gallons)	24
Spray Wand	Standard, hand-held spray wand for spot spraying
Spray Width	2 ft, 4 ft, 6 ft or 8 ft / 0.6 m, 1.2 m, 1.8 m or 2.4 m
Spreader Hopper Capacity (lbs)	150
Spreading Width	Up to 25 ft
Start Type	Electric
Tires	Drive Tires 22 in x 8.5 in - 12 in / 55.8 cm x 21.5 cm - 30.4 cm; & Ribbed Front Tires 15 in x 5 in - 6 in / 38.1 cm x 12.7 cm x 15.2 cm
Transaxle	HydroGear ZT3400

Accessories

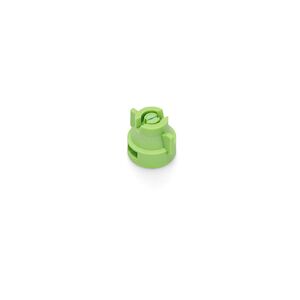

Sprayer Nozzle (Part # 117-5838)

Toro OEM Sprayer Nozzle

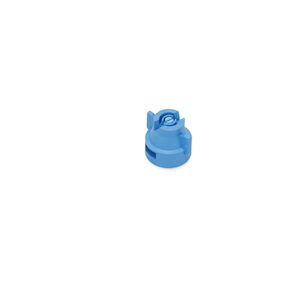

Sprayer Nozzle (Part # 117-5839)

Toro OEM Sprayer Nozzle

5 PSI CHECK VALVE\N11750-PP-5 (Part # 135-8385)

TIP-SPRAY, 015 (Part # 142-3306)

TIP-SPRAY, 02 (Part # 142-3307)

Toro 025 Lavender Spray Tio (Part # 142-3308)

Toro spray nozzles are the best way to outfit your Toro SprayMaster sprayer to achieve wide-angle coverage plus drift control. To best protect your investment and maintain optimal performance of your equipment, count on Toro genuine OEM parts and accessories.

TIP-SPRAY, 03 (Part # 142-3309)

TIP-SPRAY, 04 (Part # 142-3310)

TIP-SPRAY, 05 (Part # 142-3311)

TIP-SPRAY, 06 (Part # 142-3312)

Wide Application Nozzle Kit (Part # 142-5488)

15FT Hose Reel Kit (Part # 142-6680)

Foam Marker Kit-Jr36 (Part # 142-6681)

Light Kit (Part # 142-7876)

Vibratory Motor (Part # 142-7877)

Pump Kit, 7 Gallon (Part # 142-7879)

20 Gallon Auxiliary Tank Kit, 36in SprayMaster (Part # 146-0604)

7 Gallon Isolated Tank Kit, 36in SprayMaster (Part # 146-0605)

7 Gallon Auxiliary Tank Kit, 36in SprayMaster (Part # 146-0606)

TIP-SPRAY, XRC11020 (Part # 146-0633)

Documents

Title	Documents
2025 SprayMaster Sellsheet	PDF - Sellsheet-en-us

Parts & Manuals

Select your model year from the options below to view parts & manuals.

34246 Serial #
415300000-999999999
400000000-415299999
