T5 ROTOR,5IN POP, SST, RS, LN

Available in Lawn, Shrub, High Pop, and Stainless Steel models
  • Model: T5PSS-RS-LN
  • UPC/EAN: 90258083702
See All Items in T5 Rapidset Series Rotors
  • Arc adjustments from 40° to 360° can be made quickly with a few twists of the turret – no tools required. The patent-pending RapidSet slip clutch also protects against gear damage caused by intentional vandalism or inexperienced users.
  • The T5 RapidSet rotor comes with a full set of 8 standard nozzles (25° trajectory) and 4 low angle (10° trajectory) nozzles. The nozzles’ unique geometry creates a zone of low pressure just below the main stream to gently guide water downward for unmatched uniformity without forcefully washing out newly-laid seeds.
  • Easily replaces most competitive 4” pop-up rotors in the same footprint, but delivers an extra inch of nozzle clearance.
  • Commercial-grade 304 stainless steel riser and nozzle base sleeves help prevent ‘stick-ups’ and eliminate scoring of the riser caused by coarse and sandy soils.

Overview

The new Toro T5 RapidSet Series Rotor has the features to satisfy all your basic irrigation needs while surprising you with a few extras. The T5 offers an extra inch of pop-up height compared to most competitive units. All lawn models are now available with the optional RapidSet feature, a quick and easy way to make arc adjustments—with NO TOOLS. For those day-in and day-out installations, the T5 is the only rotor you’ll need.

Features

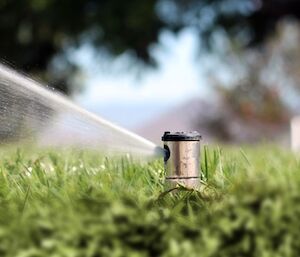

RapidSet® Arc Adjustment
RapidSet® Arc Adjustment
Arc adjustments from 40° to 360° can be made quickly with a few twists of the turret – no tools required. The patent-pending RapidSet slip clutch also protects against gear damage caused by intentional vandalism or inexperienced users.

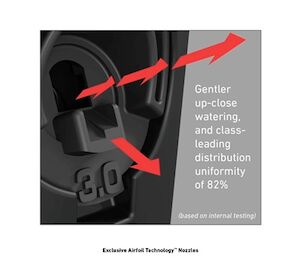

Airfoil Technology Nozzles
Airfoil Technology Nozzles
The T5 RapidSet rotor comes with a full set of 8 standard nozzles (25° trajectory) and 4 low angle (10° trajectory) nozzles. The nozzles’ unique geometry creates a zone of low pressure just below the main stream to gently guide water downward for unmatched uniformity without forcefully washing out newly-laid seeds.
5

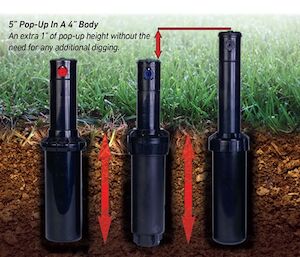

5" Pop-Up
Easily replaces most competitive 4” pop-up rotors in the same footprint, but delivers an extra inch of nozzle clearance.
Available Stainless Steel Models
Available Stainless Steel Models
Commercial-grade 304 stainless steel riser and nozzle base sleeves help prevent ‘stick-ups’ and eliminate scoring of the riser caused by coarse and sandy soils.

Specifications

Arc 40 - 360 deg.
Body Type Lawn Pop
Check Valve No
Effluent No
Inlet Size 0.75 in.
Less Nozzle Yes
Nozzle Set-OLD 3
Pop-up Height 5" (127 mm)
Radius 25 - 50 ft (7.6 - 15.2m)
Rapid Set Yes
Stainless Steel Yes

Documents

Title Documents
20-1009-T5-RapidSet-SS.pdf PDF - Sellsheet-en-us



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
