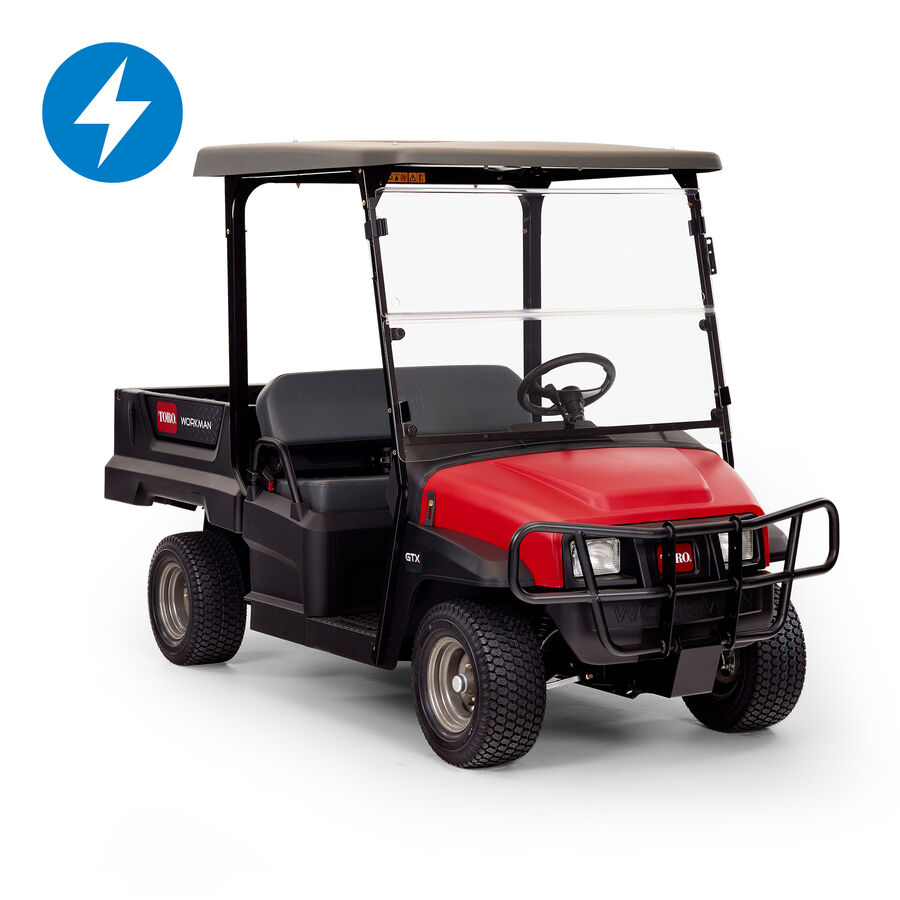

Workman® GTX Utility Vehicle

  • Model: 07410
See All Items in Workman® GTX Series
  • An improved power to weight ratio boosts payload capacity and productivity.
  • Ergonomically designed steering wheel and intuitive controls that make operation simple and easy.
  • Coil-over shocks on all four tires delivers greater suspension travel and adjustability resulting in a smoother ride and minimized operator fatigue.
  • Maintenance free batteries, improved power-to-weight ratio, extended battery life, and largest cargo capacity in its class, the Lithium-Ion GTX is a machine that's always ready to get to work.
  • Virtually unbreakable exterior components and a powder coated frame and underbody give the Workman GTX superior durability.
  • We didn't think of everything. You did. We just listened. Full access for service. Storage is abundant and a standard USB port makes a dead battery on the job a thing of the past.

Overview

The Workman® GTX Series is a grounds and turf crossover vehicle that boasts an unequalled combination of comfort, utility and control, making it simply superior to the competition. Its increased power, improved steering and exclusive suspension and braking systems make the Workman GTX the most versatile, practical and comfortable utility vehicle in its class.

Available in gas or electric options, the Workman GTX features hundreds of configurable options that include front and rear attachments, a flat bed and four-seat option, to name a few. So whether you are running to different jobs around the property, moving people or materials, or transporting tools to crews that need them, the Workman GTX has the power and versatility to get the job done right.

Features

workman-gtx-series-feature-lifted-models
Lifted Models
Workman GTX Lifted models boast and additional 3" (7.6cm) of increased ground clearance, and stylish turf friendly 22-inch (55.8 cm) turf tires with modern 12-inch (30.5 cm) aluminum wheels. Available in both EFI Gas and Lithium-Ion powertrain options.
workman-gtx-series-feature-power
Power
Whether you choose the EFI gasoline, Lithium-Ion Battery, or Lead-Acid Battery electric Workman GTX, power and performance come standard. An improved power to weight ratio boosts payload capacity and productivity. The Workman GTX is the smarter, more efficient way to get the job done!
workman-gtx-series-feature-comfort
Comfort
The deluxe bench seat features Elastomeric Vibration Control (ELC) for additional comfort in rough terrain. The GTX also features an ergonomically designed steering wheel and intuitive controls that make operation simple and easy.
workman-gtx-series-feature-suspension
Suspension
Coil-over shocks on all four tires delivers greater suspension travel and adjustability resulting in a smoother ride and minimized operator fatigue. We also made it the only vehicle in its class to feature a split frame to further increase ride comfort.
workman-gtx-series-feature-lithium-ion-power
Lithium-Ion Power Option
Maintenance free batteries, improved power-to-weight ratio, extended battery life, and largest cargo capacity in its class, the Lithium-Ion GTX is a machine that's always ready to get to work.
workman-gtx-series-feature-versatility
Versatility
The Workman GTX is adaptable for any task. Two or four-seat configurations come with bench or bucket seats. Front and rear attachment points for garbage cans, hose reels or walk spreaders free up the bed for more hauling capacity. Steel 4 and 6-foot flat beds are also available.
workman-gtx-series-feature-control
Control
An automotive-grade rack and pinion steering system provides more control and lowers steering effort, while operating loaded or empty. This allows operators to focus on the task at hand and nothing else.
workman-gtx-series-feature-durability
Durability
Virtually unbreakable exterior components and a powder coated frame and underbody give the Workman GTX superior durability. How do we know? We pushed it to the limits with the most punishing lab tests and gave it no mercy in real-world challenges with customers. The Workman GTX has been through it all so you can run it hard, day after day with confidence.
workman-gtx-series-feature-detailing
Detailing
We didn't think of everything. You did. We just listened. Full access for service. Storage is abundant and a standard USB port makes a dead battery on the job a thing of the past.
workman-gtx-series-feature-braking
Braking
The Workman GTX features class-exclusive hydraulic disc brakes. Minimal maintenance, no cable adjustment and less pedal force than mechanical cable brakes affords the Workman GTX reliable and consistent stopping power.

Specifications

Battery Eight Trojan® T-125 Advanced Deep Cycle 6V batteries featuring a single port fill system and water level indicators.
Brakes - Front Hydraulic Disc
Brakes - Rear Hydraulic disc
Cargo Capacity 800 lbs. (363 kg)
Charger On-board high efficiency 1kW smart charger with 85-265VAC global input, temperature controlled, sealed & waterproof, remote indicator viewable at charge port
Controller 540 amps max with regenerative motor braking, roll-away protection, thermal cutback, sealed/waterproof, status light, and three power modes
Crated Model No
Drivetrain Electric
Electric Motor Brushless high-torque AC induction motor with 5.0kW continuous power
Fuel / Power Source Electric
Gauges/Instrumentation Hour meter, battery level indicator, USB port, headlight switch, on/off ignition key switch, gear selector and parking brake lever. Two cup holders, radio holder, and three in-dash storage compartments.
Ground Clearance Front: 9" (22.8 cm) Rear: 6" (15.2 cm)
Height 2-Seat with Bed: 50.2" (127 cm) 4-Seat with Bed: 50.2" (127 cm) 2-Seat with 6' Flat Bed: 50.2" (127 cm)
Horn Standard
Inside Turning Radius 60.25" (153 cm)
Lights Standard LED Headlights
Optional Accessories Canopy, windshield, flat-bed, cargo box, storage box, trash can mount, bed racking, brush guard, brake/tail/signal lights, ROPS, cab, range cage
Outside Turning Radius 20.7' (6.3 m)
Power Train (Engine Description) 48V brushless AC induction drive
Product Length 2-Seat with Bed: 119" (302 cm) 4-Seat with Bed: 144" (366 cm) 2-Seat with 6' Flat Bed: 156" (396 cm)
Rear Draw Bar Standard
Roll-Over Protection (ROPS) Optional
Starting Pedal Start
Steering System Description Manual rack and pinion steering system with ergonomically positioned column. Steering wheel has 2.75 turns lock-to-lock with 13.75" (35 cm) diameter.
Suspension - Front Modified MacPherson Strut, adjustable coil over shocks
Suspension - Rear Articulating swing arm, adjustable coil over shocks
Tires - Front 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Tires - Rear 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Total Vehicle Capacity 1,200 lbs. (544 kg)
Towing Capacity 1,500 lbs. (680 kg)
Traction Drive (System) 2WD
Vehicle Configuration Standard
Vehicle Type Light Duty
Weight 2-Seat with Bed: 1,395 lbs. (633 kg) 4-Seat with Bed: 1,670 lbs. (757 kg) 2-Seat with 6' Flat Bed: 1,784 lbs. (809 kg)
Wheelbase 2-Seat with Bed: 77.8" (197 cm) 4-Seat with Bed: 114" (290 cm) 2-Seat with 6' Flat Bed: 114" (290 cm)

Accessories

Empty Image Container
Hose Reel Mount Kit (Part # 07027)
Empty Image Container
Trash Can Mount (Part # 07028)
Empty Image Container
Bed Racking (Part # 07031)
Empty Image Container
ROPS Kit (Part # 07032)
Empty Image Container
Plastic Cargo Bed (Part # 07046)
Empty Image Container
Bench Seat Kit (Part # 07047)
Empty Image Container
Bucket Seat Kit (Part # 07048)
Empty Image Container
Extension Kit (Part # 07049)
Empty Image Container
Fold Down Rear Facing Seat (Part # 07123)
Empty Image Container
ROPS Certified Cab (Part # 07142)
Empty Image Container
Electric Lift Kit (Part # 07143)
Empty Image Container
Brush Guard (Part # 07145)
Empty Image Container
Front Receiver for Brush Guard (Part # 07146)
Empty Image Container
Front Receiver Without Brush Guard (Part # 07147)
Image Not Found
STEEL FLAT BED KIT, WORKMAN GT (Part # 07148)
Empty Image Container
Under Hood Storage Kit (Part # 07156)
Empty Image Container
L-Track Kit (Part # 07158)
Empty Image Container
L-Track Kit (Part # 07159)
Empty Image Container
Range Cage (Part # 07161)
Empty Image Container
Electric Lift Kit (6 ft Bed) (Part # 07168)
Empty Image Container
Canopy With ROPS (Part # 07169)
Empty Image Container
Steel Bed Rear Attachment Receiver (Part # 07186)
Empty Image Container
Canopy Mount Kit (Part # 07199)
Empty Image Container
Lift Kit (Part # 07414)
Empty Image Container
Van Box (Part # 07440)
Empty Image Container
Full Shelf For Van Box (Part # 07441)
Empty Image Container
Steel Cargo Bed Base (Part # 07450)
Empty Image Container
Solid Side Steel Cargo Bed (Part # 07451)
Empty Image Container
2-Person Canopy (Part # 07921)
Empty Image Container
Windshield For Canopy (Part # 07923)
Image Not Found
TIRE-20 8.00-10 (Part # 116-7333)
Image Not Found
Exterior Mirror Kit, Workman MD/MDE/MDX/HDX Cab Kit (Part # 130-5448)
Image Not Found
Interior Mirror Kit, Workman MD/MDE/MDX/HDX Cab Kit (Part # 130-5449)
Image Not Found
Beacon Kit, Workman MD/MDE/MDX/HDX Cab Kit (Part # 130-5484)
Image Not Found
Work Light Kit, Workman MD/MDE/MDX/HDX Cab Kit (Part # 130-5485)
Image Not Found
Windshield Washer Fluid Kit, 2015 and after Workman MD/HD Series Utili (Part # 130-5615)
Seat Cover, Small
Seat Cover, Small (Part # 131-6690)
Genuine OEM Part 131-8319
20.5 Inch Tire & Wheel Assembly (Part # 131-8319)
Image Not Found
HAND PUMP HOSE ASM (Part # 131-8522)
Image Not Found
Reverse Alarm Kit, Workman GTX Electric Utility Vehicle (Part # 131-8549)
Image Not Found
Power Point Kit, Workman GTX or GTX Electric Utility Vehicle (Part # 131-8550)
Image Not Found
Power Converter Kit, Workman GTX Electric Utility Vehicle (Part # 133-0959)
Image Not Found
Wide Angle Mirror Kit, Workman GTX Utility Vehicle with Canopy (Part # 133-1009)
Image Not Found
Wide Angle Mirror Kit, Workman GTX Utility Vehicle (Part # 133-1038)
Image Not Found
Horn Kit, Workman GTX Electric Utility Vehicle (Part # 133-3017)
Image Not Found
BRACKET-MOUNT, RADIO (Part # 133-7111-03)
Image Not Found
BALL MOUNT-RAM (Part # 133-7116)
Image Not Found
Road Light and Homologation Kit, Workman GTX Series Utility Vehicle (Part # 133-7128)
Image Not Found
Cab Mount Kit, Workman GTX Utility Vehicle with Extended Flatbed (Part # 133-7198)
Image Not Found
SERVICE HOOD ASM (Part # 133-7209)
Image Not Found
Door Mount Mirror Kit, Workman GTX, HDX, and MD, Series Utility Vehicl (Part # 136-1997)
Image Not Found
Small Bedrack Mount Grip Kit, Workman GTX Utility Vehicle (Part # 136-6311)
Image Not Found
Large Bedrack Mount Grip Kit, Workman GTX Utility Vehicle (Part # 136-6312)
Image Not Found
Glove Box Cover Kit, Workman GTX Utility Vehicle (Part # 137-2883)
Image Not Found
DEIONIZER-WATER (Part # 137-2884)
Image Not Found
PLATE-SKID, ELEC (Part # 137-2887-03)
Image Not Found
SWITCH-IGNITION ASM, KEY1 (Part # 138-3505)
Image Not Found
SWITCH-IGNITION ASM, KEY2 (Part # 138-3506)
Image Not Found
SWITCH-IGNITION ASM, KEY3 (Part # 138-3507)
Image Not Found
SWITCH-IGNITION ASM, KEY4 (Part # 138-3508)
Image Not Found
SWITCH-IGNITION ASM, KEY5 (Part # 138-3509)
Image Not Found
Wireless Hour Meter Kit (Part # 139-4627)
Image Not Found
Brake and Signal LED Light Kit, Workman GTX Gasoline Utility Vehicle o (Part # 140-4785)
Image Not Found
LAMP KIT-HOMOLOGATION, LED (Part # 147-2798)
20 x 10 - 10 6-Ply Multi Traction C/S Tire
20 x 10 - 10 6-Ply Multi Traction C/S Tire (Part # 94-5236)

Documents

Title Documents
WorkmanGTX_Accessories_020723.pdf PDF - Brochure-en-us
WorkmanGTX_HyperCell_Lithium_Sell_Sheet_022423.pdf PDF - Sellsheet-en-us

Parts & Manuals

Select your model year from the options below to view parts & manuals.



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
