21 cu.ft. ProPass™ 200 Series Topdresser

  • Model: 44751
See All Items in ProPass™ 200 Series Topdresser
Request a Demo
  • Quickly change from the twin spinner to the optional cross-conveyer and swivel kit.
  • The spinners are fixed at a downward angle of 4° to provide accurate and consistent penetration of material into the turf canopy.
  • Evenly apply materials to the turf from 9 ft (2.74 m) to 30 ft (9.1 m) with the patented sliding adjustment for positioning of the twin spinners. This unique drop zone system adjusts where material lands on the spinner disks, resulting in an even pattern across the entire spread width.
  • Eliminate guesswork from setting up your spread pattern. Choose your spread pattern, identify your color and make your adjustments.
  • Allows fast settings and adjustments to all spread functions and you can store settings for future use. Fully operational up to 100 yards (91 metres).
  • The ProPass™ is available in a utility vehicle mount style such as for mounting on a Workman® vehicle or can be ordered in a tow version.
  • A unique, four wheel walking beam suspension contains two separate axles so that all four wheels are always in contact with the ground regardless of terrain and an even weight distribution provides a light footprint on the turf.
  • Eliminates load shifting of material and uses a tight rubber seal on the sides preventing material from escaping.
  • Tailgate opens, closes and pivots on a wedge creating an angle to force wet or dry material through the gate in a consistent flow.

Overview

The Toro ProPass™ 200 broadcast style topdresser delivers extremely accurate spread patterns from ultra-light dustings to ultra-heavy aeration hole filling applications without any guesswork. A wireless controller provides the easiest method to set and control the spread functions. Available in both a utility vehicle mounted version and a towed version.

Series Models:

  • ProPass 200 - Bed Mounted or Tow Behind
  • ProPass 200 - Bed Mounted or Tow Behind with Wireless Controller

Features

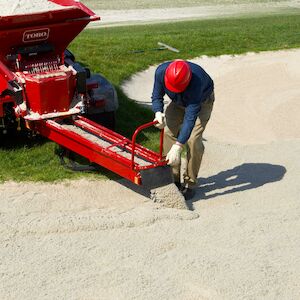

Versatility
Versatility
Quickly change from the twin spinner to the optional cross-conveyer and swivel kit.

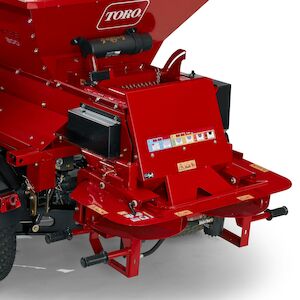

Twin Spinner Angle
Twin Spinner Angle
The spinners are fixed at a downward angle of 4° to provide accurate and consistent penetration of material into the turf canopy.

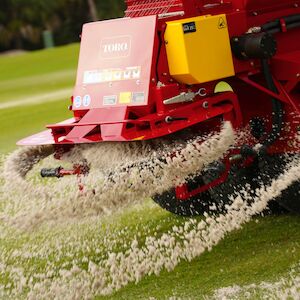

Spread Consistency
Spread Consistency
Evenly apply materials to the turf from 9 ft (2.74 m) to 30 ft (9.1 m) with the patented sliding adjustment for positioning of the twin spinners. This unique drop zone system adjusts where material lands on the spinner disks, resulting in an even pattern across the entire spread width.

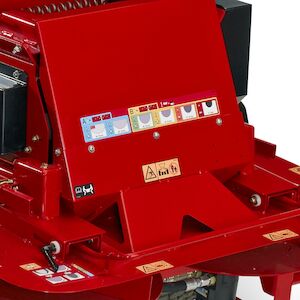

Color-Coded Operating System
Color-Coded Operating System
Eliminate guesswork from setting up your spread pattern. Choose your spread pattern, identify your color and make your adjustments.

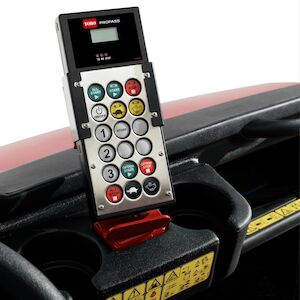

Available Wireless Controller
Available Wireless Controller
Allows fast settings and adjustments to all spread functions and you can store settings for future use. Fully operational up to 100 yards (91 metres).

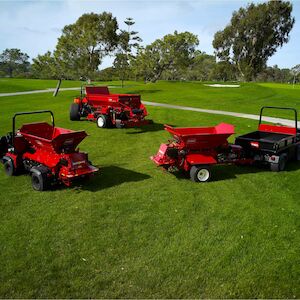

Vehicle Mount or Tow-Behind
Vehicle Mount or Tow-Behind
The ProPass™ is available in a utility vehicle mount style such as for mounting on a Workman® vehicle or can be ordered in a tow version.

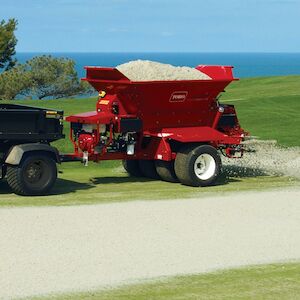

Walking Beam Suspension
Walking Beam Suspension
A unique, four wheel walking beam suspension contains two separate axles so that all four wheels are always in contact with the ground regardless of terrain and an even weight distribution provides a light footprint on the turf.

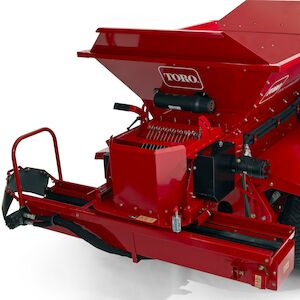

Smooth Belt
Smooth Belt
Eliminates load shifting of material and uses a tight rubber seal on the sides preventing material from escaping.

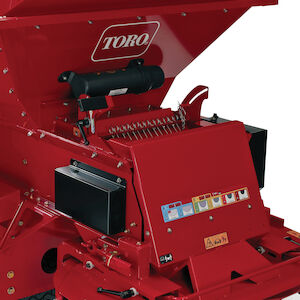

Wedge-Style Tailgate
Wedge-Style Tailgate
Tailgate opens, closes and pivots on a wedge creating an angle to force wet or dry material through the gate in a consistent flow.

Specifications

Conveyor Belt One-piece vulcanized, self-tracking (no seams or staples)
Height 56" (1.4 m)
Hopper Capacity 21 cu. ft. / 0.54 cu. m struck (25 cu. ft. / 0.71 cu. m heaped)
Hydraulic Connection Minimum 6 US gal. / m. @ 2,000 psi (23 L/m @ 138 bar), maximum 10 US gal. / m. @ 2,800 psi (38 L/m @ 190 bar)
Length Bed-mounted: 78" (1.98 m) Tow-behind: 134" (3.4 m)
Operating Width (Working Width) Variable, up to 30' (9.1 m)
Optional Accessories Hydraulic Power Pack, Cross Conveyor / Swivel Kit
Payload (Tare) 2,000 lbs. (907 kg)
Recommended Tow Vehicle Requirement Towing capacity: 3,400 lbs. (1542 kg) Tongue weight: 300 lbs. (136 kg)
Tires 24" x 13" - 12", 4-ply
Weight Bed-mounted: 636 lbs. (288.5 kg) in minimum configuration, 841 lbs. (381.5 kg) maximum Tow-behind: 1,026 lbs. (465.4 kg) in minimum configuration, 1,386 lbs. (628.7 kg) maximum (dry with optional hydraulic power pack)
Width 65" (1.65 m)
Wireless Controller Yes

Accessories

Image Not Found
EXTENSION-HOPPER, FRONT (Part # 120-9393-01)
Image Not Found
Safety Chain Kit (Part # 139-3179)
Image Not Found
KIT-QUICK CONNECT HOSE ADAPTER (Part # 145-7646)
Toro Red 12or aerosol can.
Toro Red 12or aerosol can. (Part # 361-10)
Toro Genuine Parts Logo
Red Paint (Gallon) (Part # 361-11)
Toro Genuine Parts Logo
Semi-Gloss Black Paint (Part # 361-9)
Empty Image Container
ProPass Twin Spinner (Part # 44702)
Empty Image Container
Swivel Propass Conveyer (Part # 44703)
Empty Image Container
Propass Tow Chassis Hose Assembly (Part # 44706)
Empty Image Container
ProPass Toro Workman Mount Kit (Part # 44707)
Empty Image Container
Propass Storage Stand (Part # 44712)
Empty Image Container
Propass HYD Power Pack (Part # 44713)
Empty Image Container
Pro Gator Mount Kit (Part # 44714)
Empty Image Container
Propass & MH400 Hopper Vibrator (Part # 44723)
Empty Image Container
PROPASS TOW CHASSIS AND FENDER KIT (Part # 44724)

Documents

Title Documents
ProPass200_Sell_Sheet_020723.pdf PDF - Sellsheet-en-us



Warranty

2-Year Limited

**See dealer for Warranty details.
