New - Coming Soon

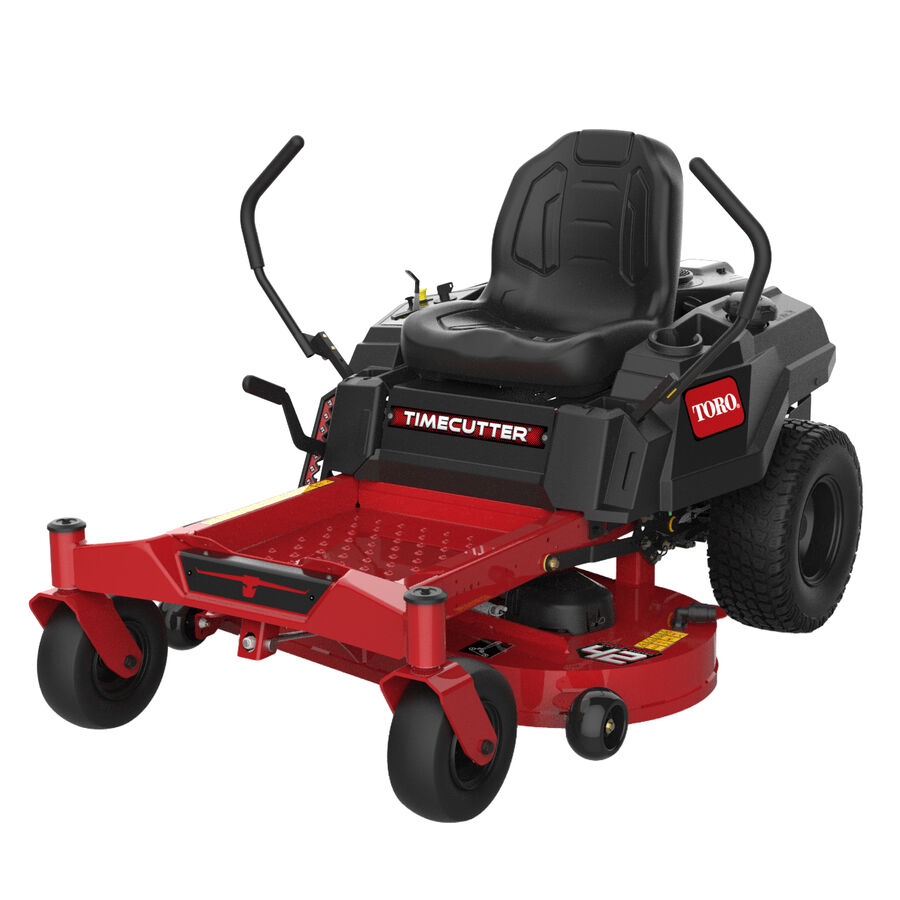

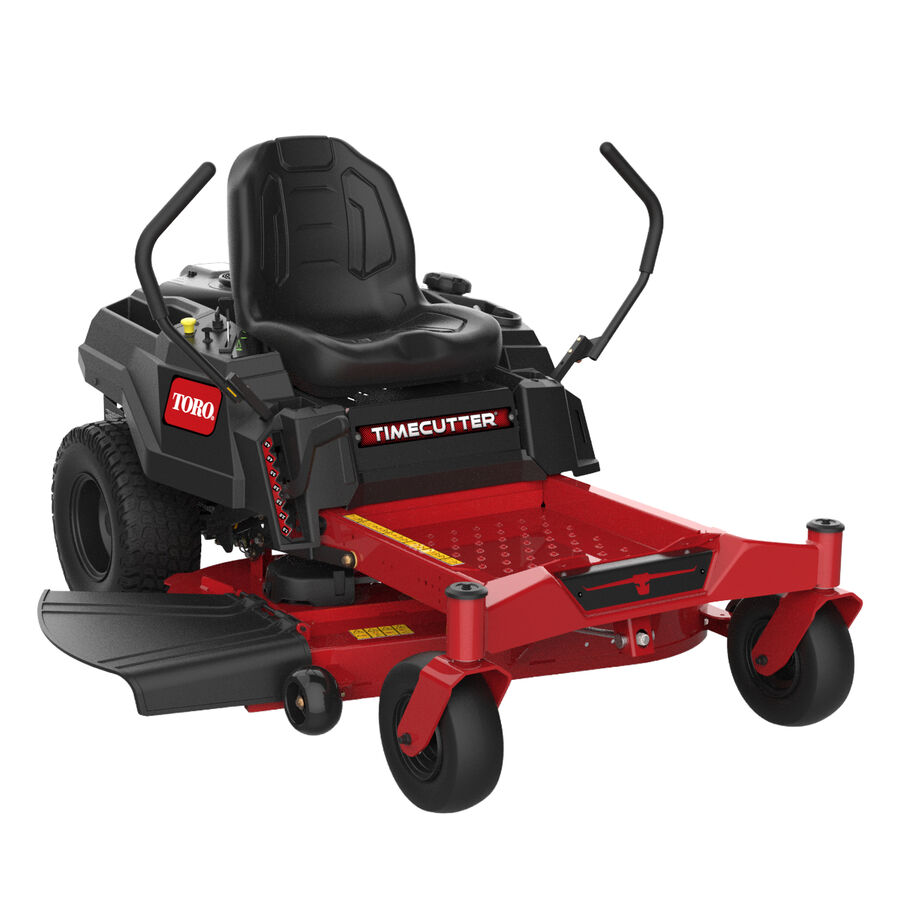

42" (107 cm) TimeCutter® Zero Turn Mower

  • Model: 77407
  • UPC/EAN: 21038774077
  • Its heavy duty steel IronForged® Deck doesn't flinch no matter what you throw its way.
  • Ride in style on a high-back, custom-bolstered seat with cushioned padding and back support.
  • Over 100 years of ProDNA Technology course through the veins of every mower we build.

Overview

The ultimate zero turn mower for tackling big lawn jobs while also fitting in small spaces. With a powerful 22 hp* V-Twin Toro engine and 42 in. IronForged® deck, this TimeCutter lets you create a beautiful lawn and have more time to enjoy it - while its compact design makes for easy storage.

Specifications

Armrests Optional Accessory - Not Included
Assembled Depth 75 in / 190.5 cm
Assembled Height 42 in / 106.7 cm
Assembled Width 48.5 in / 123.2 cm
Bagger Included Optional Accessory - Not Included
Blade Design 0.164 in. / 0.417 cm Steel with Blade Stiffner
Blade Engagement Electromagnetic Clutch
Blade Tip Speed 18,179 ft/min / 5,541 m/min
Box Dimensions 82.0 in. x 49.0 in. x 35.0 in. / 208.3 cm x 124.5 cm x 88.9 cm
CARB Compliant Not CARB Compliant
Caster Tires 11 in. x 4 in. (27.9 cm x 10.2 cm)
Clutch Electromagnetic
Controls Dual Wrap Around Levers
Cooling System Air Cooled
Crankshaft 1" (25 mm) w/Steel Protector
Cup Holder Standard
Cutter System Steel Cutting Blade
Deck Design 10-Gauge steel IronForged®
Deck Material 11 Gauge Steel
Deck Size 42 in / 107 cm
Discharge Chute Side
Drive System Hydrostatic
Drive Tires 18 in. x 6 in. - 8 in. (45.7 cm x 15.2 cm - 20.3 cm)
Drive Type Rear-Wheel Drive
Engine 22.0 hp Toro V-Twin Engine
Engine Brand Toro
Engine Displacement (cc) 724 cc
Engine Horsepower 22.0 hp
Engine Power (kW) 16.4 kW
Foot Operated Height of Cut Standard
Forward Ground/Transport Speed Up to 7.0 mph / 11.2 kph
Forward Mowing Speed Up to 7.0 mph / 11.2 kph
Fuel Capacity 3 gal. / 11.4 L / 12 Qt.
Fuel Type Gasoline
Height of Cut 1.5 - 4.5 in. / 3.8 - 11.4 cm
Hitch Bracket Standard
Hour Meter Optional
Lighting Optional
Number of Blades 2
Product Features 4-Point Deck Lift System, Adjustable Control, Adjustable Cutting Height, Adjustable Seat, Cup Holder, Deck Washout Port, Electric Start, Hitch Bracket, Low Back Seat, Smart Speed, Tool-less Deck Belt Cover, Tool-less Deck Removal
Product Type TimeCutter
Product Use Residential
Recommended Oil Type 10W-30
Roll-Over Protection System (ROPS) Optional
Seat 18" Handcrafted
Spindle Bearings Maintenance-free
Spindle Housing Cast-Aluminum
Start Type Electric
Steering Controls Dual Wrap Around Levers
Steering Dampeners Hydraulic Dampeners
Terrain Type Flat with Obstacles
Tires 11 in. x 4 in. (27.9 cm x 10.2 cm) Front, 18 in. x 7.5 in. (45.7 cm x 19 cm) Rear
Tow Speed Up to 4.0 mph / 6.4 kph
Transmission Dual Hydrostatic HG-ZT2100
Trim Speed Up to 5.5 mph / 8.8 kph
Washout Port Standard
Weight 660 lbs / 299.4 kg
Yard Size Up to 2 acres

Disclaimer

*The gross horse power of these gasoline engines was laboratory rated by the engine manufacturer in accordance with SAE J1940 or SAE J1995.
†See your retailer for warranty details.

Parts & Manuals

Select your model year from the options below to view parts & manuals.

77407 Serial #
422200000-999999999
400000000-422199999



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
