Model #

73402

Serial #

7900001 - 7999999

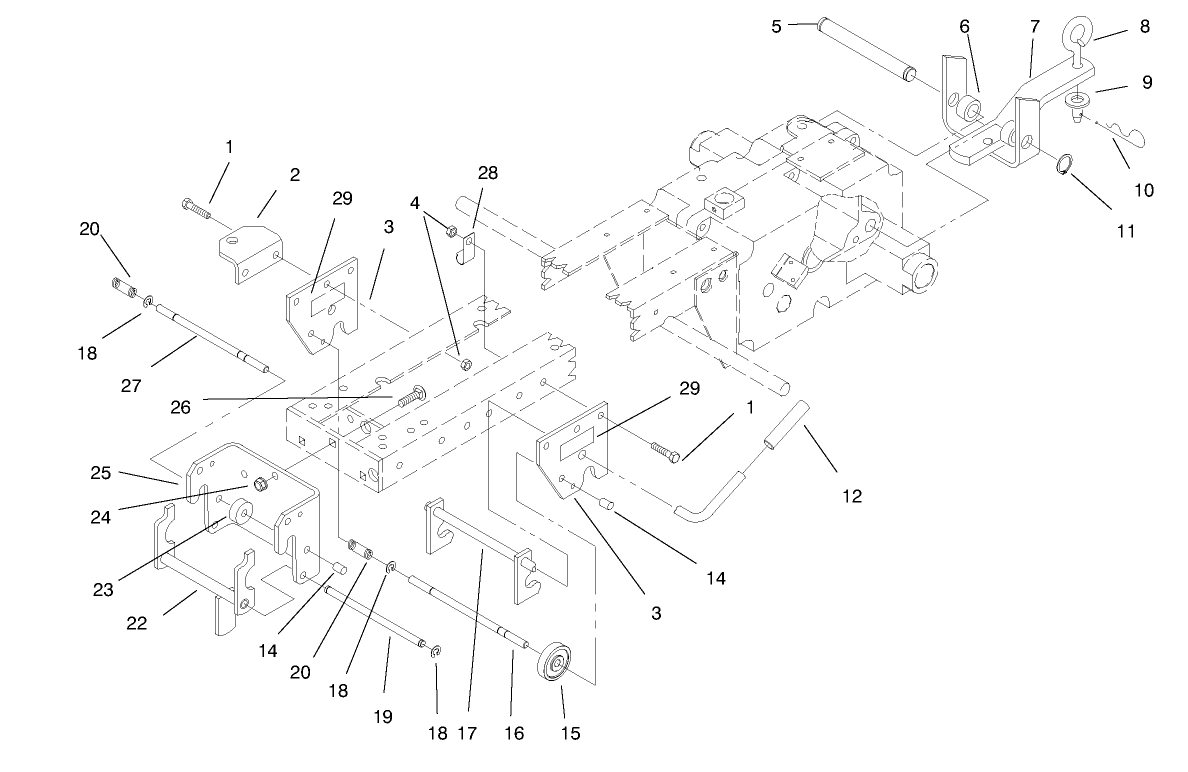

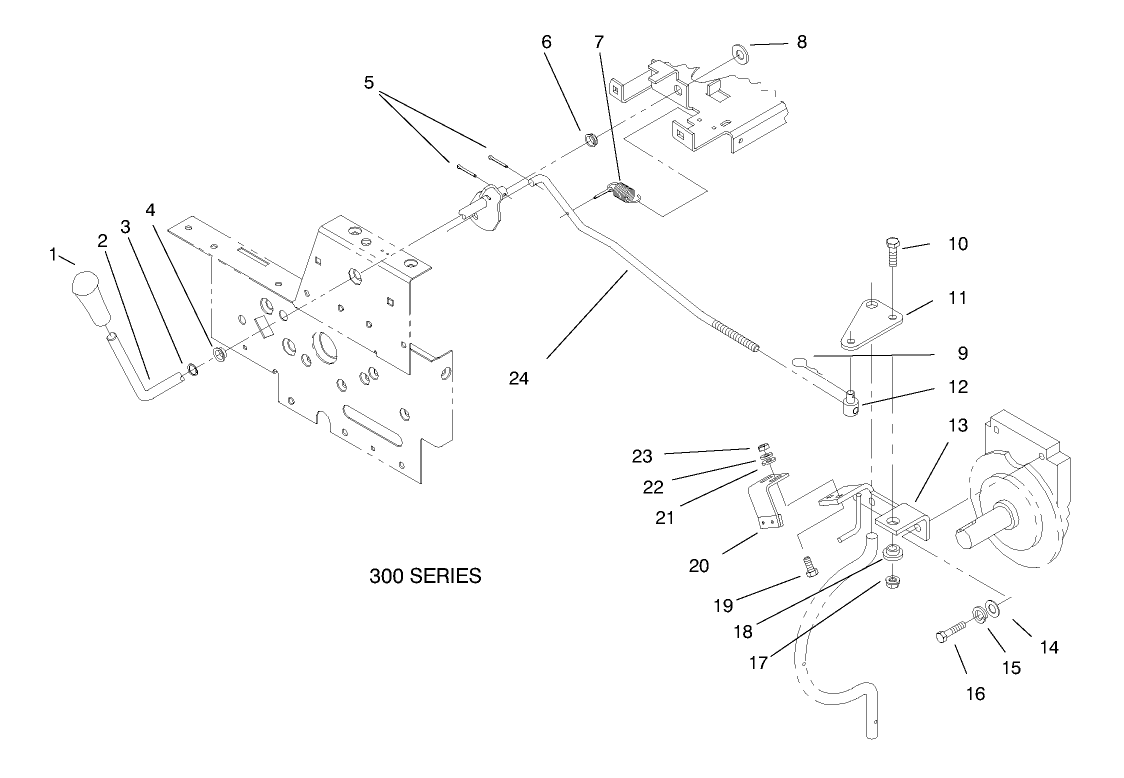

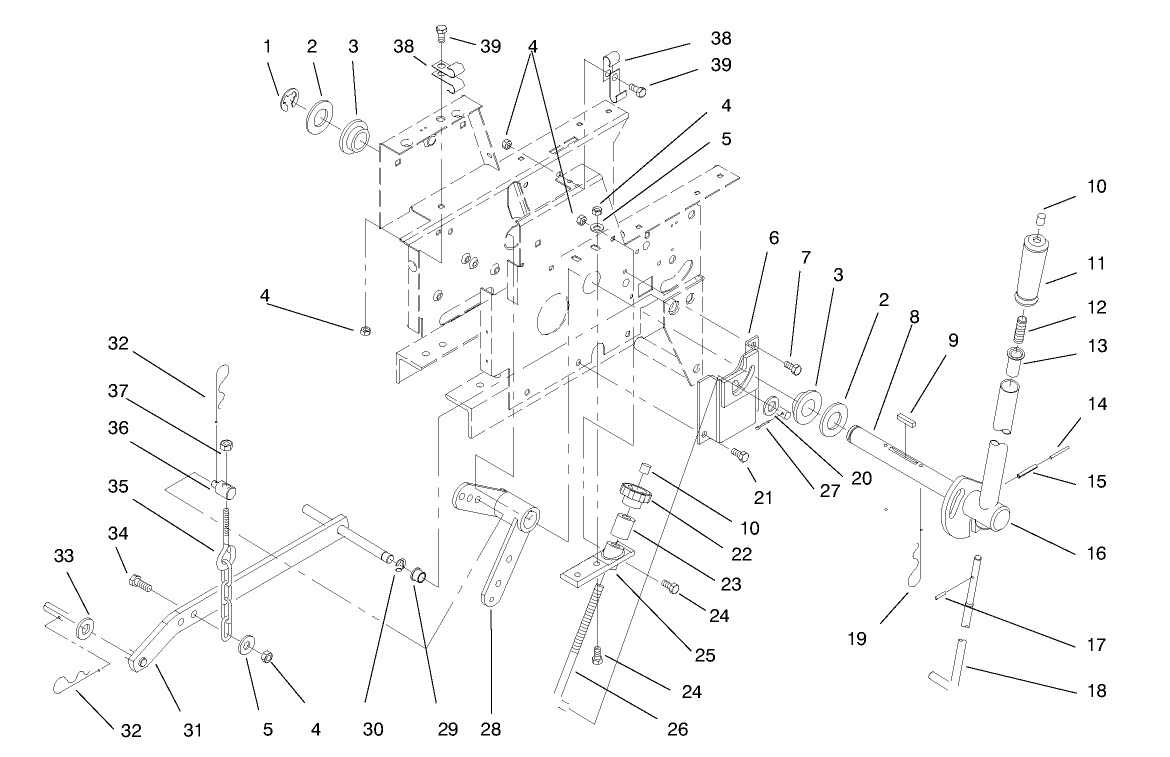

Product Name

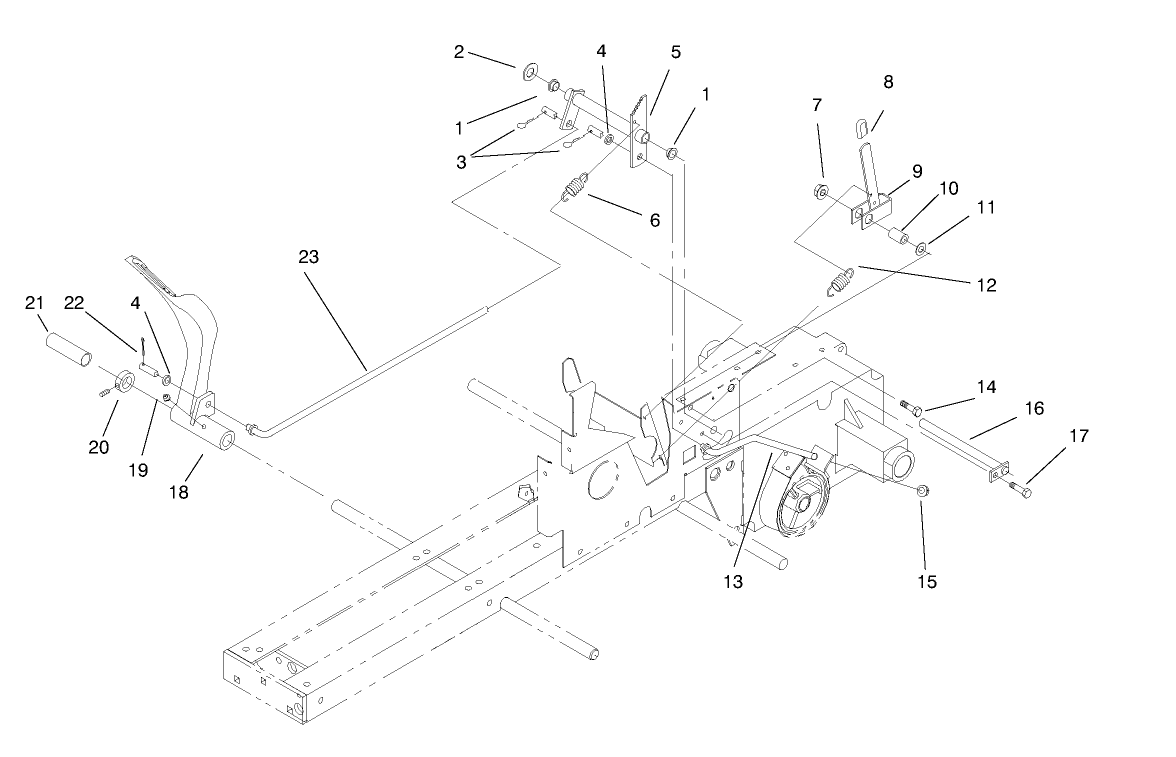

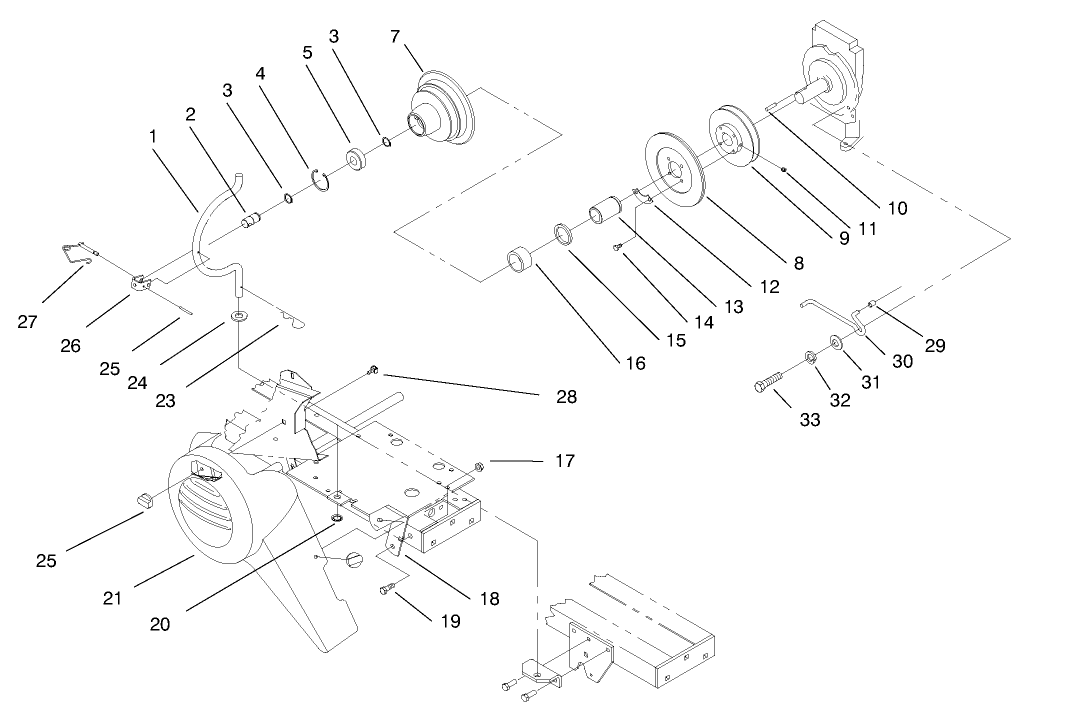

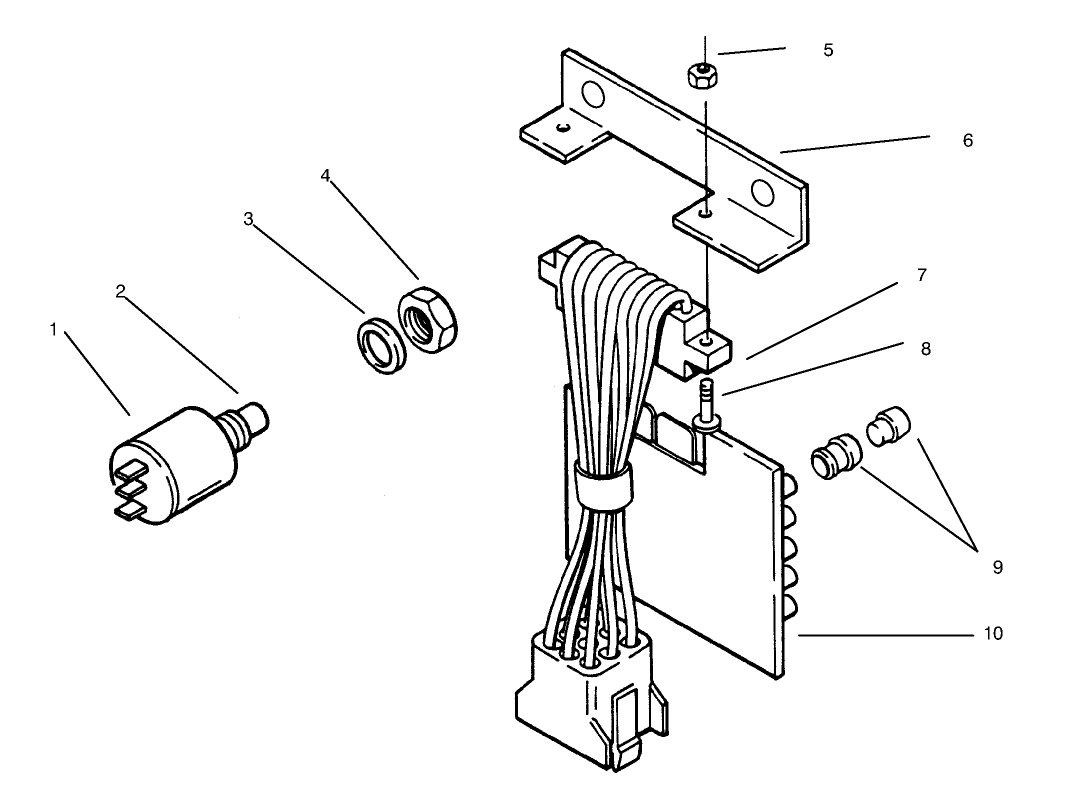

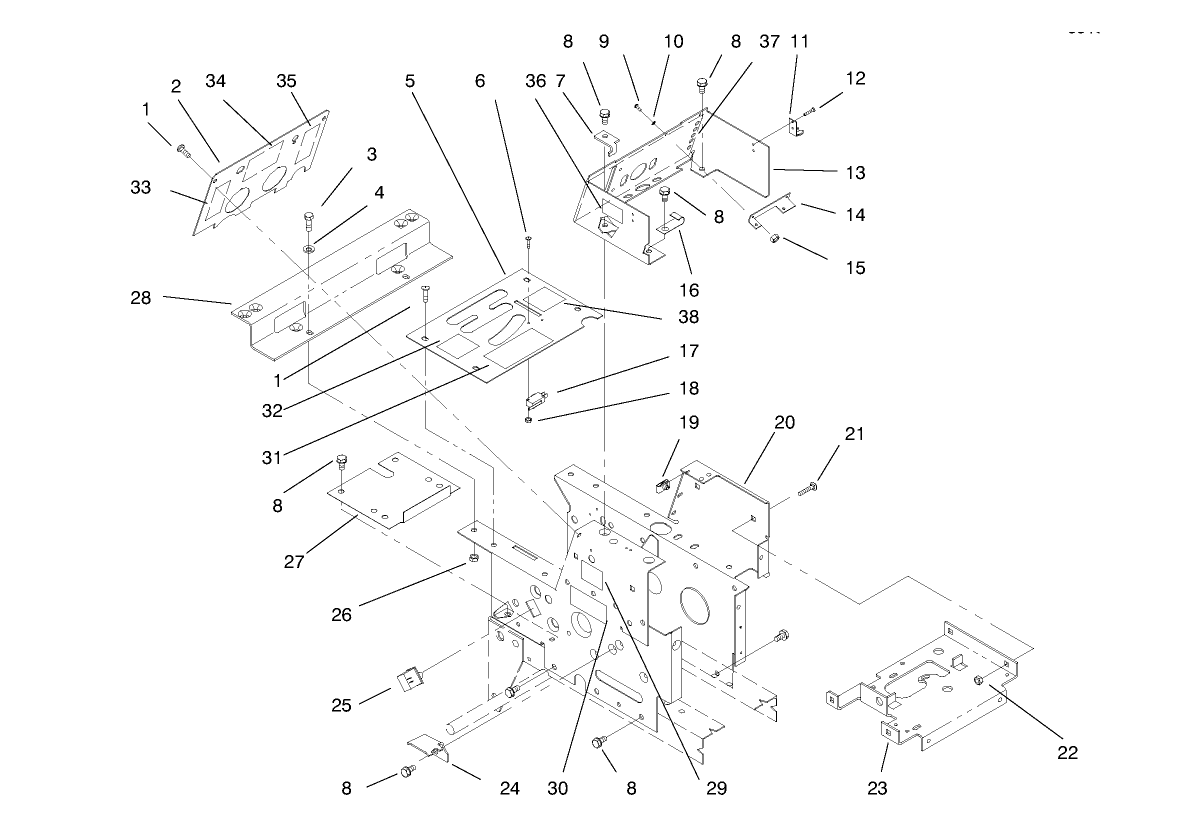

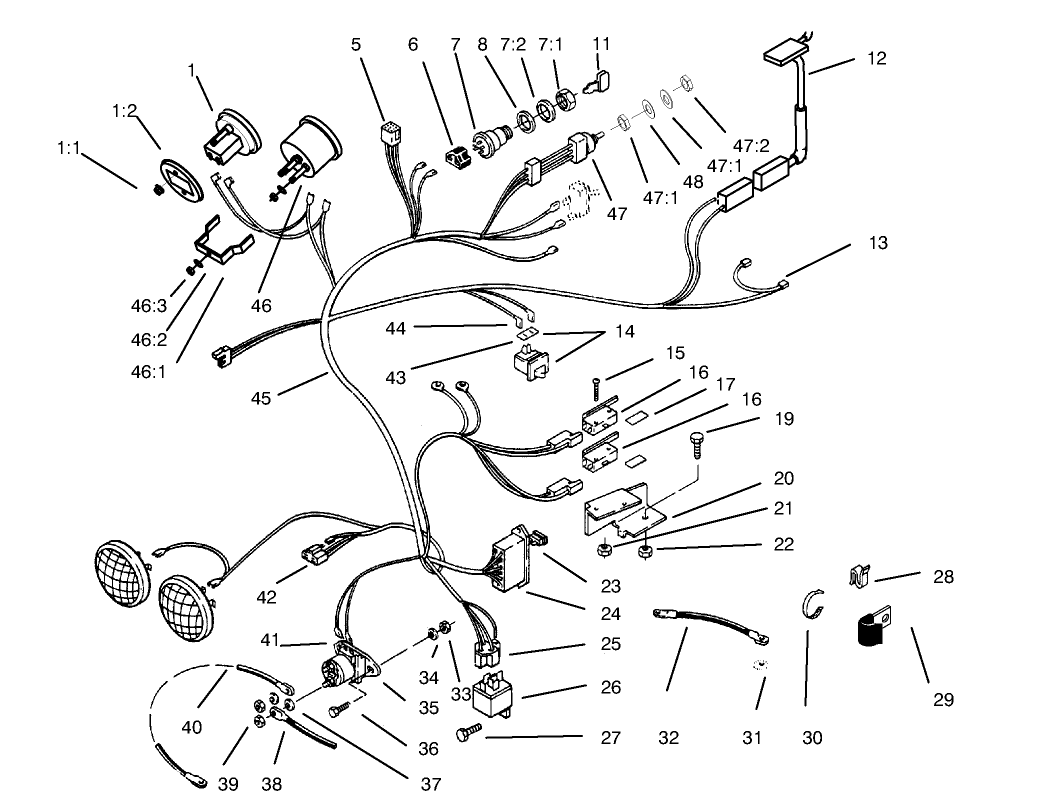

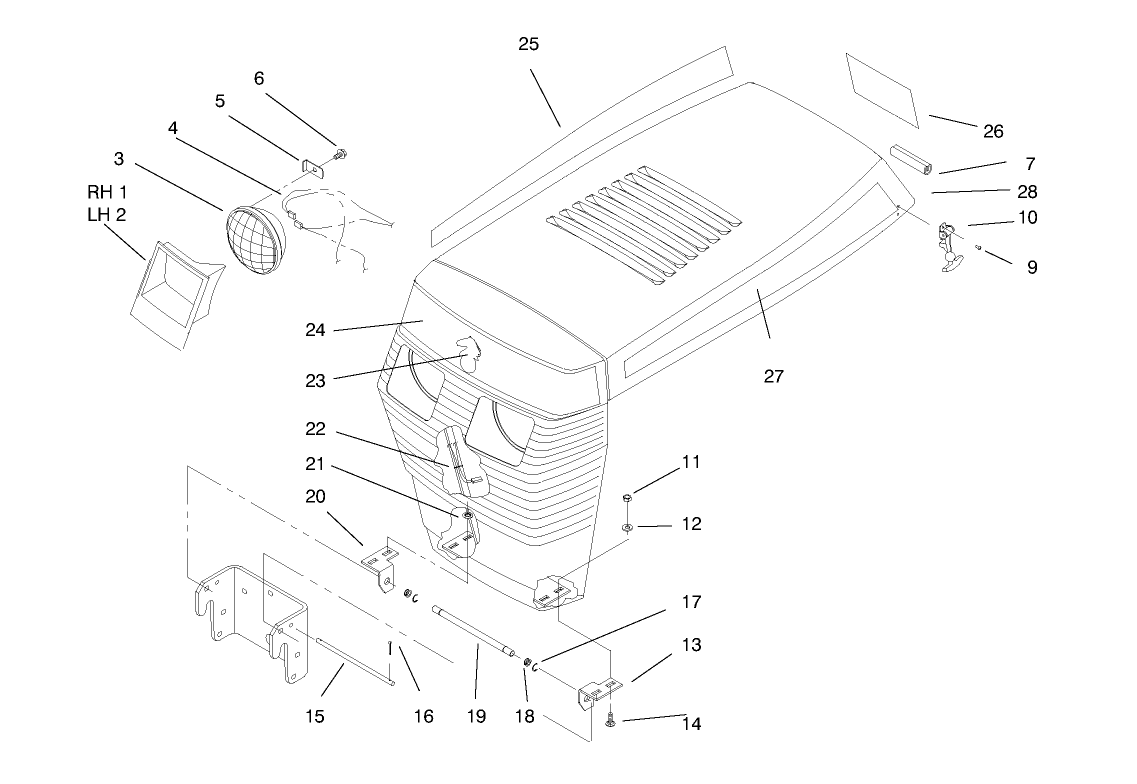

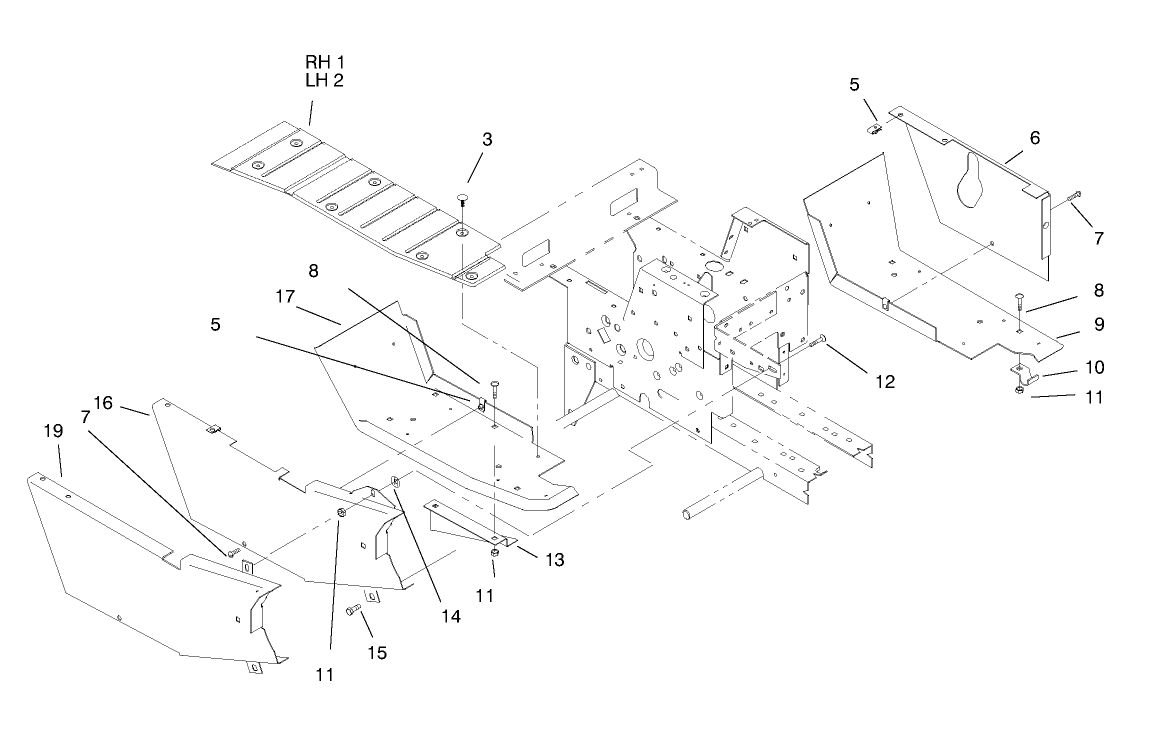

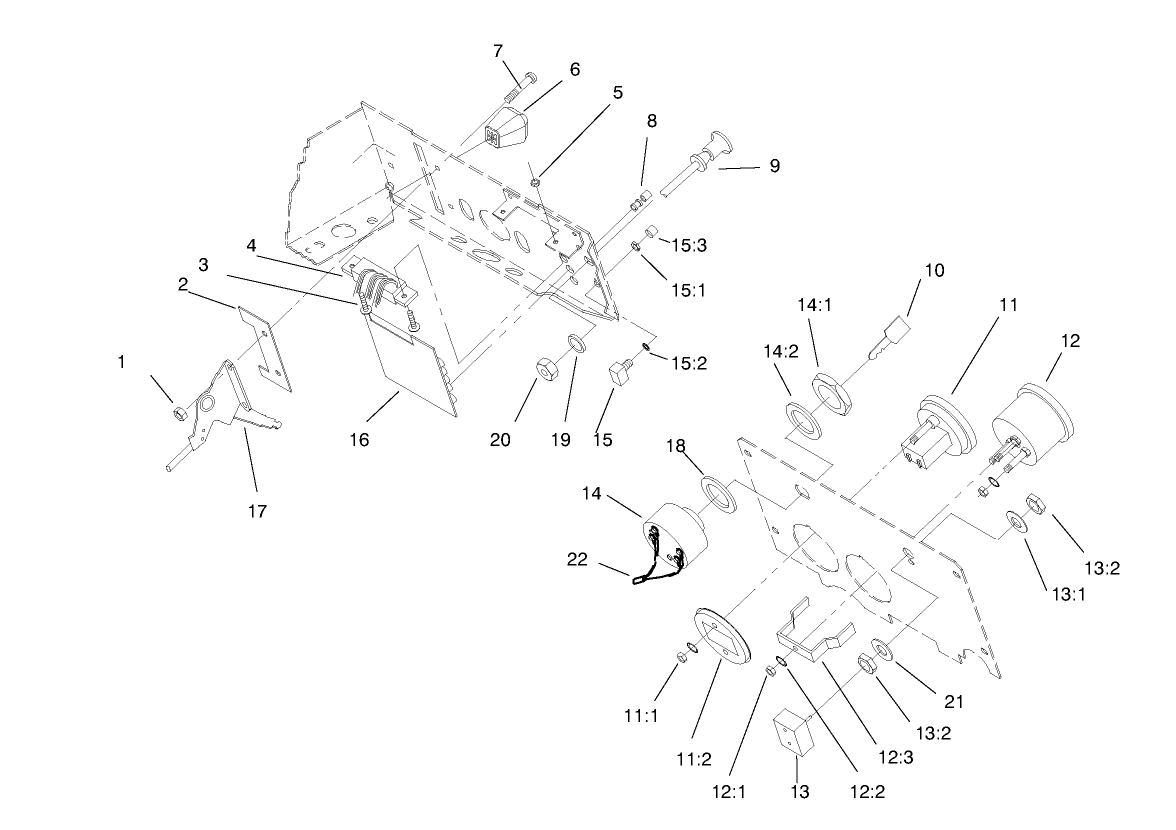

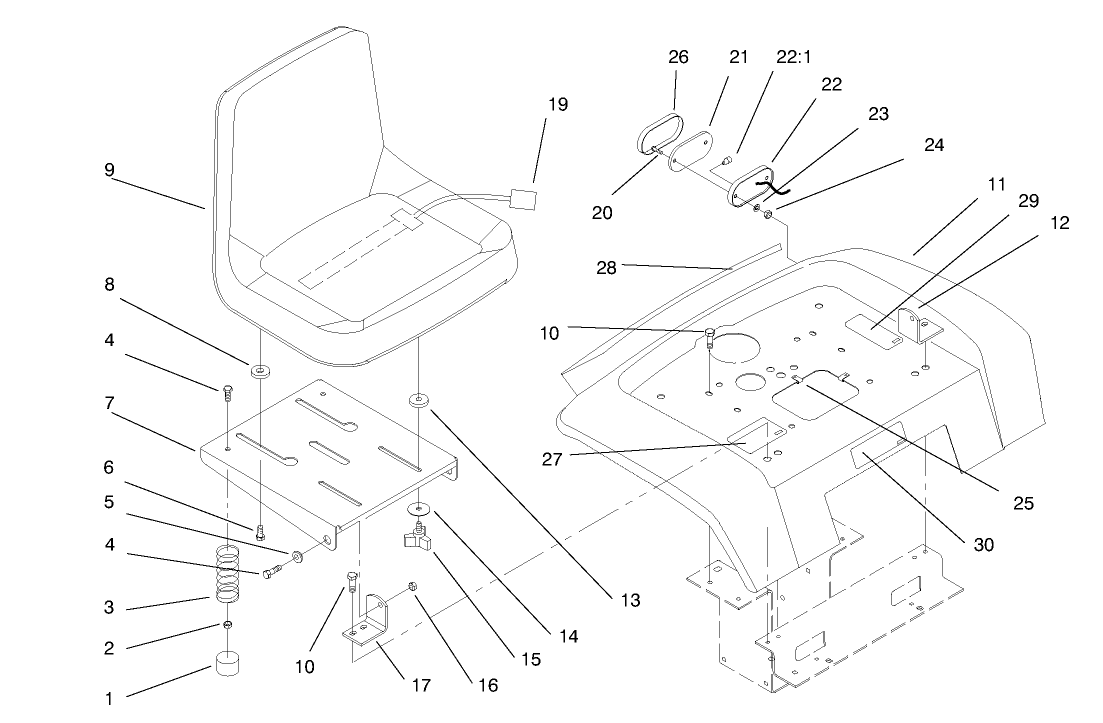

314-8 Garden Tractor

Product Brand

Toro

Product Type

Riding Products

Product Series

Garden Tractor, 3/4/500, C, GT

Swath

Deck Optional

Discharge

Deck Optional

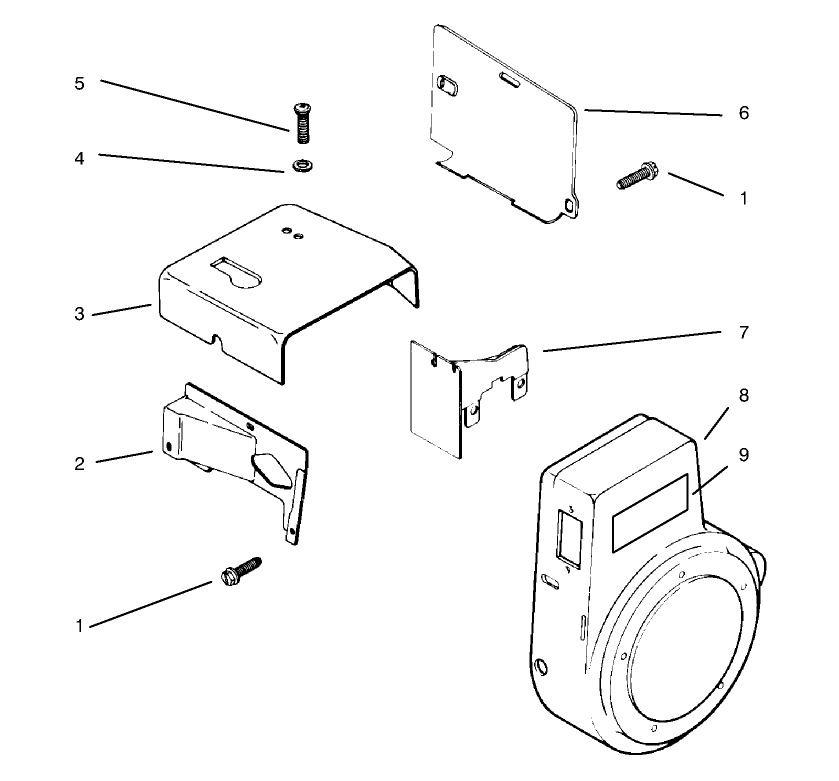

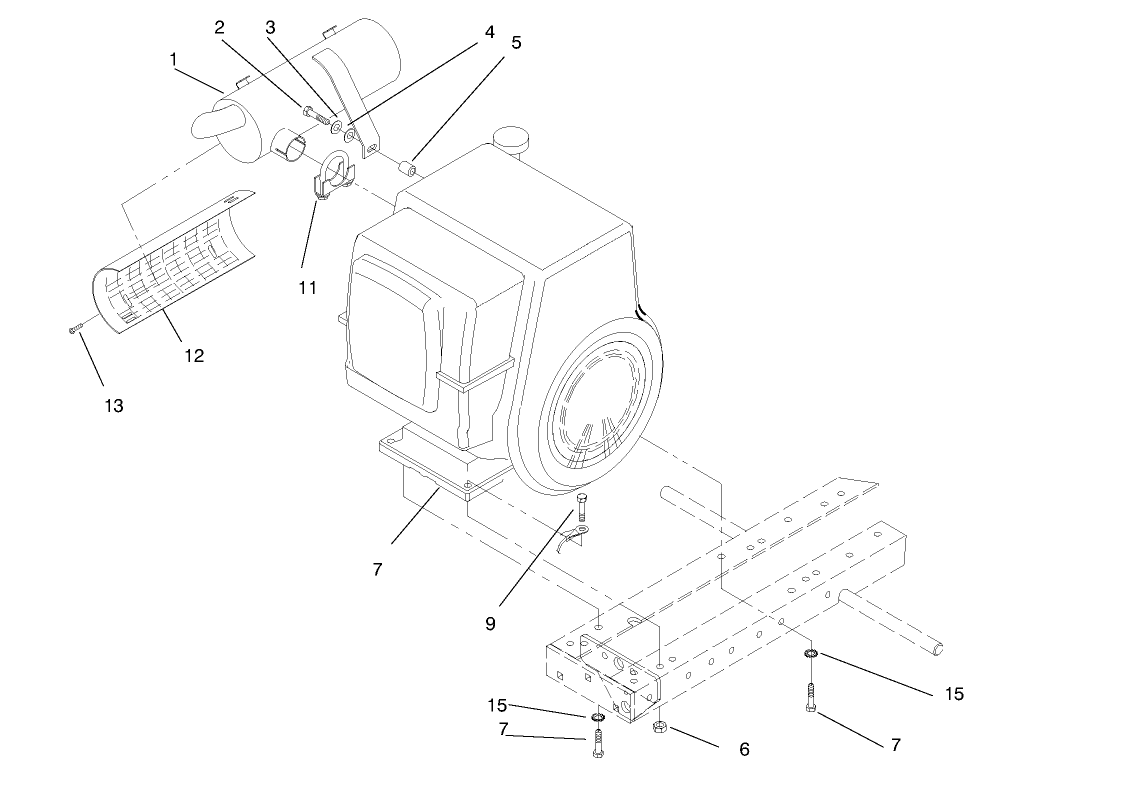

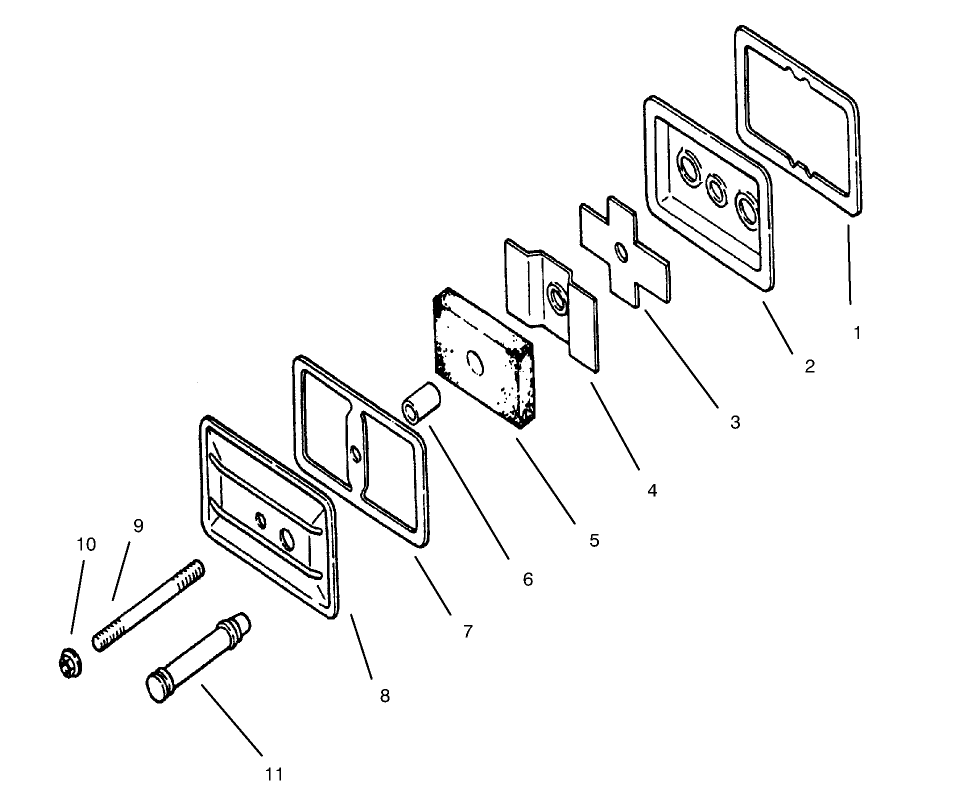

Engine/Motor Manufacturer

Kohler

Engine/Motor Size

14 hp

Engine/Motor Type

4 Cycle

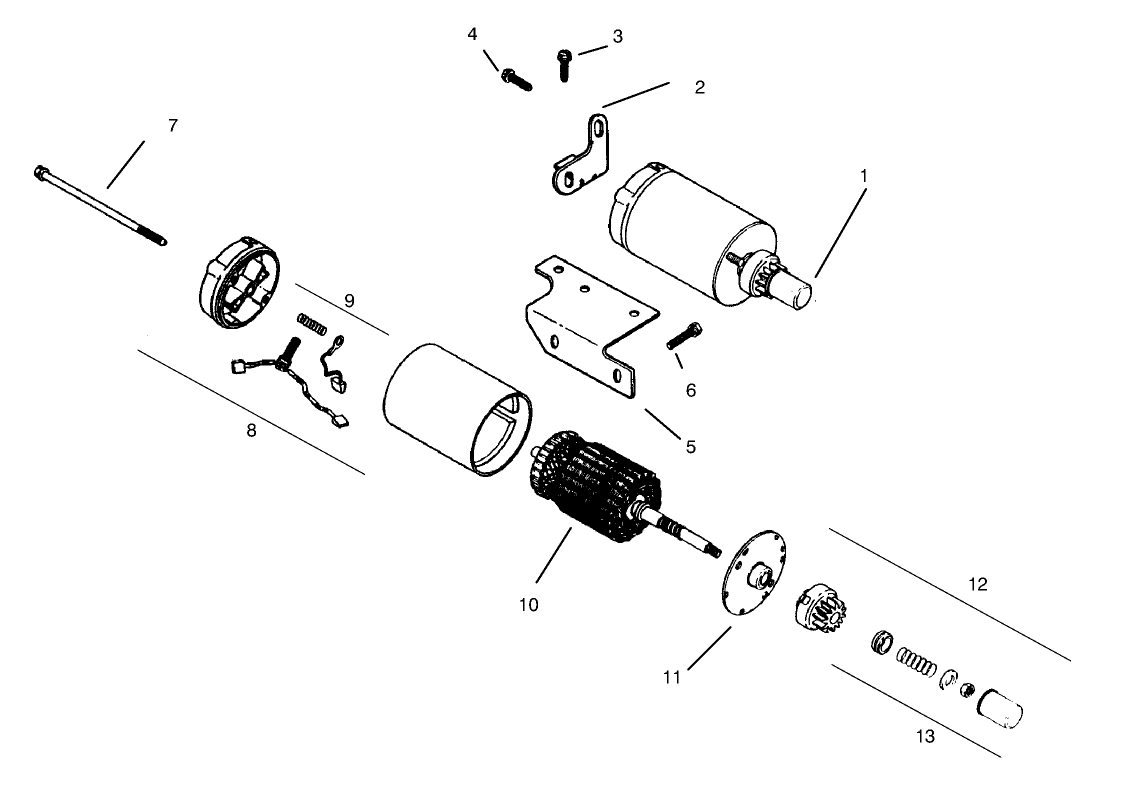

Engine Starter

Electric

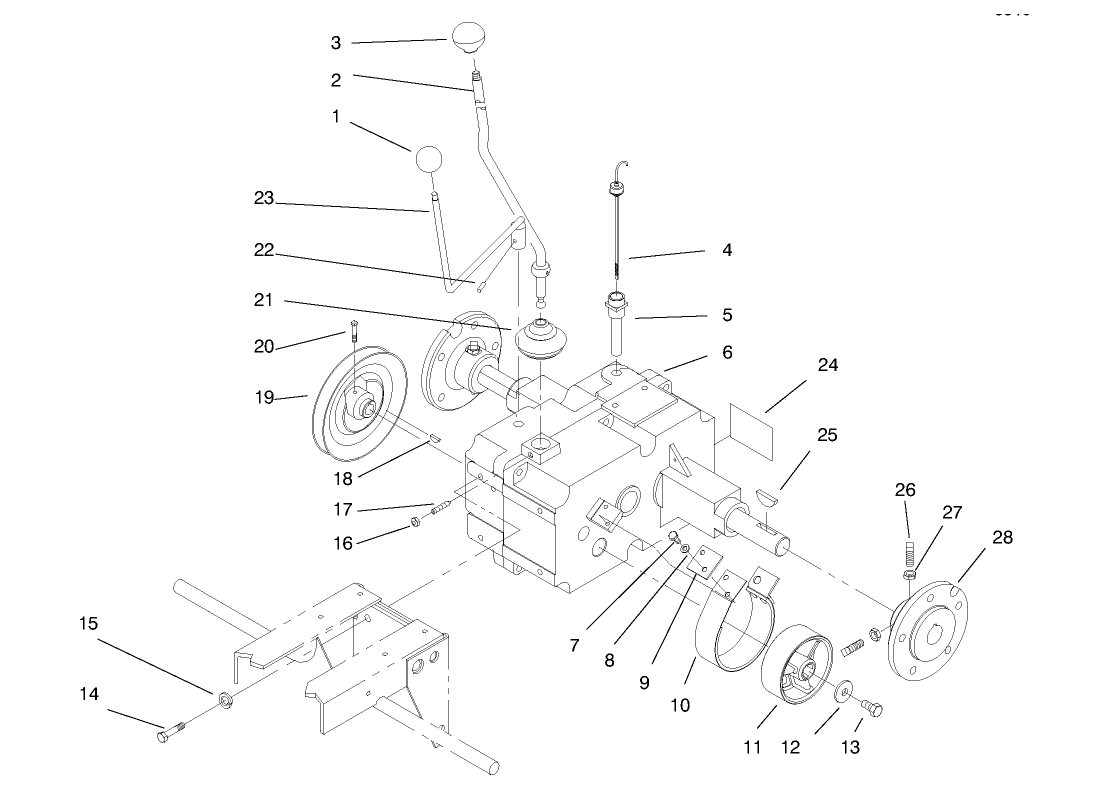

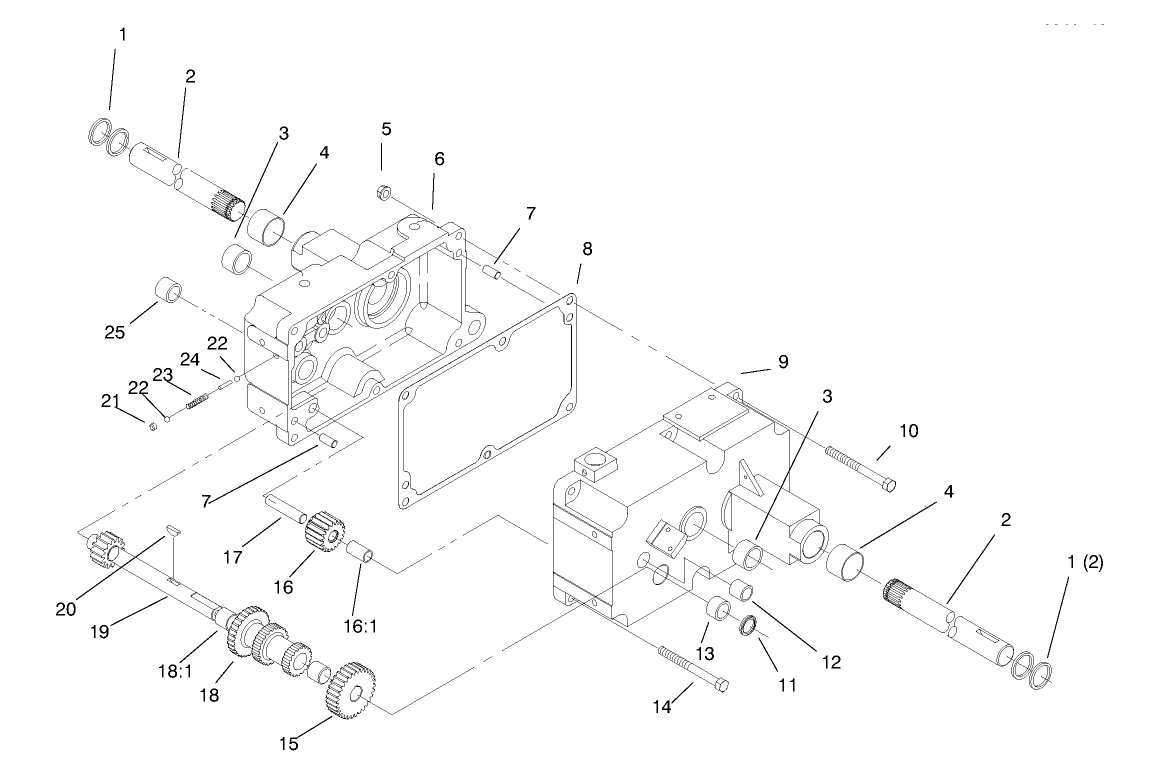

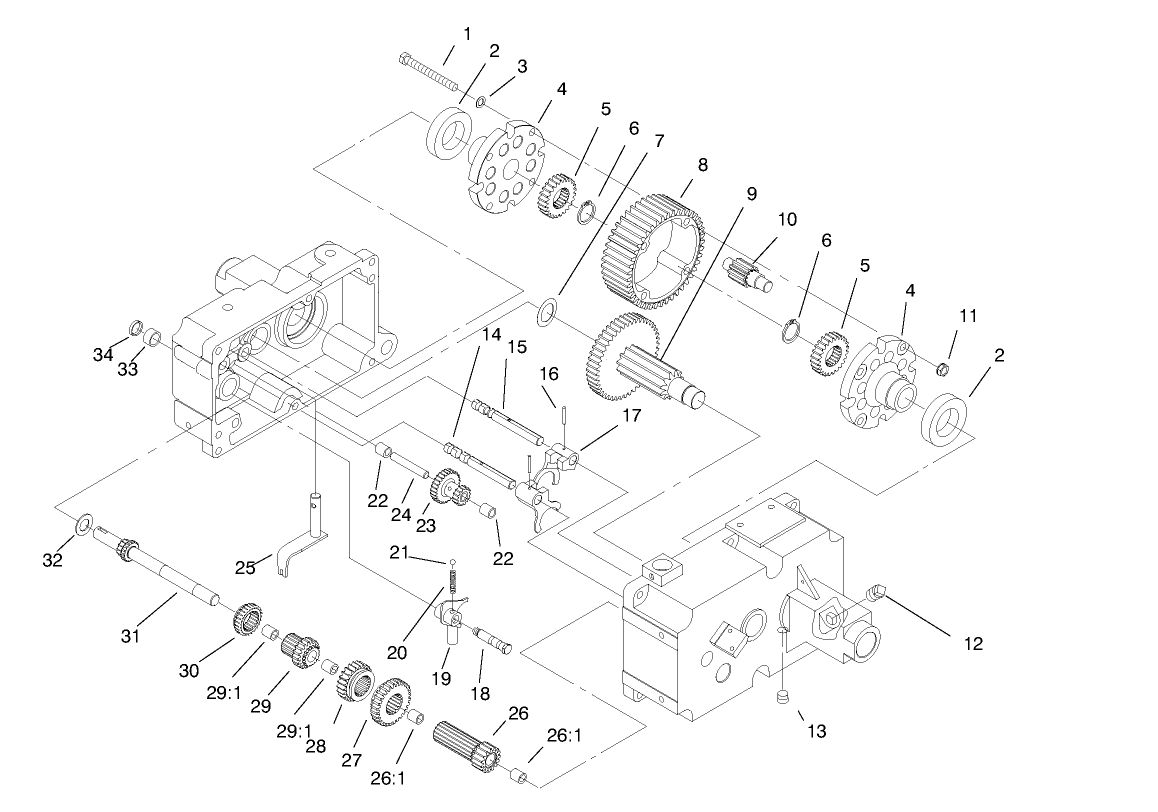

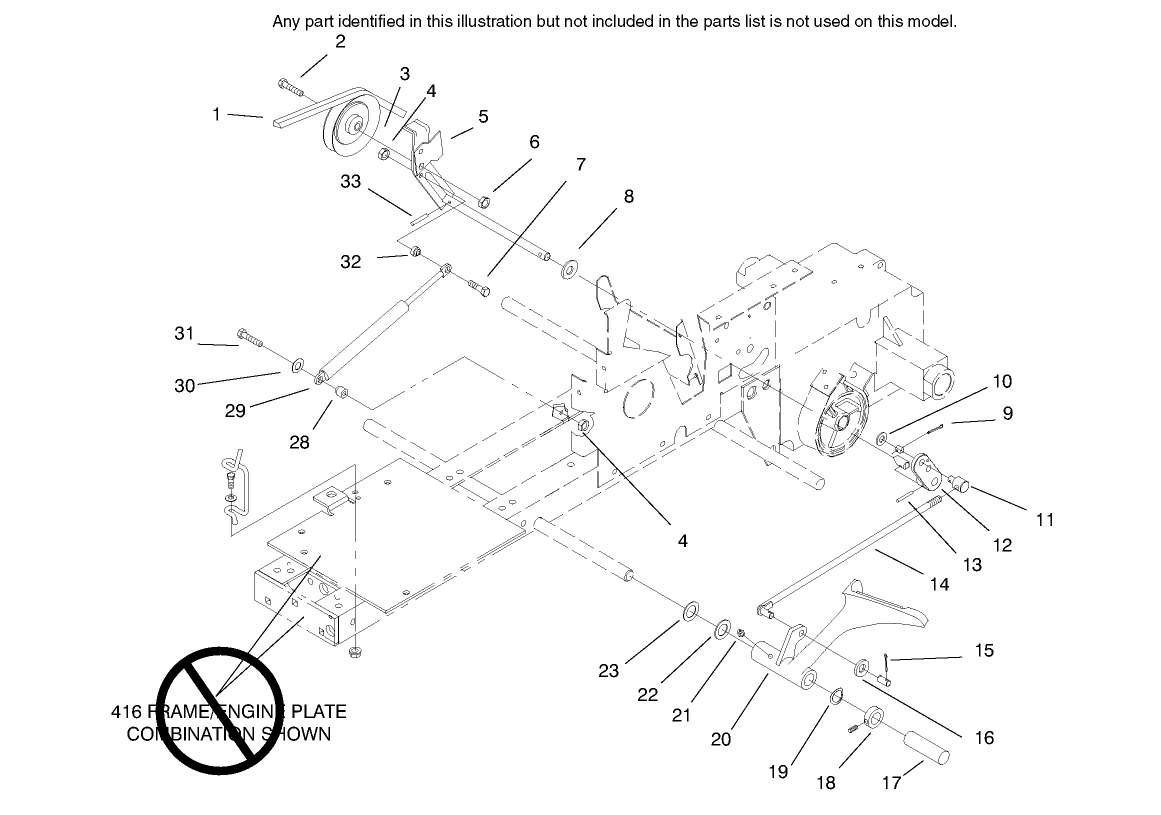

Transmission Type

Gear

Engine: Horsepower @ 3600 rpm

14hp.

Engine: Displacement ( cu.in. )

31.27

Engine: Bore

3.50"

Engine: Stroke

3.25"

Engine: Compression Ratio

7.0:1

Engine: Weight Approx.

129 lbs.

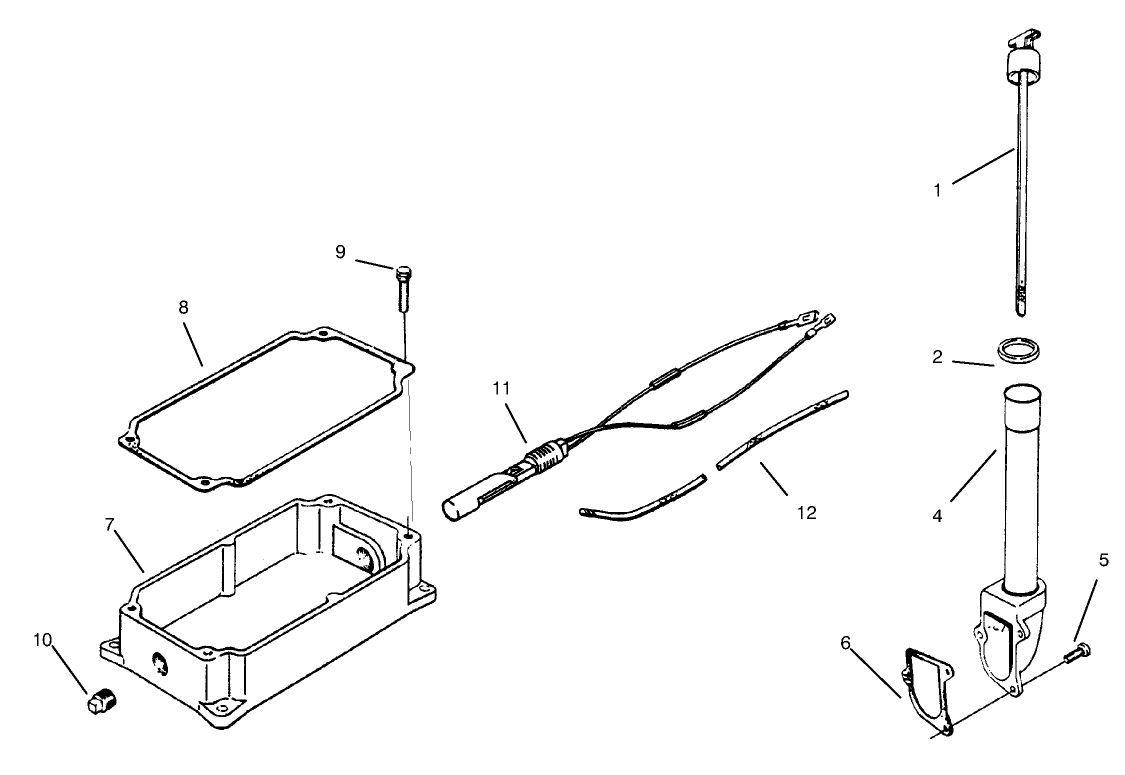

Engine: Oil Capacity (Approx.)

2 qts.

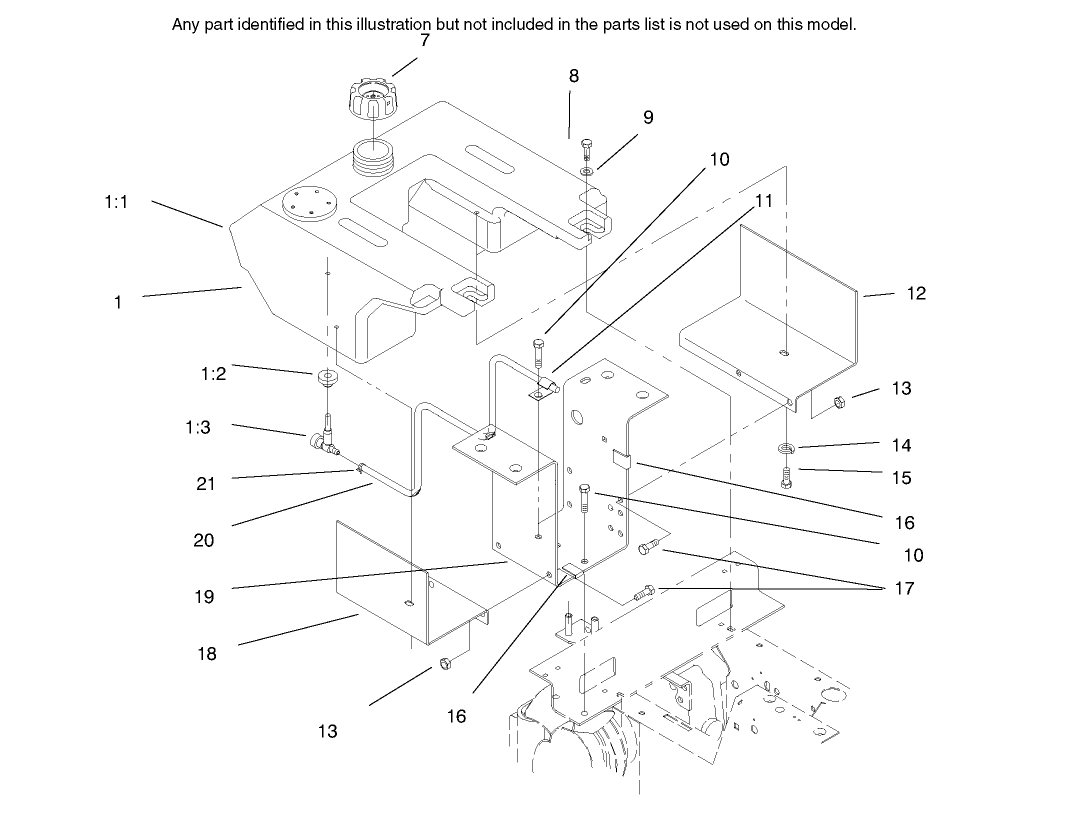

Engine: Fuel Tank Capacity

1.5 gals.

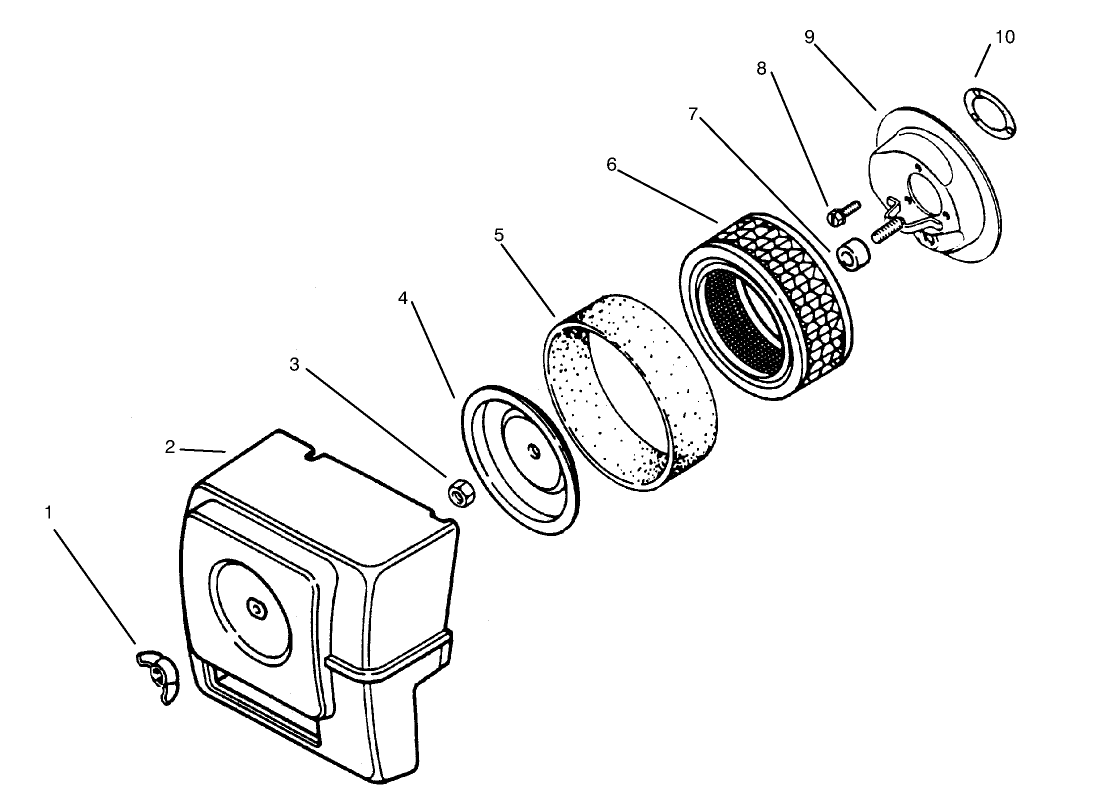

Engine Torque: Air Cleaner Nut

50 in.lbs.

Engine: Balance Gear, End Play

.002/.010"

Engine: Balance Gear, New Stub Shaft O.D.

.4998/.5001"

Engine: Balance Gear, Stub Shaft O.D. Max. Wear Limit

.4996"

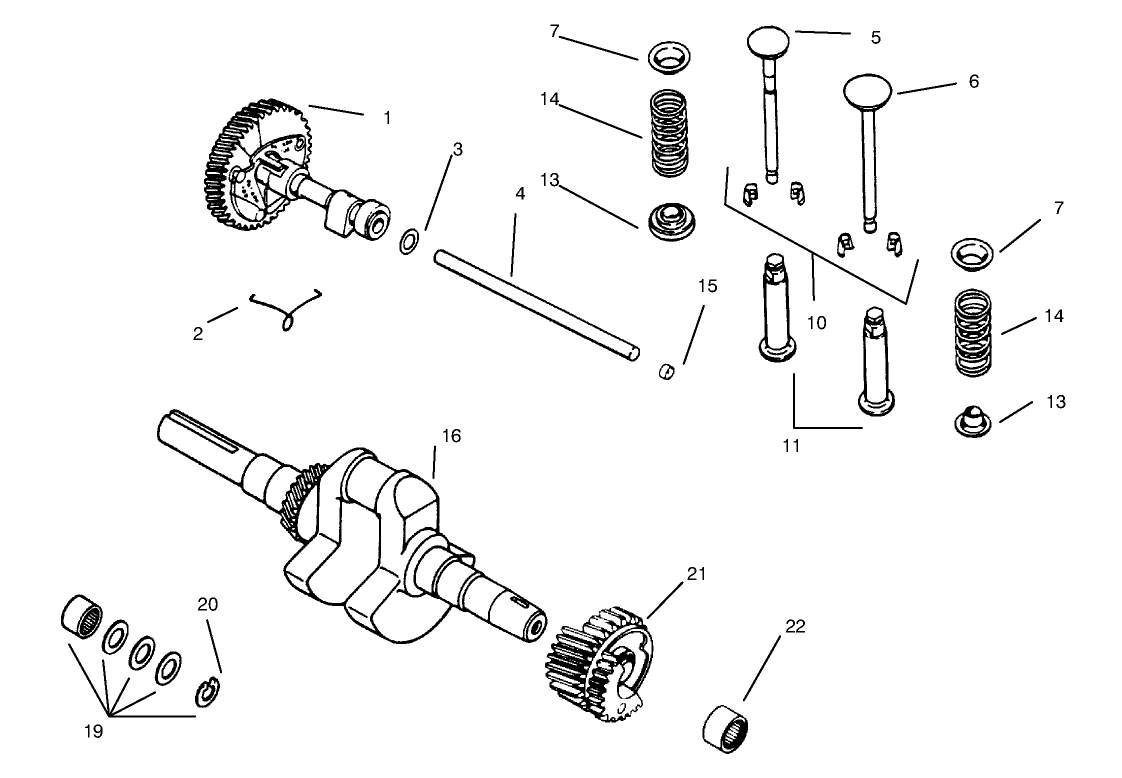

Engine: Camshaft End Play

.005/.010"

Engine: Camshaft to Camshaft Pin Running Clearance

.0010/.0035"

Engine: Camshaft Pin Depth From Crankase Surface.

.300/.330"

Engine: Camshaft Cup Plug Depth from Crankcase Surface

.000/.030"

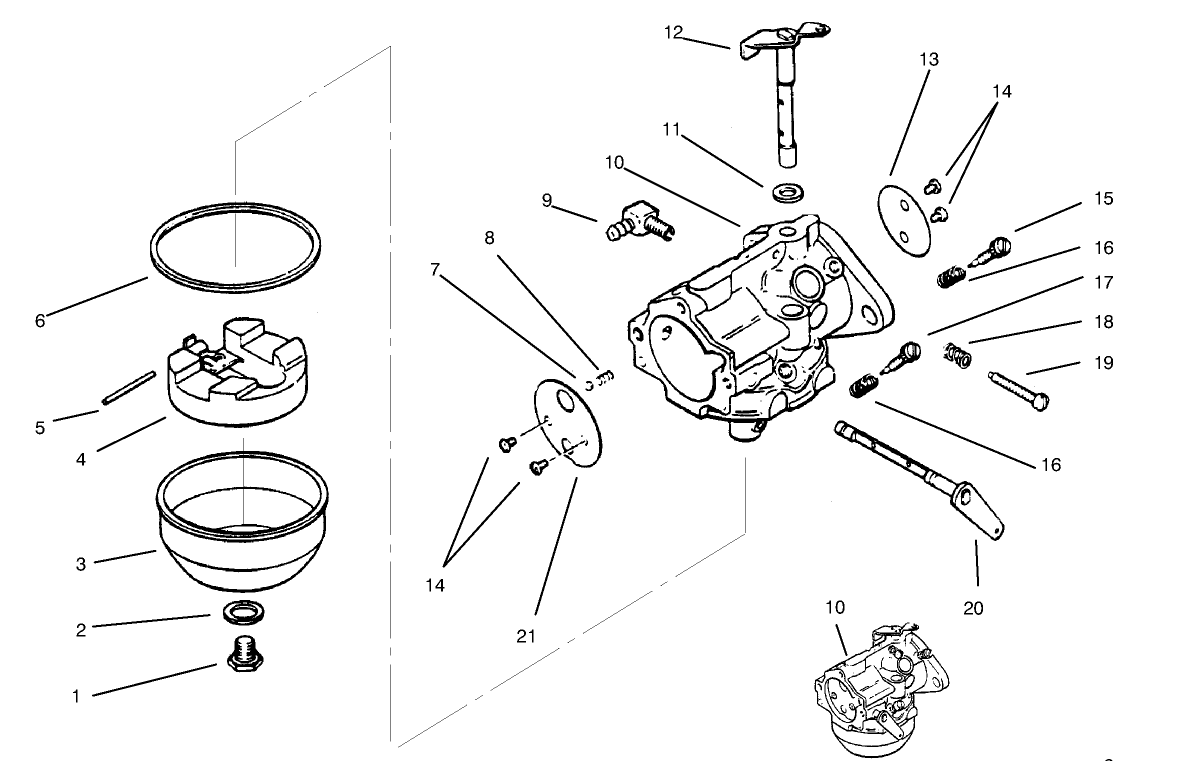

Engine: Carburetor Preliminary Main Fuel Screw Setting

2 1/2 Turns

Engine: Carburetor Preliminary Idle Fuel Screw Setting

2 1/2 Turns

Engine: Carburetor Float Level

1 1/64 (+/- 1/32)

Engine: Carburetor Float Drop

1 1/32

Engine: Carburetor Float to Float Tower Clearance

.010"

Engine: Rod to Crankpin Running Clearance (new)

.001/.002"

Engine: Rod to Crankpin Running Clearance (max. wear limit)

.0025"

Engine: Rod to Pistonpin Running Clearance (new)

.0003/.0008"

Engine: Piston Pin End I.D. (new)

.8757/.8760"

Engine: Rod Side Play on Crankpin

.007/.016"

Engine: Crankshaft End Play

.003/.020"

Engine: Main Bearing Surface O.D. (new)

1.5745/1.5749"

Engine: Main Bearing Surface O.D. (max. wear limit)

1.5745"

Engine: Crankpin O.D. (new)

1.5000/1.4995"

Engine: Crankpin O.D. (max. out of round)

.0005"

Engine: Crankpin O.D. Max. Taper

.001"

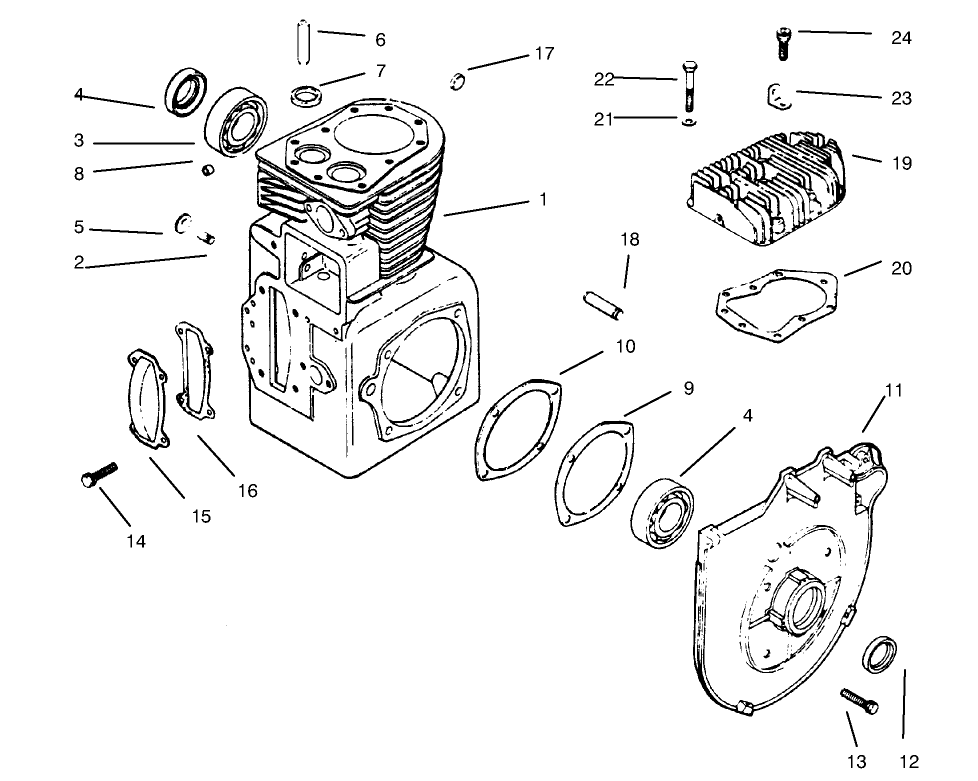

Engine: Cylinder Bore I.D. (new)

3.5005/3.4995"

Engine: Cylinder Bore I.D. (max. wear limit)

3.503"

Engine: Cylinder Bore I.D. (max. out round)

.005"

Engine: Cylinder Bore I.D. (max. taper)

.002"

Engine: Cylinder Head Max. Out Of Flatness

.003"

Engine: Gear Reduction Shaft End Play

.005/.030"

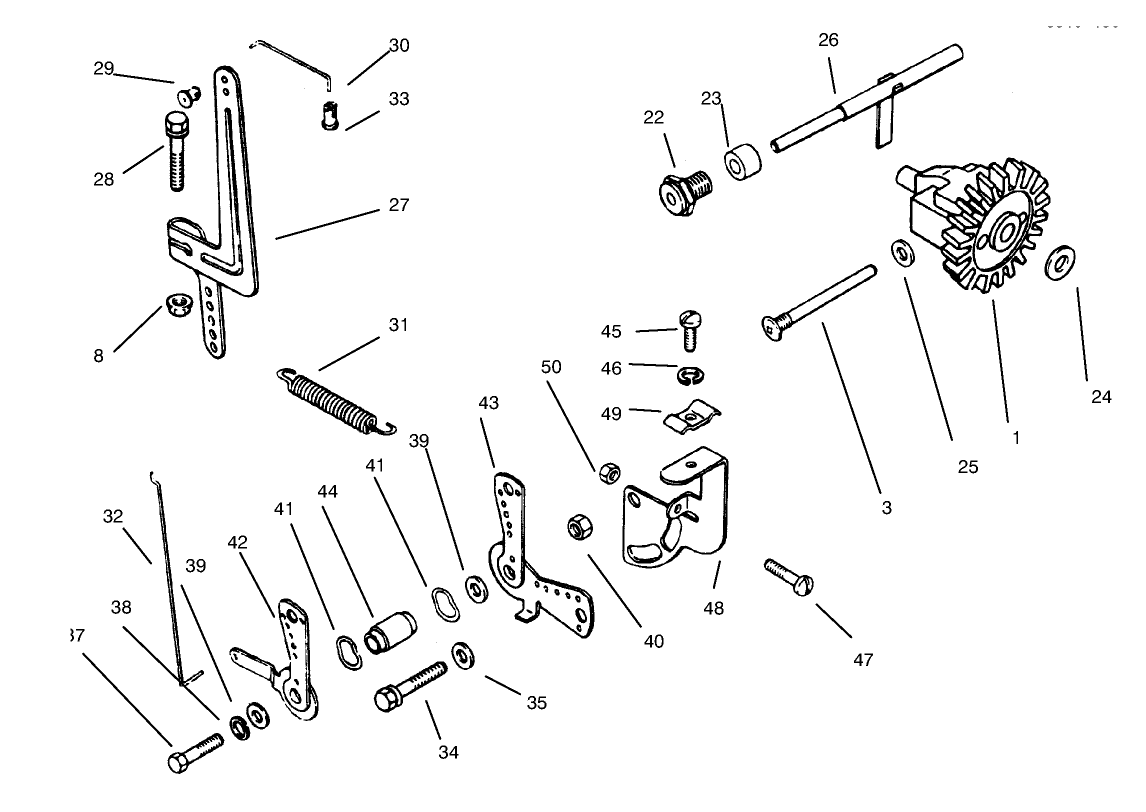

Engine: Governor Bushing to Cross Shaft Running Clearance

.0010/.0025"

Engine: Governor Gear to Stub Shaft Running Clearance

.0005/.0020"

Engine: Governor Cross Shaft End Play

.001/.069"

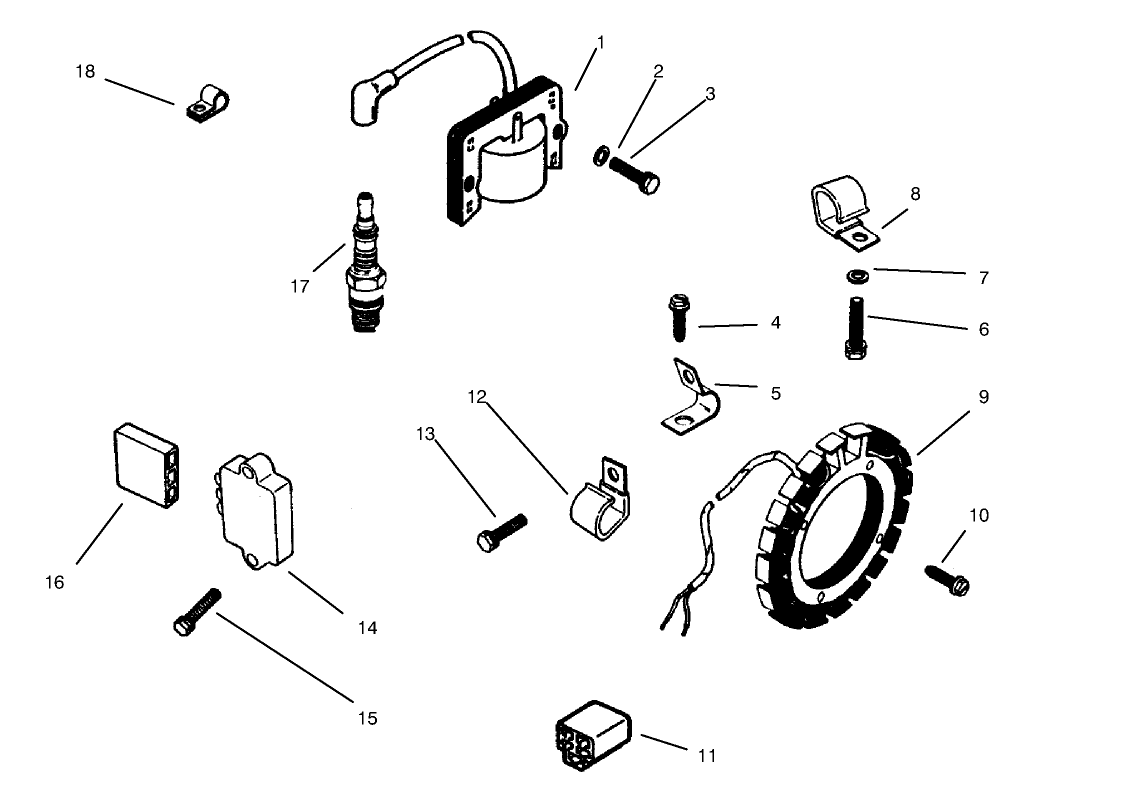

Engine: Ignition Module Air Gap

.012/.016"

Engine: Spark Plug Type

Champion RH-10

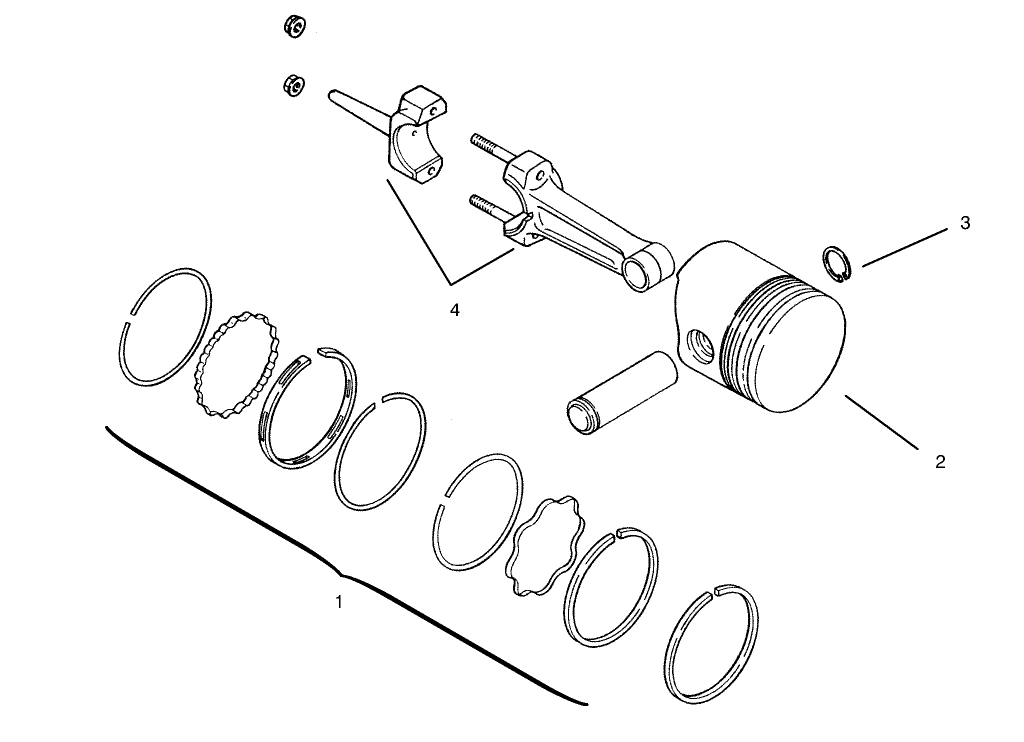

Engine: Type A Piston Thrust Face O.D. @D 1 (new)

3.4941/3.4925"

Engine: Type A Piston Thrust Face O.D. @ D1 (max. wear limit)

3.491"

Engine: Type A Piston Thrust Face to Bore Clearance @D1 (new)

.007/.010"

Engine: Type A Piston Ring End Gap (new)

.010/.020"

Engine: Type A Piston Ring End Gap (max.wear limit)

.030"

Engine: Type A Piston Ring Side Clearance (max. )

.006"

Engine: Type A Piston Pin O.D. (new)

.8752/.8754"

Engine: Intake Valve to Tappet Clearance (cold)

.008/.010"

Engine: Exhaust Valve to Tappet Clearance (cold)

.017/.019"

Engine: Intake Valve Minimum Lift - Zero Lash

.318"

Engine: Exhaust Valve Minimum Lift - Zero Lash

.318"

Engine: Intake Valve Minimum Stem O.D.

.3103"

Engine: Exhaust Valve Minimum Stem O.D.

.3074"

Engine: Nominal Valve Seat Angle

45 Degrees

Engine: Valve Guide Reamer Size

.3125"

Engine: Intake Valve Guide I.D. (max. wear limit)

.006"

Engine: Exhaust Valve Guide I.D. (max. wear limit)

.008"

Engine Torque: Camgear Cover Fastener

115 in.lbs.

Engine Torque: Fuel Inlet Seat

35 in.lbs.

Engine Torque: Bowl Retaining Screw

50 in.lbs.

Engine Torque: New Rod Nuts

260 in.lbs.

Engine Torque: Used Rod Nuts

200 in.lbs.

Engine Torque: Cylinder Cap Screws

25/30 ft.lbs.

Engine Torque: Flywheel Fan

115 in.lbs.

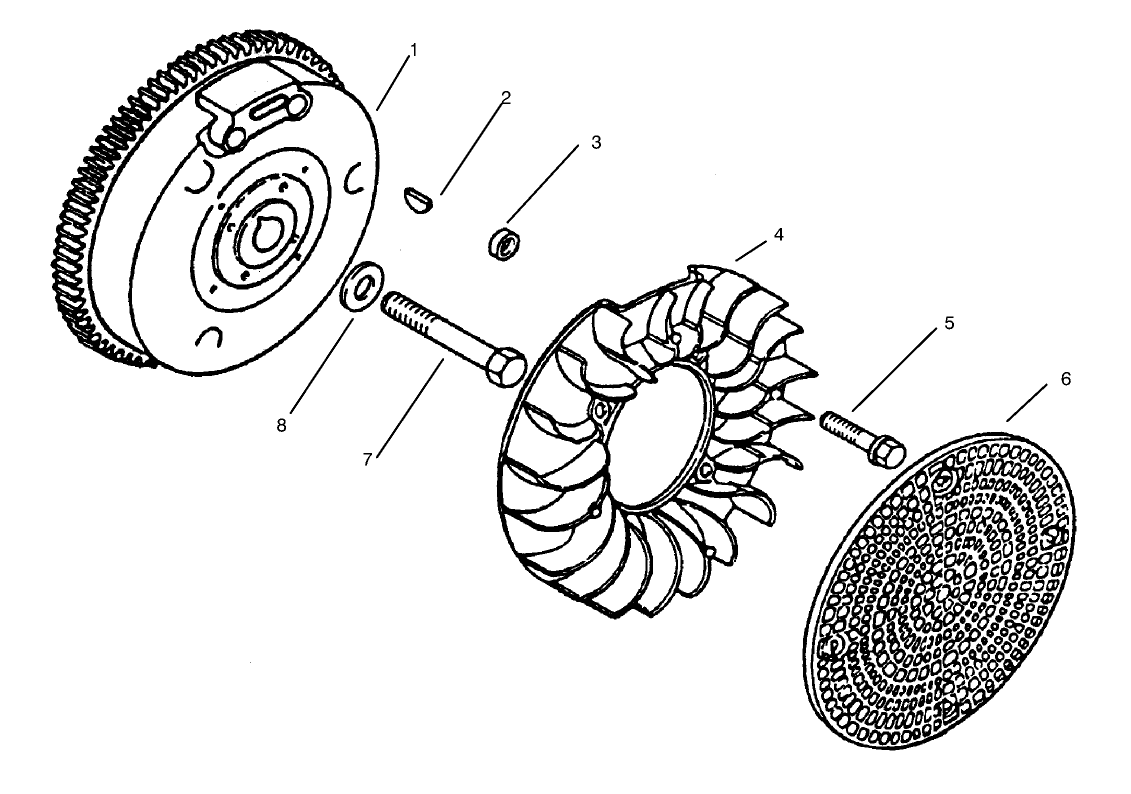

Engine Torque: Flywheel

40/45 ft.lbs.

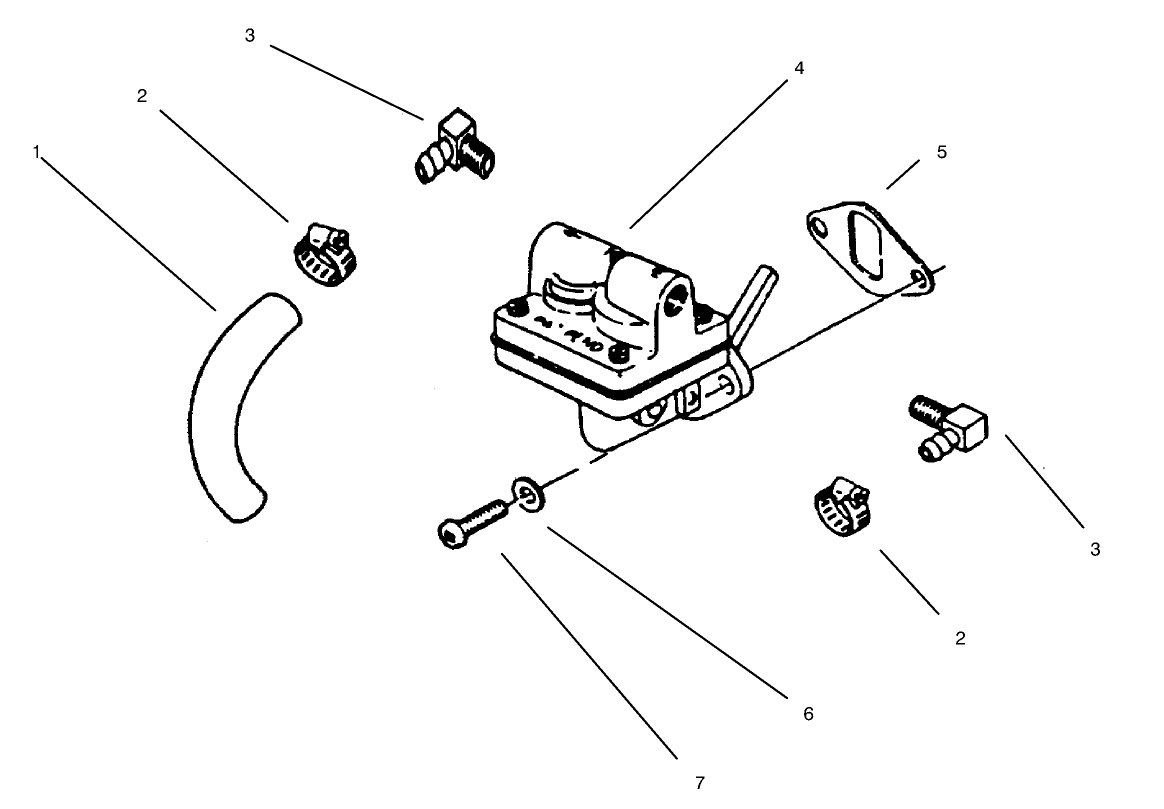

Engine Torque: Fuel Pump Mounting Screws

40/45 in.lbs.

Engine Torque: Fuel Tank Isolation Mount

Hand Tight

Engine Torque: Governor Bushing

100/120 in.lbs.

Engine Torque: Spark Plug Torque

18/22 ft.lbs.

Engine Torque: Ignition Module Mounting Screws

32 in.lbs.

Engine Torque: Oil Sentry Switch

90 in.lbs.

Engine Torque: RemoteThrottle Control Nut

10/15 in.lbs

Engine Torque: Engine mtd. Throttle Control Nut

10/25 in.lbs.

Engine Torque: Shortened Throttle Control Nut

70 in.lbs.

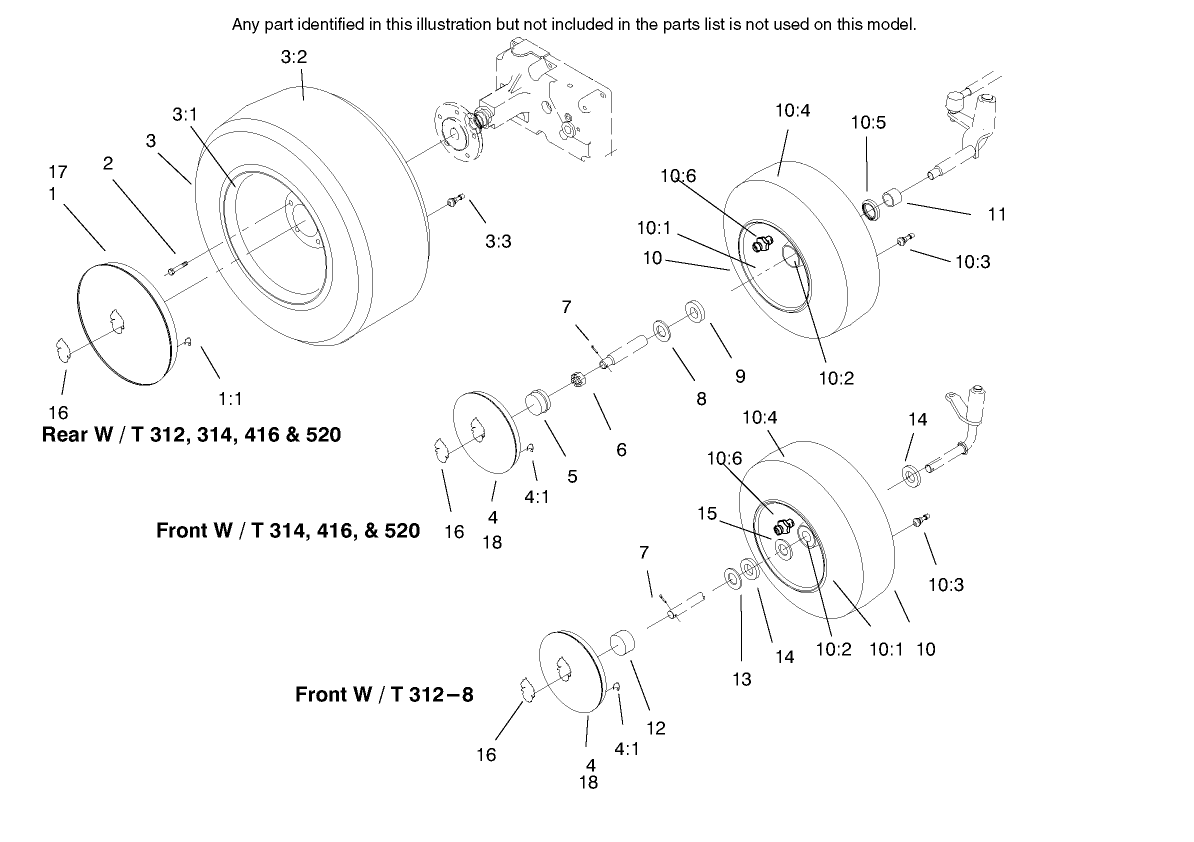

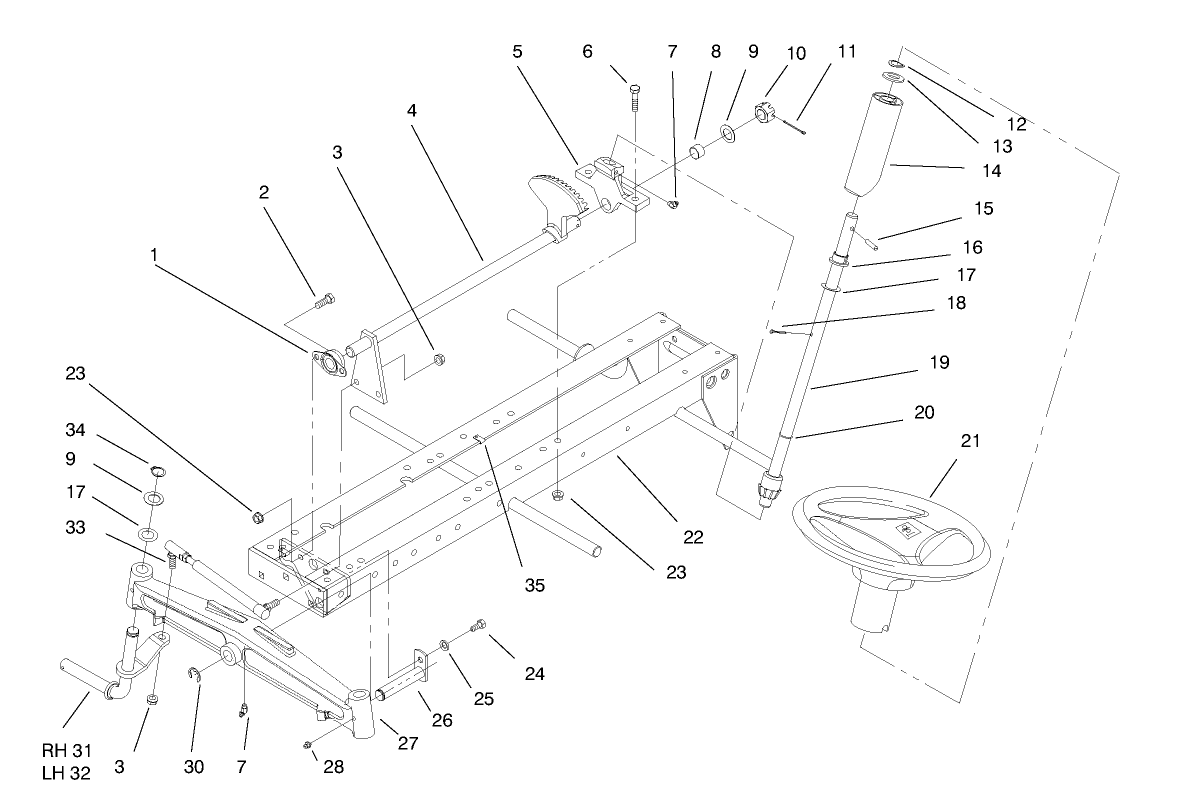

Chassis: Tire Pressure

12 PSI / .5kg sq. cm

Drive System: Ground Speed

Fwd. .5 - 5.5 Rev. .7 & 2.6 mph

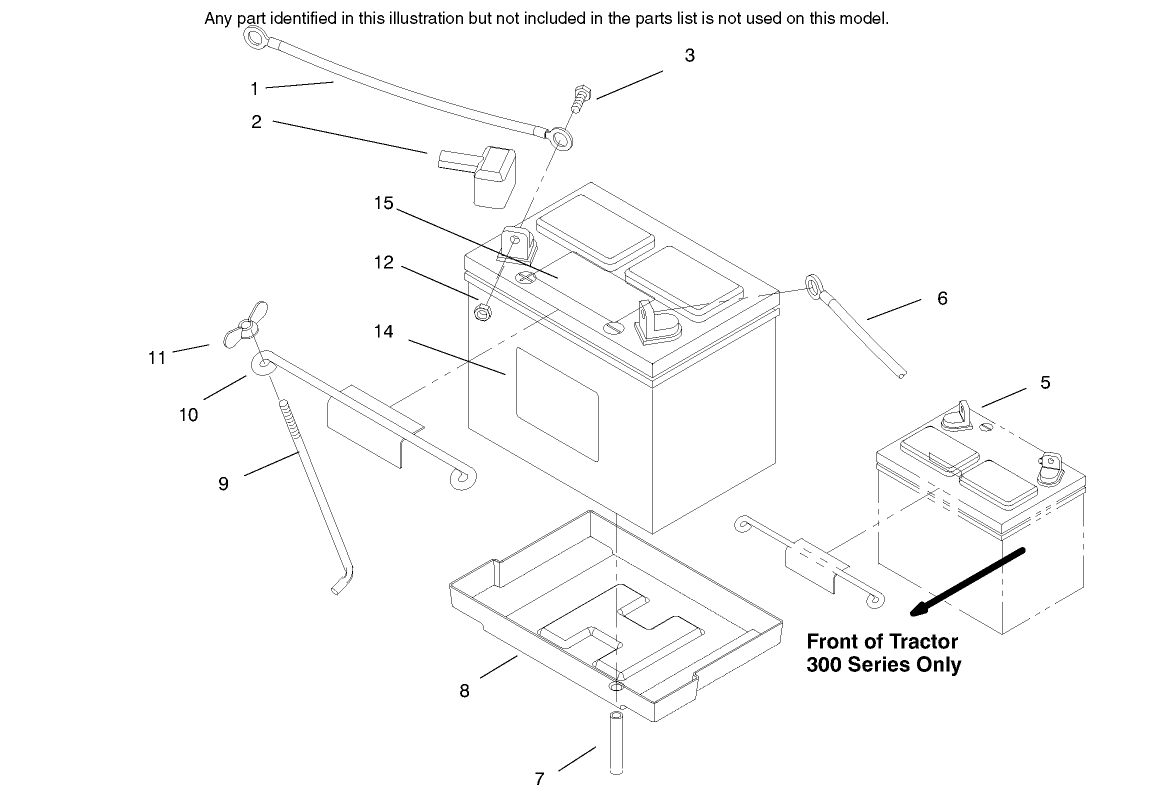

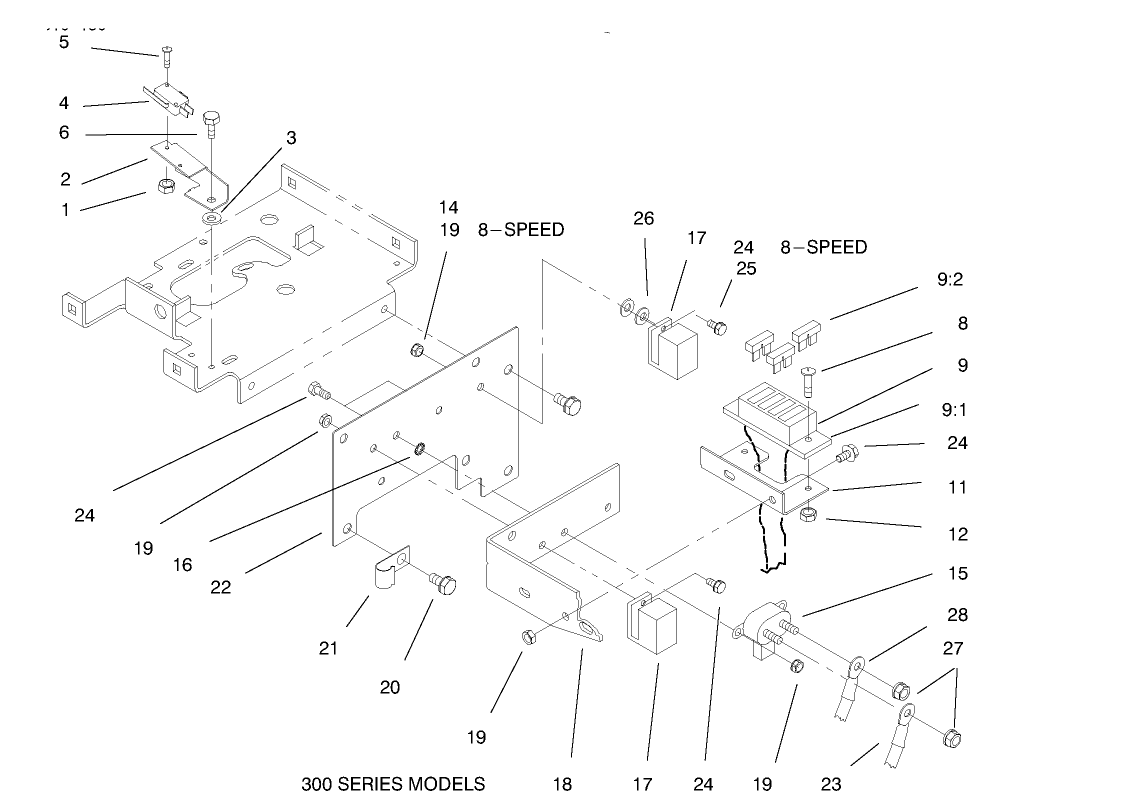

Engine: Battery

12V 210CCA

Engine: Engine Speed

High 3325, Low 1200 RPM

Engine: Spark Plug

Champion RH10

Engine: Spark Plug Gap

.025"/ .64mm
