Dingo 222 Traction Unit
Product Information
- Model #: 22300
- Serial #: 890001 - 899999
- Product Type: Compact Utility Loaders
Loading...

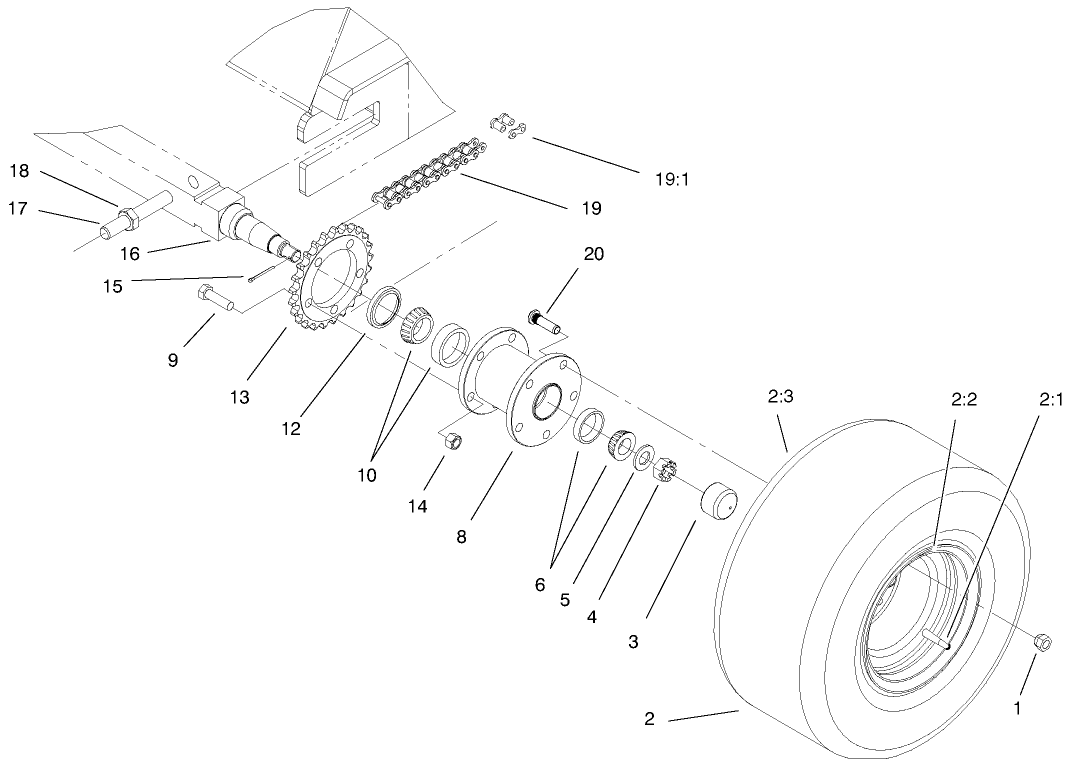

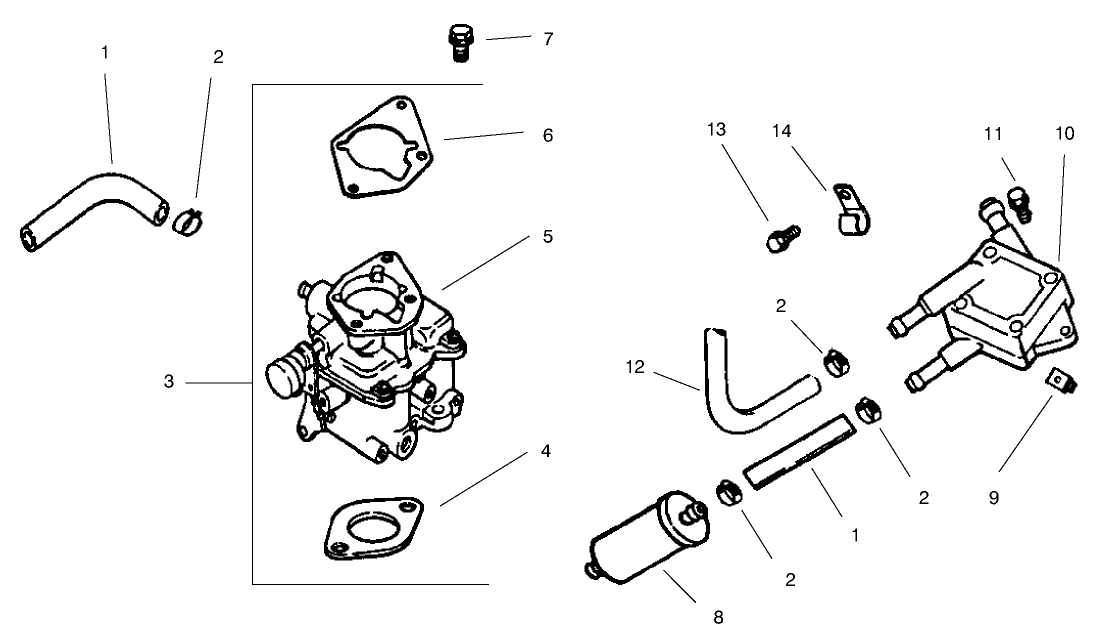

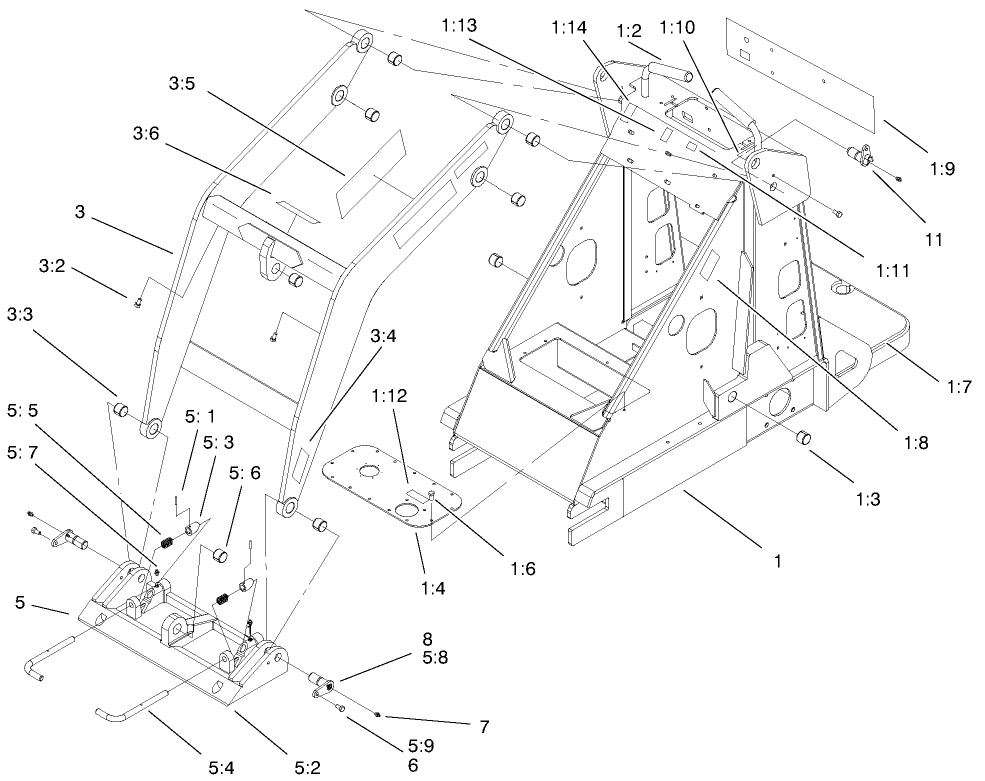

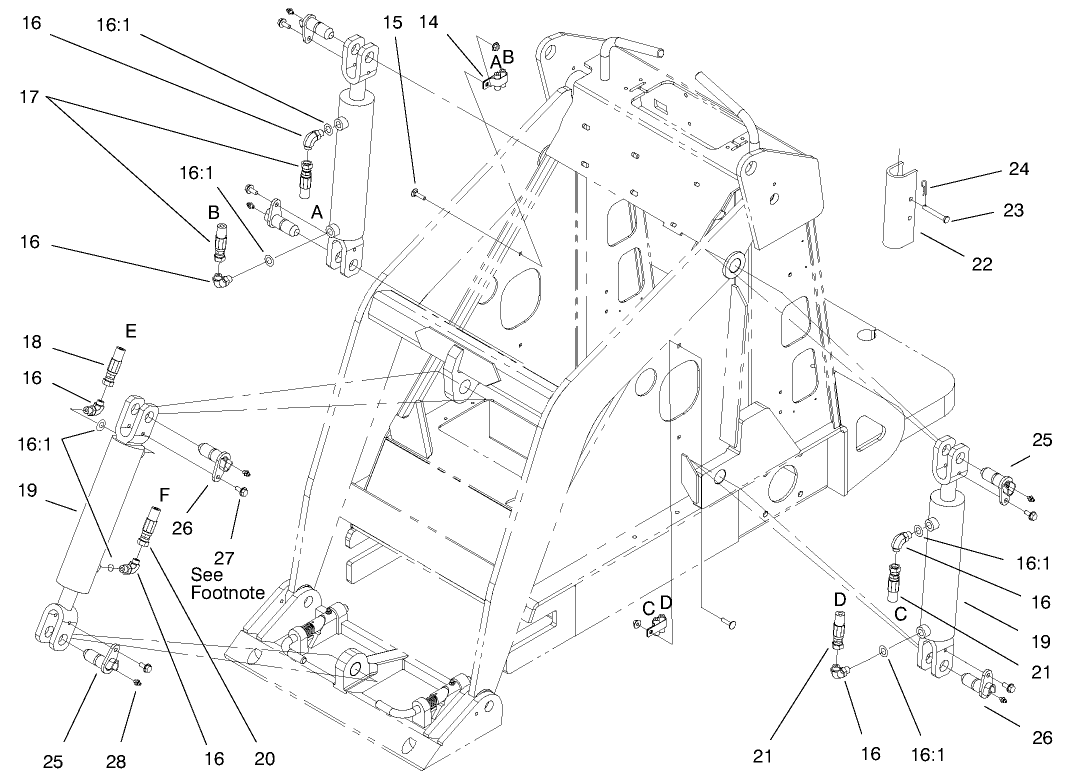

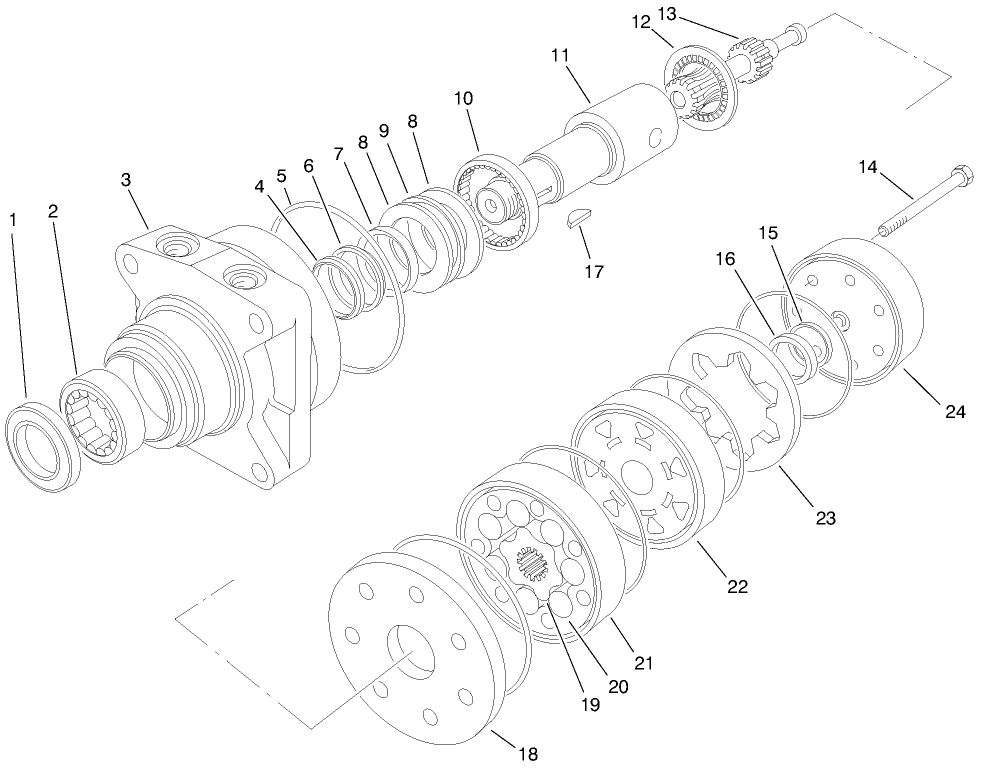

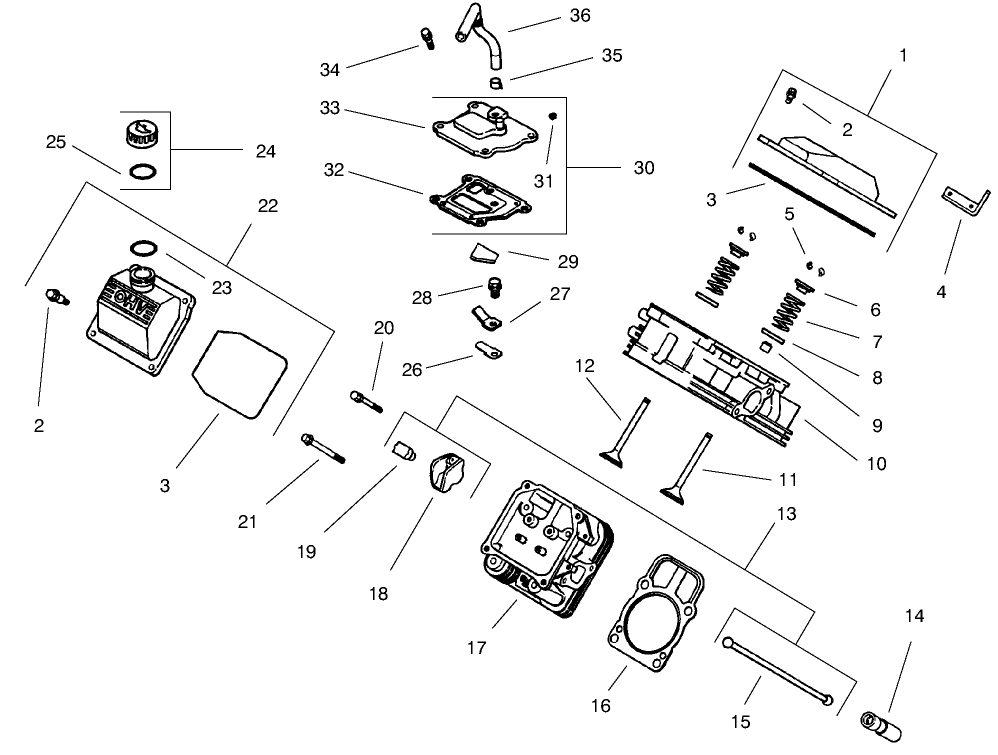

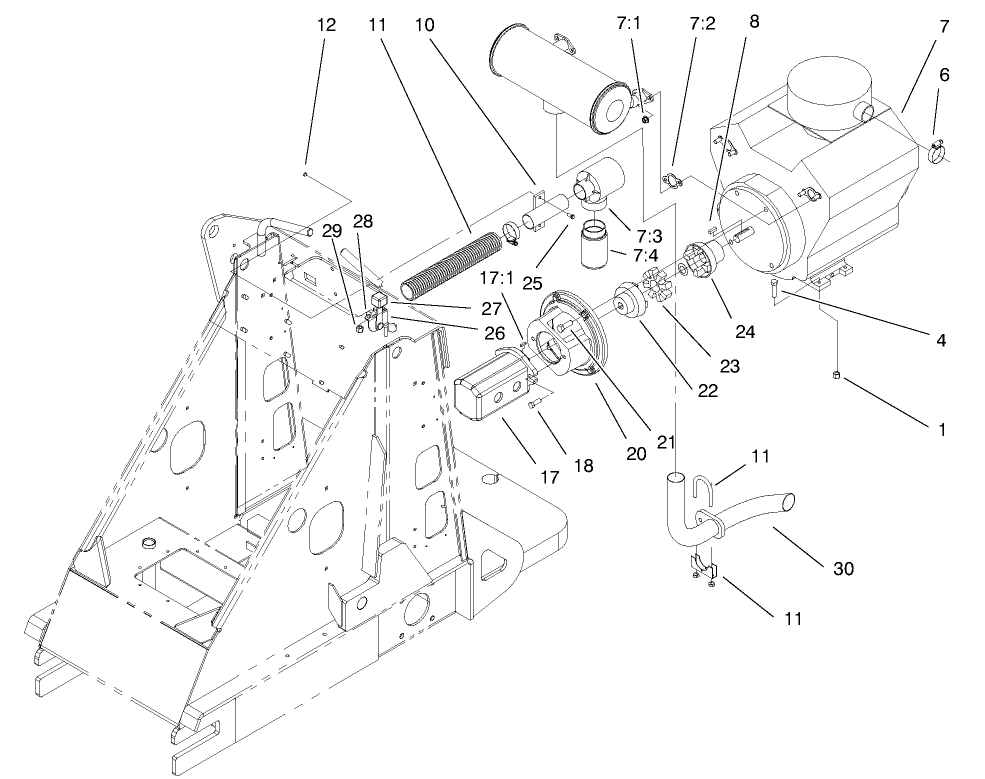

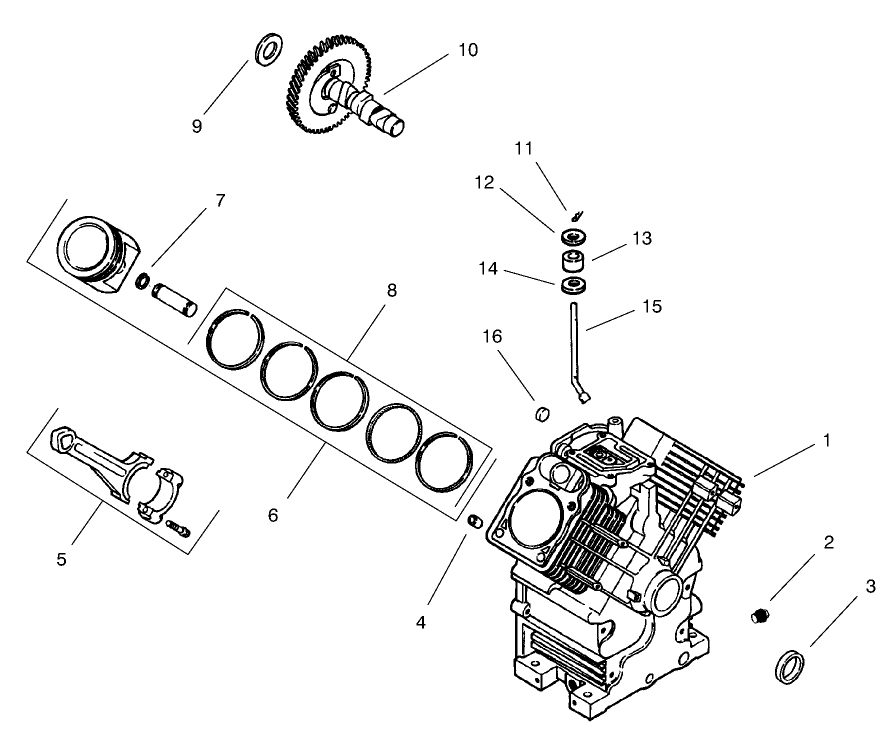

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Parts Catalog

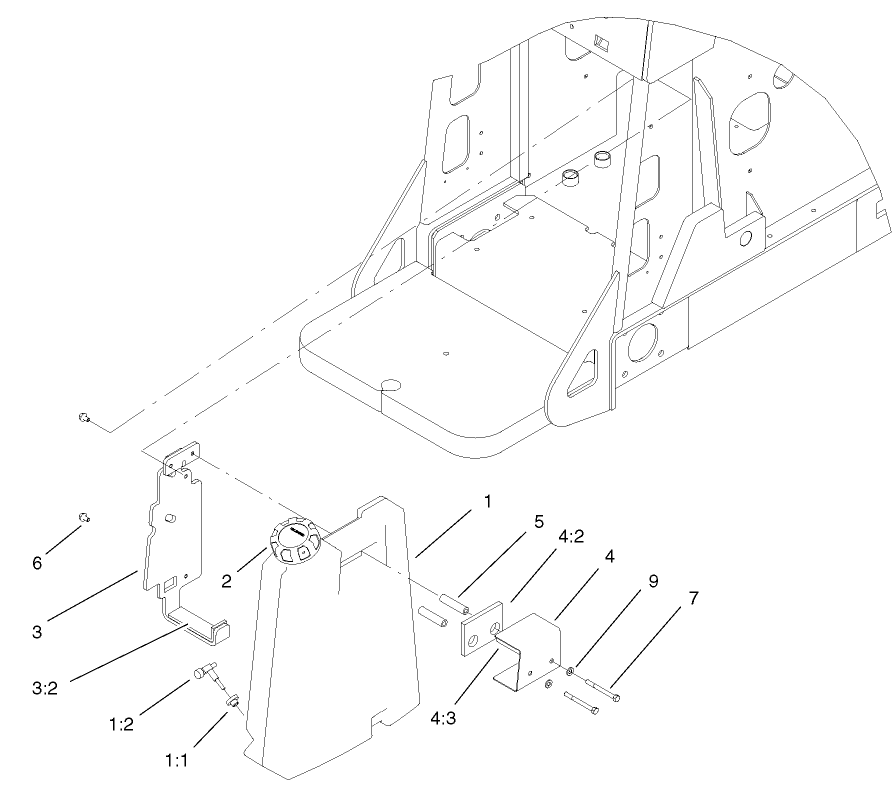

Fuel Tank Kit, Dingo-Gas (Part # 100-2531)
SEAL KIT (Part # 100-4165)
Flush Face Converter Kit, Dingo (Part # 100-4789)
Light Kit for Dingo 320D (Part # 100-8940)
Light kit fits: Dingo 320D - Lamp 12V
Narrow Tire Assembly (Part # 104-0572)
Spool Carrier Kit, Dingo (Part # 104-2661)

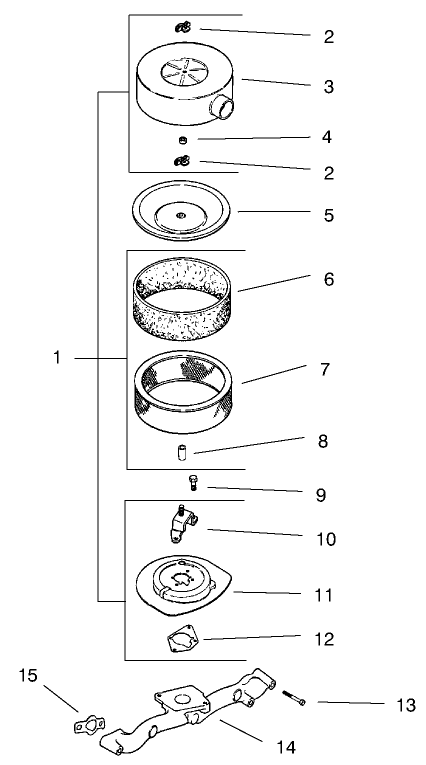

Remote Air Cleaner Kit, Dingo Model 22304 (Part # 104-4635)
Tail Pipe Kit (Part # 105-8400)
Tire Tube (Part # 106396)
Snow Cab, Dingo (Part # 20035)
Auger Head, Dingo (Part # 22400)
6" Auger, Dingo (Part # 22402)
9" Auger, Dingo (Part # 22403)
12" Auger, Dingo (Part # 22404)
15" Auger, Dingo (Part # 22405)
18" Auger, Dingo (Part # 22406)
24" Auger, Dingo (Part # 22407)
30" Auger, Dingo (Part # 22408)
Loader Bucket Attachment (Part # 22409)
Use this standard bucket for moving rock, dirt, sand or other materials off and around the job site. The hardened steel cutting edge offers improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear. Capacity = 4 cubic feet (1 cu. m.).
Light Materials Loader Bucket Attachment (Part # 22410)
Designed for moving light materials like chip-bark, mulch, snow and loam. The larger capacity bucket, 6.4 cubic feet (.2 cu. m.), is great for handling larger loads of lighter materials. The hardened steel cutting edge allows for improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear.
Four In One Bucket, Dingo (Part # 22411)
Backhoe, Dingo (Part # 22412)
Utility Blade Attachment (Part # 22414)
The Toro Dingo hydraulic blade greatly increases the versatility of your Dingo system. This incredibly versatile attachment can be used for a variety of earth or snow moving jobs. Fill trenches where rows of trees have been planted or irrigation pipes have been installed. Keep your hydraulic blade working in the winter by pushing snow from sidewalks in one pass.
Counterweight, Dingo (Part # 22417)
Adjustable Forks, Dingo (Part # 22418)
Leveler, Dingo (Part # 22419)
Bore Drive Head Attachment (Part # 22420)
The Toro® Dingo® boring unit allows you to dig under sidewalks and driveways to simplify irrigation and cable installations. Shorter rod lengths and the ability to lower the bore head below grade allow you to work in both confined and open areas, increasing your productivity.
Multi-Purpose Tool, Dingo (Part # 22423)
U-Blade, Dingo (Part # 22424)
Stump Grinder Attachment (Part # 22429)
The Toro® Dingo® Stump Grinder easily attaches to either Dingo or Dingo TX compact utility loaders. Make grinding stumps quicker and more productive with the stump grinder attachment for your Toro Dingo.
Over-the-Tire Tracks, Dingo (Austrailian model) (Part # 22431)
Tree Fork Attachment (Part # 22438)
The Toro Dingo hydraulic tree forks can help you plant trees and large shrubs quickly and effortlessly, plus move all sorts of materials around your garden center or nursery. The Dingo Compact Utility Loader is especially easy to maneuver, helping you transport and position trees or shrubs exactly where you want them.
Two-Axle Trailer, Dingo (Part # 22439)
The Eliminator Scarifier/Groomer, Dingo (Part # 22443)
Tiller Attachment (Part # 22445)
The Toro Dingo tiller attachment greatly increases the productivity and performance of your Dingo system. Break through hard soil conditions up to 6" (15.2 cm) deep. Avoid clogging the tiller by using one easy hand control to reverse the direction of the tiller to clear jams from rocks and debris.
Trencher Head, Dingo (Part # 22447)
12" Auger Extension, Dingo (Part # 22448)
24" Auger Extension, Dingo (Part # 22449)
Rear Stablizer, Dingo (Part # 22452)
Rock Auger, Dingo (Part # 22454)
Trencher Head, Dingo (Part # 22459)
Grapple Rake, Compact Utility Loaders (Part # 22521)
Lug Nut (Part # 242-50)
Toro OEM Lug Nut.
Sunshade (Part # 30088)

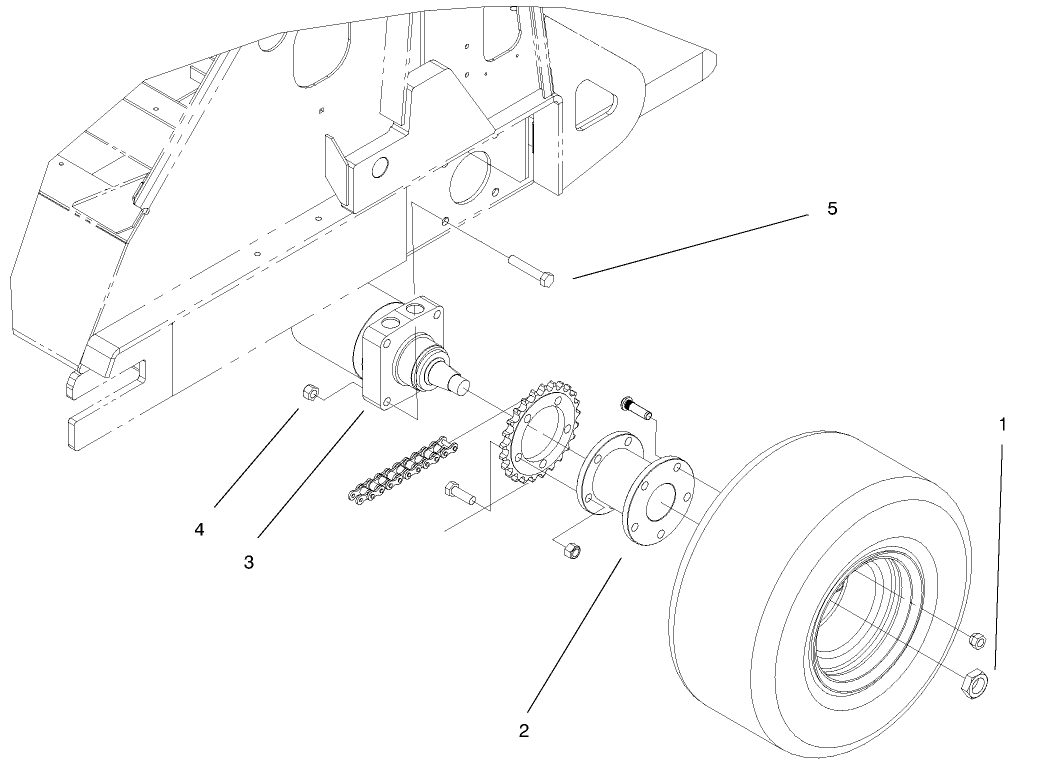

Left Hand Wheel and Tire Assembly (Part # 98-2747)
Left hand wheel and tire fits both front and rear position.
WHEEL (Part # 98-2748)
Tire (Part # 98-2749)
ASM - WHEEL/TIRE (Part # 98-4709)
SPROCKET-25T (Part # 98-9937)
Right Hand Wheel and Tire Assembly (Part # 99-1447)
Right hand wheel and tire fits both front and rear position.
WHEEL AND TIRE ASM RH (PO (Part # 99-3140)
WHEEL AND TIRE ASM LH (PO (Part # 99-3141)
Hydraulic Relief Valve Kit, Dingo (Part # 99-4360)
-
Model #
22300 -
Serial #
890001 - 899999 -
Product Name
Dingo 222 Traction Unit -
Product Brand
Toro -
Product Type
Compact Utility Loaders -
Product Series
Compact Utility Loaders -
Chassis Type
CUL - Wheeled -
Engine/Motor Manufacturer
Kohler -
Engine/Motor Size
22 hp -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Spool Valve -
Traction Type
Rear WD
-
Engine: Battery
12V 340CCA -
Engine: Spark Plug
Champion RC12YC -
Engine: Spark Plug Gap
.030"/ .76mm -
Drive System: Ground Speed
0-3 mph -
Engine: Engine Oil Type
2.0 qts. 10w-30 -
Chassis: Tire Pressure
15-22 psi -
Engine: Engine Speed
3600±75 RPM -
Hydraulic: Hydraulic Pressure
3000 psi -
Hydraulic: Hydraulic Flow
2.7 gpm low flow circuit : 8.8 gpm high flow circuit -
Hydraulic: Hydraulic Reservoir
16 gallon -
Chassis: Wheels
Standard: 8x7.00, 5 bolt, split steel :: Optional: 8x5.37, 5 bolt, split steel -
Chassis: Tires
Std: 18x8.50-8_4-ply, Turf Tread, Fluid Filled. Opt: 18x9.50-8_2-ply, Chevron Tread, Fluid Filled.
