LX500 Lawn Tractor
Product Information
- Model #: 13AP60RP744
- Serial #: 1A096B50000 -
- Product Type: Riding Products
Loading...
Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
42in Two-Stage Snowthrower (Part # 190-032-101)
50in Triple Bagger (Part # 190-192-190)
46in Front Blade (Part # 190-833-000)
Red Paint (Gallon) (Part # 361-11)
Genuine OEM Part
Red Paint (Part # 5340)
Genuine OEM Part
Wheel Weight Kit (Part # 59159)
Genuine OEM Part

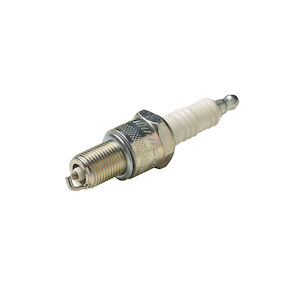

Spark Plug (Part # 77-7330)
Genuine OEM Part
10 cu. ft. Dump Cart (Part # 79901)
10 cu. ft. Poly Dump Cart (Part # 79935)
Folding Loading Ramp for Riding Products (Part # 79949)
Sweeper (Part # 79985)
Tire Chain Accessory (Part # 82722)
Genuine OEM Part
Air Filter (Part # 98019)
Having a properly functioning air filter is an engine’s first line of defense against the dirt and debris that is kicked up during the operation. When the air filter is in good condition and working properly, it prevents dirt from entering the engine through the carburetor. Count on Toro genuine OEM air cleaners and air cleaner assemblies to keep your gasoline powered equipment running at peak performance.
Oil Filter (GrandStand) (Part # 98020)
Your Toro engine’s oil filter removes waste, captures harmful debris, dirt, and metal fragments in your motor oil to keep the engine running smoothly. Without the oil filter, harmful particles can get into your motor oil and damage the engine. Installing genuine Toro engine oil filters on a regular service intervals keeps your Toro equipment running at its best!
Fuel Filter (Part # 98021)
The fuel filter prevents dust particles and fuel contaminants from entering the engine which could damage the cylinders, pistons and other components that will result in the need of costly repairs. Replacing these filters with a genuine Toro fuel filter prevents problems and ensures longer engine life.
-
Model #
13AP60RP744 -
Serial #
1A096B50000 - N/A -
Product Name
LX500 Lawn Tractor -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Lawn Tractor, LX Series -
Chassis Type
Lawn Tractor -
Swath
50 inch -
Discharge
Side -
Engine/Motor Manufacturer
Kohler -
Engine/Motor Size
22 hp -
Engine/Motor Type
4 Cycle CARB3 2006, EPA2 -
Engine Starter
Electric -
Transmission Type
Gear
-
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Height of Cut Range
1.5" - 4" -
Chassis: Tire Pressure
10 psi rear / 14 psi front -
Engine: Battery
12V 235CCA -
Drive System: Ground Speed
Fwd. 0 - 6.4 Rev. 0 - 2.5 mph -
Engine: Spark Plug
Champion XC12YC -
Engine: Engine Speed
High 3375, Low 1200 RPM -
Engine: Engine Oil Type
57.5 oz. (1.7 liters) SAE 10W-30 (w/filter)
