S-200 Snowthrower

S-200 Snowthrower

S-200 Snowthrower

Product Information

  • Model #: 38235
  • Serial #: 0000001 - 0999999
  • Product Type: Snowthrowers

Search for a part within assembly drawings:

Showing Results

Drawing Title Part Number Description
Title

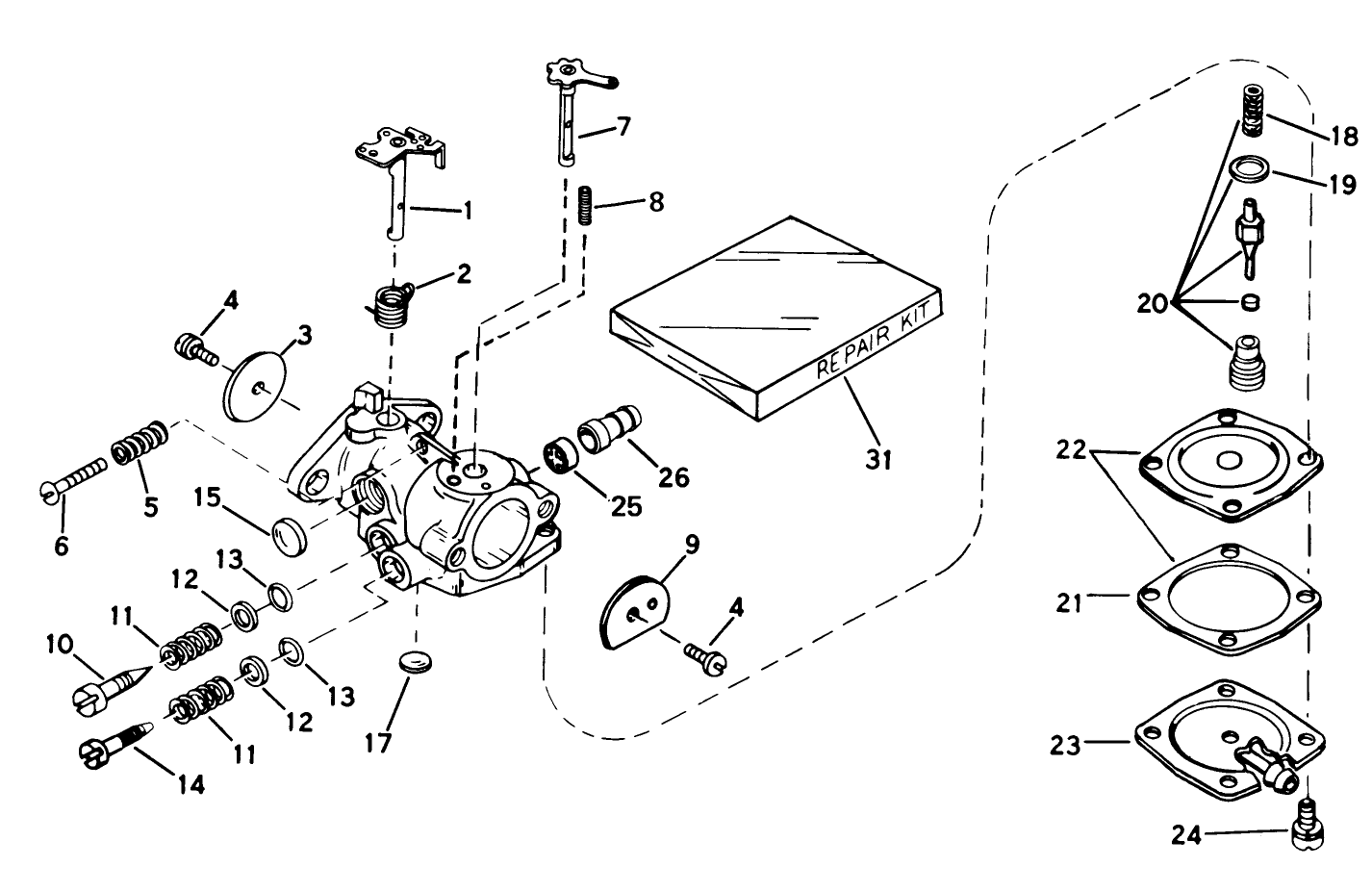

Carburetor No. 631887 Engine Model Ah520 Type 1585b Unit Model 38225 (used On Units With Serial
Carburetor No. 631887 Engine Model Ah520 Type 1585b Unit Model 38225 (used On Units With Serial

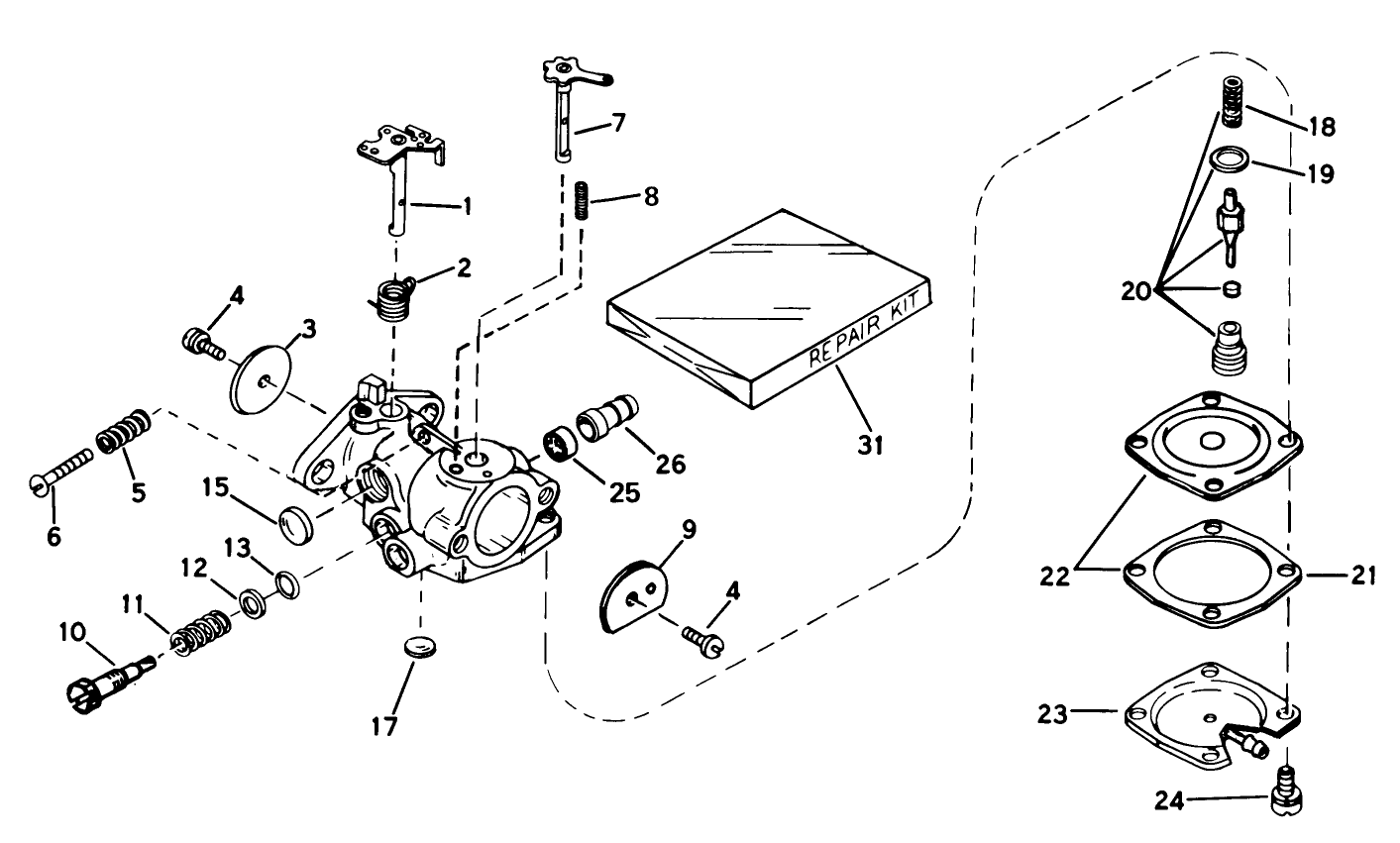

Carburetor No. 632101 Engine Model Ah520 Type 1585a Unit Model 38225 (used On Units With Serial No. 0000001 Thru 0299999) Engine Model Ah520 Type 1583a Unit Model 38235 (used On Units With Serial No. 0000001 Thru 0003000)
Carburetor No. 632101 Engine Model Ah520 Type 1585a Unit Model 38225 (used On Units With Serial No. 0000001 Thru 0299999) Engine Model Ah520 Type 1583a Unit Model 38235 (used On Units With Serial No. 0000001 Thru 0003000)

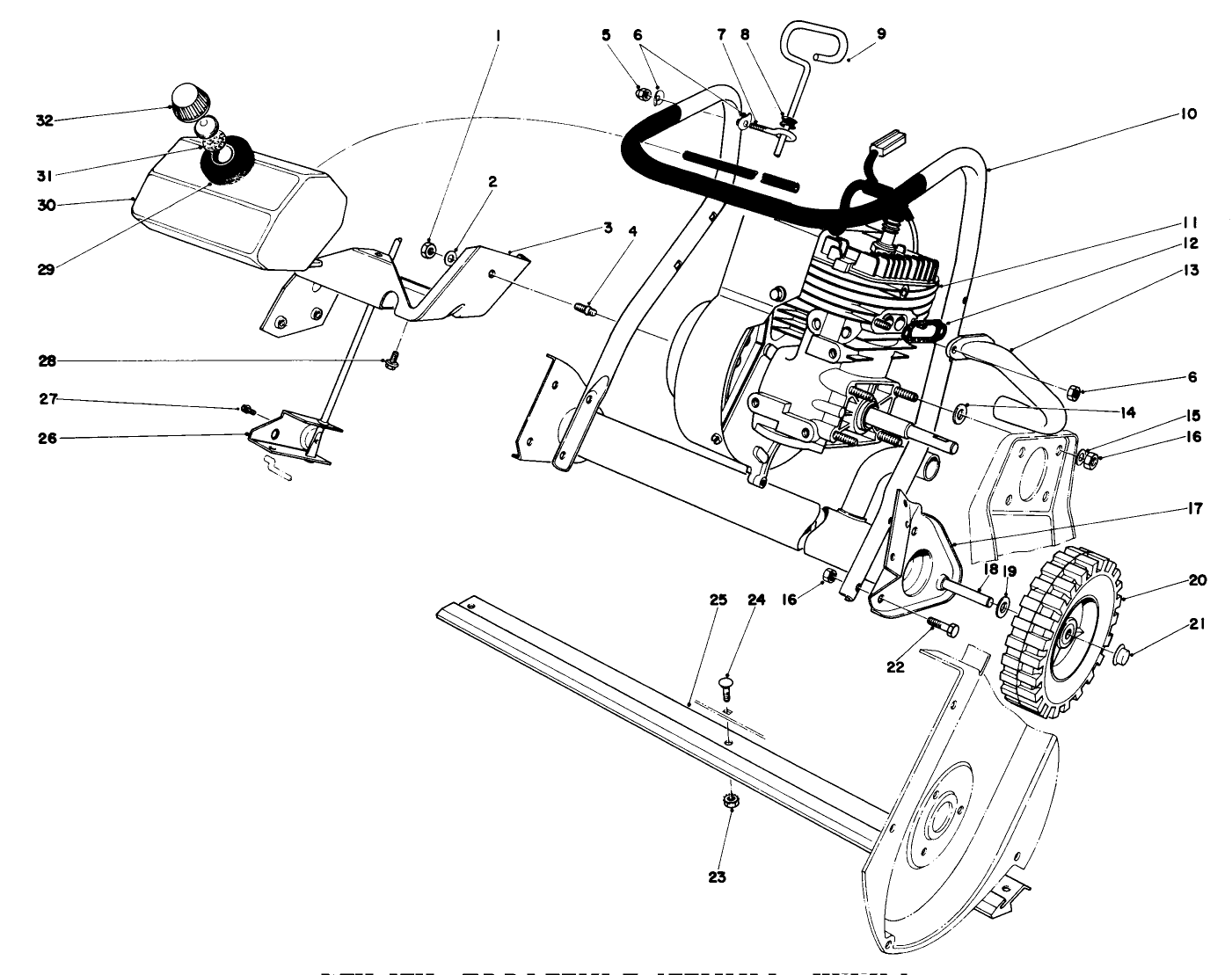

Engine Assembly (model 38225)
Engine Assembly (model 38225)
Engine Assembly (model 38235)
Engine Assembly (model 38235)

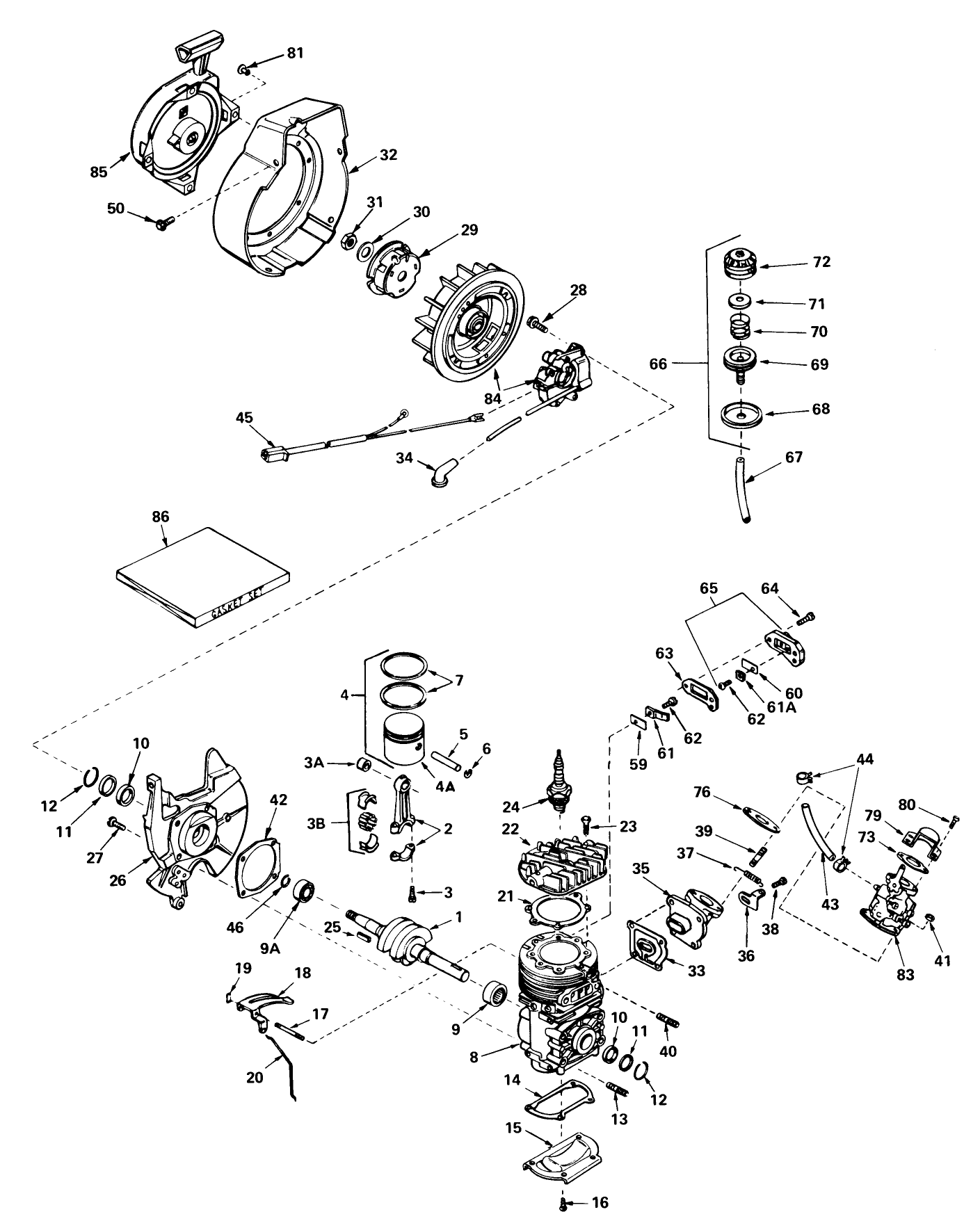

Engine Assembly Engine Tecumseh Model No. Ah520 Type 1585a Unit Model 38225 (used On Units With Serial No. 0000001 Thru 0299999) Engine Tecumseh Model No. Ah520 Type 1583a Unit Model 38235 (used On Units With Serial No. 0000001
Engine Assembly Engine Tecumseh Model No. Ah520 Type 1585a Unit Model 38225 (used On Units With Serial No. 0000001 Thru 0299999) Engine Tecumseh Model No. Ah520 Type 1583a Unit Model 38235 (used On Units With Serial No. 0000001
Engine Assembly Engine Tecumseh Model No. Ah520 Type 1585b Unit Model 38225 (used On Units With Serial No. 0300000 Thru 0309000)
Engine Assembly Engine Tecumseh Model No. Ah520 Type 1585b Unit Model 38225 (used On Units With Serial No. 0300000 Thru 0309000)
Lower Main Frame Assembly (model 38225 & 38235)
Lower Main Frame Assembly (model 38225 & 38235)

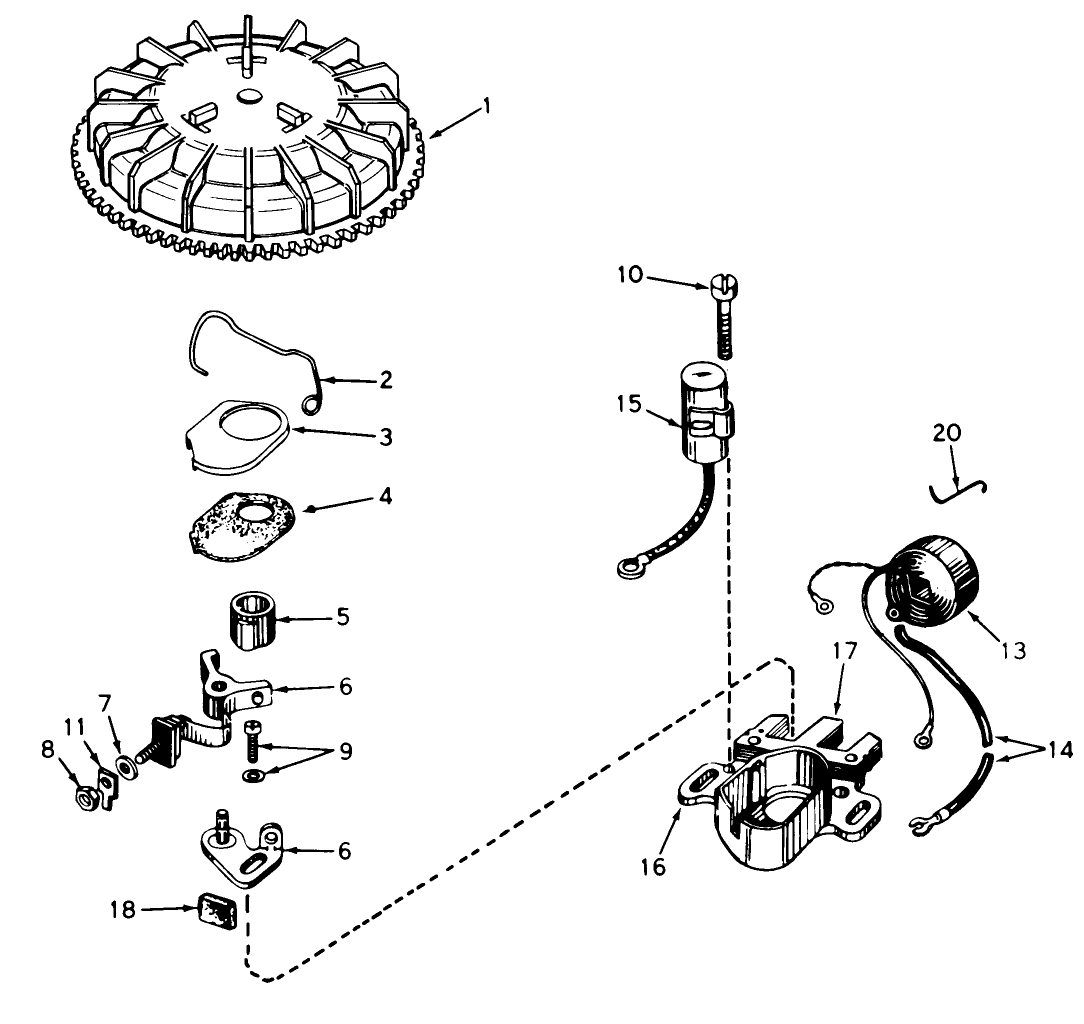

Magneto No. 610772a Engine Model Ah520 Type 1583a Unit Model 38235 (used On Units With Serial No. 0000001 Thru 0003000)
Magneto No. 610772a Engine Model Ah520 Type 1583a Unit Model 38235 (used On Units With Serial No. 0000001 Thru 0003000)
Magneto No. 610794a Engine Model Ah520 Type 1585a Unit Model 38225 (used On Units With Serial No. 0000001 Thru 0299999) Engine Model Ah520 Type 1585b Unit Model 38225 (used On Units With Serial No. 0300000 Thru 0309000)
Magneto No. 610794a Engine Model Ah520 Type 1585a Unit Model 38225 (used On Units With Serial No. 0000001 Thru 0299999) Engine Model Ah520 Type 1585b Unit Model 38225 (used On Units With Serial No. 0300000 Thru 0309000)

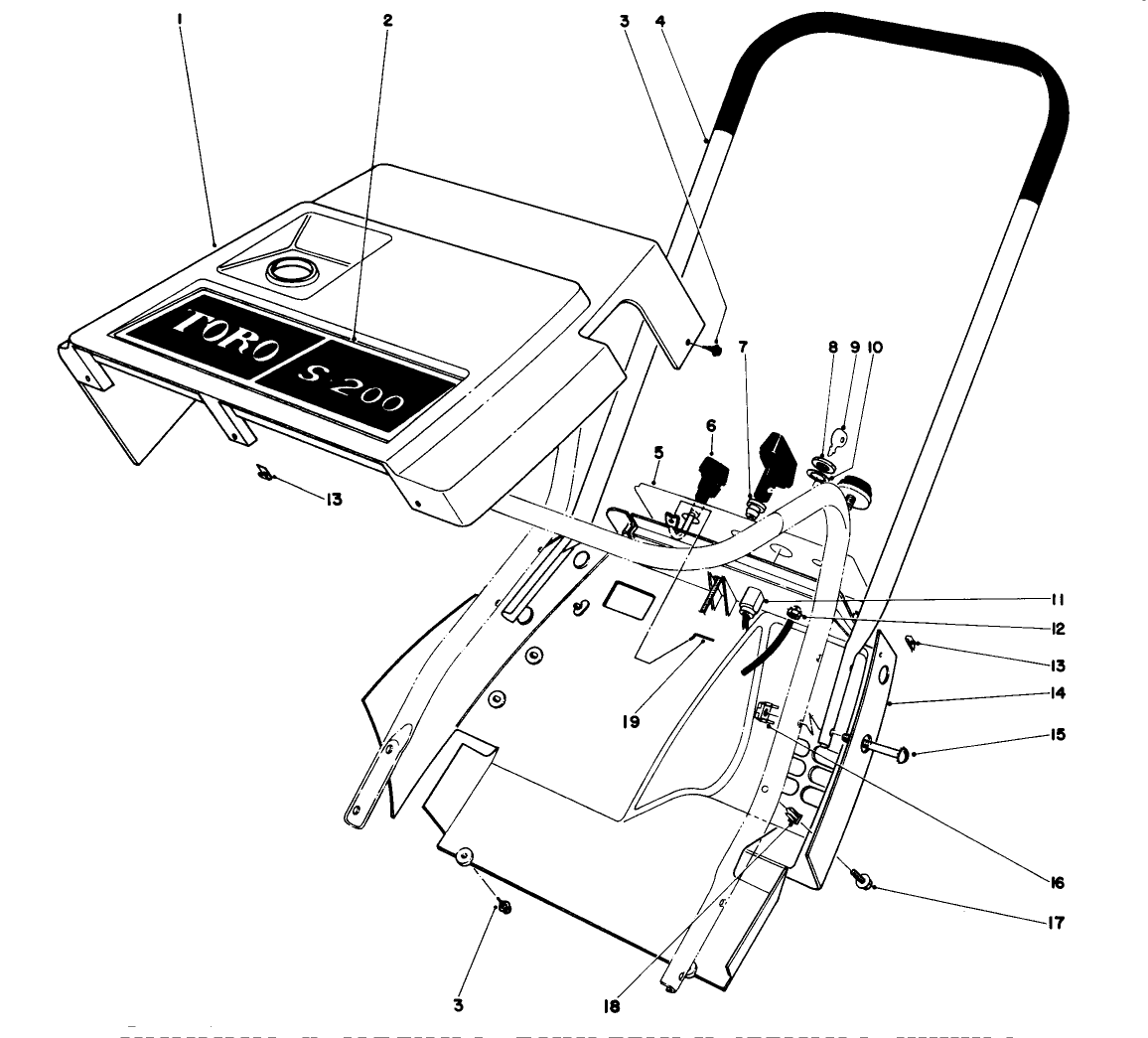

Shroud & Handle Assembly (model 38225)
Shroud & Handle Assembly (model 38225)

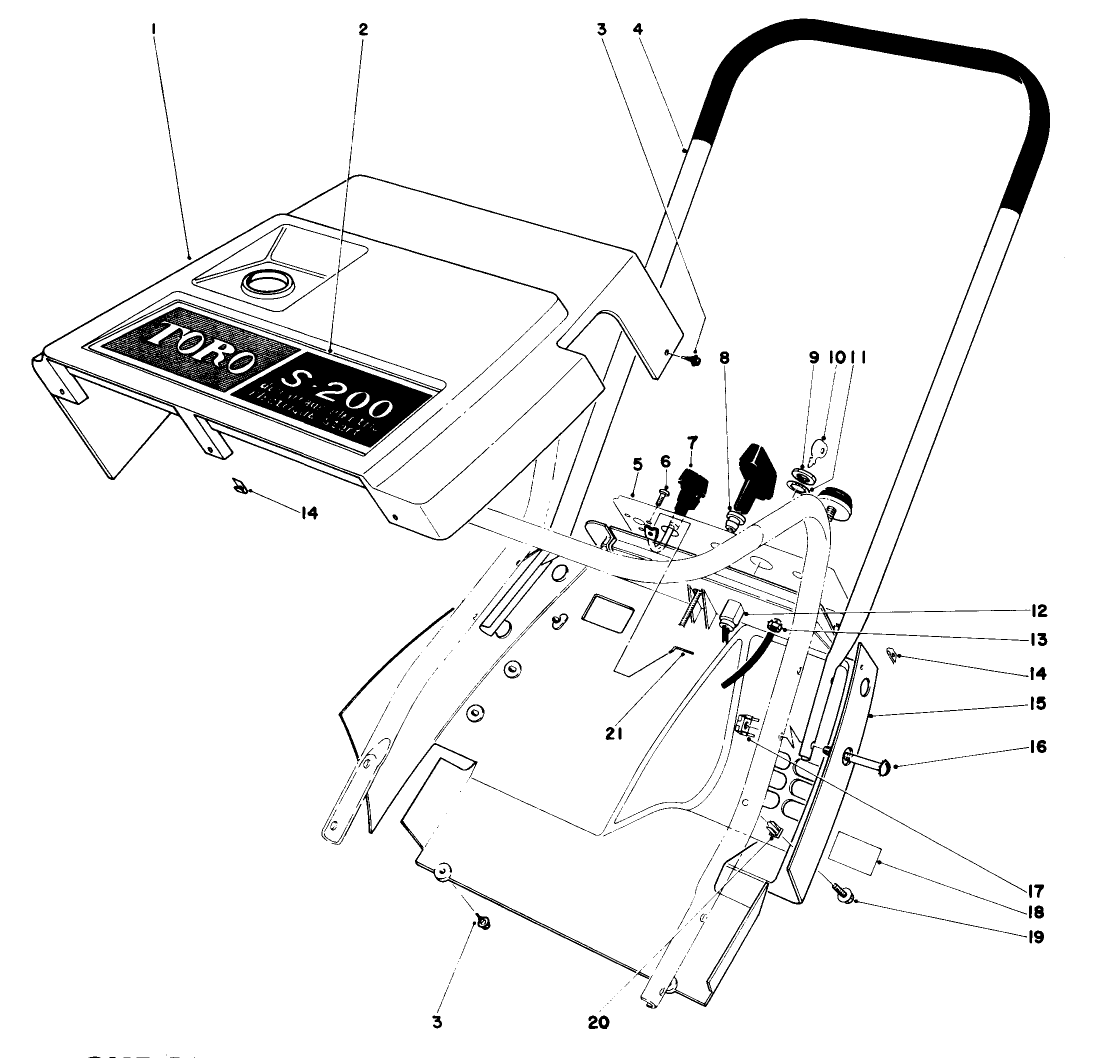

Shroud & Handle Assembly (model 38235)
Shroud & Handle Assembly (model 38235)

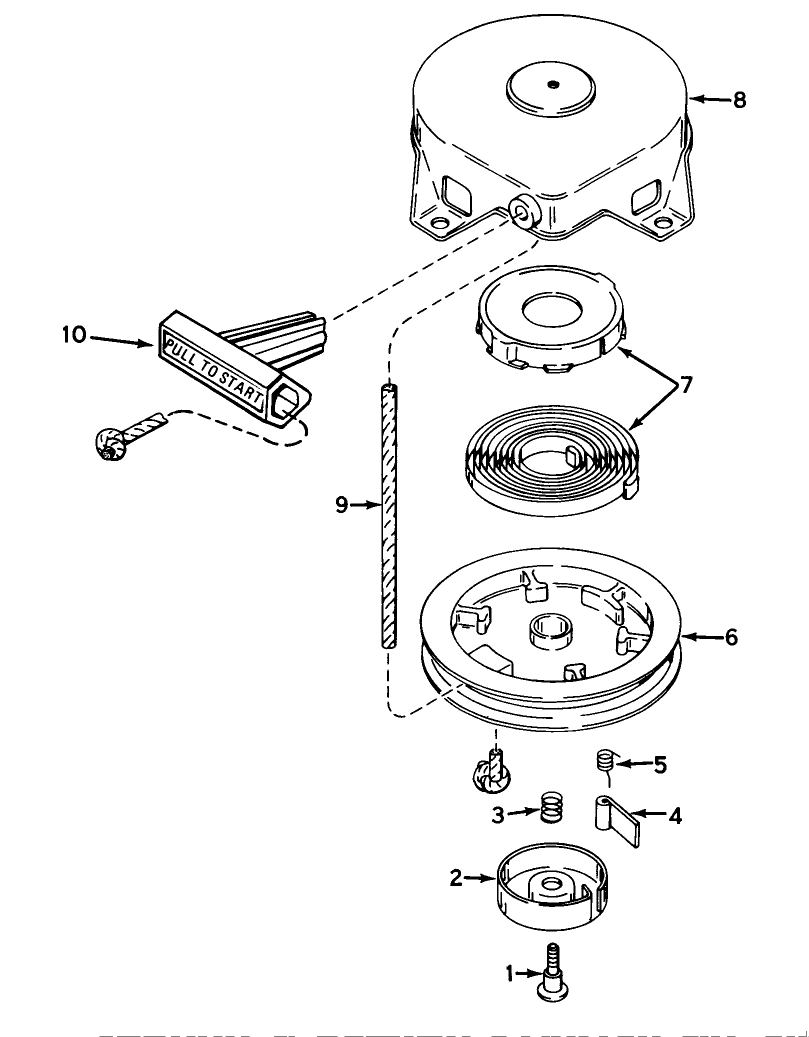

Shroud & Rewind Starter No. 590537 Engine Model Ah520 Type 1585a Unit Model 38225 (used On Units With Serial No. 0000001 Thru 0299999) Engine Model Ah520 Type 1585b Unit Model 38225 (used On Units With Serial No. 0300000 Thru 0309000) Engine Model Ah520 T
Shroud & Rewind Starter No. 590537 Engine Model Ah520 Type 1585a Unit Model 38225 (used On Units With Serial No. 0000001 Thru 0299999) Engine Model Ah520 Type 1585b Unit Model 38225 (used On Units With Serial No. 0300000 Thru 0309000) Engine Model Ah520 T

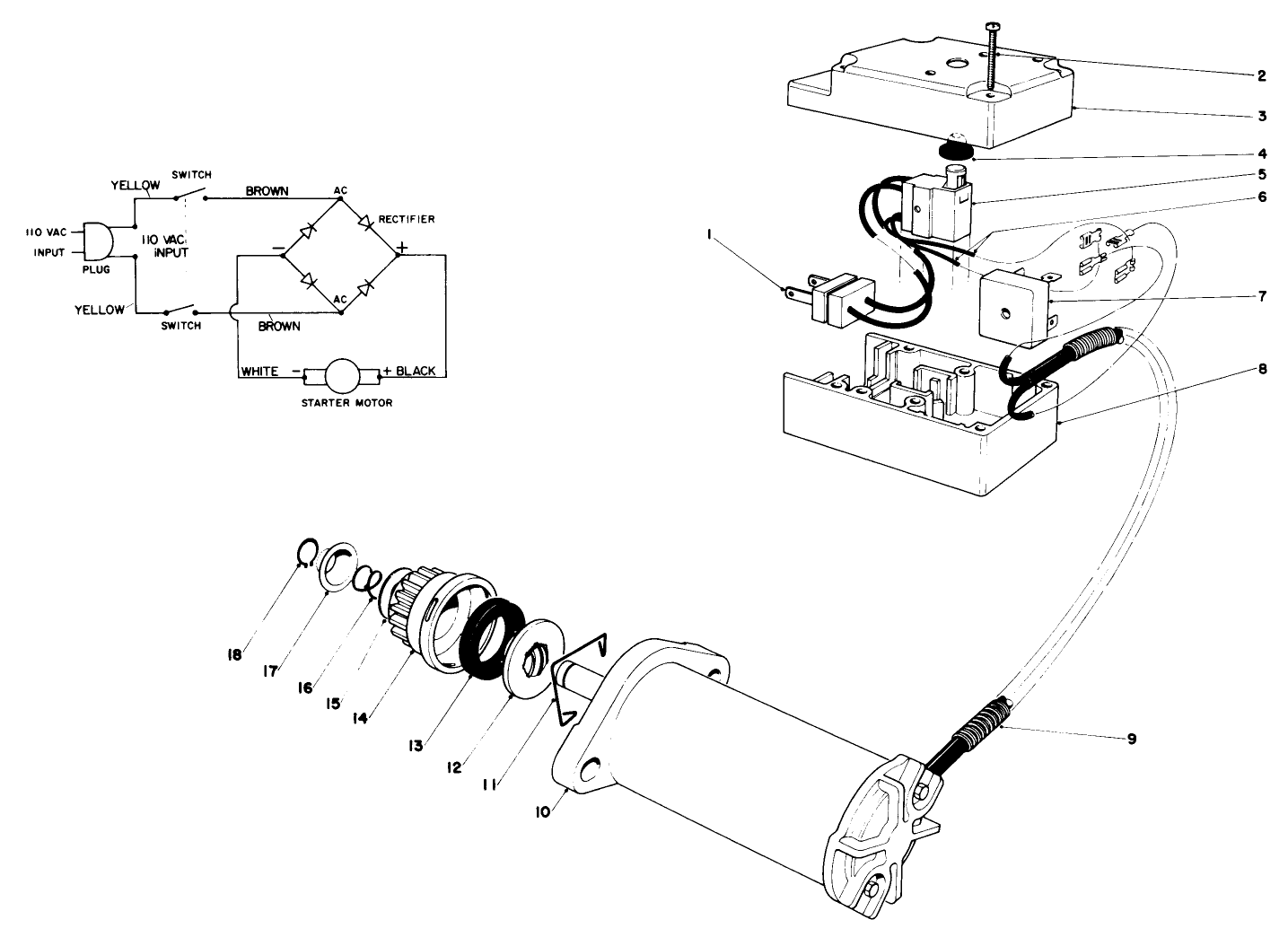

Starter Motor & Switch Assembly (model 38235)
Starter Motor & Switch Assembly (model 38235)
Operator's Manual
Service Manual

Model #

38235

Serial #

0000001 - 0999999

Product Name

S-200 Snowthrower

Product Brand

Toro

Product Type

Snowthrowers

Product Series

Snowthrower, Single Stage, CR/S140/S200/S620

Chassis Type

Single Stage

Swath

20 inch

Discharge

Single Stage

Engine/Motor Manufacturer

Tecumseh

Engine/Motor Size

2.5 hp

Engine/Motor Type

2 Cycle

Engine Starter

Electric

Transmission Type

NA
