TimeMaster 76cm Lawn Mower
Product Information
- Model #: 20975
- Serial #: 314000001 - 314999999
- Product Type: Walk Behind Mowers
Loading...

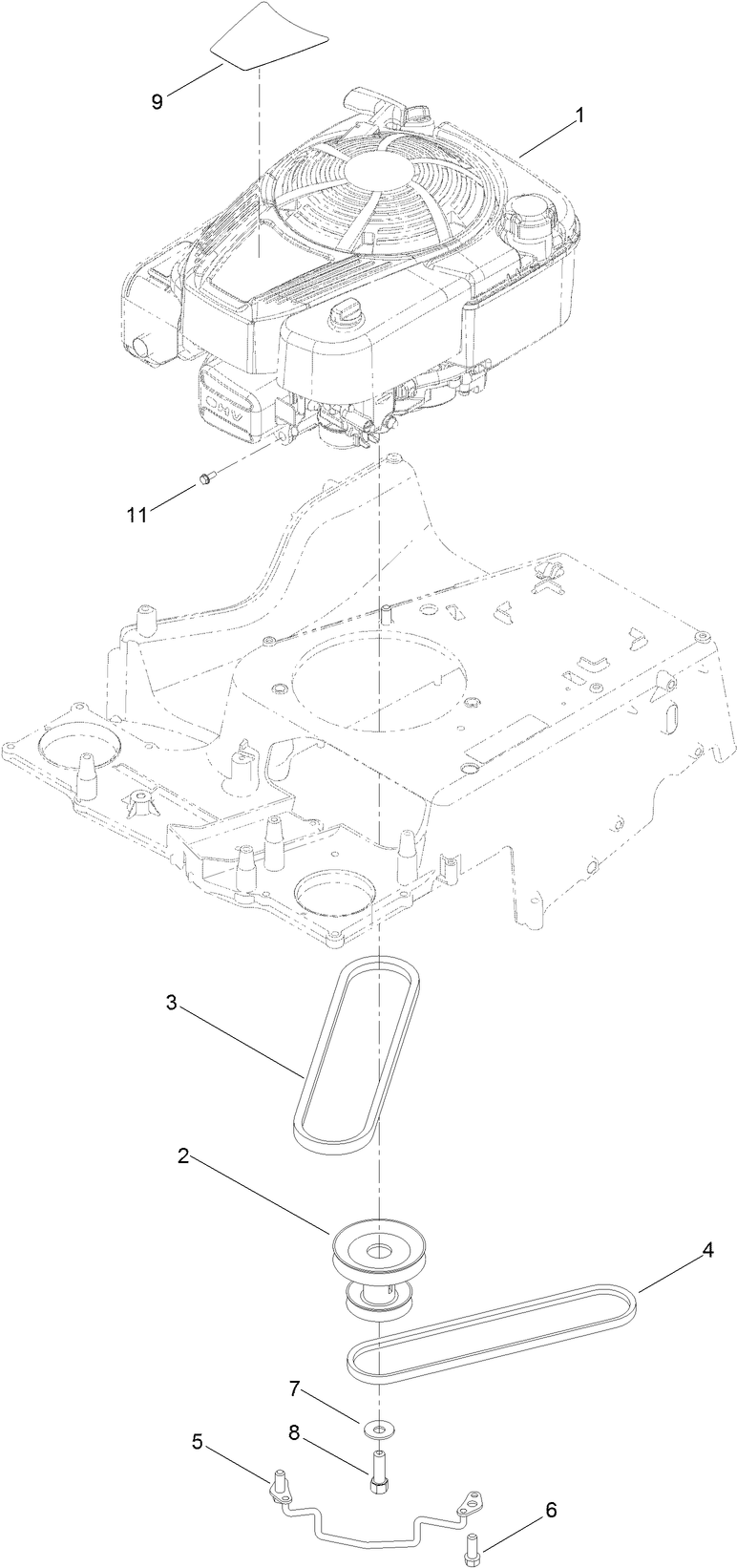

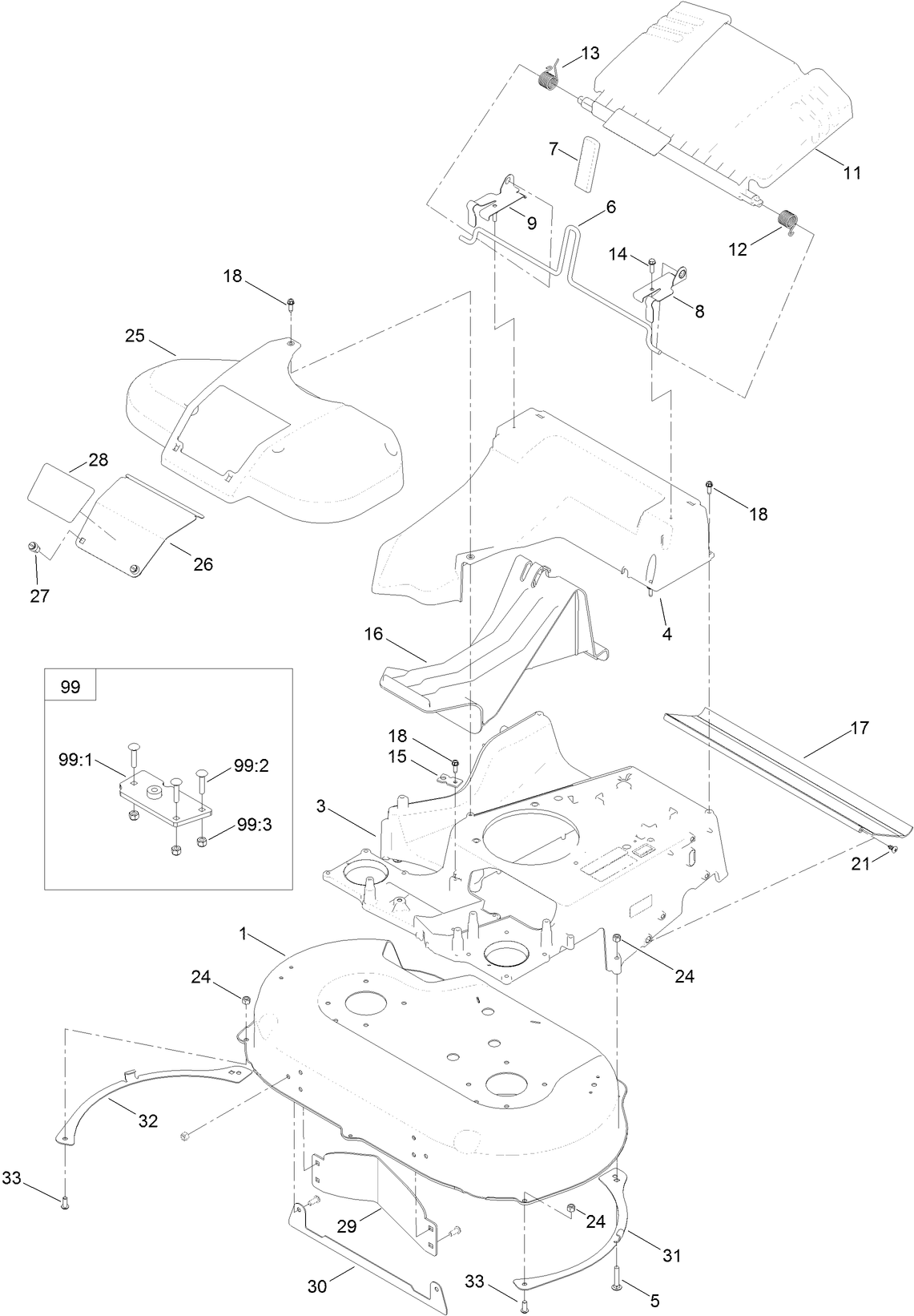

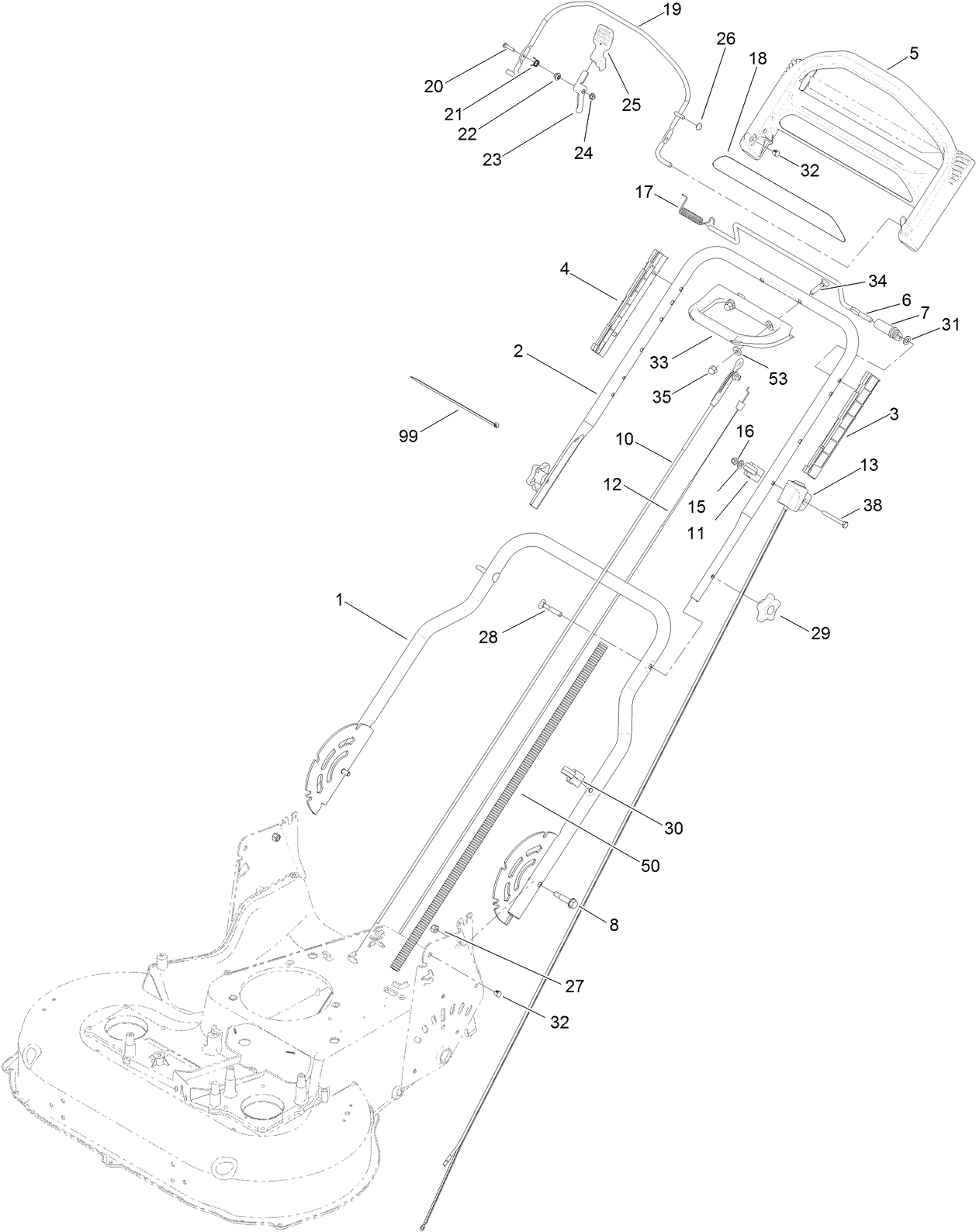

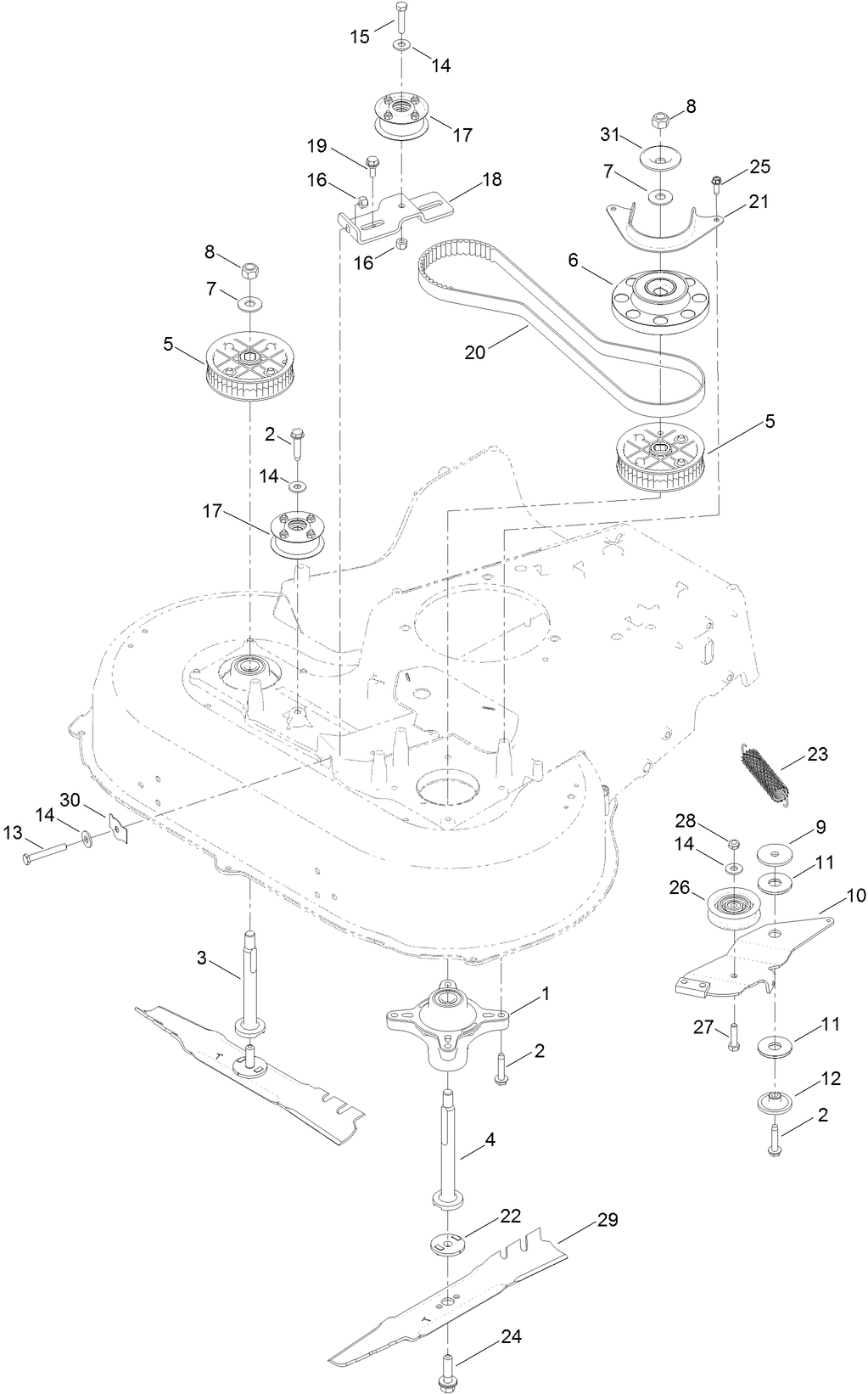

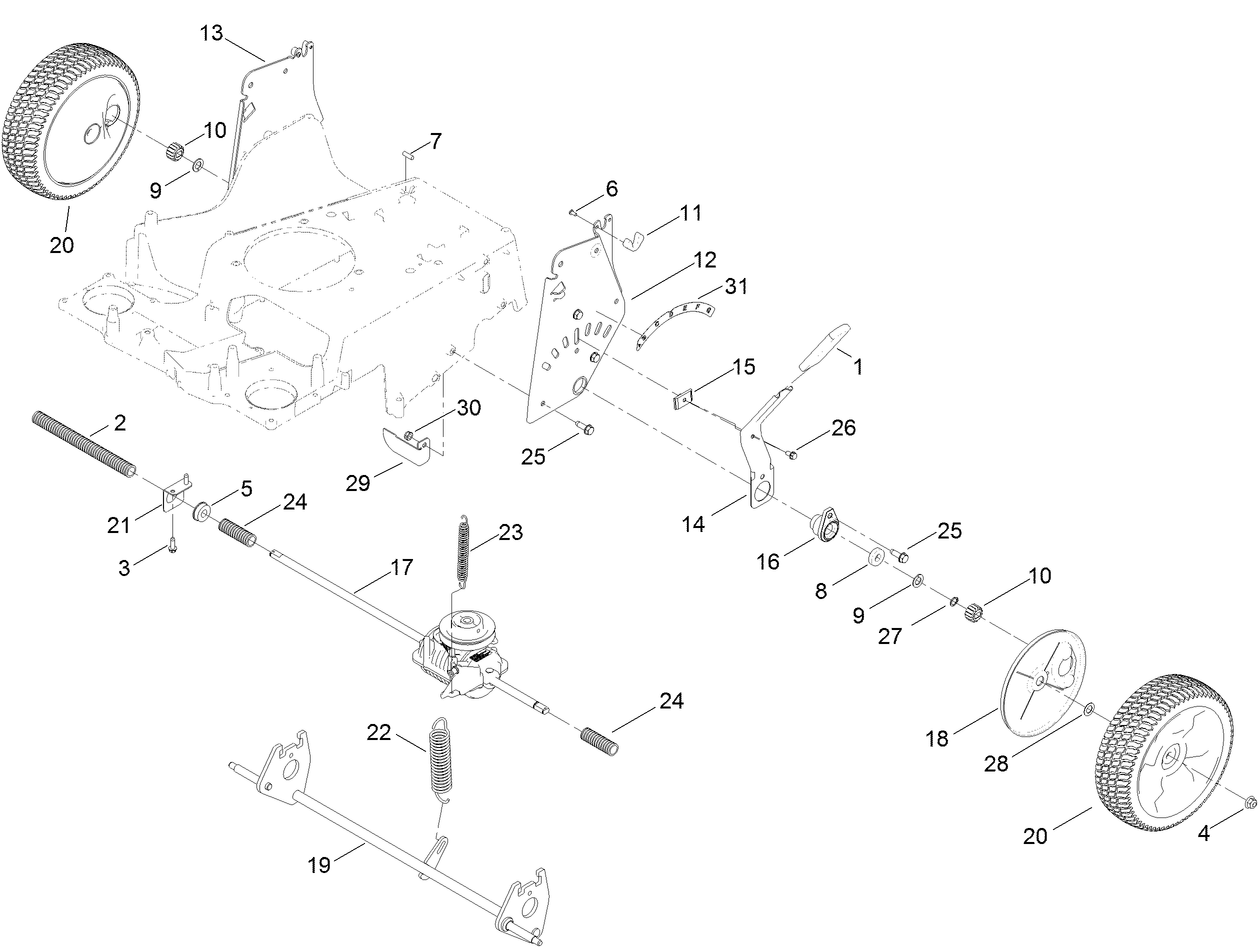

Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Parts Catalog
-
EU Declaration of Conformity
15.4 Inch Atomic Blade (Part # 20120P)
Toro 15.4 Inch OEM Atomic blade. The Toro Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify make and serial number to ensure the correct part.
Mower Cover for 30 Inch Walk Power Mower (TurfMaster) (Part # 490-7461)
Genuine OEM Parts
-
Model #
20975 -
Serial #
314000001 - 314999999 -
Product Name
TimeMaster 76cm Lawn Mower -
Product Brand
Toro -
Product Type
Walk Behind Mowers -
Product Series
30" Steel Deck -
Chassis Type
Steel Deck WPM -
Swath
30 inch -
Discharge
Recycler & Side Discharge with Rear Bag -
Engine/Motor Manufacturer
Briggs & Stratton -
Engine/Motor Type
4 Cycle -
Engine Starter
Recoil -
Traction Type
Rear WD
-
Engine: Engine Speed
3000±100 RPM -
Engine: Ignition Coil Air Gap
.010" / .25mm -
Engine: Spark Plug
Champion RC12YC -
Engine: Spark Plug Gap
.030"/ .76mm -
Engine: Engine Oil Type
20 oz. (0.59 L) SAE 30 / API SF, SG, SH, SJ, SL, or higher
