TimeCutter HD XS4850 Riding Mower
Product Information
- Model #: 74866
- Serial #: 400000000 - 401999999
- Product Type: Riding Products
Loading...

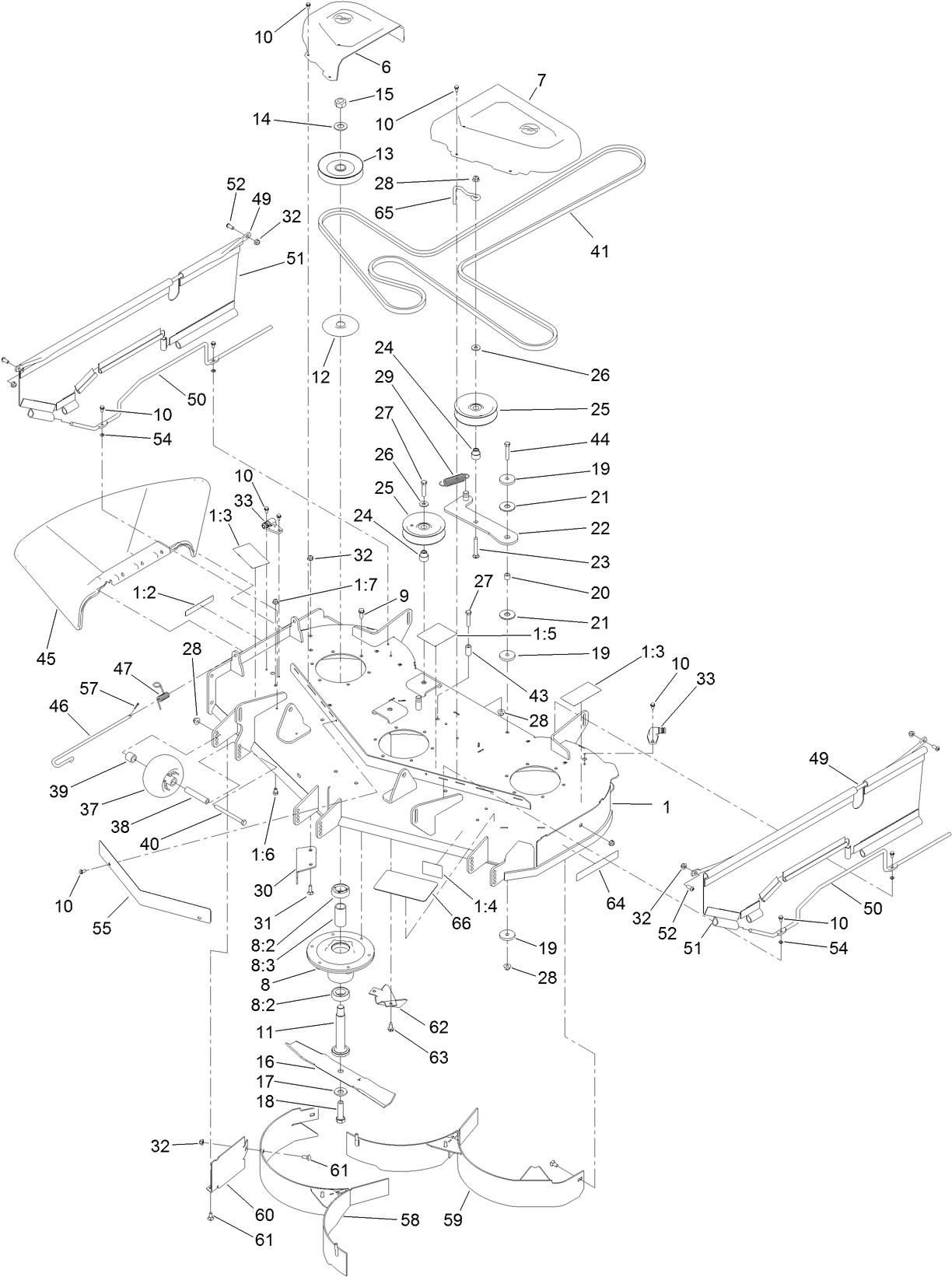

Assembly Drawings
Search for a part within assembly drawings:
-
Service Manual
-
Operator's Manual
-
Parts Catalog
-
EU Declaration of Conformity
-
Setup Instructions
48 Inch Bagging Enhancement Kit (Part # 119-3381)
Genuine OEM Part
Riding Mower Jack Kit (Part # 127-6666)
This genuine Toro OEM riding mower jack kit is designed to safely lift and support your Toro riding mower or zero turn, giving you safe, stable under-deck access for blade changes, belt replacements, and routine maintenance. It is one of the most practical purchase-stage accessories for any new mower owner — investing in a proper jack from day one avoids improvised lifting methods that risk injury and equipment damage. Verify your model and serial number before ordering.
Please contact your local dealer
Deck Lift Assist Kit (Titan) (Part # 132-6850)
Genuine OEM Part
Toro Genuine 5-Gallon bucket. (Part # 133-2533)
Toro genuine 5 Gallon Bucket. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
Weight Kit (Part # 136-7492)
Genuine OEM Part
Toro Titan LED Light Kit (Part # 136-7493)
The LED Light kit illuminates your mowing area during lowlight conditions and making moving easier and more efficient. This LED Light kit mounts to Toro Time Cutter models and is a genuine Toro LED Light Kit. The kit includes hardware, wire harness and instructions. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
Jack Mount Kit (Part # 136-9200)
Genuine OEM Part
Titan CE Bagger Compliance Kit (Part # 137-5001)
This bagging compliance kit can be used with most Toro Titan riding mowers. It will enhance bagging performance in extreme conditions such as heavy, wet grass or autumn leaf bagging. Refer to the operator manual for installation and use. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
Cargo Carrier, Zero-Turn-Radius Riding Mower (Part # 79040)
TimeCutter HD E-Z Vac Bagger (Part # 79345)
Pick up lawn clippings, leaves, and debris quickly with our E-Z Bagger. This bagger has a 6.42 bushel (8 cubic feet) capacity. Fits on all 2017 and new TimeCutter HD Models.
-
Model #
74866 -
Serial #
400000000 - 401999999 -
Product Name
TimeCutter HD XS4850 Riding Mower -
Product Brand
Toro -
Product Type
Riding Products -
Product Series
Zero Radius Turn, Consumer -
Chassis Type
ZRT - Consumer -
Swath
122cm -
Discharge
Recycler & Side Discharge -
Engine/Motor Manufacturer
Toro -
Engine/Motor Size
24.5 hp -
Engine/Motor Type
4 Cycle -
Engine Starter
Electric -
Transmission Type
Hydrostatic -
Traction Type
Rear WD
-
Engine: Battery
12V 195CCA -
Engine: Engine Speed
3000±100 RPM -
Engine: Spark Plug Gap
.030"/ .76mm -
Chassis: Tire Pressure
13 psi / 90 kPa -
Chassis: Height of Cut Range
1.5-4.5"; 1/2" increments -
Drive System: Ground Speed
Fwd. 7.5 Rev. 2.2 mph -
Engine: Ignition Coil Air Gap
0.011in (0.3mm) -
Drive System: Gearbox Lubricant
Toro HYPR-OIL or 20W-50 Motor Oil 70.3 OZ (2.0L) per side w/filter change -
Engine: Spark Plug
Champion RN9YC / NGK BPR6ES -
Engine: Engine Oil Type
2.5 qts (80 oz. or 2.4L) 10W-30 with filter change
