50 in. (127 cm) TimeCutter® MyRIDE® Zero Turn Mower

50 in. (127 cm) TimeCutter® MyRIDE® Zero Turn Mower

50 in. (127 cm) TimeCutter® MyRIDE® Zero Turn Mower

Product Information

  • Model #: 75755
  • Serial #: 409568782 - 410999999
  • Product Type: Riding Products

Search for a part within assembly drawings:

Showing Results

Drawing Title Part Number Description
Title

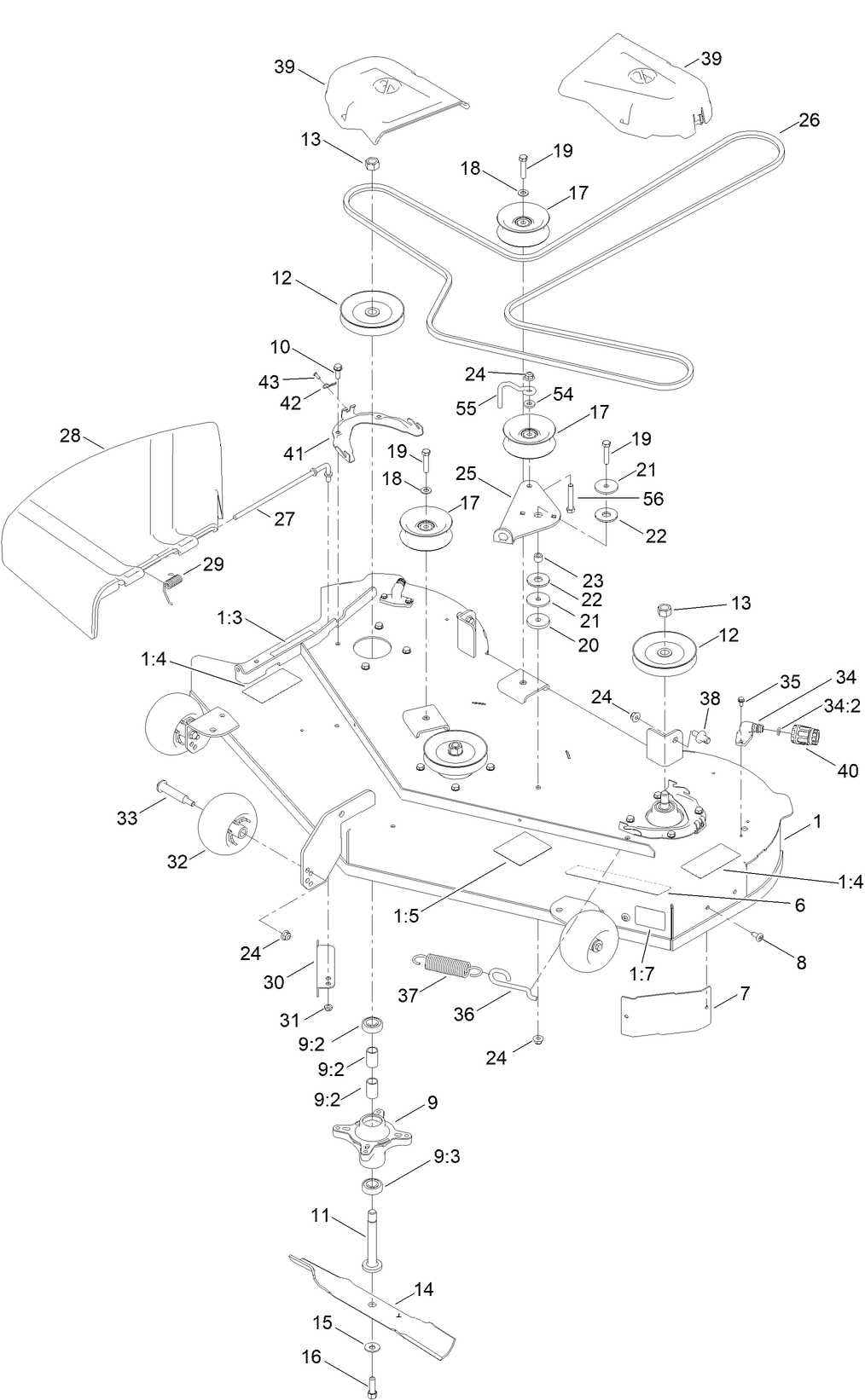

50in Deck and Decal Assembly
50in Deck and Decal Assembly
Air Intake and Filtration Assembly
Air Intake and Filtration Assembly
Blower Housing Assembly
Blower Housing Assembly

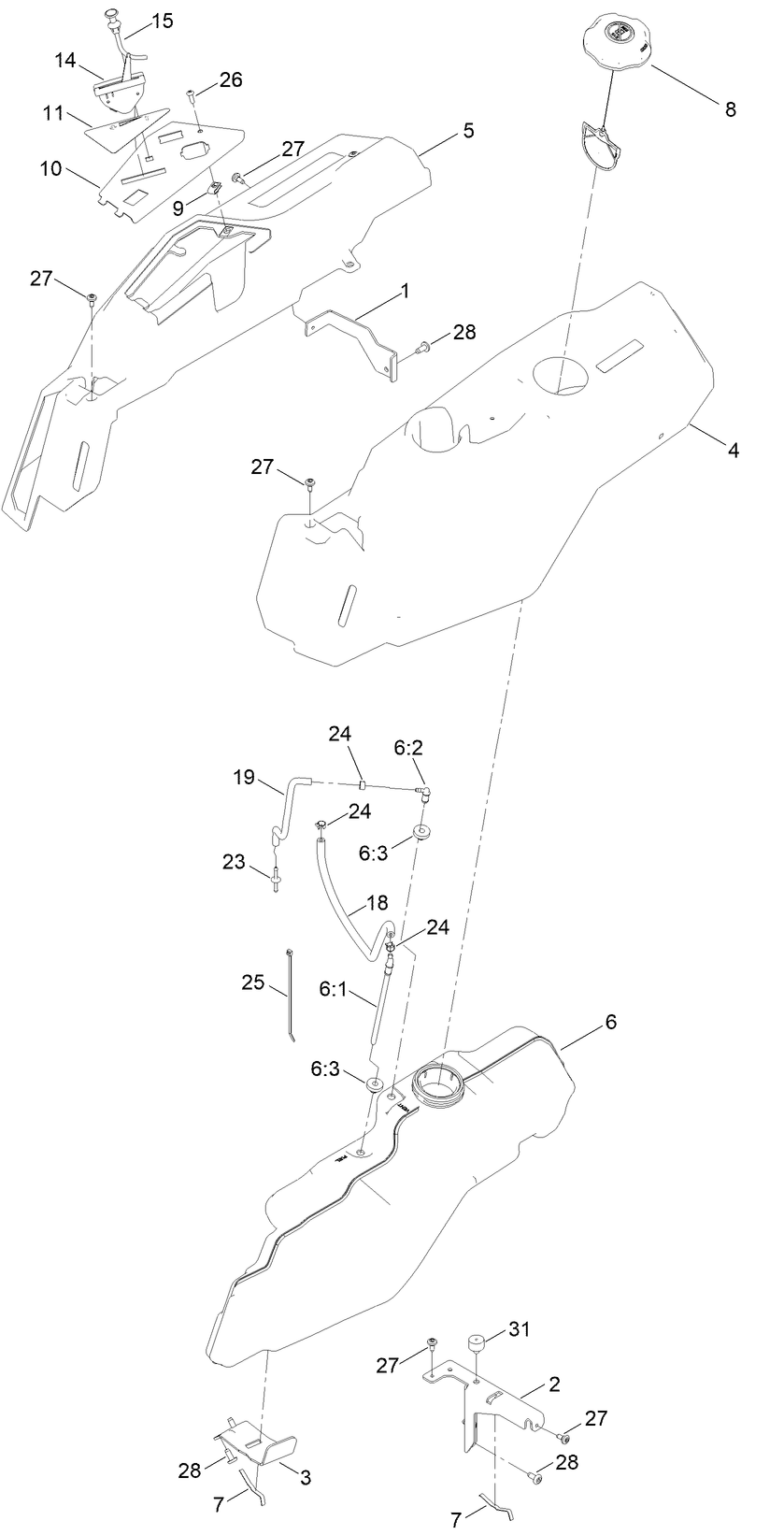

Body Styling and Fuel Pod Assembly
Body Styling and Fuel Pod Assembly
Brake Assembly
Brake Assembly
Carburetor Assembly
Carburetor Assembly

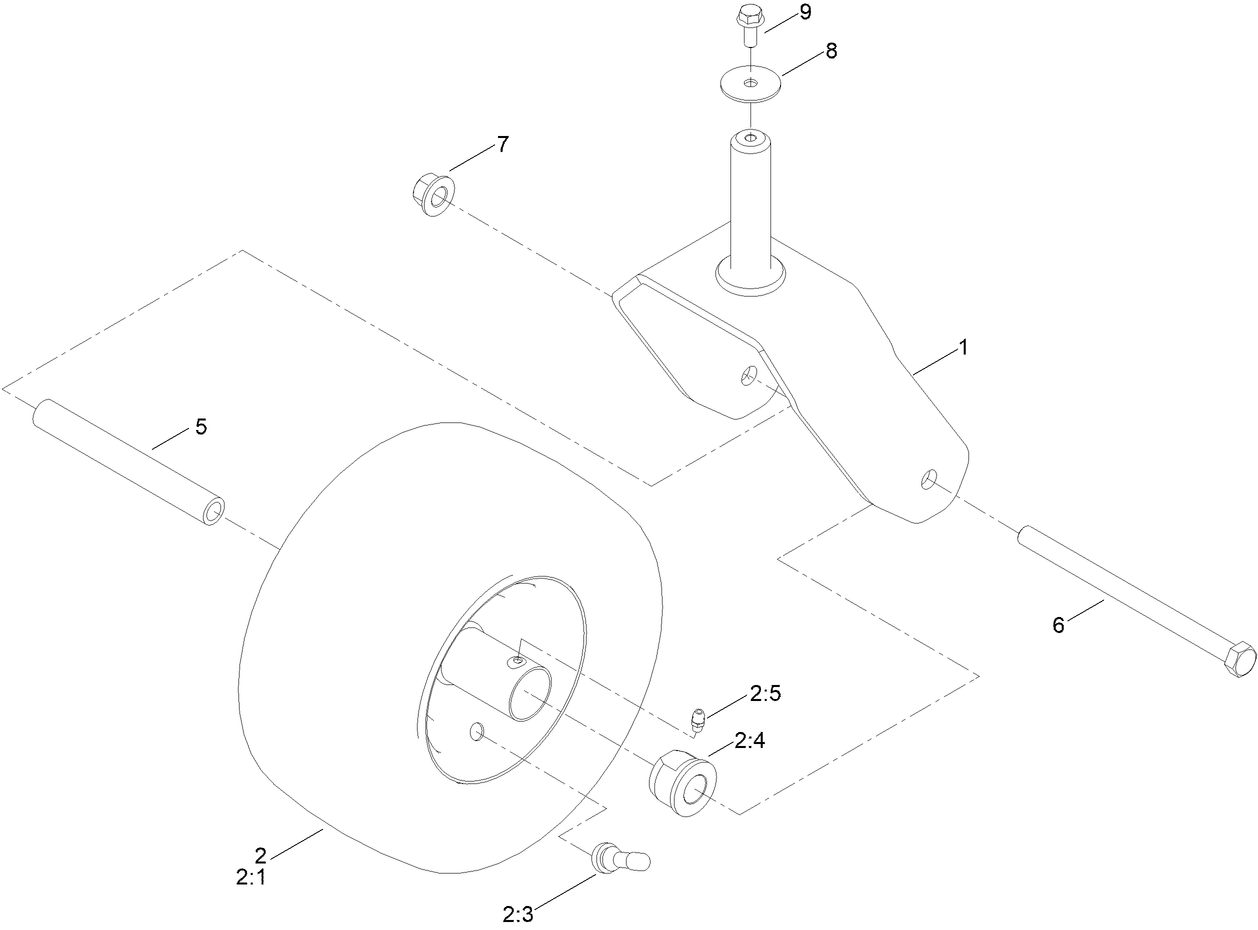

Caster, Wheel and Tire Assembly
Caster, Wheel and Tire Assembly
Clutch Assembly
Clutch Assembly
Crankcase and Crankshaft Assembly
Crankcase and Crankshaft Assembly

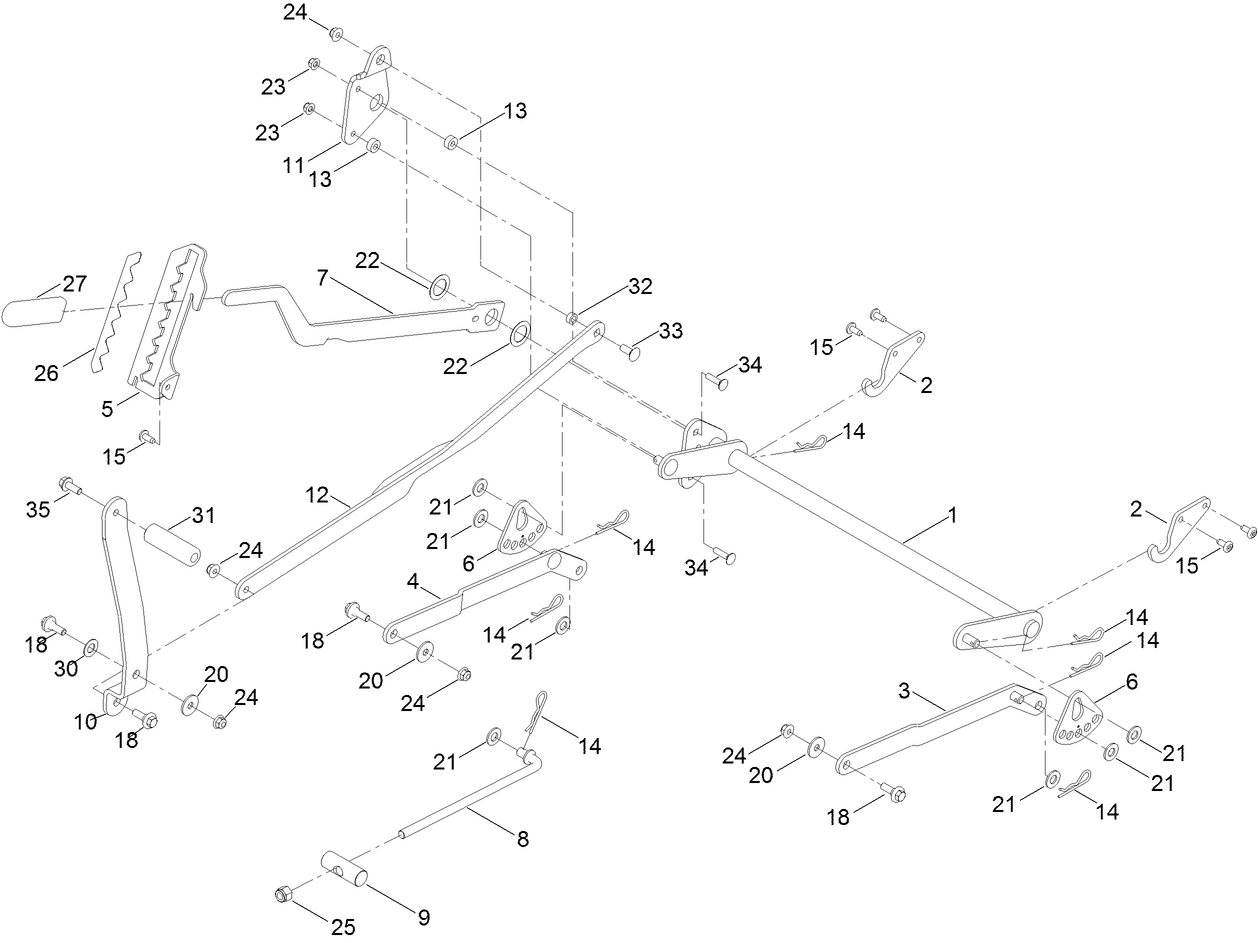

Deck Lift Assembly
Deck Lift Assembly

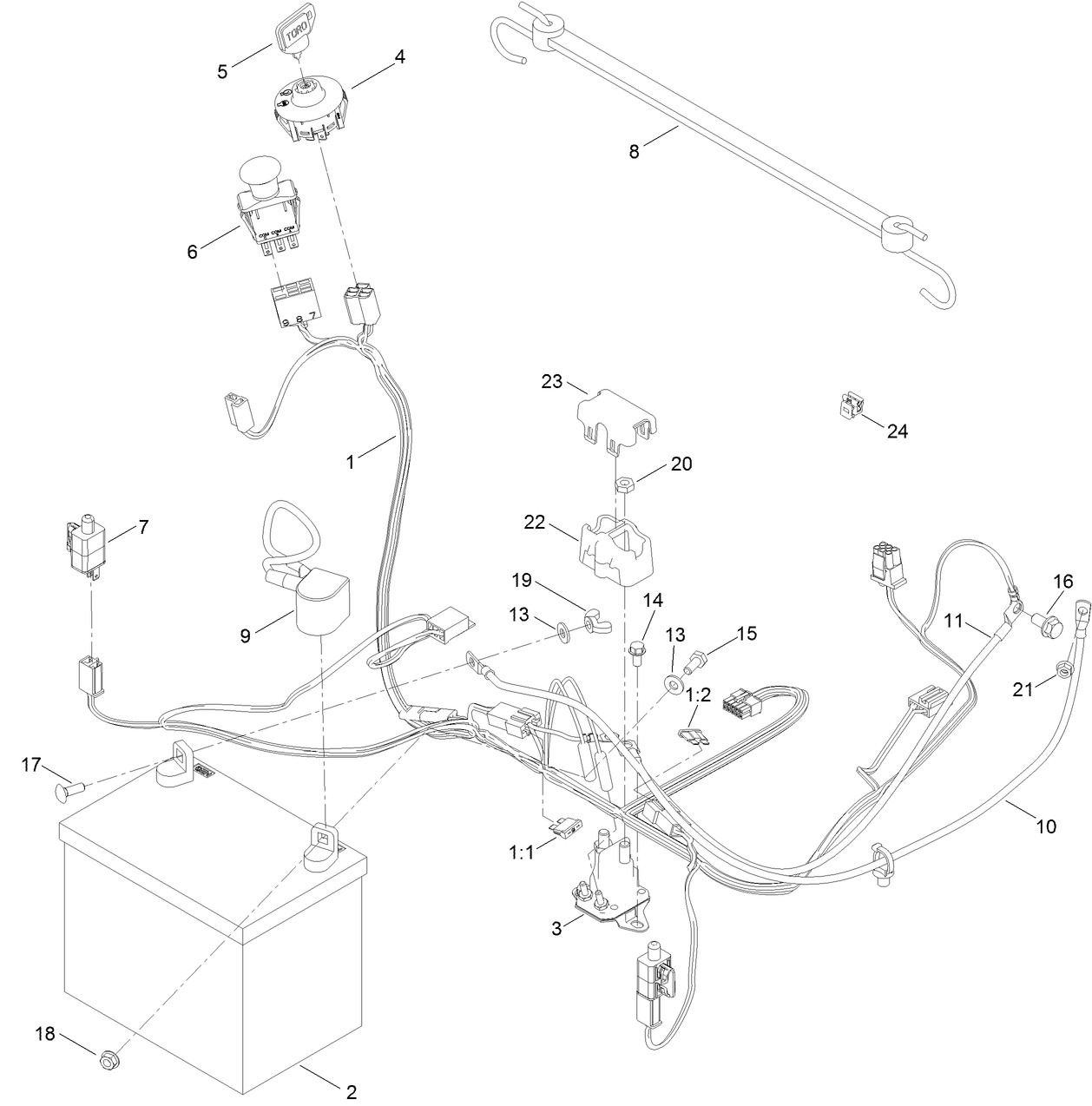

Electrical Assembly
Electrical Assembly

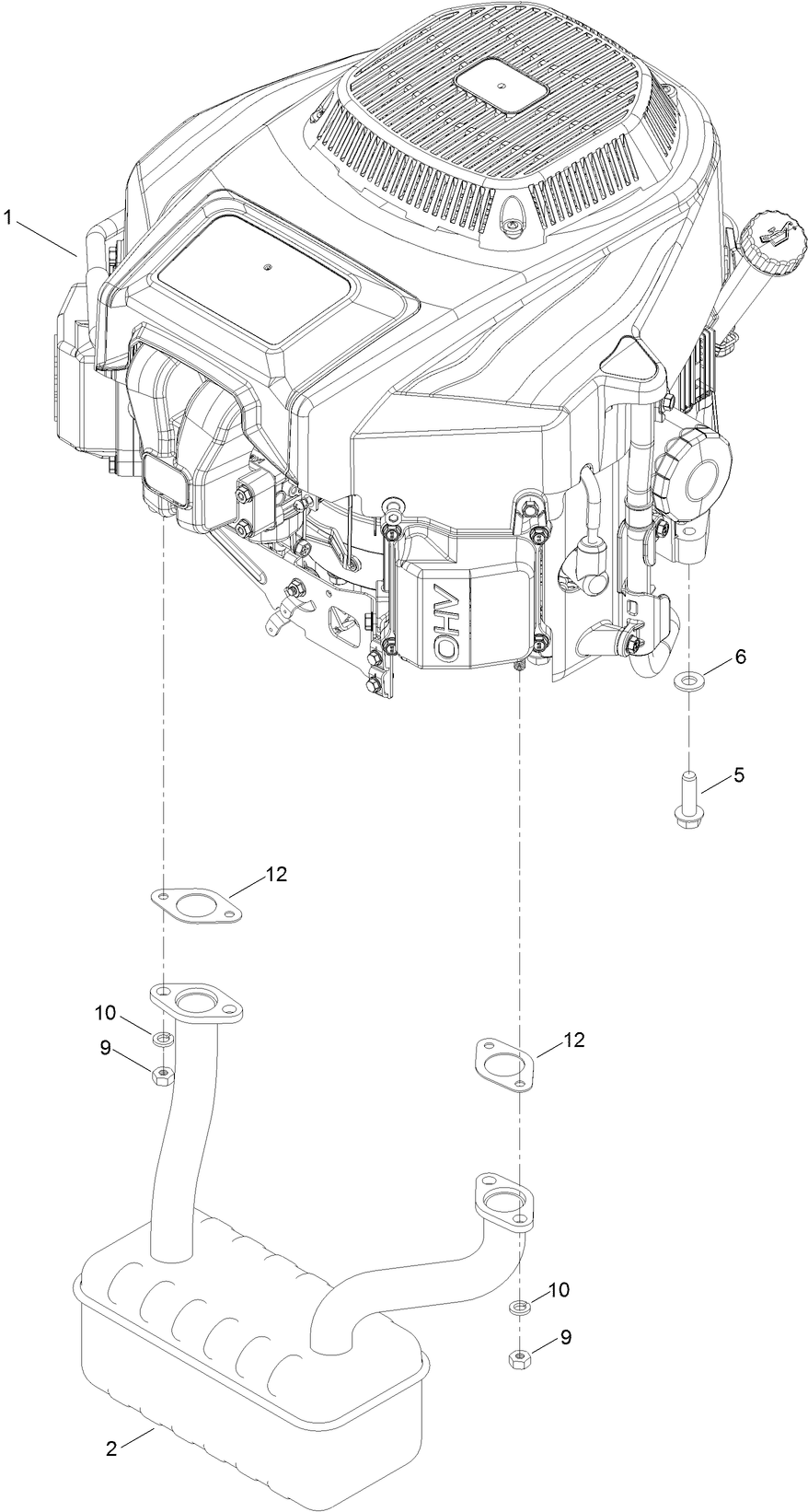

Engine and Muffler Assembly
Engine and Muffler Assembly

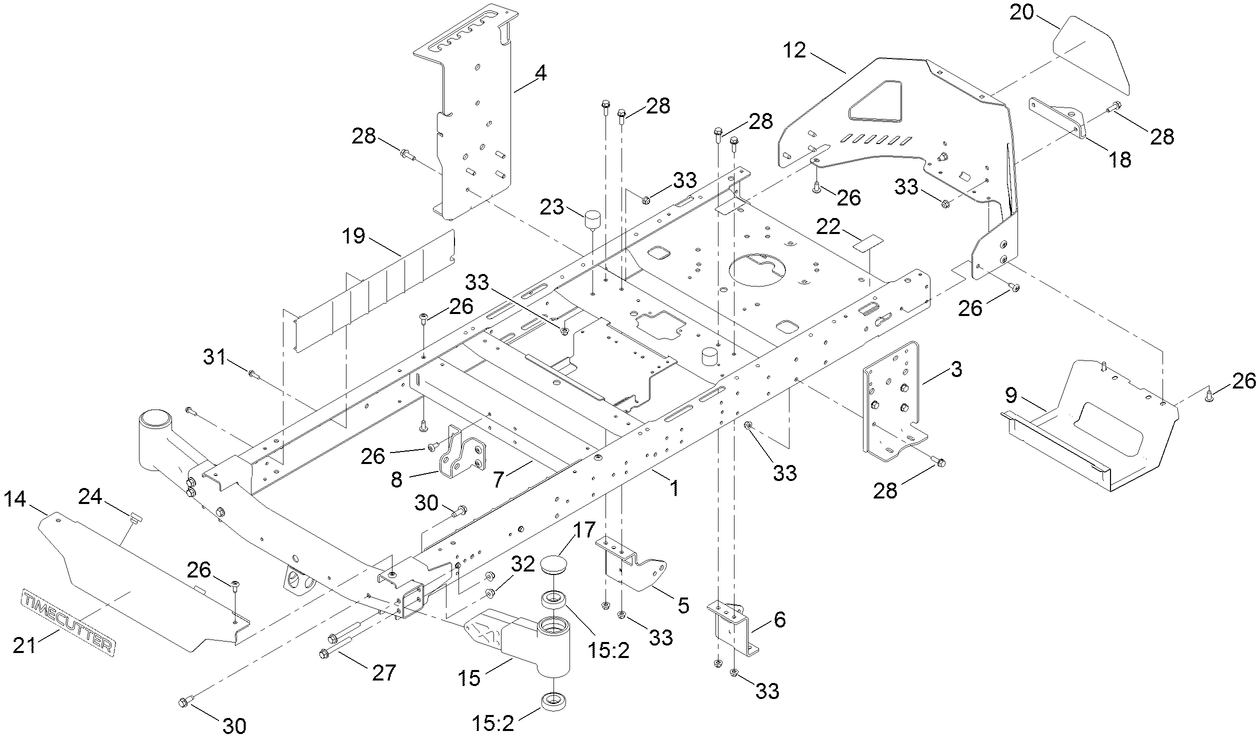

Frame Assembly
Frame Assembly

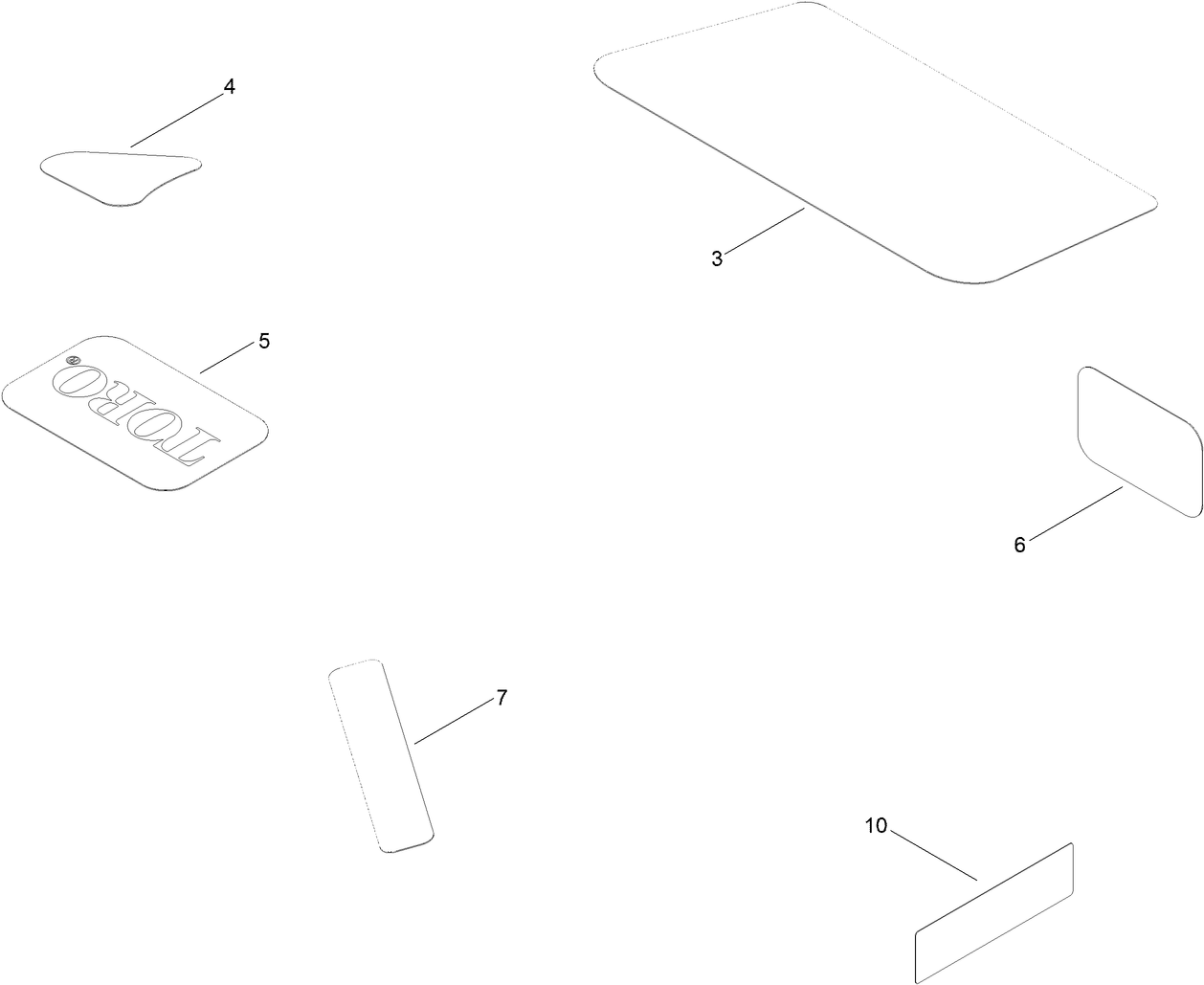

Frame Decal Assembly
Frame Decal Assembly
Fuel System Assembly
Fuel System Assembly
Gasket and Seal Kit Assembly
Gasket and Seal Kit Assembly

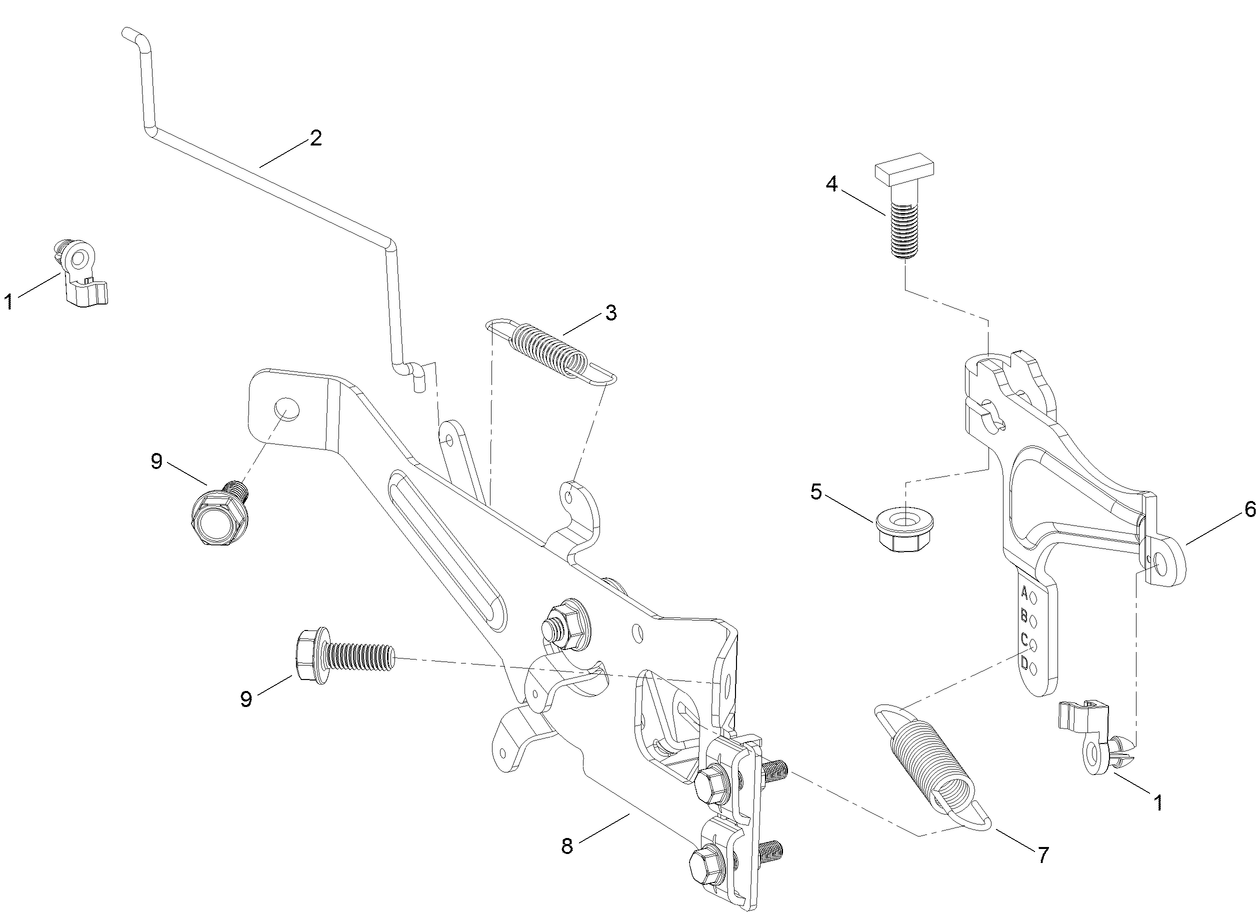

Governor Control Assembly
Governor Control Assembly

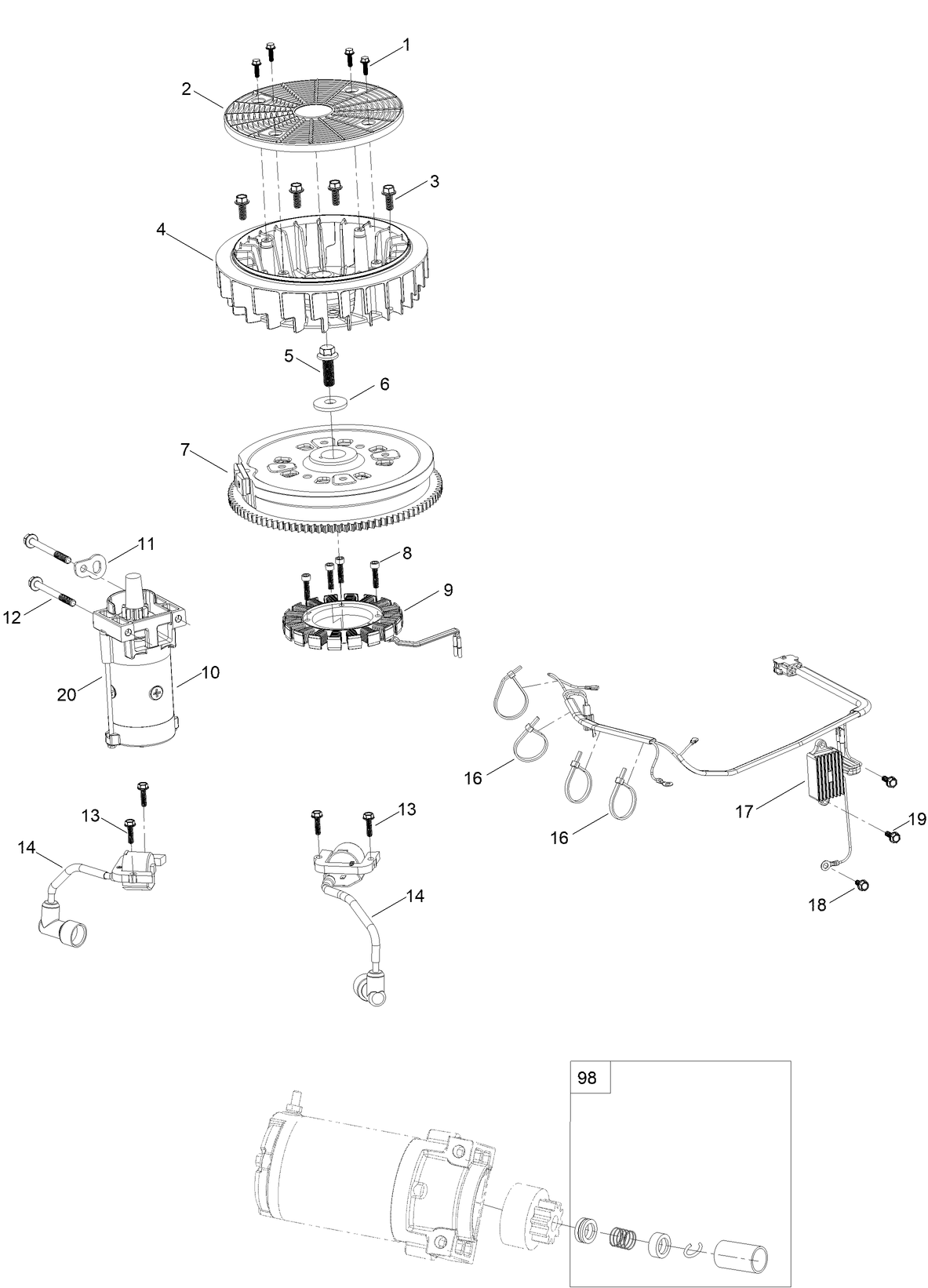

Ignition and Cooling Fan Assembly
Ignition and Cooling Fan Assembly
LH Transaxle Assembly No. 139-7460
LH Transaxle Assembly No. 139-7460

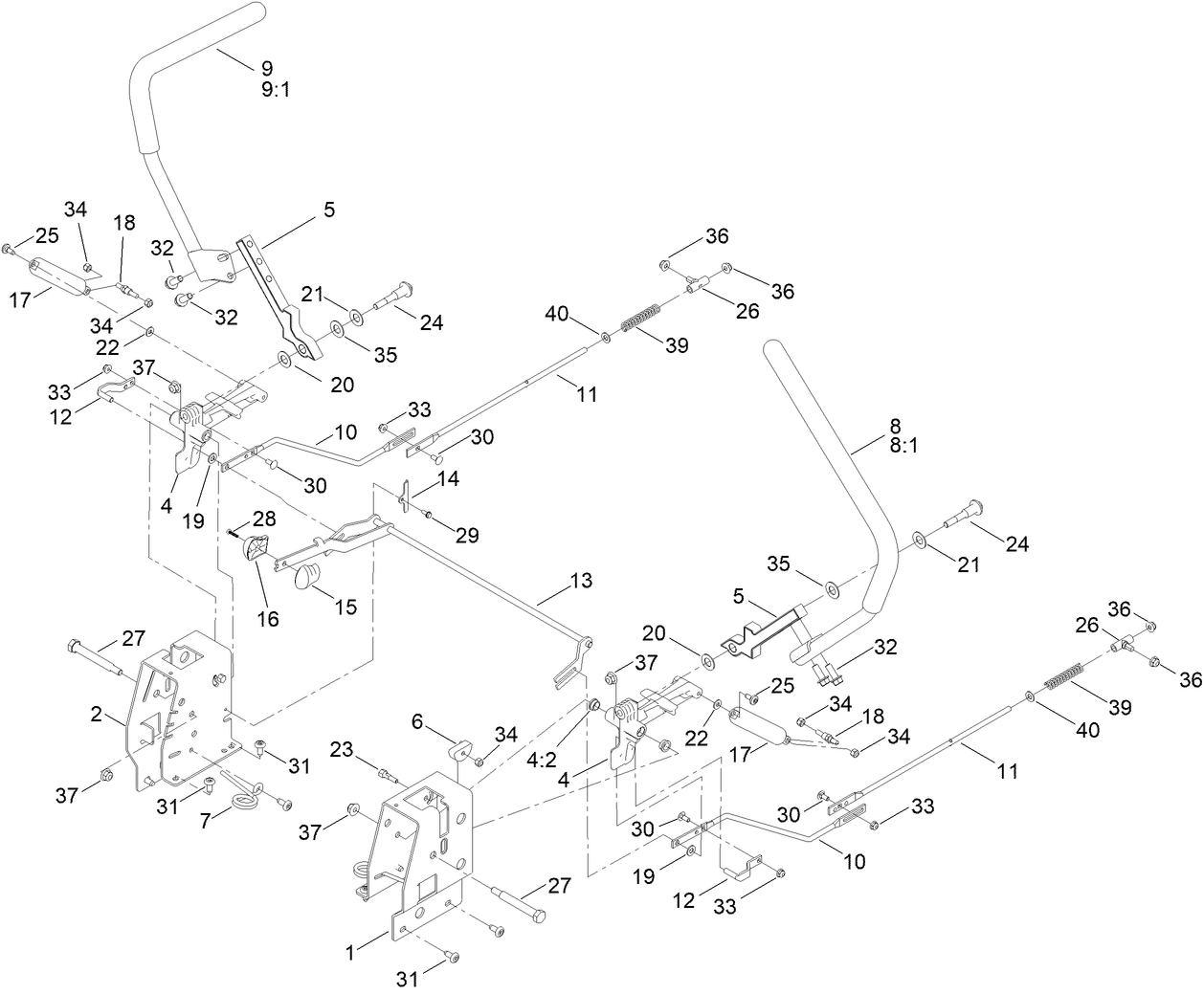

Motion Control Assembly
Motion Control Assembly
Piston and Cylinder Head Assembly
Piston and Cylinder Head Assembly

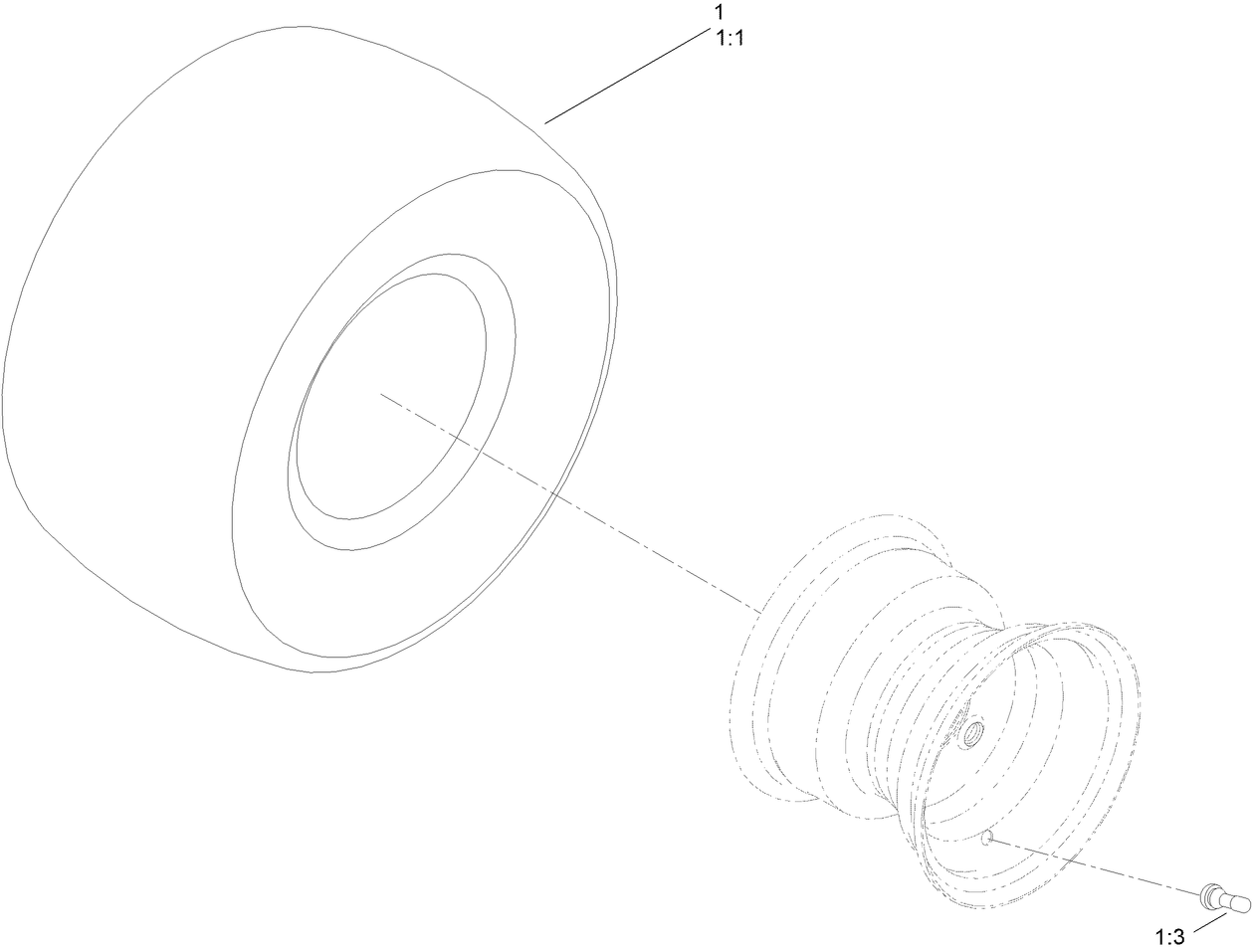

Rear Tire Assembly
Rear Tire Assembly

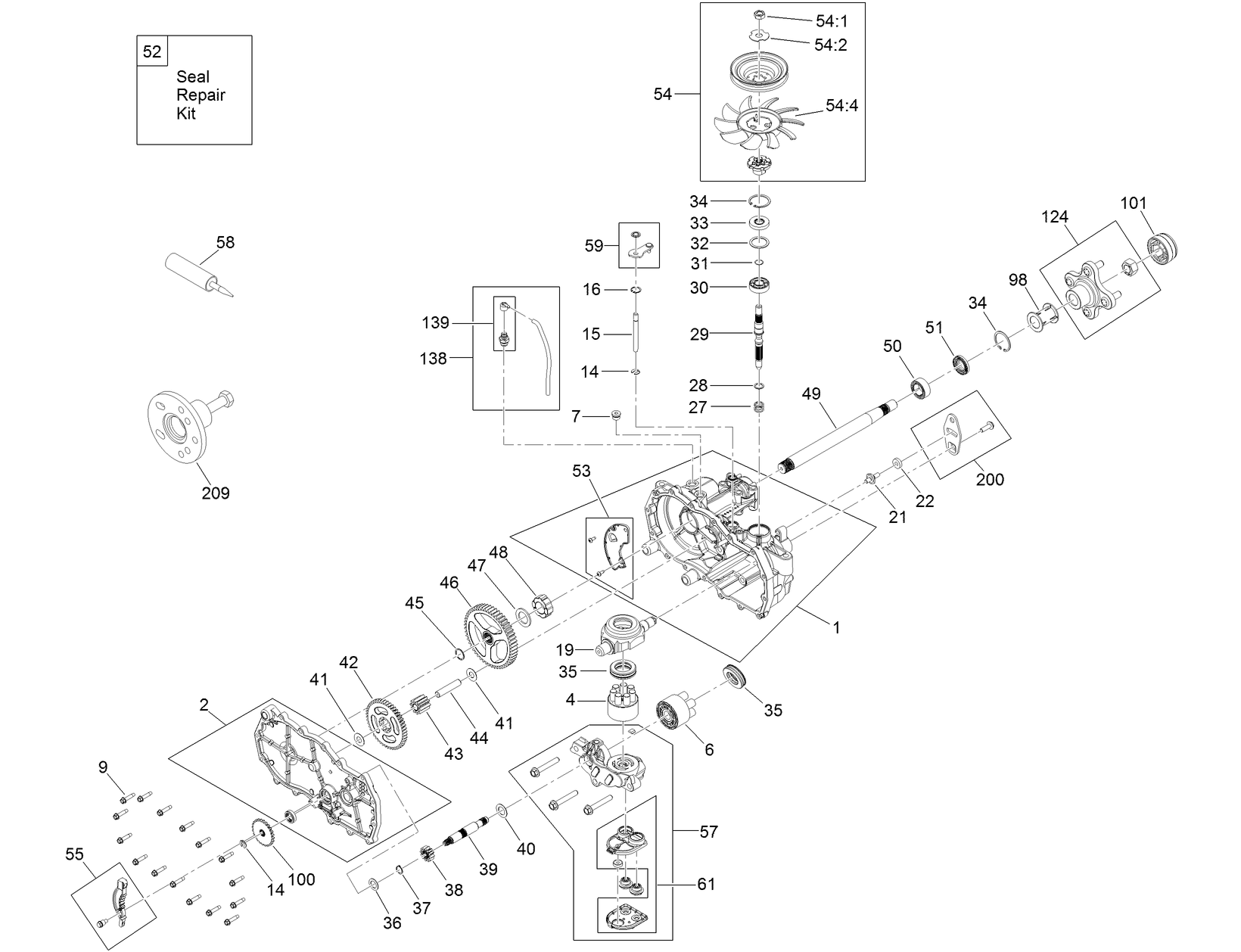

RH Transaxle Assembly No. 139-7461
RH Transaxle Assembly No. 139-7461
Seat Assembly No. 140-8303
Seat Assembly No. 140-8303

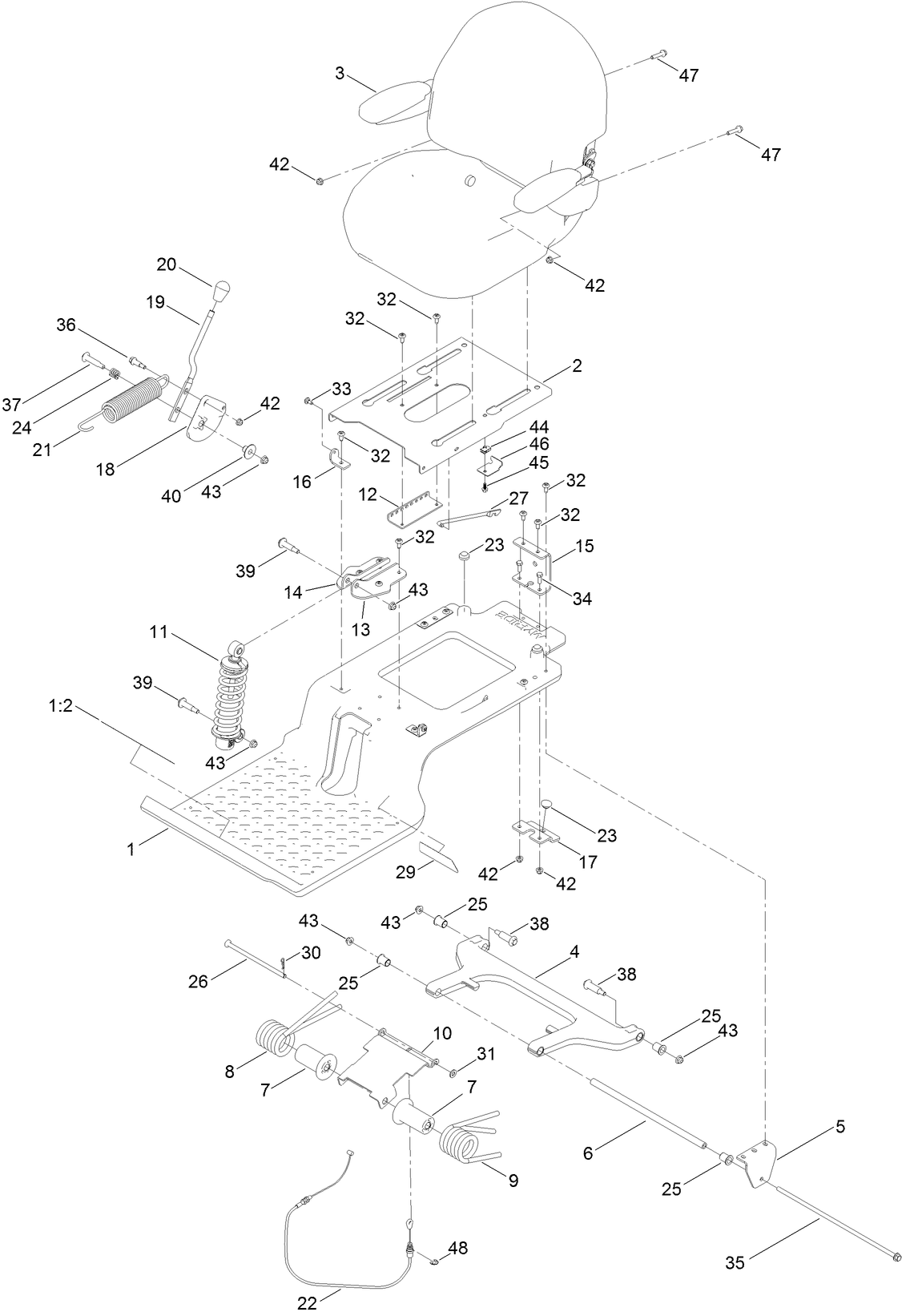

Seat Pan Assembly
Seat Pan Assembly

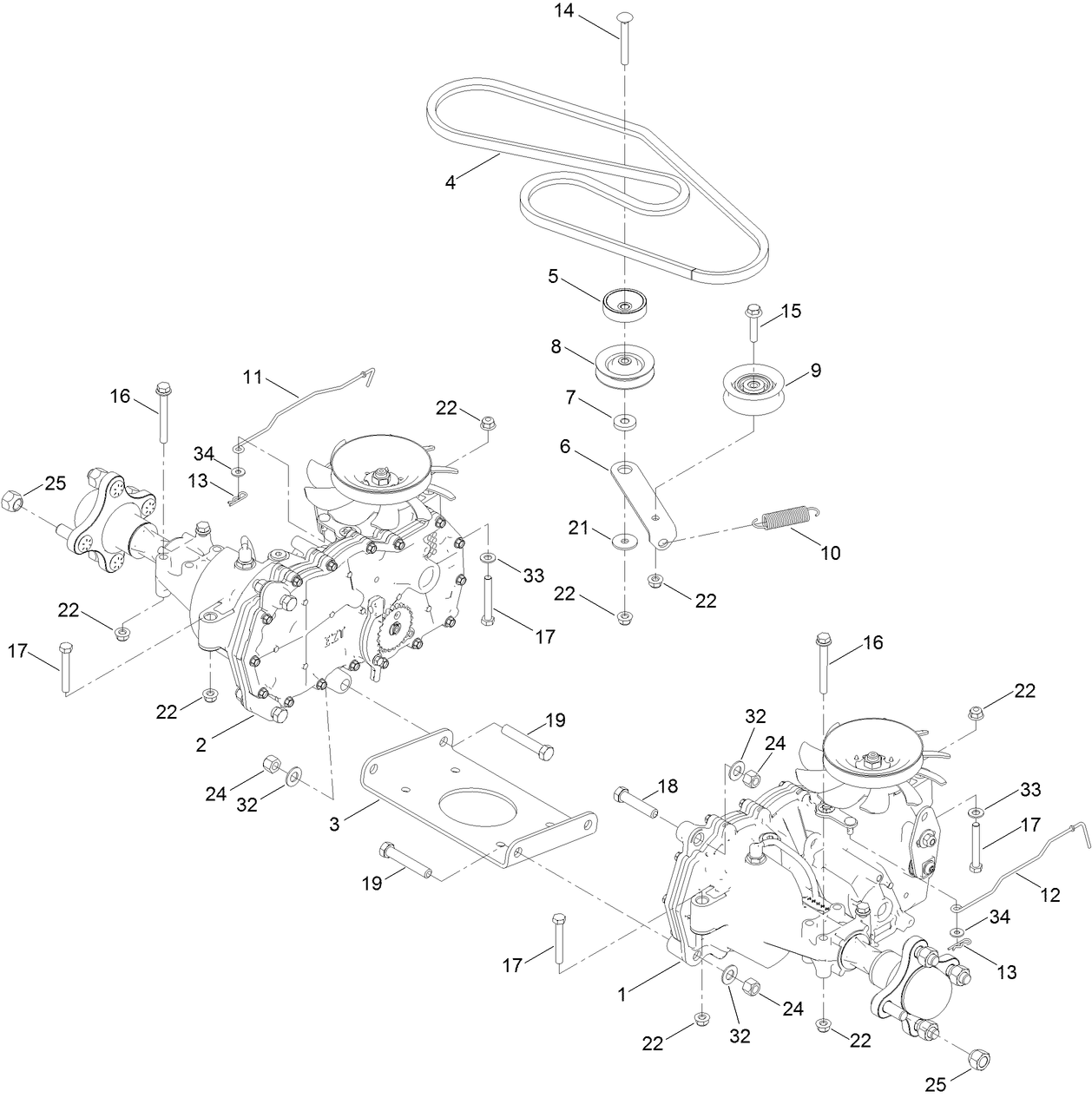

Traction Drive Assembly
Traction Drive Assembly
Download Parts Catalog
Operator's Manual
Service Manual
Parts Catalog
Setup Instructions
Product Warranty
Genuine OEM Part 120-2244
Hourmeter Kit for Timecutter Mowers (Part # 116-5461)
The Toro Hour meter kit provides fractional engine hour tracking to easily track usage and service intervals. Easy to install into pre-existing slot and connects with the wiring harness leading to the seat switch.
$64.89 USD
Please contact your local dealer
Seat Cover for Arm Rest Models
Seat Cover for Arm Rest Models (Part # 117-0097)
Protect your investment with a customized seat cover. Toro's seat cover for use on TimeCutter 18 in. seats with armrests will make old seats look new and protects new seats from future wear and tear. The fabric is coated for maximum water resistance and repellency and is cushioned for extra comfort.
$64.99 USD
Riding Mower Jack Kit
Riding Mower Jack Kit (Part # 127-6666)
This genuine Toro OEM riding mower jack kit is designed to safely lift and support your Toro riding mower or zero turn, giving you safe, stable under-deck access for blade changes, belt replacements, and routine maintenance. It is one of the most practical purchase-stage accessories for any new mower owner — investing in a proper jack from day one avoids improvised lifting methods that risk injury and equipment damage. Verify your model and serial number before ordering.
$153.99 USD
Premium Fuel Treatment (0.5 oz.)
Premium Fuel Treatment (0.5 oz.) (Part # 130-2393)
This genuine Toro OEM Premium Fuel Treatment is formulated to protect 2-cycle and 4-cycle small engines from the harmful effects of ethanol-blended fuels, which can absorb moisture and degrade over time — leaving gum, varnish, and corrosive deposits in carburetors, fuel lines, and fuel system components. Adding fuel treatment with every fill-up from the first use is one of the simplest preventative maintenance steps available, and is especially important for equipment that will sit unused for extended periods such as seasonal storage. Refer to the product label for the correct dosage.
$1.64 USD
Genuine OEM Part 131-3823
All Season 4-Cycle Fuel for Lawn Mowers and Snow Blowers 32 oz (Part # 131-3823)
This genuine Toro OEM all-season 4-cycle fuel is a premium ethanol-free fuel formulated specifically for outdoor power equipment engines including lawn mowers and snow blowers. Unlike pump gasoline, ethanol-free fuel does not absorb moisture or degrade over time, making it particularly well-suited for seasonal equipment or machines that may sit unused for extended periods. No mixing is required — it pours straight in for clean, reliable starting and operation. Refer to your operator manual to confirm 4-cycle fuel compatibility with your equipment.
$8.79 USD
Genuine OEM Part 131-6572
Premium Fuel Treatment (12 oz.) (Part # 131-6572)
Toro Premium Fuel Treatment helps ensure clean, reliable engine performance and protection. Toro Premium Fuel Treatment is designed to protect small 2-cycle and 4-cycle engines from the effects of ethanol-blended fuels, which can degrade over time and leave harmful deposits in carburetors and fuel systems. Using a fuel stabilizer with every fill-up is particularly important for equipment that sits unused for extended periods, such as mowers stored over winter.
$10.99 USD
Empty Image Container
KIT-HD AIR CLEANER [4" CAN] (Part # 135-6195)
$597.29 USD
Genuine OEM Part 139-0646
Maintenance Kit TORO V-Twin (Part # 139-0646)
TimeCutter Zero Turn Mower Twin Cylinder Engine Maintenance Kit includes everything the do-it-yourselfer needs to keep a Toro machine running like new. This lawn mower engine maintenance kit is an easy and convenient way to ensure your Toro equipment will run its best year after year. All components included in the lawn mower engine maintenance kit are approved by Toro engineers for use with the Toro engines on the Toro TimeCutter zero turn mower.
$82.49 USD
Please contact your local dealer
Toro V-Twin Engine Maintenance Kit (Titan HD/ Z Master 2000 Series)
Toro V-Twin Engine Maintenance Kit (Titan HD/ Z Master 2000 Series) (Part # 139-0649)
Toro maintenance kits contain everything the do-it-yourselfer needs to keep a Toro machine running like new. It's an easy and convenient way to ensure your Toro equipment will run its best year after year. All components are approved by Toro engineers for use with the Toro engines on the Toro TimeCutter chassis.
Genuine OEM Part 139-3240
50 Inch Recycler Kit (Part # 139-3240)
By adding the Toro Recycler system to your TimeCutter Mower, you create your own natural fertilizer. This patented system cuts grass clippings 6-8 times, turning them into a fine, nutrient-rich mulch to feed your lawn all season. The secret lies in the unique 'kickers' that direct clippings back into the blades to be re-cut before being released into your lawn to promote its health and vitality.
$318.99 USD
Genuine OEM Part 139-7459
TimeCutter 50 in. Bagging Enhancement Kit (Part # 139-7459)
This bagging enhancement kit can be used with 50 in. Toro TimeCutter MX and SWX fabricated deck model 2012 and newer. It will enhance bagging performance in extreme conditions such as heavy, wet grass or autumn leaf bagging. Refer to the operator manual for installation and use.
$219.99 USD
Genuine OEM Part 140-2050
TimeCutter Front Weight Kit (Part # 140-2050)
This weight kit is required to get the best performance of Toro attachments such as the Cargo Carrier (79030) or the Brinly-Hardy rear mounted spreader or sprayer. The weight balances the machine installed with an attachment. The kit contains one 35 lb. weight and the hardware needed to install it. Can be easily removed when the attachment is not in use. The weight kit is included with the TimeCutter baggers (see baggers for details)
$463.09 USD
Genuine OEM Part 140-2051
TimeCutter Heavy Duty Spring Kit (Part # 140-2051)
Toro heavy duty spring kit keeps your TimeCutter more stable over rough terrain. To best protect your investment and maintain optimal performance of your turf equipment, count on Toro genuine parts. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
Assist Bar and Mount Kit for TimeCutter Mowers
Assist Bar and Mount Kit for TimeCutter Mowers (Part # 140-2052)
Toro's Assist Bar and Mount Kit Kit will help you to step in and out of your TimeCutter with ease. The telescoping bar adjusts to your height and will assist you when entering and exiting the machine. The non-slip step gives offers additional support.
$186.99 USD
TimeCutter Sunshade Kit
TimeCutter Sunshade Kit (Part # 140-2054)
Keep cool and dry while you mow. The Toro TimeCutter sunshade increases operator comfort by shielding you from the elements. Assembles easily and offers a clean line of sight across your entire mowing area. Genuine Toro Parts and accessories are designed specifically for your machine and built to exacting standards with tight tolerances. Other parts simply don't stack up to the quality, performance, and value of Genuine Toro Parts.
$325.59 USD
Genuine OEM Part 140-2056
TimeCutter LED Light Kit (Part # 140-2056)
The LED Light kit illuminates your mowing area during lowlight conditions and making moving easier and more efficient. This LED Light kit mounts to Toro Time Cutter models and is a genuine Toro LED Light Kit. The kit includes hardware, wire harness and instructions.
$142.99 USD
Genuine OEM Part 140-2061
TimeCutter MyRide Rubber Floor Mat Kit (Part # 140-2061)
The Toro Floor Mat is custom designed for the floor of Toro TimeCutter Level Steer models. The floor mat provides a cushioned surface for the operator's feet and reduces vibration and dampen noise. The floor mat is constructed of thick rubber to provide years of trouble-free use and can be easily removed for washing or mower service.
$75.89 USD
Genuine OEM Part 140-2711
Riding Mower Jack Mount Kit (Part # 140-2711)
Genuine Toro jack mount kit. Mounts to the front of the mower and allows the owner to raise the mower to gain access to the underside of the deck to check blades or wash the deck. To best protect your investment and maintain optimal performance of your turf equipment, count on Toro genuine parts. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
$98.99 USD
Genuine OEM Part 140-5160
TimeCutter 50 in. Striping Kit (Part # 140-5160)
Genuine OEM Part
$163.89 USD
Empty Image Container
*OBS* KIT-CASTER WHEEL [11X6-5 HOLLOWMAT (Part # 145-0488)
10W30 4-Cycle Engine Oil - 32 oz. Bottle
10W30 4-Cycle Engine Oil - 32 oz. Bottle (Part # 38280)
The Toro 38280 Premium 4-Cycle Lawn Mower Engine Oil 10W-30 is specially formulated to meet specific 4-cycle engine manufacturer requirements calling for 10W-30. This lawn mower engine oil provides the ultimate protection for all 4-cycle OPE engines. The lawn mower engine oil is developed with Toro engineering to meet the standards for all air-cooled, liquid-cooled and diesel engines. To maximize the performance of your Toro lawn mower, we highly recommend using this Toro lawn mower engine oil, which has been specifically formulated for best results. The lawn mower engine oil provides extreme performance in all temperatures, enhancing the life of your lawn mower's engine.
$11.28 USD
SAE 30 4-Cycle Lawn Mower Engine Oil 32 oz
SAE 30 4-Cycle Lawn Mower Engine Oil 32 oz (Part # 38903)
Toro SAE 30 4-cycle engine oil passed the strictest requirements in thousands of hours of testing in hundreds of engines before you filled your lawn mower. This oil meets or exceeds performance requirements of all OEM engines (Toro, Briggs & Stratton, KOLHER, Honda, and Tecumseh). The use of Toro SAE 30 4-cycle lawn mower oil minimizes molecular shearing for extended life in hot-air-cooled applications vs multi-grades (i.e., 10W-30).
$9.99 USD
Empty Image Container
Cover for TimeCutter Models (Part # 490-7516)
The Toro Z mower cover protects your investment by offering all-season protection. Toro covers are constructed of tough, waterproof, tear and abrasion-resistant 600-Denier polyester and will provide years of carefree protection for your mower. Toro covers protect against snow, sun damage, rain, dust, birds, tree sap and more. Toro covers also feature vents to minimize condensation and heat build-up and an elastic opening to ensure a snug, secure fit.
$99.99 USD
Genuine OEM Part 79005
50 Inch Deck Belt for TimeCutter Riding Mower (Packaged) (Part # 79005)
Toro TimeCutter 50 Inch deck v-belts are manufactured using the highest quality materials and are rigorously tested to assure they perform under the toughest operating conditions. Will-fit belts might look similar or claim similar functionality but only genuine Toro parts ensure your mower performs as it's intended by providing the perfect fit and maximum performance.
$30.99 USD
Genuine OEM Part 79016P
17.5 Inch High Lift TimeCutter Replacement Blades (3-Pack) (Part # 79016P)
Use this 3-Pack Replacement Blade Kit to maintain your 34 or 50 inch TimeCutter's High quality cutting performance. The sharp 17.5 in. Hi-Flow blades provide a crisp cut and are compatible with select TimeCutters manufactured in and after 2011.
$53.99 USD
TimeCutterTwin Bagger
TimeCutter 50 in. / 54 in. IronForged Deck Twin Bagger (Part # 79412)
The Toro TimeCutter Twin Bagger with its 6.43 bushel (8 cu. ft.) capacity makes quick work of taking care of grass clippings or fallen leaves. When paired with one of Toro's top discharge decks, its performance can't be beat. It assembles easily and once initially installed, can be removed and put back on without tools. Includes bagger, mount kit and front weights.
$999.00 USD
Toro Rollover Protection System Kit For TimeCutter Riding Mower
Toro Rollover Protection System Kit For TimeCutter Riding Mower (Part # 79485)
Toro ROPS rollover protection system kit 79485 and the use of an accompanying seatbelt can prevent an operator from being thrown from a machine or pinned under the mower should it overturn. There is no rollover protection when the roll bar is in the down position. Do not wear the seat belt when the roll bar is in the down position.
$1,239.69 USD
Genuine OEM Part 79486
Timecutter Slope Sensor Kit (Part # 79486)
Genuine Toro slope sensor for sensing a tilt angle representing the orientation of the lawnmower with respect to a horizontal level plane. An signal indicator may provide a notice signal when the tilt angle exceeds a pre-determined check angle. To best protect your investment and maintain optimal performance of your turf equipment, count on Toro genuine parts. When it comes to reliability, Toro delivers replacement parts designed to the exact engineering specifications of our equipment. For peace of mind, insist on Toro genuine parts.
$801.89 USD

Model #

75755

Serial #

409568782 - 410999999

Product Name

50 in. (127 cm) TimeCutter® MyRIDE® Zero Turn Mower

Product Brand

Toro

Product Type

Riding Products

Product Series

Zero Radius Turn, Consumer

Chassis Type

ZRT - Consumer

Swath

50 inch

Discharge

Side Discharge

Engine/Motor Manufacturer

Toro

Engine/Motor Size

24.5 hp

Engine/Motor Type

4 Cycle

Engine Starter

Electric

Transmission Type

Hydrostatic

Traction Type

2wd

Engine: Spark Plug

NGK BPR6ES

Engine: Spark Plug Gap

.030"/ .76mm

Chassis: Tire Pressure

13 psi / 90 kPa

Chassis: Height of Cut Range

1.5-4.5"; 1/2" increments

Engine: Engine Speed

3300±100 RPM

Engine: Battery

12V 230CCA

Engine: Engine Oil Type

77 oz. (2.3L) with filter change SAE 10w30/10w40

Engine: Ignition Coil Air Gap

0.011in (0.3mm)

Drive System: Ground Speed

Forward: 0-7 mph

Drive System: Gearbox Lubricant

HYPR-OIL 500 / 20w-50 Synthetic Motor Oil
