2000 Series MyRIDE® HDX 60 in. (152 cm) 23.5 hp 726 cc

2000 Series MyRIDE® HDX 60 in. (152 cm) 23.5 hp 726 cc

2000 Series MyRIDE® HDX 60 in. (152 cm) 23.5 hp 726 cc

Product Information

Model #: 77294
Serial #: 418040000 - 418604822
Product Type: Riding Products

Parts

Search for a part within assembly drawings:

Showing Results

Drawing Title	Part Number	Description
Title

Decal Assembly

Deck Assembly

Deck Decal Assembly No. 147-7373

Deck Decal Assembly No. 147-7373

Deck Lift Assembly

Deck Lift Assembly

Deck Strut Assembly No. 140-1179

Deck Strut Assembly No. 140-1179

Deflector Assembly No. 144-2635

Deflector Assembly No. 144-2635

Electrical Assembly

Electrical Assembly

Engine, Clutch and Muffler Assembly

Engine, Clutch and Muffler Assembly

Fork and Caster Wheel Assembly

Fork and Caster Wheel Assembly

Frame Assembly

Front Caster Wheel Assembly

Front Caster Wheel Assembly

Fuel Assembly

Fuel Tank Assembly No. 163-3471

Fuel Tank Assembly No. 163-3471

Hydro Drive Assembly

Hydro Drive Assembly

Idler Arm Assembly No. 139-1087

Idler Arm Assembly No. 139-1087

Left and Right Motion Control Assembly

Left and Right Motion Control Assembly

LH Transaxle Assembly No. 145-8424

LH Transaxle Assembly No. 145-8424

Motion Control Assembly

Motion Control Assembly

Rear Drive Wheel Assembly

Rear Drive Wheel Assembly

RH Transaxle Assembly No. 145-8425

RH Transaxle Assembly No. 145-8425

Roll-Over Protection System Assembly No. 139-8063

Roll-Over Protection System Assembly No. 139-8063

Seat Assembly No. 147-2383

Seat Assembly No. 147-2383

Seat Mount Assembly

Seat Mount Assembly

Seat Suspension Assembly

Seat Suspension Assembly

Spindle Assembly No. 139-2357

Spindle Assembly No. 139-2357

Throttle, Choke and Guards Assembly

Throttle, Choke and Guards Assembly

Wire Harness Assembly No. 147-2363

Wire Harness Assembly No. 147-2363

Download Parts Catalog

Manuals

Operator's Manual

Service Manual

Parts Catalog

Setup Instructions

Product Warranty

Accessories (32)

Hypr-Oil™ 500 (quart)

Hypr-Oil™ 500 (quart) (Part # 114-4713)

Hypr-oil™ 500 (quart). Toro Hypr-Oil 500 is a high-performance hydraulic fluid specifically formulated and approved by Toro engineering for use in Toro commercial zero turn mowers. It provides excellent wear and corrosion protection for hydraulic systems, helping to maintain consistent performance and extend the service life of hydraulic components. Always refer to your operator manual for the correct fluid specification and service intervals.

Hypr-Oil™ 500 (gallon)

Hypr-Oil™ 500 (gallon) (Part # 114-4714)

Toro Hypr-Oil 500 is a high-performance hydraulic fluid specifically formulated and approved by Toro engineering for use in Toro commercial zero turn and stand-on mower hydraulic systems. Maintaining the correct hydraulic fluid and changing it at the manufacturer-recommended interval is critical to protecting hydraulic pumps, wheel motors, and other hydraulic components from wear and corrosion — particularly on machines operating under commercial duty cycles. Refer to your operator manual for the correct change interval and fluid capacity for your equipment.

Genuine OEM Part 114-4715

Hypr-Oil™ 500 Hydraulic Oil (5 gallon) (Part # 114-4715)

Toro Hypr-Oil 500 is a high-performance hydraulic fluid formulated and approved by Toro engineering for commercial zero turn and stand-on mower hydraulic systems. The 5-gallon commercial bulk pack is designed for fleet operators and service shops performing multiple machine hydraulic fluid changes. Maintaining the correct hydraulic fluid on schedule protects pumps, wheel motors, and other hydraulic components from accelerated wear. Refer to your operator manual for the correct change interval and capacity for each machine. Do not mix with other hydraulic fluids.

Empty Image Container

KIT-STRIPER 48, 52, 60, 72 (Part # 126-7882)

Riding Mower Jack Kit

Riding Mower Jack Kit (Part # 127-6666)

This genuine Toro OEM riding mower jack kit is designed to safely lift and support your Toro riding mower or zero turn, giving you safe, stable under-deck access for blade changes, belt replacements, and routine maintenance. It is one of the most practical purchase-stage accessories for any new mower owner — investing in a proper jack from day one avoids improvised lifting methods that risk injury and equipment damage. Verify your model and serial number before ordering.

Genuine OEM Part 133-2127

20.5 Inch Hi-Flow Blade (Part # 133-2127)

Toro 20.5 Inch OEM Hi-Flow blade. This sharp replacement Hi-Flow lawn mower blade provides a crisp, clean cut time after time. You can count on the quality and reliability of this Toro replacement Hi-Flow lawn mower blade. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

Genuine OEM Part 133-2157

20.5 Inch Atomic Blade (Part # 133-2157)

Toro 20.5 Inch OEM Atomic blade. The Toro Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

Genuine OEM Part 133-2161

20.5 Inch Recycler Blade (Part # 133-2161)

Toro 20.5 Inch OEM Recycler blade. Recycler straight edge, standard discharge blade. The blade is designed for a High quality cut and long-lasting durability. These blades are designed with “wings,” called “accelerators” that kind of act like a fan — forcing the tiny bits of grass back into the earth. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

Genuine OEM Part 133-2127

20.5 Inch Hi-Flow Blade Pack - 6 Blades (Part # 133-2174)

Toro 20.5 Inch OEM Hi-Flow blade pack. (6) Hi-Flow blades. This sharp replacement Hi-Flow lawn mower blade provides a crisp, clean cut time after time. You can count on the quality and reliability of this Toro replacement Hi-Flow lawn mower blade. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

Empty Image Container

20.5 Inch Recycle Blade Pack - 6 Blades (Part # 133-2177)

Toro 60 Inch OEM Recycler blade pack. (6) Recycler blades. Recycler straight edge, standard discharge blade. The blade is designed for a High quality cut and long-lasting durability. These blades are designed with “wings,” called “accelerators” that kind of act like a fan — forcing the tiny bits of grass back into the earth. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

Genuine OEM Part 133-2157

20.5 Inch Atomic Blade Pack - 6 Blades (Part # 133-2180)

Toro 20.5 Inch OEM Atomic blade. (6) blade pack. Atomic blade is commonly referenced as a “Gator Style” or “Gator Blade”. Provides the best quality of cut while mulching. This Toro blade has multiple applications. Be sure to verify model and serial number to ensure the correct part.

Spark Arrestor (Part # 137-8098)

Genuine OEM Part 139-3649

MICHELIN® X® TWEEL® Turf Airless Radial Tires (24") (Part # 139-3649)

A MICHELIN® X® TWEEL® airless radial tire is a single unit that replaces the current tire and wheel assembly. There is no need for complex mounting equipment and once they are bolted on, there is no air pressure to maintain The unique energy transfer within the poly-resin spokes helps reduce the “bounce” associated with pneumatic tires, while providing outstanding handling characteristics. The MICHELIN X TWEEL Turf airless radial tire is a single-unit assembly that replaces a conventional tire and wheel, eliminating the need for air pressure entirely — which means no flats, no downtime, and no patch kits. The wear life of a TWEEL tire is significantly longer than a comparable pneumatic tire, reducing the frequency of replacement and total cost of ownership over time. Verify your model and serial number to confirm the correct size before ordering.

Genuine OEM Part 139-6655

60 Inch Recycler Kit (Part # 139-6655)

Recycler Kit, when installed on compatible 42 in. deck Toro zero turn riding mowers, gives it the capability to mulch grass by cutting it multiple times turning it into fine clipping pieces. Verify your model and serial number to confirm compatibility before ordering.

Genuine OEM Part 140-4896

Wheel and axle assembly (Z Master ) (Part # 140-4896)

Z Master wheel and axel assembly.

Empty Image Container

TRIMMER MOUNT [4000] (Part # 144-2665)

Empty Image Container

JACK MOUNT KIT (Part # 144-2676)

Empty Image Container

HARDTOP SUN CANOPY (ARTICULATING) (Part # 144-3719)

Genuine OEM Part 144-6607

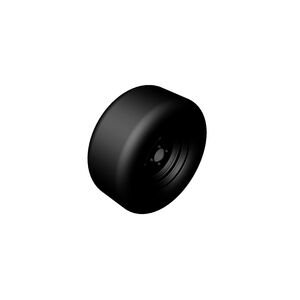

24X12-12 Rear Riding Mower Wheel and Tire Assembly (Part # 144-6607)

Toro OEM replacement rear tire and steel wheel. This rear mounted tire delivers superior traction on turf and grass. Ideal replacement tire for residential riding lawn mowers and tractors.

Genuine OEM Part 145-3615

Handle Extension Kit (Part # 145-3615)

Genuine OEM Part

Empty Image Container

KIT-SLOPE SENSOR [2000, 4000] (Part # 145-8442)

MICHELIN® X® TWEEL® Turf Airless Caster Wheels (13") (Part # 147-6294)

The MICHELIN® X® TWEEL® Turf Caster Wheel is the next “revolution” in commercial mowing. The MICHELIN X TWEEL Turf Caster Wheel has all the qualities you would want in a pneumatic tire but it never needs air. No more flats, downtime, patch kits or replacement tires. And in the area of wear and tear, this “tire” has a wear life that is three times that of a pneumatic.

Empty Image Container

KIT-BUCKET MOUNT (Part # 147-6345)

Empty Image Container

KIT-UNIVERSAL MOUNT (Part # 147-6346)

Empty Image Container

KIT-BAFFLE, TURBO FORCE [60] (Part # 147-7362)

Empty Image Container

KIT-ARM REST (Part # 147-7397)

Empty Image Container

KIT-ELEC DECK LIFT [ZM2000,ZM4000] (Part # 147-7867)

Empty Image Container

KIT-2IN RECIEVER HITCH (Part # 161-2810)

Empty Image Container

KIT-FUEL PICKUP W/SCREEN (Part # 161-6806)

Empty Image Container

60" CHUTE GATE KIT [2000] (Part # 163-4120)

BAGGER KIT, Z MASTER 2000 / 4000 (Part # 78439)

Empty Image Container

4000 Series E-Z Vac Blower & Drive Kit for 60" Deck (Part # 78466)

4000 Series E-Z Vac Blower & Drive Kit for 60" Deck - use with 4000 Series Twin Soft Bagger 48 - 60" Deck (#78463)

Product Details

Model #

77294

Serial #

418040000 - 418604822

Product Name

2000 Series MyRIDE® HDX 60 in. (152 cm) 23.5 hp 726 cc

Product Brand

Toro

Product Type

Riding Products

Product Series

Zero Radius Turn, Commercial 2000 Series

Chassis Type

ZRT - LCE

Swath

60 inch / 152 cm

Discharge

Side Discharge

Engine/Motor Manufacturer

Kawasaki

Engine/Motor Size

23.5 hp

Engine/Motor Type

4 Cycle

Engine Starter

Electric

Transmission Type

Hydrostatic

Traction Type

Rear WD

Specifications

Engine: Battery

12V 300CCA

Engine: Engine Speed

3800±100 RPM

Engine: Spark Plug

NGK BPR5ES

Engine: Spark Plug Gap

.028-.032"/ .7-.8mm

Chassis: Height of Cut Range

1.5" - 5" (38-127mm)

Chassis: Tire Pressure

12-14 psi rear

Drive System: Ground Speed

0-10 mph / 0-16kph

Engine: Engine Oil Type

filter change 2.2 qts. (2.1 L); no filter 1.9 qts. (1.8 L) SAE 30

Engine: Ignition Coil Air Gap

0.011in (0.3mm)

Drive System: Gearbox Lubricant

HYPR-OIL 500 / 20w-50 Synthetic Motor Oil
