14-Blade Cutting Unit
Product Information
- Model #: 04854
- Serial #: 421146757 - 999999999
- Product Type: Walk Behind Mowers
Loading...
Assembly Drawings
Search for a part within assembly drawings:
-
Operator's Manual
-
Parts Catalog

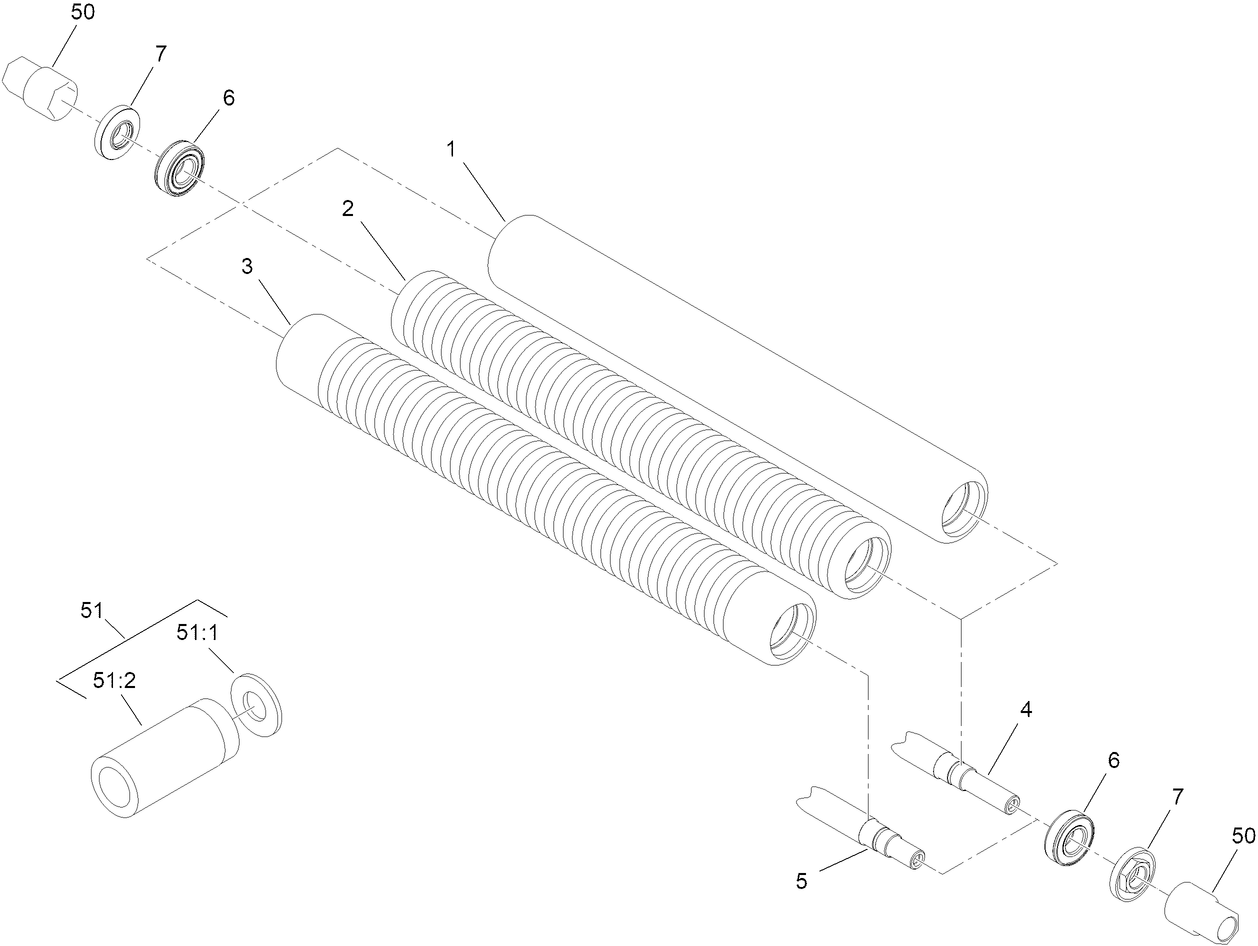

GR18 NARROW WIEHLE ROLLER ASM (Part # 04092)
GR18 EXT NARROW WIEHLE ROLLER ASM (Part # 04093)
GR18 FULL FRONT ROLLER ASM (Part # 04096)
Soft QC Grooming Brush (Part # 04268)
Spiral rotating brush used to condition grass before cutting
Stiff QC Grooming Brush (Part # 04269)
Spiral rotating brush used to condition grass before cutting
Turf Evaluator (Part # 04399)
Mirror device used to assess turf conditions
Universal Groomer Drive (Part # 04648)
Groomer drive with forward, neutral and counter-rotating dial
Universal Groomer Drive (Part # 04707)
Groomer drive with forward, neutral and counter-rotating dial
Twin Tip Groomer Blade (Part # 04801)
Reduces thatch and stands grass blades for a crisp, clean cut
Toro 14 oz. All-Purpose Grease (Part # 108-1190)
Toro 14 oz. All-Purpose Grease. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.
Bedbar (Part # 110-2281-01)
Aggressive Bedbar (Part # 110-2281-0P)
Designed for firm greens where a more efficient, aggressive cut is needed for more aggressive cultivars
18.25 Inch Micro Cut Standard Bedknife (Part # 110-2300)
Toro 18.25 Inch OEM Micro Cut Standard Bedknife. You can count on the quality and reliability of this replacement Micro Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
18.25 Inch Low Cut Standard Bedknife (Part # 110-2301)
Toro 18.25 Inch OEM Low Cut Standard Bedknife. You can count on the quality and reliability of this replacement Low Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
Black Bottle Paint (Part # 112-0176)
Black paint for touch ups.
Red Paint Bottle (Part # 112-0178)
1.00 Inch Auxiliary Roller Extension Kit (Part # 115-7361)
Contains 115-7362 @ 2, 108-4339 @ 2, 115-7369 @ 2, 115-7370 @ 2, 115-7371 @ 2
18.25 Inch Micro Cut EdgeMax™ Bedknife (Part # 117-1530)
Toro 18.25 Inch OEM Micro Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Micro Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
18.25 Inch Tournament Cut EdgeMax™ Bedknife (Part # 117-1532)
Toro 18.25 Inch OEM Tournament Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Tournament Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
High HOC Kit (Part # 120-9600)
Contains 120-9601 @ 2, 119-4067 @ 2, 3274-54 @ 4, 119-4165 @ 6, 119-4040 @ 4
Rear Roller Adjustment Kit (Part # 120-9602)
Eccentric bolt used to precisely level rear roller
Narrow Wiehle Roller Scraper Kit (Part # 120-9615)
Full Roller Scraper (Part # 120-9617)
Full roller scrapers clear rollers of dirt, grass and debris buildup that may impact height of cut
Narrow Wiehle Roller Brush Kit (Part # 120-9621)
Full Roller Scraper Brush Kit (Part # 120-9623)
Contains 110-2371 @ 1, 115-7364 @ 2, 115-7372 @ 2, 115-7373 @ 2
Dpa Rebuild Kit (Part # 121-2637)
Contains 106-5363 @ 2, 106-5344 @ 4, 119-4164 @ 2, 32120-93 @ 2, 137-6130 @ 2, 119-4155 @ 2, 119-4156 @ 2, 119-4039 @ 2, 99-2097 @ 2, 119-4067 @ 2
Paper Reel (Part # 125-5610)
Toro OEM Paper-Reel, Toro (10 Pack).
Soft Grooming Brush (Part # 127-1545)
Spiral rotating brush used to condition grass before cutting
Stiff Grooming Brush (Part # 127-1546)
Spiral rotating brush used to condition grass before cutting
Angle Indicator (Part # 131-6828)
Toro OEM Angle Indicator
Angle Indicator Mount (Part # 131-6829)
Toro OEM Angle Indicator Mount
TOOL-SYRINGE (Part # 137-0872)
TOOL-DRIVE SHAFT REMOVAL (Part # 137-0920)
Bedbar (Part # 138-1520-01)
18.25 Inch Micro Short Cut EdgeMax™ Bedknife (Part # 139-4318)
Toro 18.25 Inch OEM Micro Short Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement micro short cut bedknife. Be sure to verify the make and serial number to ensure correct part.
18.25 Inch Short Tournament Cut EdgeMax™ Bedknife (Part # 139-4319)
Toro 18.25 Inch OEM Short Tournament Cut EdgeMax™ Bedknife. The EdgeMax™ is a tougher medal crafted with precision to give you an amazing cut every time. You can count on the quality and reliability of this replacement Short Tournament Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
Backlap Access Kit (Part # 139-4342)
Required for auxiliary electric motor backlapping and to assist with adapting to most reel grinders
Interlaced Roller Scraper (Part # 139-7411)
Interlaced Roller Scraper Brush (Part # 139-7412)
Toro Reel Shim (Part # 140-5531)
Check reel to bedknife contact
Twin Tip Groomer Blade (Part # 140-5580)
Helix Groomer Blade (Part # 140-5581)
High-strength, twin-tipped groomer blade.
Helix Groomer Blade (Part # 140-5582)
High-strength, twin-tipped groomer blade.
Rear Roller Scraper Kit, 18in Greensmaster Flex Cutting Reel (Part # 140-5590)
TOOL-DRIVE, ROLLER NUT (Part # 147-1132)

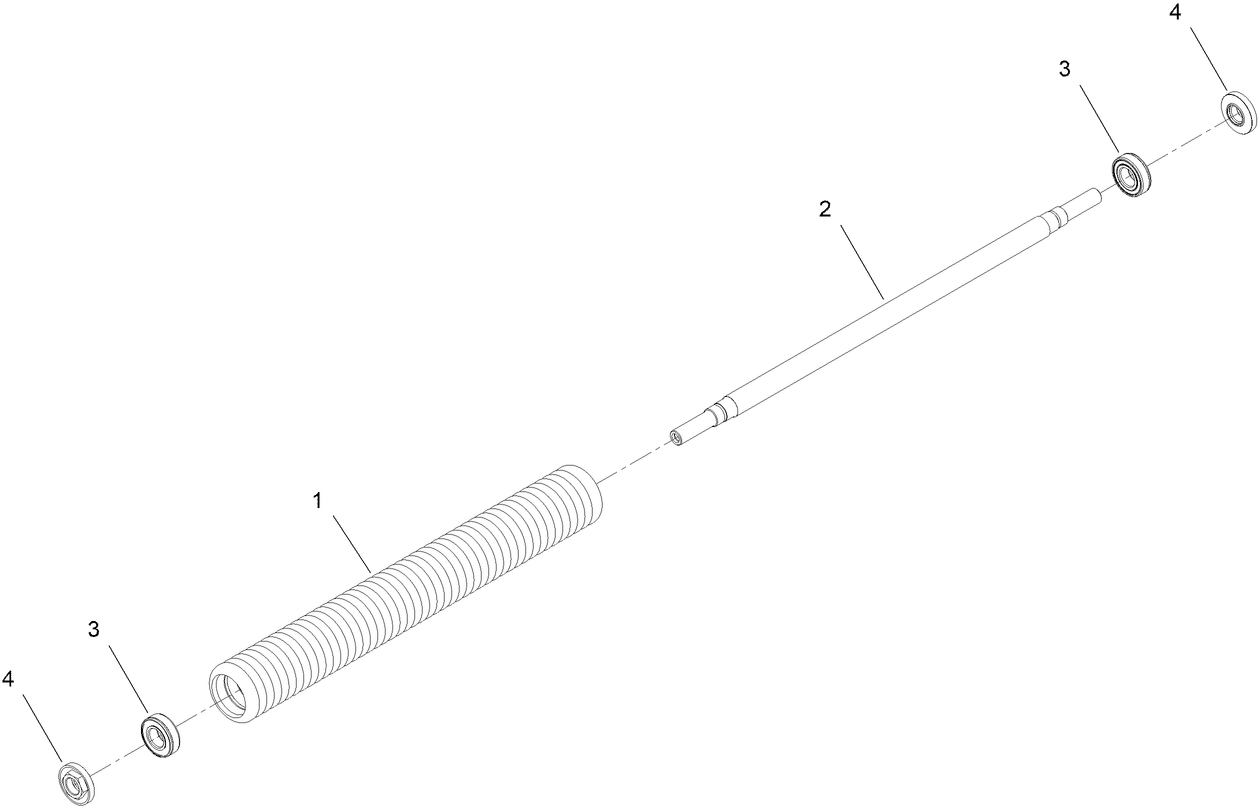

GR18 NARROW WIEHLE ROLLER ASM (Part # 147-1140)

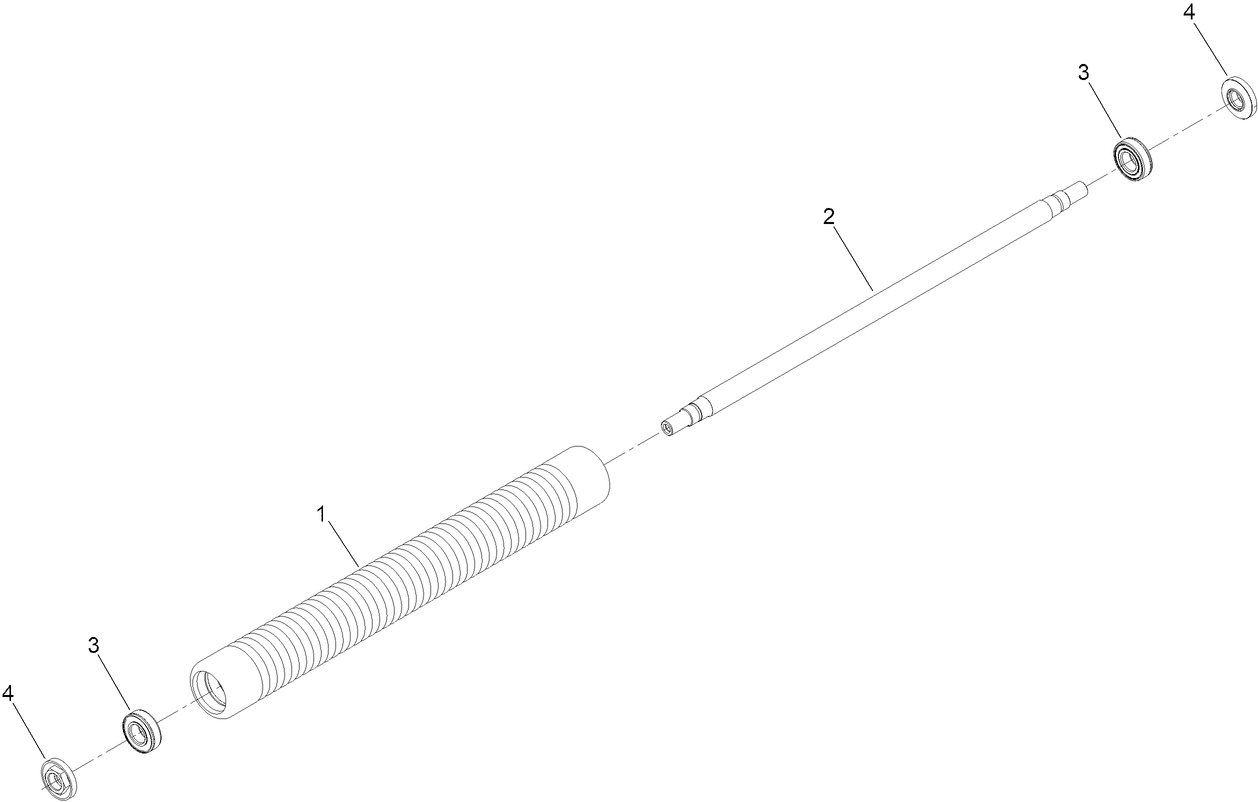

GR18 EXT NARROW WIEHLE ROLLER ASM (Part # 147-1143)
GR18 FULL FRONT ROLLER ASM (Part # 147-1153)
GR18 REAR ROLLER ASM (Part # 147-1156)
Toro Red 12or aerosol can. (Part # 361-10)
Genuine OEM Part
Red Paint (Gallon) (Part # 361-11)
Genuine OEM Part
Semi-Gloss Black Paint (Part # 361-9)
Genuine OEM Part
Height of Cut Kit (Part # 94-9010)
Height of cut range 0.285”– 1.00” (7.2 – 25.4 mm), set of one
18.25 Inch Tournament Cut Standard Bedknife (Part # 98-7260)
Toro 18.25 Inch OEM Tournament Cut Standard Bedknife. You can count on the quality and reliability of this replacement Tournament Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
18.25 Inch Micro Cut Standard Bedknife (Part # 98-7261)
Toro 18.25 Inch OEM Micro Cut Standard Bedknife. You can count on the quality and reliability of this replacement Micro Cut bedknife. Be sure to verify the make and serial number to ensure correct part.
Extended Height of Cut Bracket (Part # 99-4286)
Enables heights of cut up to .94” (23.8mm)
-
