212-5 Tractor

Image Not Found

Product Information

  • Model #: A2-12K501
  • Serial #: 1000001 - 1999999
  • Product Type: Riding Products

Image Not Found
30" Side Discharge Mower (Part # 35-30SL02)
Image Not Found
36" Rear Discharge Mower (Part # 35-36RL03)

  • Model #
    A2-12K501
  • Serial #
    1000001 - 1999999
  • Product Name
    212-5 Tractor
  • Product Brand
    Toro
  • Product Type
    Riding Products
  • Product Series
    Lawn Tractor, 200 Series
  • Swath
    Deck Optional
  • Discharge
    Deck Optional
  • Engine/Motor Manufacturer
    Kawasaki
  • Engine/Motor Size
    12 hp
  • Engine/Motor Type
    4 Cycle
  • Engine Starter
    Electric

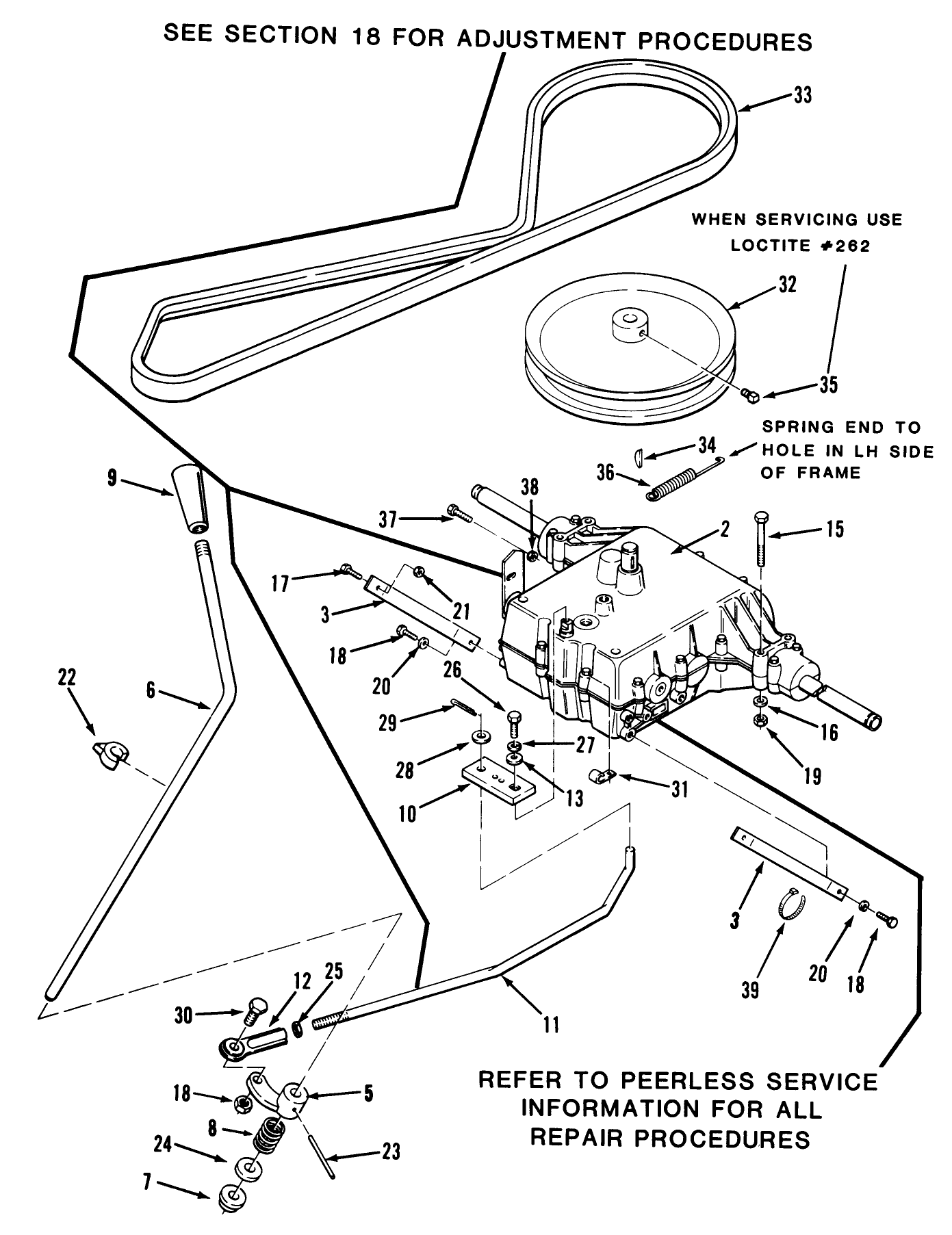

  • Transmission Type
    Gear

  • Engine: Displacement
    28.1 cu.in. (460cc)
  • Engine: Bore
    3.50" (89mm)
  • Engine: Stroke
    2.91" (74mm)
  • Engine: Compression Ratio
    6.4:1
  • Engine: Max. Output
    12.5 hp @ 3600 rpm
  • Engine: Max. Torque
    20.1 ft.lbs. @ 2300 rpm
  • Engine: Direction of Rotation
    Counter Clockwiise Facing PTO
  • Engine: Fast Idle Speed
    3350 rpm
  • Engine: Slow Idle Speed
    1400 rpm
  • Engine: Lubrication
    Pressurised Lubrication
  • Engine: Balancing
    Reciprocating Weight
  • Engine: Throttle Control
    Remote Cable
  • Engine: Choke Control
    Automatic
  • Engine: Starter
    Electric Starter or Recoil

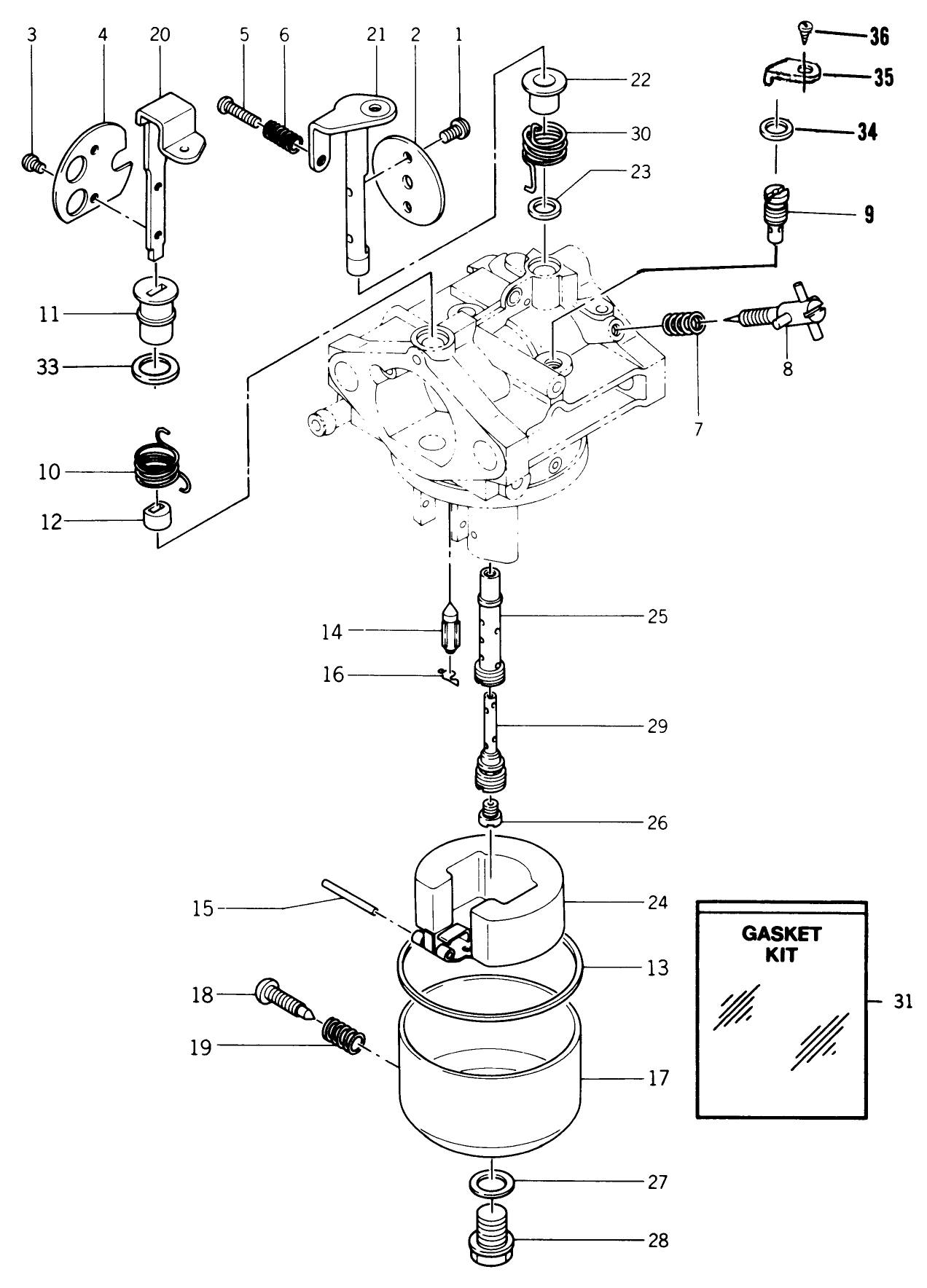

  • Engine: Carburetor
    Float Type Fixed Main Jet
  • Engine: Ignition
    Transistorized Flywheel Magneto
  • Engine: Charging Coil
    12 Volt 13 Amp. with Regulator
  • Engine: Governor
    Mechanical Governor
  • Engine: Air Cleaner
    Semi cyclone type with dual element
  • Engine: Weight
    79.36 lbs. (36kg)
  • Engine Torque: Spark Plug Torque
    20 ft.lbs. (28Nm)
  • Engine Torque: Flywheel Nut Torque
    62/65 ft.lbs. (83/88Nm)
  • Engine Torque: Crankcase Cover Torque
    12/17 ft.lbs. (17/23Nm)
  • Engine Torque: Cylinder Head Torque
    25/29 ft.lbs. (34/39Nm)
  • Engine Torque: Oil Pump Cover
    12/17 ft.lbs. (17/23Nm)
  • Engine Torque: Rod Cap
    14/15 ft.lbs. (19/20Nm)
  • Engine Torque: Connecting Rod Bolts
    14/15 ft.lbs. (19/20Nm)

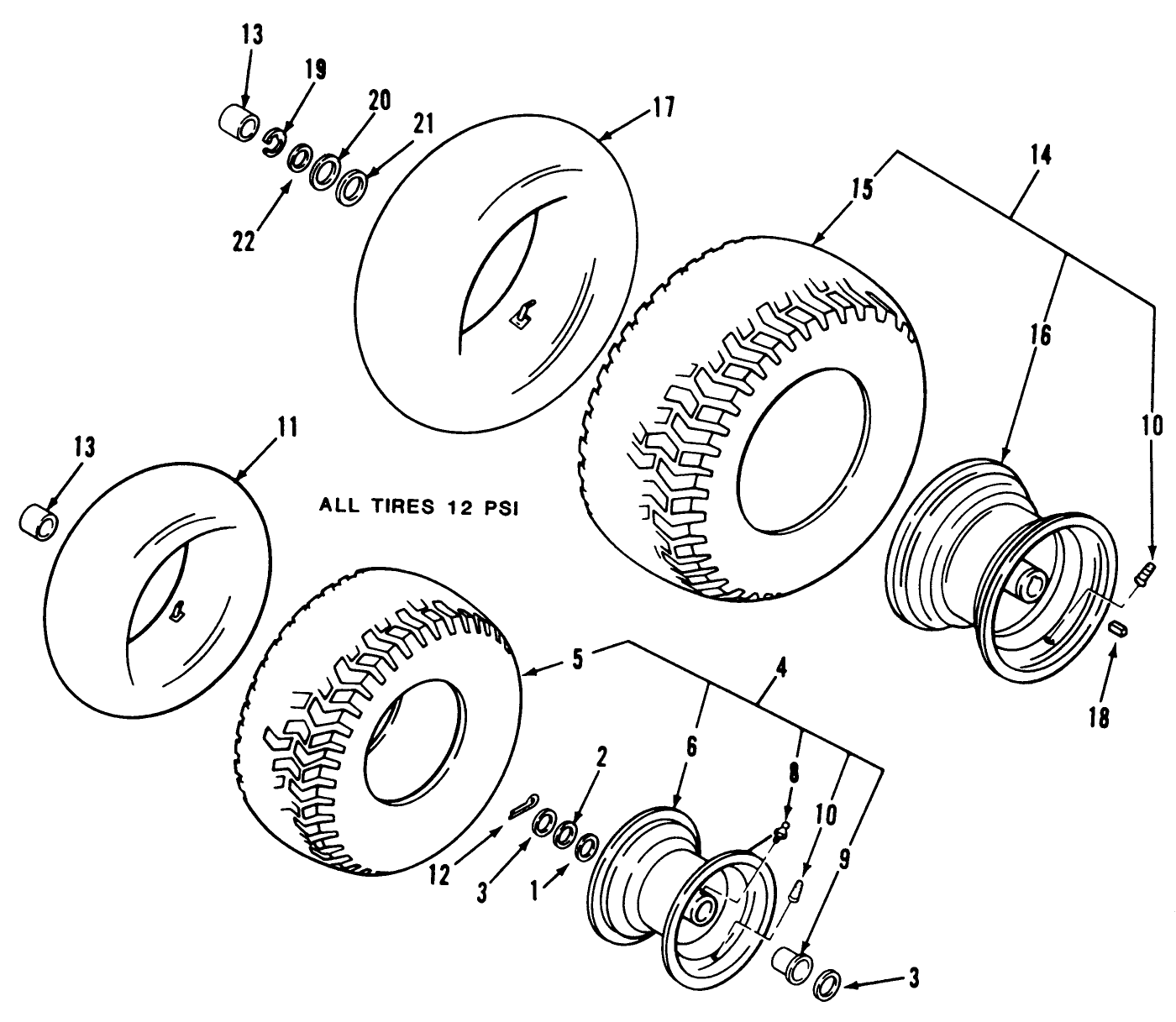

  • Chassis: Tire Pressure
    12 PSI / .5kg sq. cm
  • Drive System: Ground Speed
    Fwd. 1.1 - 5.0 Rev. 2.4 mph
  • Engine: Battery
    12V 210CCA
  • Engine: Engine Speed
    High 3300, Low 1550 RPM
  • Engine: Spark Plug
    Champion RCJ8
  • Engine: Spark Plug Gap
    .028"/ .7mm
