Discontinued

32" (81 cm) Fixed Deck Gear Drive Pistol Grip

Fixed Deck Gear Drive
  • Model: 30632
  • 5-Speed gearbox with 9 spline coupler
  • Massive 9-3/8" (24 cm) diameter spindle

Overview

14.5 HP Kawasaki® FS481V 603cc Engine with 32" (81 cm) deck. The 32" deck size is perfect for tight areas and mowing around obstacles.

Features

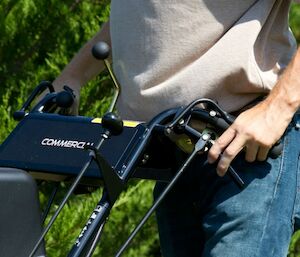

Pistol Grip Control System
Pistol Grip Control System
The individual handles make it easier to control tracking long straight lines. The release to go interlock, reduces operator fatigue.
Rugged Deck Design
Rugged Deck Design
High-capacity 7/10 gauge deck delivers unsurpassed strength, a superior cut, and increased productivity in extreme mowing conditions. Easily handles the most demanding conditions and resists damage from impacts and abrasion. The 5" deep deck features 8" aluminum spindles and a rubber discharge chute.
Rubber Discharge Chute
Rubber Discharge Chute
High performance rubber discharge chute allows for close trimming without damaging chute or landscape structures. Patented design provides exceptional clipping dispersion.
Extended Life Drive System
Extended Life Drive System
Extended life drive system with Husqvarna Peerless 700 series transmission, featuring a 9-spline drive coupler.
Rugged Spindle Assembly
Rugged Spindle Assembly
Rigorously tested to ensure that it can survive impacts that would destroy lesser spindles. The cast iron housing, with a massive 9-3/8" (23.8 cm) diameter base, absorbs impact loads and distributes them across a broader area of the robust deck shell. Built with maintenance-free sealed ball bearings.
A Flat Crisp Cut With Precision Blades
A Flat Crisp Cut With Precision Blades
(.250) thick precision blades resist flexing to provide a flat, crisp cut. High-strength, heat-treated alloy steel survives impacts and provides resistance to the rapid wear commonly associated with abrasive conditions. Options include Recycler® and Atomic® mulching blades, medium sail Bahai blades, and low sail sand blades.

Specifications

Adjustable Discharge Standard
Adjustable Discharge Baffle Standard
Air Filter 2-Stage Air Cleaner
Blade Tip Speed 18,000 ft/min / 5,486 m/min
Box Dimensions 78 in x 49.5 in x 52.25 in / 198.1cm x 125.7cm x 132.7cm
Brake System 6" (15 cm) Band Brakes
CARB Compliant Not CARB Compliant
Caster Tires 9" x 3.50-4" (23 cm x 9 - 10 cm) Flat-free
Deck Design 32" (81 cm) Side Discharge
Deck Size 32 in / 81 cm
Discharge Chute High-Performance 5/16" (8 mm) Rubber
Drive System 5-Speed Transmission
Drive Tires 13" x 5.00-6" (33 cm x 12.7 - 15 cm)
Engine 14.5 HP* Kawasaki® FS481V 603cc
Engine Brand Kawasaki
Engine Displacement (cc) 603 cc
Engine Horsepower 14.5 hp
Forward Ground/Transport Speed Up to 6.2 mph / 9.9 kph
Fuel Capacity 5 gal. / 18.9 L / 20 Qt.
Fuel Type Gasoline
Height of Cut 1.0 - 4.25 in. / 2.5 - 10.8 cm
Mulch, Bag, Side Discharge Side discharge standard
Number of Blades 2
Product Use Commercial
Spindle Housing Cast-Aluminum
Start Type Pull Cord
Steering Controls Pistol Grip
Tires 13" x 5" (33 cm x 12.7 cm)
Transmission 5-speed gearbox w/ 9 spline coupler

Disclaimer

*The gross horsepower of this engine was laboratory rated by the engine manufacturer in accordance with SAE J1940. As configured to meet safety, emission, and operating requirements, the actual engine horsepower on this class of mower will be significantly lower.



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
