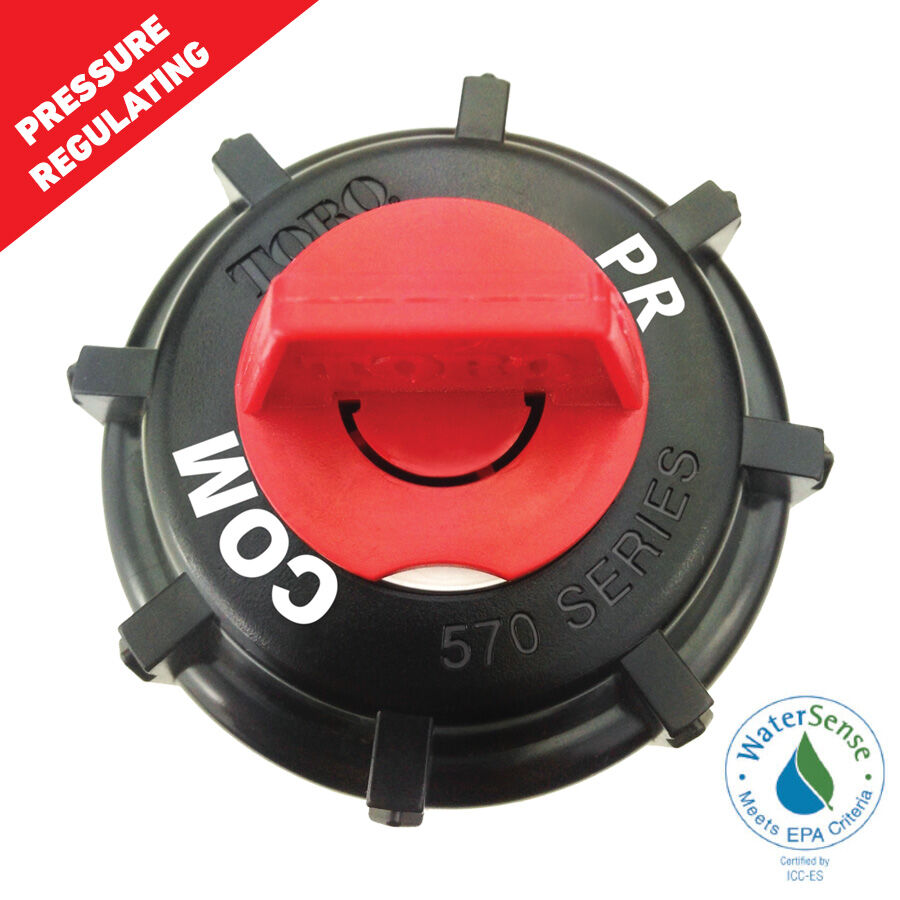

570Z PR Series

  • Model: 570Z PR Series
  • Pressure regulating – factory installed regulator operates at a standard 30 psi to prevent misting and water waste
  • Zero-flush seal prevents water waste at start up, allowing more heads to be installed on same line
  • Ratcheting riser feature for easy and reliable arc adjustment
  • Less visible, reducing damage from exposure or vandals.
  • Built into the riser and restricts water loss by 99% if the nozzle is removed or damaged, eliminating potential erosion or safety concerns. Allows for “dry” nozzle and filter-replacement or maintenance, while the system is running.
  • Maintains constant 30 psi (2,1 Bar) psi outlet pressure, which minimizes misting and fogging caused by pressures above 30 psi (2,1 Bar).
  • Robust retraction spring and enhanced seal material ensures positive pop-up and retraction on all 570Z models.
  • Less visible, reducing damage from exposure or vandals.

Overview

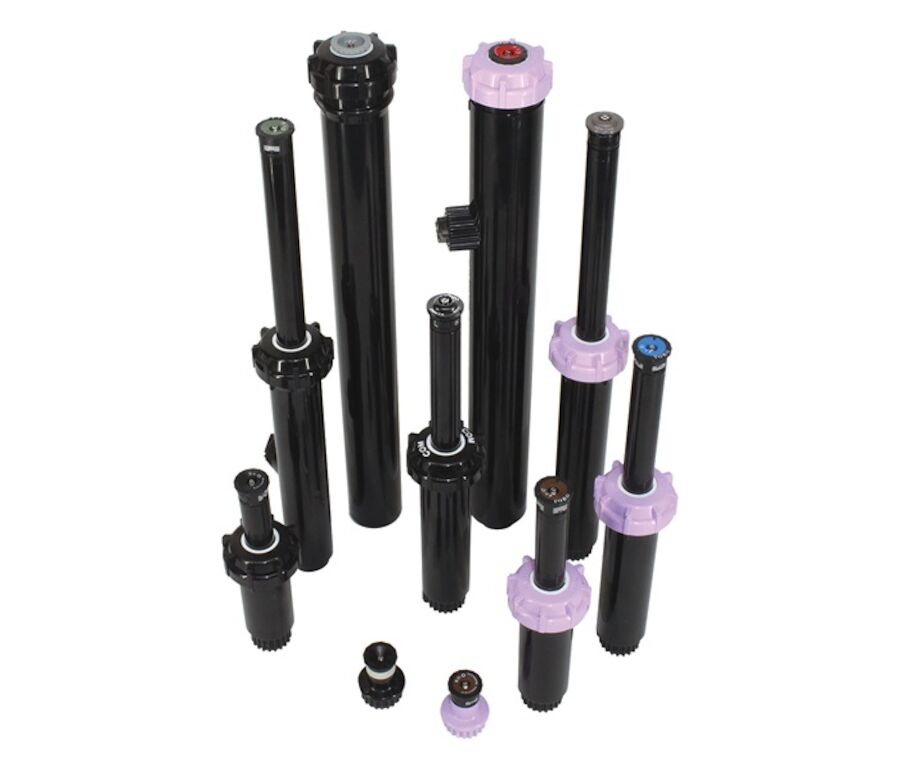

Toro’s 570Z PR Series spray bodies presents a constant pressure at the nozzle of 30 psi to help ensure the entire zone is performing consistently across each and every sprinkler. Certified to EPA WaterSense® requirements, 570Z PR spray bodies have been proven to eliminate water waste caused by nozzle misting and overspray that results from high pressure situations. Available in 3”, 4”, 6”, and 12” models with features that include a replaceable pressure-activated wiper seal, an easy-to-adjust ratcheting riser, and factory-installed Check-O-Matic (COM) seal, the pressure-regulated 570Z PR spray bodies provide everything needed to become your everyday spray body.

Features

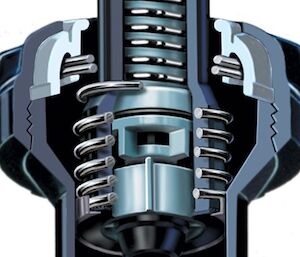

Patented In-riser Pressure Regulator
Patented In-riser Pressure Regulator
Maintains constant 30 psi (2,1 Bar) psi outlet pressure, which minimizes misting and fogging caused by pressures above 30 psi (2,1 Bar).
Zero Flush Wiper Seal
Zero Flush Wiper Seal
Prevents flushing on pop-up, allowing more sprinklers on the same line.

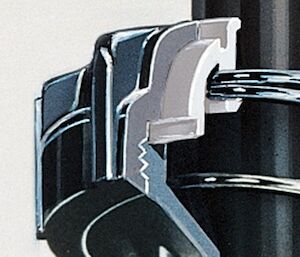

Enhanced Retraction Spring and Wiper Seal
Enhanced Retraction Spring and Wiper Seal
Robust retraction spring and enhanced seal material ensures positive pop-up and retraction on all 570Z models.

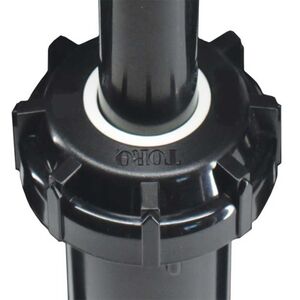

Small 2” (50mm) Diameter Cap
Small 2” (50mm) Diameter Cap
X-flow® Water Shut-off Device
X-flow® Water Shut-off Device
Built into the riser and restricts water loss by 99% if the nozzle is removed or damaged, eliminating potential erosion or safety concerns. Allows for “dry” nozzle and filter-replacement or maintenance, while the system is running.
Patented In-riser Pressure Regulator
Patented In-riser Pressure Regulator
Maintains constant 30 psi (2,1 Bar) psi outlet pressure, which minimizes misting and fogging caused by pressures above 30 psi (2,1 Bar).
Enhanced Retraction Spring and Wiper Seal
Enhanced Retraction Spring and Wiper Seal
Robust retraction spring and enhanced seal material ensures positive pop-up and retraction on all 570Z models.
Small 2” (50mm) Diameter Cap
Small 2” (50mm) Diameter Cap
Less visible, reducing damage from exposure or vandals.

Specifications

Cap Diameter 2" (50 mm)
Flow 0.05-3.45 GPM (0.2 - 13.1 LPM)
Inlet 1/2" (1.3 cm) NPT female threaded
Pop-up Height Shrub adapter, 3”, 4”, 6” and 12” (76, 100, 150, and 300 mm)
Radius Dependent on chosen nozzle / emission device
Recommended Operating Pressure 30 - 70 PSI

Documents

Title Documents
22-1021-570Z-SS-FINAL.pdf PDF - Sellsheet-en-us
570Z Installation Instructions-2020.pdf PDF - Owner's Manual-en-us
