Total Control® Series

Heavy-duty Surge Protection Controller for Agricultural Drip Irrigation
  • Model: A-TC-9EX-R
  • UPC/EAN: 108256000345
See All Items in Total Control® Series
  • Heavy duty electrical surge protection resists damage from lightening storms and power surges
  • Seven day calendar, odd/even day or day interval options of one to 30 days
  • Excluded day option, when used with the odd/even day option, allows selection of specific day(s) not to water
  • Water budgeting feature changes all stations within a program from 10 – 200% in 10% increments

Overview

The Total Control family of hybrid controllers offers a wide range of programming flexibilities. The unique modular design makes programming, installation and servicing fast and easy. For added reliability, Total Control features heavy-duty surge protection. All these features make the Total Control controller ideal for agricultural drip irrigation, as well as commercial and industrial applications.

Features

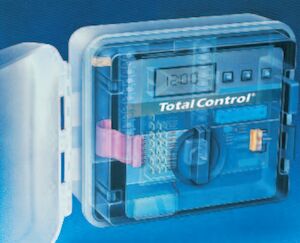

Total Control® Series controller for drip irrigation
Heavy duty electrical surge protection
Heavy duty electrical surge protection resists damage from lightening storms and power surges
Total Control Controller for agricultural, commercial applications
Day interval options
Seven day calendar, odd/even day or day interval options of one to 30 days

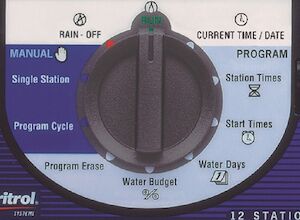

Total Control Controller for agricultural, commercial applications
Excluded day option
Excluded day option, when used with the odd/even day option, allows selection of specific day(s) not to water
Water budgeting feature
Water budgeting feature
Water budgeting feature changes all stations within a program from 10 – 200% in 10% increments

Specifications

Battery Type 9V Alkaline Battery
Dimensions 8 1/2 in. W x 8 1/2 in. H x 5 in. D
Electrical Input Power 120 VAC, 60 Hz
Number of Batteries Included 0
Number of Batteries Required 1
Number of Programs 4 Independent Programs
Number of Stations 9
Output Power 24 VAC, 1.67 amps
Run Time Up to 10 hours (1 minute increments)

Documents

Title Documents
Total Control 24 Station User's Guide PDF - Owner's Manual-en-us
Total Control Literature PDF - Brochure-en-us
Total Control Series Parts Breakout PDF - Sellsheet-en-us
Total Control User's Guide PDF - Owner's Manual-en-us



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
