Discontinued

DDC™WP Series Controller

Model: DDC™WP Series Controller

2-, 4-, 6-, or 8-station models
Unique power feature that verifies sufficient power to turn off valves before turning on
Three independent programs. Three start times per program.

Top

Overview

Looking for a rugged waterproof controller ideal for remote or isolated installations? Toro’s DDC™WP Series controller provides all that and more. Using the new potted DC latching solenoid, the DDC™WP is battery-operated using two 9V batteries.

Features

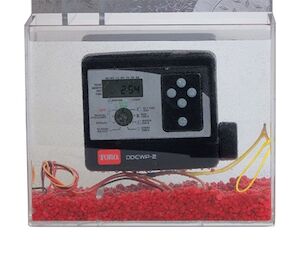

Fully Waterproof and Submersible

Submersible up to 6.5’ (2m) per IP-68 standards, allowing contractors to mount up to an 8-station controller in a valve box.

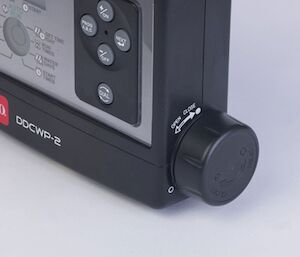

Operates DC Latching Solenoids

Controller is compatible with most manufacturers’ DC Latching solenoids.

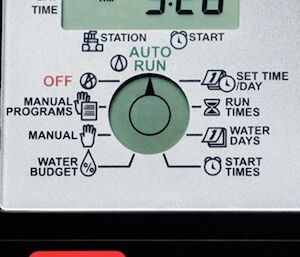

Exclusive “Digital Dial” Technology

Simple programming functions.

Unique Power Feature

Verifies sufficient voltage level for turning stations off before turning any stations on.

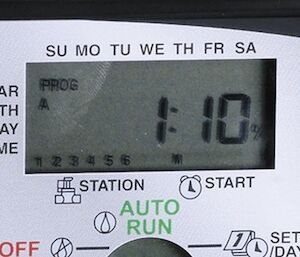

Monthly Watering Schedule

Monthly preset option – ideal for automatic runtime adjustments.

Specifications

Battery	Operates using two x 9V alkaline batteries
Dimensions	5¾” W x 5” H x 2” D (146mm x 127mm x 50mm)
Enclosures	Indoor - Waterproof; Outdoor - Waterproof
Number of Programs	3
Number of Stations	2,4,6,8
Operating Temperature	32°F to 140°F (0°C to 60°C)
Run Time	4 hours
Weight	23.3 oz (660.5 grams) without battery

Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
