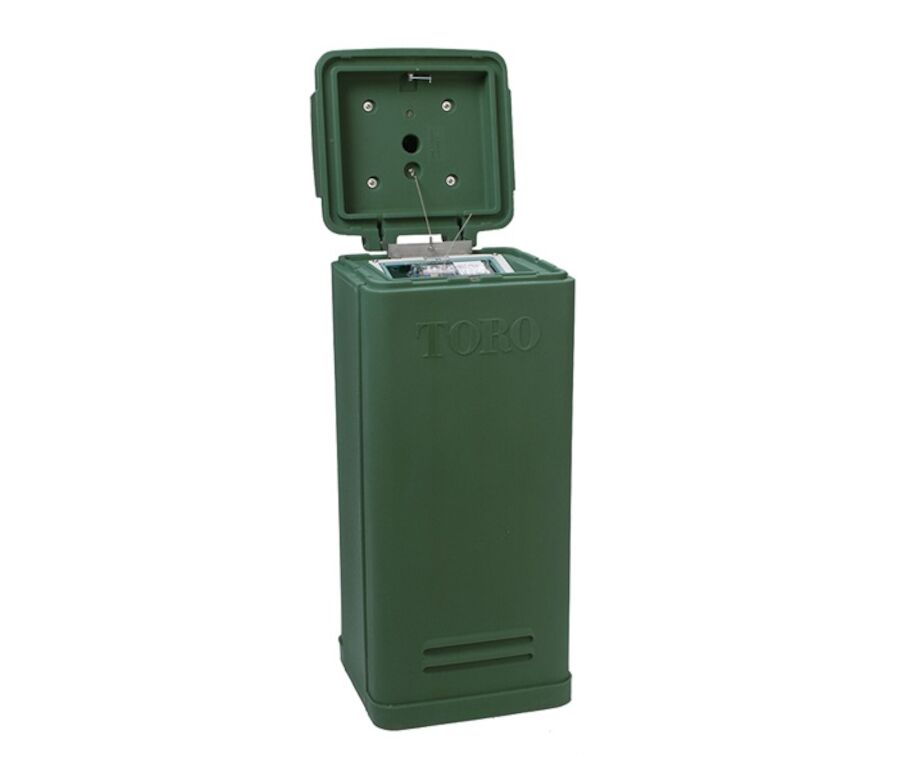

E-Series™ Osmac®

  • Model: E-Series™ Osmac®
  • Selectable 120- or 240-volt input voltage as a standard feature
  • Smart Osmac provides stand-alone operating capabilities for grow-in, daily use or central backup
  • A larger station count, offering up to 64 stations per controller when used with Lynx central software

Overview

From just a handful of stations to as many as you'll ever need, leave it to Toro to provide a full complement of options, while making your field hardware decisions simple.

Features

Enhanced surge protection
Enhanced surge protection
Provides lower operating costs on E-Series OSMAC field satellites. Ideal for high lightening areas.
Low cost wireless communication
Low cost wireless communication
Ideal choice for upgrading existing systems. No communication wires are needed. Mounts to many existing pedestal bolt patterns.

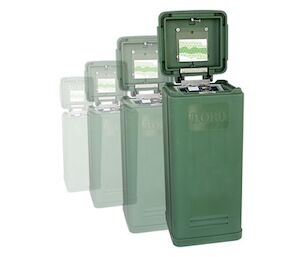

Easily expandable
Easily expandable
E-Series OSMAC offers up to 64 stations in eight-station increments.

Specifications

Dimensions Plastic: 17" (43.2 cm) W x 40" (101.6 cm) H x 16" (40.6 cm) D; Metal: 13" (33 cm) W x 36" H (91.4 cm) x 13" D (33 cm)
Output Power 24 V ac - 3.0 amps (max load)
Power INPUT: 120/240 V ac, 50/60 Hz = 0.20 amps 110-120 (no load); 0.96 amps, 110-120 (max load); 0.10 amps 220-240 (no load); 0.47 amps 220-240 (max load)



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
