Blue Stripe® Oval Hose

Drip irrigation hose for submain and mainline applications
  • Model: ELD3570-040
See All Items in Blue Stripe® Oval Hose
  • Large diameter sizes for submain and mainline applications as a cost effective alternative to PVC. Smaller diameters can be used in lateral run applications on permanent crops
  • When pressurized Oval Hose becomes round just like standard Blue Stripe round hose – offers freight savings of up to 50%
  • The unique Oval configuration allows you to reduce storage space

Overview

Oval Hose polyethylene tubing is manufactured from high quality linear low density resins and is built for tough and dependable operation in the field. It is the alternative to expensive and cumbersome PVC, providing easy installation without developing holes or leaking. Oval Hose can be used as a mainline or submain, or as a lateral line in a permanent crop applications.

Features

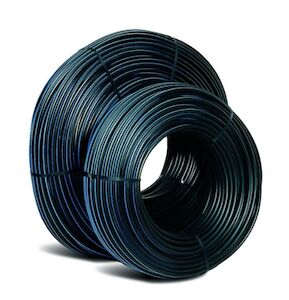

Blue Stripe Hose Small and Large Reels
Diameter sizes
Large diameter sizes for submain and mainline applications as a cost effective alternative to PVC. Smaller diameters can be used in lateral run applications on permanent crops

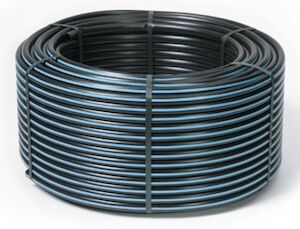

When pressurized Oval Hose becomes round just like standard Blue Stripe round hose
When pressurized Oval Hose becomes round just like standard Blue Stripe round hose
When pressurized Oval Hose becomes round just like standard Blue Stripe round hose – offers freight savings of up to 50%

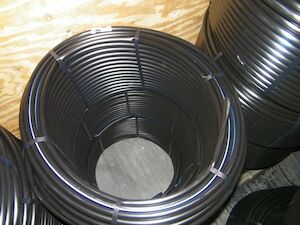

Blue Stripe Oval Hose
The unique Oval configuration
The unique Oval configuration allows you to reduce storage space

Specifications

Coil length 400 ft (122 m)
Diameter 1-1/4" ID (35mm ID)
Material Polyethylene
Strip Colors Available Blue
Wall Thickness 70 (0.070")
Working Pressure 42 psi

Documents

Title Documents
Blue Stripe® Oval Hose PDF - Brochure-en-us
BlueStripe® Manguera ovalada PDF - Brochure-en-us
Drip Irrigation Systems Row Crops PDF - Sellsheet-en-us
Sistemas de Riego por Goteo para Cultivos en Hileras PDF - Brochure-en-us



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
